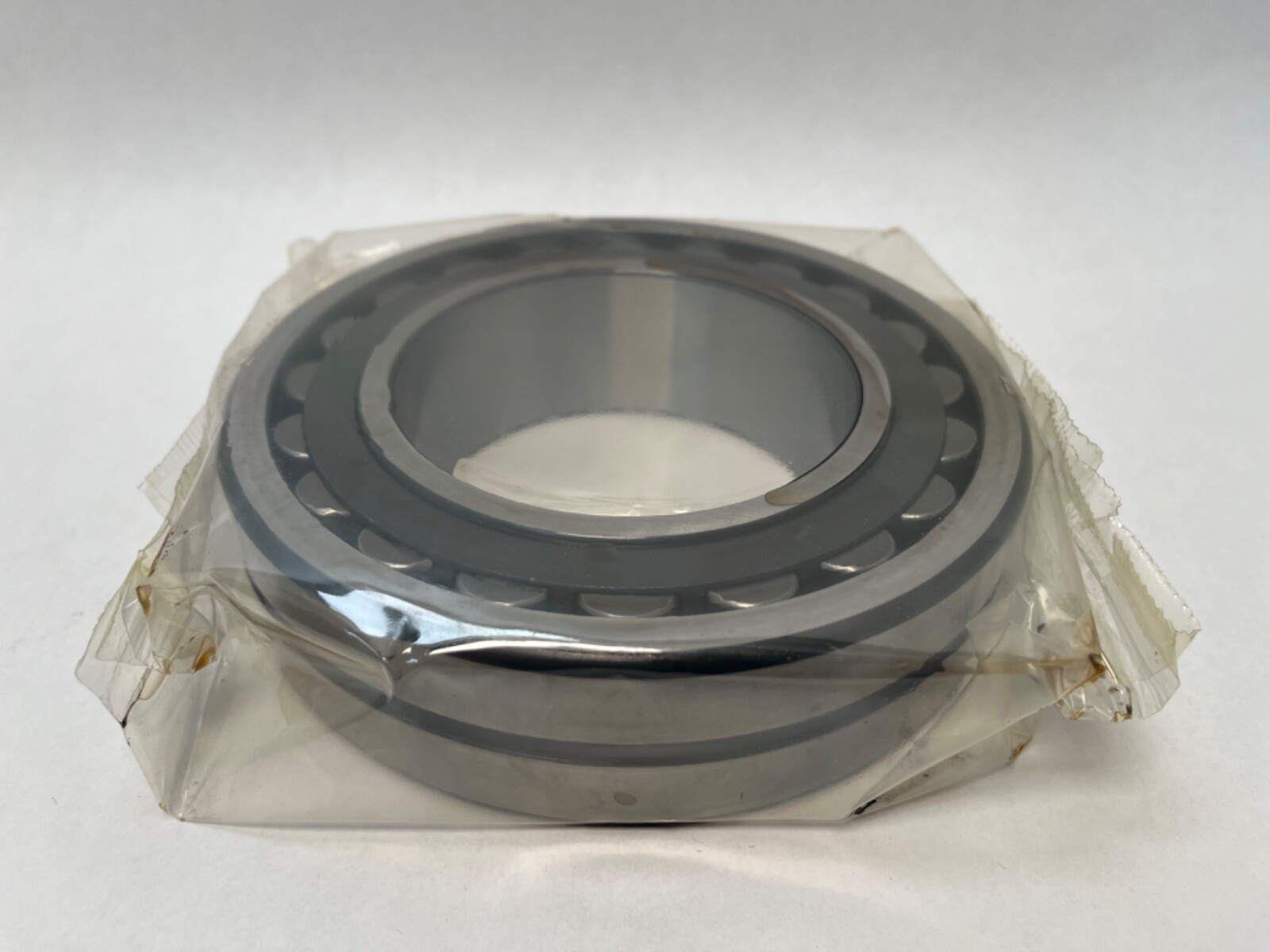

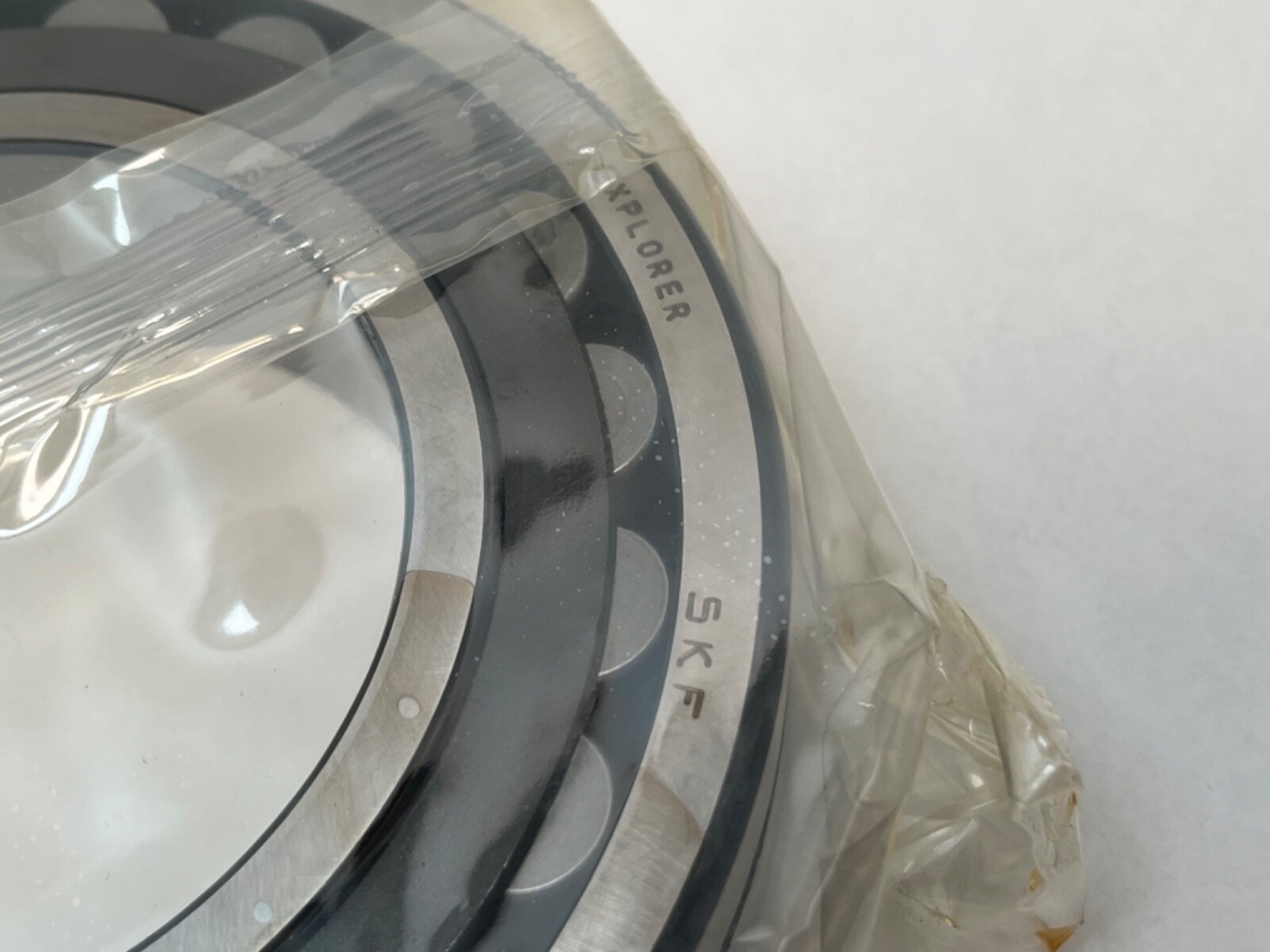

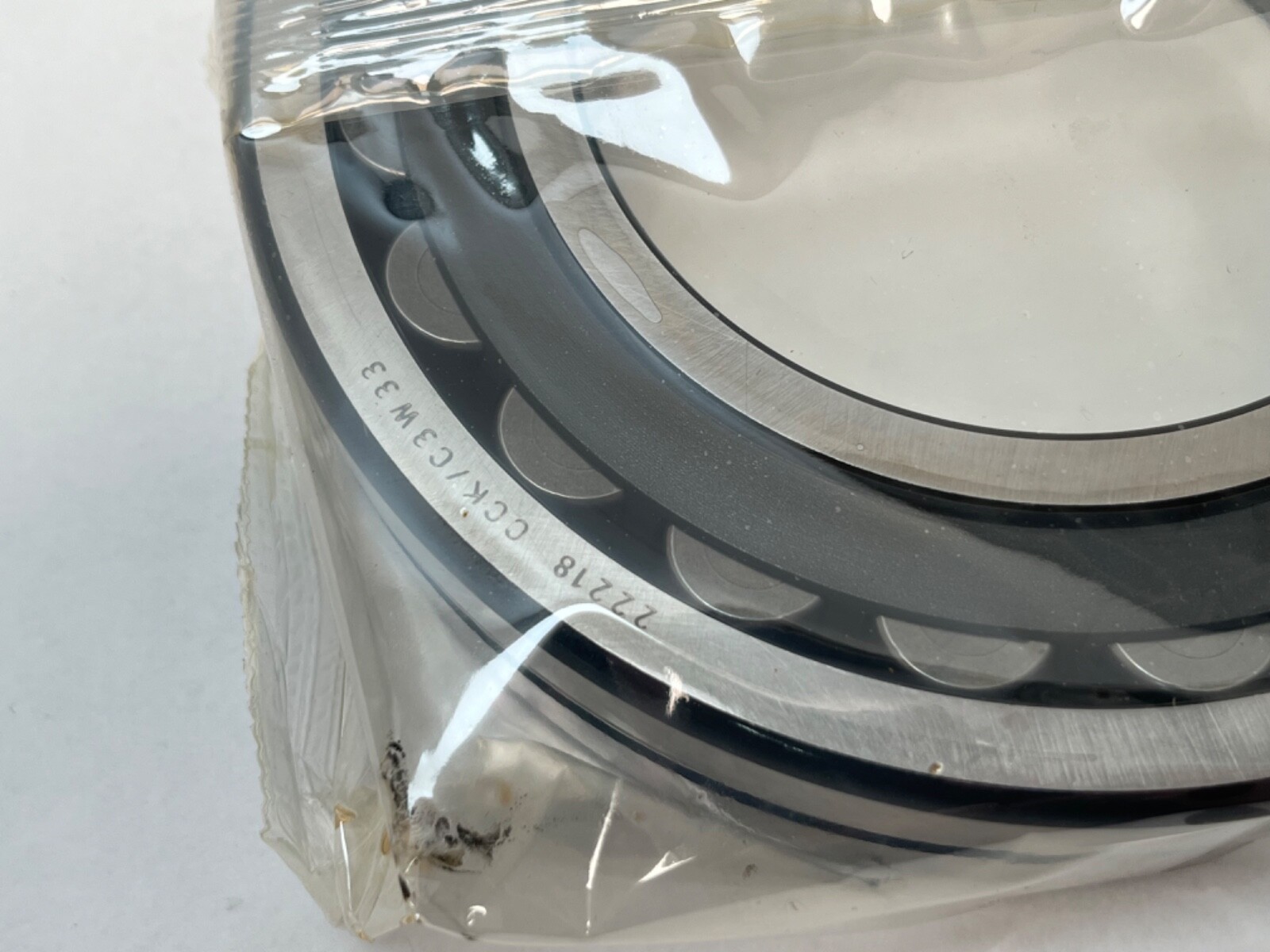

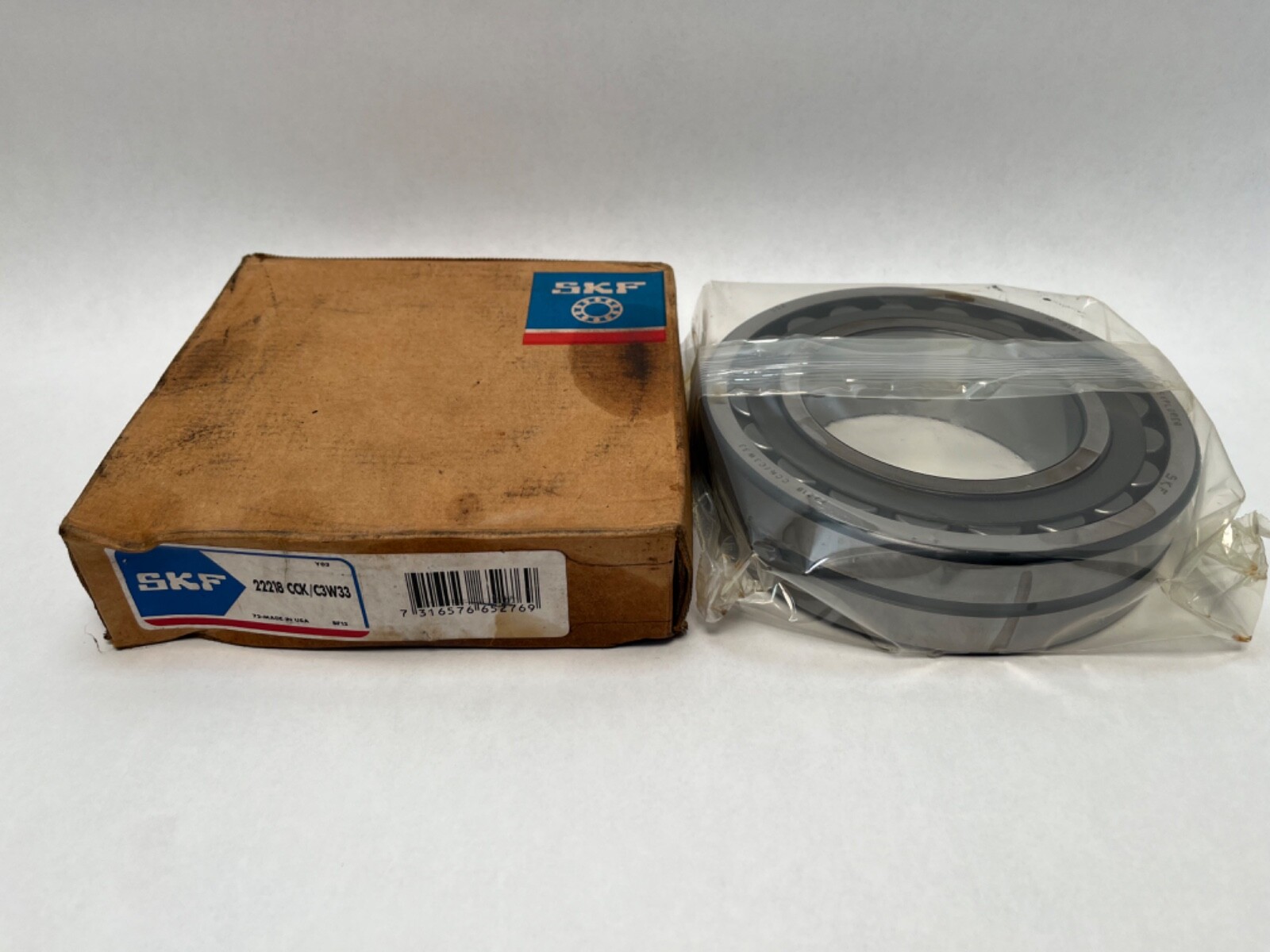

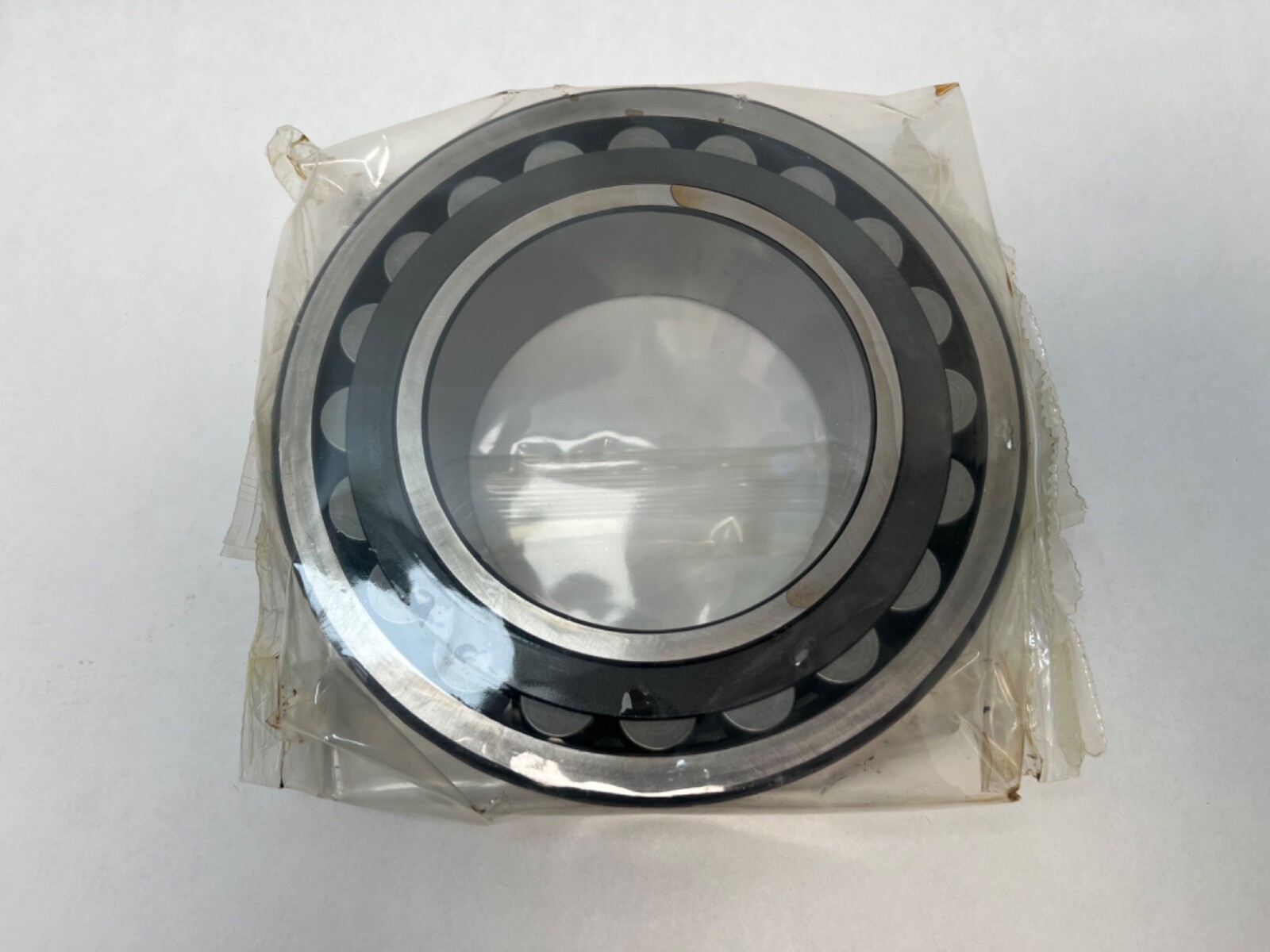

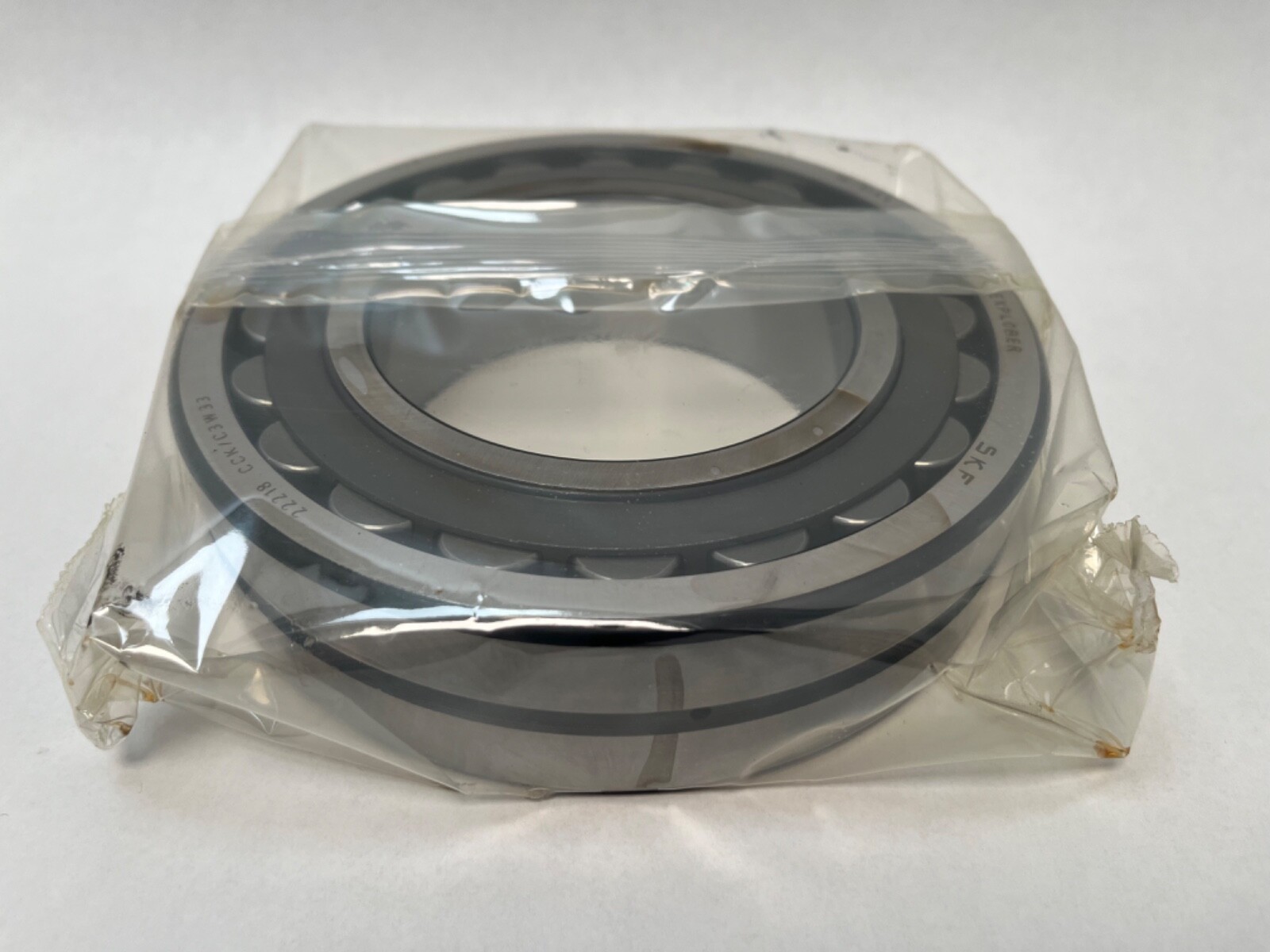

Spherical roller bearing, 90 x 160 x 40 mm, 1:12 tapered bore, C3 clearance, W33 lubrication groove and holes. SKF CC design with pressed steel window cages.
List Price
$175.02
6 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | SKF |
|---|---|
| MPN | 22218 CCK/C3W33 |
| Model | 22218-CC-K-C3-W33 |
| Bearing Type | Spherical Roller Bearing, Open |
| ID | 90 mm |
| OD | 160 mm |
| Width | 40 mm |
| Series | 22200 |
|---|---|
| Lubricant | grease or oil |
| Bore | Taper Bore |
| Cage Type | Two window-type cages with guide ring |
| Rolling Elements | Spherical Roller |
| Cage Material | Pressed steel |
| Number Of Rows | 2 |
| Bore Type | Tapered 1:12 |
| Snap Ring Included | No |
| Internal Clearance | C3 |
| Relubrication Feature | W33 groove and three lubrication holes |
| Harmonization Code | 8482.30.00 |
| Industry Terms | spherical roller bearing; tapered bore spherical roller; self-aligning roller bearing; W33 spherical roller; 90mm bore SRB |
| Common Misspellings | SKF 22218 CKK/C3W33; SKF 22218CCK C3 W33; SKF 22218 CCK/C3-W33; SKF 22218 CCKC3W33 |
| Application Types | Industrial gearboxes; conveyors; fans and blowers; pumps; mining and aggregate equipment |
| Mpn Variants | 22218 CCK/C3W33; 22218CCKC3W33; 22218-CC-K-C3-W33; 22218 CCK/C3 W33 |
| Closure Type | Open |
| Cross Reference 1 | SKF 22218 EK/C3 (SKF-listed replacement) |
|---|---|
| Cross Reference 2 | FAG 22218-E1-K-C3 - later high-capacity design |
| Cross Reference 3 | NSK 22218CDKE4C3 - later high-capacity design |
| Cross Reference 4 | Timken 22218KEJW33C3 - later high-capacity design |
| Cross Reference 5 | NTN 22218EAKW33C3 - later high-capacity design |
SKF 22218 CCK/C3W33 double-row spherical roller bearing with a 1:12 tapered bore, open. Bore 90 mm, outside diameter 160 mm, width 40 mm. CC design with two window-type pressed steel cages and a loose guide ring. Unit Quantity: 1 Pc.
22218 — SKF spherical roller bearing, 222 dimension series, bore code 18, 90 x 160 x 40 mm.
CC — two window-type pressed steel cages with a loose guide ring between the roller rows.
K — tapered bore, taper 1:12.
C3 — radial internal clearance greater than normal.
W33 — annular groove and three radial lubrication holes in the outer ring.
Bore Diameter: 90 mm. Outside Diameter: 160 mm. Overall Width: 40 mm. Bore Type: Tapered 1:12. Internal Clearance: C3. Rolling Elements: Spherical Roller. Number Of Rows: 2. Closure Type: Open. Cage Material: Pressed steel. Cage Type: Two window-type cages with guide ring. Lubricant: grease or oil. Relubrication Feature: W33 groove and three lubrication holes. Series: 22200. Harmonization Code: 8482.30.00. Unit Quantity: 1 Pc.
Bore Diameter: 90 mm. Outside Diameter: 160 mm. Overall Width: 40 mm. The 1:12 tapered bore takes an H318 adapter sleeve (80 mm shaft seat) with a KM18 lock nut and MB18 lock washer, or a tapered shaft seat.
SKF lists 22218 EK/C3 as the current replacement for this designation. Later high-capacity designs on the same 90 x 160 x 40 mm tapered-bore C3 envelope: FAG 22218-E1-K-C3, NSK 22218CDKE4C3, Timken 22218KEJW33C3, NTN 22218EAKW33C3.
Bore 90 mm, outside diameter 160 mm, width 40 mm, with a 1:12 tapered bore.
CC is two window-type pressed steel cages with a loose guide ring, C3 is radial internal clearance greater than normal, and W33 is an outer ring groove with three radial lubrication holes.
SKF lists the 22218 EK/C3 as the current replacement.
