Double-row spherical roller bearing, 50 mm tapered 1:12 bore x 110 mm OD x 27 mm wide, open, pressed steel cages, CN clearance, 1.5 degrees misalignment.
List Price
$55.73
2 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | SKF |
|---|---|
| MPN | 21310 CCK |
| Model | 21310CCK / 21310CK 21310CKJ 21310CCKJ |
| Bearing Type | Spherical Roller Bearing, Open |
| ID | 50 mm |
| OD | 110 mm |
| Width | 27 mm |
| Material | Chrome Steel |
|---|---|
| Series | 21300 |
| Base Number | 21310 |
| Industry Terms | spherical roller bearing; self-aligning roller bearing; taper bore roller bearing; adapter sleeve bearing; 21310 bearing |
| Common Misspellings | 21310 CKC; 21310-CCJK; 2131OCCK; SKF 21310 sperical; 21310 spherical rolller |
| Application Types | Gearboxes, fans and blowers, conveyors, crushers, vibrating screens, pumps, plain-shaft mountings using an adapter sleeve |
| Bore Shaft Size | 50 mm nominal (1.9685 in), tapered 1:12 |
| Mpn Variants | 21310CCK; 21310-CCK; 21310 CCK; 21310CK; 21310-CC-K; 21310CKJ; 21310CCKJ; 21310 CC K |
| Compatible With Replaces | Adapter sleeve H310; KM 10 locknut; MB 10 lockwasher |
| Rolling Elements | Spherical Roller |
| Cage Material | Pressed steel |
| Number Of Rows | 2 |
| Bore Type | Tapered 1:12 |
| Snap Ring Included | No |
| Harmonization Code | 8482.30.00.80 |
| Internal Clearance | CN (normal) |
| Part Number | 21310CCK |
| Maximum Permissible Misalignment | 1.5° |
| Cross Reference 1 | SKF 21310 CC (related size; straight bore, no sleeve) |
|---|

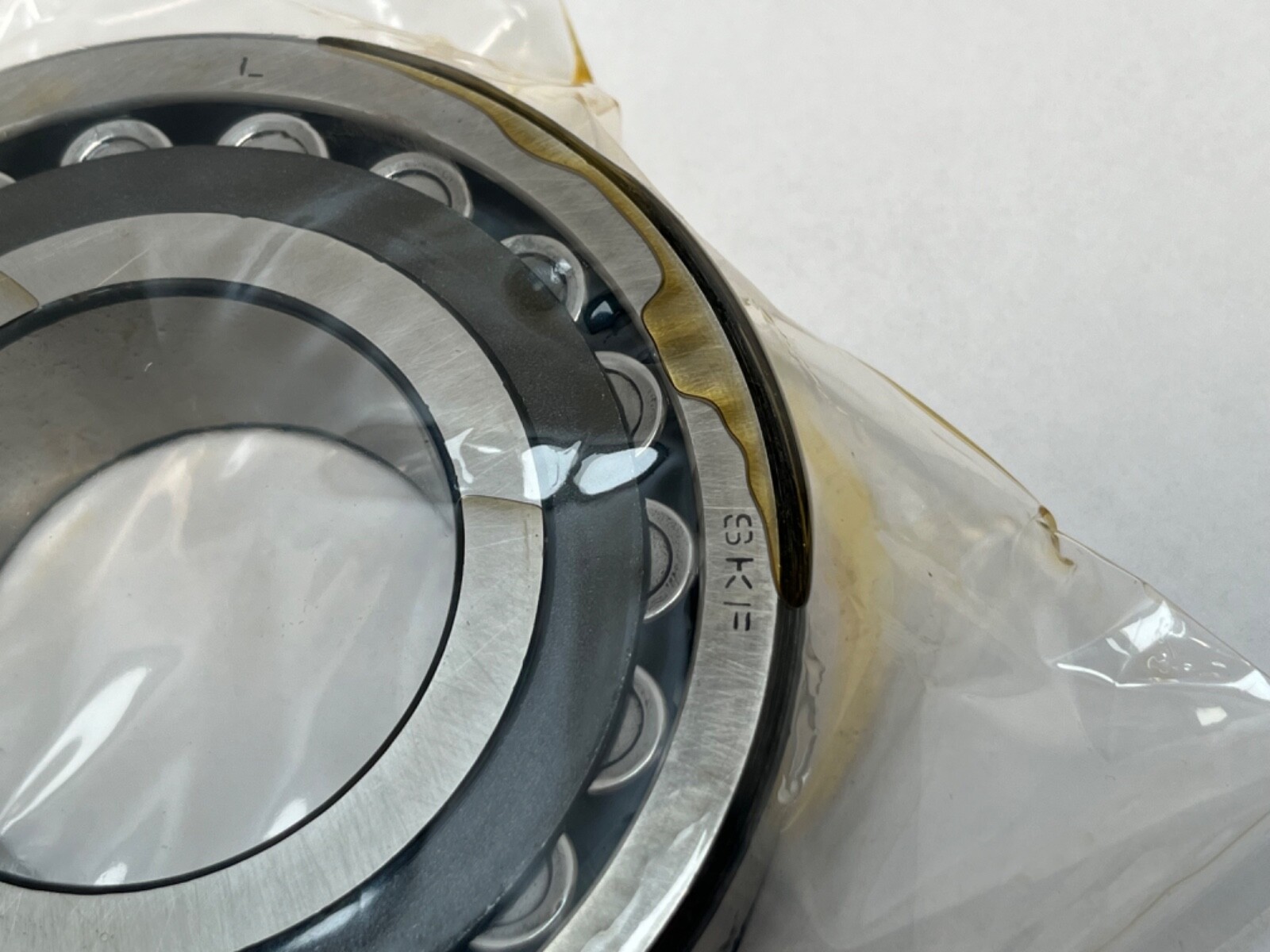

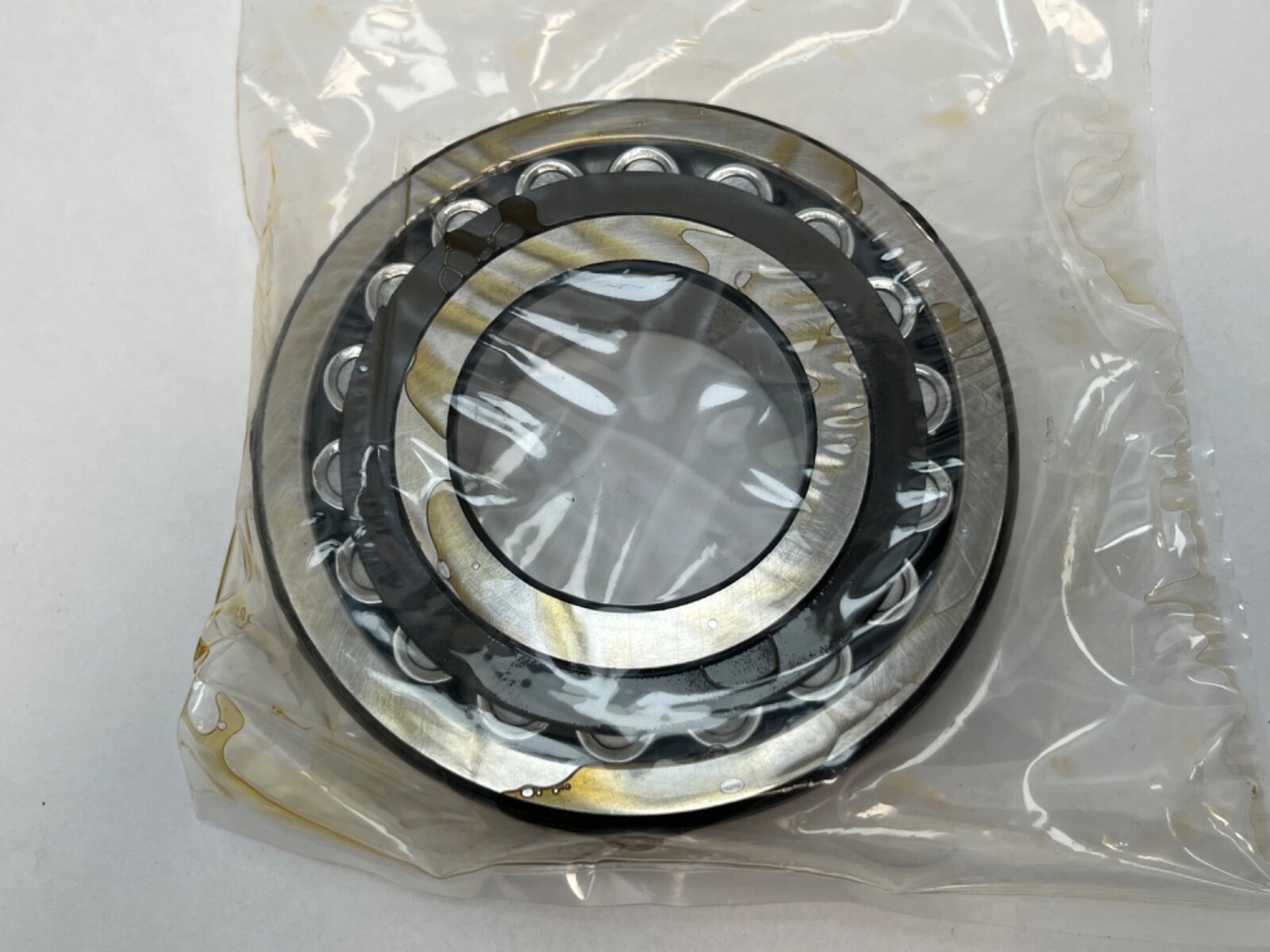

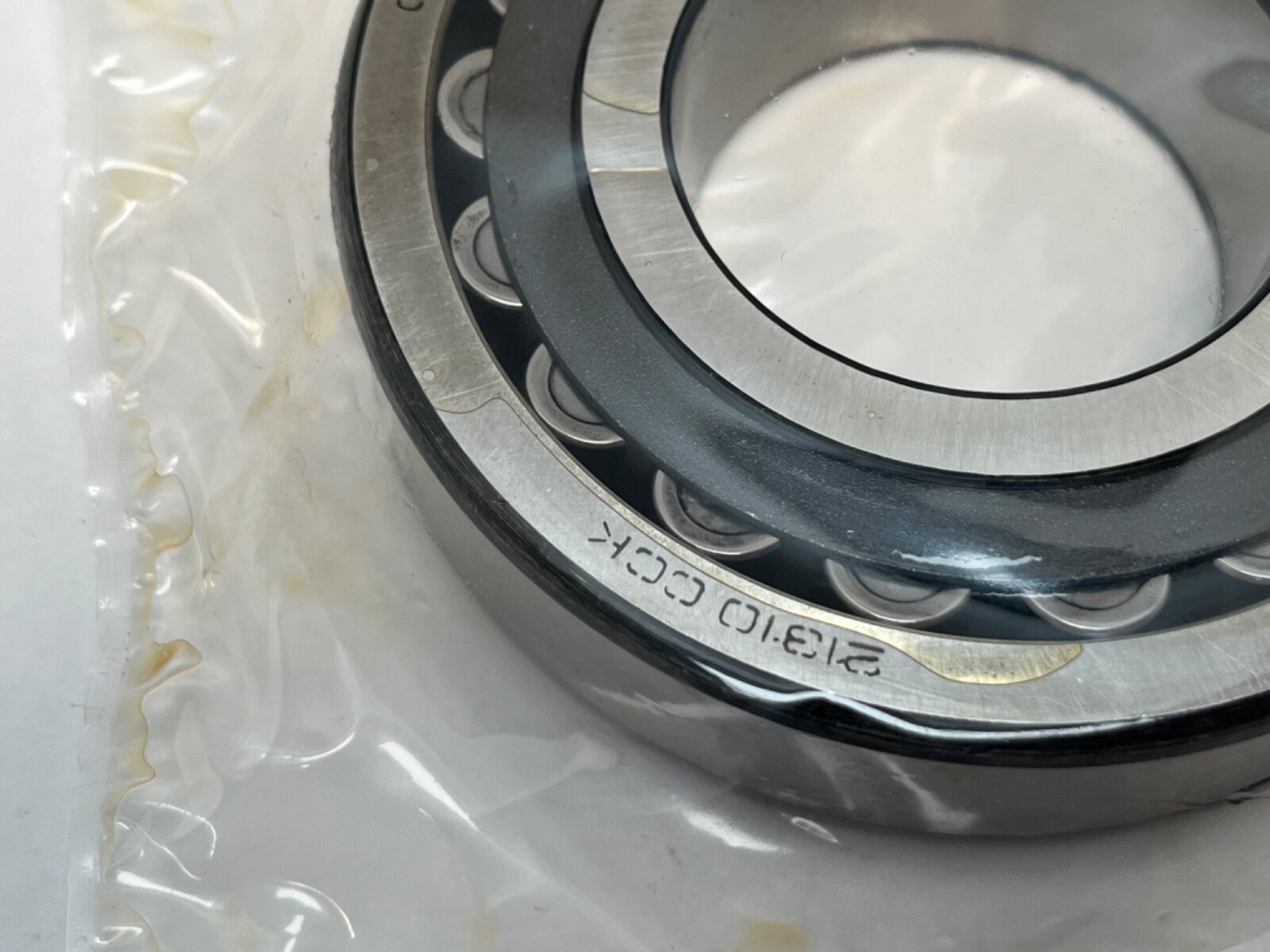

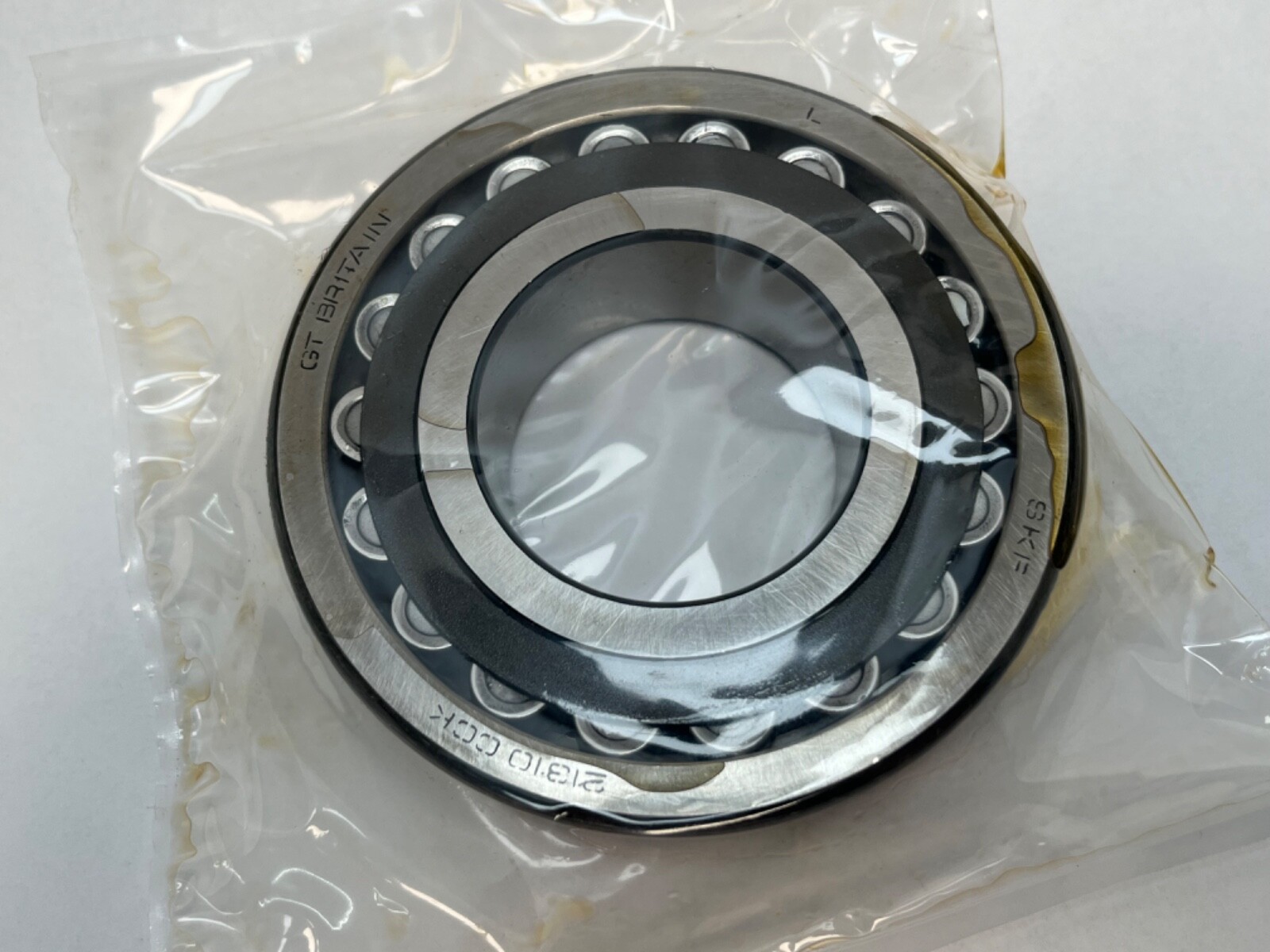

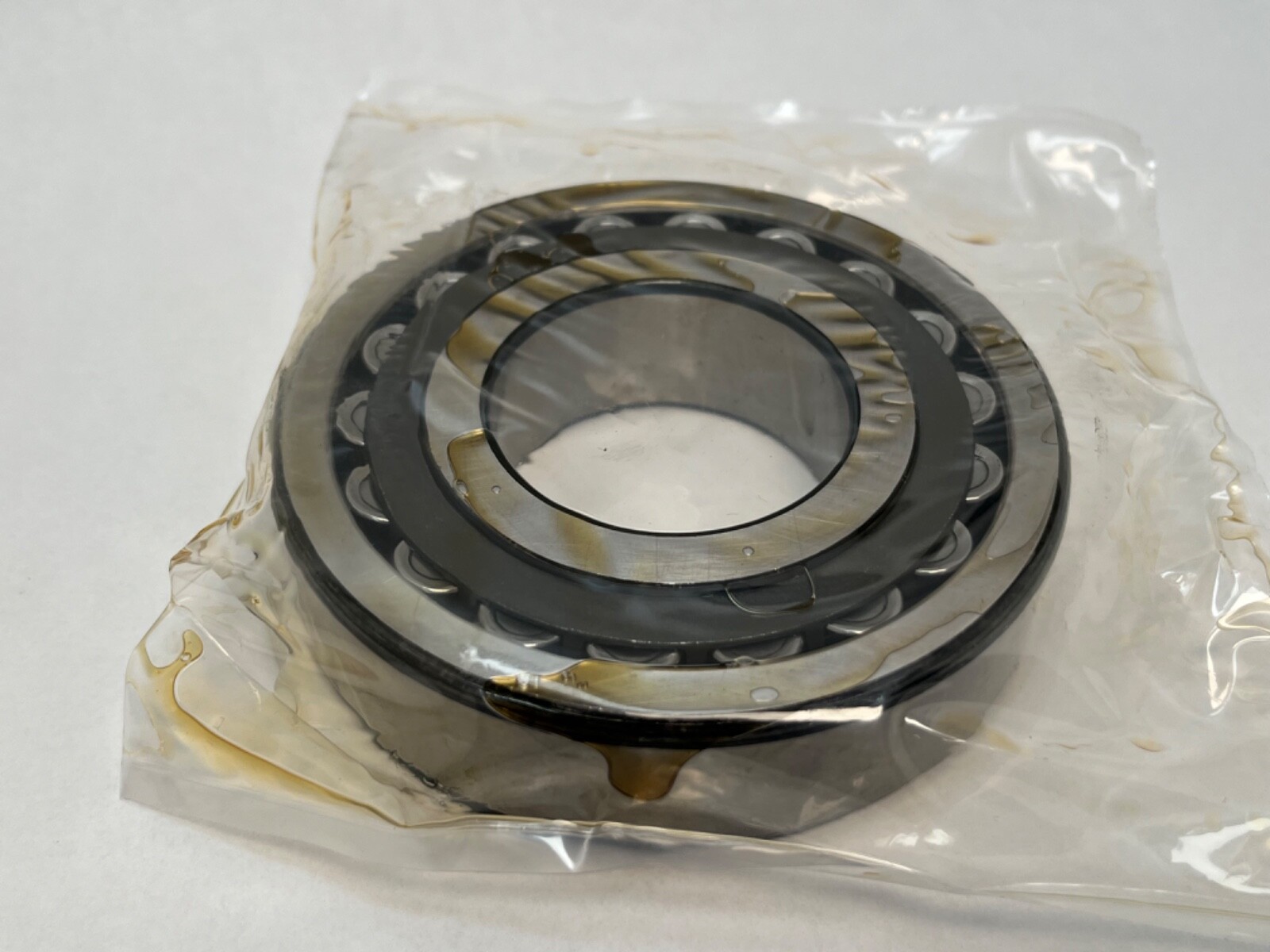

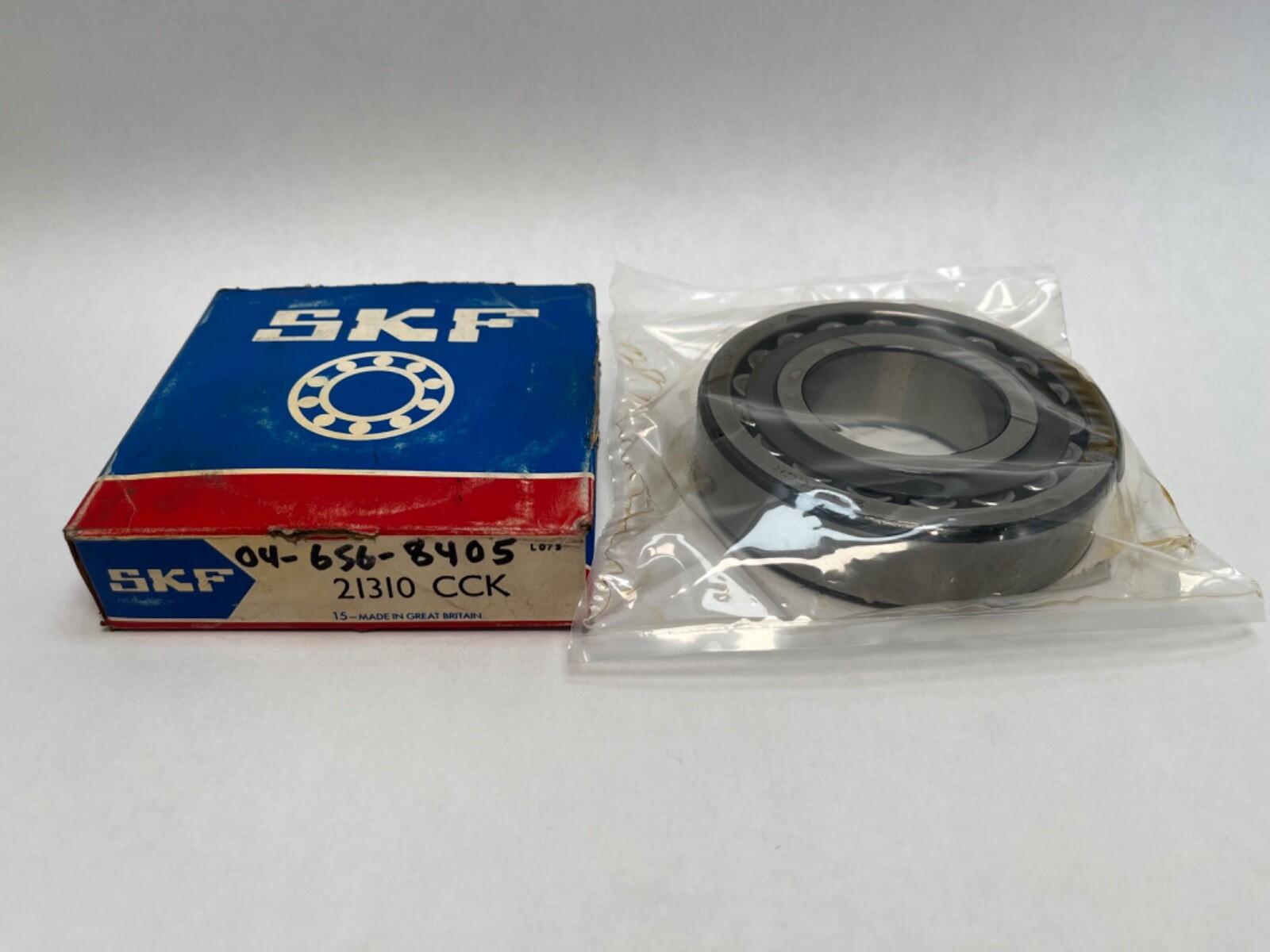

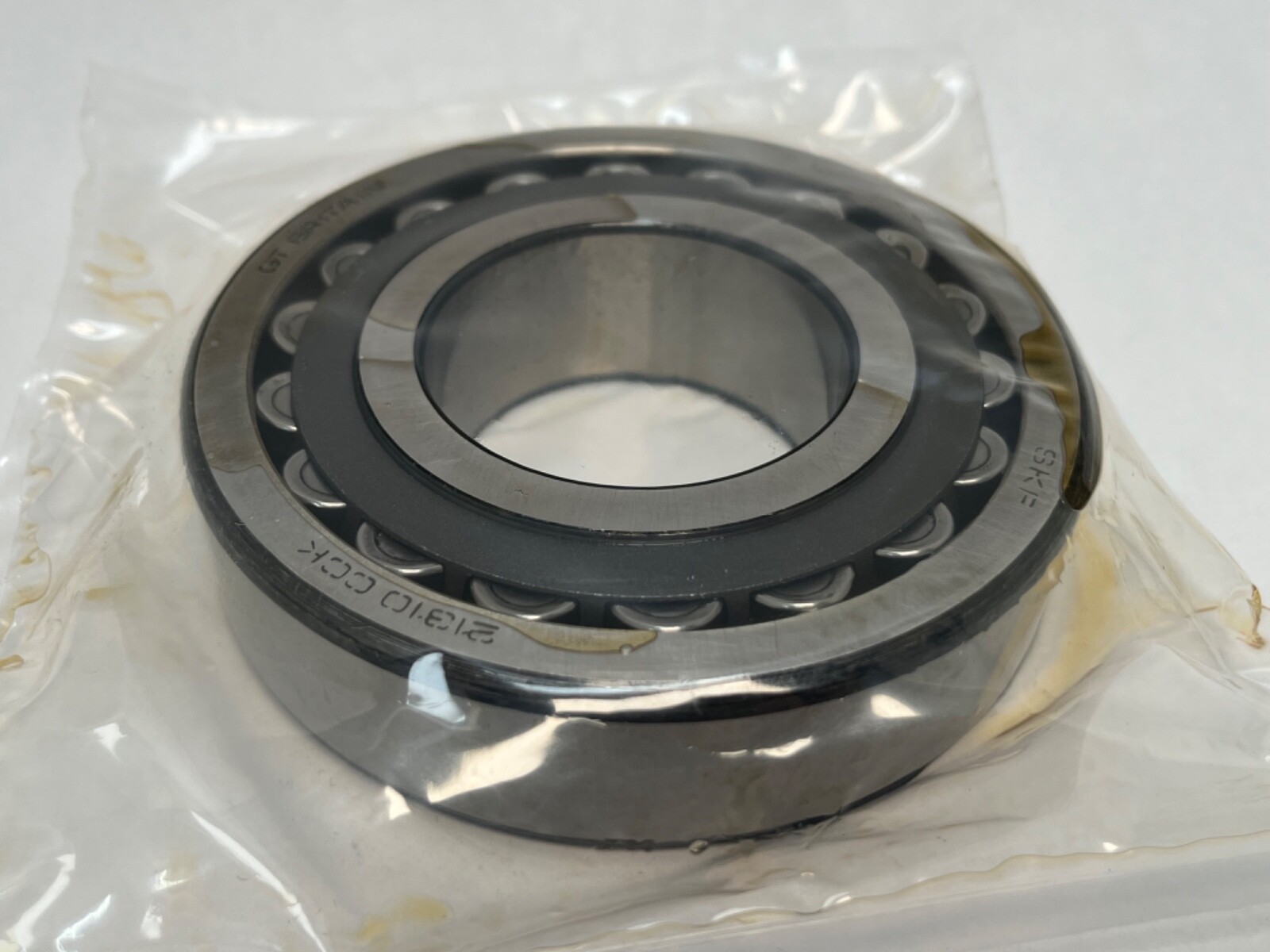

A double-row spherical roller bearing in the SKF 213 series with a tapered bore. Nominal bore 50 mm, outside diameter 110 mm, width 27 mm. Two rows of barrel-profile rollers run on a common spherical outer raceway, so the assembly accommodates up to 1.5° of shaft-to-housing misalignment while carrying heavy radial load and thrust in both axial directions.
21310 — ISO base: 213 dimension series, bore code 10 for a 50 mm nominal bore.
CC — SKF cage and internal design code: two pressed steel window cages with an inner ring guide ring.
K — 1:12 tapered bore.
No clearance suffix — internal clearance is normal, CN.
Bore Diameter: 50 mm (1.9685 in), 1:12 tapered. Outside Diameter: 110 mm. Width: 27 mm. Rolling Elements: Spherical Roller. Number Of Rows: 2. Bore Type: Tapered 1:12. Seal Type: Open. Cage Material: Pressed steel. Internal Clearance: CN (normal). Maximum Permissible Misalignment: 1.5°. Series: 213 series (21300). Base Number: 21310. Material: Chrome Steel. Unit Quantity: 1 Pc.
The 1:12 tapered bore mounts on a tapered adapter sleeve over a plain cylindrical shaft. Matching accessories: adapter sleeve H310, KM 10 locknut, MB 10 lockwasher. The 213 series is the shallow cross-section spherical roller family.
Straight-bore 21310 CC shares the envelope but seats directly on a machined shaft step and takes no adapter sleeve. MPN variants: 21310CCK; 21310-CCK; 21310 CCK; 21310CK; 21310-CC-K; 21310CKJ; 21310CCKJ; 21310 CC K.
A 1:12 tapered bore.
Two pressed steel window cages with an inner ring guide ring.
50 mm nominal bore, 110 mm outside diameter, 27 mm width.
