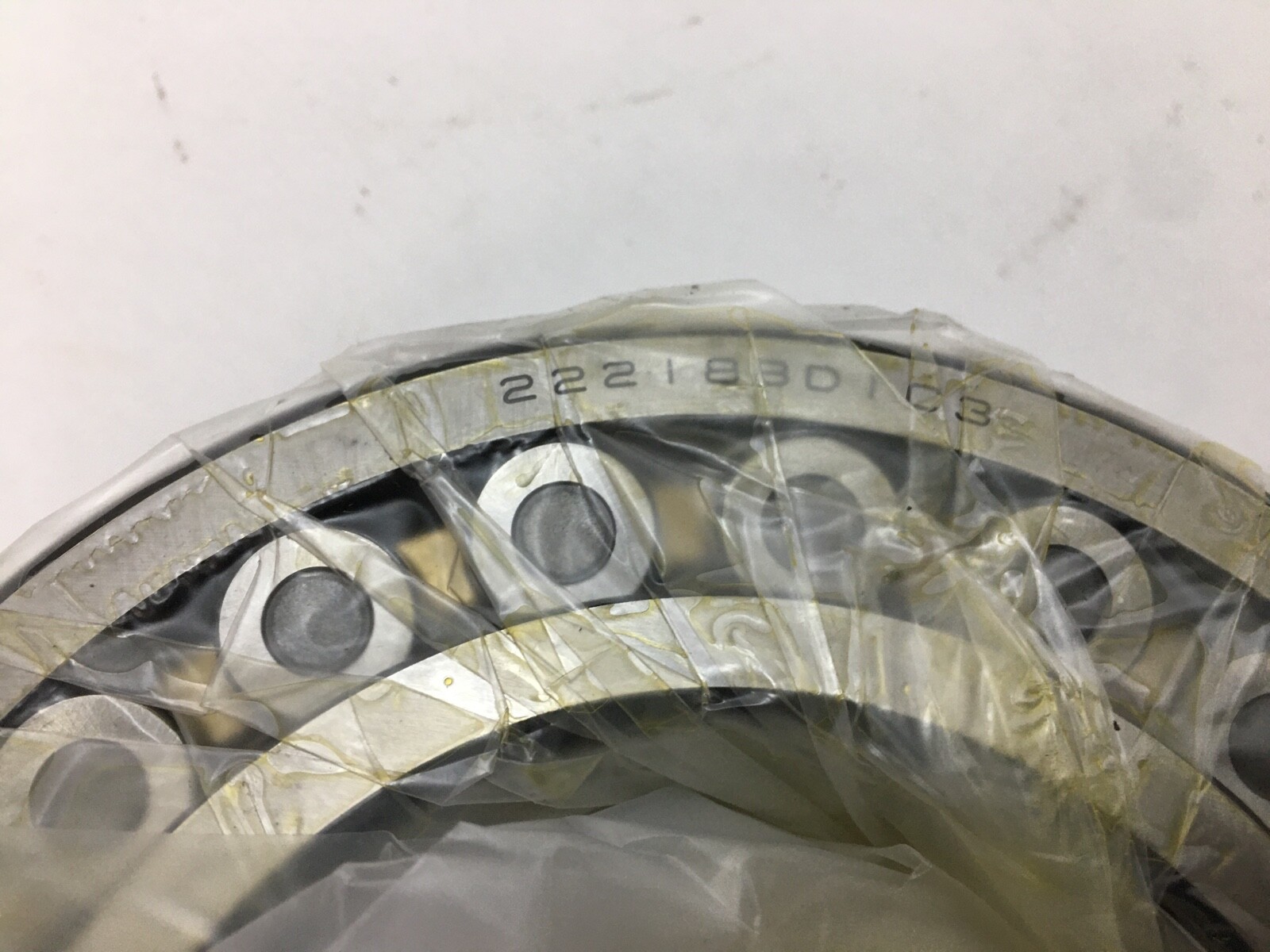

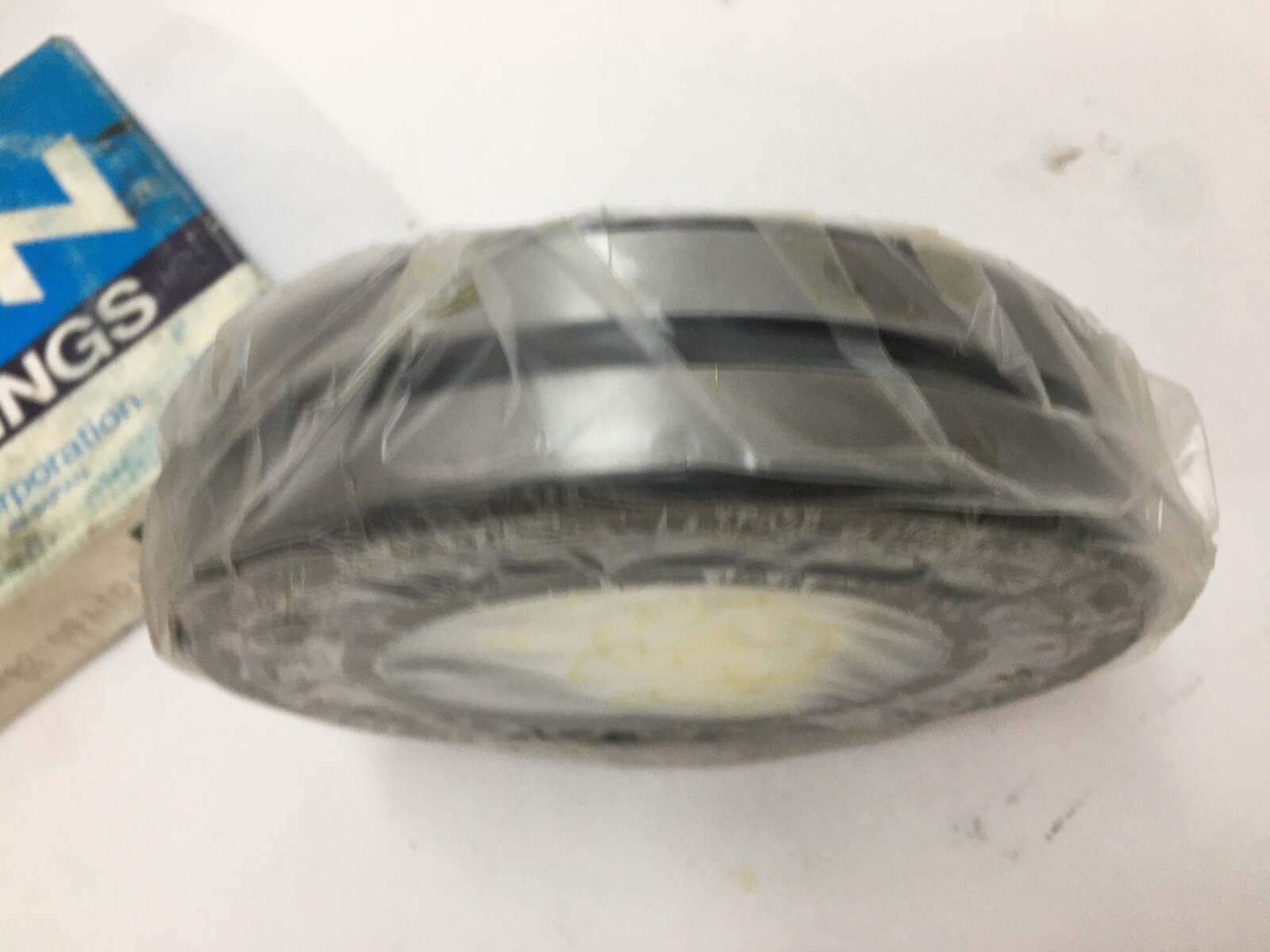

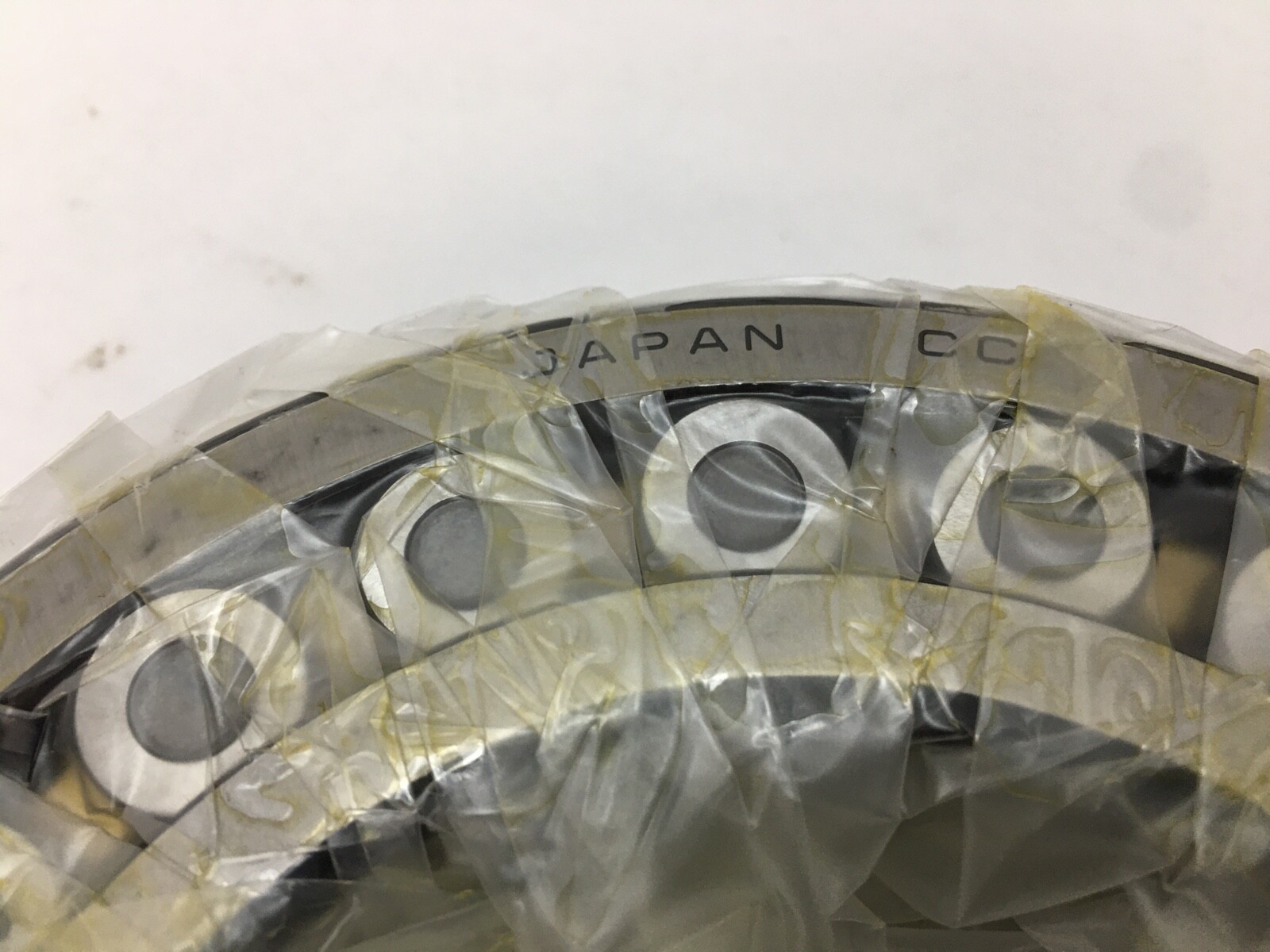

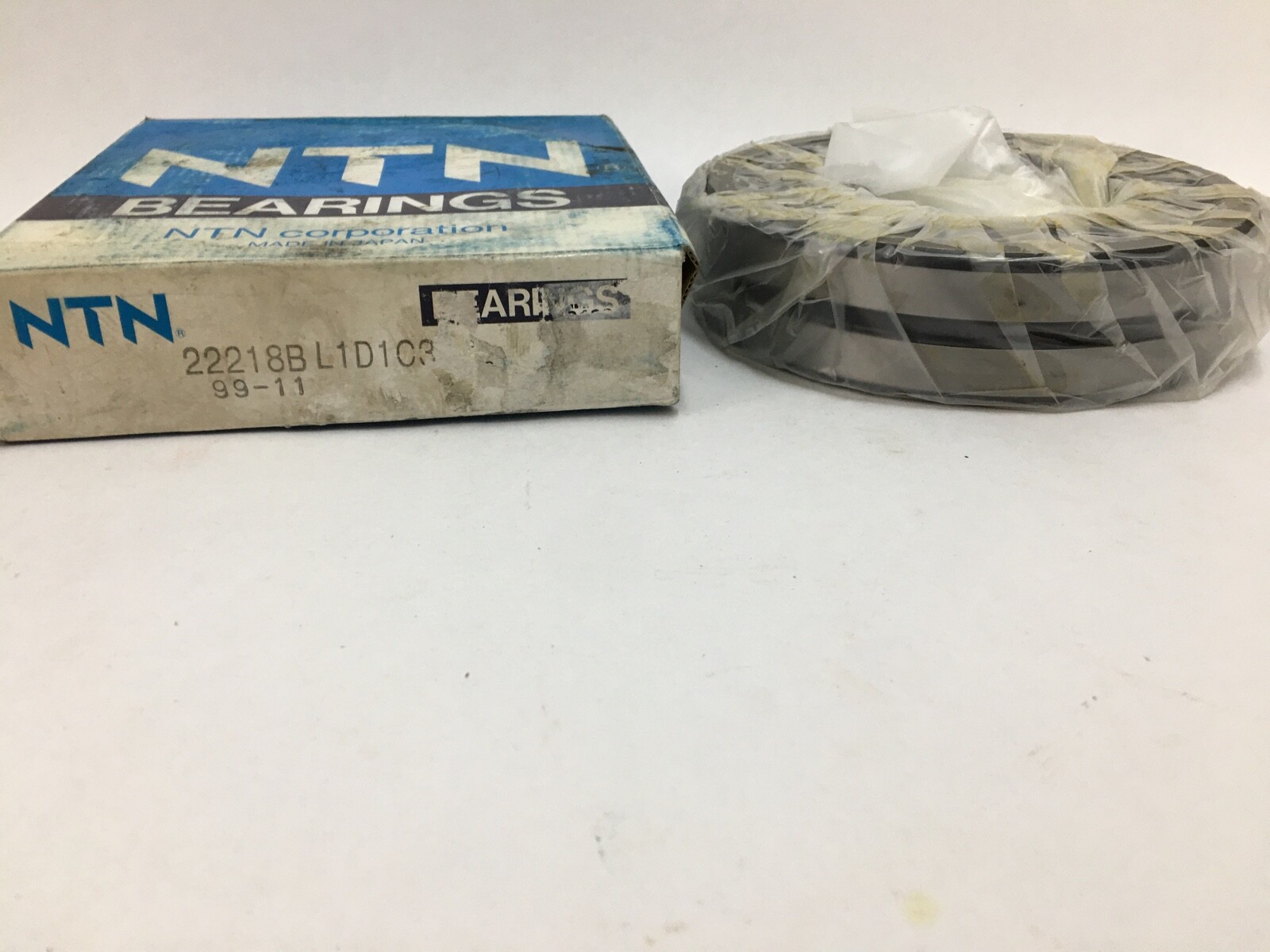

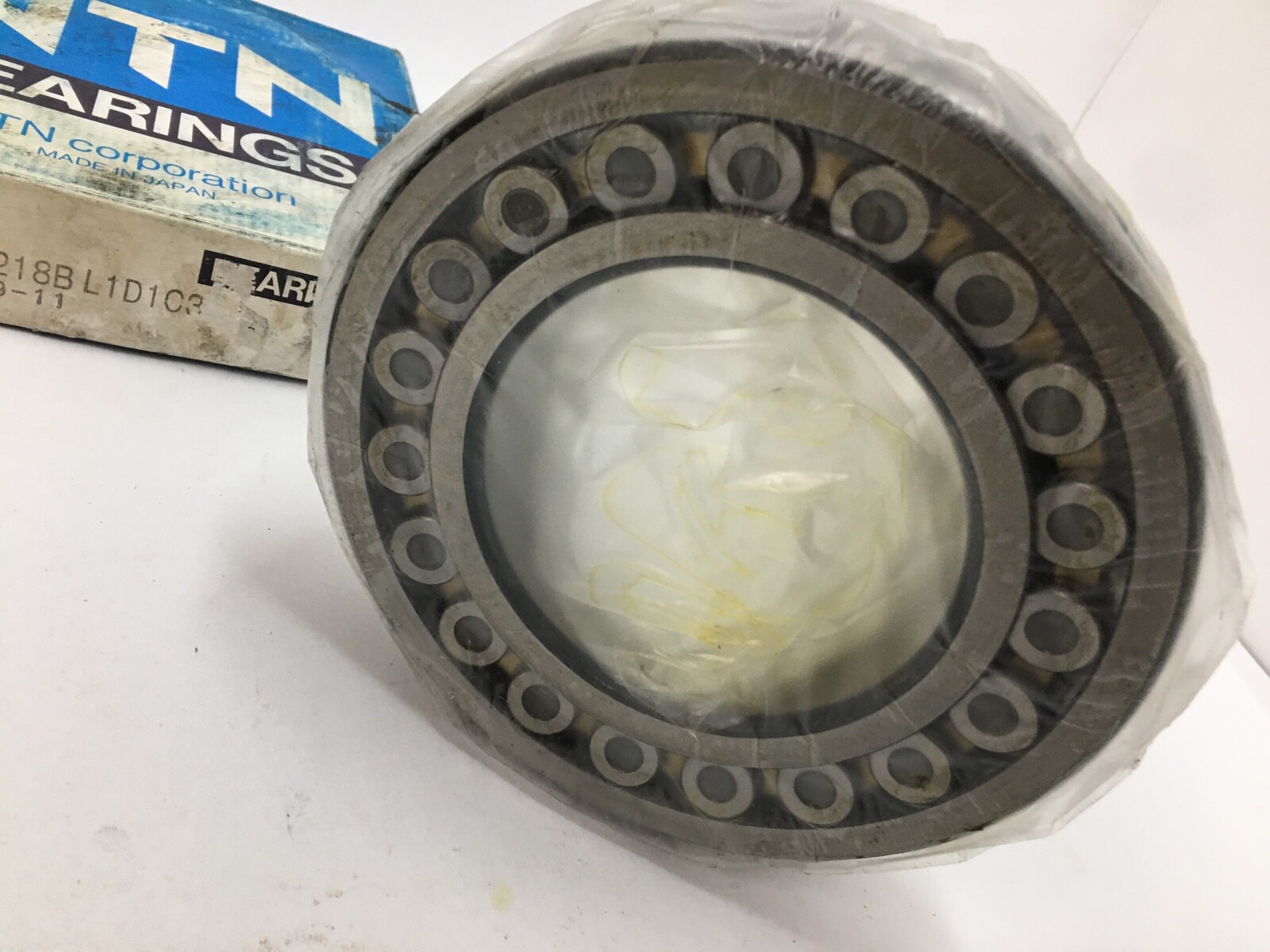

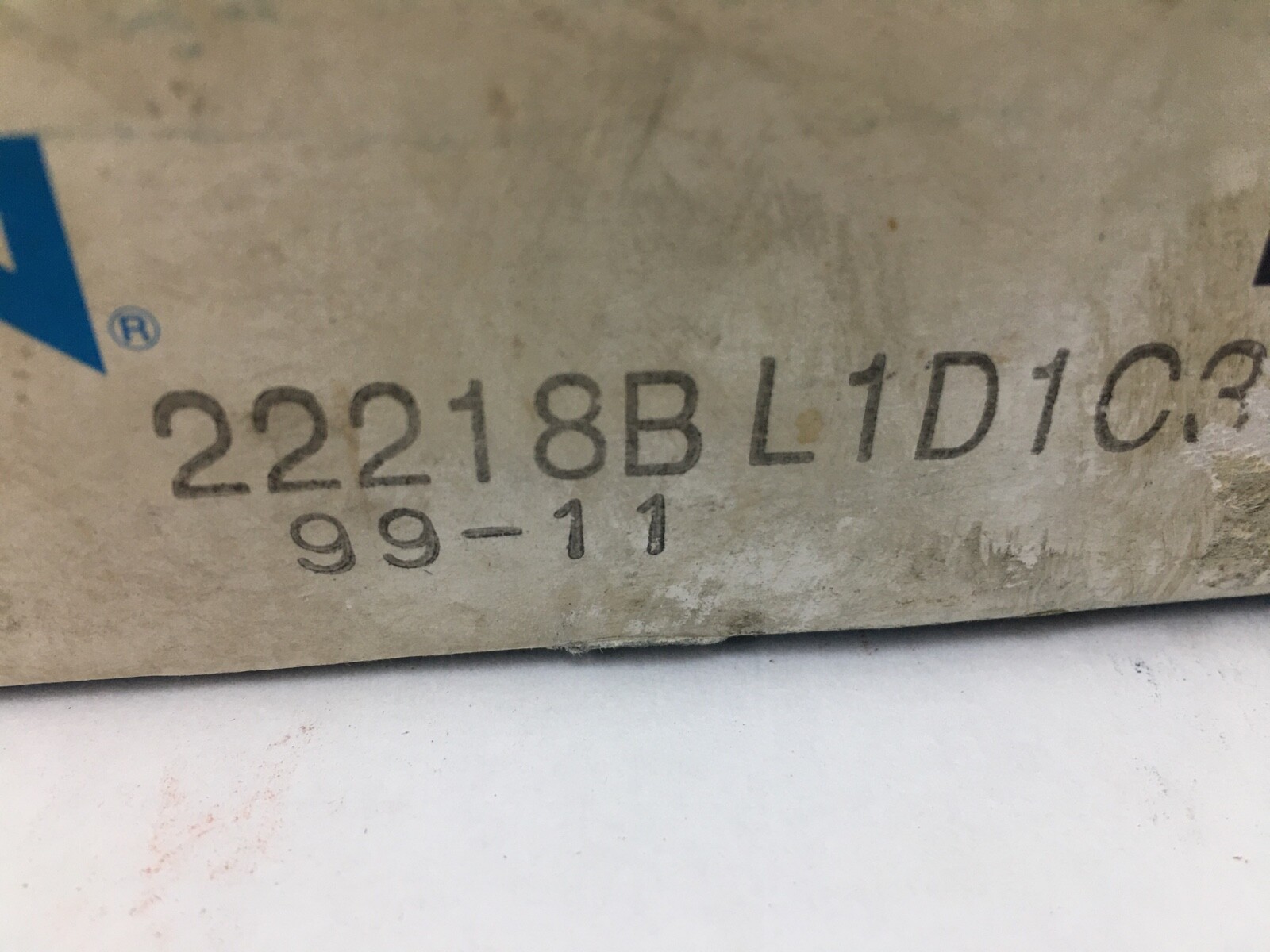

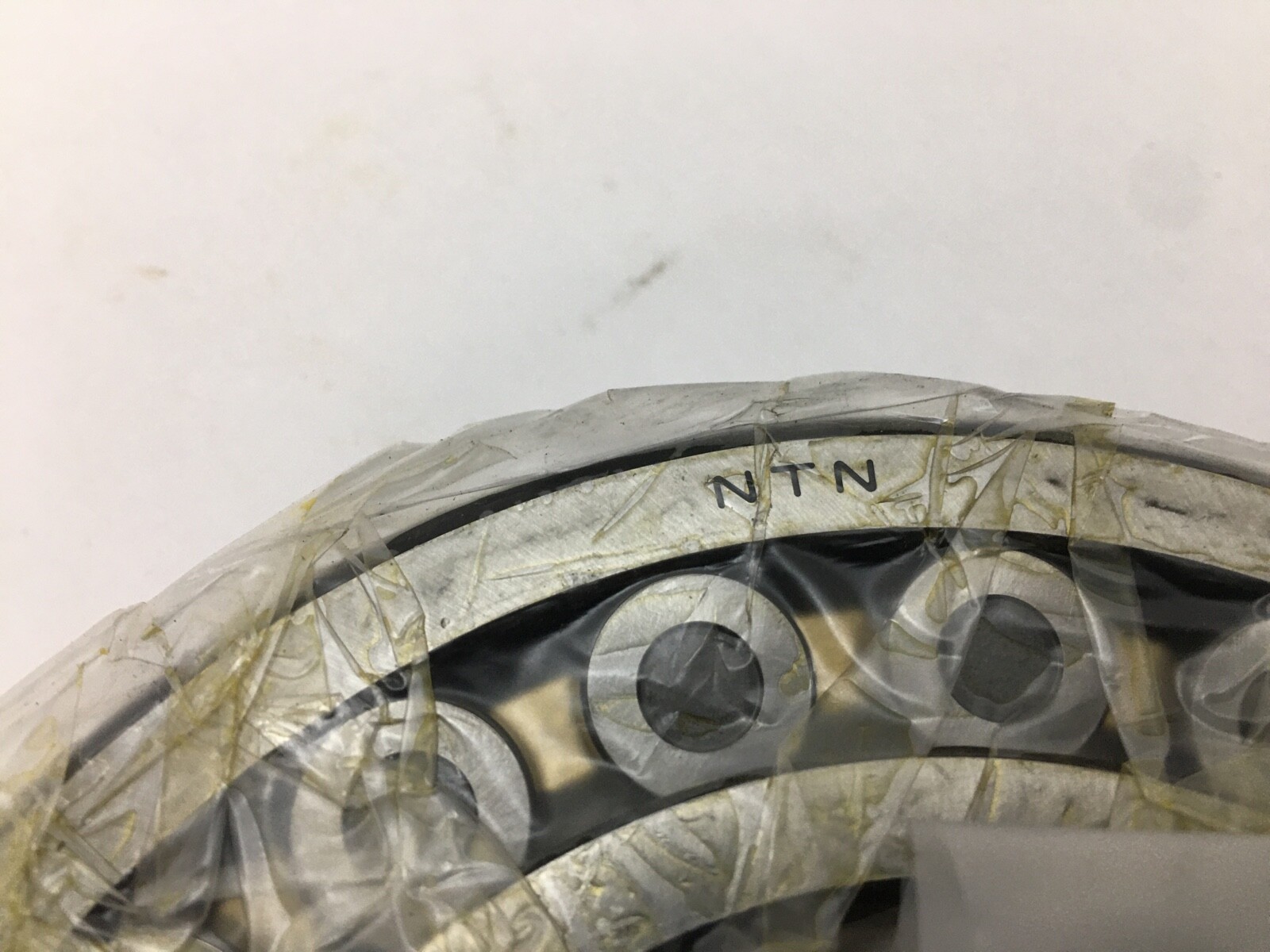

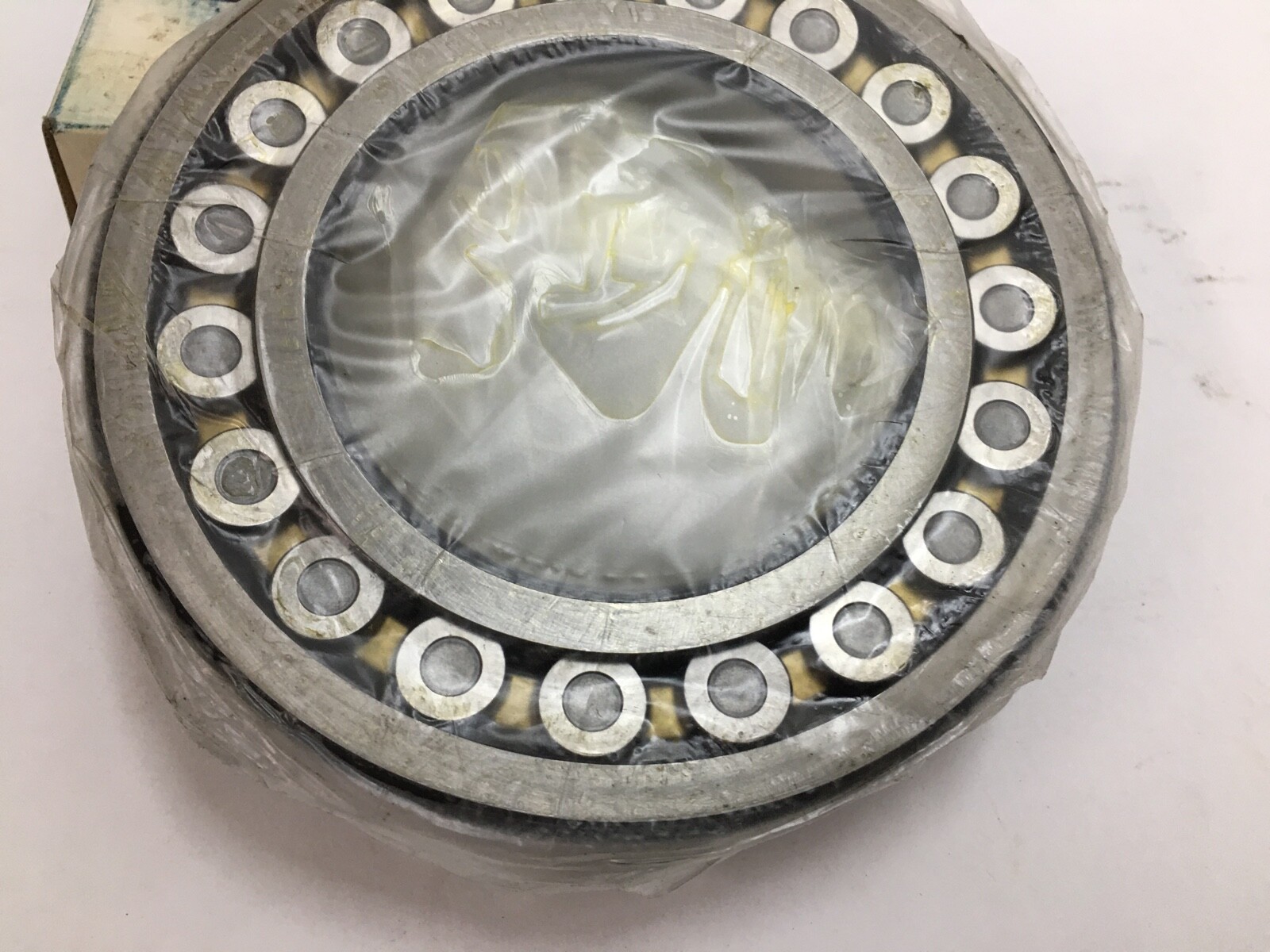

Spherical roller bearing, 90 x 160 x 40 mm, straight bore, C3 clearance, lubrication groove and holes. NTN 22218BL1D1C3, 222 series, B design.
List Price
$142.10
4 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | NTN |
|---|---|
| MPN | 22218BL1D1C3 |
| Model | 22218B D1 C3 |
| Bearing Type | Spherical Roller Bearing |
| ID | 90 mm |
| OD | 160 mm |
| Width | 40 mm |
| Condition | New |
|---|---|
| Series | 222 |
| Lubricant | Grease or oil |
| Mpn Variants | 22218BL1D1C3, 22218BD1C3, 22218 B D1 C3, 22218BW33C3 |
| Rolling Elements | Spherical Roller |
| Number Of Rows | 2 |
| Bore Type | Straight |
| Snap Ring Included | No |
| Internal Clearance | C3 |
| Relubrication Feature | Lubrication groove and holes (D1 / W33) |
| Cross Reference 1 | SKF 22218 E/C3 |
|---|---|
| Cross Reference 2 | FAG 22218-E1-C3 |
| Cross Reference 3 | Timken 22218EJW33C3 |
| Cross Reference 4 | NSK 22218EAE4C3 |
NTN 22218BL1D1C3 double-row spherical roller bearing, 222 series, straight bore, with outer-ring lubrication groove and holes. Bore Diameter: 90 mm. Outside Diameter: 160 mm. Width: 40 mm. Internal Clearance: C3.
222 — spherical roller series 222: double row, light-medium section.
18 — bore code, 90 mm.
B — NTN B-type internal design.
D1 — lubrication groove and holes in the outer ring, the NTN equivalent of W33.
C3 — radial internal clearance greater than normal, for heat-affected or interference-fitted service.
Lubricant: Grease or oil. The groove distributes lubricant around the outer ring; radial holes carry it inward between the two roller rows. The spherical outer raceway lets the bearing self-align under shaft deflection or housing misalignment.
Shaft abutment da min: 100 mm. Housing abutment Da max: 150 mm. Fillet r: 2.0 mm; ras max: 2.0 mm.
Same envelope, 222-series spherical roller, C3, lubrication groove: SKF 22218 E/C3, FAG 22218-E1-C3, Timken 22218EJW33C3, NSK 22218EAE4C3.
