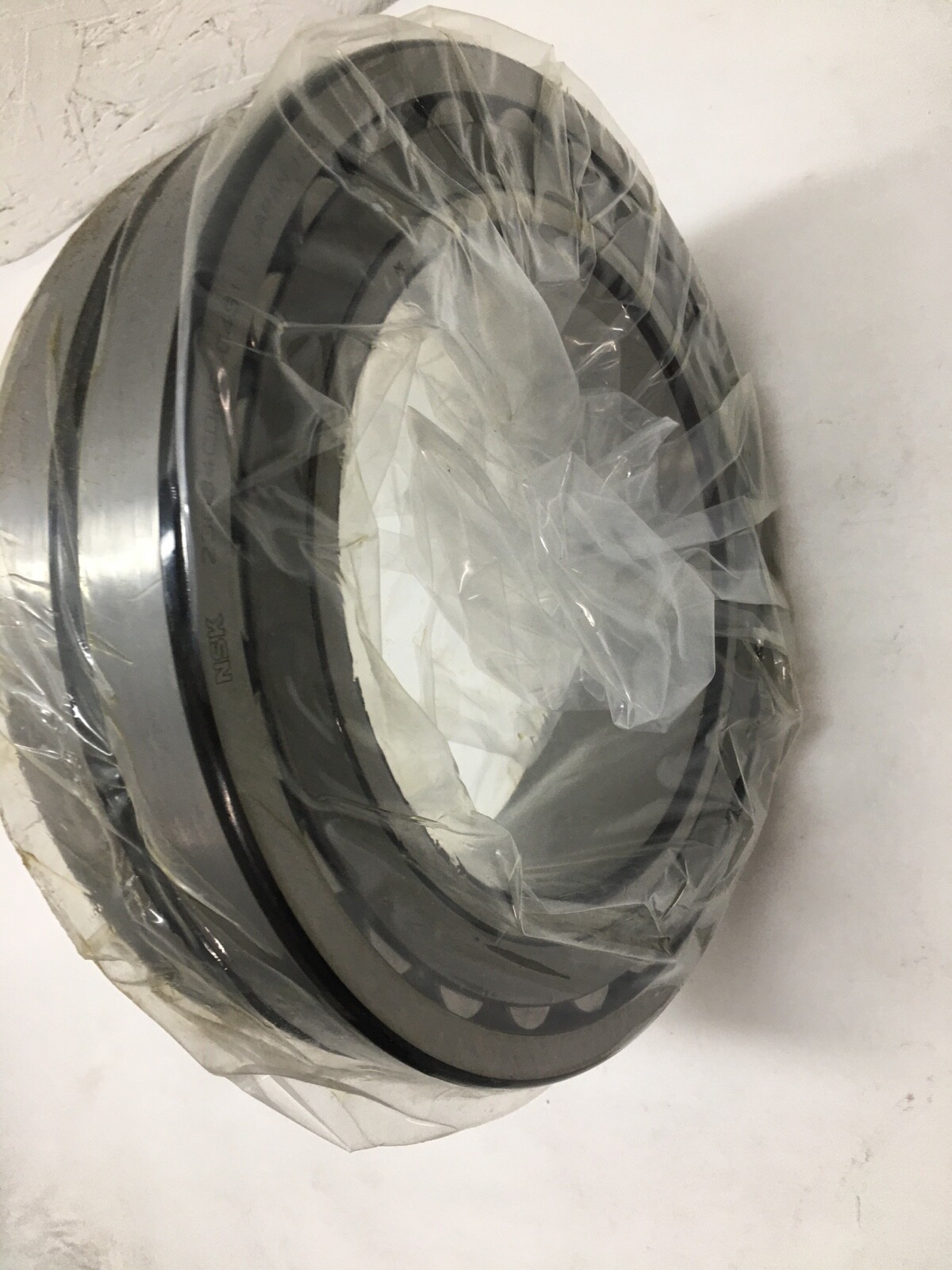

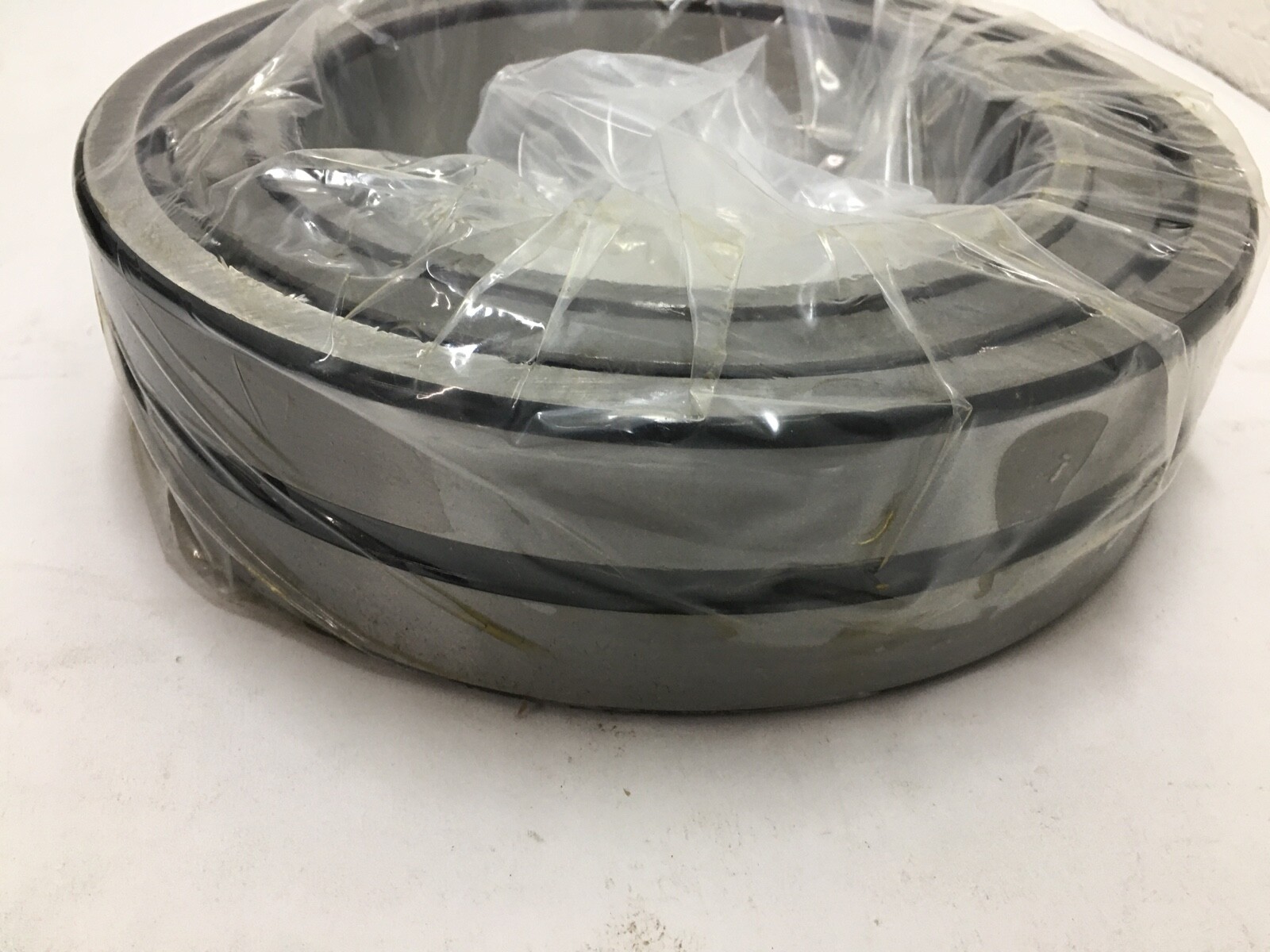

Double-row spherical roller bearing, 170 x 260 x 67 mm, 1:12 tapered bore for an adapter sleeve. Open, pressed steel cage, C4 clearance. Cr 795 kN.
List Price
$392.56
1 in stock
1 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
Also Available From:
| MFR / Brand | NSK |
|---|---|
| MPN | 23034CDKE4C4 |
| GTIN | 029176523793 |
| Model | 23034 CD K E4 C4 |
| Bearing Type | Spherical Roller Bearing, Open |
| ID | 170 mm (6.6929 in), tapered 1:12 |
| OD | 260 mm (10.2362 in) |
| Width | 67 mm |
| Material | Bearing Steel |
|---|---|
| Series | 23000 |
| Condition | New |
| Lubricant | Oil/Grease |
| Base Number | 23034 |
| Industry Terms | Double row spherical roller bearing, self-aligning roller bearing, tapered bore adapter sleeve mount, W33 lubrication groove |
| Bore Shaft Size | 170 mm (6.6929 in), tapered 1:12 |
| Mpn Variants | 23034CDKE4C4, 23034 CD K E4 C4, 23034CDK E4C4, 23034CDKE4, 23034K, 23034 |
| Compatible With Replaces | H3034 adapter sleeve, AH3034 withdrawal sleeve |
| Additional Attributes | Calculation factors e 0.23, Y2 4.3, Y3 2.9, Y0 2.8; shaft abutment da 182-191 mm; housing abutment Da 233-248 mm; takes thrust in both directions; accommodates shaft-to-housing misalignment |
| Min Temp | -30 °C |
| Cage Type | Pressed, with floating guide ring |
| Dynamic Load Rating | 795 kN |
| Static Load Rating | 1,090 kN |
| Precision Rating | ABEC 1 / P0 (ISO Normal Class) |
| Rolling Elements | Spherical Roller |
| Max Temp | Not specified |
| Item Weight | 13 kg (28.7 lb) |
| Cage Material | Pressed steel |
| Number Of Rows | 2 |
| Bore Type | Tapered, 1:12 |
| Snap Ring Included | Without Snap Ring |
| Internal Clearance | C4 |
| Relubrication Feature | Yes, E4 outer ring groove with oil holes (W33 equivalent) |
| Harmonization Code | 8482.30.00 |
| Design Units | Metric |
| Part Number | 23034CDKE4C4 |
| Cross Reference 1 | SKF 23034 CCK/C4W33 |
|---|---|
| Cross Reference 2 | FAG 23034-E1-K-C4 |
| Cross Reference 3 | 23034CDE4C4 (related size, straight bore) |

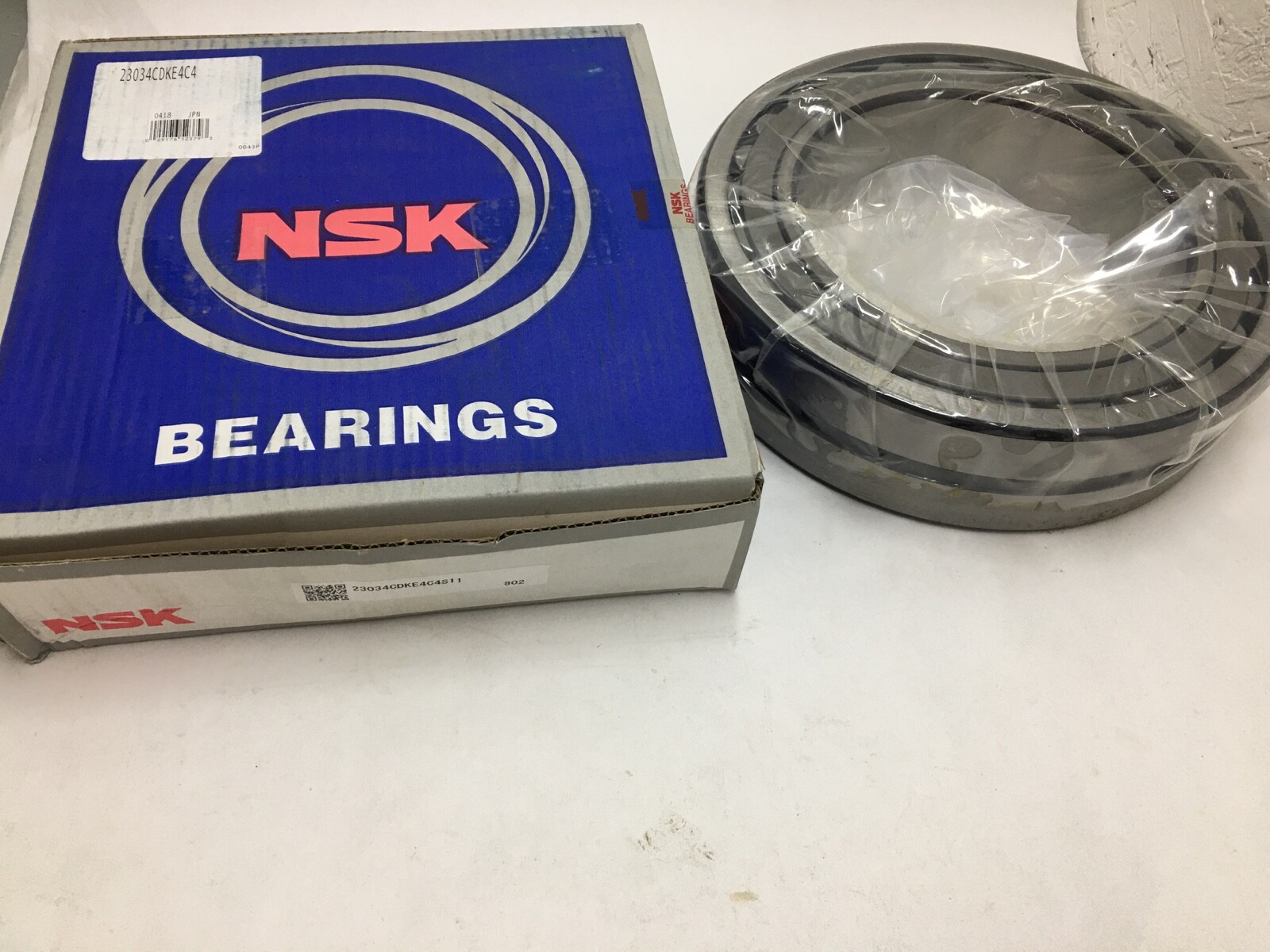

NSK 23034CDKE4C4 double-row spherical roller bearing, 170 mm bore × 260 mm outside diameter × 67 mm width. Series: 23000. Bore Type: tapered, 1:12. Internal Clearance: C4. Open, with a lubrication groove and feed holes in the outer ring.

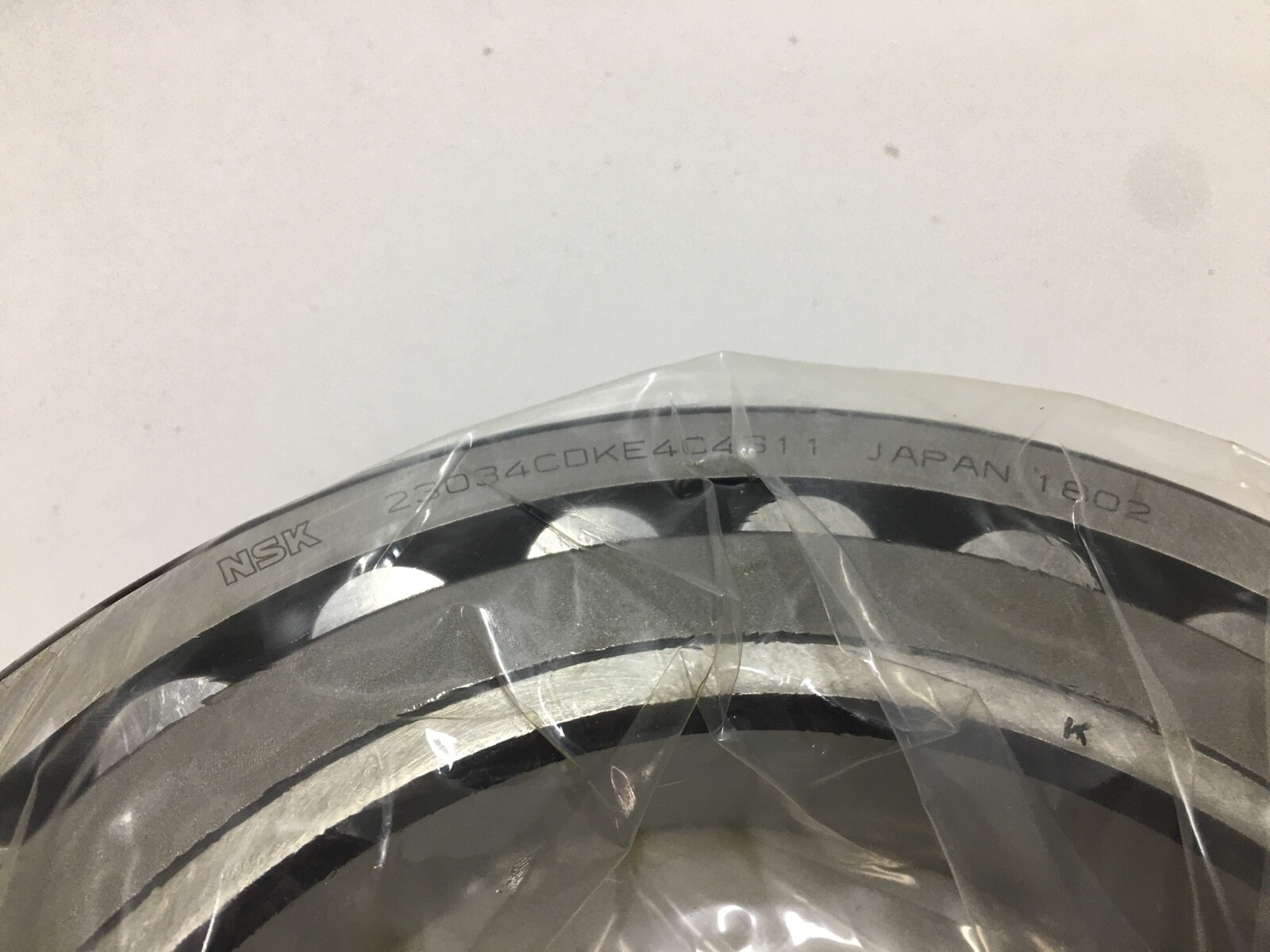

Base Number: 23034. CD: pressed steel cage with a floating guide ring. K: tapered bore, taper 1:12. E4: lubrication groove and three oil holes in the outer ring, the NSK equivalent of a W33 outer ring. C4: internal clearance, greater than C3. The number is also written 23034 CD K E4 C4, 23034CDK E4C4 and 23034K.
A double-row spherical roller bearing carries very high radial load, takes thrust in both directions, and accommodates shaft misalignment relative to the housing. Basic Dynamic Load Rating: 795 kN. Basic Static Load Rating: 1,090 kN. Limiting Speed: 1,200 rpm on grease, 1,600 rpm in an oil bath. Mass: 13 kg. C4 clearance leaves more room for thermal growth and for the interference taken up when a tapered bore is driven onto its seat. Calculation factors: e 0.23, Y2 4.3, Y3 2.9, Y0 2.8.
The 1:12 tapered bore mounts on an adapter sleeve. The matching NSK parts are the H3034 adapter sleeve and the AH3034 withdrawal sleeve, each a separate item. Driving the bearing further up the taper reduces the internal clearance, which is how the running clearance is set on a tapered-bore mounting.

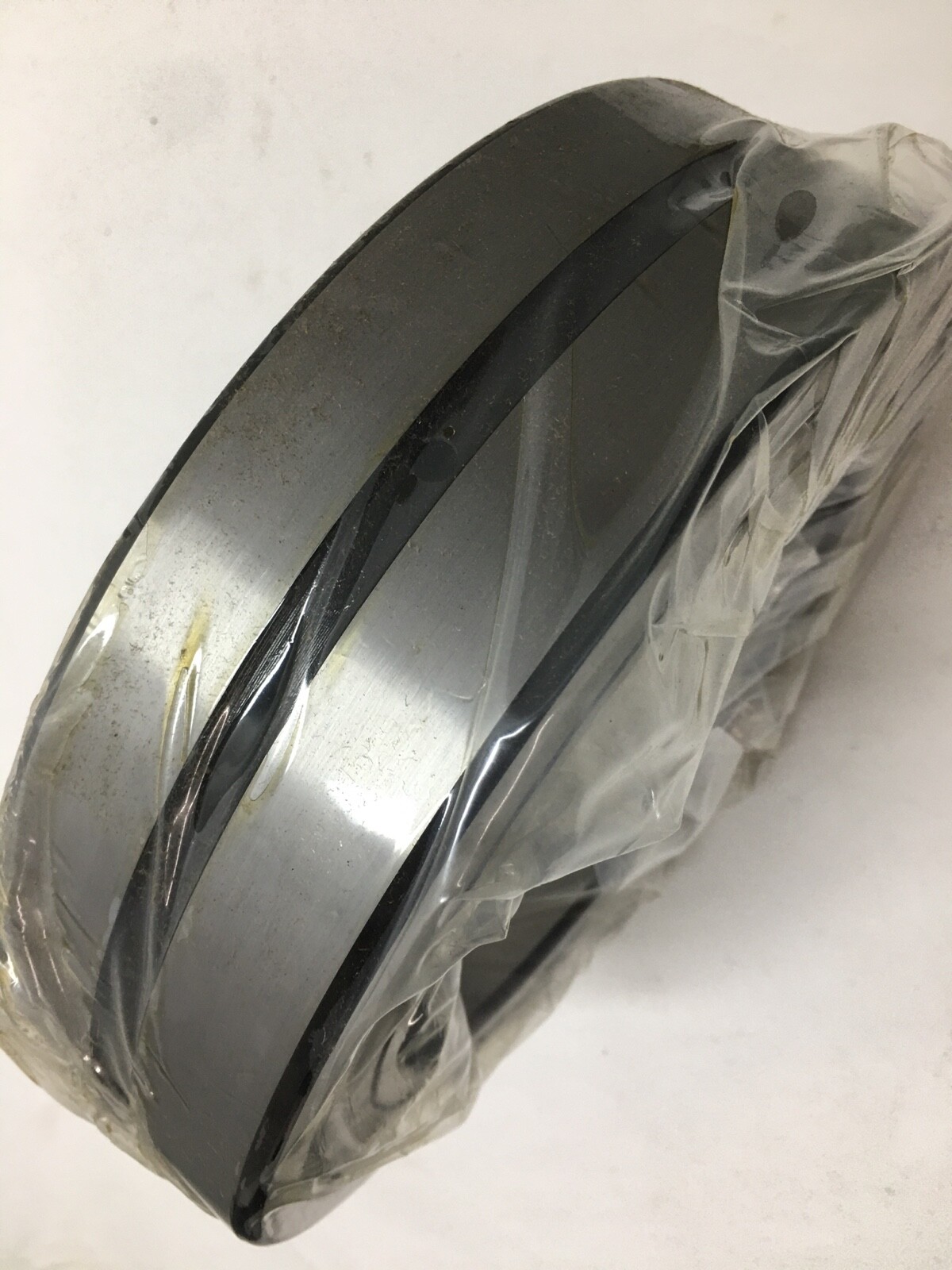

Diameter of Shaft Abutment: 182 to 191 mm. Diameter of Housing Abutment: 233 to 248 mm. The outer-ring groove and holes align with a housing lubrication port for relubrication in service.
SKF 23034 CCK/C4W33 and FAG 23034-E1-K-C4 cover the same envelope, tapered bore, clearance and lubrication feature. A 23034CDE4C4 on the same envelope has a straight bore and is a related size.
