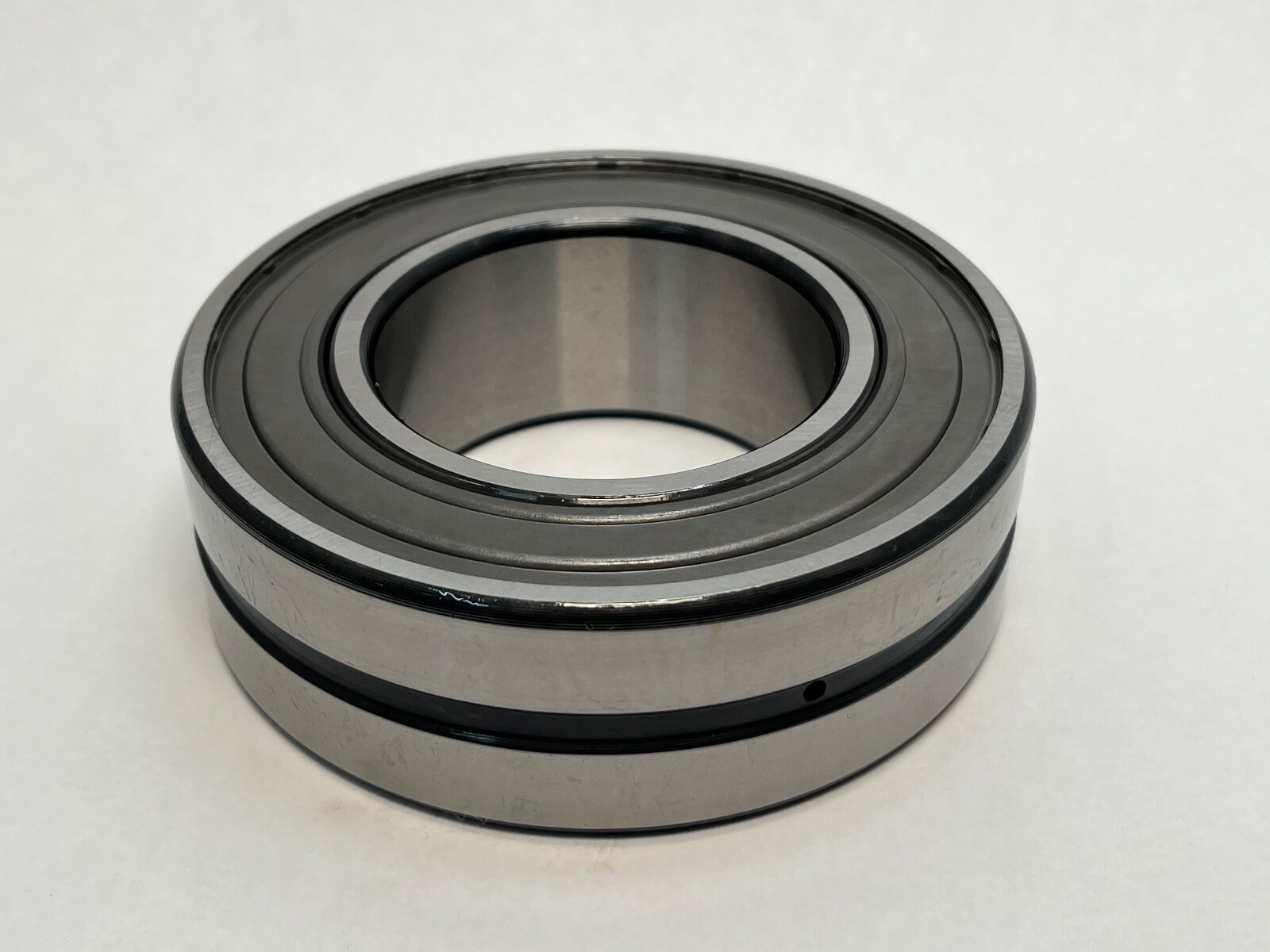

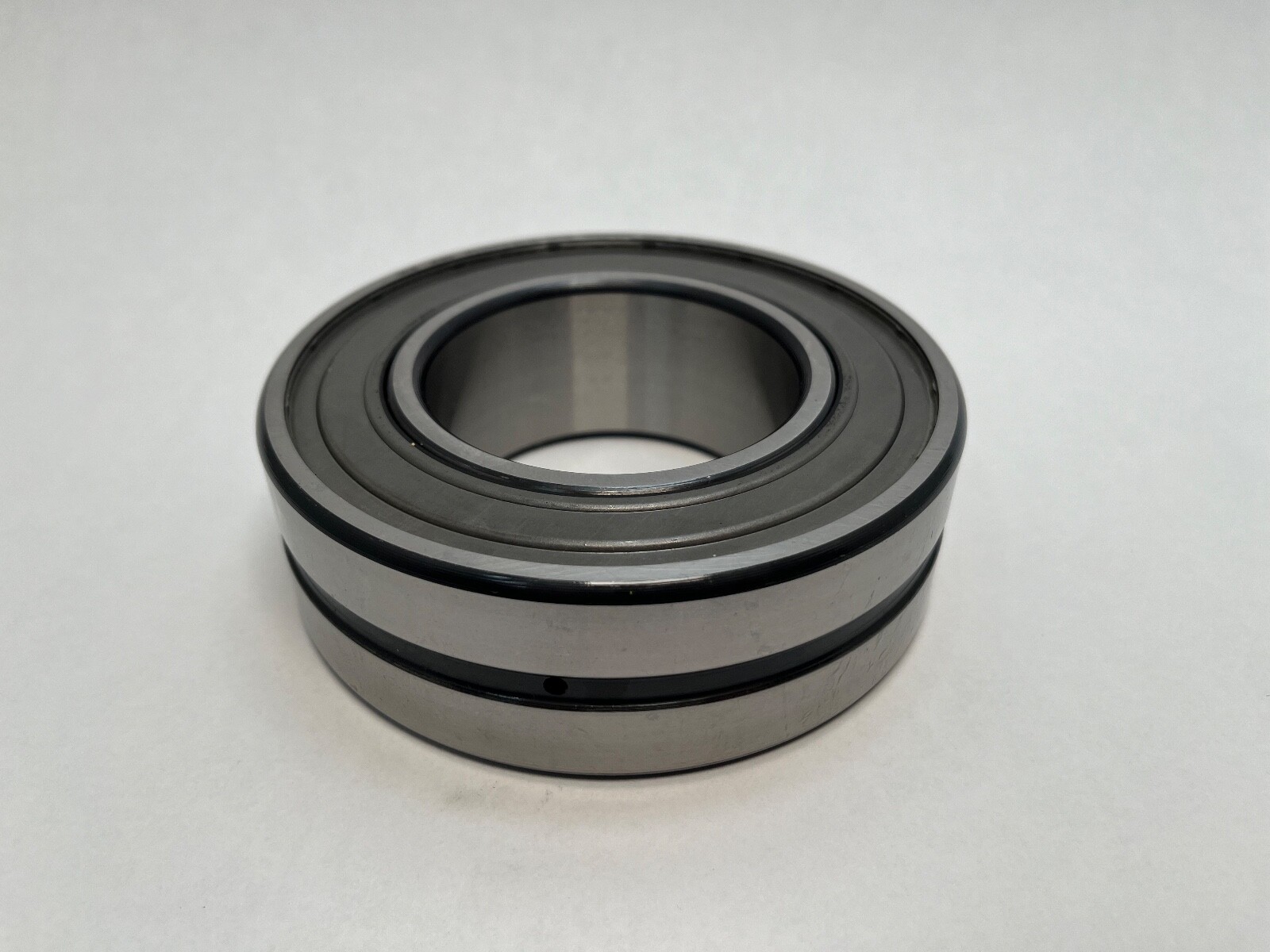

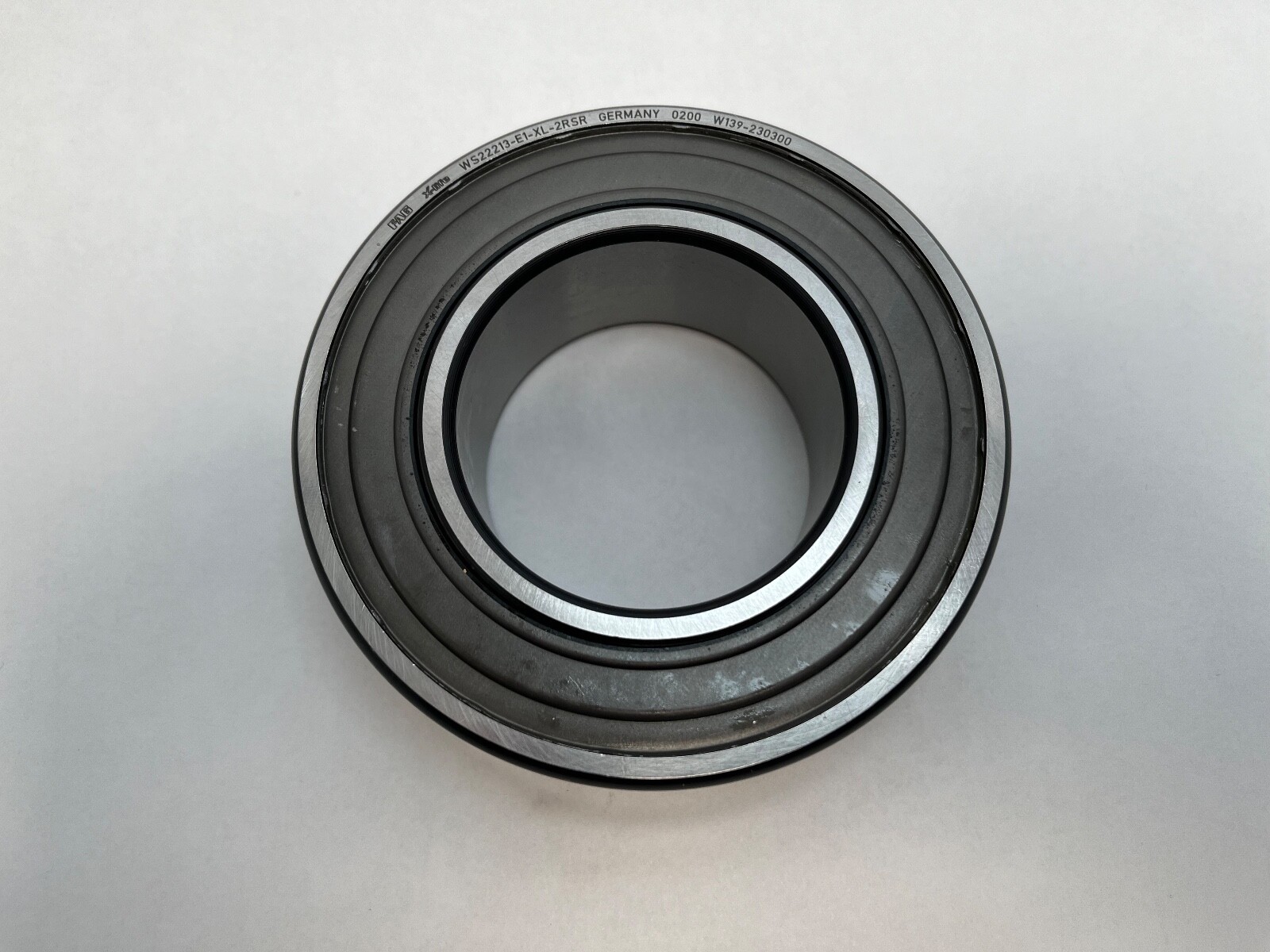

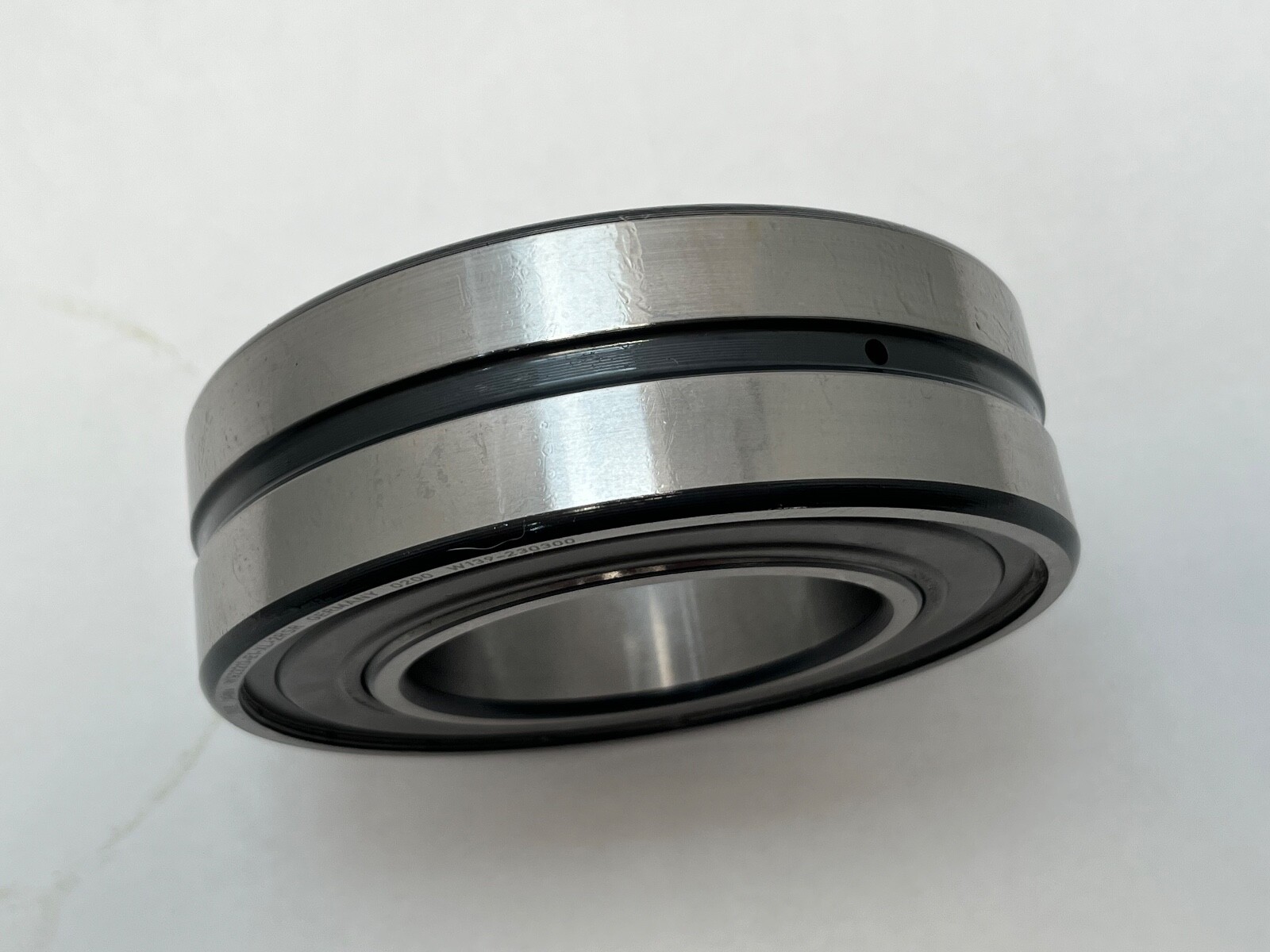

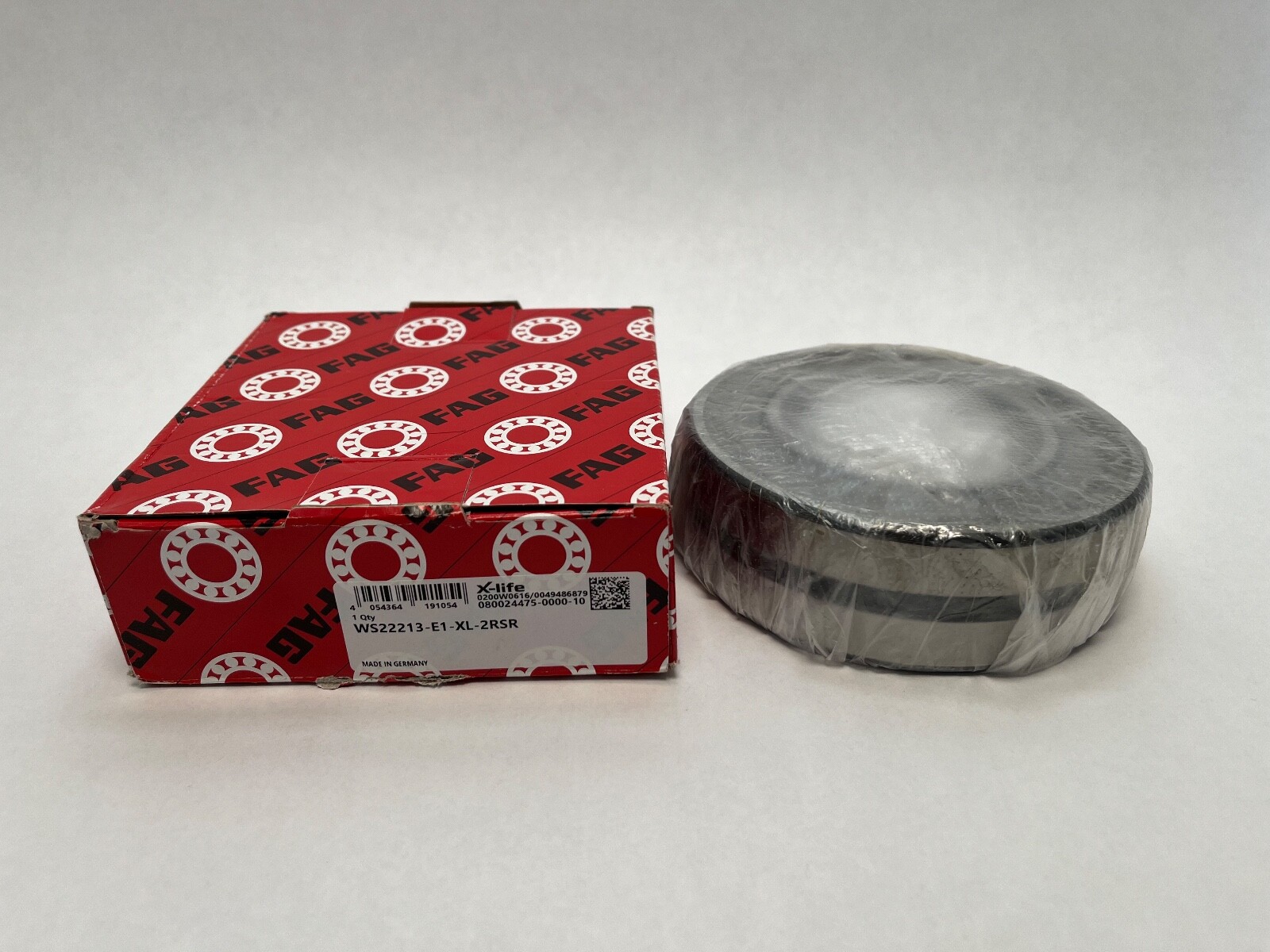

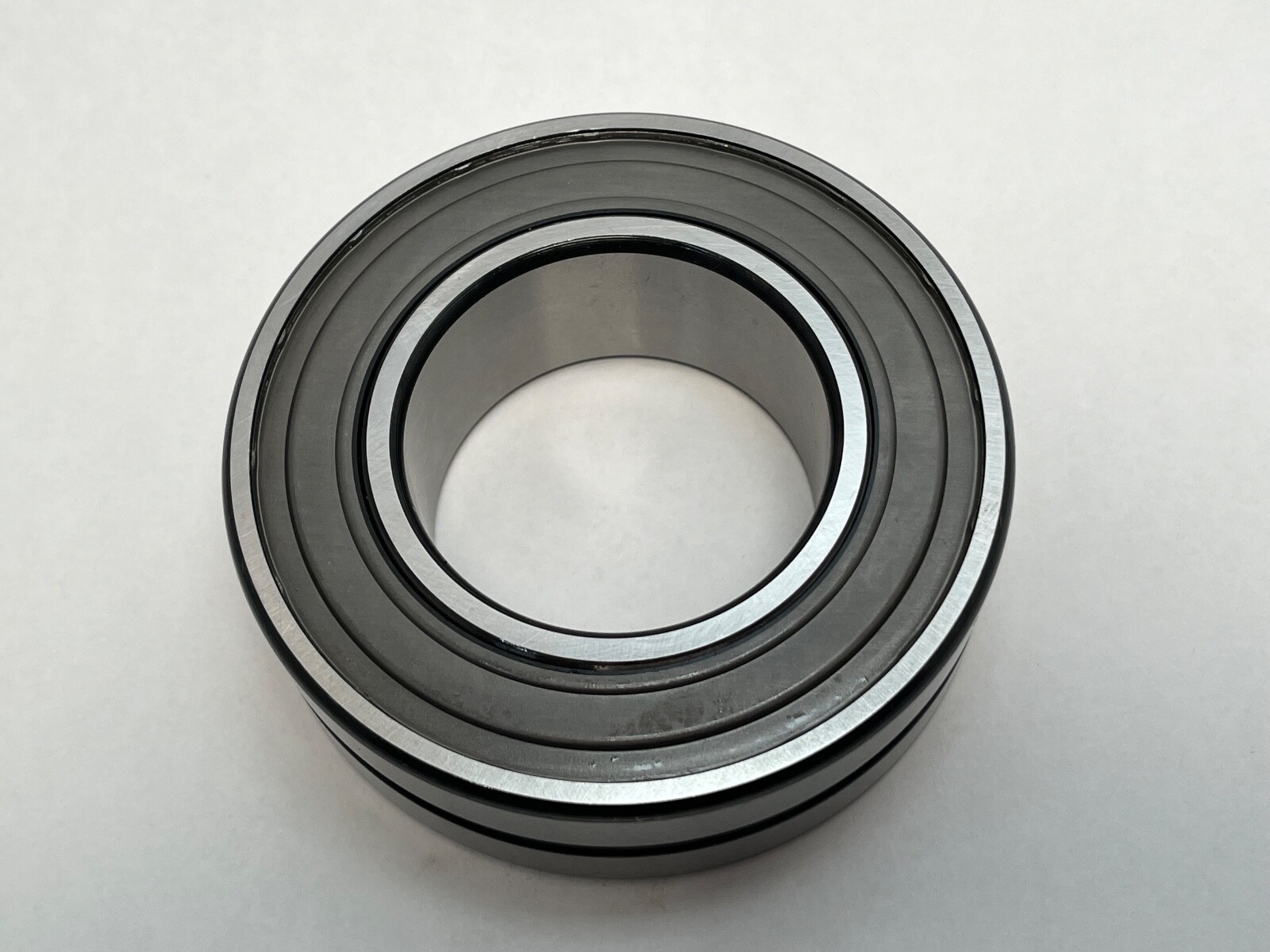

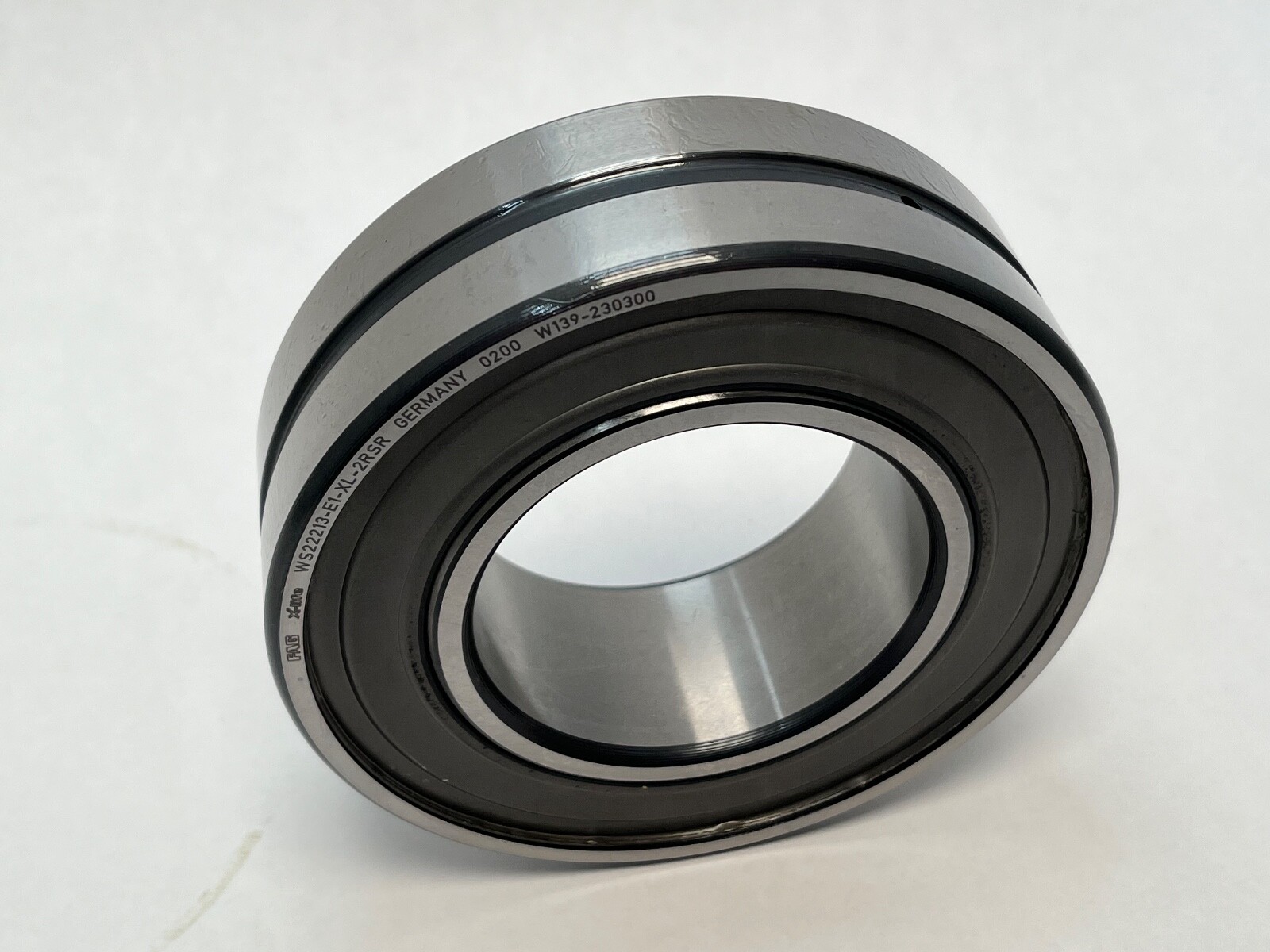

Sealed double-row spherical roller bearing, 65 x 120 x 38 mm, contact lip seals both sides, straight bore, X-life grade, for vibrating screen duty.
List Price
$122.35
1 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | FAG |
|---|---|
| MPN | WS22213-E1-XL-2RSR |
| Model | WS 22213 E 1 XL 2RSR |
| Bearing Type | Spherical Roller Bearing, Double Rubber Seal |
| ID | 65 mm |
| OD | 120 mm |
| Width | 38 mm |
| Material | Bearing Steel |
|---|---|
| Series | 22200 |
| Base Number | WS22213 |
| Industry Terms | Sealed spherical roller bearing; vibrating screen bearing; shaker screen bearing; 2RSR bearing; sealed self-aligning roller bearing; contaminated service bearing; X-life bearing |
| Common Misspellings | WS22213 E1XL 2RSR; WS22213-E1-XL-2RS; WS 22213E1XL2RSR; FAG WS22213 2RSR; W522213-E1-XL-2RSR |
| Application Types | Vibrating and shaker screens; dirty conveyor positions; crushers; wash plant and aggregate equipment; any heavily contaminated position where grease life rather than fatigue limits bearing service |
| Bore Shaft Size | 65 mm straight cylindrical bore |
| Locking Method | Interference fit on a plain cylindrical shaft seat |
| Mpn Variants | WS22213-E1-XL-2RSR; WS22213E1XL2RSR; WS-22213-E1-XL-2RSR; WS 22213 E1 XL 2RSR; WS22213E12RSR; WS22213-2RSR; WS22213 |
| Manufacturer Status | FAG is part of Schaeffler; WS sealed spherical roller family, X-life grade |
| Cage Type | Pressed steel |
| Dynamic Load Rating | 202,000 N |
| Static Load Rating | 210,000 N |
| Rolling Elements | Spherical (barrel) rollers |
| Item Weight | 1.9 kg (4.19 lb) |
| Cage Material | Pressed steel |
| Number Of Rows | Two (double row) |
| Bore Type | Straight |
| Limiting Speed | 1,740 rpm |
| Internal Clearance | CN |
| Harmonization Code | 8482.30.00.80 |
| Part Number | WS22213-E1-XL-2RSR |
| Closure Type | Contact seals both sides |
| Cross Reference 1 | FAG WS22213-E1-XL-K-2RSR - tapered bore vs straight bore |
|---|---|
| Cross Reference 2 | FAG WS22213-E1-2RSR - pre-X-life execution |

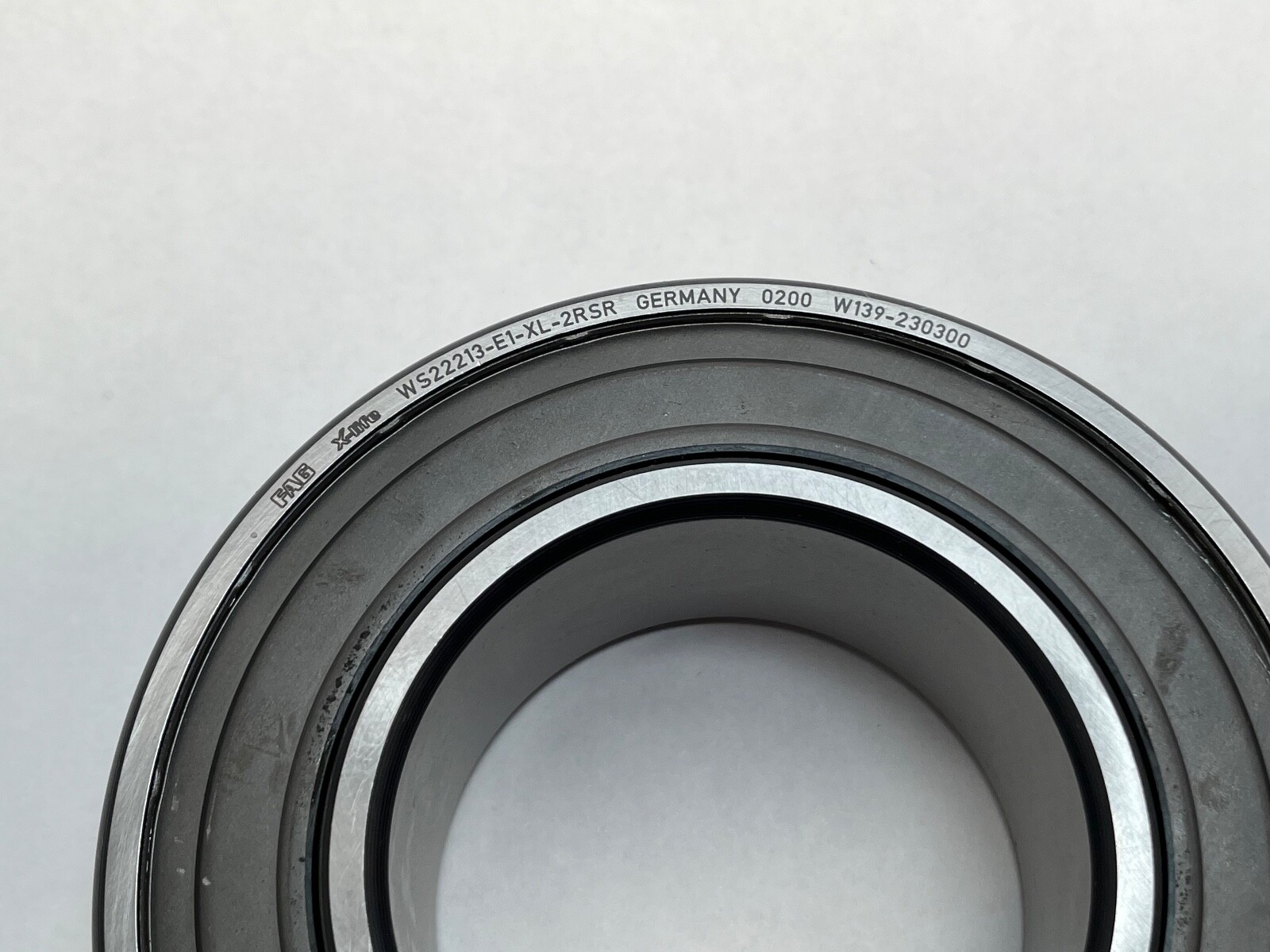

FAG WS22213-E1-XL-2RSR is a sealed double-row spherical roller bearing. Brand: FAG (Schaeffler). Bore Diameter: 65 mm. Outside Diameter: 120 mm. Overall Width: 38 mm. Closure Type: 2RSR, contact lip seals both sides. Bore Type: straight, cylindrical. Number Of Rows: two. Internal Clearance: CN. Cage Material: steel. Cage Type: pressed steel. Rolling Elements: spherical barrel rollers. Bearing Material: bearing steel. Application: vibrating screens, shakers, and dirty conveyor and crusher positions.
WS — FAG prefix for the sealed spherical roller family for contaminated and vibratory service.
22213 — double-row spherical roller, 22 dimension series, 65 mm bore.
E1 — FAG optimised high-capacity internal design.
XL — Schaeffler X-life quality grade.
2RSR — contact lip seals on both sides, sealing against the inner ring.
Dynamic Load Rating: 202 kN. Static Load Rating: 210 kN. Fatigue Limit Load Cu: 26 kN. Limiting Speed: 1,740 rpm. Calculation Factors: e 0.24, Y1 2.81, Y2 4.19, Y0 2.75. Series: WS222. Base Number: WS22213. Design Units: Metric. Item Weight: 1.9 kg. Harmonization Code: 8482.30.00.80. Unit Quantity: 1 Pc.
Bore: 65 mm, straight cylindrical. Locking Method: interference fit on a plain cylindrical shaft seat. Sealed width: 38 mm; the open 22213-E1-XL is 65 x 120 x 31 mm.
WS22213-E1-XL-K-2RSR: tapered-bore version of the same sealed family, for an adapter sleeve or machined taper. WS22213-E1-2RSR: pre-X-life form of the same designation. Open 22213-E1-XL: 65 x 120 x 31 mm, unsealed.
38 mm, against 31 mm for the open 22213-E1-XL.
Straight cylindrical bore, 65 mm. The tapered version is WS22213-E1-XL-K-2RSR.
Contact lip seals on both sides, sealing against the inner ring.
