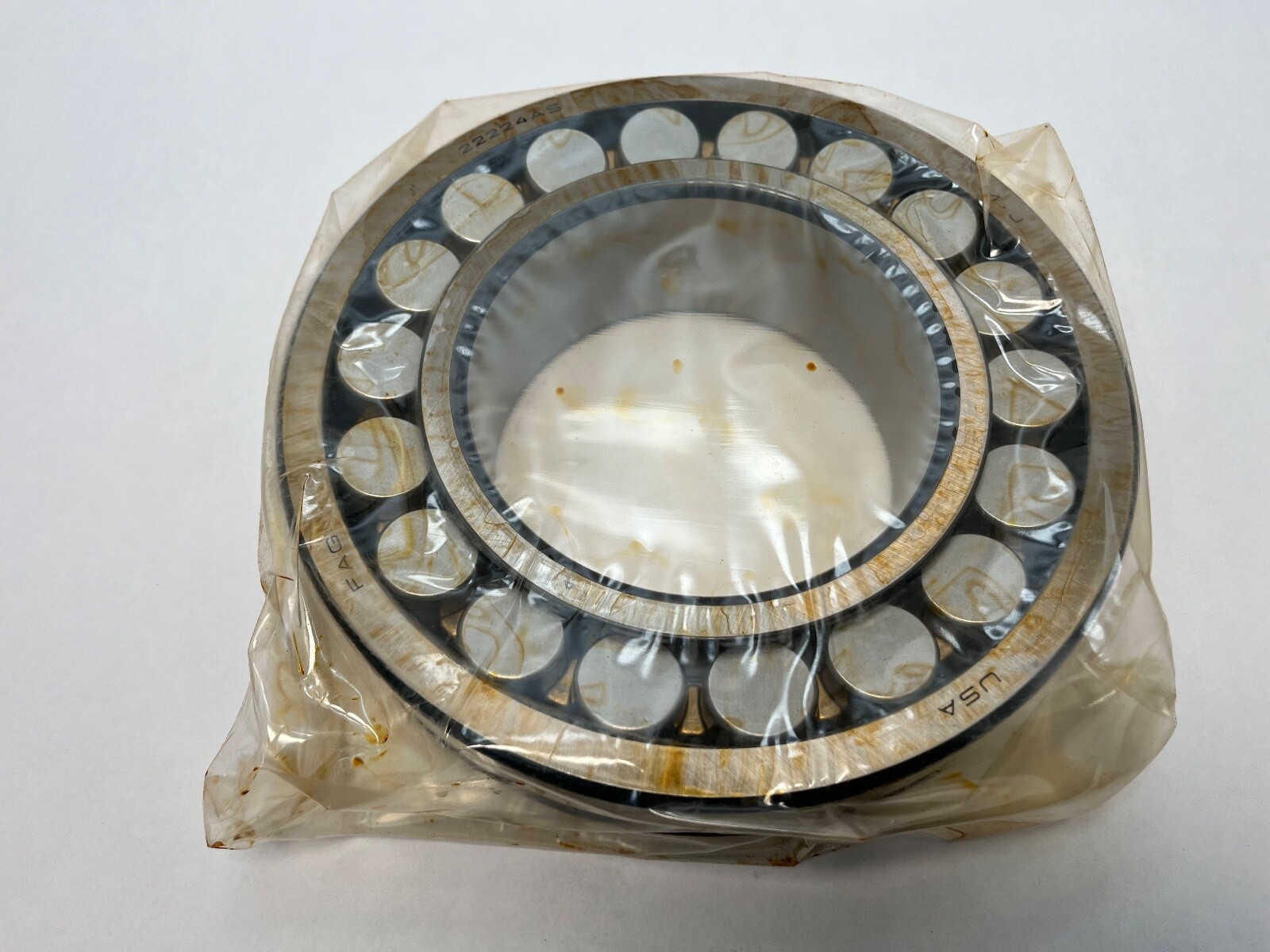

FAG22224ASMBW33Double-Row Spherical Roller Bearing 120x215x58 mm, Straight Bore, Machined Brass Cage, W33 Lubrication Groove

Product Description

What this part is

A single unit 222-series double-row spherical roller bearing in the ISO 22224 envelope — 120 mm bore, 215 mm outside diameter, 58 mm width. Two rows of barrel rollers run on a common spherical outer-ring raceway, so the inner ring, rollers and cage can swivel inside the outer ring. That is what separates this family from a cylindrical roller bearing: it carries very high radial load and takes static and dynamic misalignment at the same time, where a cylindrical roller bearing edge-loads its rollers and fails early under the same shaft deflection.

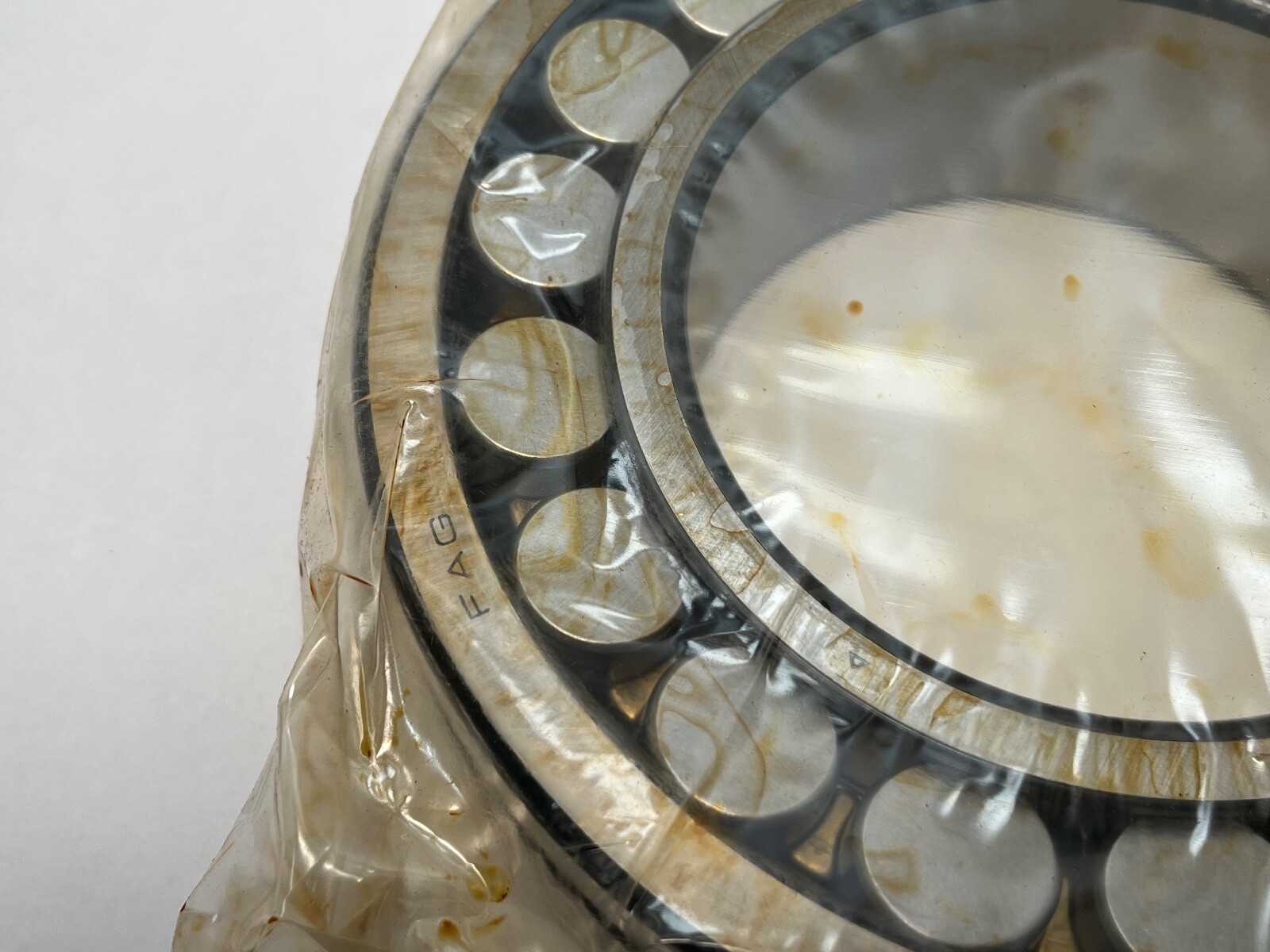

Decoding the designation

Read in FAG’s own scheme, not a generic one. Suffixes mean different things brand to brand, so this decode does not transfer to SKF or NTN numbers in the same envelope.

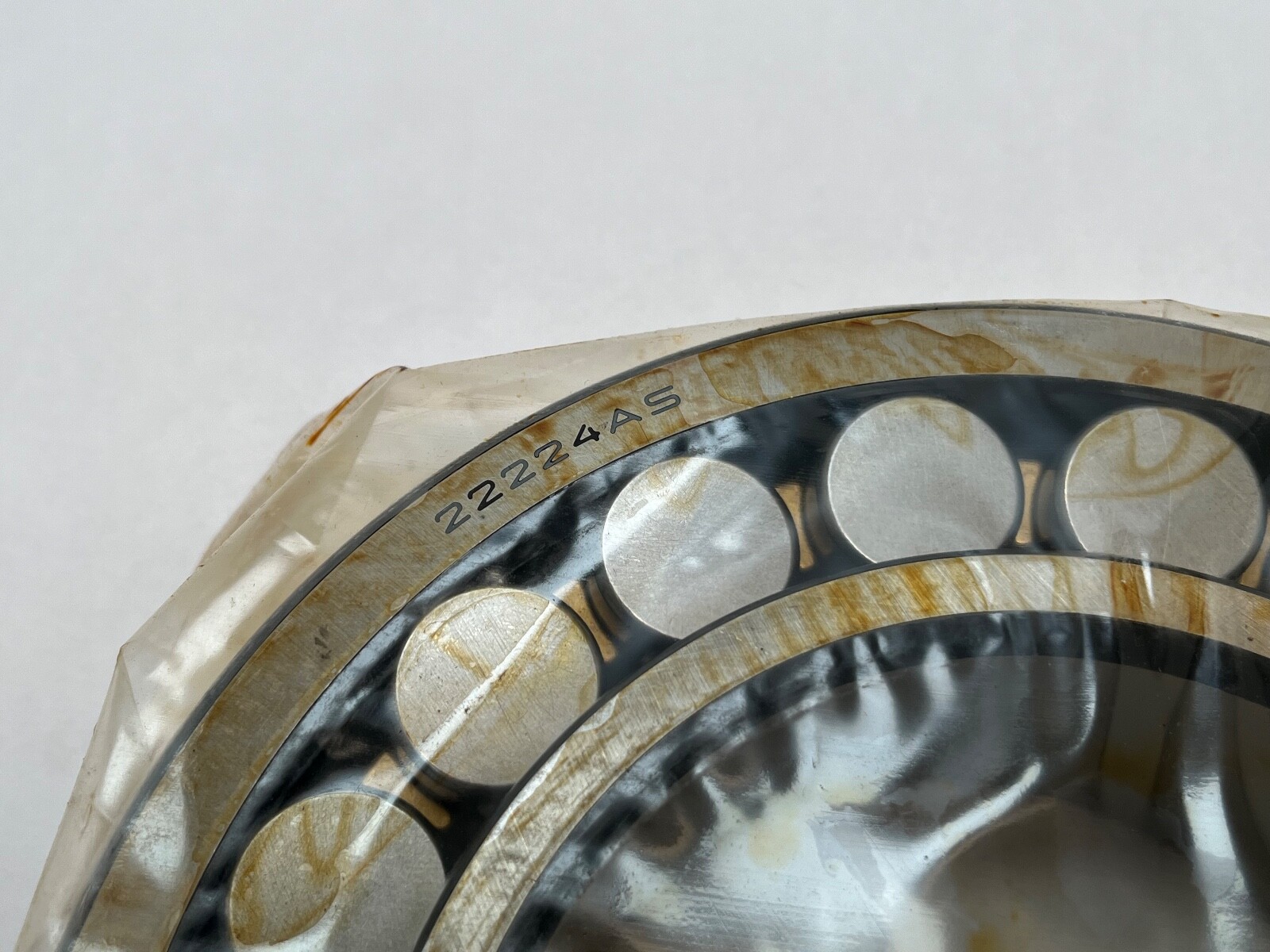

22224 — ISO base number: 222 series double-row spherical roller, 120 mm bore.MB — machined brass (solid) cage, inner-ring guided. The heavy-duty execution: better behaved at high speed, under shock load and at elevated temperature than a pressed-steel or polyamide cage, and tolerant of oil-mist and marginal lubrication.AS — FAG execution notation associated with the lubrication feature set of this bearing rather than the internal geometry.W33 (carried on the cross-reference) — annular lubrication groove plus three radial holes in the outer ring, so grease or oil can be fed straight into the roller sets.No K in the number — this is a straight cylindrical bore. No adapter sleeve is involved and none is needed.No clearance suffix — normal (CN) radial internal clearance, not C3.

Correcting the source data

The previous listing claimed the bearing was made in the United States. FAG is a Schaeffler brand with European and Asian production; nothing on this part or in FAG’s published data supports a USA origin claim, so it has been removed. eBay-era shipping and contact boilerplate has also been stripped.

What these specs mean in practice

W33 only pays for itself if the housing actually feeds it. Mounted in a plain bore with no lubrication port lined up to the groove, the feature is inert — useful only as a future relubrication path if the housing is later drilled.A brass MB cage is the choice when the bearing sees vibration, reversing load or heat. It is also heavier and generally not the low-cost option, which is why MB and polyamide-cage siblings are priced and specified differently even though the envelope is identical.Normal clearance assumes a normal interference fit on the shaft and a normal housing fit. Fitting a normal-clearance bearing on an aggressively interference-fitted shaft squeezes out running clearance and preloads the rollers; that is the failure mode C3 exists to avoid.

Published ratings and mounting data

Bore d: 120 mm · Outside diameter D: 215 mm · Width B: 58 mmRing chamfer r (min): 2.1 mm — ISO 22224 envelopeApproximate mass: 9.1 kg for the ISO 22224 MB envelopeLoad-calculation factors for the envelope: e 0.28, Y1 2.4, Y2 3.6, Y0 2.4Basic dynamic and static load ratings specific to the AS.MB execution are not published in any source we can verify, so those cells are deliberately left blank. For scale only, and clearly attributed to a different designation: FAG’s current 22224-E1(A) redesign in the same envelope is published at C 640 kN / C0 740 kN. Do not treat that as this bearing’s rating.

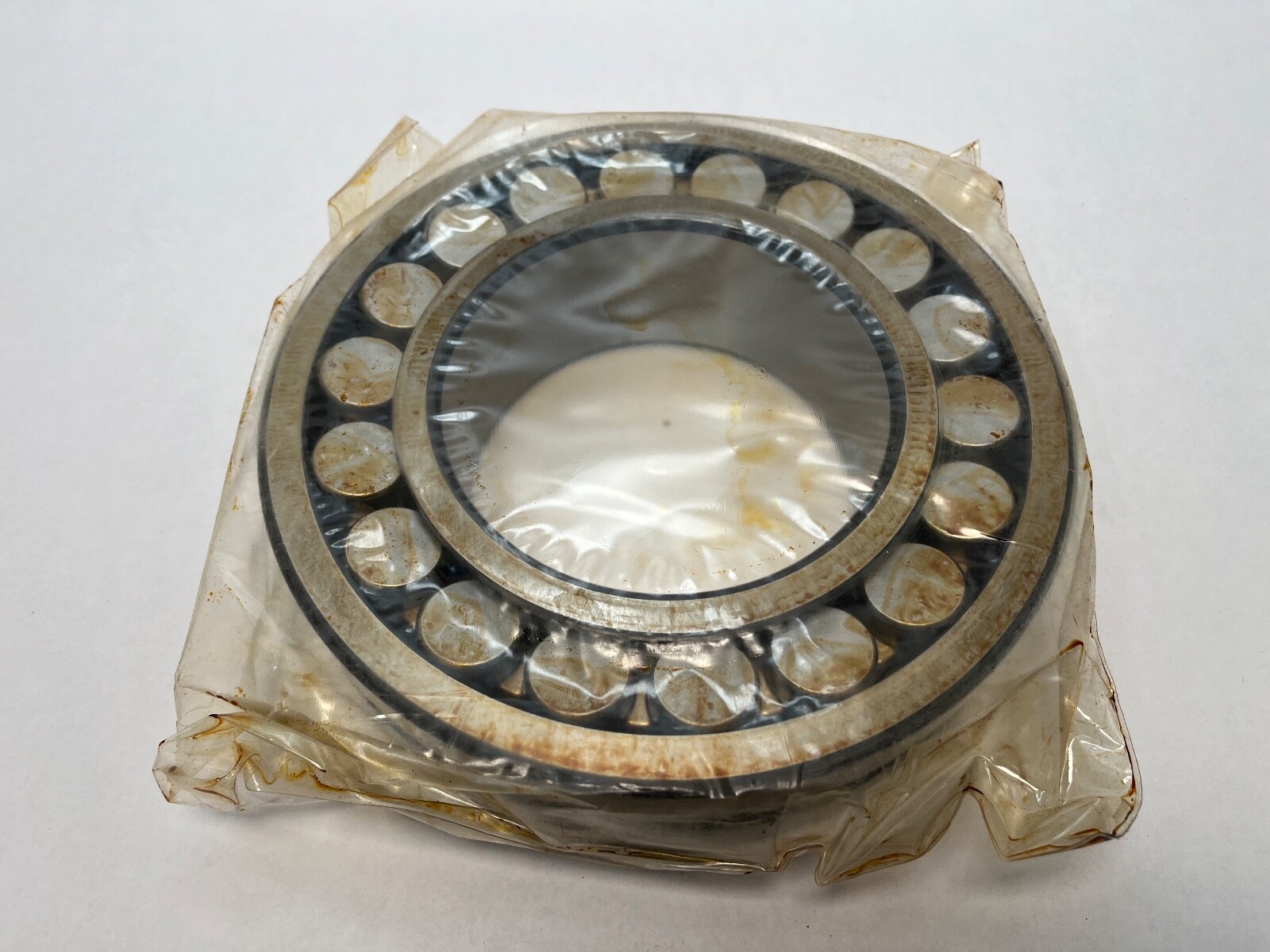

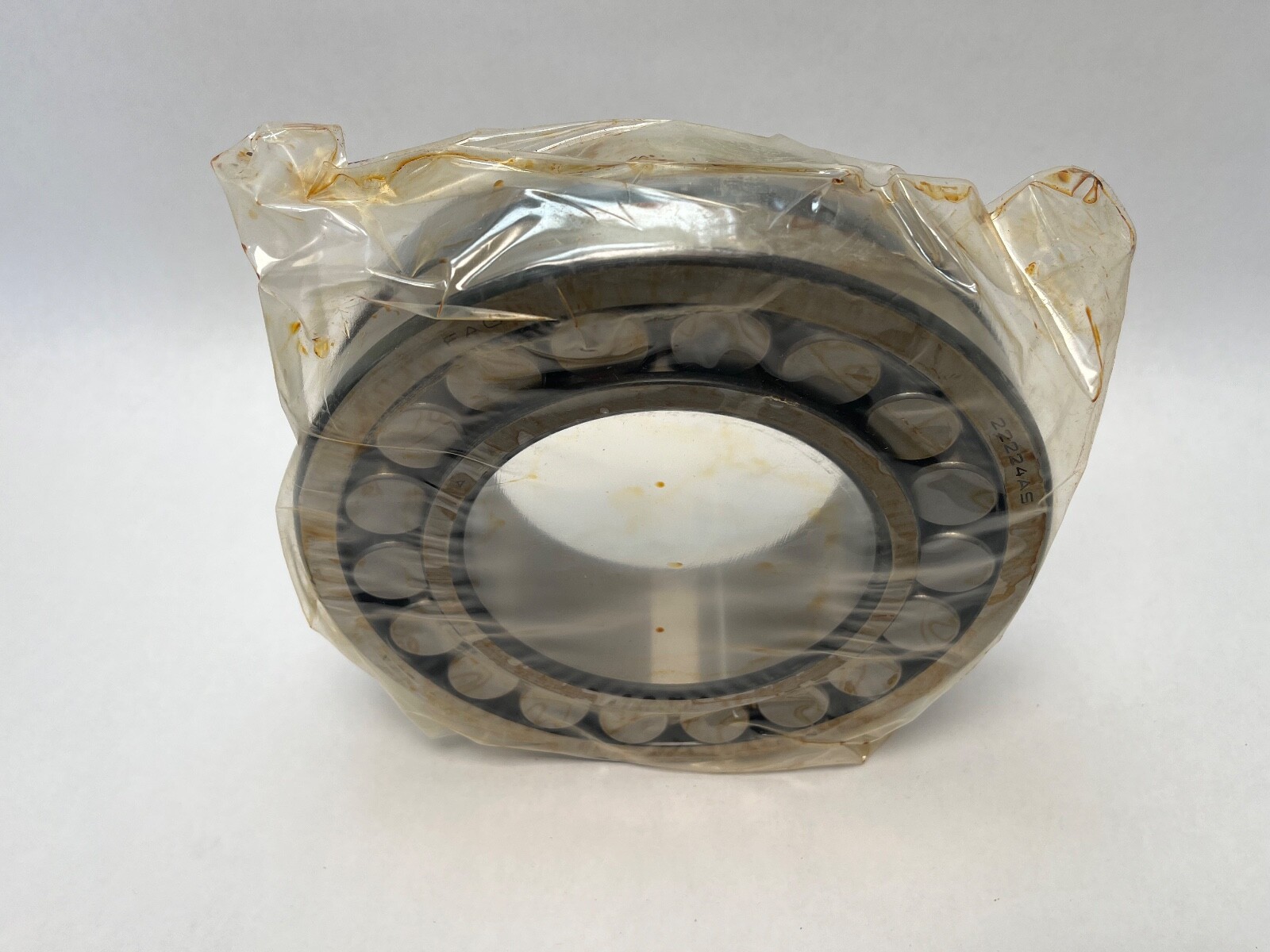

Quantity and configuration

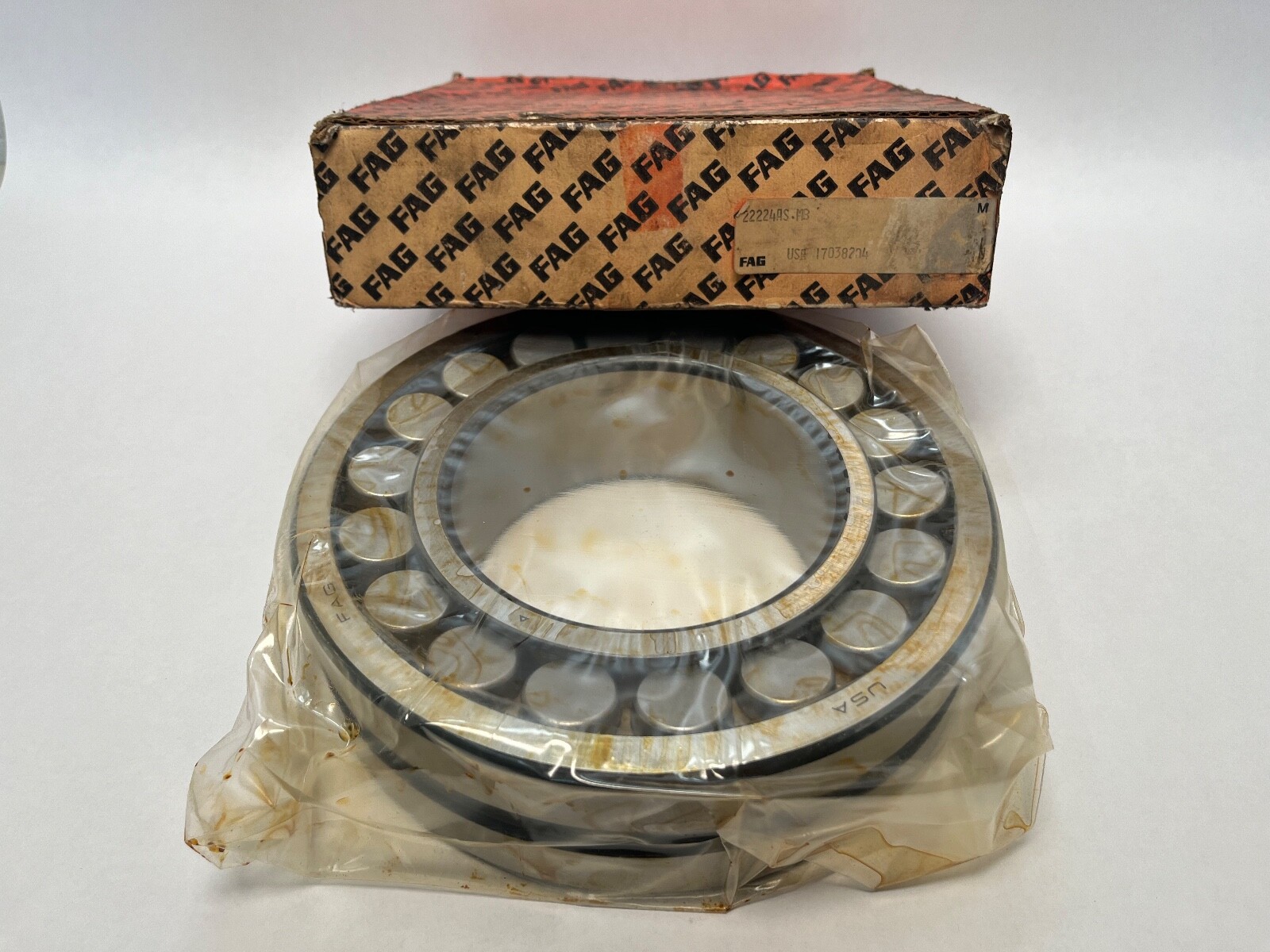

One bearing, complete as a unit — outer ring, both roller rows, cage and inner ring. Spherical roller bearings are not sold as separable components, so there is nothing missing from the assembly. Straight bore, so no adapter sleeve or withdrawal sleeve applies.

Fitting notes

Mount with a hydraulic or induction method rather than hammering the rings; impact through the rollers brindles the raceways. Check that the housing bore and shaft tolerances match a normal-clearance bearing before fitting, and align the outer-ring lubrication holes with the housing port if the housing has one. Fill the free space around the rollers, not the whole housing cavity, when greasing.

Interchange guidance

Same-envelope alternates exist across brands — SKF 22224, NTN 22224, Timken 22224, Rollway/Regal Rexnord 22224 MB W33, NSK 22224 — but only the cage execution and clearance class make them functionally equivalent. An MB brass-cage bearing and a polyamide-cage bearing are not drop-in equals in a hot or shock-loaded position. Do not substitute a 232-series bearing (for example 23224): the 232 series is wider in the same bore and carries more load, but it will not fit a housing machined for a 222.
