Central Surplus Bearing Finder
A faster way to search our bearing inventory Today we’re launching the Central Surplus Bearing
Availability:
1 in stock

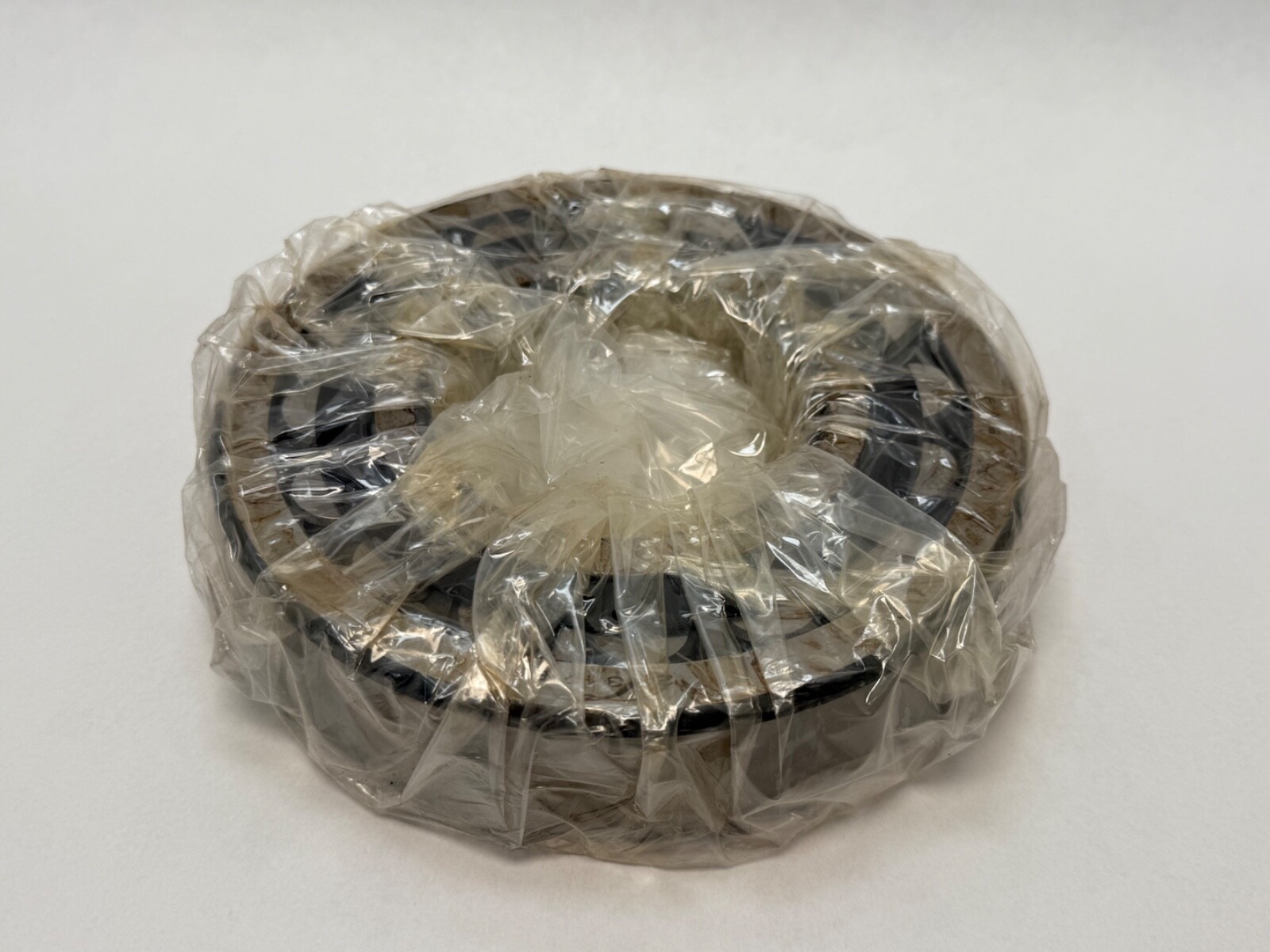

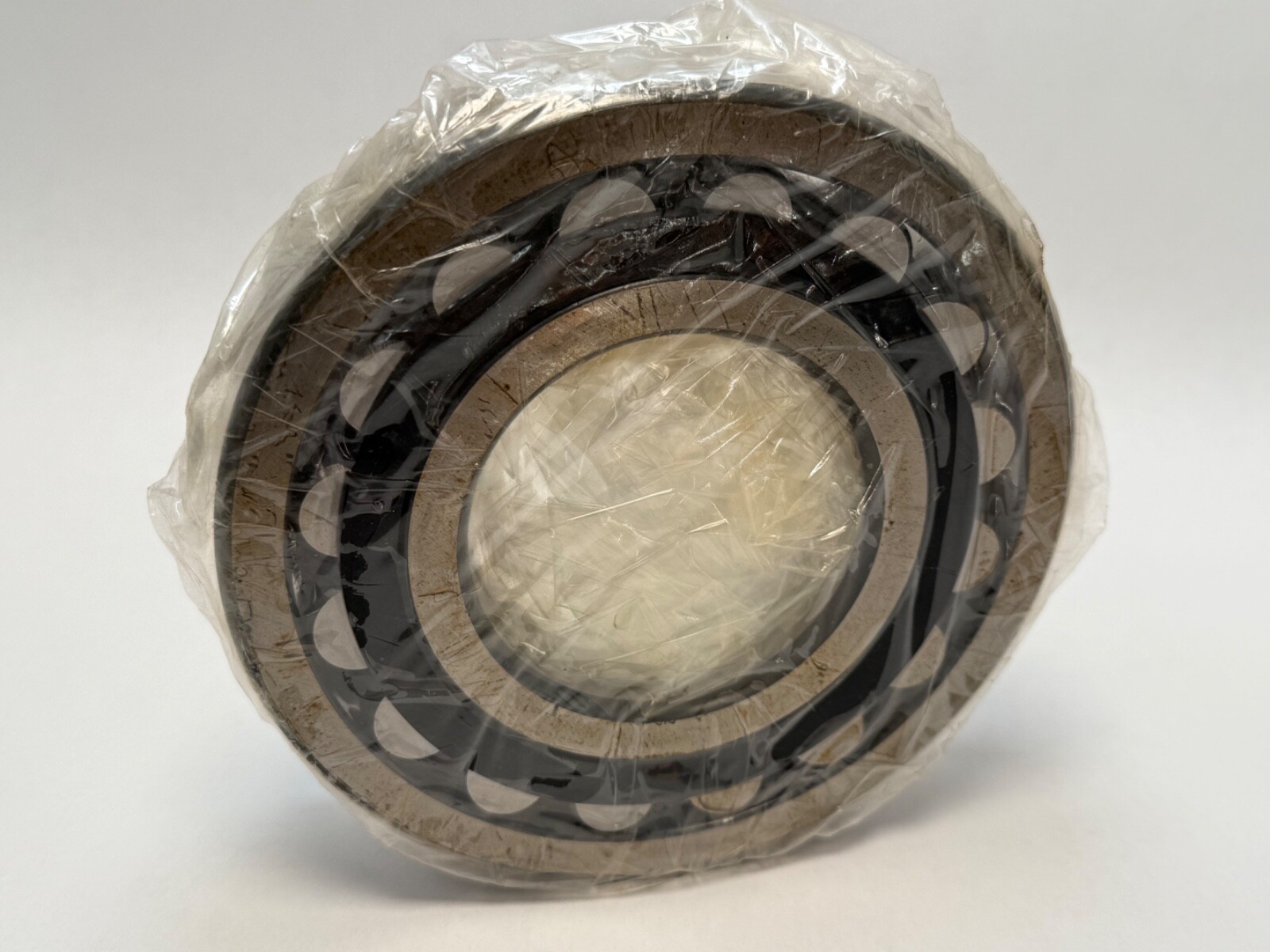

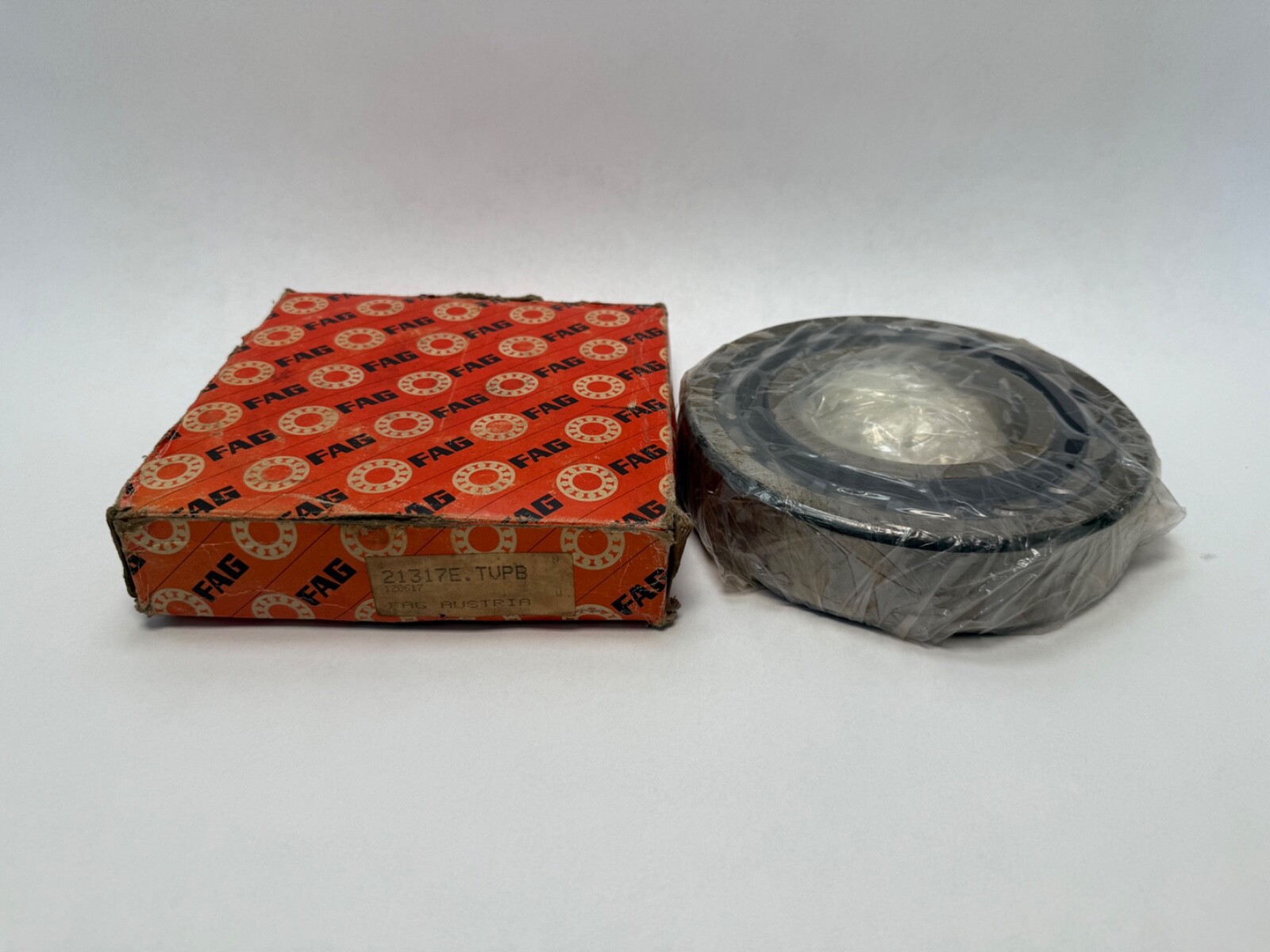

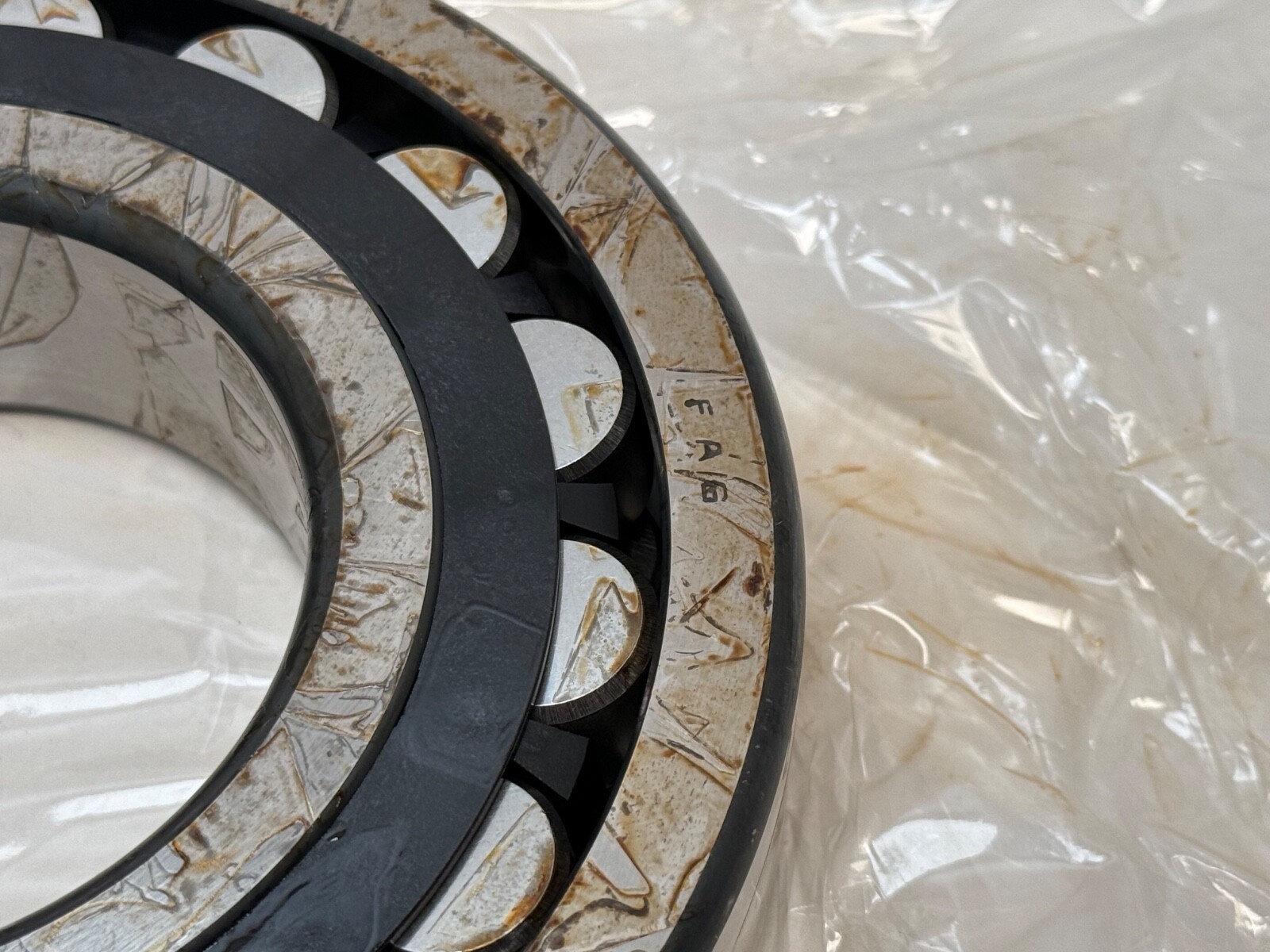

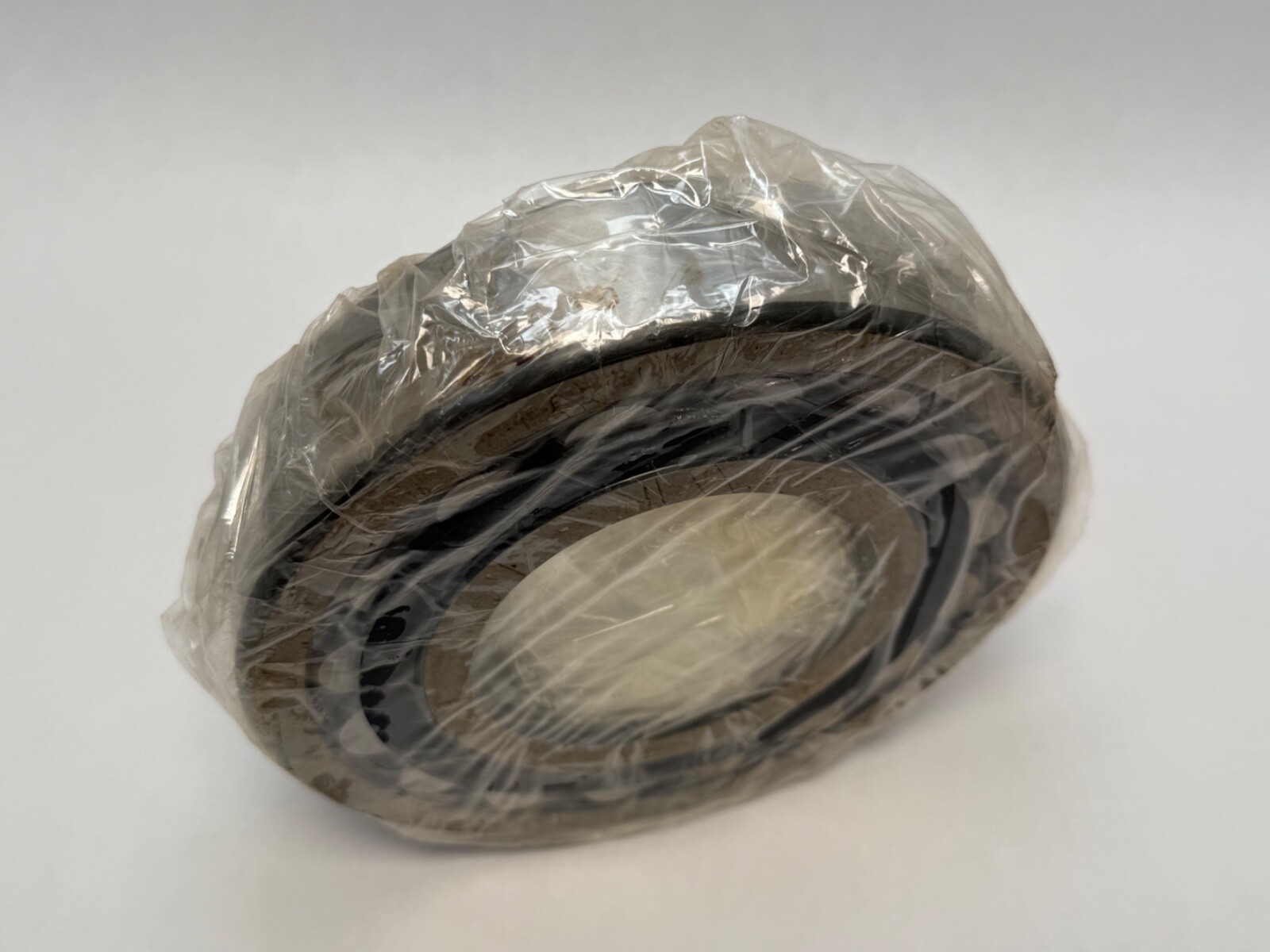

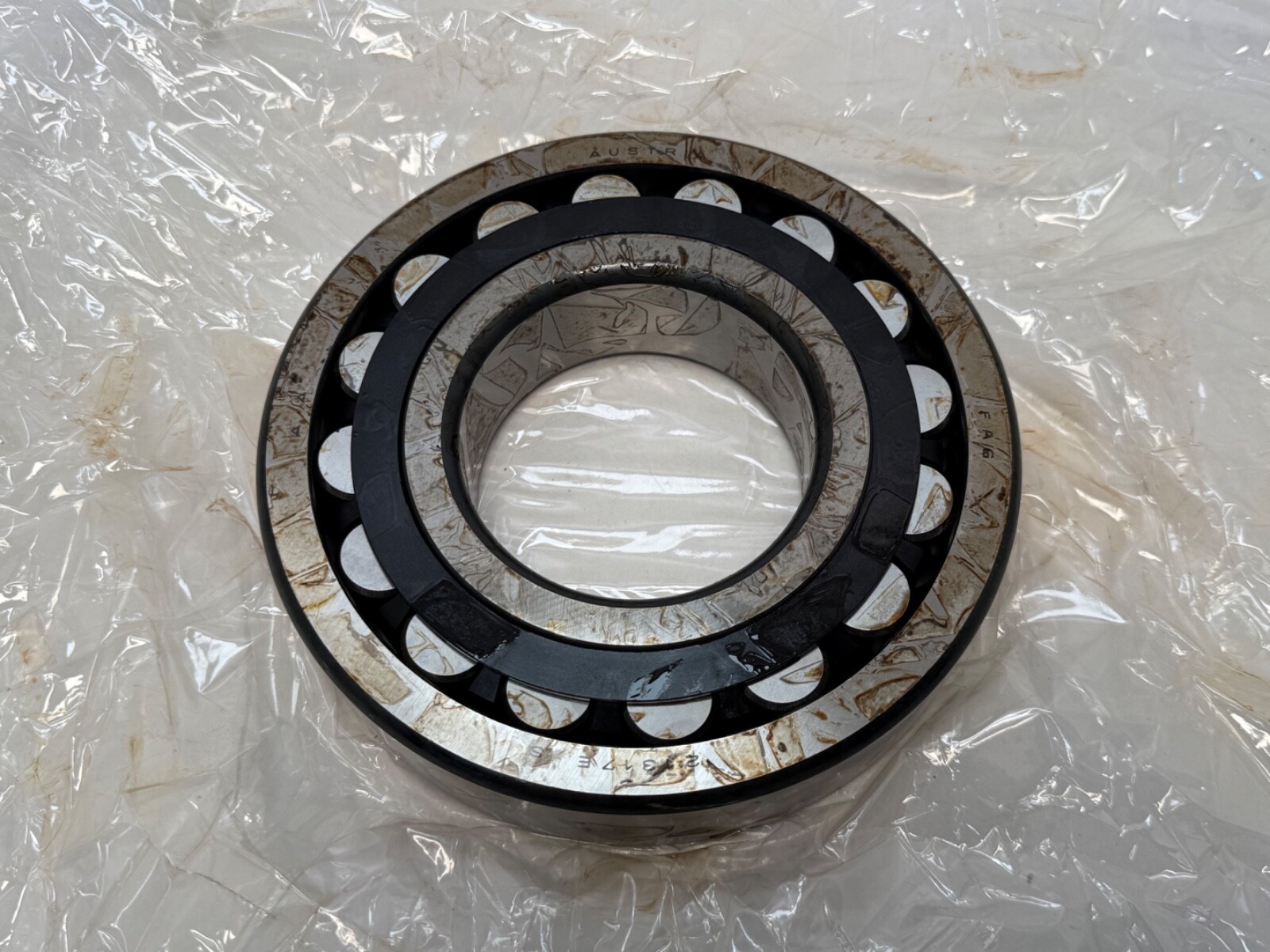

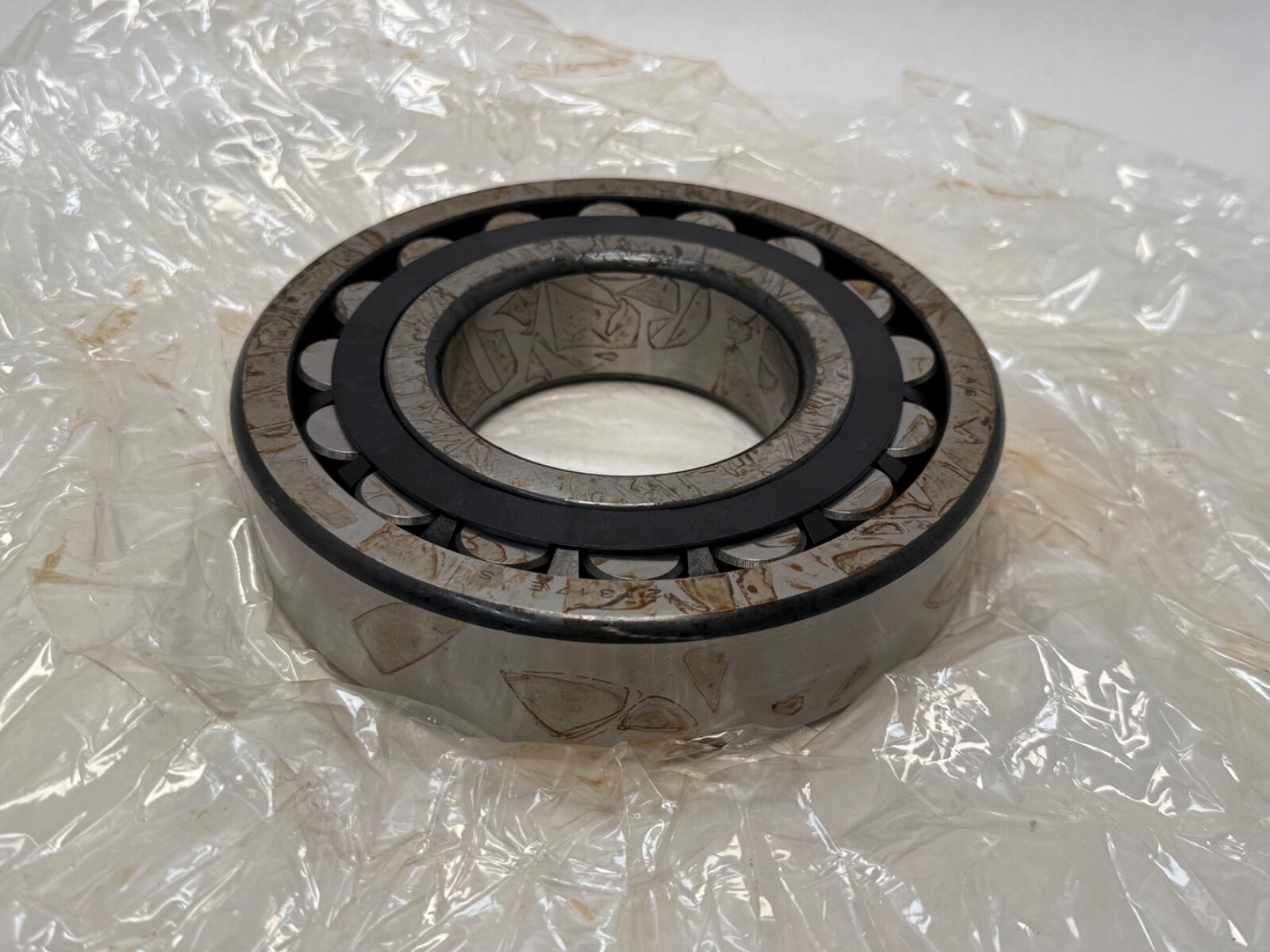

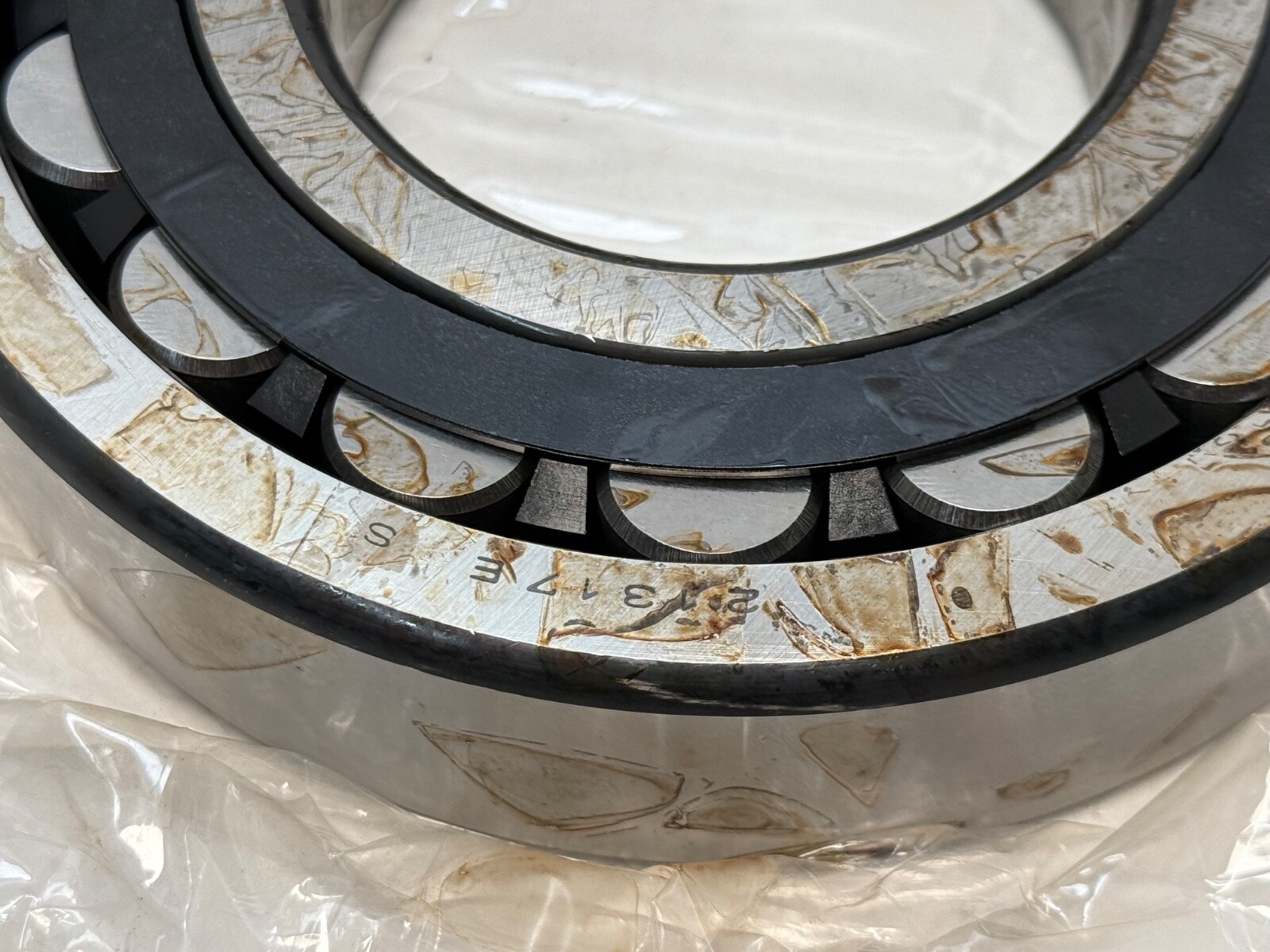

FAG 21317-E-TVPB spherical roller bearing, 85 mm cylindrical bore, 180 mm OD, 41 mm wide, glass-fibre polyamide cage, 213 series. Open, CN clearance.
List Price
$136.42
1 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | FAG |
|---|---|
| MPN | 21317-E-TVPB |
| Model | 21317-E-TVPB |
| Bearing Type | Spherical Roller Bearing, Open |
| ID | 85 mm |
| OD | 180 mm |
| Width | 41 mm |
| Base Number | 21317 |
|---|---|
| Mpn Variants | 21317E.TVPB, 21317ETVPB, 21317E, 21317 E TVPB |
| Compatible With Replaces | Successor: FAG 21317-E1-XL-TVPB |
| Additional Attributes | Successor 21317-E1-XL-TVPB data: Dynamic Load Rating 345,000 N; Static Load Rating 375,000 N; Limiting Speed 5,200 rpm; Reference Speed 3,800 rpm; Item Weight 5.04 kg (11.11 lb); operating temperature -30 to +120 °C. |
| Cage Type | Solid window cage |
| Series | 213 |
| Rolling Elements | Spherical Roller |
| Cage Material | Polyamide |
| Number Of Rows | 2 |
| Bore Type | Cylindrical |
| Snap Ring Included | No |
| Internal Clearance | CN |
| Cross Reference 1 | SKF 21317 E |
|---|
The FAG 21317-E-TVPB is a double-row spherical roller bearing of the 213 series with a cylindrical bore and a glass-fibre reinforced polyamide cage. Bore Diameter: 85 mm. Outside Diameter: 180 mm. Overall Width: 41 mm. Rolling Elements: Spherical Roller. Number Of Rows: 2. Closure Type: Open.
213 — spherical roller bearing, 213 dimension series (DIN 635-2).
17 — bore code, 17 x 5 = 85 mm bore.
E — FAG reinforced internal design.
TVPB — solid window cage of glass-fibre reinforced polyamide.
Two rows of rollers in a common spherical outer raceway carry heavy radial load and axial load in both directions while accommodating misalignment. Bore Type: Cylindrical. Cage Material: Polyamide. Internal Clearance: CN.
Successor 21317-E1-XL-TVPB data: Dynamic Load Rating: 345,000 N. Static Load Rating: 375,000 N. Limiting Speed: 5,200 rpm. Reference Speed: 3,800 rpm. Item Weight: 5.04 kg (11.11 lb). Operating temperature: −30 °C to +120 °C. Lubrication groove width 9.5 mm, lubrication hole diameter 4.8 mm.
Successor 21317-E1-XL-TVPB data: minimum chamfer 3 mm, maximum recess radius 2.5 mm, minimum shaft shoulder 99 mm, maximum housing shoulder 166 mm.
Compatible With / Replaces: Schaeffler lists 21317-E1-XL-TVPB as the current FAG execution on the same 85 x 180 x 41 mm envelope. Cross-reference: SKF 21317 E.
