Availability:
1 in stock
Single-row barrel roller bearing, 85 mm bore x 150 mm OD x 28 mm wide. Cylindrical bore, machined brass cage, radial load with self-alignment. 1 Pc.
List Price
$191.12
1 in stock
1 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
Also Available From:
| MFR / Brand | FAG |
|---|---|
| MPN | 20217MB |
| Model | 20217 MB |
| Bearing Type | Spherical Roller Bearing, Open |
| ID | 85 mm |
| OD | 150 mm |
| Width | 28 mm |
| Material | Bearing Steel |
|---|---|
| Series | 20200 |
| Condition | New – Open box |
| Base Number | 20217 |
| Industry Terms | barrel roller bearing, single row barrel roller, self-aligning roller bearing |
| Condition Note | Made In Germany, New Old Stock |
| Bore Shaft Size | 85 mm (3.3465 in) |
| Mpn Variants | 20217MB, 20217-MB, 20217 MB, 20217M, 20217 |
| Min Temp | -40 °C |
| Cage Type | Machined Brass |
| Dynamic Load Rating | 156 kN |
| Static Load Rating | 196 kN |
| Precision Rating | ABEC 1 / P0 |
| Rolling Elements | Barrel Roller |
| Max Temp | 200 °C |
| Item Weight | 4.30 lbs |
| Cage Material | Machined brass |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Snap Ring Included | Without Snap Ring |
| Harmonization Code | 8482.30.00 |
| Design Units | Metric |
| Internal Clearance | CN |
| Part Number | 20217-MB |
| Cross Reference 1 | SKF 20217 |
|---|

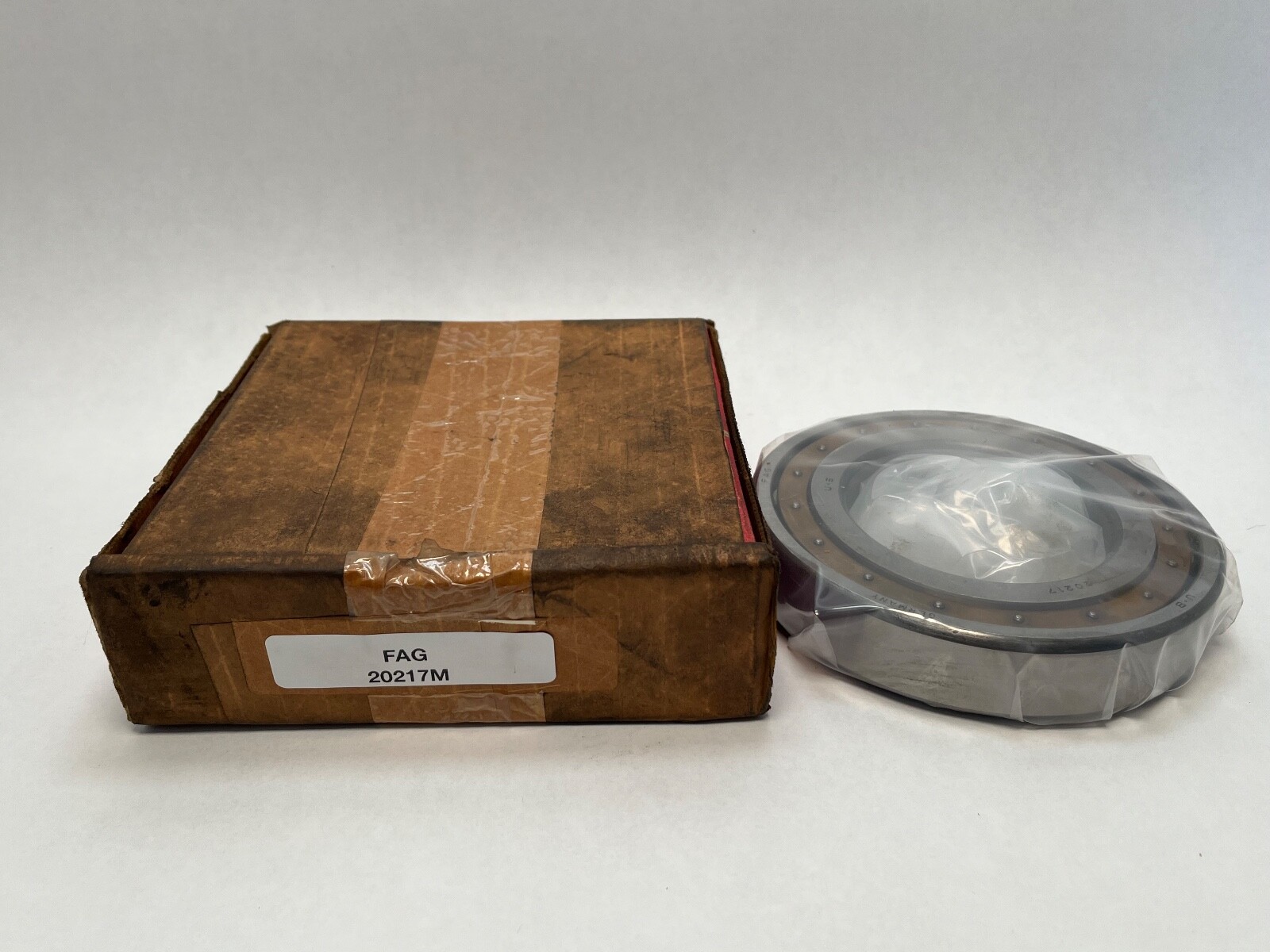

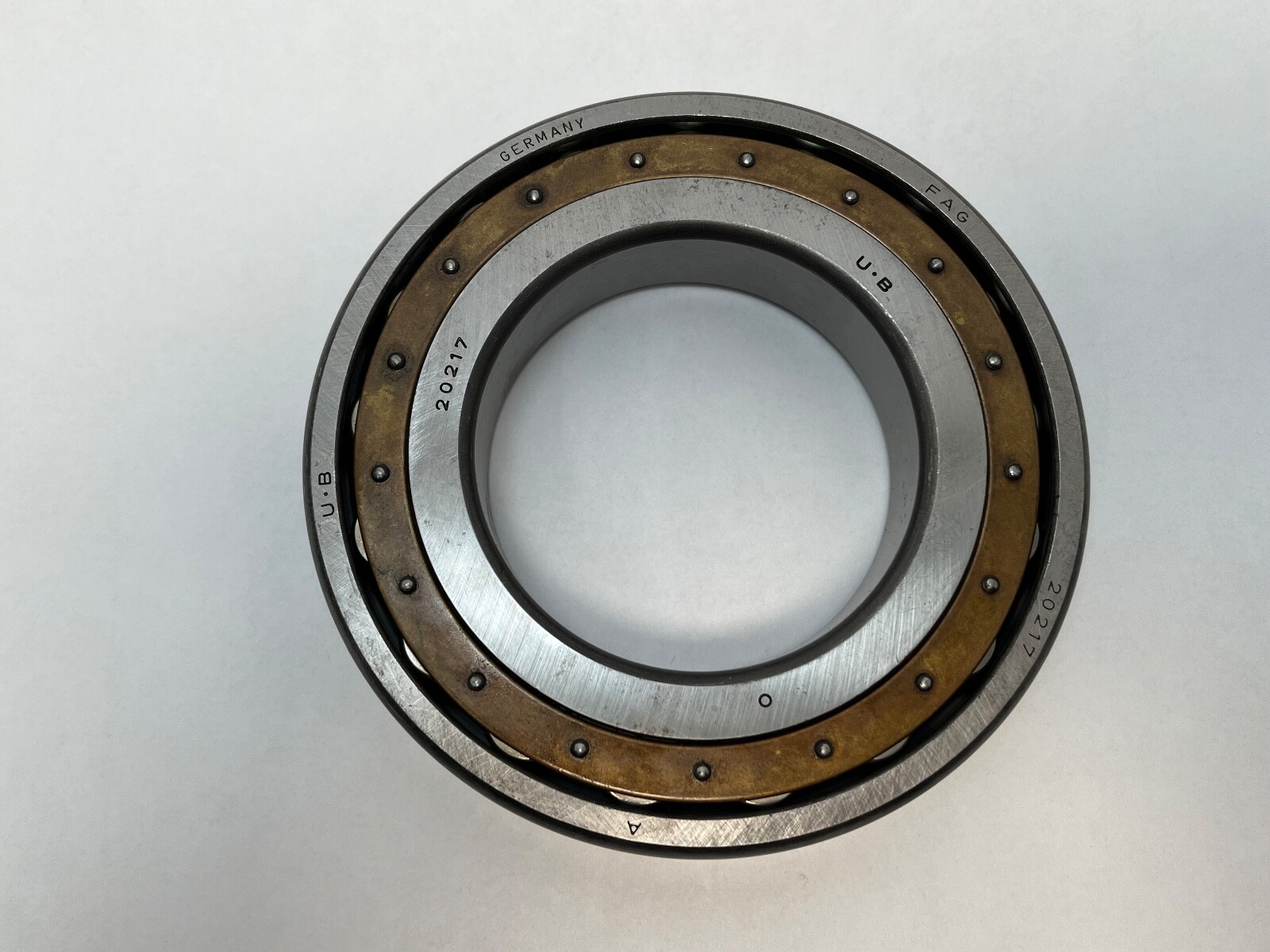

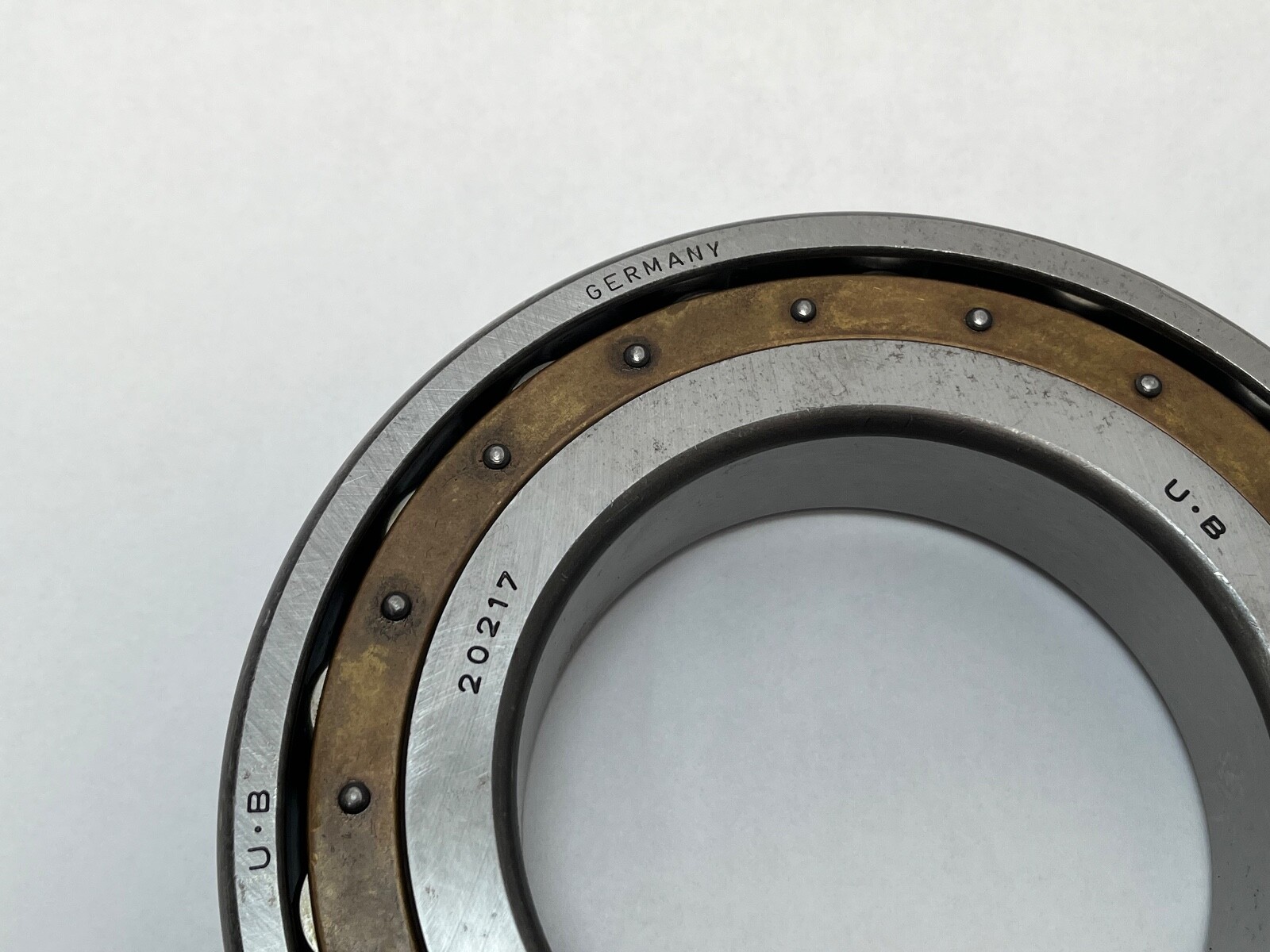

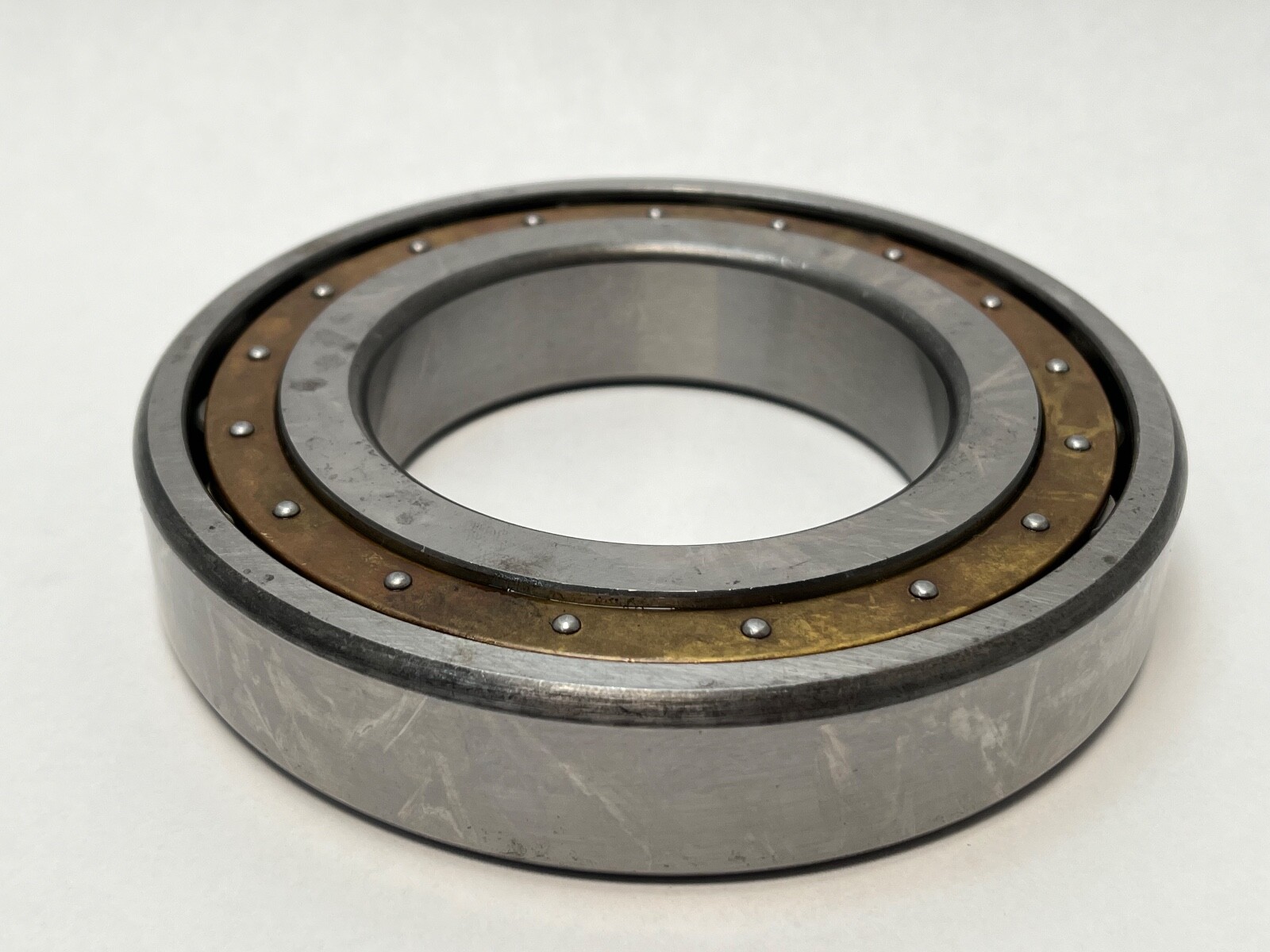

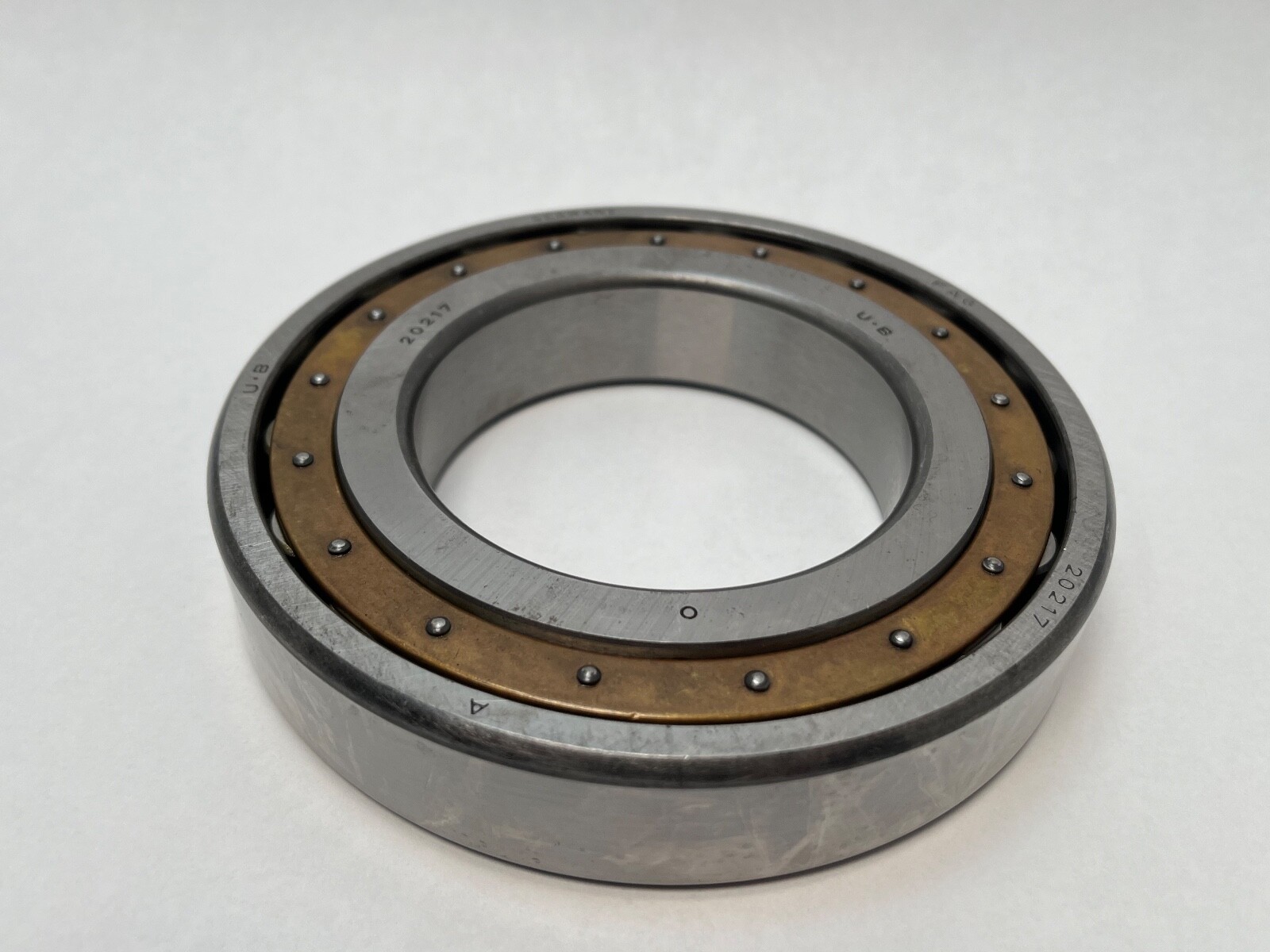

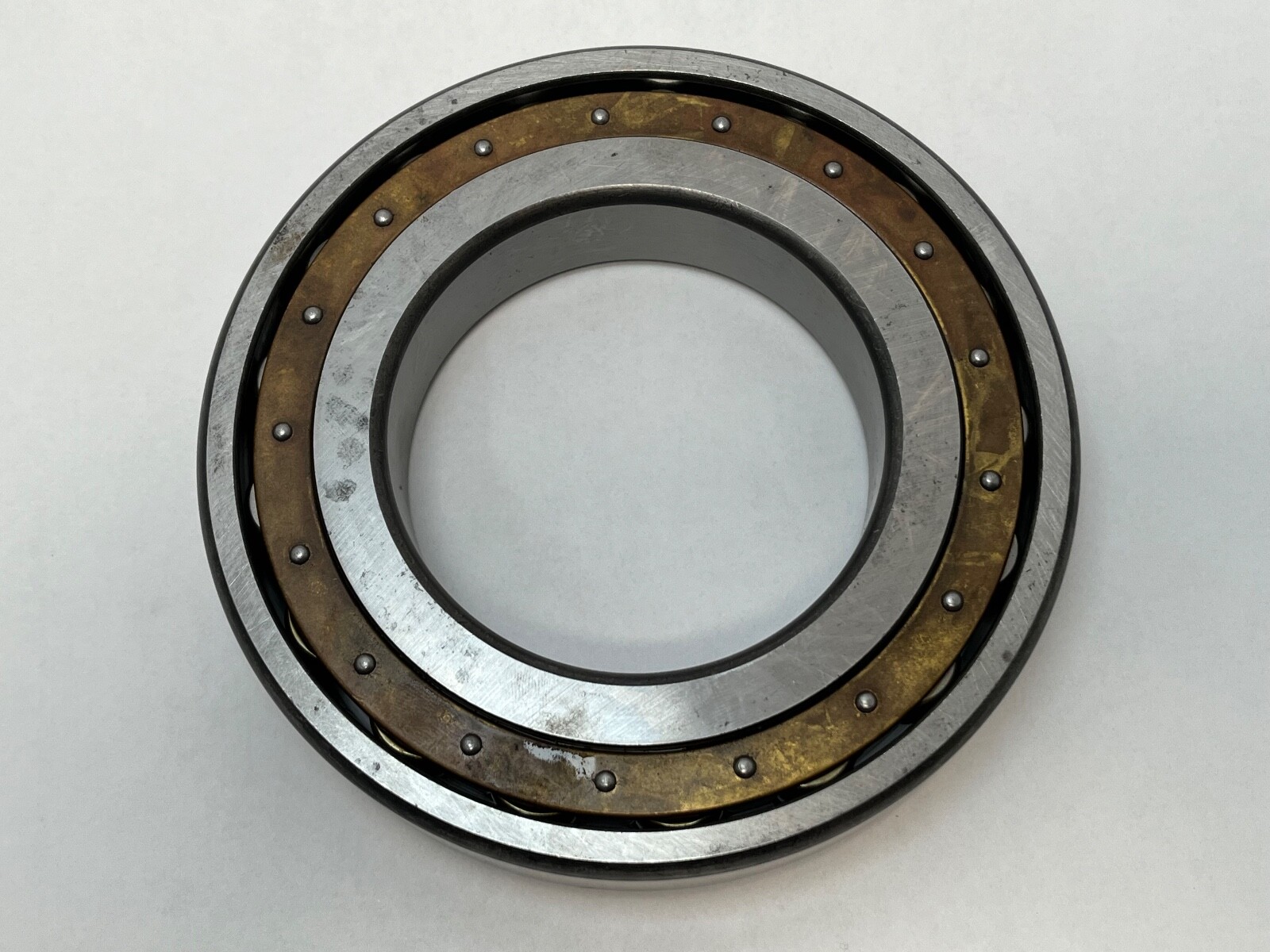

FAG 20217-MB, a single-row barrel roller bearing. One row of barrel-shaped rollers runs on a spherical outer raceway, so the inner ring, roller set and cage swivel inside the outer ring. Boundary dimensions 85 mm bore × 150 mm outside diameter × 28 mm width. Cylindrical bore.
20 – barrel roller, single row2 – ISO dimension series17 – bore code, 17 × 5 = 85 mm boreMB – machined brass cage, inner-ring guided

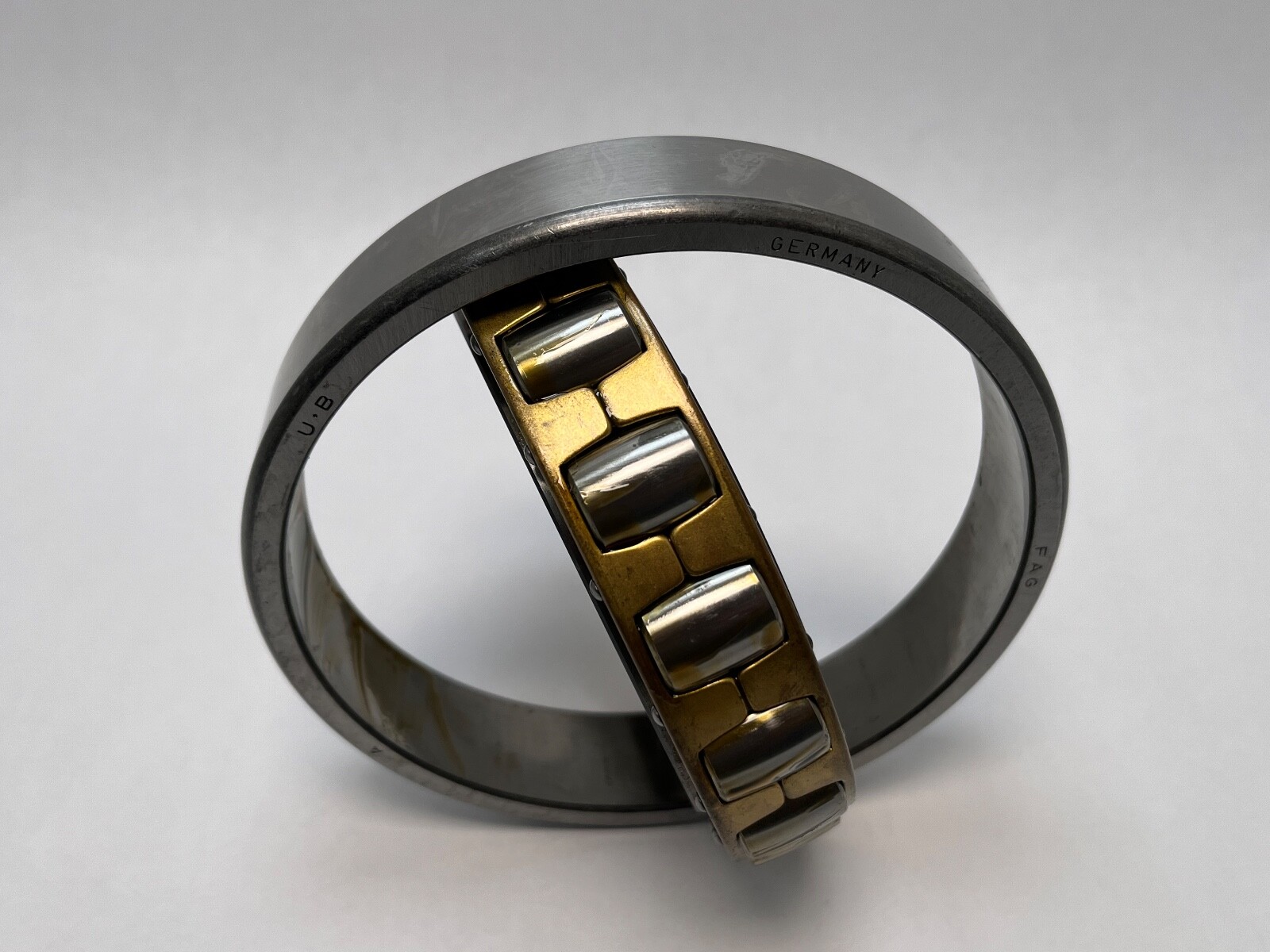

The barrel roller carries radial load and self-aligns on its spherical outer raceway, taking shaft deflection and housing misalignment without edge loading the rollers. Load is radial only. The machined brass cage runs at higher speed and temperature than a pressed steel cage and suits oil-lubricated service.
Bore: 85 mm (3.3465 in)Outside diameter: 150 mm (5.9055 in)Width: 28 mm (1.1024 in)Rows: 1Bore form: cylindricalCage: machined brass, MBInternal clearance: CN (normal)
1 Pc. Bearing only, cylindrical bore, mounted directly on the shaft seat.
Alternate written forms of the same bearing: 20217-MB, 20217 MB, 20217M. The tapered-bore 20217K is a related size with a different bore form. The 22217 is a double-row spherical roller bearing, a different bearing type.
