Single-row barrel roller bearing, 65 mm bore x 120 mm OD x 23 mm wide. Cylindrical bore, machined brass cage, radial load with self-alignment. 1 Pc.
List Price
$142.26
1 in stock
1 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
Also Available From:
| MFR / Brand | FAG |
|---|---|
| MPN | 20213MB |
| Model | 20213 M MB |
| Bearing Type | Spherical Roller Bearing, Open |
| ID | 65 mm |
| OD | 120 mm |
| Width | 23 mm |
| Material | Bearing Steel |
|---|---|
| Series | 20200 |
| Condition | New |
| Base Number | 20213 |
| Industry Terms | barrel roller bearing, single row barrel roller, self-aligning roller bearing |
| Bore Shaft Size | 65 mm (2.5591 in) |
| Mpn Variants | 20213MB, 20213-MB, 20213 MB, 20213M, 20213-M, 20213-MB/M |
| Min Temp | -30°C |
| Cage Type | Machined |
| Dynamic Load Rating | 118 kN |
| Static Load Rating | 137 kN |
| Rolling Elements | Cylindrical |
| Max Temp | 200°C |
| Item Weight | 2.50 lbs |
| Cage Material | Machined brass |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Snap Ring Included | Without Snap Ring |
| Harmonization Code | 8482.30.00.80 |
| Design Units | Metric |
| Internal Clearance | CN |
| Part Number | 20213-MB |
| Cross Reference 1 | SKF 20213 C |
|---|

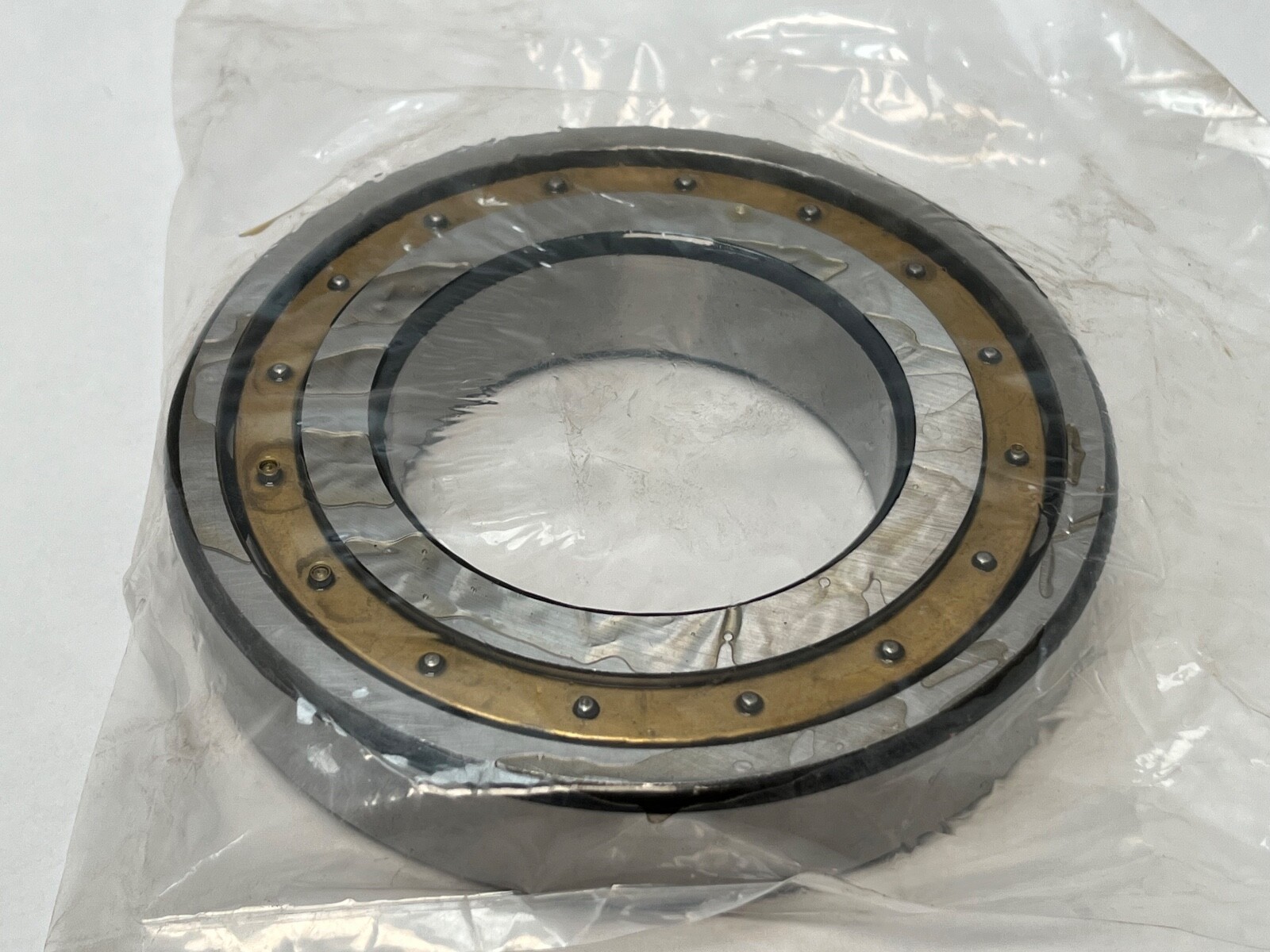

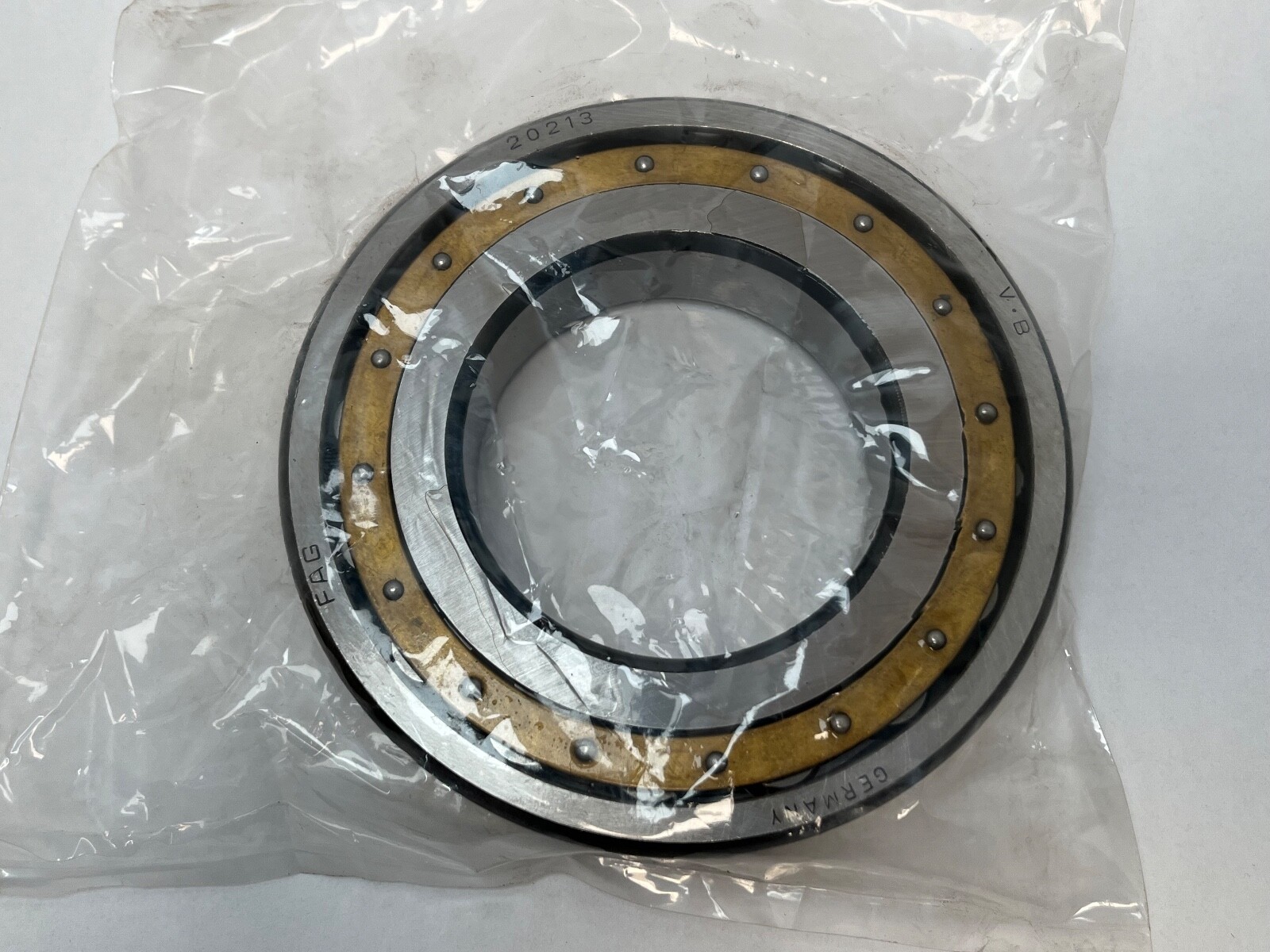

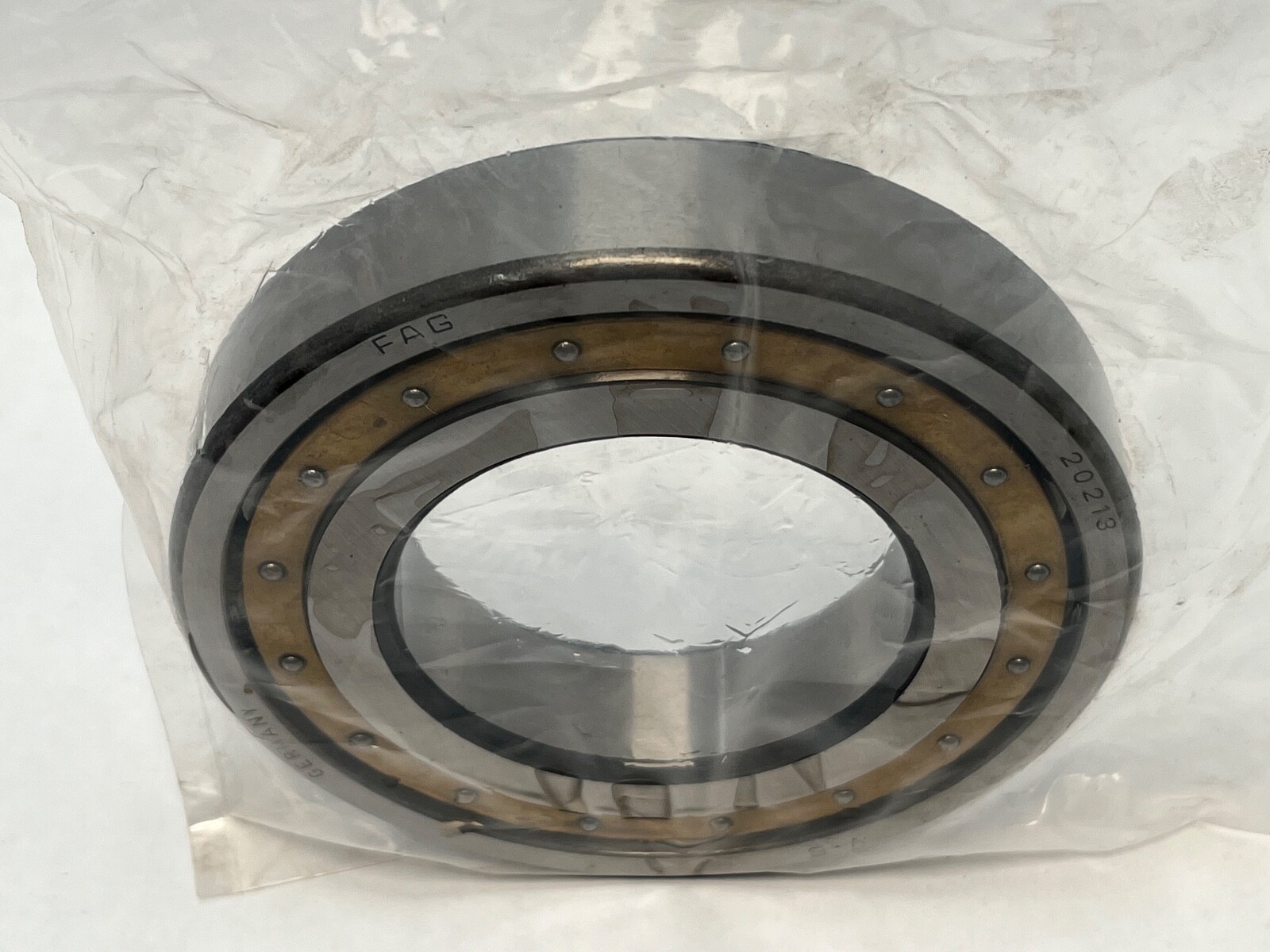

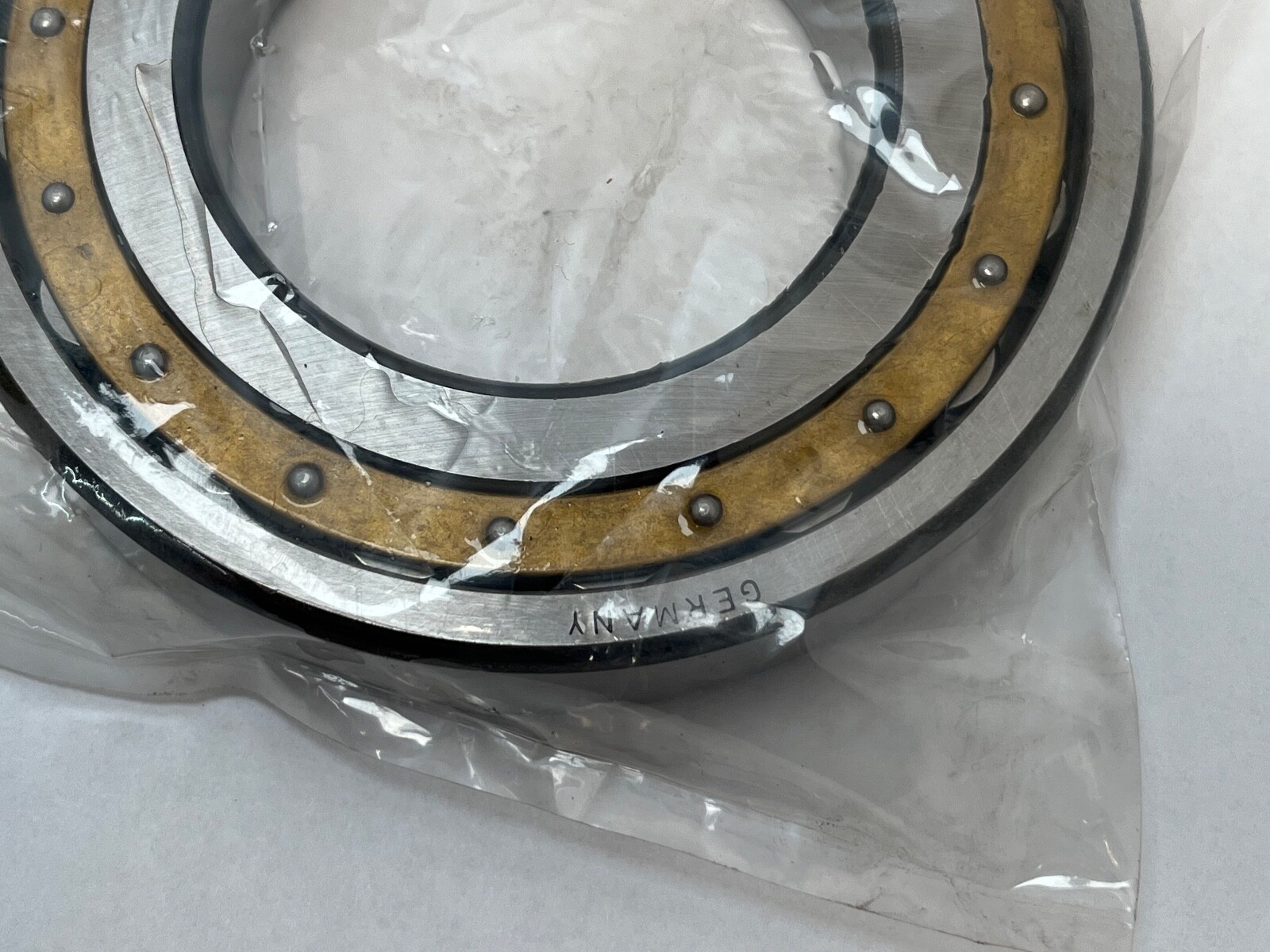

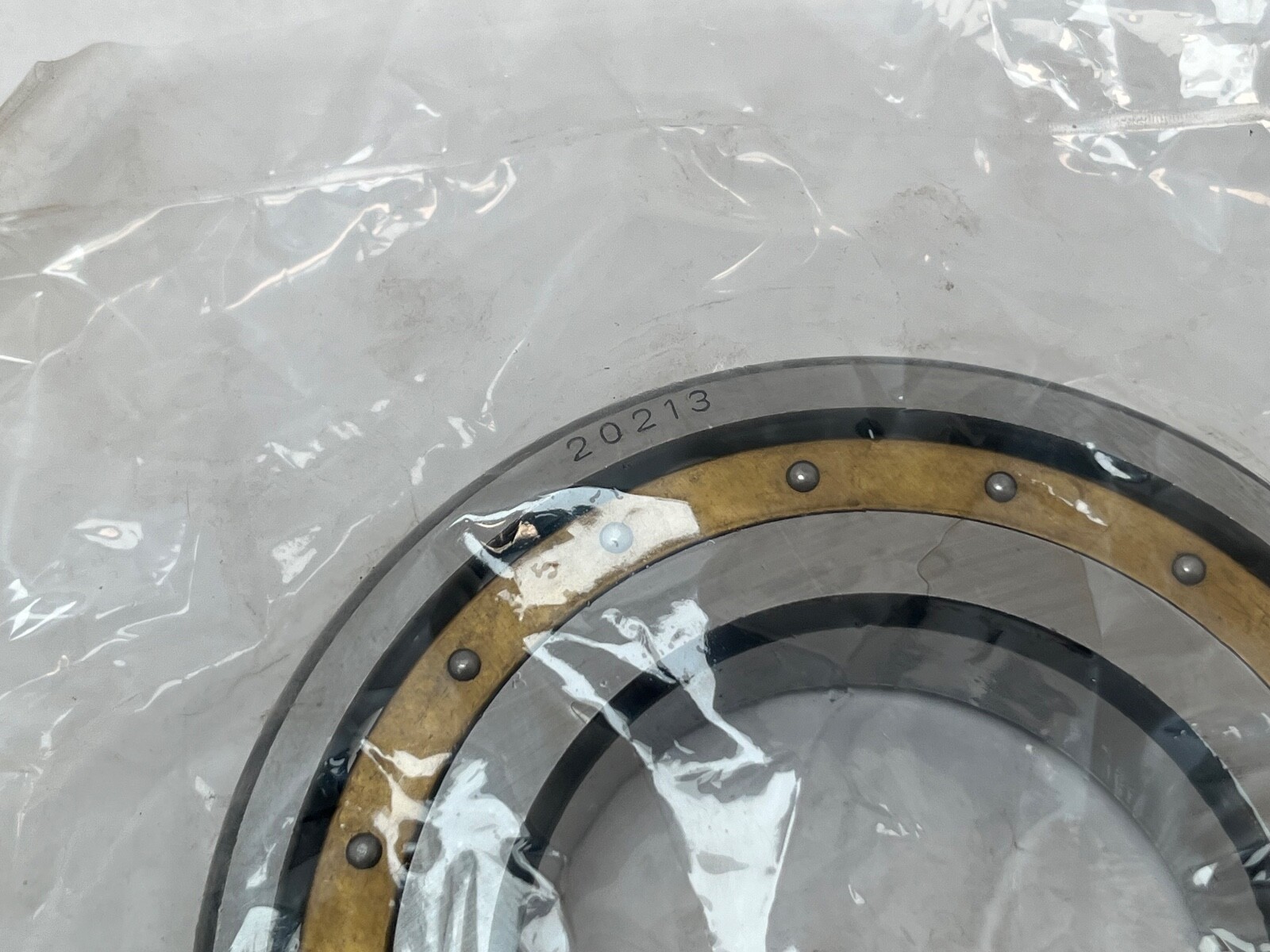

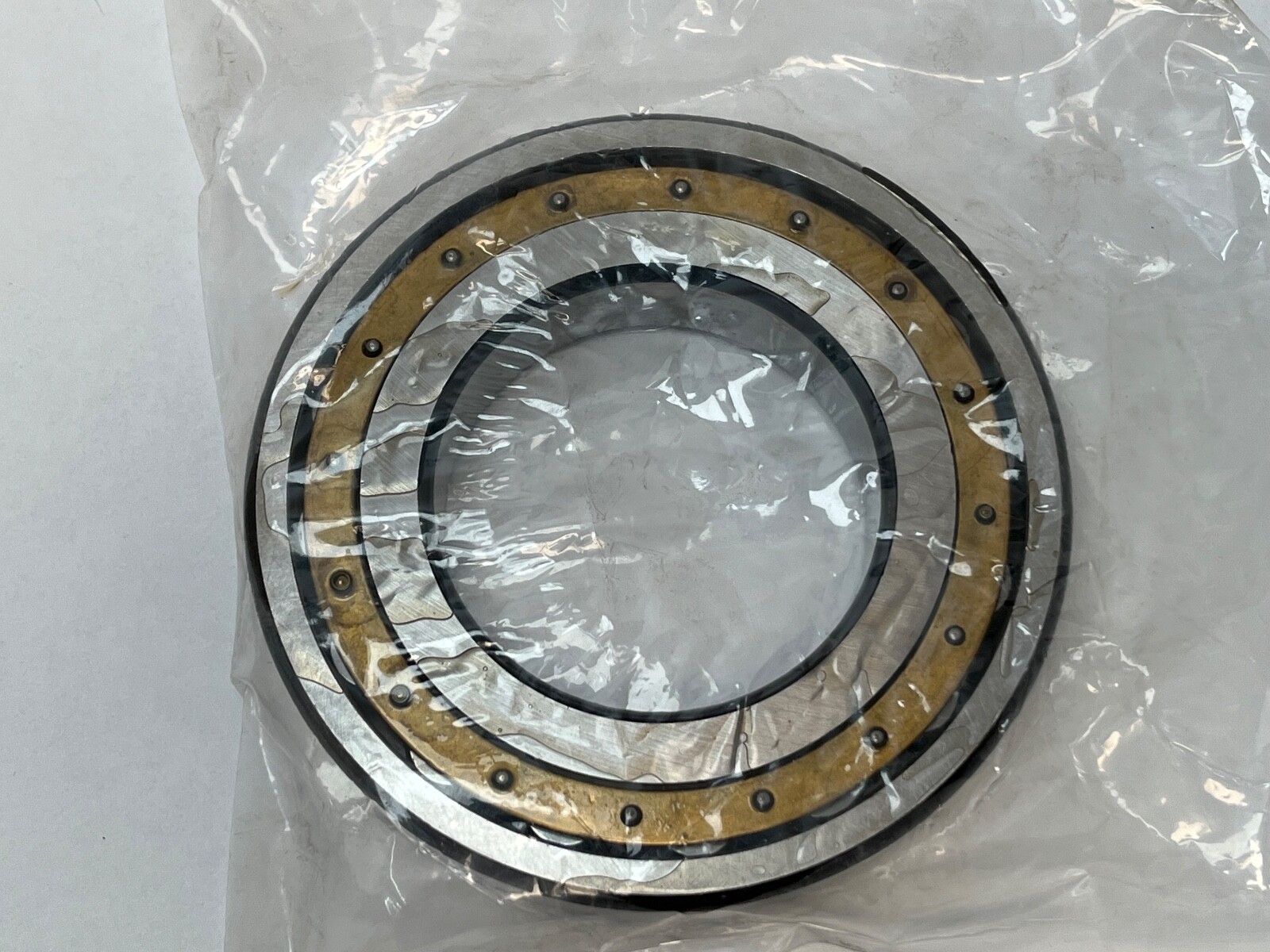

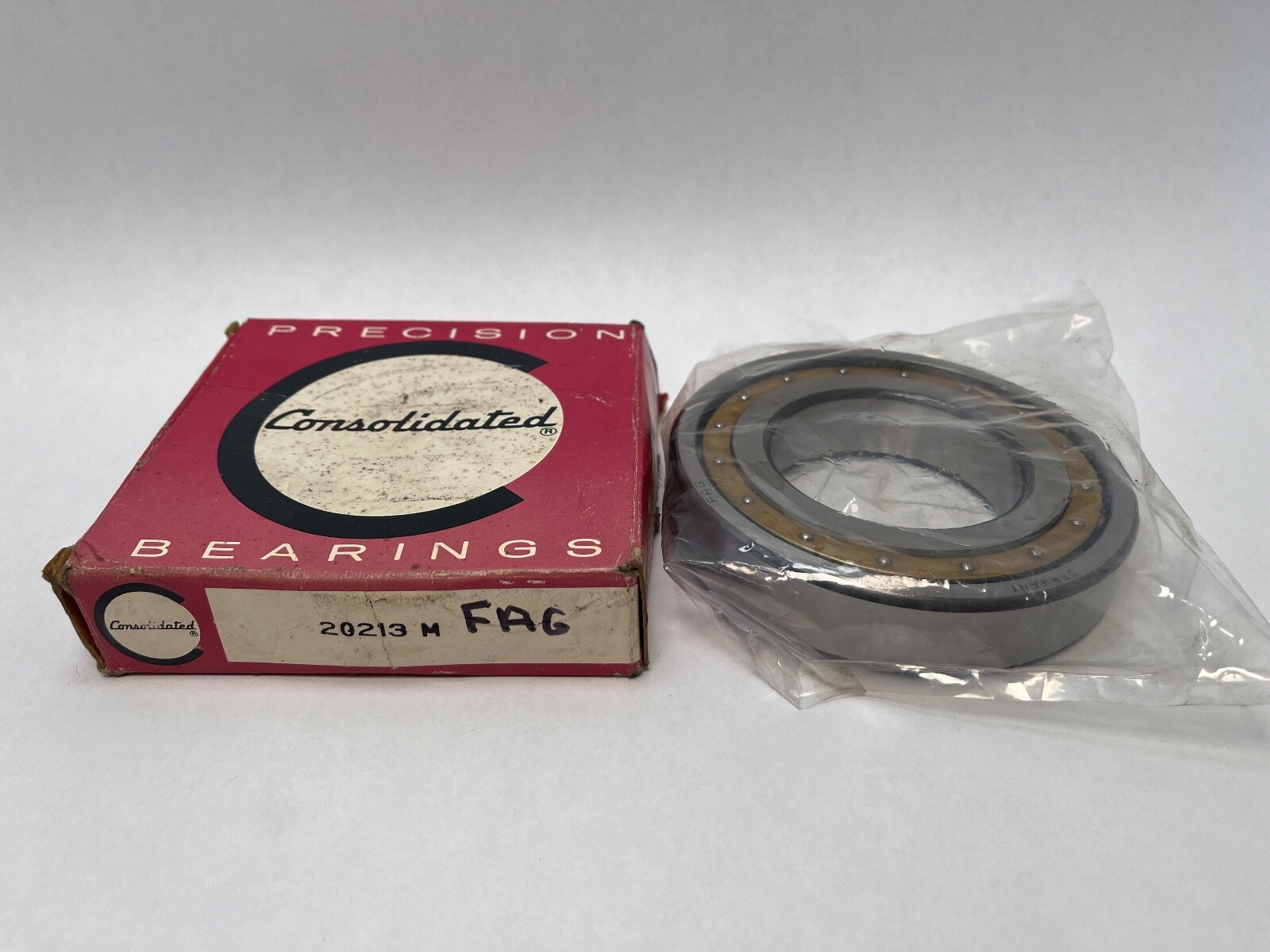

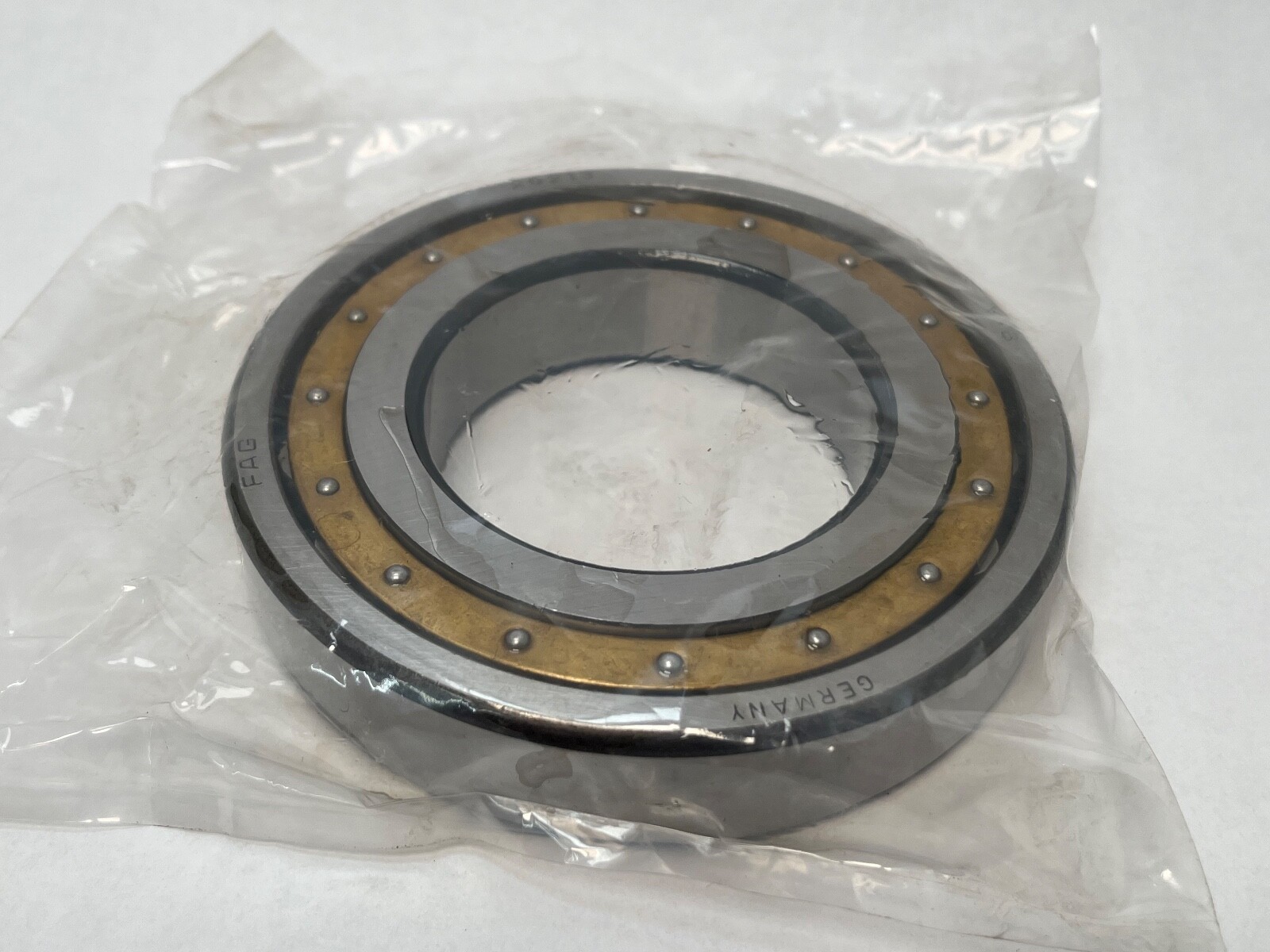

FAG 20213-MB, a single-row barrel roller bearing. One row of barrel-shaped rollers runs on a spherical outer raceway, so the inner ring, roller set and cage swivel inside the outer ring. Boundary dimensions 65 mm bore × 120 mm outside diameter × 23 mm width. Cylindrical bore.
20 – barrel roller, single row2 – ISO dimension series13 – bore code, 13 × 5 = 65 mm boreMB – machined brass cage, inner-ring guided
The barrel roller carries radial load and self-aligns on its spherical outer raceway, taking shaft deflection and housing misalignment without edge loading the rollers. Load is radial only. The machined brass cage suits higher speeds and higher temperatures than a pressed steel cage and tolerates oil-lubricated, contaminated service.
Bore: 65 mm (2.5591 in)Outside diameter: 120 mm (4.7244 in)Width: 23 mm (0.9055 in)Rows: 1Bore form: cylindricalCage: machined brass, MBInternal clearance: CN (normal)
1 Pc. Bearing only, cylindrical bore, mounted directly on the shaft seat.
Alternate written forms of the same bearing: 20213-MB, 20213 MB, 20213M, 20213-M. The 22213 and 23213 numbers are double-row spherical roller bearings on the same bore, a different bearing type with different capacity, and are related sizes rather than interchanges.
