Availability:
1 in stock
Double-row self-aligning ball bearing, 75 mm 1:12 tapered bore x 130 mm OD x 25 mm wide, open type. Mounts on an H215 adapter sleeve for a 65 mm shaft.
List Price
$53.52
1 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | SNR |
|---|---|
| MPN | 1215K |
| Model | 1215-K |
| Bearing Type | Self Aligning Ball Bearing, Open |
| ID | 75 mm |
| OD | 130 mm |
| Width | 25 mm |
| Series | 1200 |
|---|---|
| Material | Bearing Steel |
| Base Number | 1215 |
| Industry Terms | self-aligning ball bearing, double row ball bearing, tapered bore bearing, adapter sleeve bearing, 1200 series |
| Common Misspellings | 1215X, 12I5K, 1251K, 1215KK |
| Overall Width | 25 mm |
| Mpn Variants | 1215K, 1215 K, 1215-K, 1215.K, 1215KJ30, 1215K J30, 1215K C3, 1215KC3 |
| Compatible With Replaces | Mounts on H215 adapter sleeve (65 mm shaft) with KM15 locknut and MB15 lock washer |
| Precision Class | ABEC 1 / P0 |
| Rolling Elements | Ball |
| Number Of Rows | 2 |
| Bore Type | Tapered 1:12 |
| Snap Ring Included | No |
| Lubricant | Grease or oil |
| Harmonization Code | 8482.10.50 |
| Cross Reference 1 | SKF 1215 K |
|---|---|
| Cross Reference 2 | FAG 1215-K-TVH |
| Cross Reference 3 | NSK 1215K |
| Cross Reference 4 | NTN 1215K |
| Cross Reference 5 | Koyo 1215K |

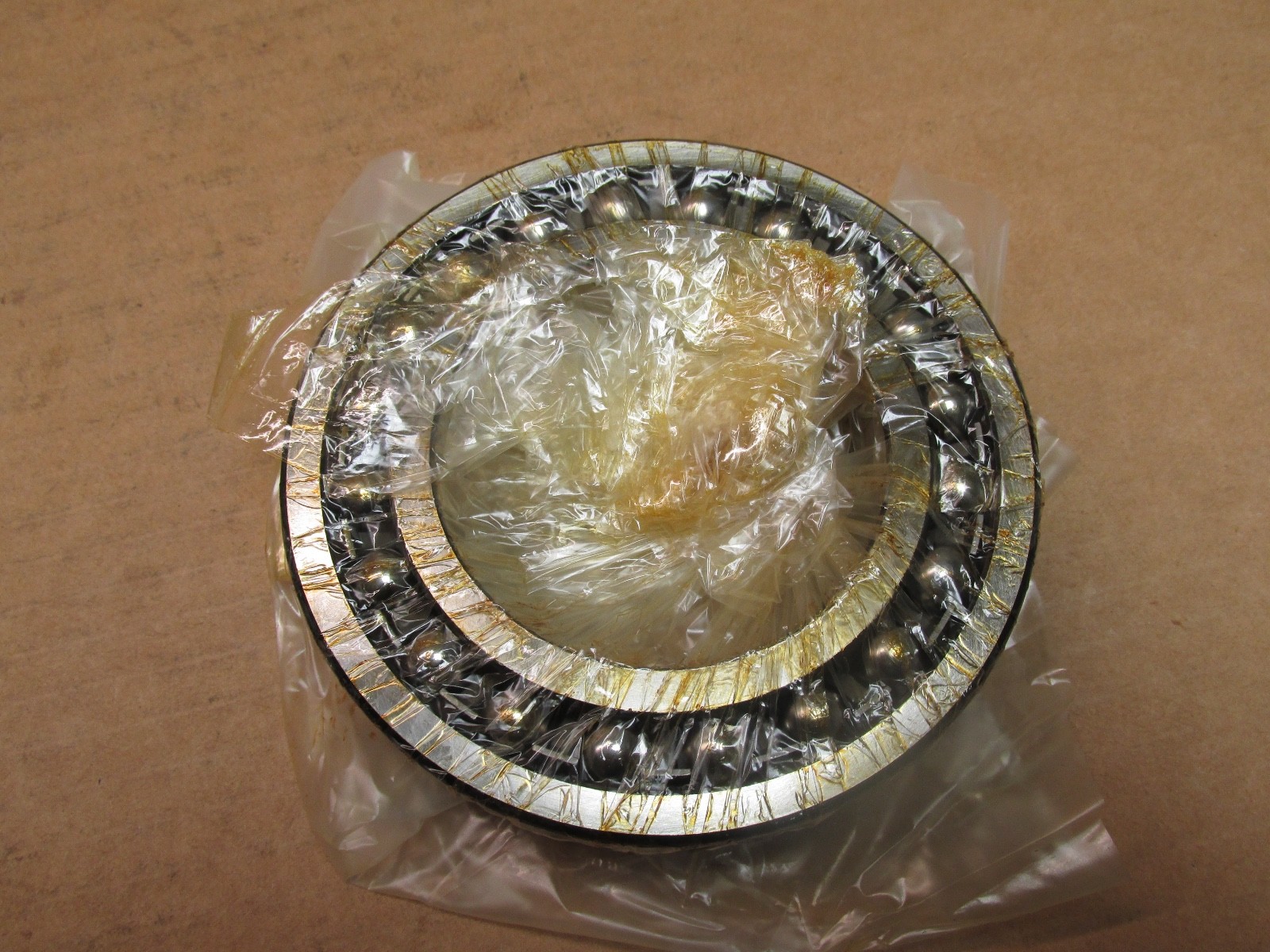

The SNR 1215K is a double-row self-aligning ball bearing with a tapered bore, from the ISO 12 light series. Bore Diameter: 75 mm. Outside Diameter: 130 mm. Overall Width: 25 mm. Two rows of balls run on a common spherical raceway in the outer ring, so the inner ring, balls and cage swivel relative to the outer ring and absorb shaft deflection and housing misalignment.
12 — double-row self-aligning ball bearing, ISO dimension series 02.
15 — bore code 15: 75 mm bore, 130 mm outside diameter, 25 mm width.
K — 1:12 tapered bore.
Rolling Elements: Ball. Number Of Rows: 2. Bore Type: Tapered 1:12. Closure Type: Open. Precision Class: ABEC 1 / P0. The self-aligning geometry keeps load distributed across both ball rows when the shaft runs out of line with the housing, which suits long line shafts, fans, conveyors and agricultural drives. The open design takes grease or oil lubrication.
The 1:12 tapered bore mounts on an H215 adapter sleeve, which seats the bearing on a 65 mm shaft and is locked with a KM15 locknut and MB15 lock washer. The tapered bore also mounts directly on a matching 1:12 tapered journal. Snap Ring Included: No.
Unit Quantity: 1 Pc.
Same 75 x 130 x 25 mm envelope, double-row self-aligning ball design and 1:12 tapered bore: SKF 1215 K, FAG 1215-K-TVH, NSK 1215K, NTN 1215K, Koyo 1215K. The FAG equivalent carries a polyamide cage. A 1215 without the K suffix has a cylindrical bore and does not seat on an adapter sleeve.
