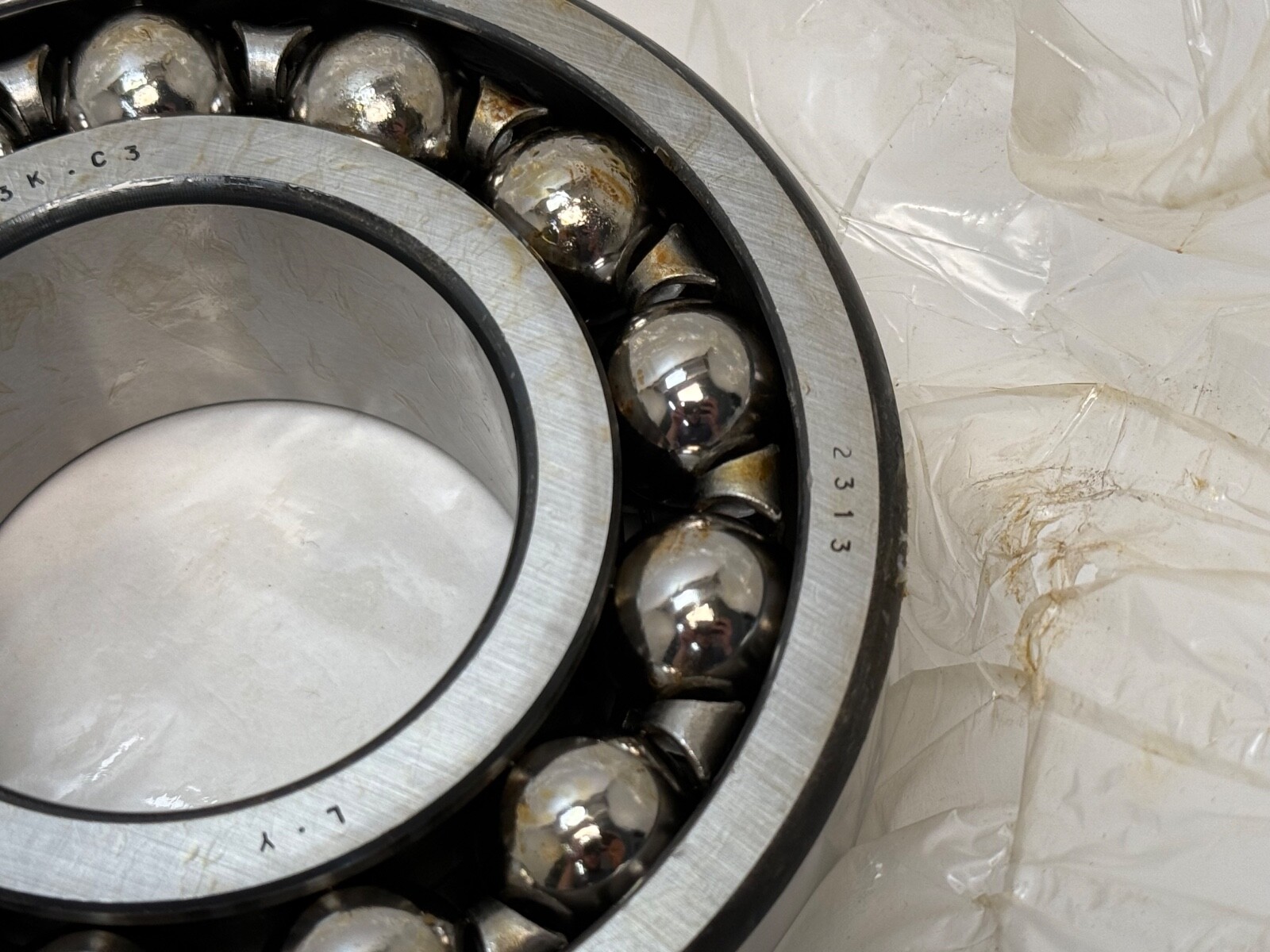

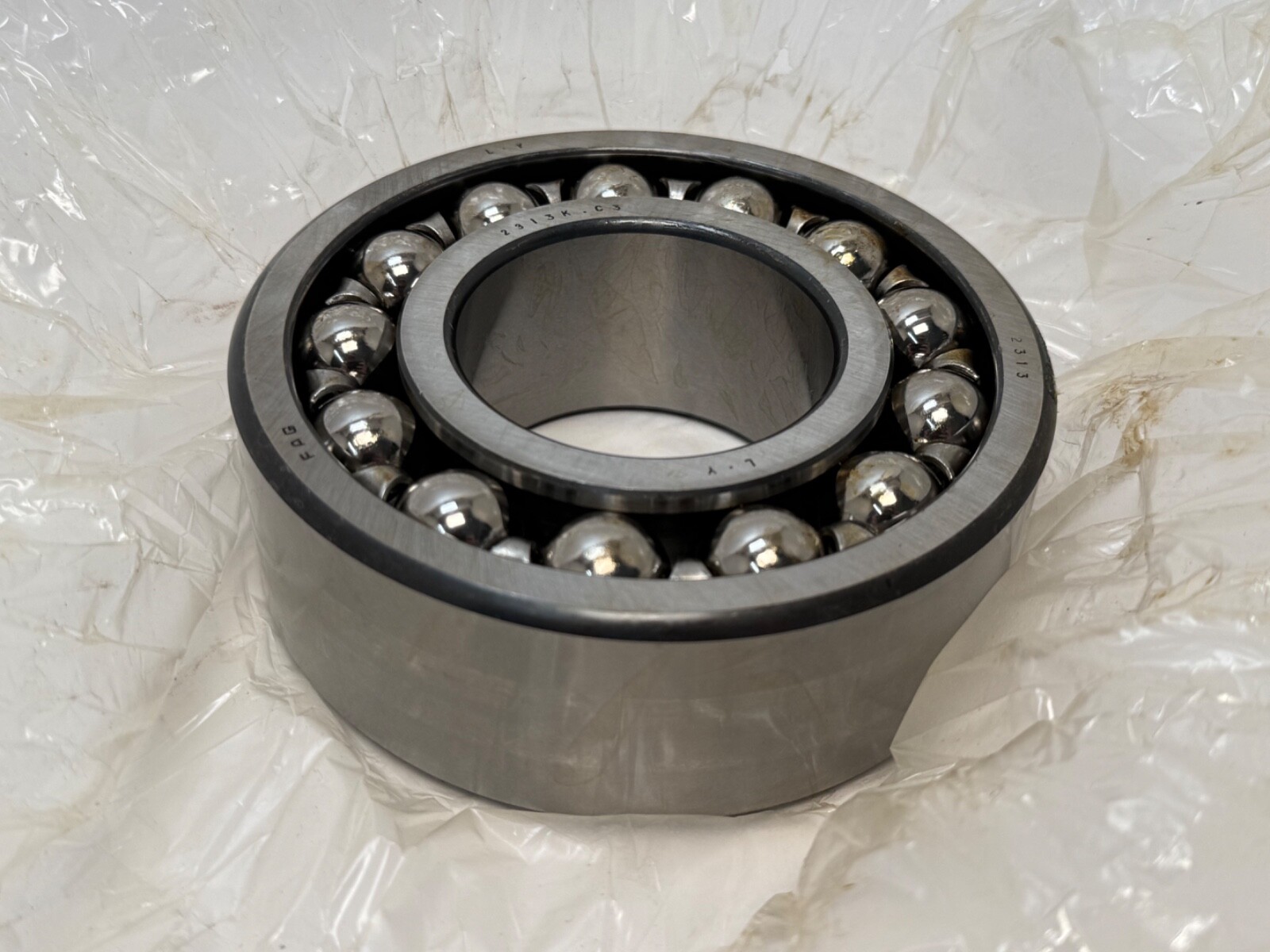

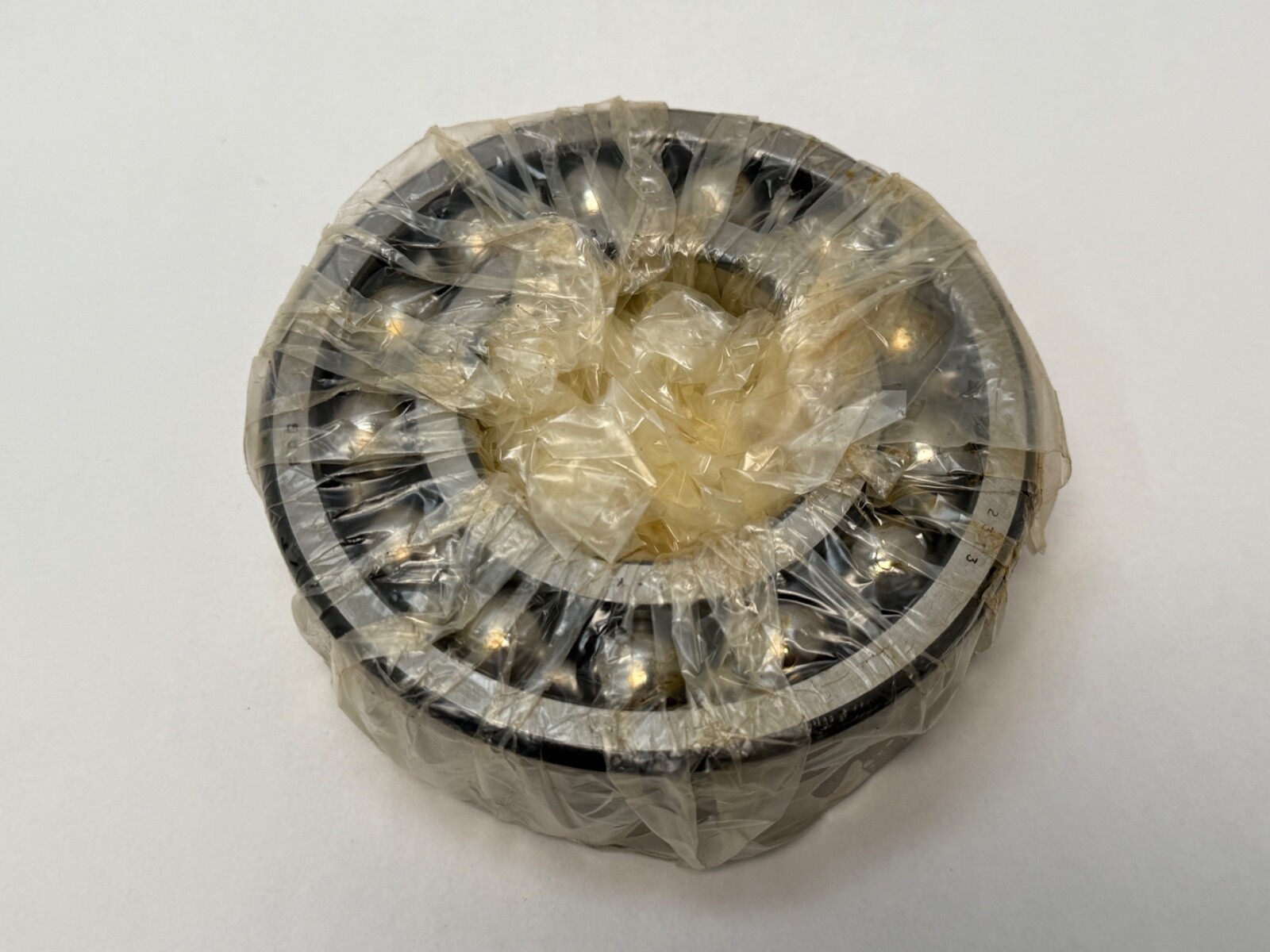

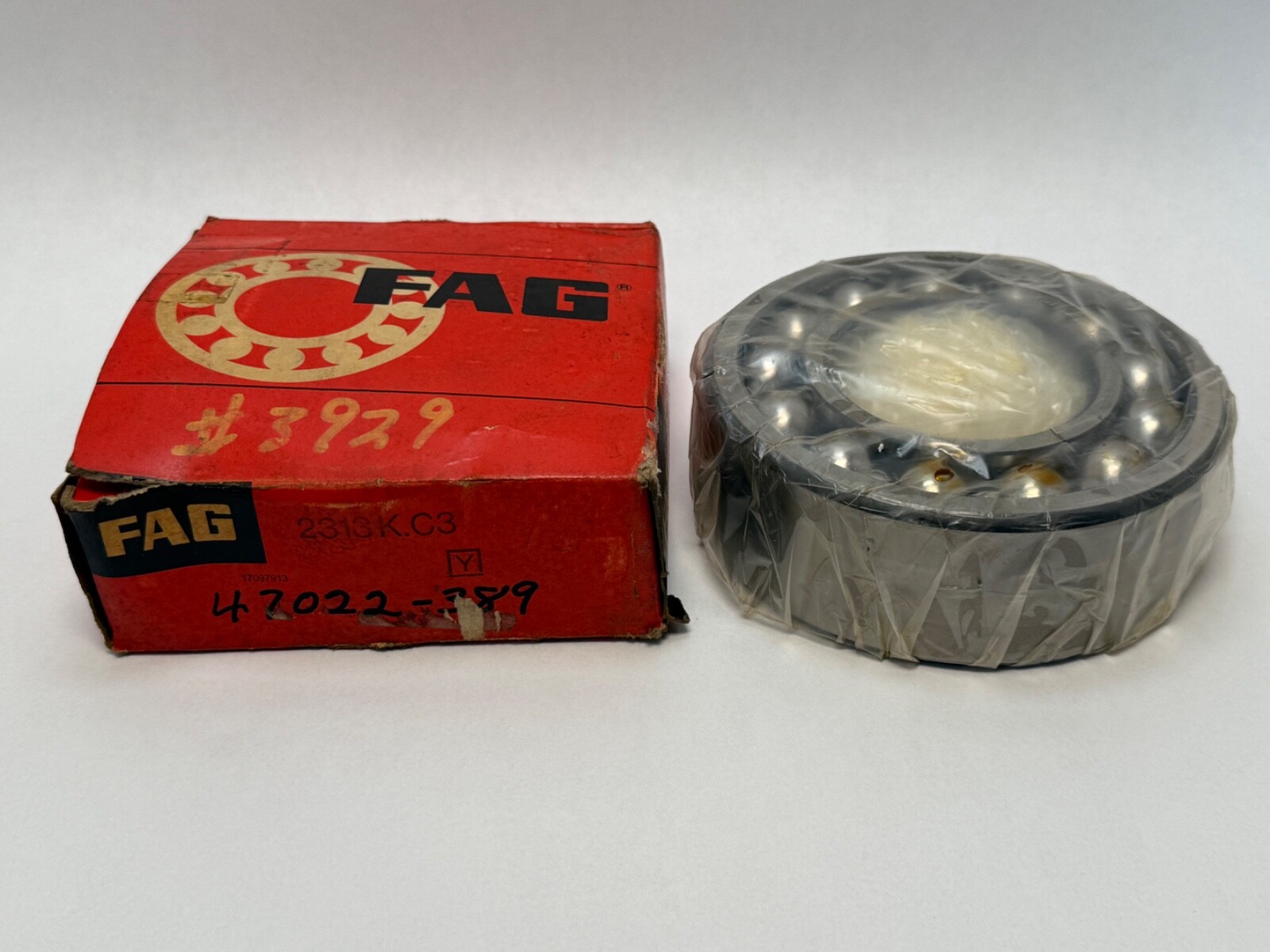

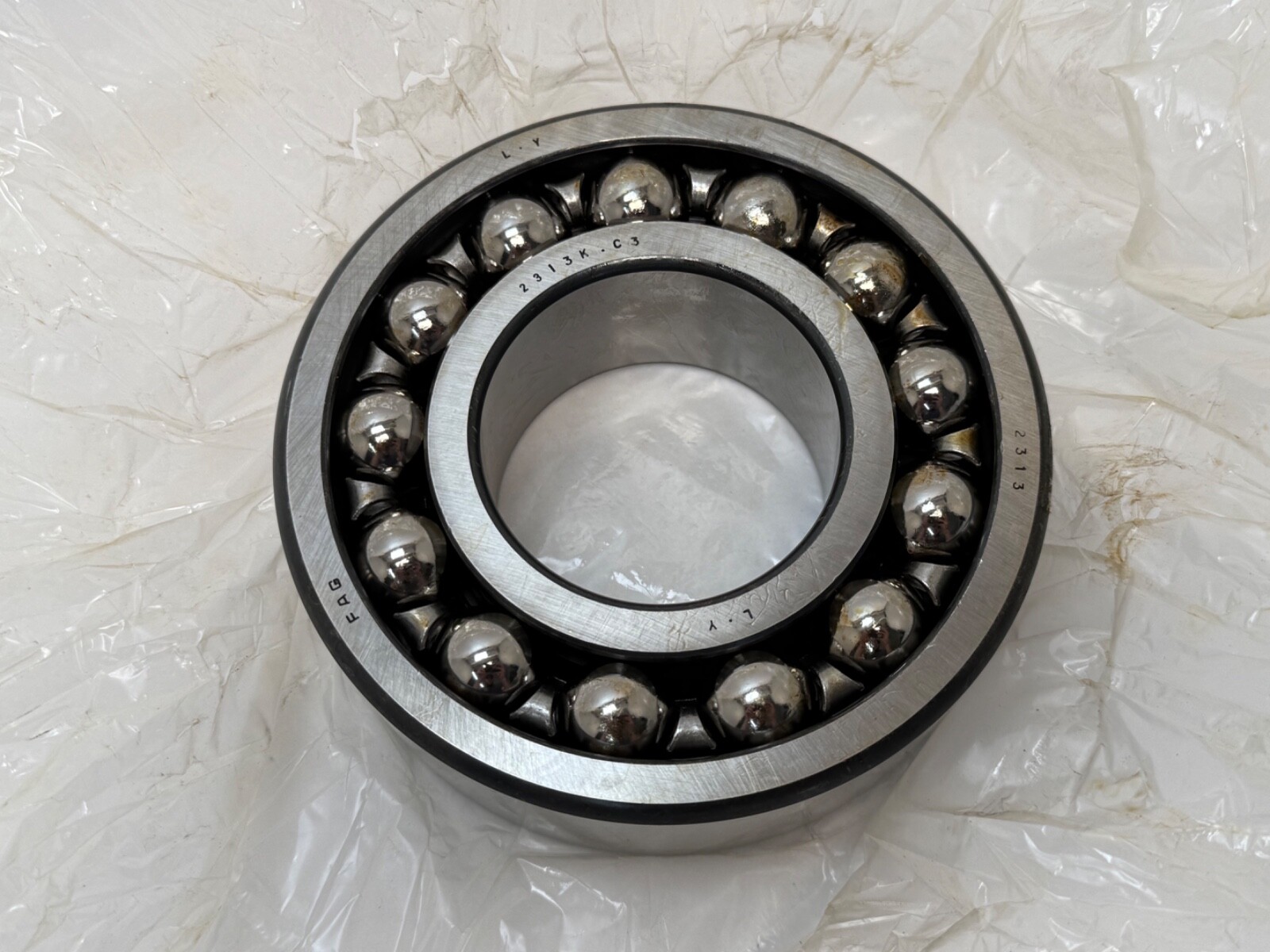

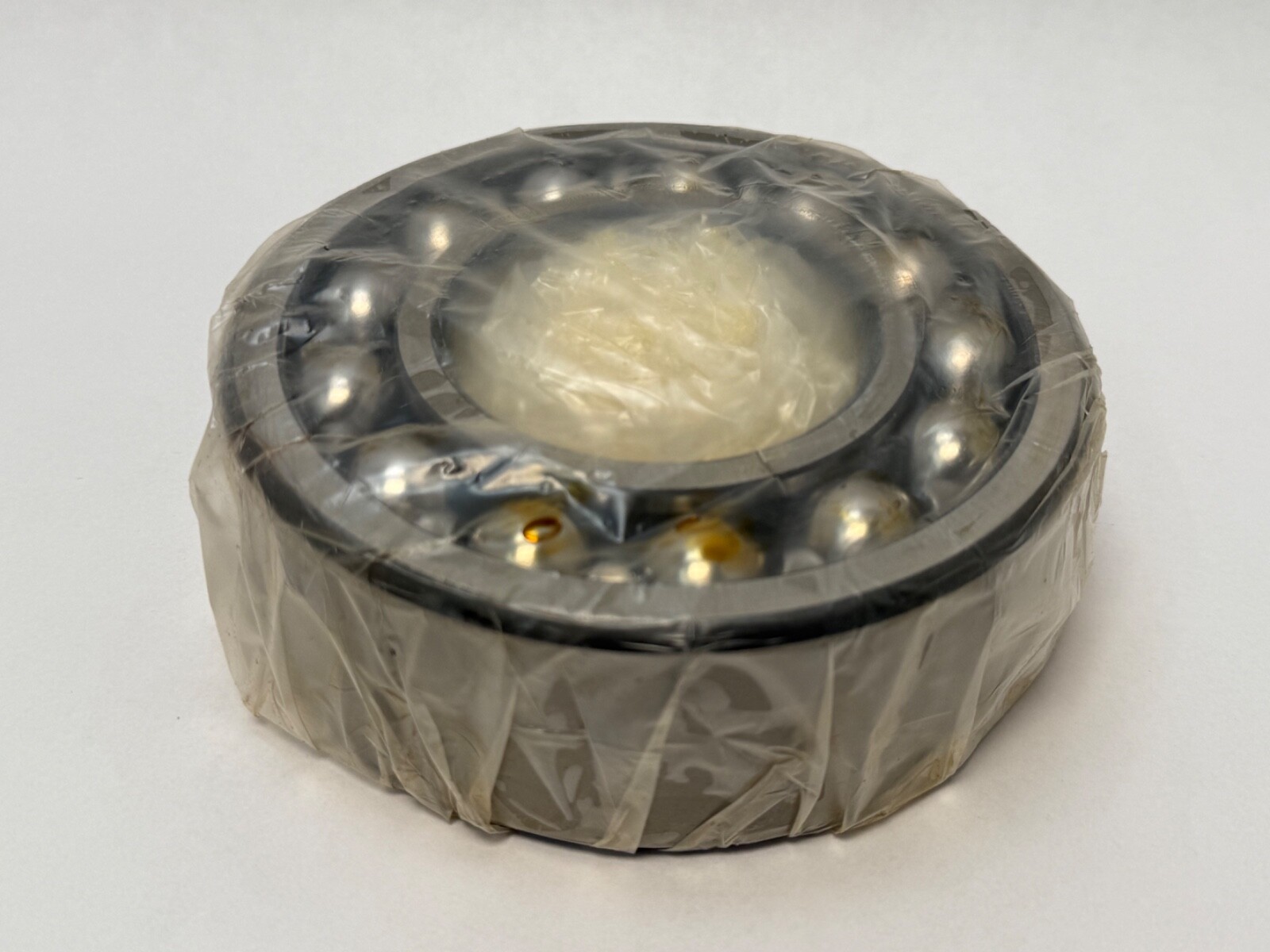

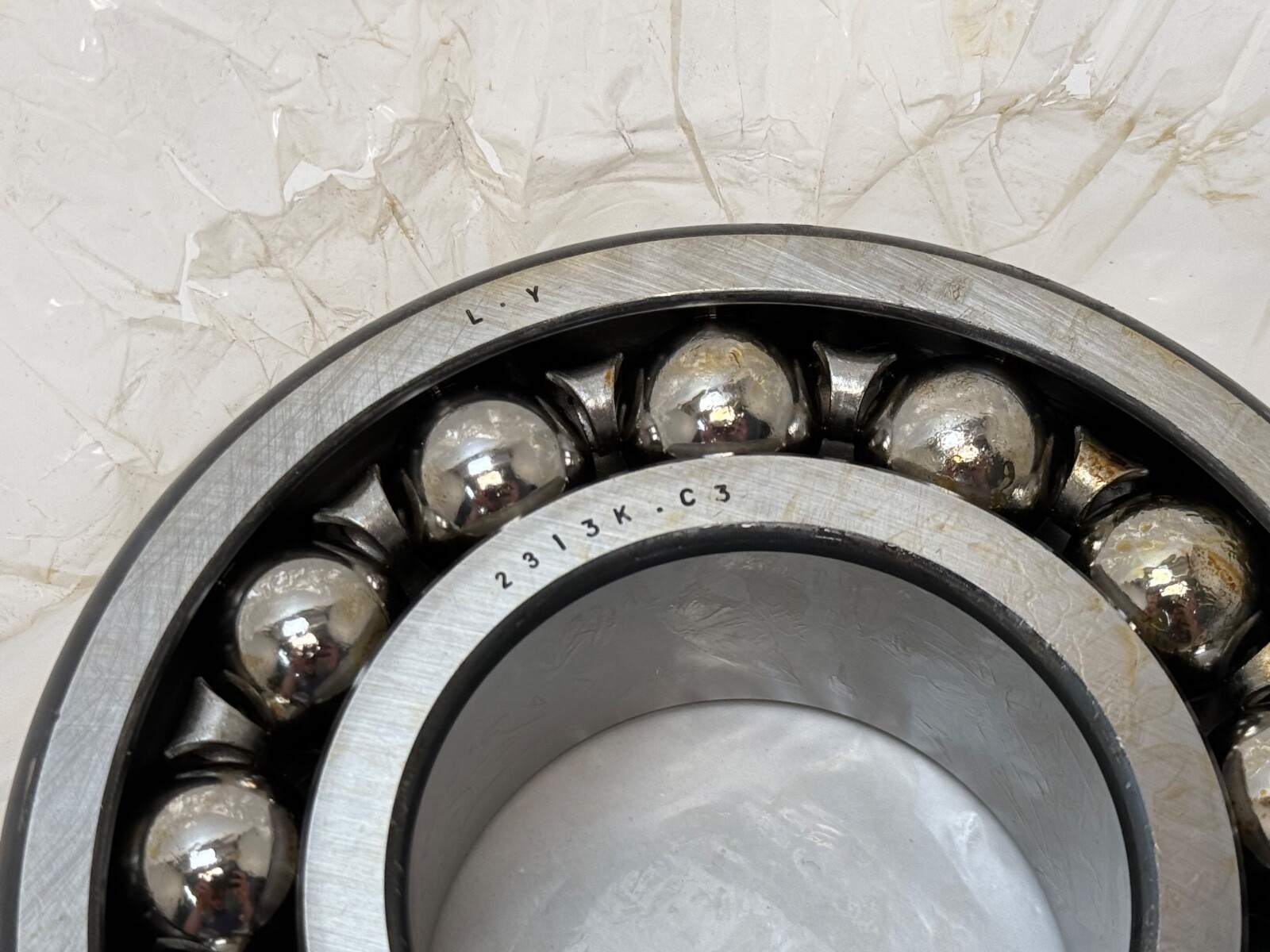

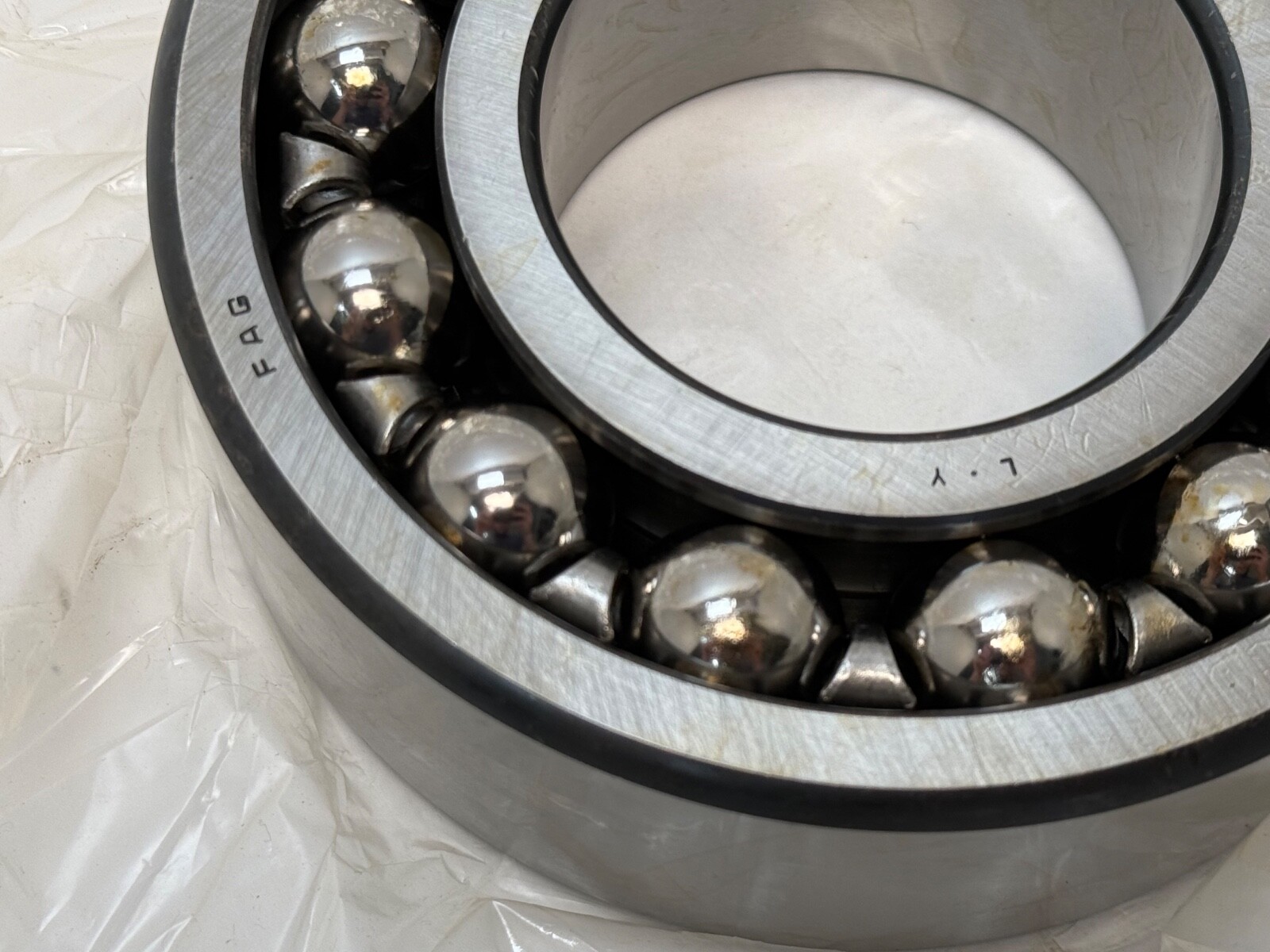

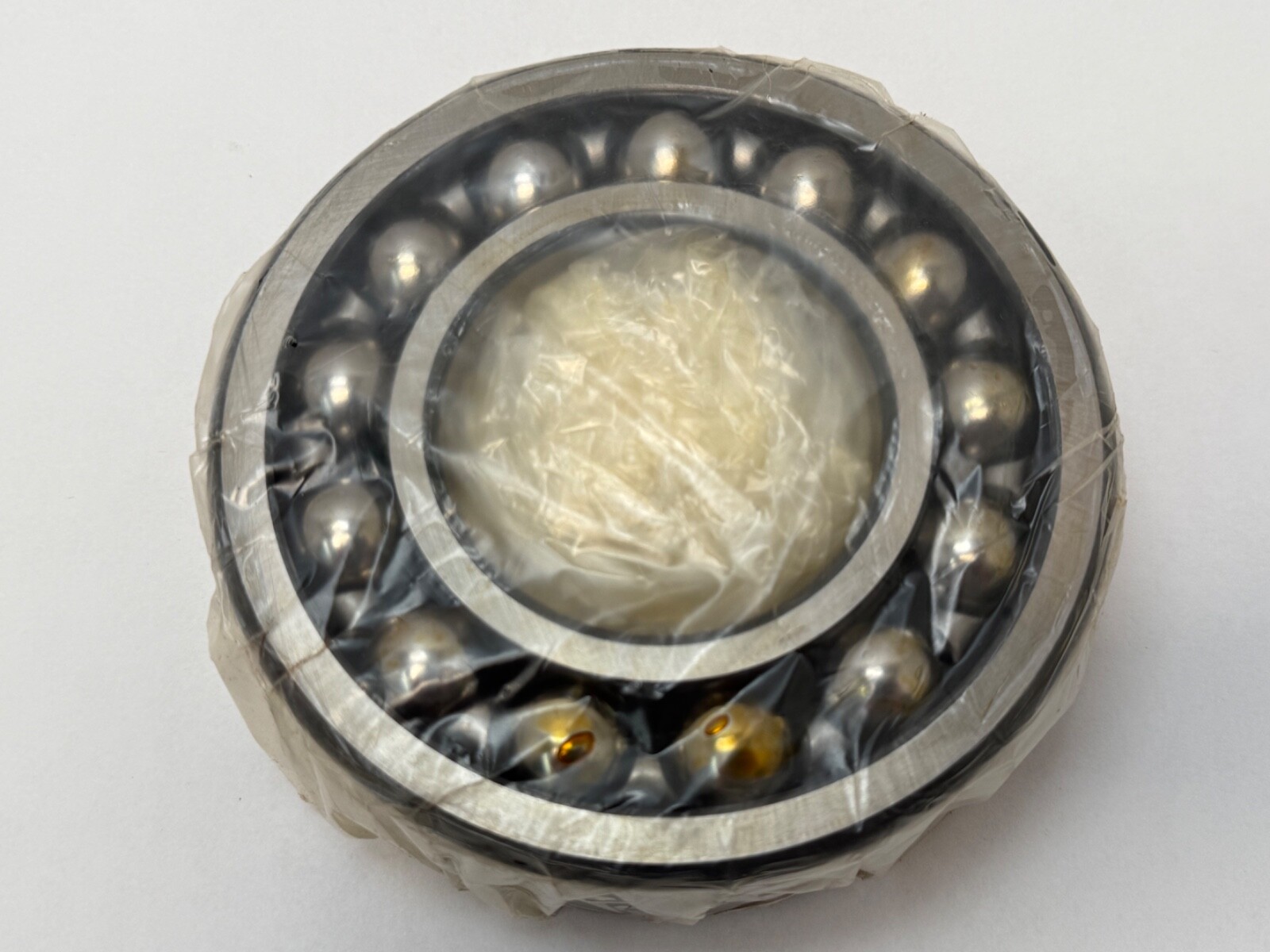

FAG 2313-K-C3 double-row self-aligning ball bearing, 65 x 140 x 48 mm, 1:12 tapered bore, C3 clearance, open, mounts on an H2313 adapter sleeve.
List Price
$120.58
1 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | FAG |
|---|---|
| MPN | 2313K.C3 |
| Model | 2313-K-C3 |
| Bearing Type | Self Aligning Ball Bearing, Open |
| ID | 65 mm |
| OD | 140 mm |
| Width | 48 mm |
| Series | 2300 |
|---|---|
| Dynamic Load Rating | 98,000 N |
| Static Load Rating | 32,500 N |
| Rolling Elements | Ball |
| Item Weight | 3.08 kg (6.79 lb) |
| Number Of Rows | 2 |
| Bore Type | Tapered 1:12 |
| Snap Ring Included | No |
| Harmonization Code | 8482.30.00.80 |
| Internal Clearance | C3 |
| Limiting Speed | 4,750 rpm |
| Overall Width | 48 mm |
| Mpn Variants | 2313-K-C3, 2313-K/C3, 2313K.C3, 2313KC3 |
| Compatible With Replaces | FAG 2313-K-TVH-C3 (current execution); adapter sleeve H2313 |
| Additional Attributes | Thermal Speed Rating: 6,100 rpm (base part 2313-K-TVH-C3). |
| Closure Type | Open |
| Cross Reference 1 | FAG 2313-K-TVH-C3 - current execution, TVH cage |
|---|---|
| Cross Reference 2 | SKF 2313 K/C3 - tapered bore, C3 |
| Cross Reference 3 | NSK 2313KC3 - tapered bore, C3 |
| Cross Reference 4 | NTN 2313KC3 - tapered bore, C3 |
FAG 2313-K-C3 is a double-row self-aligning ball bearing with a 1:12 tapered bore and C3 radial internal clearance. Bore Diameter: 65 mm. Outside Diameter: 140 mm. Overall Width: 48 mm. Number Of Rows: 2. Rolling Elements: Ball. Seal Type: Open. Unit Quantity: 1 Pc. The spherical outer-ring raceway lets the inner ring and ball set swivel to accept shaft misalignment. The tapered bore mounts on an H2313 adapter sleeve.
2313 — 23 series (wide, medium section) self-aligning ball bearing, bore code 13 = 65 mm, envelope 65 x 140 x 48 mm.
K — tapered bore, taper 1:12.
C3 — radial internal clearance larger than normal.
Base-part 2313-K-TVH-C3 data: Dynamic Load Rating: 98,000 N. Static Load Rating: 32,500 N. Limiting Speed: 4,750 rpm. Thermal Speed Rating: 6,100 rpm. Item Weight: 3.08 kg (6.79 lb). Internal Clearance: C3. Bore Type: Tapered 1:12. Closure Type: Open. Series: 2300. Harmonization Code: 8482.30.00.80.
Adapter sleeve: H2313. Base-part data: Minimum shaft shoulder diameter: 77 mm. Maximum shaft shoulder diameter: 82 mm. Maximum housing shoulder diameter: 128 mm. Maximum fillet radius: 2.1 mm. Minimum chamfer: 2.1 mm.
Current Schaeffler execution: 2313-K-TVH-C3, 65 x 140 x 48 mm. Tapered-bore C3 executions from other makers: SKF 2313 K/C3, NSK 2313KC3, NTN 2313KC3. MPN variants: 2313-K-C3, 2313-K/C3, 2313K.C3, 2313KC3.
65 mm bore, 140 mm outside diameter, 48 mm width.
The H2313 adapter sleeve.
A tapered bore, taper 1:12.
