RHP1045-45GSelf-Lube Insert Bearing Grub Screw 45x85x49.2 mm 1045 45G

Product Description

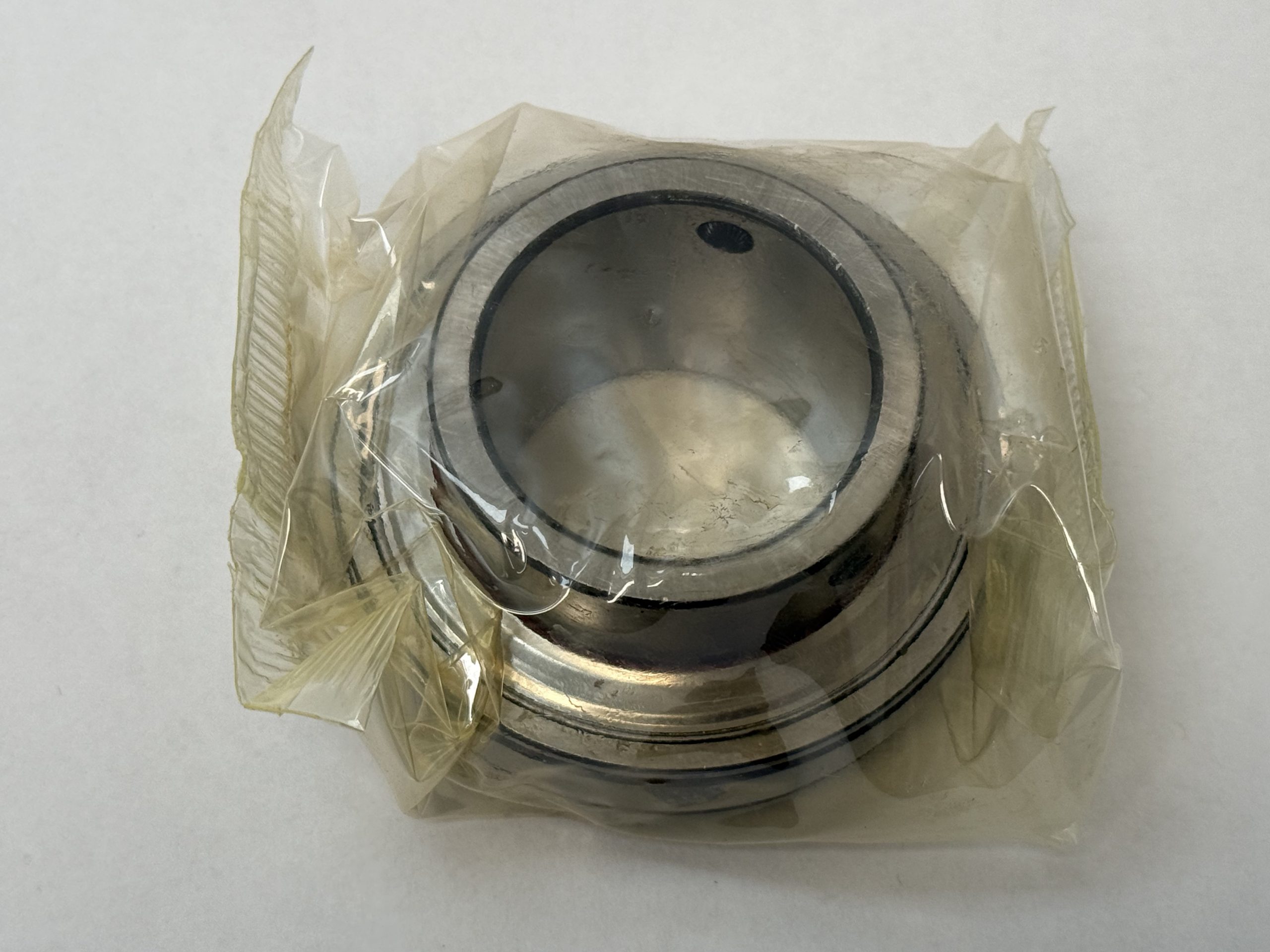

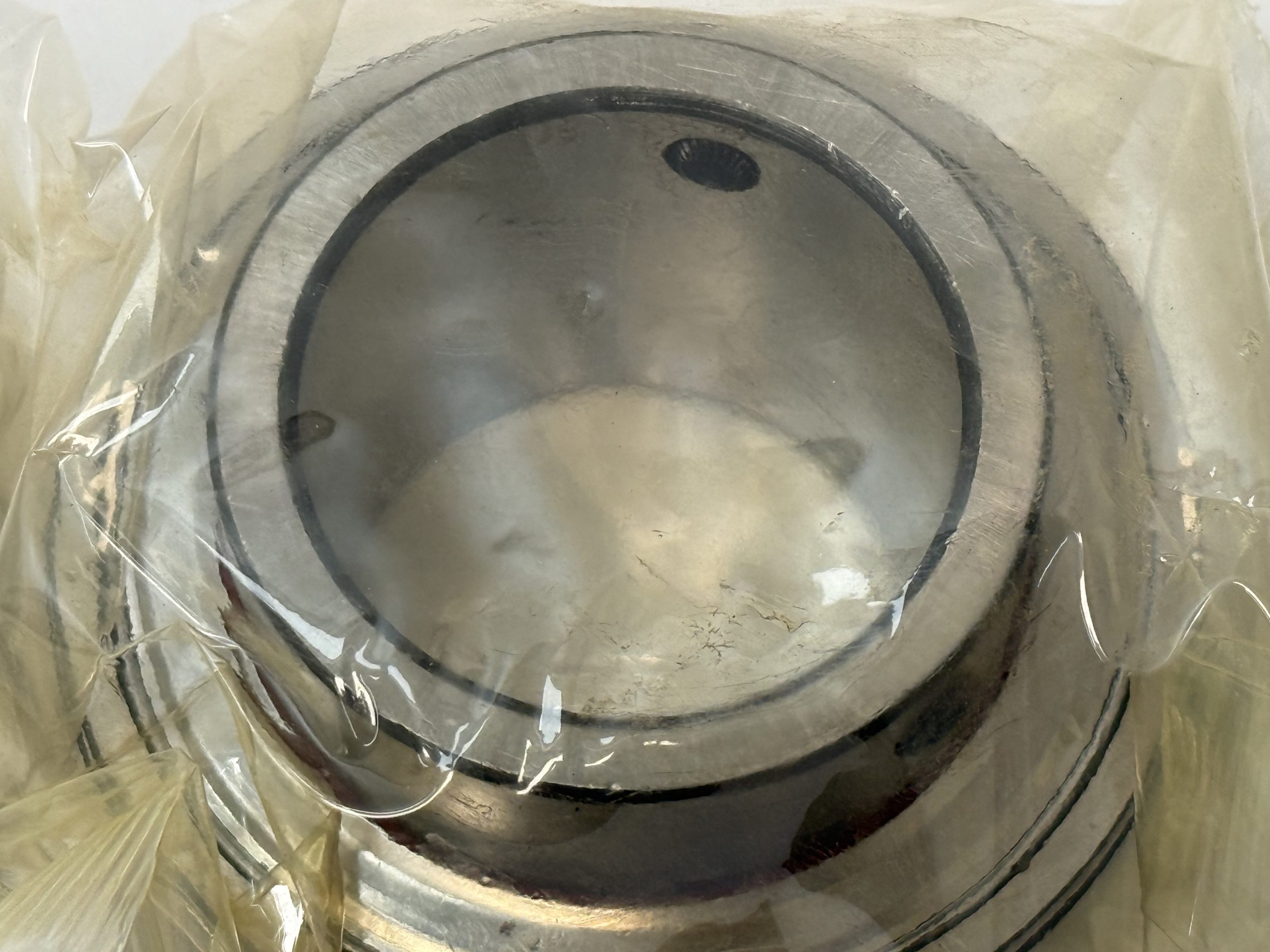

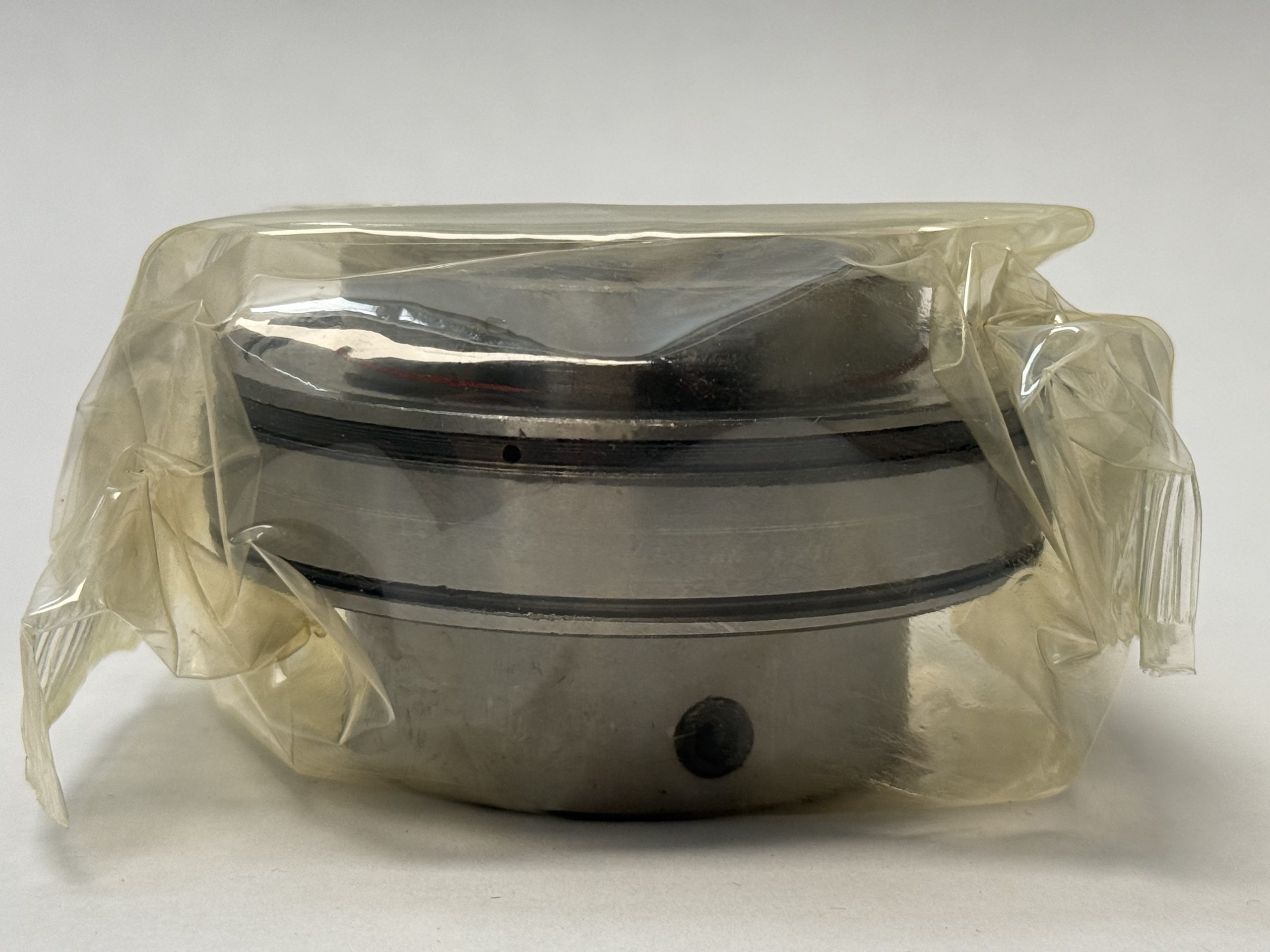

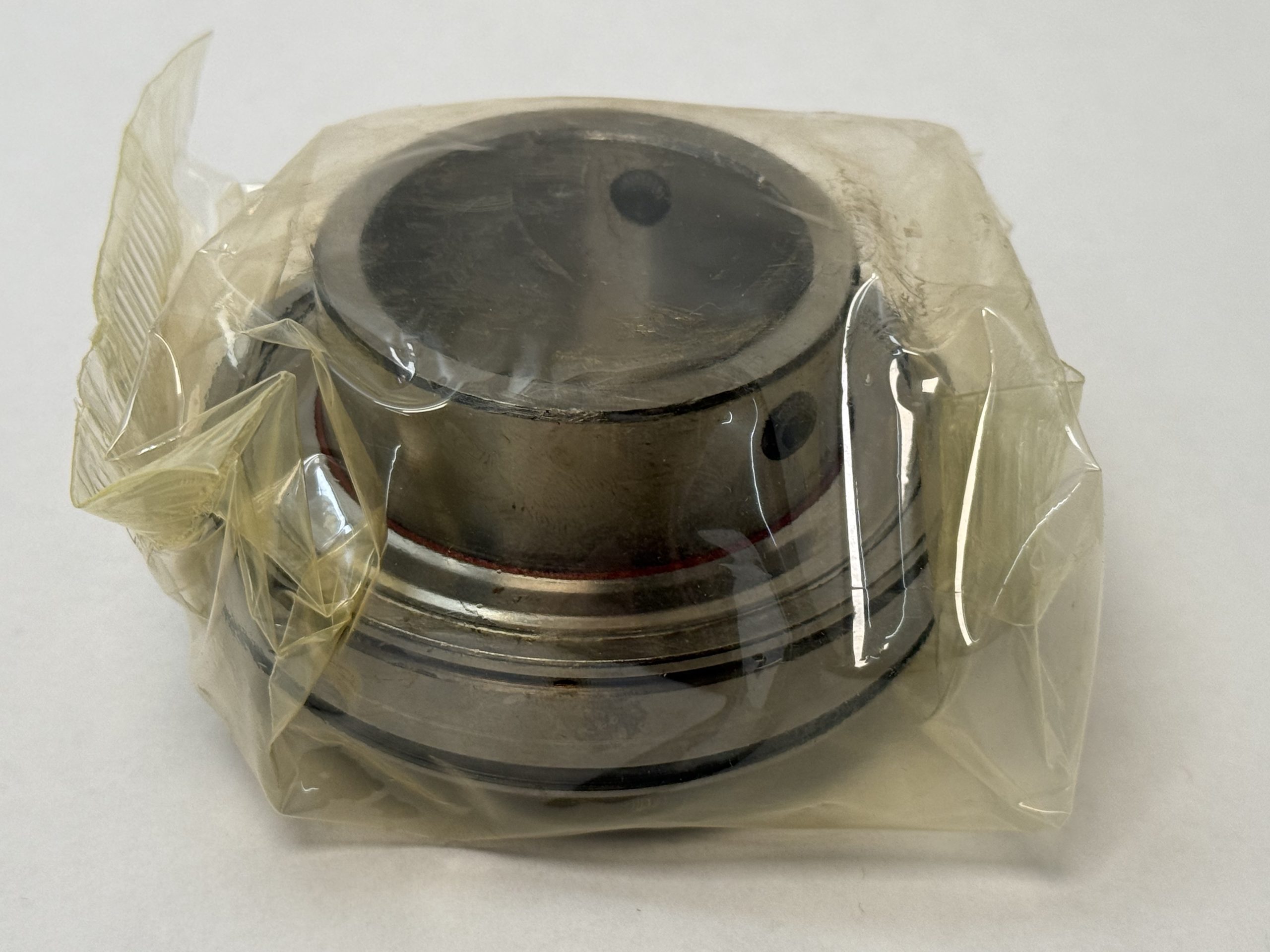

What this isOne (1) RHP 1045-45G Self-Lube bearing insert for a 45 mm shaft. A single row deep groove ball bearing in a spherical outer ring, so it self-aligns when seated in its housing, with an extended inner ring locked to the shaft by two grub screws. A relubrication hole in the outer ring lets the bearing be regreased in service. Insert only, no housing.

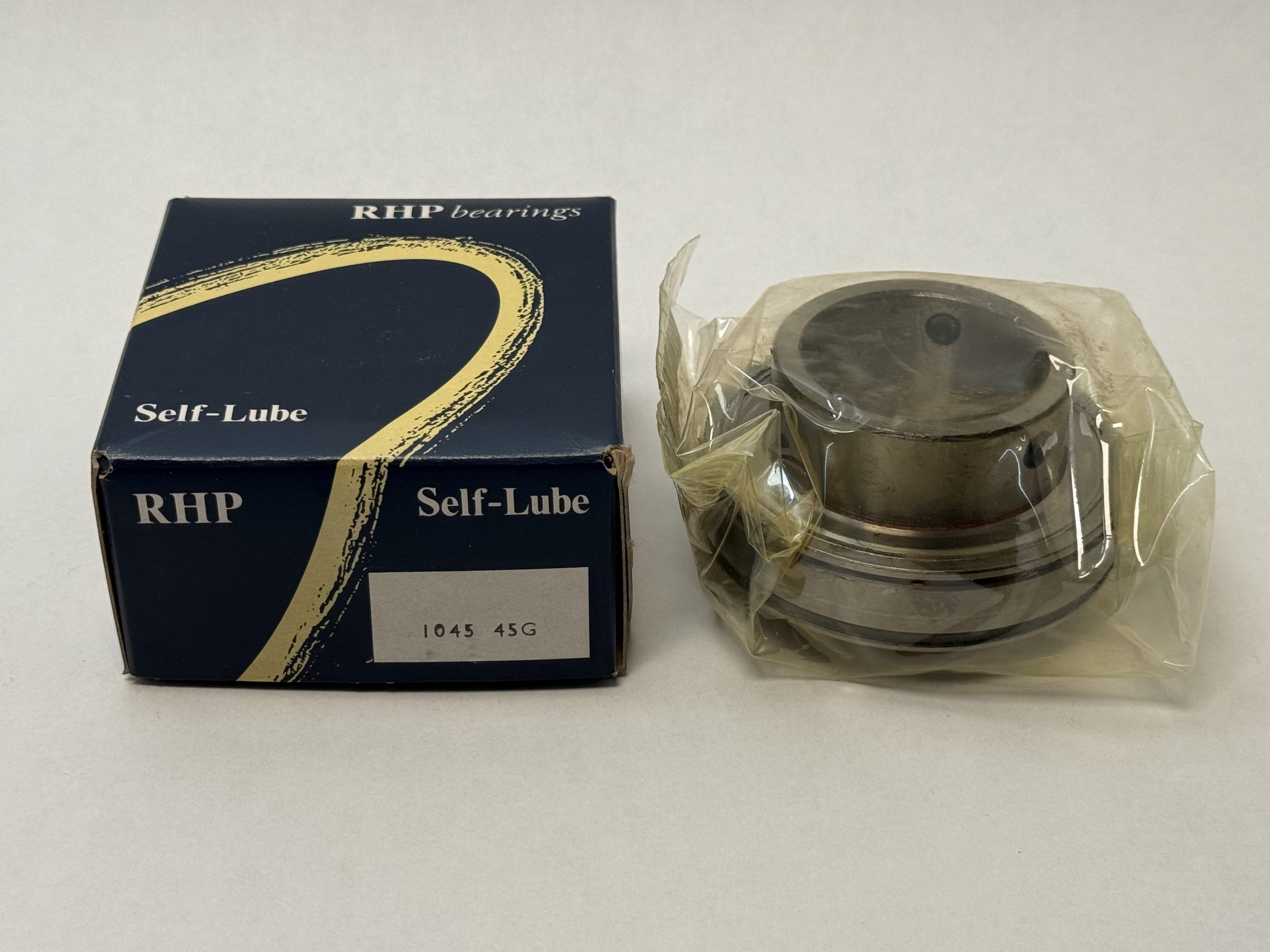

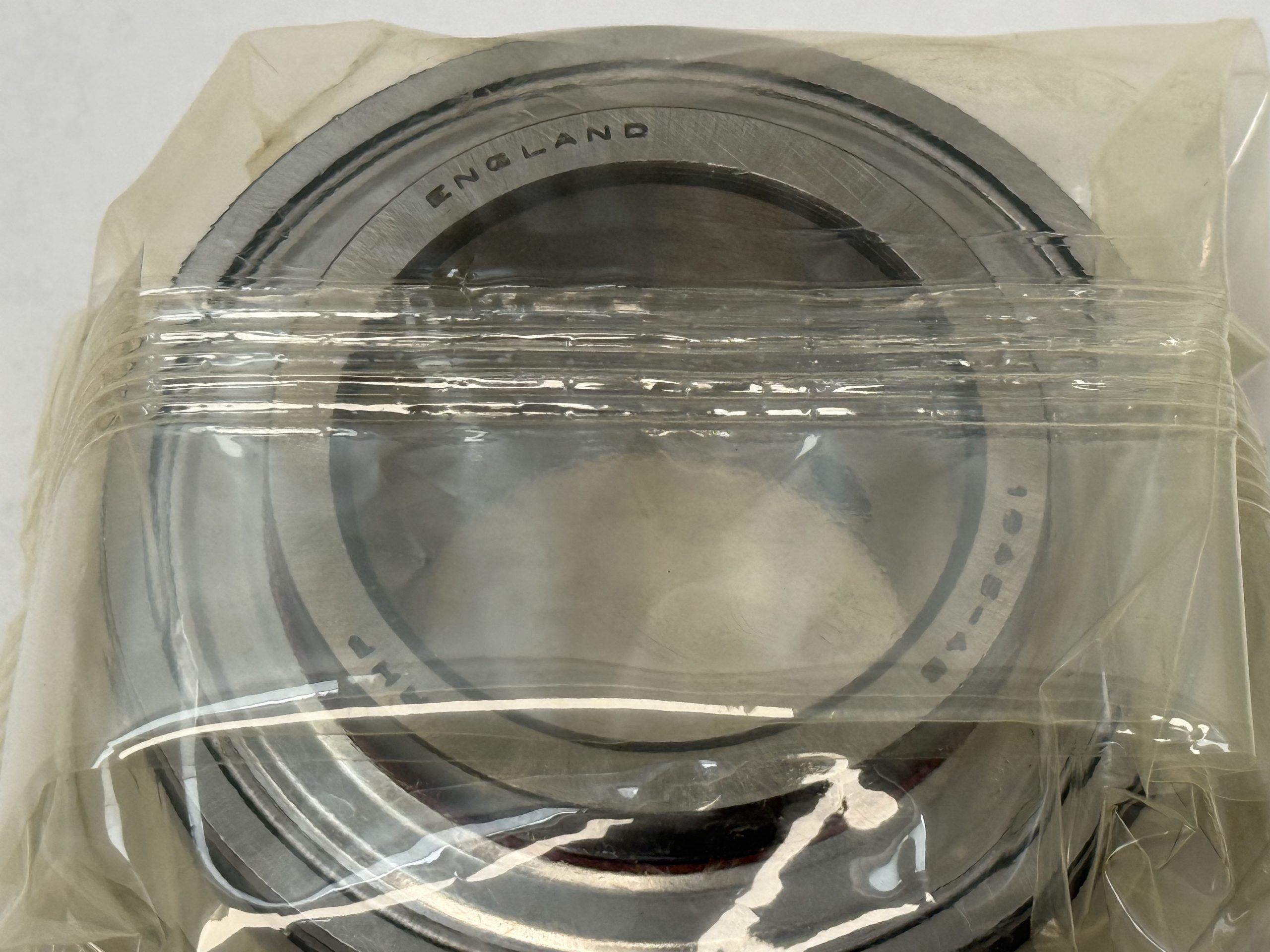

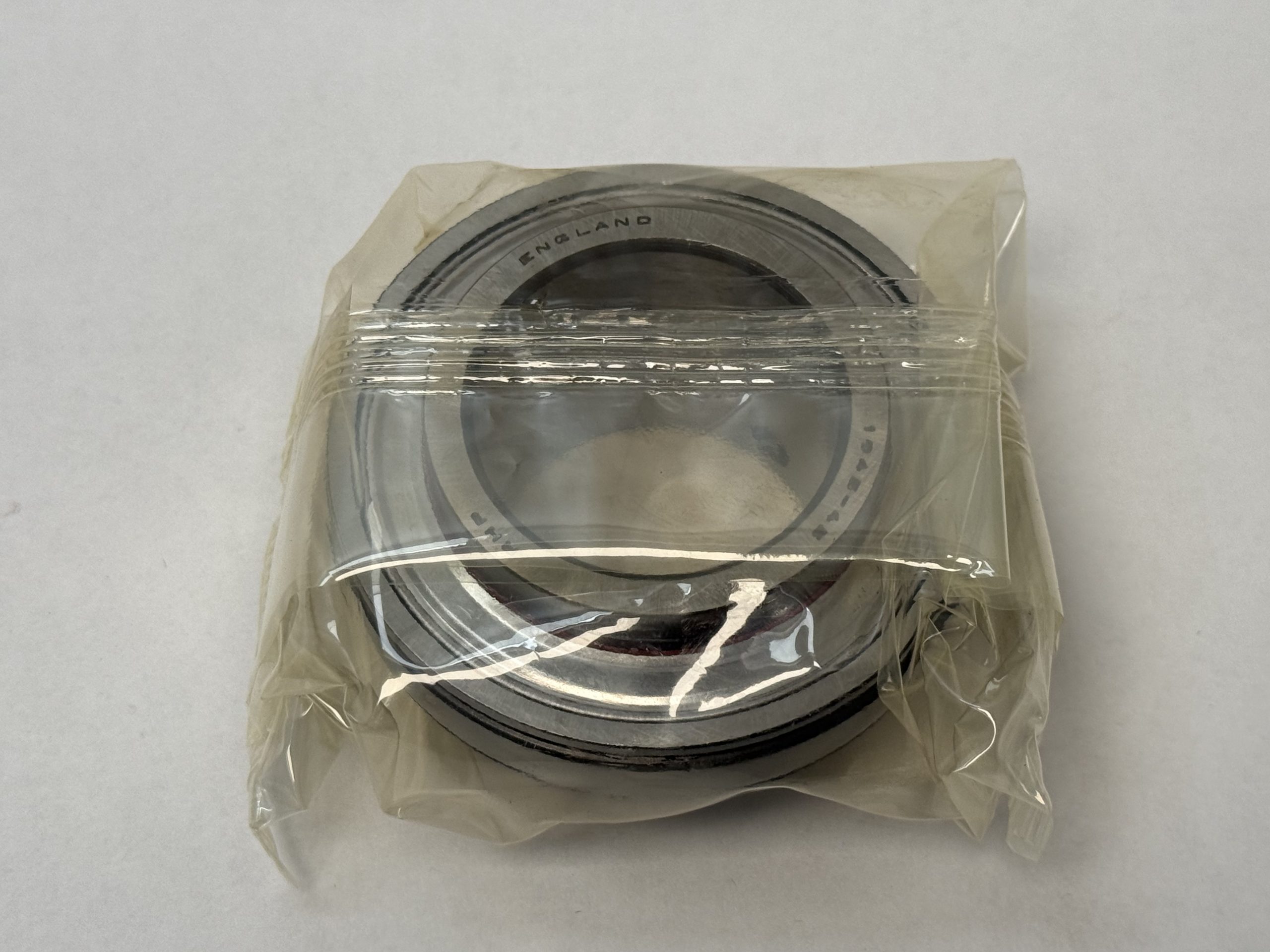

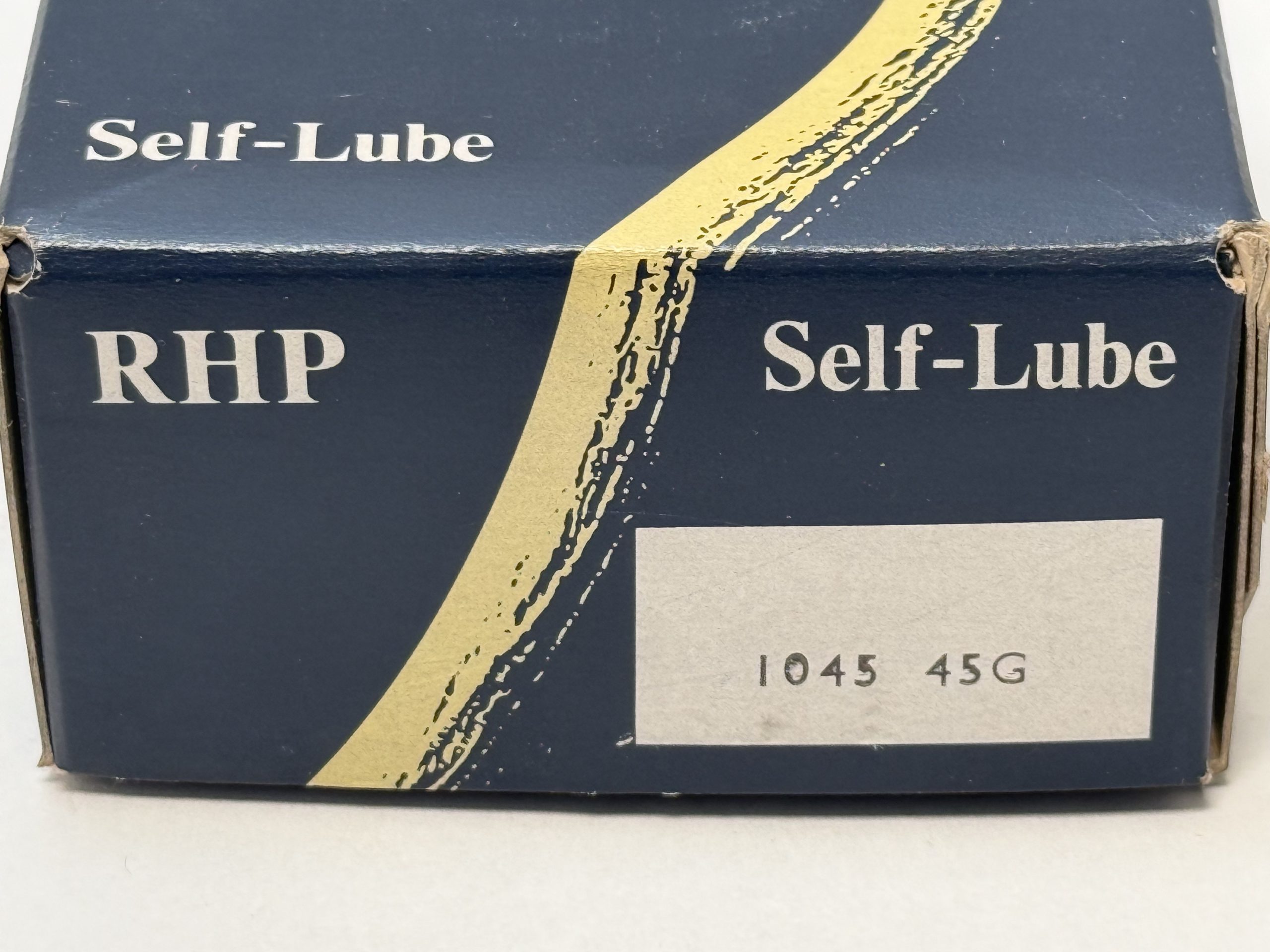

Made in England — the ring is etched ENGLAND and 1045-45. Factory sealed in its bag inside the original RHP Self-Lube box. It fits RHP and NSK-RHP Self-Lube housings in the 45 frame (NP45 pillow block, SF45 and SFT45 flanges, SNP45, SLFE45, SLC45 and FC45 cartridges) and shares its principal dimensions with the UC209, 45 x 85 x 49.2 mm.

How the part number breaks down10 — the RHP Self-Lube insert series.

45 — the frame size, which sets the 85 mm spherical outside diameter and the housing it fits. It is not the bore: the 1045 frame is also made as the 1045-40G (40 mm), 1045-1.1/2G and 1045-1.3/4G.

-45 — the bore, 45 mm.

G — grub screw locking to the shaft.

Also sold and searched as 1045 45G and 10-45-45G. The T1045-45G is the triple-seal version of the same insert; this is the standard seal.

Item SpecificationsBrand: RHPPart number: 1045-45GType: Self-Lube ball bearing insert, spherical outer ringBore: 45 mmOutside diameter: 85 mm, sphericalInner ring width: 49.2 mmOuter ring width: 19 mmLocking: Grub screwsLubrication: RelubricatableDynamic load rating: 32.5 kNStatic load rating: 20.5 kNMaximum speed: 3,700 rpmWeight: 0.73 kgCountry of origin: England
