Availability:
1 in stock

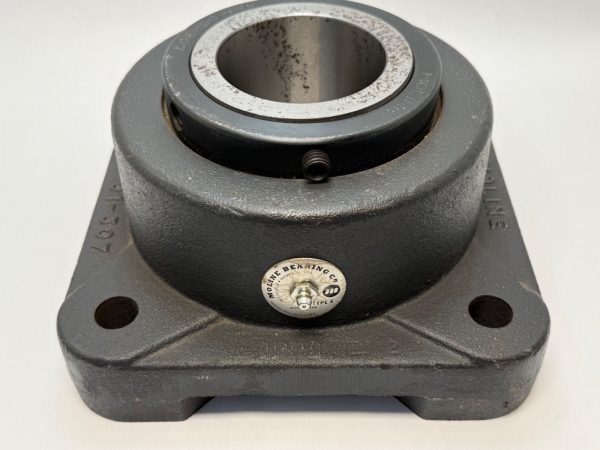

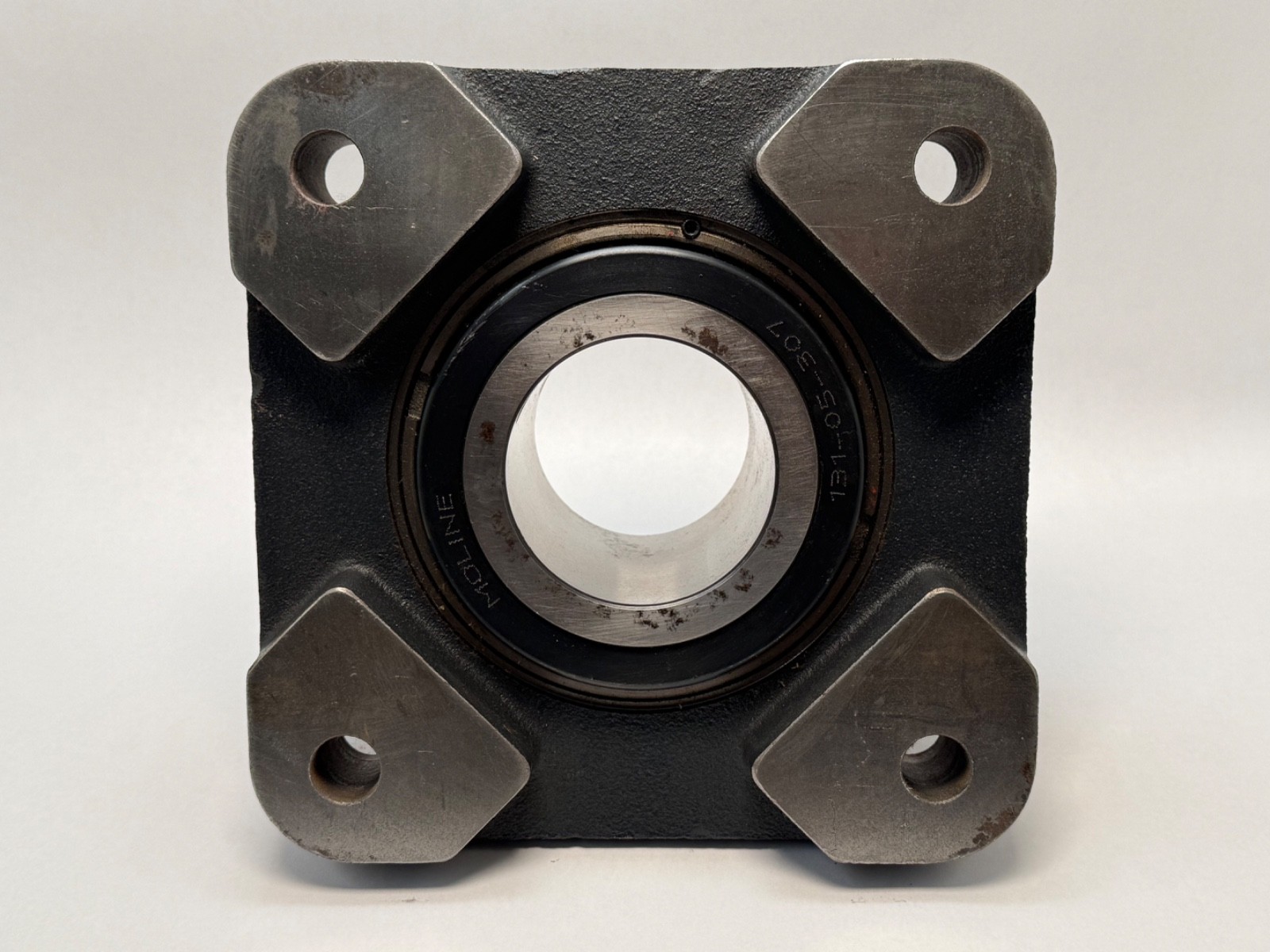

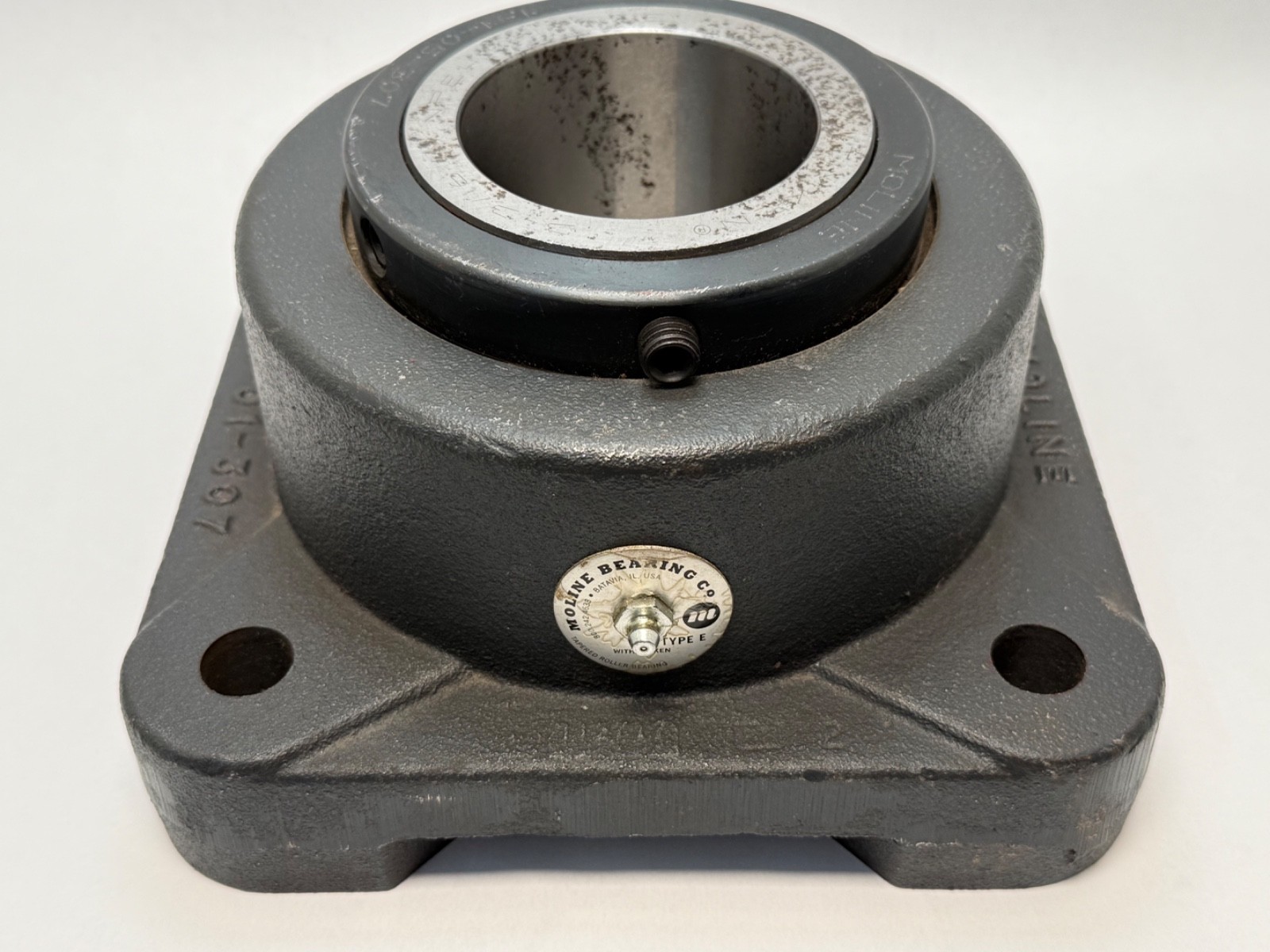

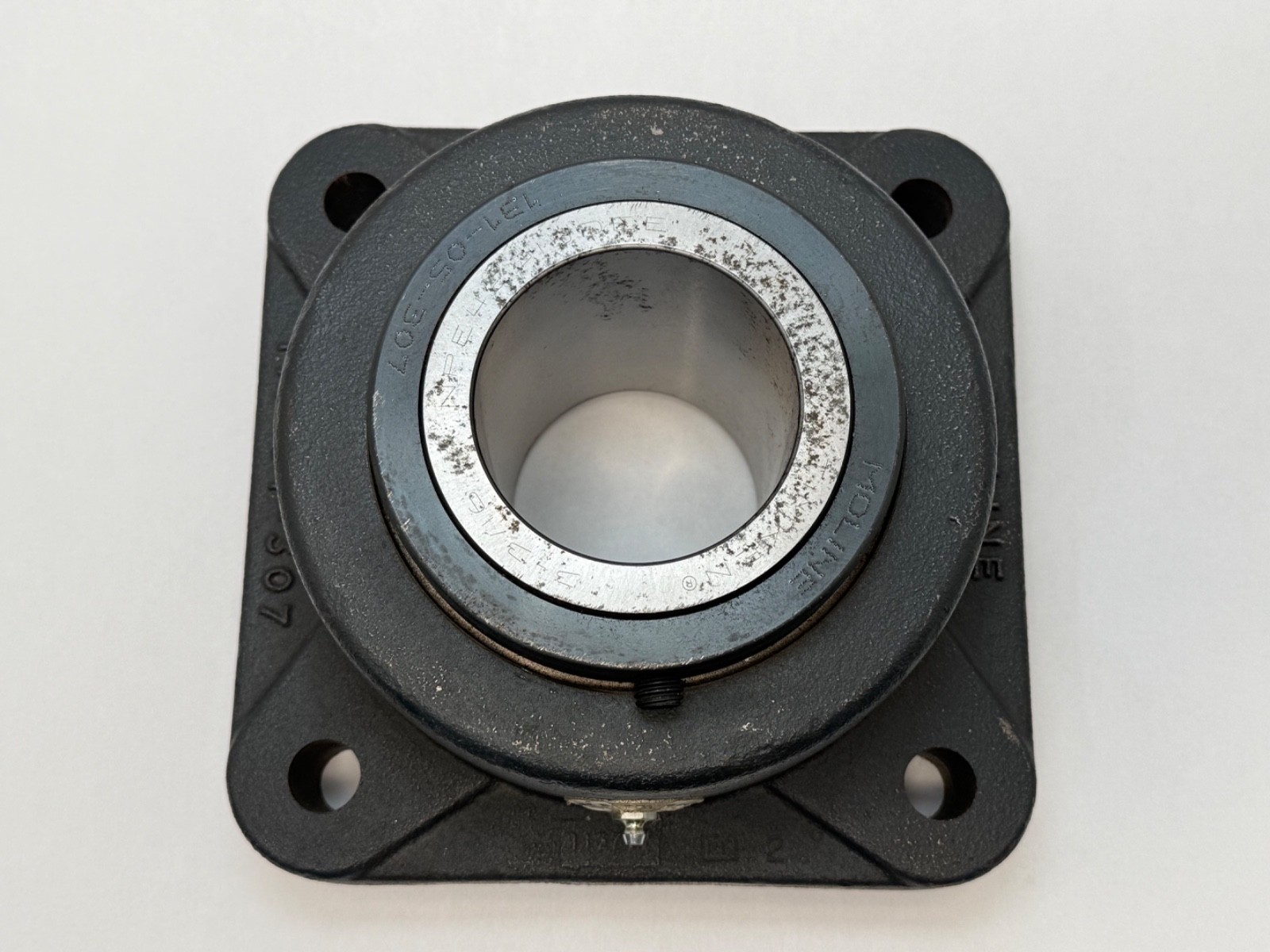

Moline 29111303D Type E flange-mount tapered roller bearing unit, 3-3/16 in bore, Timken tapered roller insert, Class 30 cast iron housing, sealed and pre-lubricated.
List Price
$501.49
1 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | Moline |
|---|---|
| MPN | 29111303D |
| Model | 131-05-307 |
| ID | 3-3/16 in |
| Material | Cast Iron |
|---|---|
| Type | Flanged Mount Bearing |
| Bearing Insert Type | Tapered Roller |
| Industry Terms | flange bearing, Type E flange block, tapered roller flange unit, mounted bearing |
| Application Types | Conveyors, screens, cranes, mining, forestry, aggregate equipment |
| Mpn Variants | 29111303D, 29111303, 2911-1303D, 131-05-307, NPE42138DE |
| Compatible With Replaces | Comparable Type E flange units |
| Additional Attributes | Housing: Class 30 gray cast iron; Insert: Timken tapered roller; Sealed and pre-lubricated |
| Series | Type E |
| Rolling Elements | Tapered Roller |
The Moline 29111303D is a Type E flange-mounted tapered roller bearing unit for a 3-3/16 in shaft. Bore Diameter: 3-3/16 in. Housing Material: Class 30 gray cast iron. Bearing Insert Type: Tapered Roller. Housing Style: Flange.
1303 — Moline shaft-size code for 3-3/16 in.

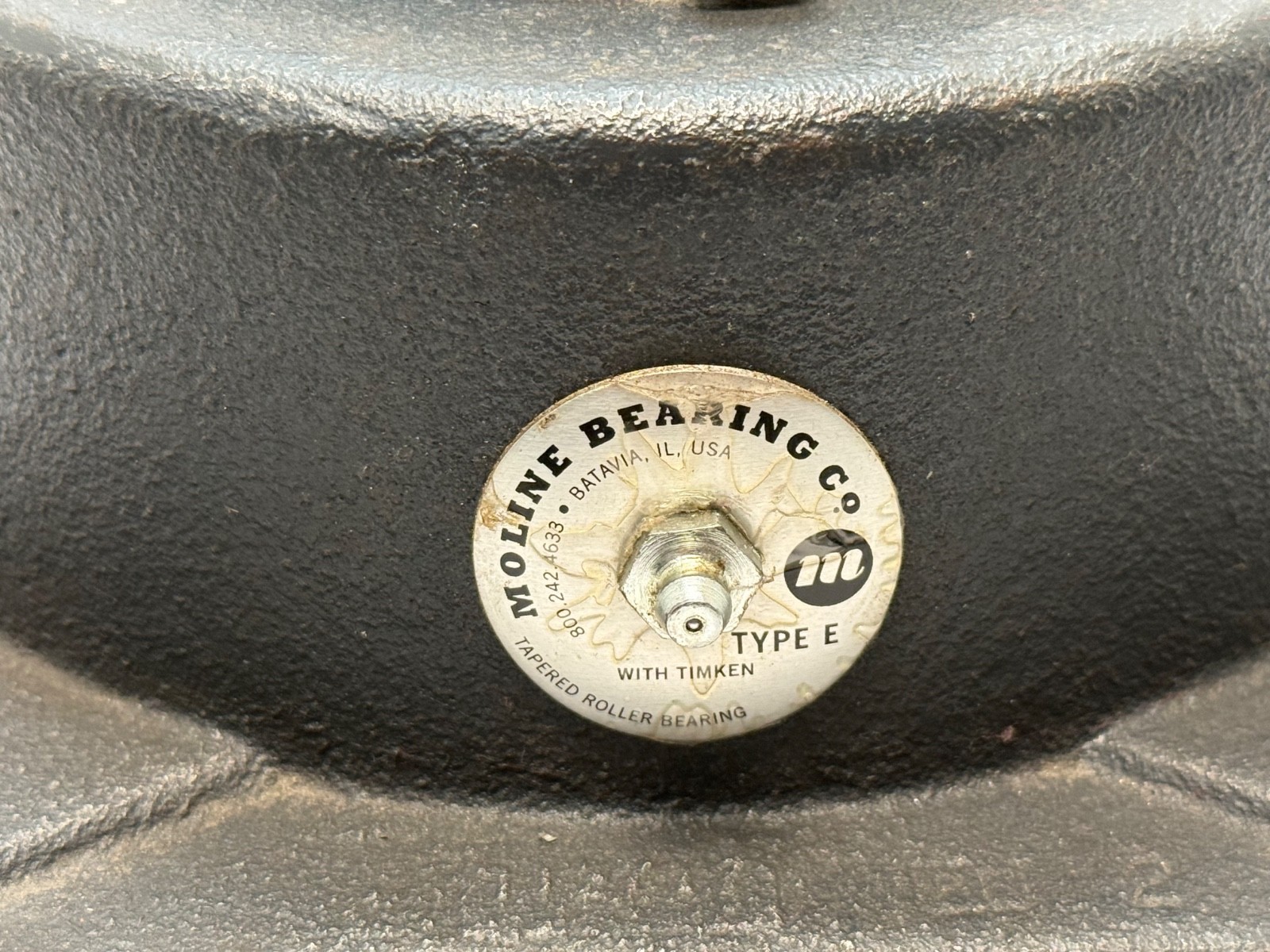

Type E — Moline heavy-duty tapered roller bearing line built on Timken tapered roller inserts.
Moline Type E units use Timken tapered roller bearings with a double-extended inner race and case-hardened rollers and races. The tapered roller arrangement carries high radial and thrust loads, alone or combined, and tolerates slight angular shaft misalignment. Units ship pre-assembled, adjusted, sealed and pre-lubricated.

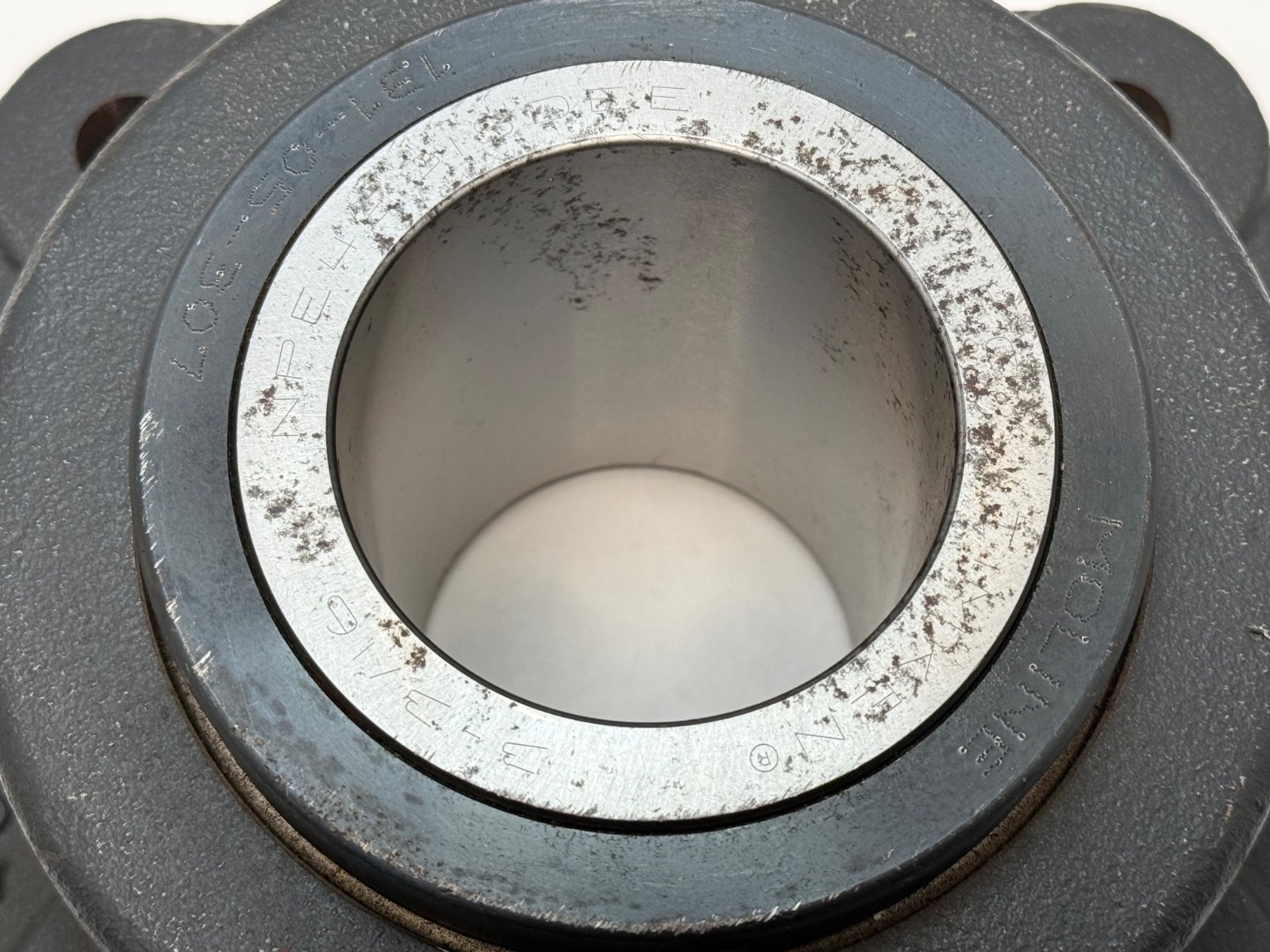

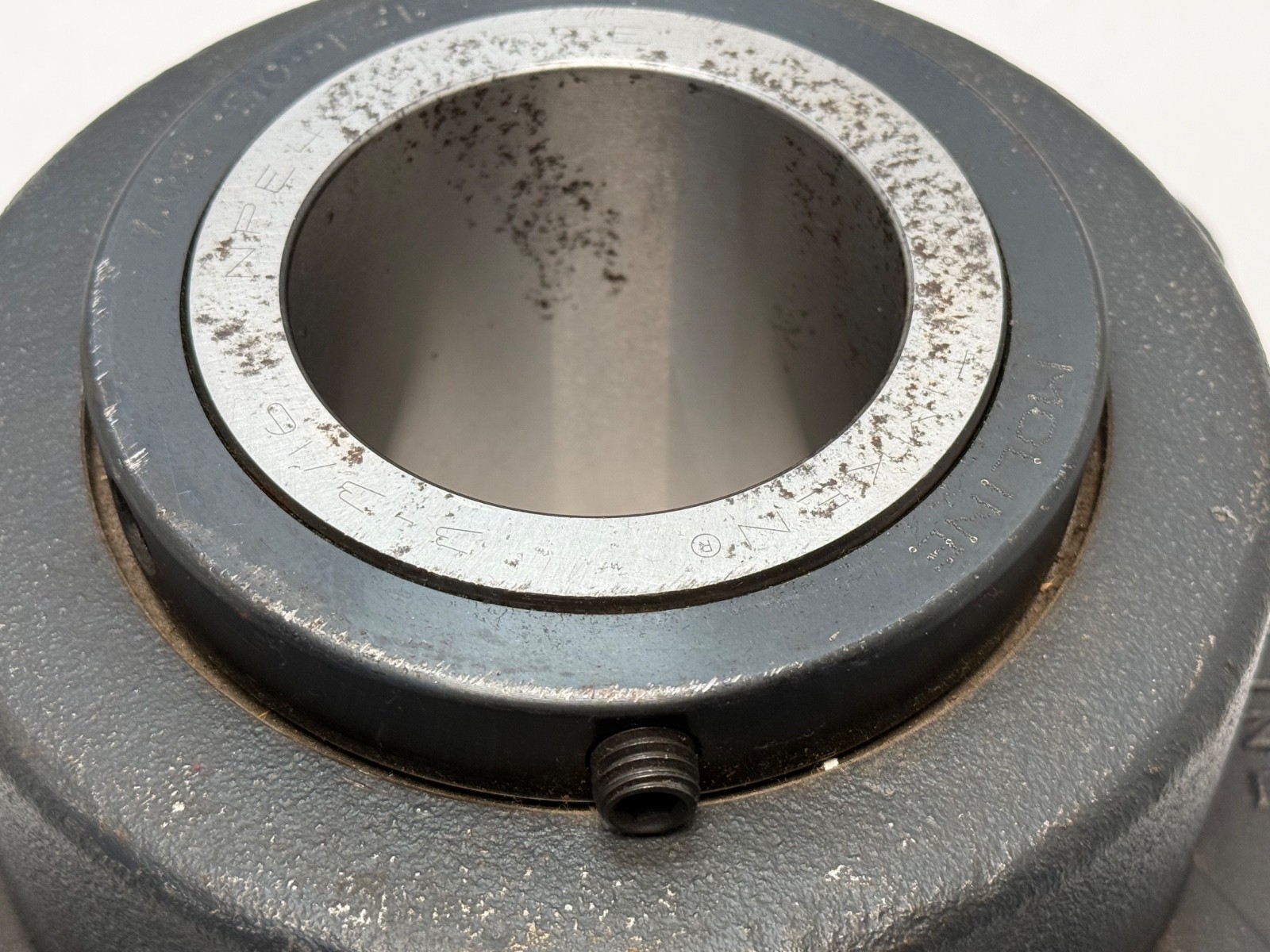

Unit Quantity: 1 Pc. New old stock with surface rust, no pitting.

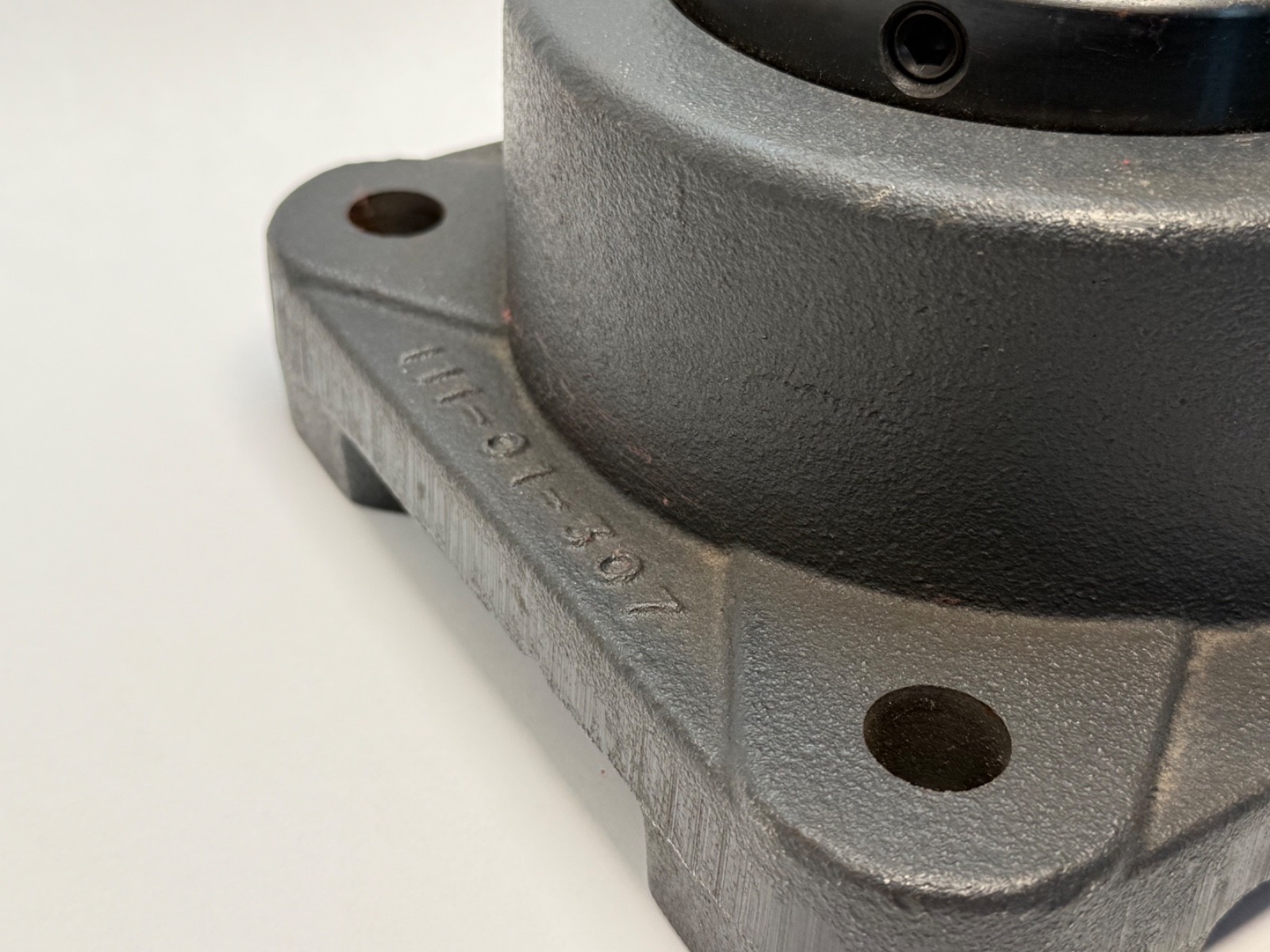

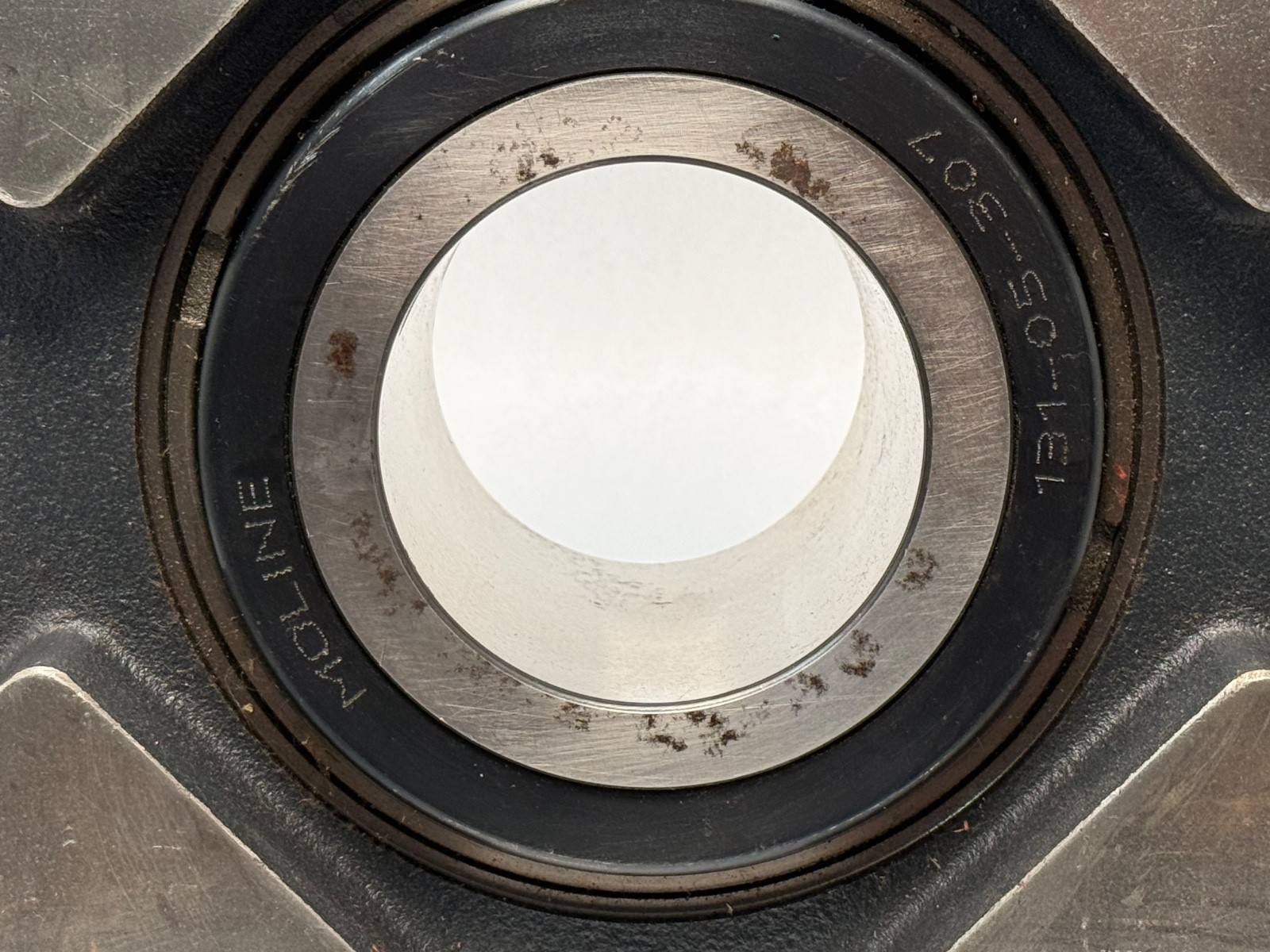

Moline Type E units are dimensionally interchangeable with comparable Type E units from other makers, including Moline Split E1000, ME2000 and ME3000. Additional markings: 131-05-307, NPE42138DE.
