Availability:
1 in stock

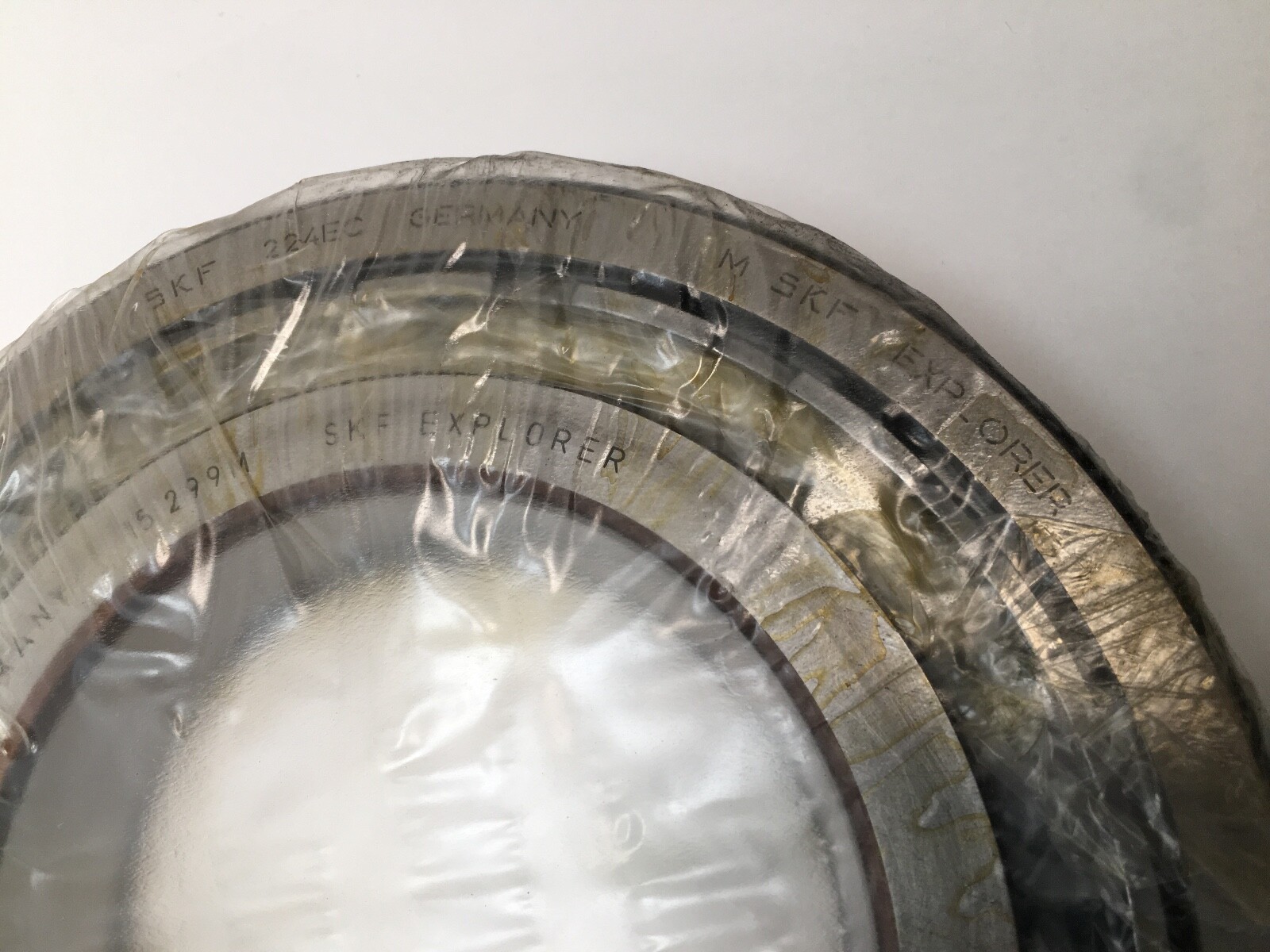

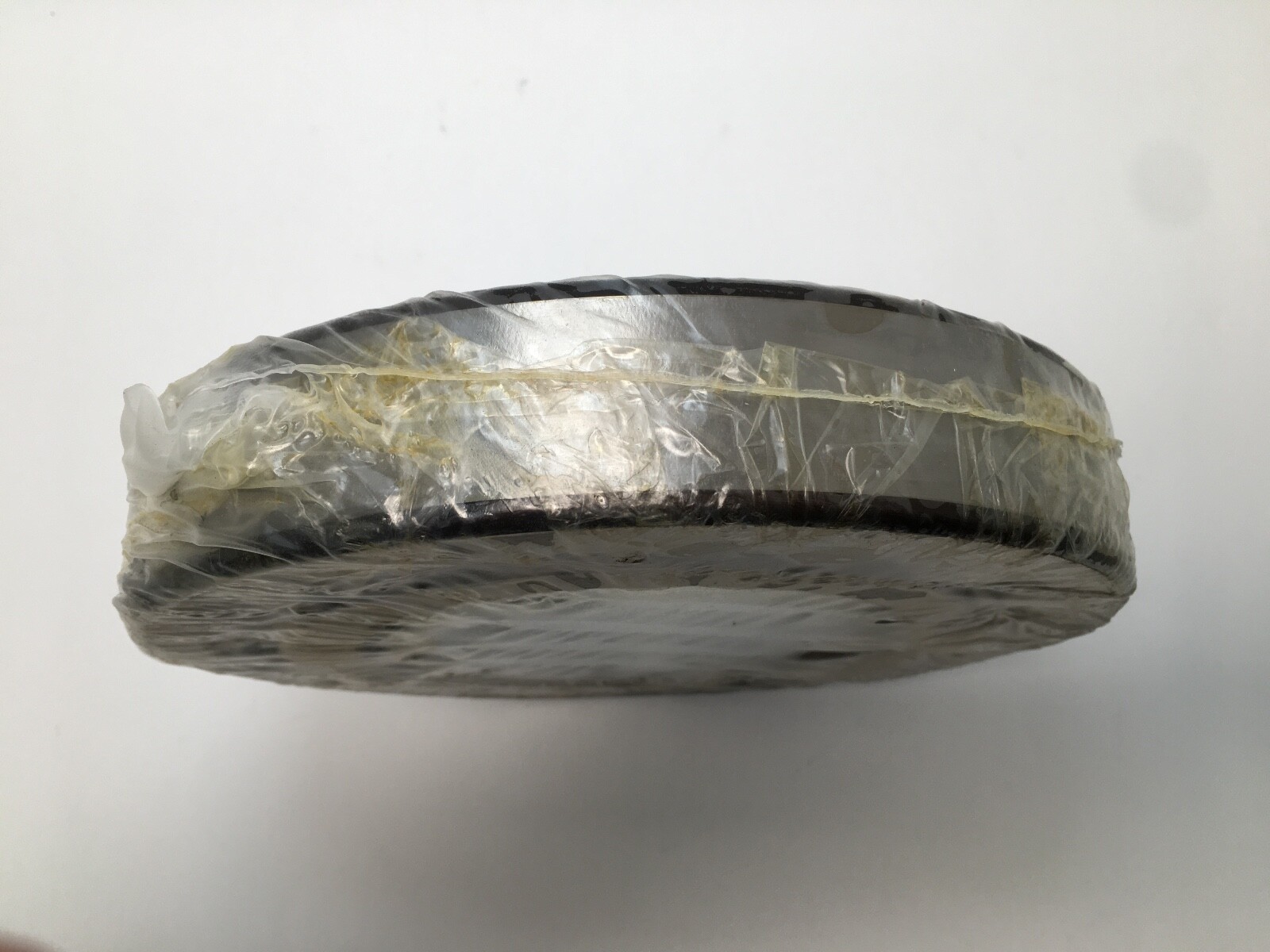

Single row cylindrical roller bearing, 120 x 215 x 40 mm, NUP design locating in both directions, 390 kN dynamic rating, pressed steel cage. SKF Explorer class.
List Price
$214.09
1 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | SKF |
|---|---|
| MPN | NUP224ECJ |
| Model | NUP 224 EC J P-224-E |
| Bearing Type | Cylindrical Roller Bearing, Open |
| ID | 120 mm |
| OD | 215 mm |
| Width | 40 mm |
| Material | Bearing Steel |
|---|---|
| Series | NUP200 |
| Mpn Variants | NUP-224-ECJ, NUP 224 ECJ, NUP224ECJ, NUP 224 EC J, NUP224EC |
| Precision Class | Normal (P0) |
| Additional Attributes | SKF Explorer; fatigue load limit 49,000 N; reference speed 3,400 rpm; minimum load factor kr 0.15; inner raceway diameter F 143.5 mm |
| Closure Type | Open |
| Cage Type | Pressed, roller centred |
| Dynamic Load Rating | 390,000 N |
| Static Load Rating | 430,000 N |
| Rolling Elements | Cylindrical Roller |
| Item Weight | 5.95 kg (13.12 lb) |
| Cage Material | Pressed steel |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Snap Ring Included | No |
| Limiting Speed | 3,600 rpm |
| Internal Clearance | CN |
| Harmonization Code | 8482.50.00 |
| Bearing Material | Bearing steel |
| Cross Reference 1 | FAG NUP224-E-XL-TVP2 |
|---|---|
| Cross Reference 2 | NSK NUP224EM |
| Cross Reference 3 | NTN NUP224E |

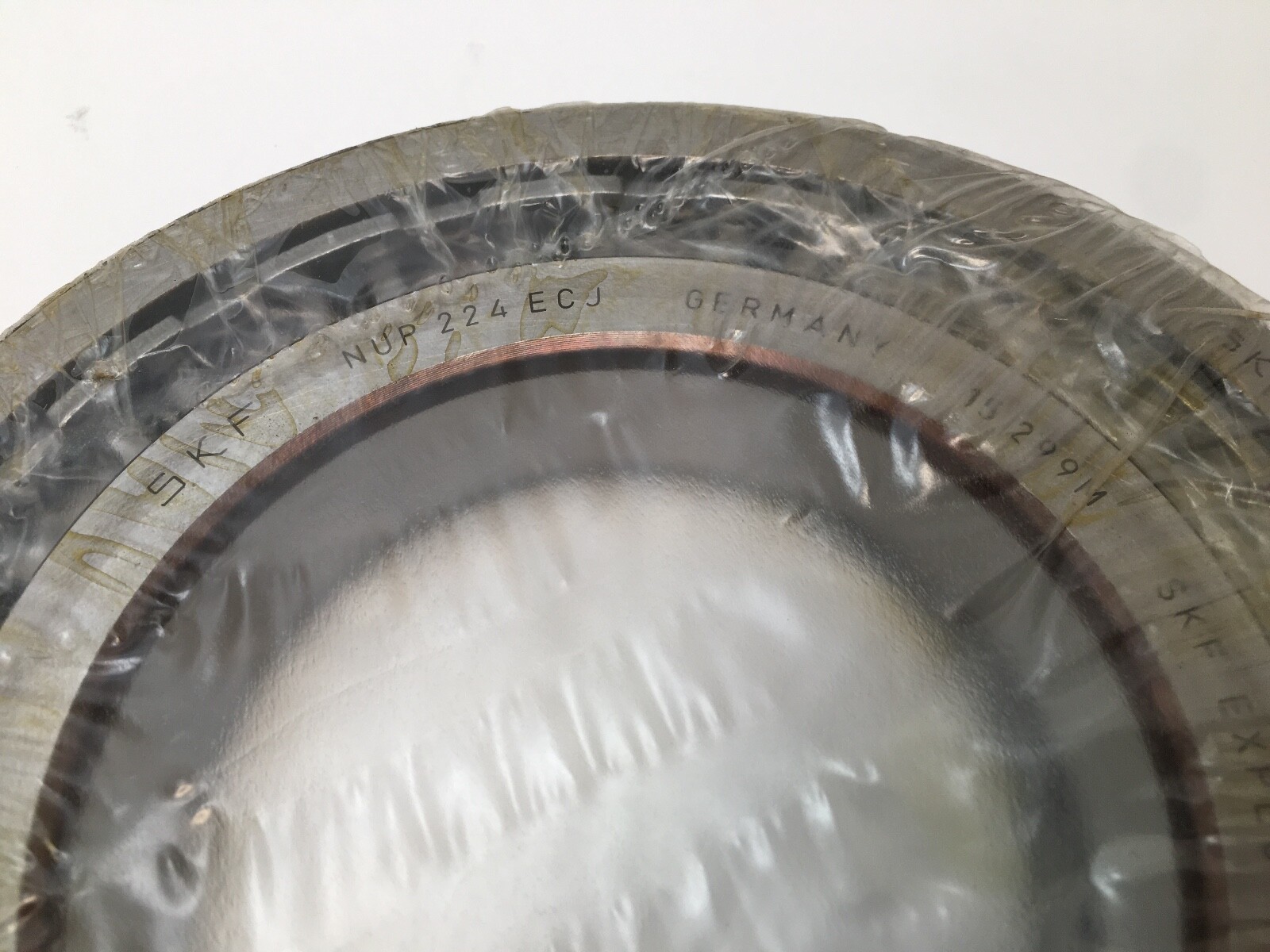

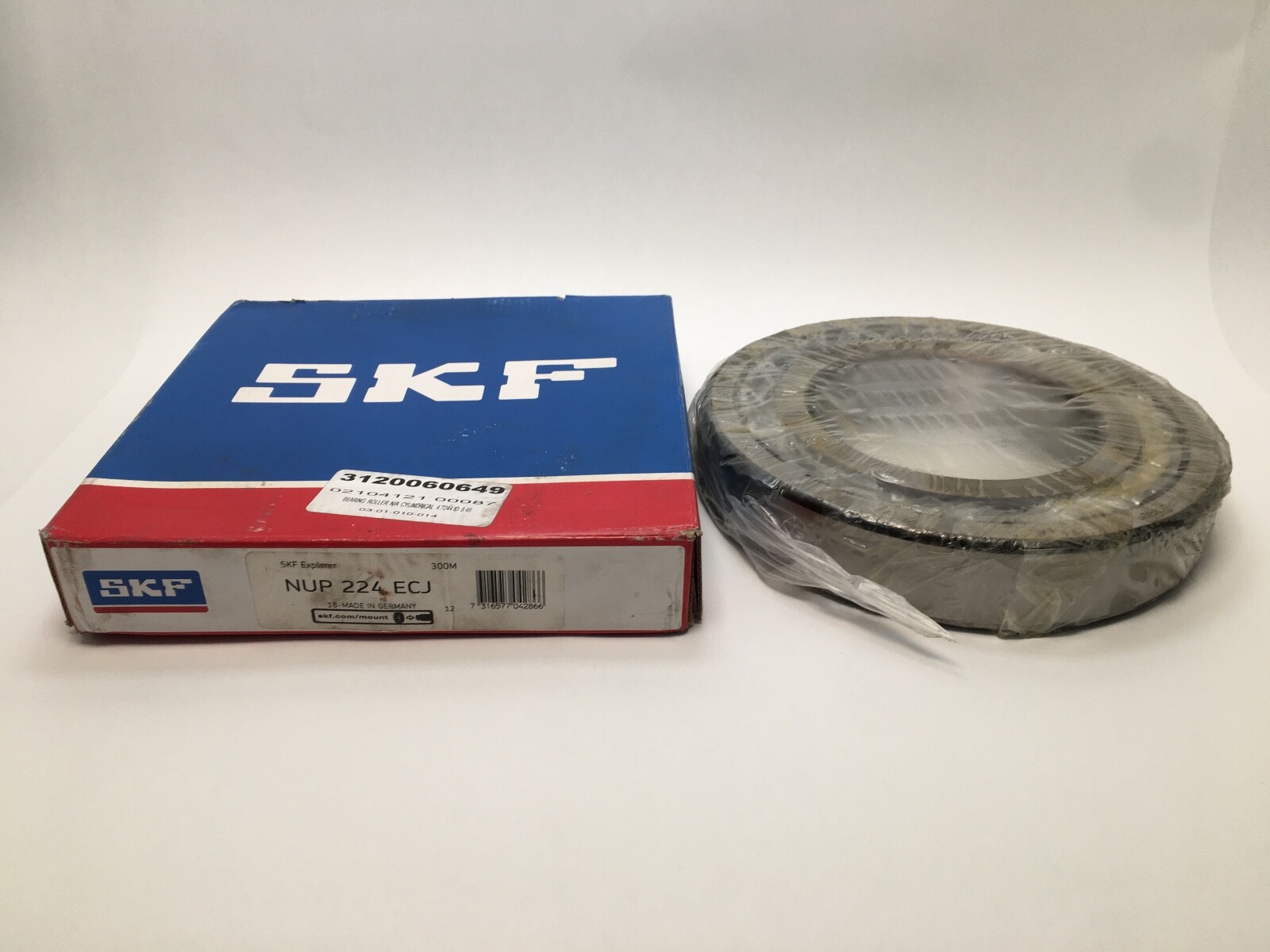

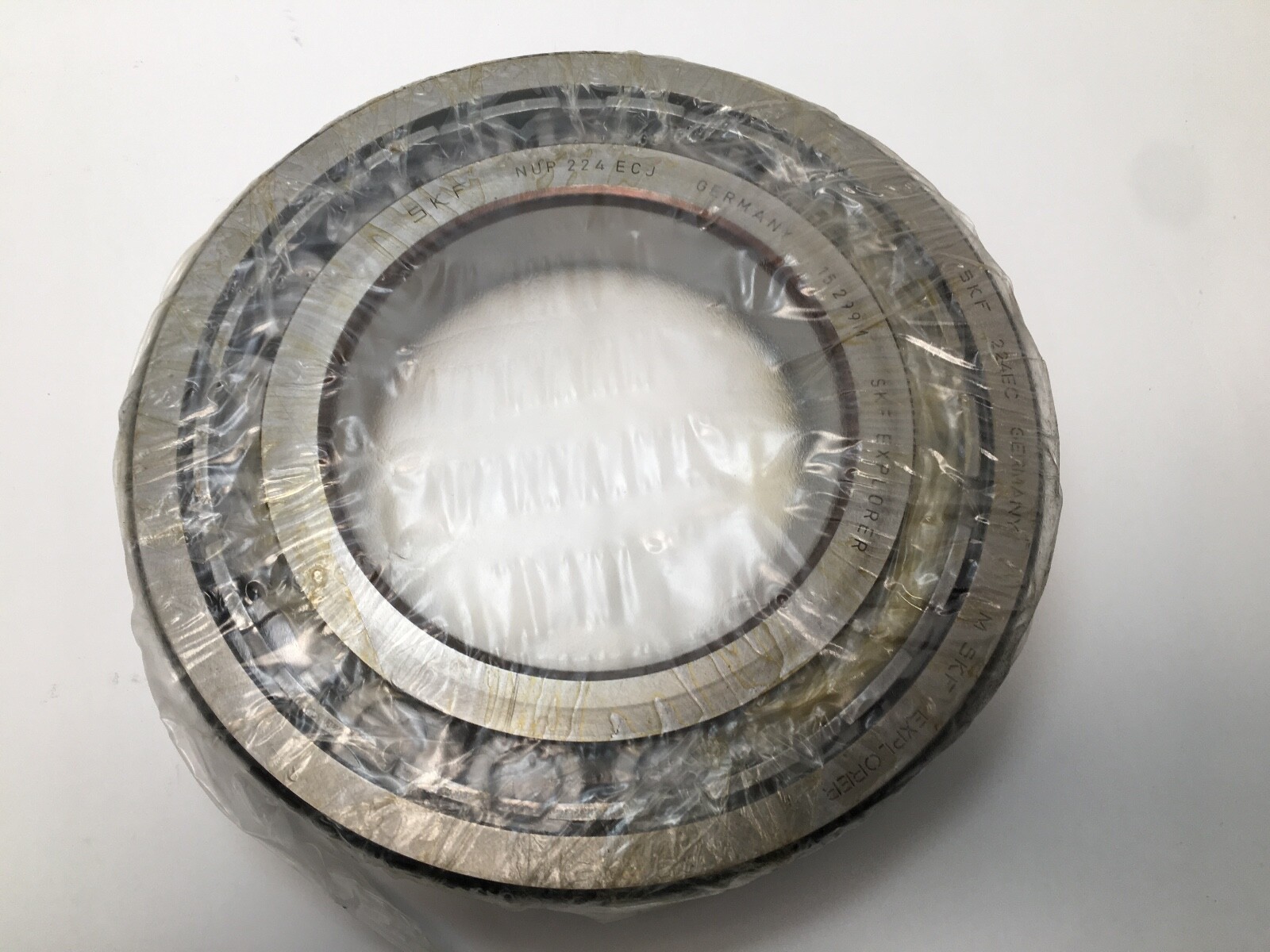

SKF NUP 224 ECJ is a single row cylindrical roller bearing of the NUP design: two integral flanges on the outer ring, one integral flange on the inner ring plus a loose flange ring, so it locates the shaft axially in both directions. SKF Explorer performance class.
NUP — cylindrical roller bearing with a loose flange ring on the inner ring, axial location in both directions.
224 — 02 dimension series, 120 mm bore, 215 mm outside diameter.
EC — SKF optimised internal design with reinforced roller set for higher load capacity.
J — pressed steel cage, roller centred.
Bore Diameter: 120 mm. Outside Diameter: 215 mm. Width: 40 mm. Rolling Elements: Cylindrical Roller. Number Of Rows: 1. Cage Material: Pressed steel. Dynamic Load Rating: 390,000 N. Static Load Rating: 430,000 N. Fatigue load limit: 49,000 N. Reference Speed: 3,400 rpm. Limiting Speed: 3,600 rpm. Internal Clearance: CN. Precision Class: Normal (P0). Item Weight: 5.95 kg (13.12 lb). Closure Type: Open. Minimum load factor kr: 0.15. Calculation factors: e 0.2, Y 0.6.
Inner ring shoulder diameter d1: approx. 153 mm. Outer ring shoulder diameter D1: approx. 186.83 mm. Inner ring raceway diameter F: 143.5 mm. Chamfer r1,2 min: 2.1 mm. Loose flange ring chamfer r3,4 min: 2.1 mm. Spacer sleeve diameter da min: 132 mm. Shaft abutment db min: 156 mm. Housing abutment Da max: 201.6 mm. Fillet radius ra max: 2 mm.
Unit Quantity: 1 Pc. Complete bearing: outer ring, inner ring, roller and cage assembly and loose flange ring.
Same envelope and NUP flange arrangement: FAG NUP224-E-XL-TVP2 (polyamide cage), NSK NUP224EM (machined brass cage), NTN NUP224E. Cage material and ratings vary by maker.
