Availability:
1 in stock
Double row cylindrical roller bearing, 140x210x53 mm, 1:12 tapered bore, machined brass cage, ABEC 7 / P4 super-precision spindle bearing.
List Price
$173.93
1 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | NSK |
|---|---|
| MPN | NN3028KMBCC1P4 |
| Model | NN 3028 K MB CC1 P4 |
| Bearing Type | Cylindrical Roller Bearing, Open |
| ID | 140 mm |
| OD | 210 mm |
| Width | 53 mm |
| Material | Bearing Steel |
|---|---|
| Series | NN30 double row cylindrical roller |
| Bore | Taper Bore |
| Base Number | NN3028 |
| Industry Terms | Double row cylindrical roller bearing; precision spindle bearing; tapered bore roller bearing; machine tool bearing |
| Common Misspellings | NN3028KMBCCIP4; NN 3028KMB CC1P4; NN3082KMBCC1P4; NN3028KMBCC1-P4 |
| Application Types | Machine tool spindles; lathe and milling headstocks; grinding machines; heavy radial precision shafting |
| Overall Width | 53 mm |
| Mpn Variants | NN3028KMBCC1P4; NN3028 K MB CC1 P4; NN-3028-K-MB-CC1-P4; NN3028KMBP4; NN3028K |
| Precision Class | ABEC 7 / P4 |
| Additional Attributes | da min 149 mm; d1a min 151 mm; Da 195-201 mm; r min 2 mm |
| Cage Type | Machined |
| Dynamic Load Rating | 365,000 N |
| Static Load Rating | 515,000 N |
| Rolling Elements | Cylindrical Roller |
| Item Weight | 6.34 kg (13.98 lb) |
| Cage Material | Brass |
| Number Of Rows | 2 |
| Bore Type | Tapered 1:12 |
| Snap Ring Included | Without Snap Ring |
| Limiting Speed | 2,800 rpm grease; 3,400 rpm oil |
| Internal Clearance | CN |
| Lubricant | Grease or oil |
| Harmonization Code | 8482.50 |
| Mounting Arrangement | Single bearing on a 1:12 tapered spindle journal, no adapter sleeve |
| Bearing Material | Bearing steel |
| Cross Reference 1 | NSK NN3028K (base NSK designation for this bearing) |
|---|---|
| Cross Reference 2 | SKF NN 3028 K (equivalent, tapered bore) |
| Cross Reference 3 | FAG NN3028-AS-K-M-SP (equivalent, machined brass cage, super precision) |
| Cross Reference 4 | Koyo NN3028K (equivalent envelope and bore taper) |
| Cross Reference 5 | NTN NN3028K (equivalent envelope and bore taper) |
| Cross Reference 6 | NSK NN3028 (cylindrical bore version — not interchangeable with the tapered bore) |
NSK NN3028KMBCC1P4 is a double row cylindrical roller bearing built to super-precision tolerances with a 1:12 tapered bore and a machined brass cage. Bore Diameter: 140 mm. Outside Diameter: 210 mm. Overall Width: 53 mm. Rolling Elements: Cylindrical Roller. Number Of Rows: 2. Closure Type: Open. Bearing Material: Bearing steel. Series: NN30 double row cylindrical roller. Base Number: NN3028.
NN — double row cylindrical roller bearing.
3028 — 30 dimension series, 140 mm bore.
K — 1:12 tapered bore.
MB — machined brass cage.
P4 — ISO class 4 precision, ABEC 7 equivalent.
Dynamic Load Rating: 365,000 N. Static Load Rating: 515,000 N. Limiting Speed: 2,800 rpm grease; 3,400 rpm oil. Precision Class: ABEC 7 / P4. Internal Clearance: CN. Cage Material: Brass. Cage Type: Machined. Item Weight: 6.34 kg (13.98 lb). The two roller rows carry radial load only; axial location comes from a separate thrust member in the spindle. Figures are the NSK catalogue values for the complete bearing.
Bore Type: Tapered 1:12. Shaft abutment diameter da min: 149 mm. Shaft abutment diameter d1a min: 151 mm. Housing abutment diameter Da: 195–201 mm. Chamfer r min: 2 mm. Lubricant: Grease or oil. The tapered bore seats directly on a matching 1:12 taper on the spindle journal; no adapter sleeve is used. Driving the inner ring up the taper expands it and sets the running clearance.

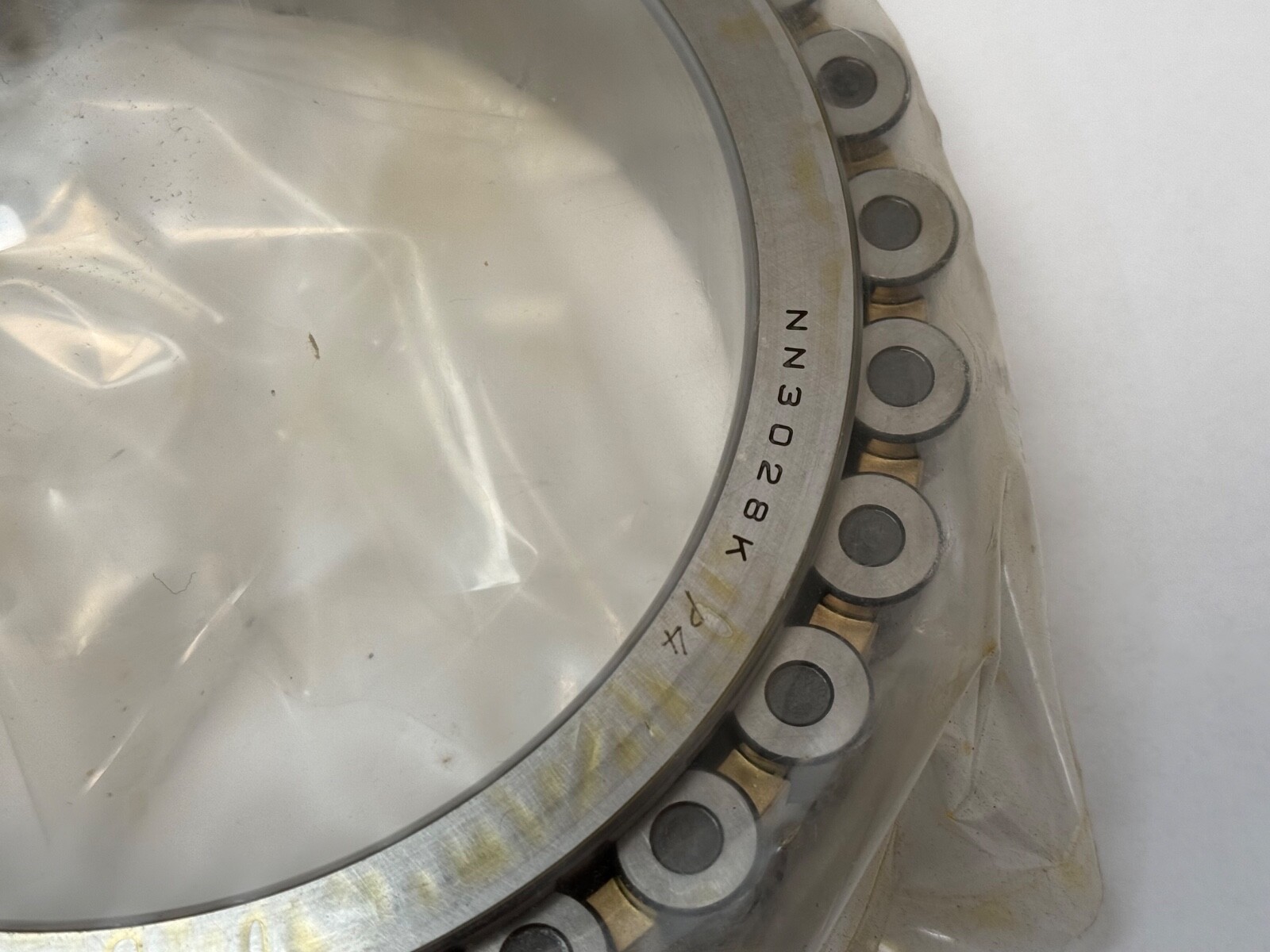

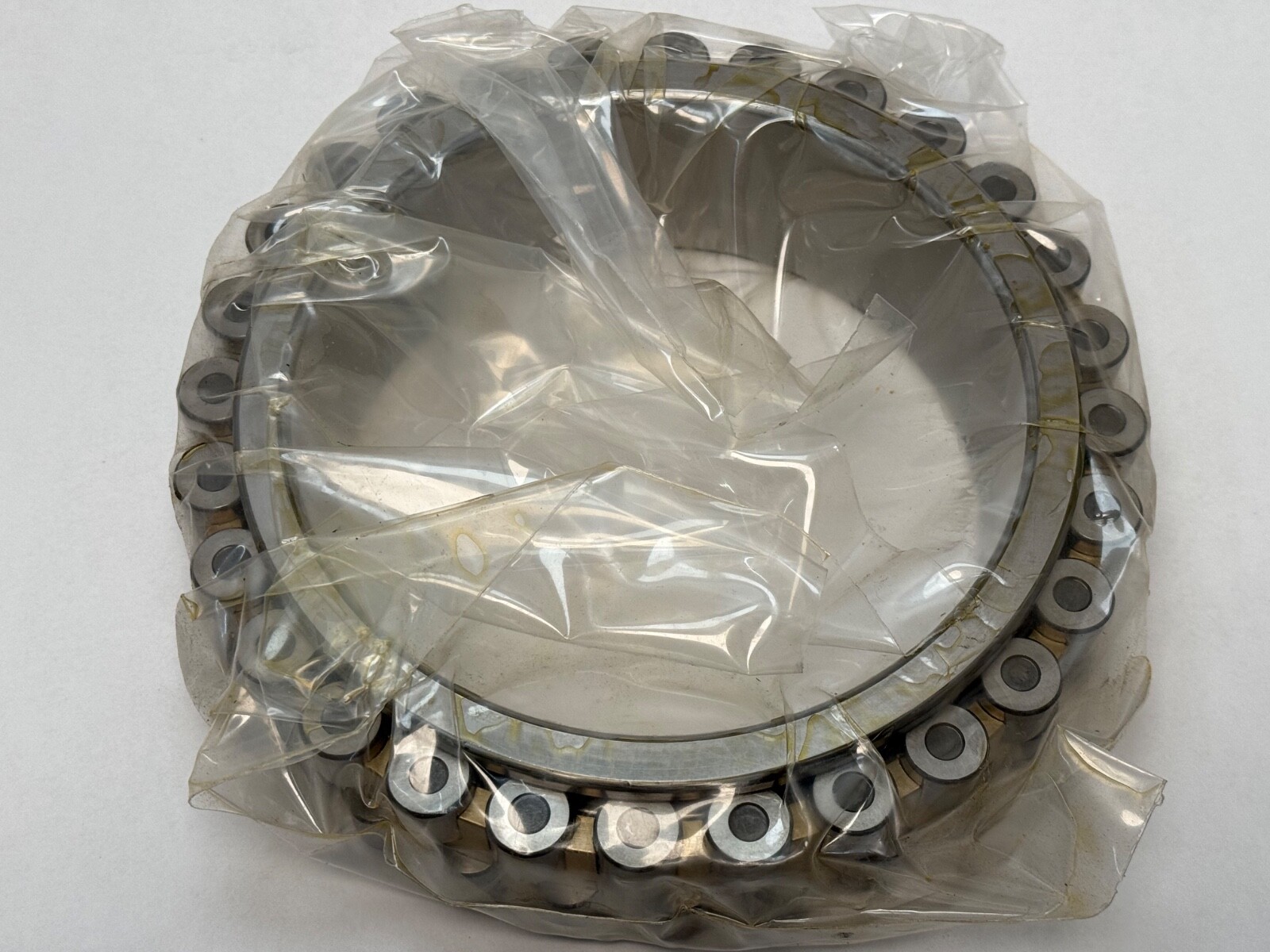

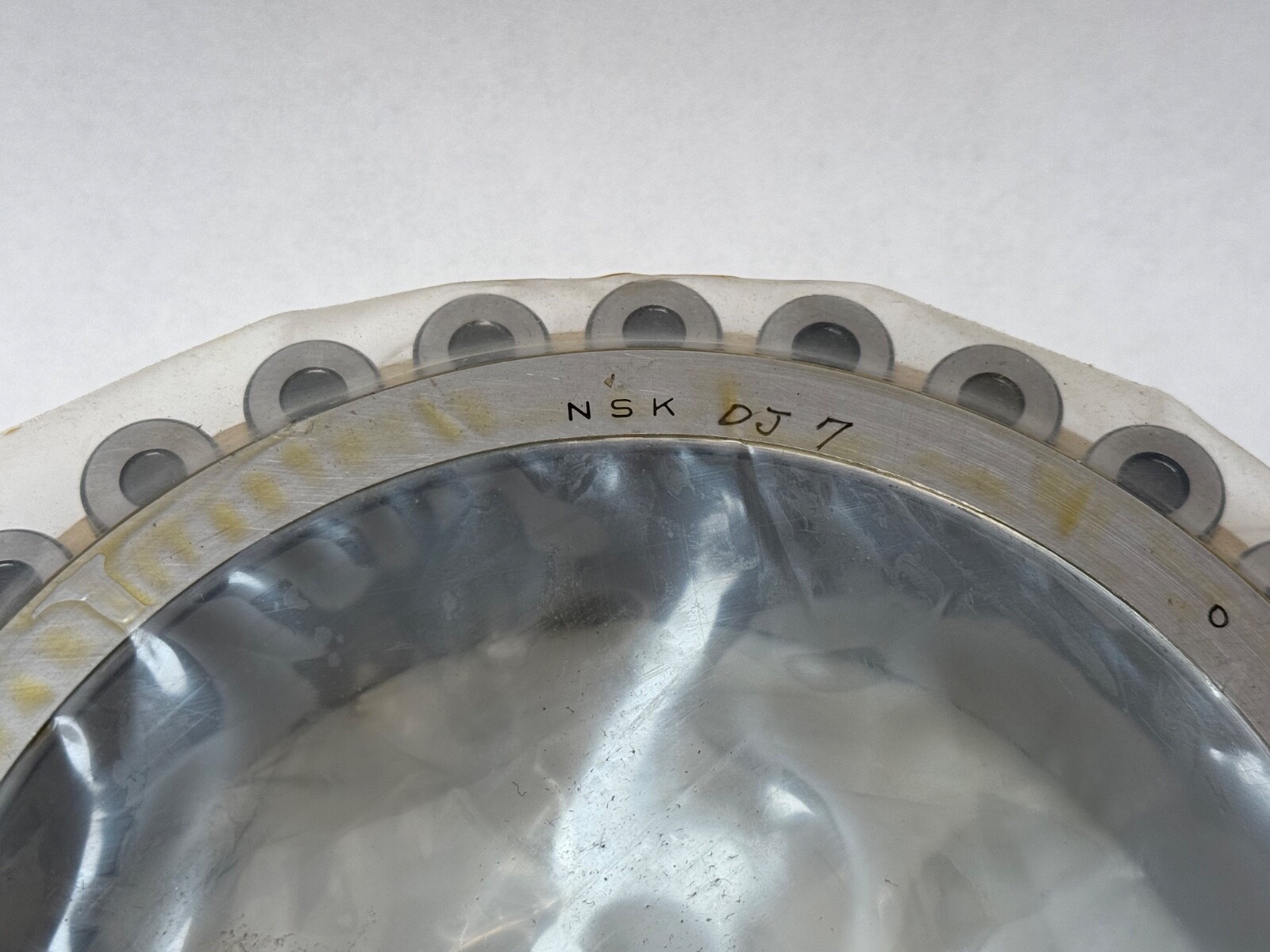

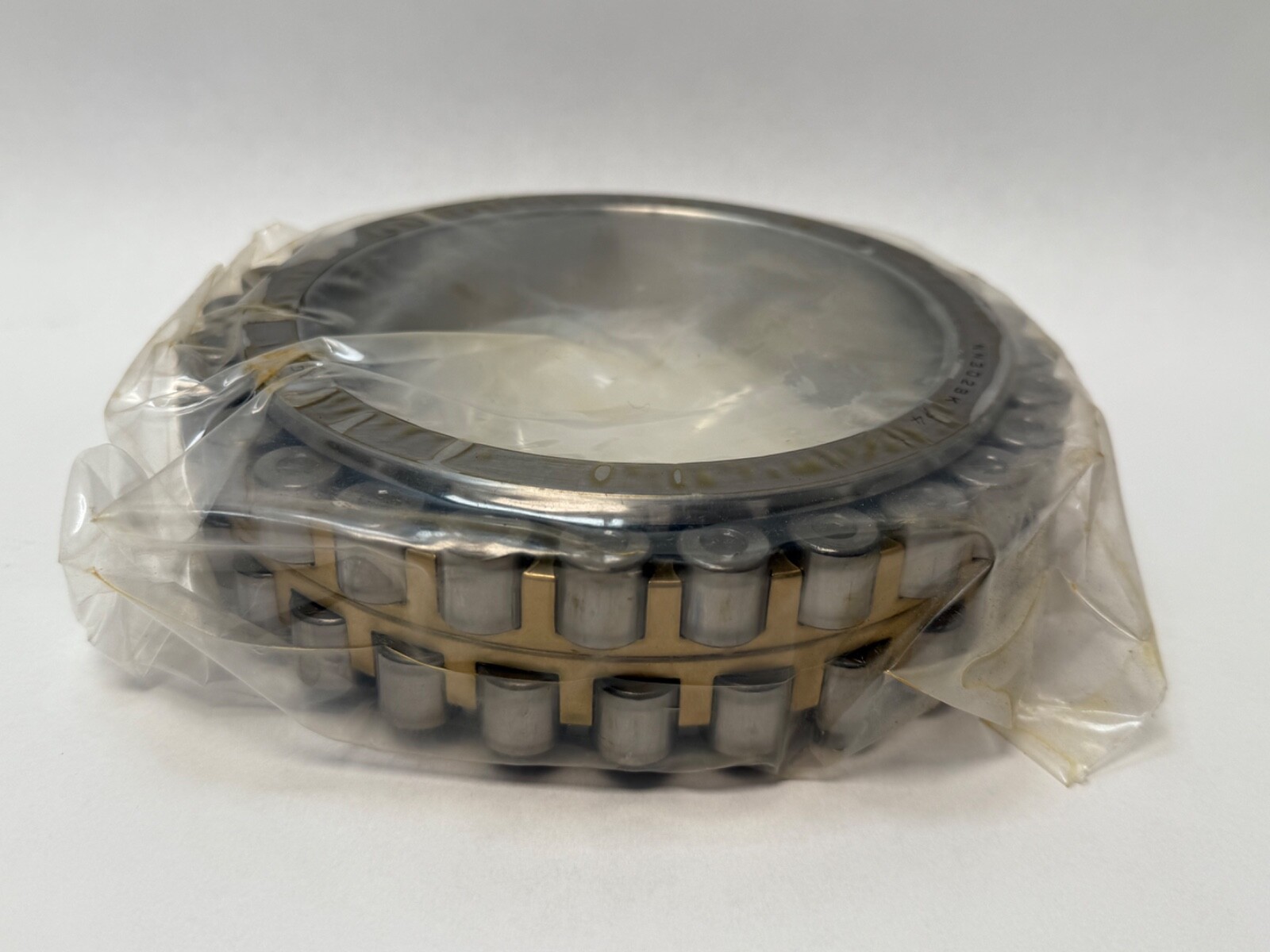

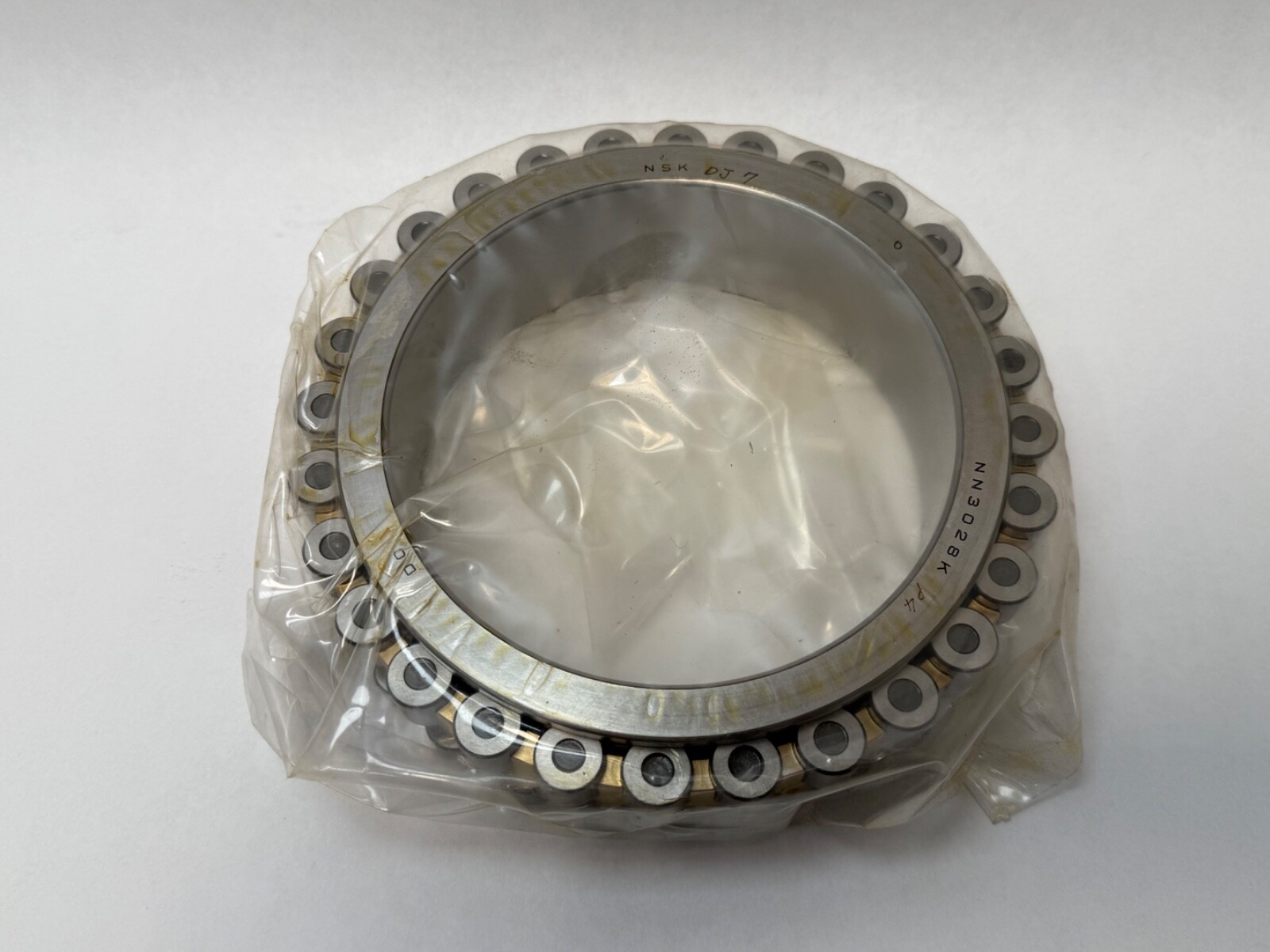

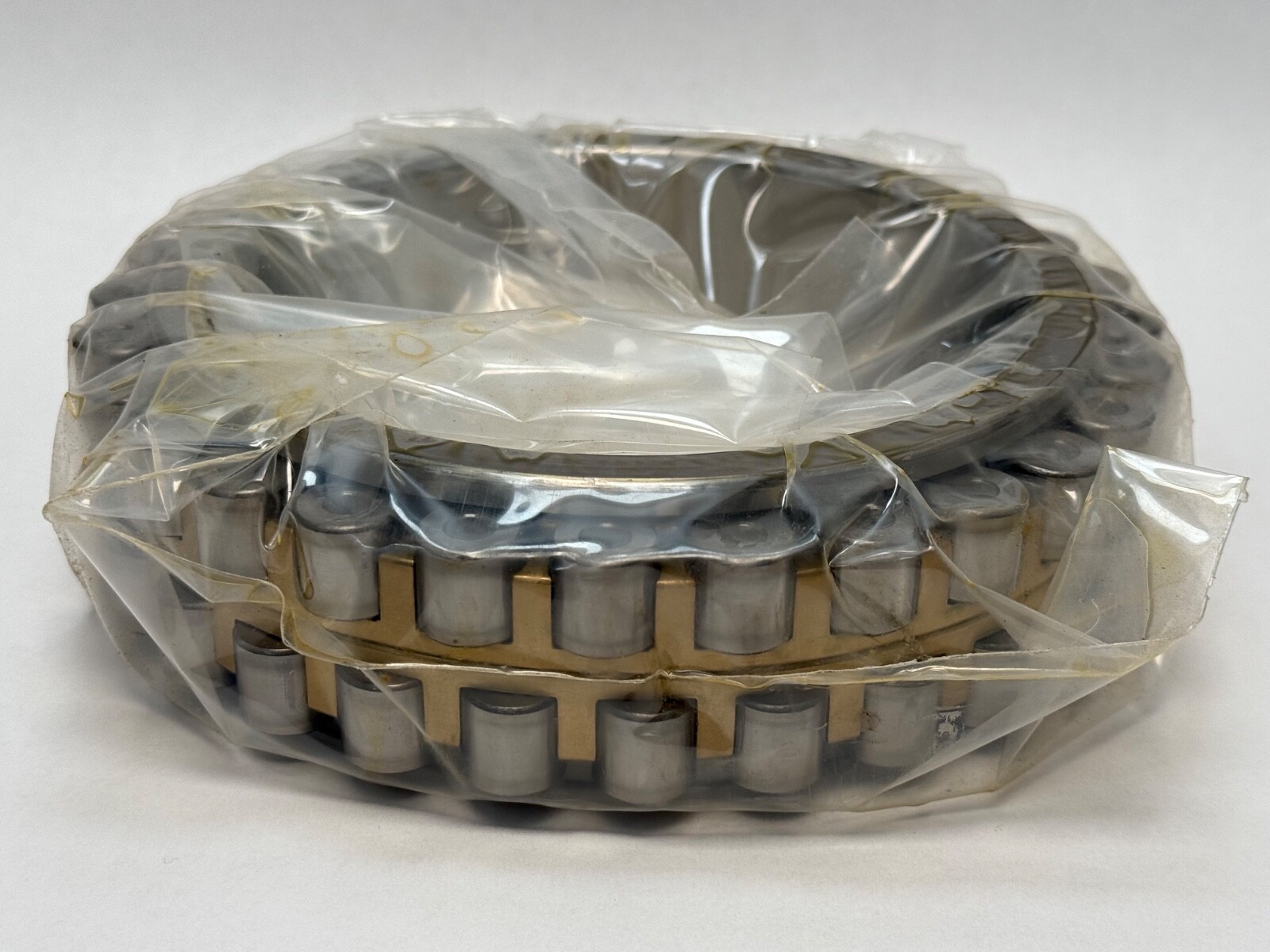

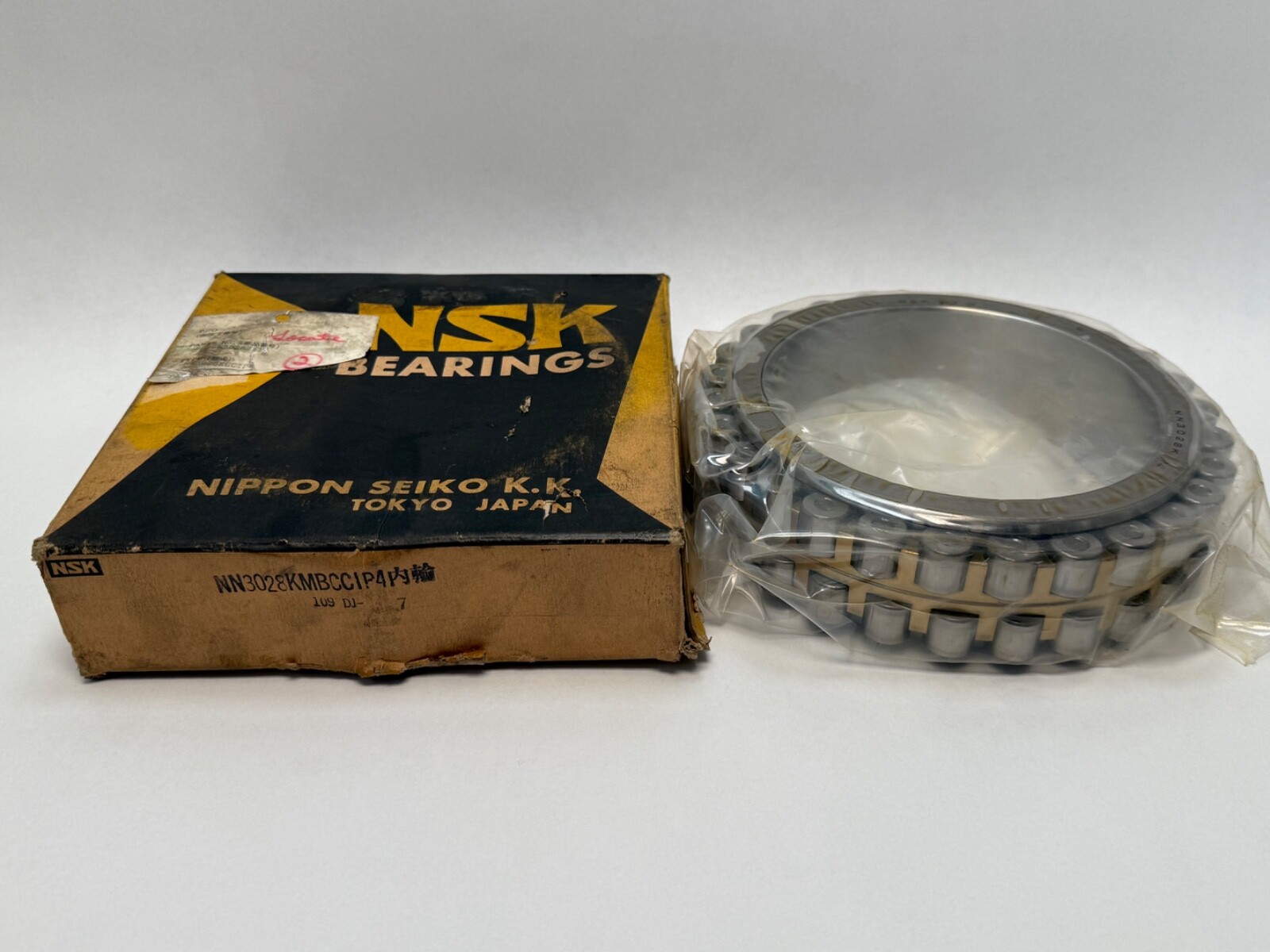

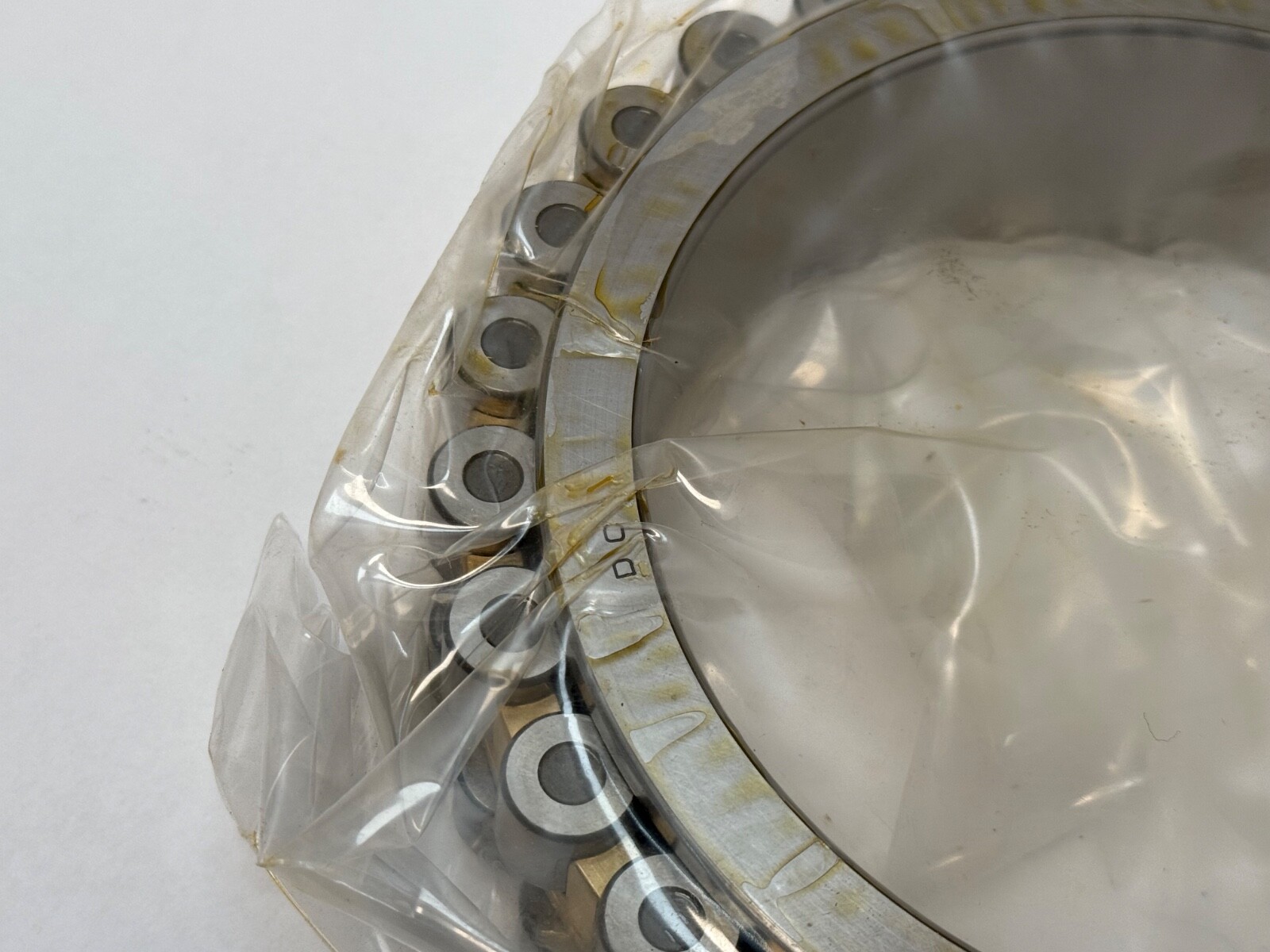

Unit Quantity: 1 Pc. Mounting Arrangement: Single bearing, radial location on a tapered journal. The condition note records that this unit is supplied without its outer ring, as the inner ring, roller and cage assembly only.
Equivalents share the 140 · 210 · 53 mm envelope, the two roller rows and the 1:12 tapered bore. SKF NN 3028 K, FAG NN3028-AS-K-M-SP and Koyo NN3028K are the usual counterparts; precision grade and cage execution differ between makers and should be confirmed against the application.
