GPZ NU311NA single-row cylindrical roller bearing, NU type, 55 mm bore, 120 mm OD, 29 mm width. GOST 32311, NU 311 envelope. New old stock, open box.
List Price
$60.28
1 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | GPZ |
|---|---|
| MPN | NU311NA |
| Model | 32311N |
| Bearing Type | Cylindrical Roller Bearing, Open |
| ID | 55 mm |
| OD | 120 mm |
| Width | 29 mm |
| Series | NU300 |
|---|---|
| Condition | New – Open box |
| Lubricant | grease or oil |
| Material | Bearing Steel |

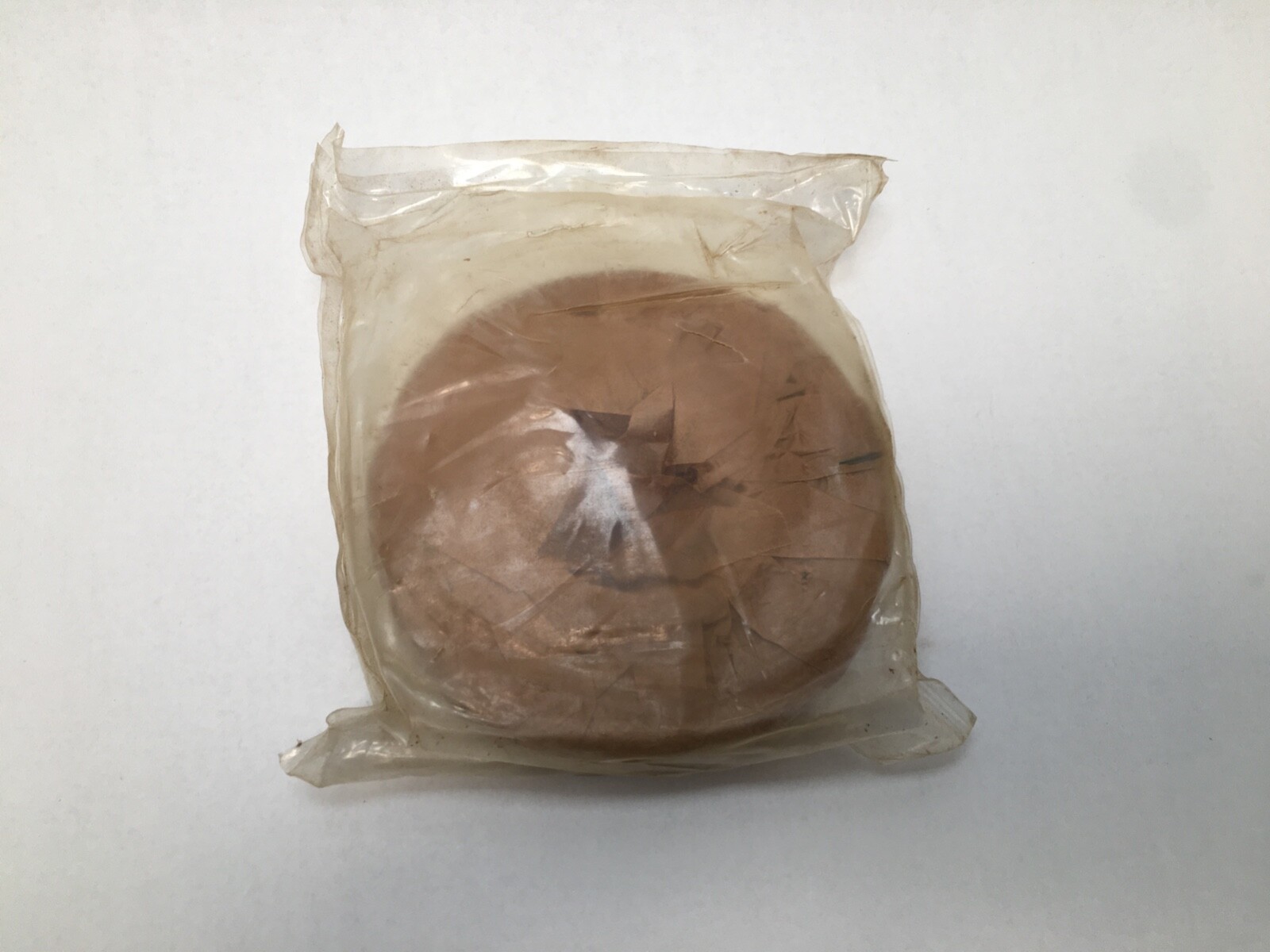

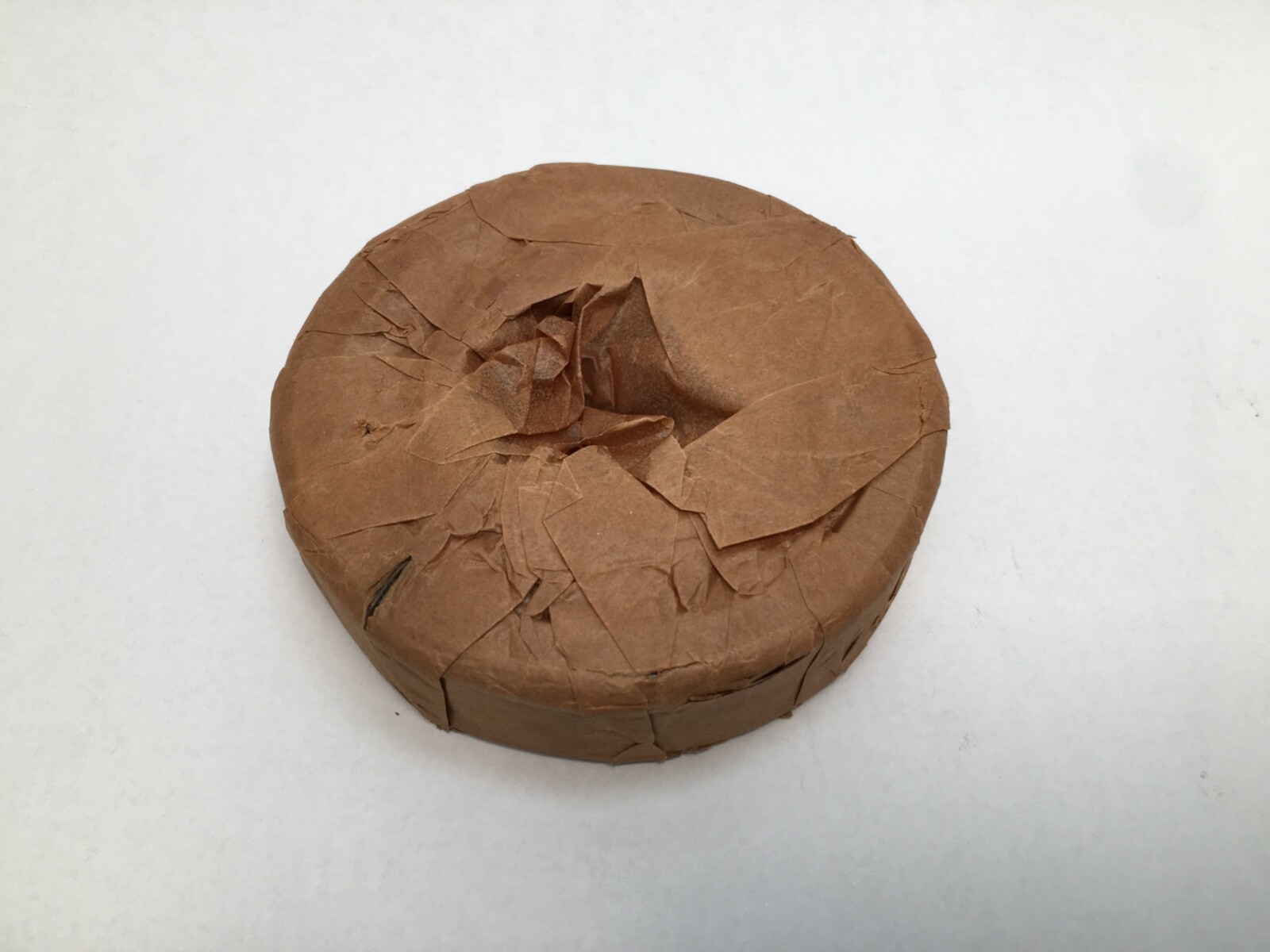

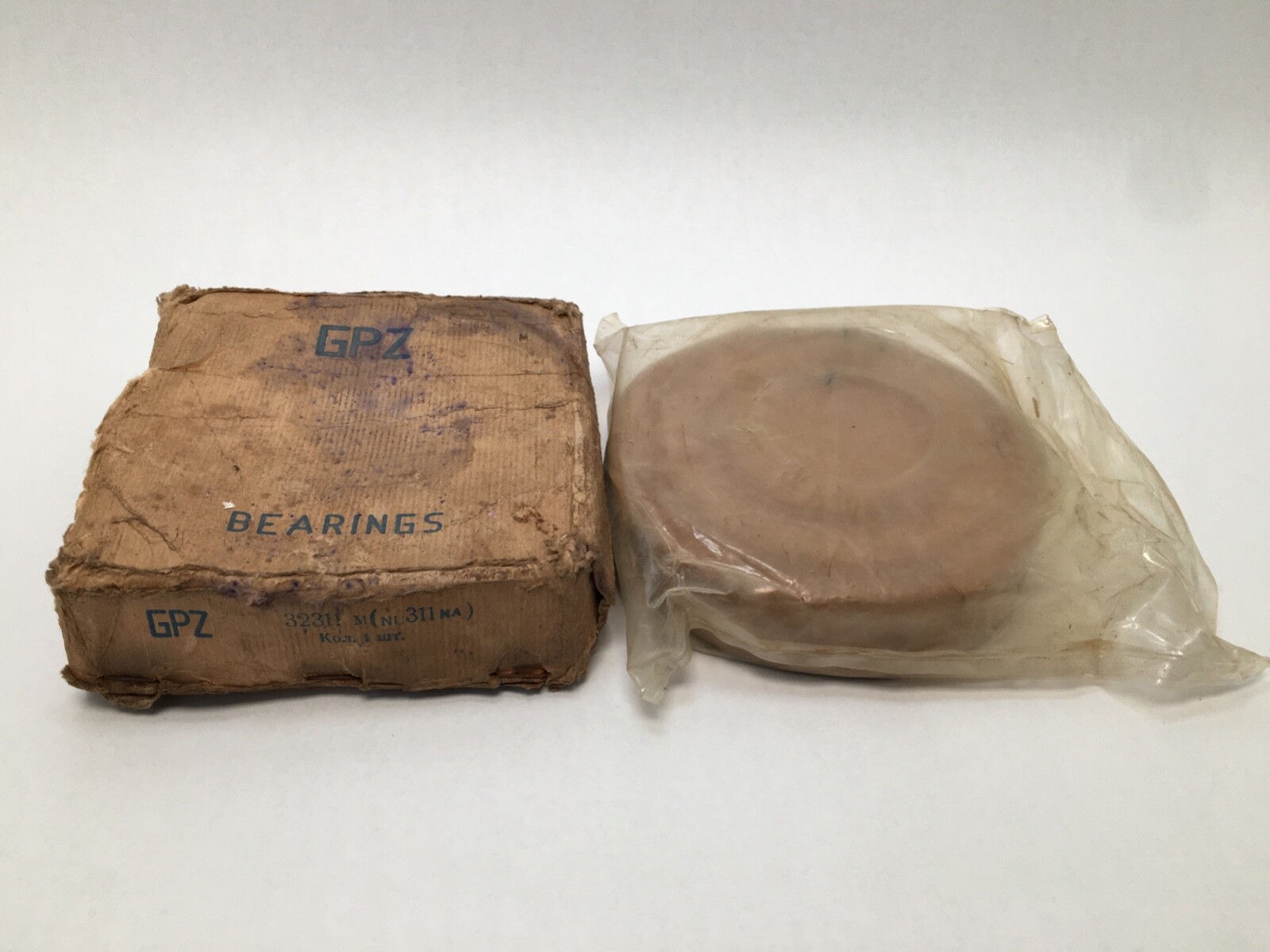

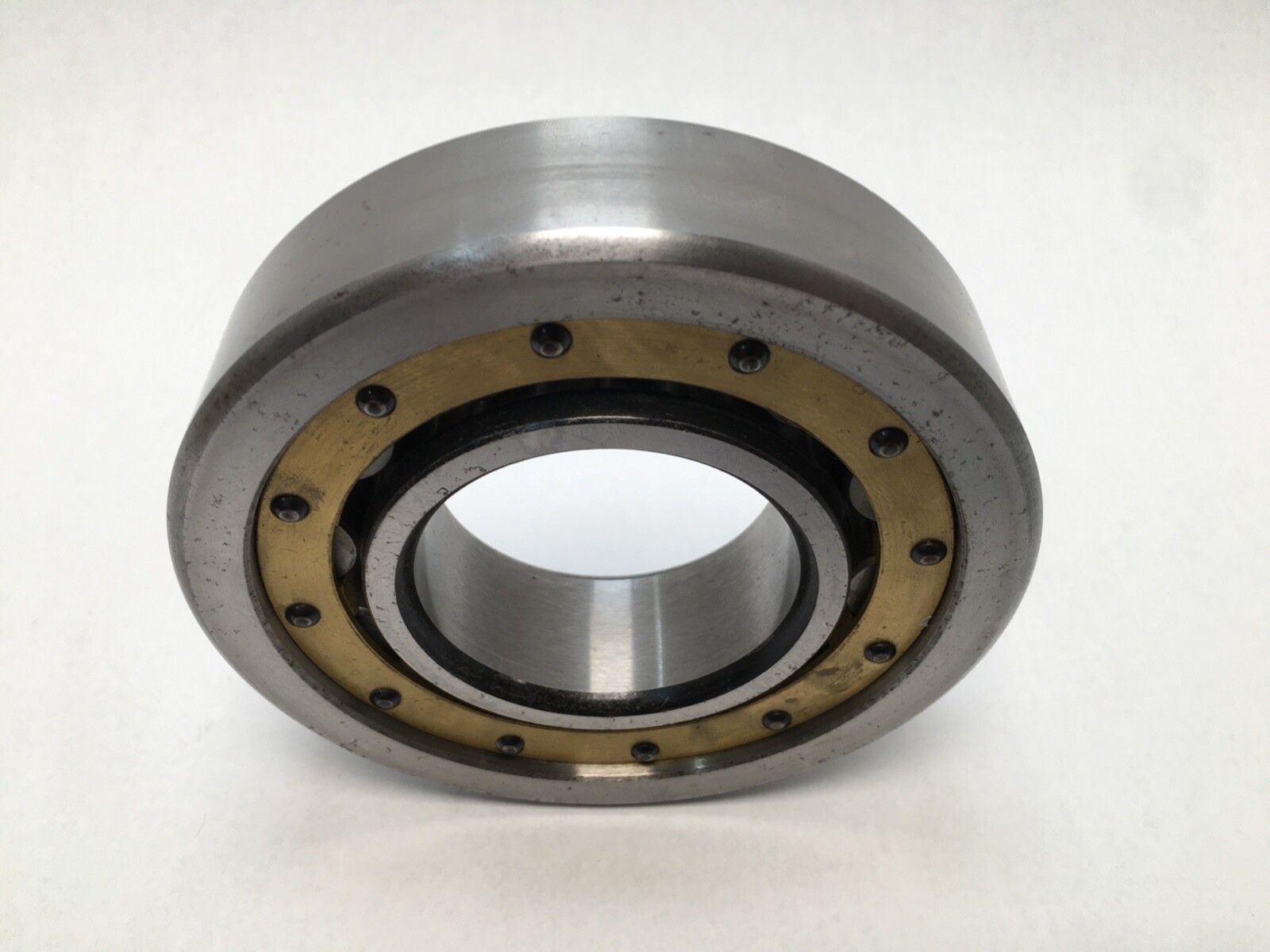

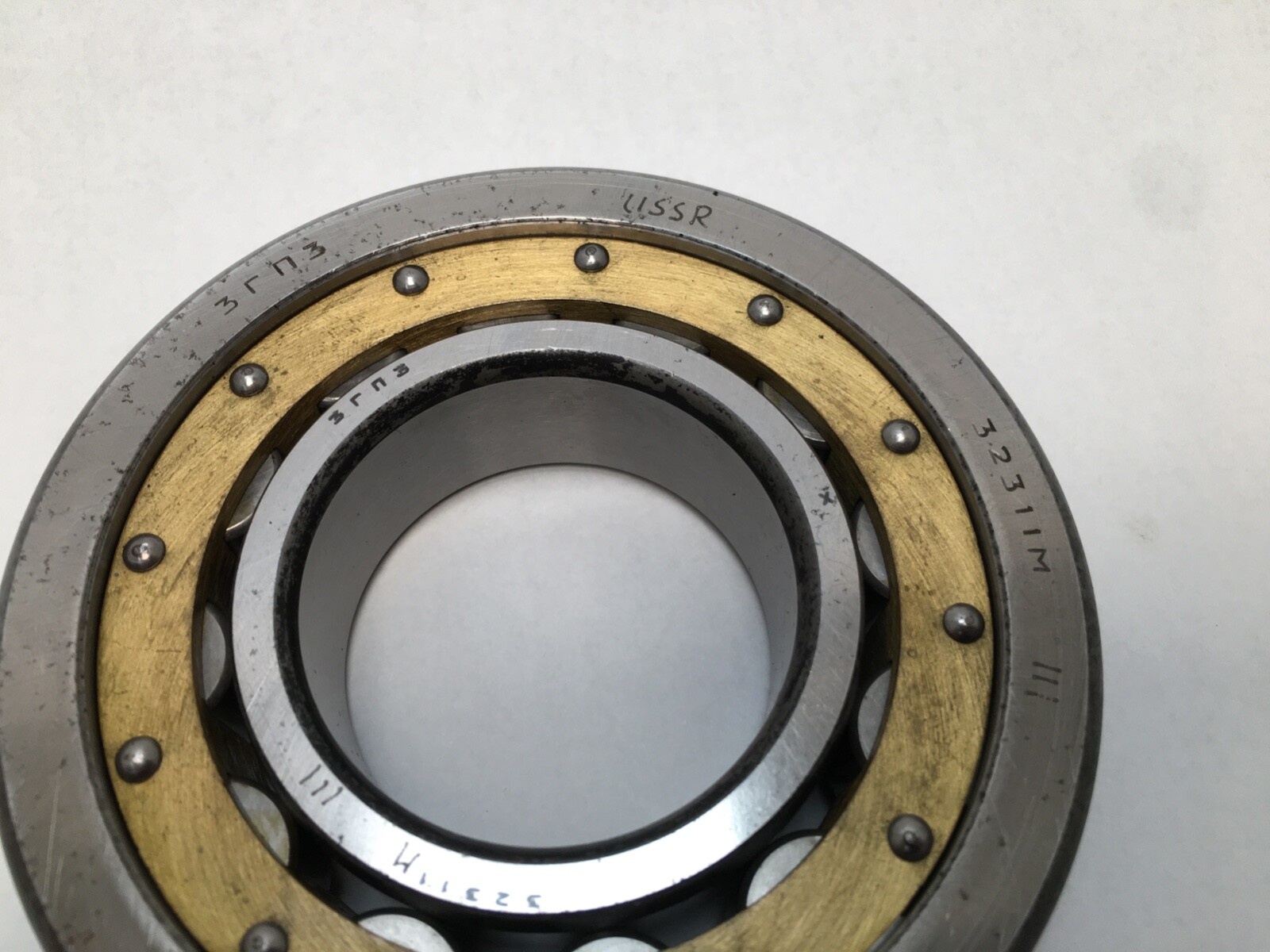

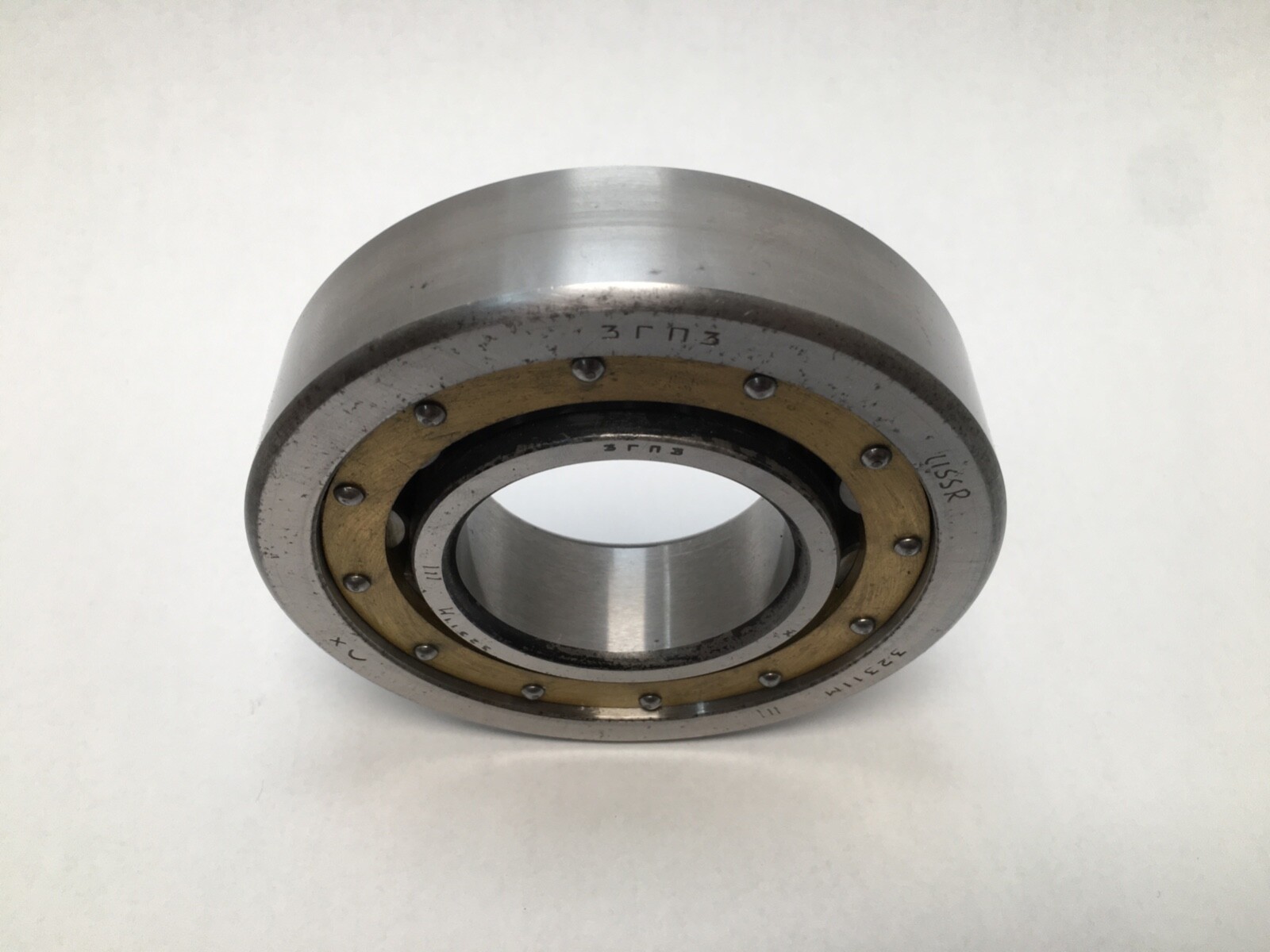

| Condition Note | New Old Stock, Dirty, (See Photos), Made In USSR |
| Rolling Elements | Cylindrical Roller |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Snap Ring Included | No |
| Harmonization Code | 8482.5 |
| Base Number | NU311 |
| Industry Terms | cylindrical roller bearing, NU bearing, roller bearing, GOST bearing |
| Overall Width | 29 mm |
| Mpn Variants | NU311NA, NU 311 NA, NU311 NA, NU311, NU 311, 32311, 32311N |
| Cross Reference 1 | SKF NU 311 |
|---|---|
| Cross Reference 2 | FAG NU311 |
| Cross Reference 3 | NTN NU311 |
| Cross Reference 4 | NSK NU311 |
| Cross Reference 6 | GOST 32311 |

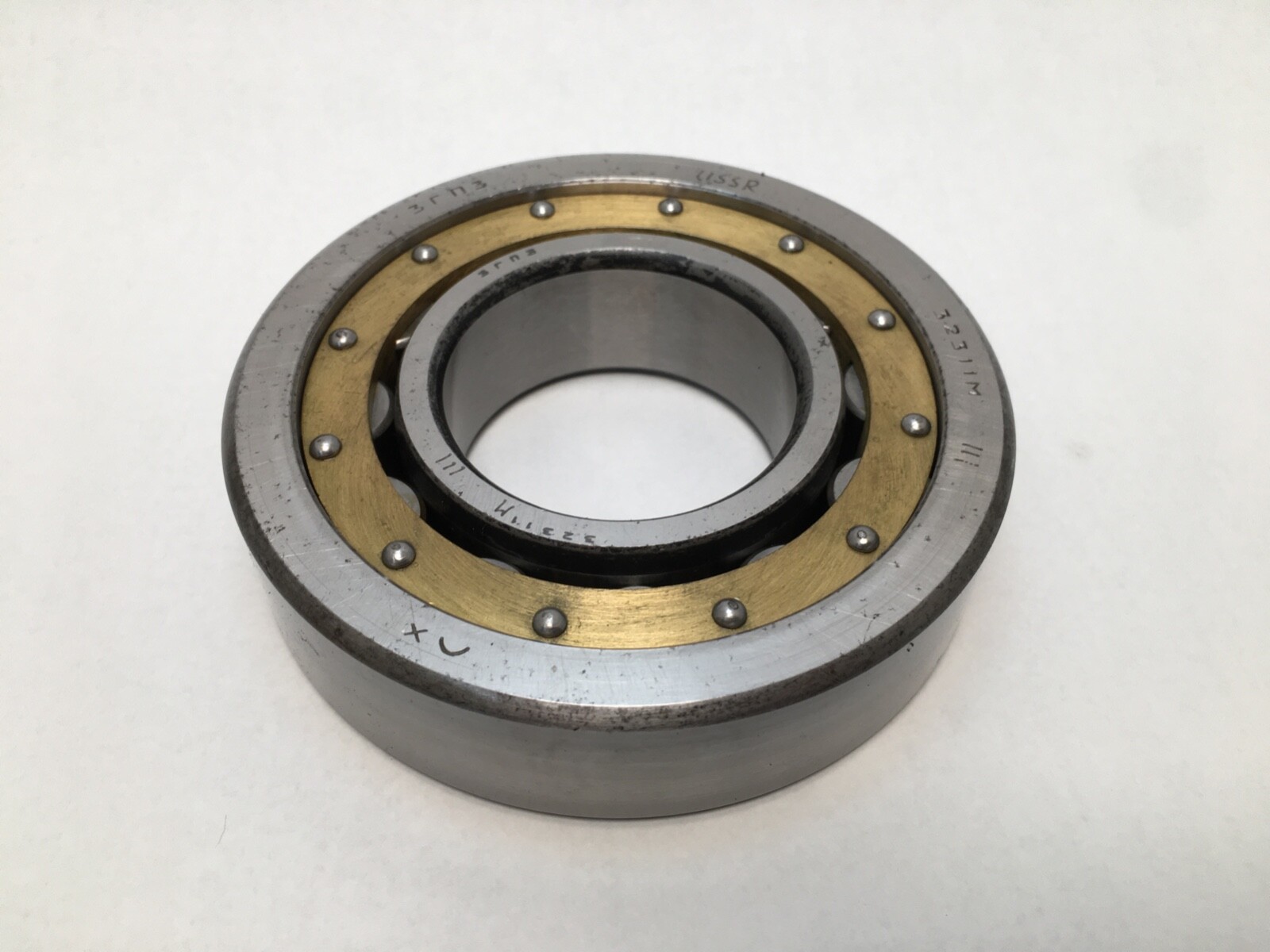

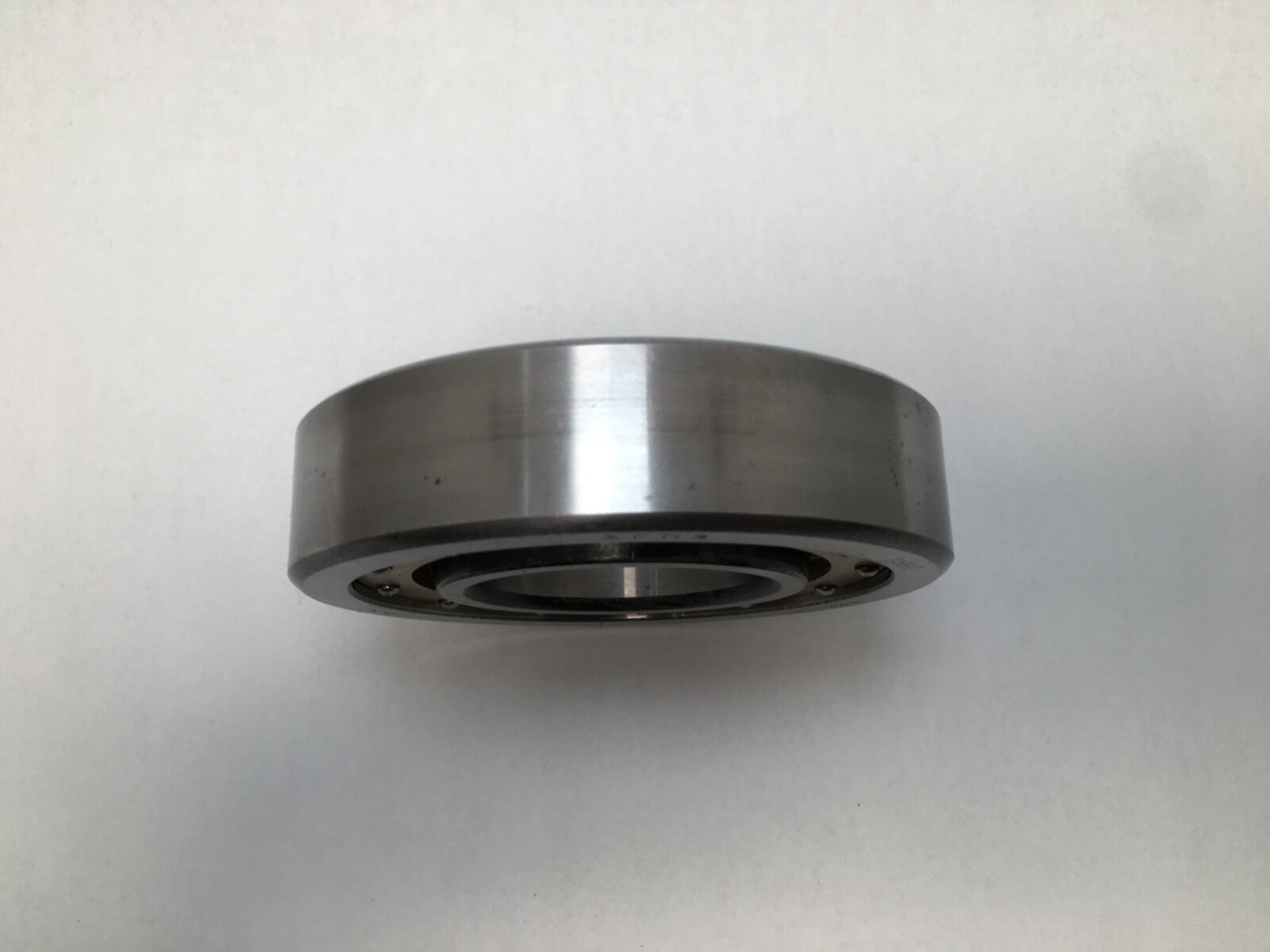

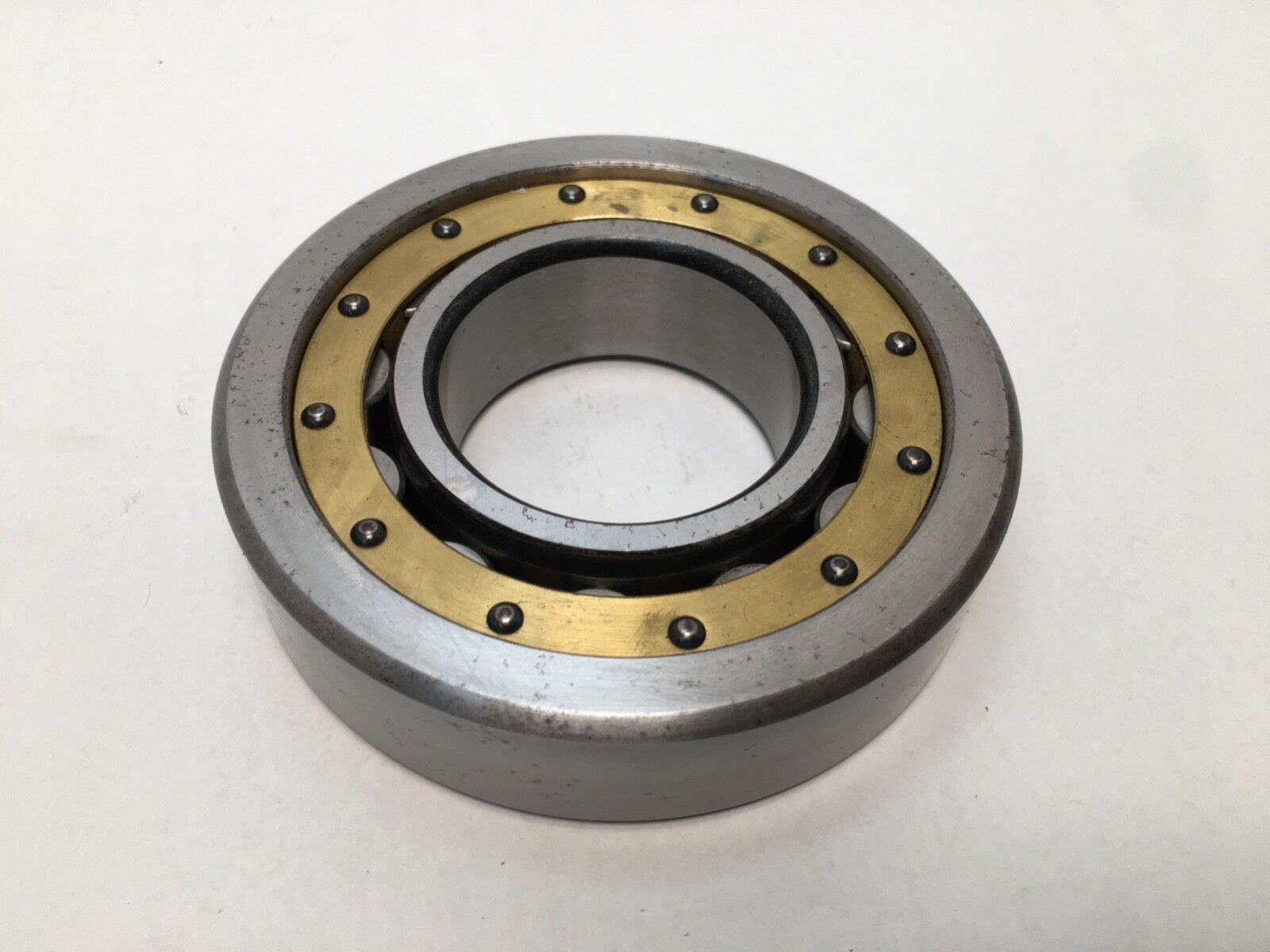

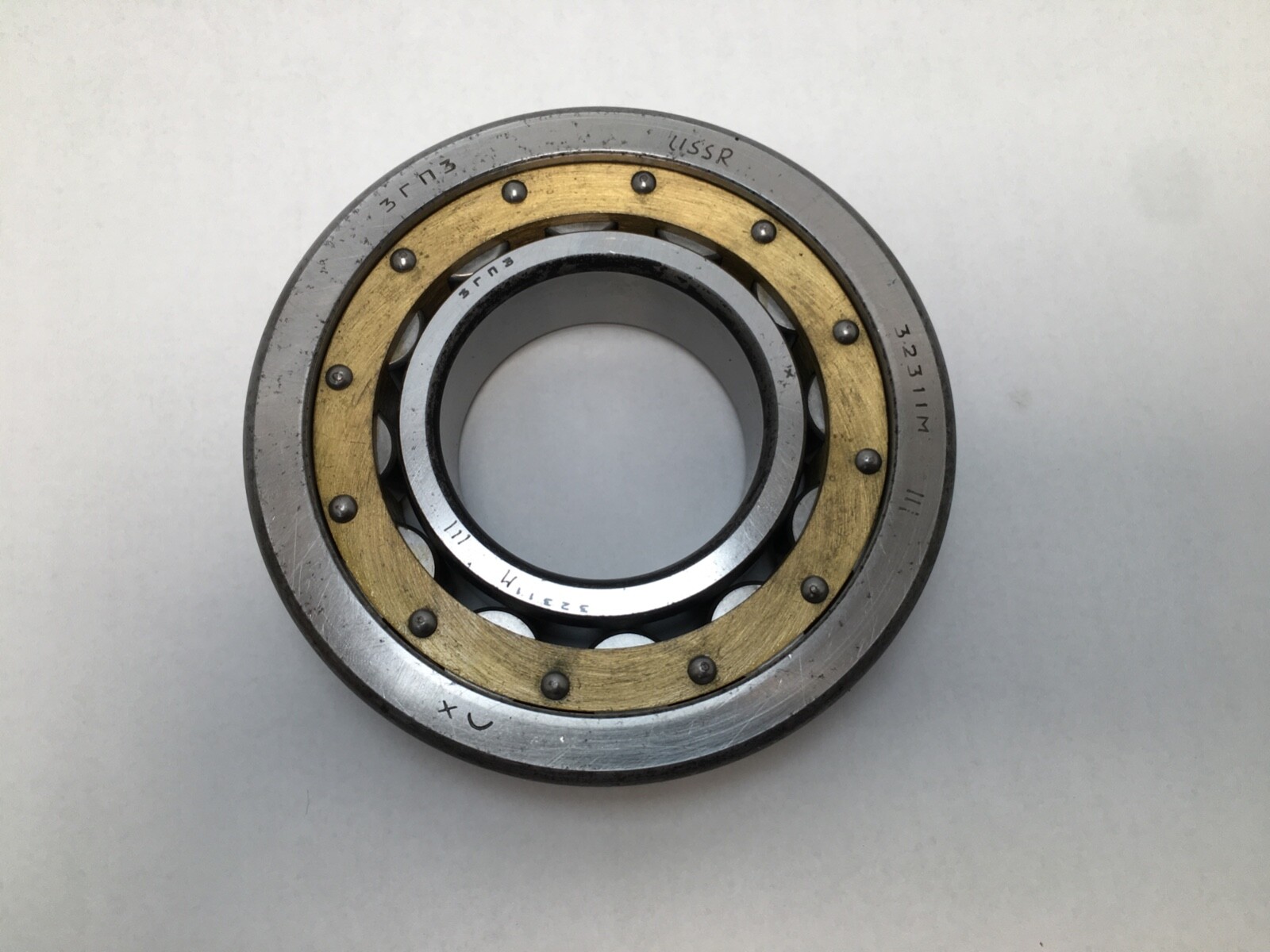

The GPZ NU311NA is a single-row cylindrical roller bearing of NU design, carried under the GOST designation 32311. It is the 311 size in the medium 03 dimension series: 55 mm bore, 120 mm outside diameter, 29 mm width.
NU — cylindrical roller bearing with two integral ribs on the outer ring and a rib-free inner ring. Non-locating: the shaft moves axially relative to the housing in both directions.
311 — 03 dimension series, bore code 11 = 55 mm.
32311 — GOST designation for the same NU 311 bearing.
Bearing Type: Cylindrical Roller Bearing. Design: NU. Rolling Elements: Cylindrical Roller. Number Of Rows: 1. Bore Diameter: 55 mm. Outside Diameter: 120 mm. Width: 29 mm. Bore Type: Straight. Closure Type: Open. Snap Ring: No. Lubricant: grease or oil.

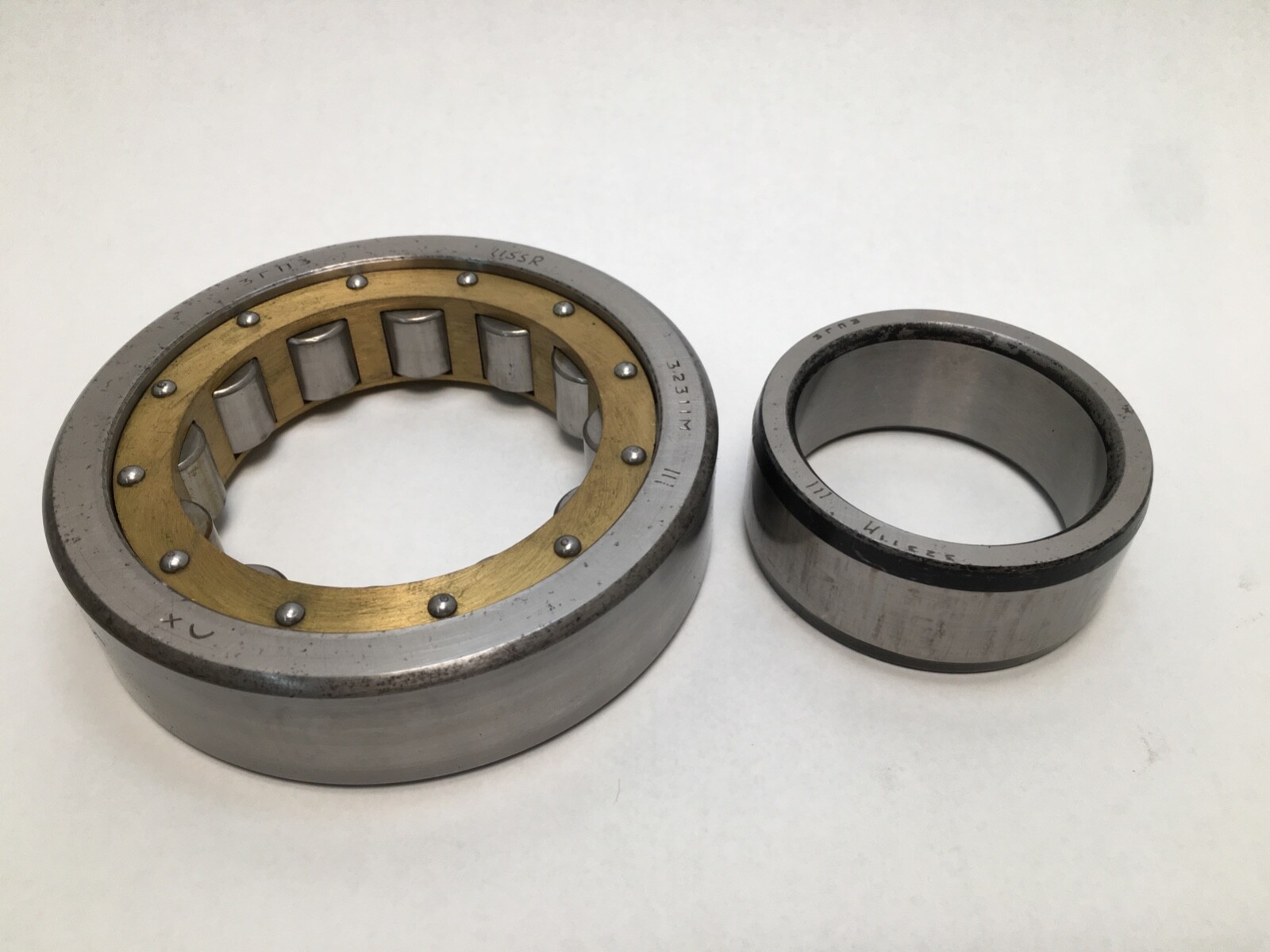

Envelope: 55 x 120 x 29 mm. The inner ring separates from the outer ring and roller assembly, so each ring is mounted independently. The NU design accommodates axial shaft expansion within the bearing.
Same NU 311 envelope as SKF NU 311, FAG NU311, NSK NU311, NTN NU311 and Koyo NU311, and GOST 32311.
What size is the GPZ NU311NA?
55 mm bore, 120 mm outside diameter, 29 mm width.
What is the GOST equivalent of NU311?
GOST 32311.
Does the NU311 locate the shaft axially?
No. The NU design has no ribs on the inner ring, so it is a non-locating bearing.
