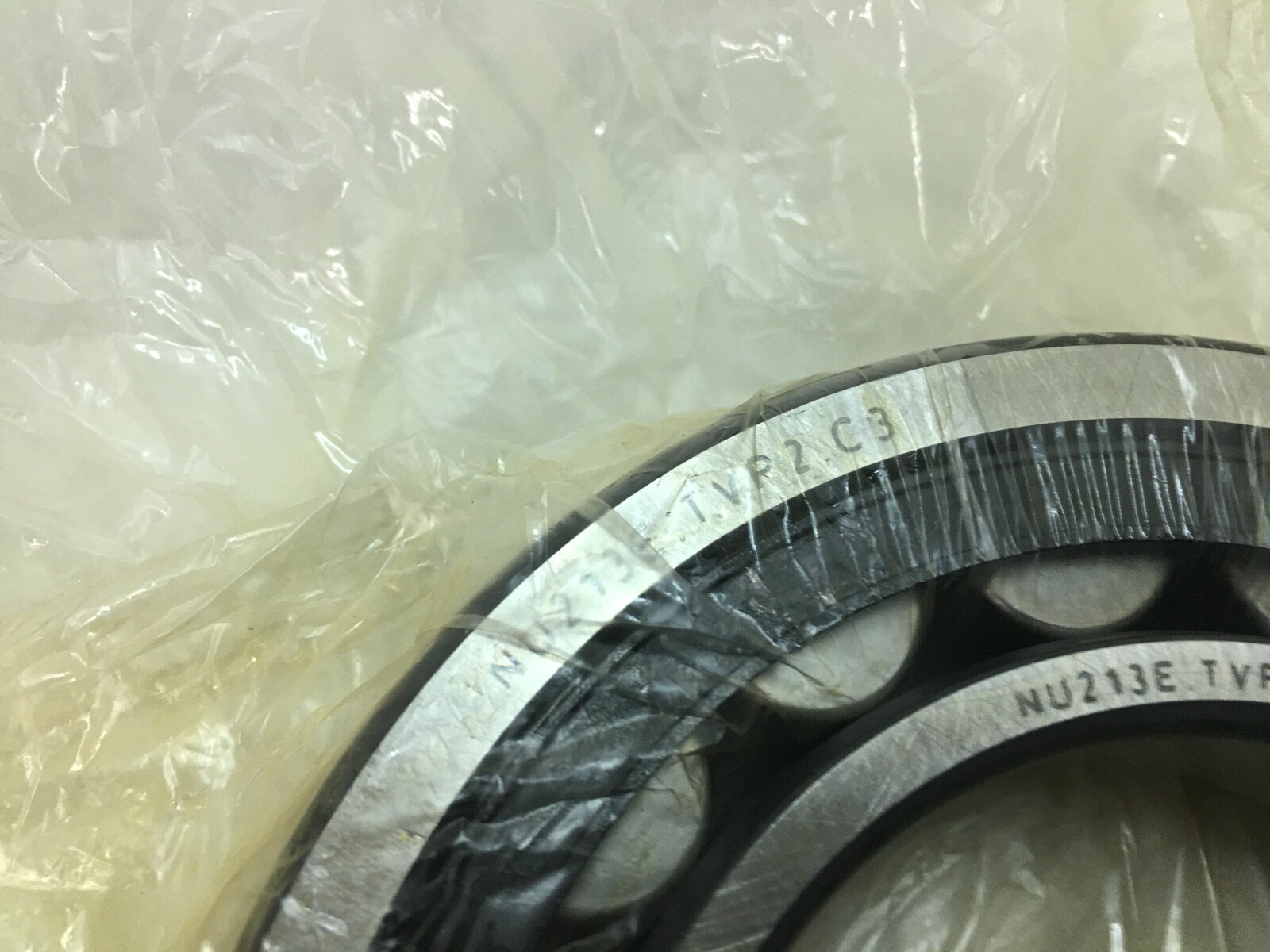

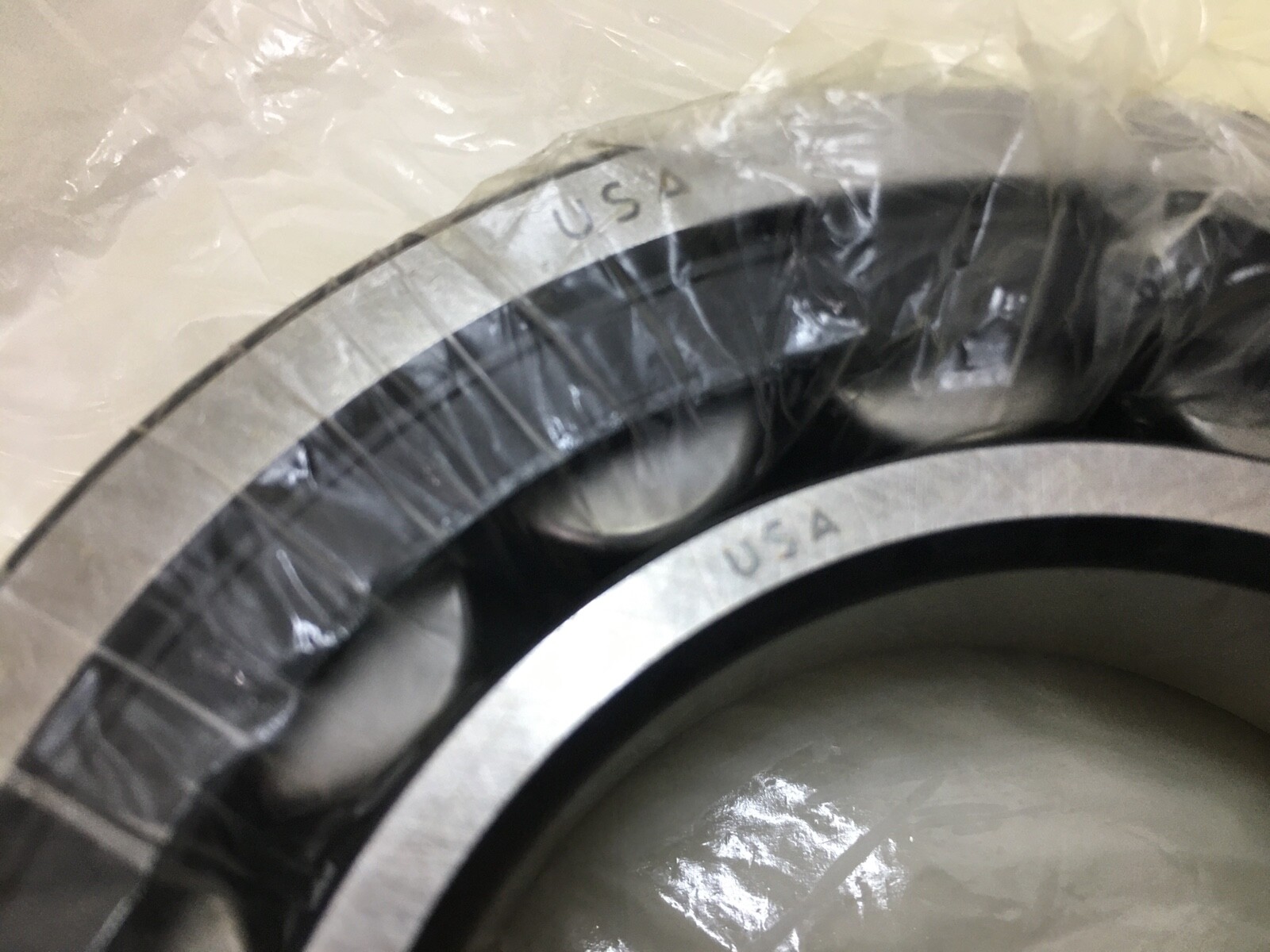

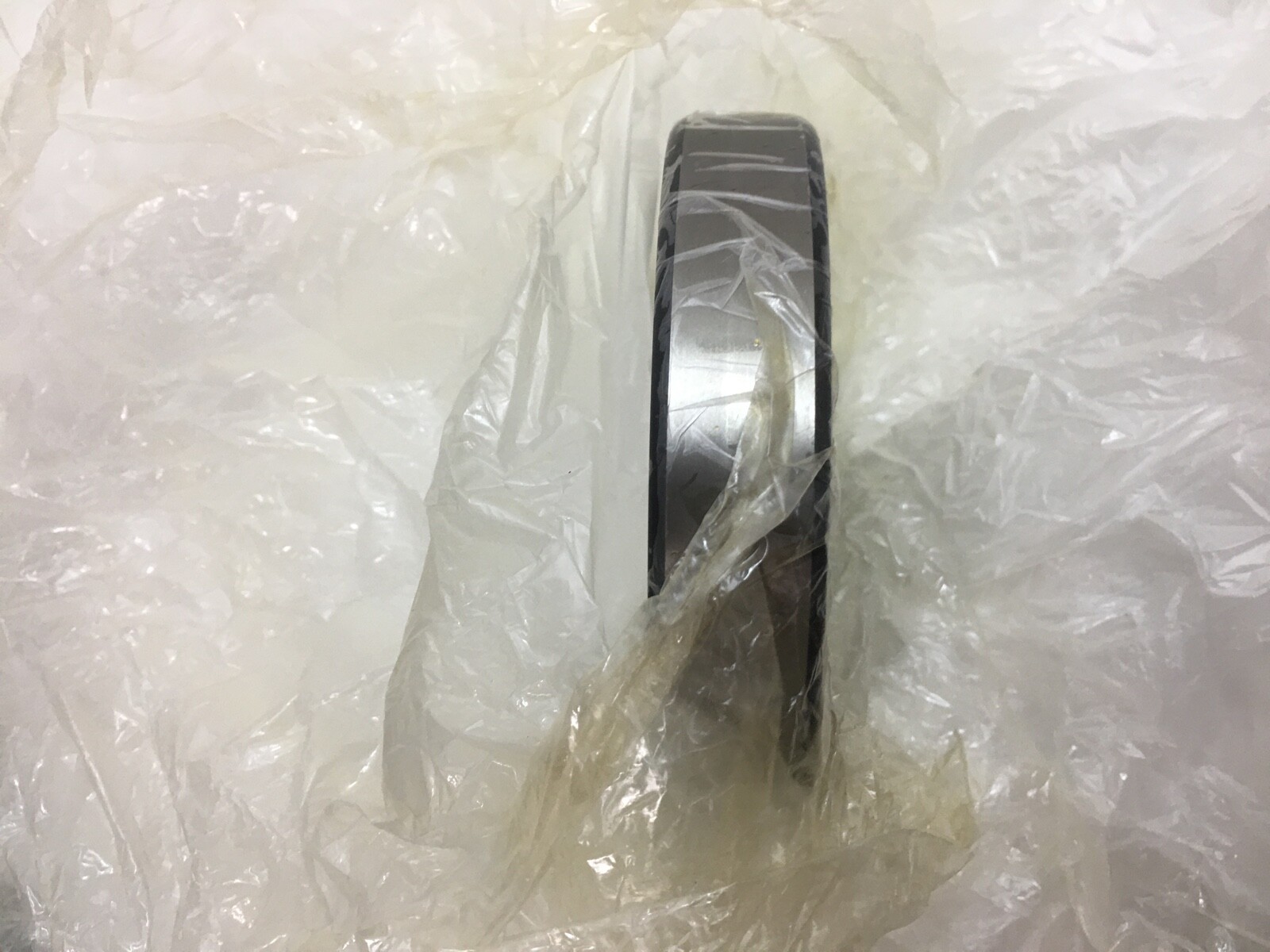

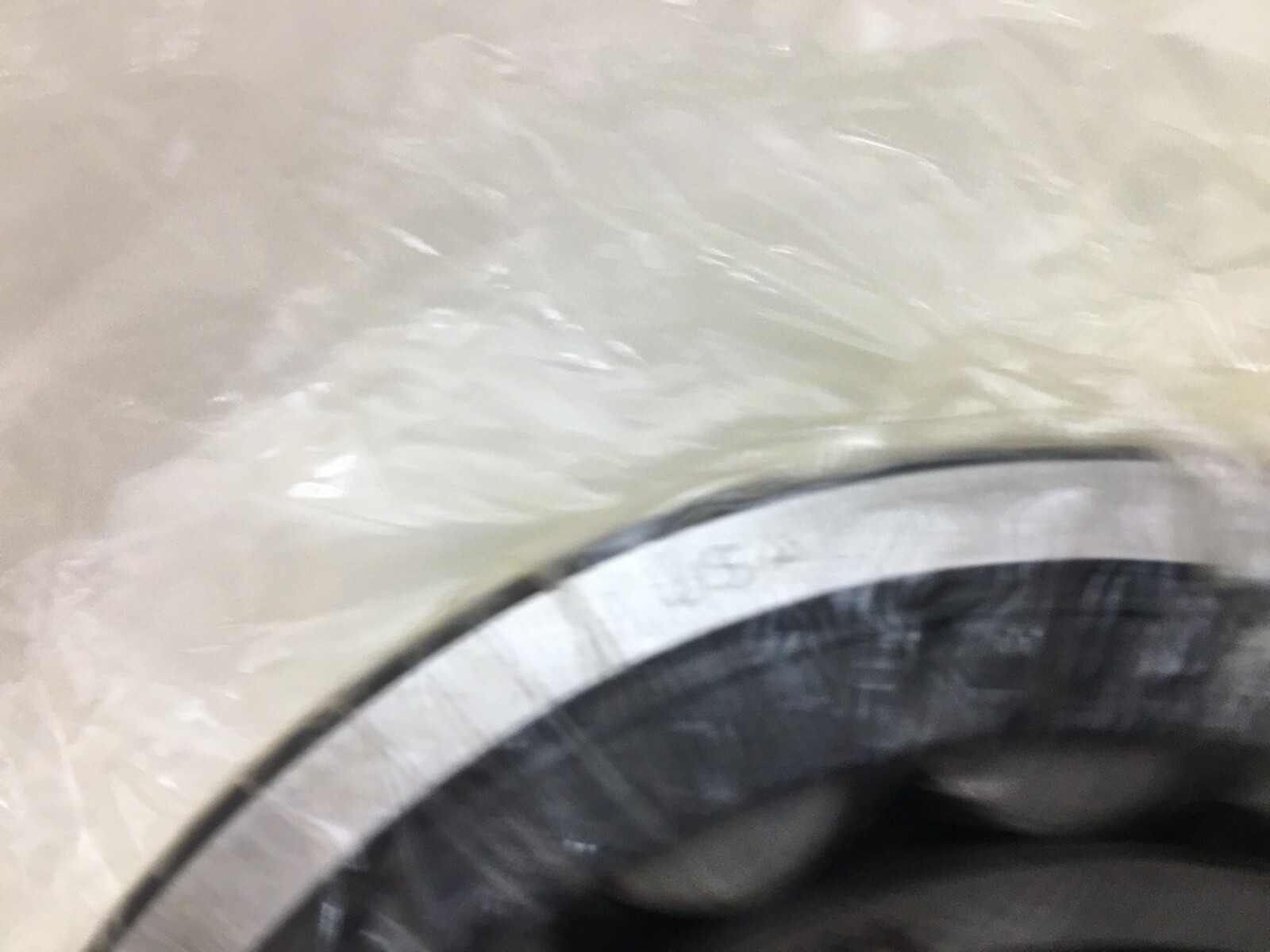

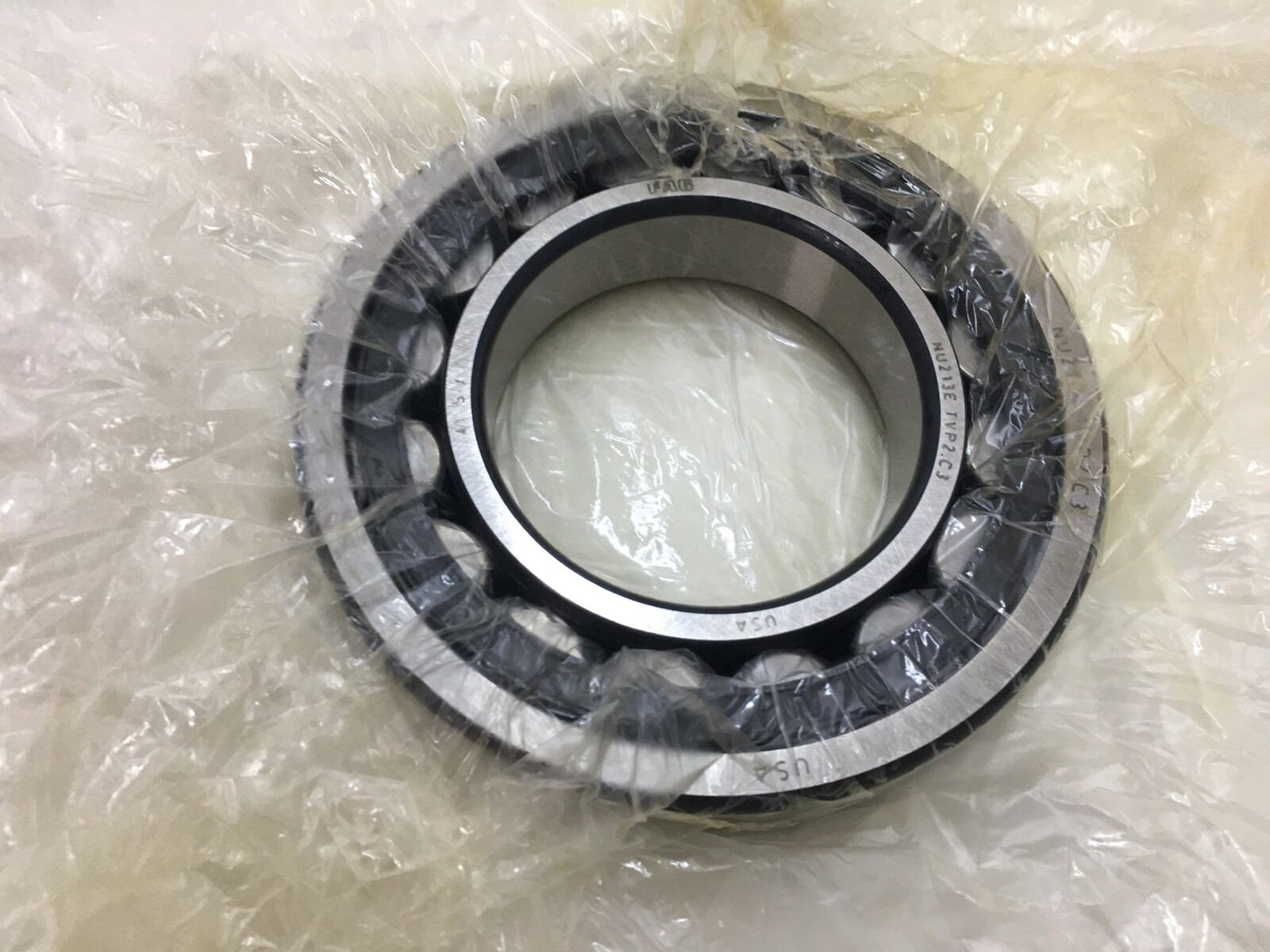

FAGNU213-E-TVP2-C3Cylindrical Roller Bearing – Straight Bore, 65 mm ID, 120 mm OD, 23 mm Width, 1 Row, C3 Internal Clearance.

Product Description

What this part is:

FAG NU213-E-TVP2-C3 is a single-row cylindrical roller bearing of the high-capacity E design, open, with a straight bore, a glass-fibre reinforced polyamide cage and C3 radial internal clearance. Bore Diameter: 65 mm. Outside Diameter: 120 mm. Overall Width: 23 mm. Rolling Elements: Cylindrical Roller. Number Of Rows: 1. Unit Quantity: 1 Pc.

Decoding the designation:

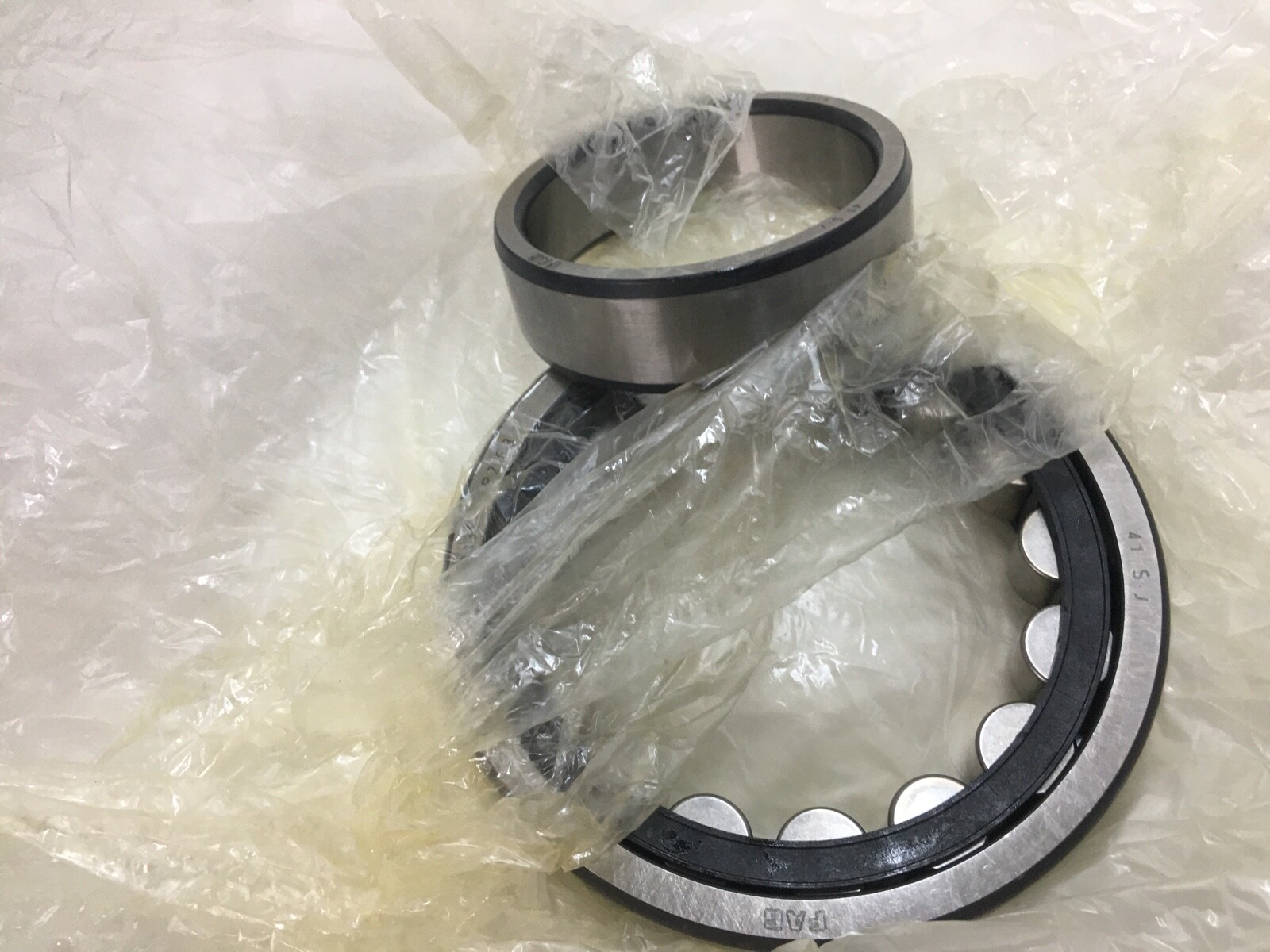

NU — cylindrical roller bearing with two ribs on the outer ring and a plain inner ring, so the rings separate and move freely in the axial direction.

213 — ISO 22 dimension series, bore code 13 x 5 = 65 mm bore.

E — FAG high-capacity internal design.

TVP2 — glass-fibre reinforced polyamide cage.

C3 — radial internal clearance greater than normal.

Specifications:

Bearing Type: Cylindrical Roller Bearing. Bore Diameter: 65 mm. Outside Diameter: 120 mm. Overall Width: 23 mm. Number Of Rows: 1. Rolling Elements: Cylindrical Roller. Bore Type: Straight. Closure Type: Open. Internal Clearance: C3. Cage Material: Polyamide. Material: Bearing Steel. Series: NU 2. Snap Ring Included: No. Harmonization Code: 8482.50.00.00. Unit Quantity: 1 Pc.

Dimensions and mounting:

Bore Diameter: 65 mm. Outside Diameter: 120 mm. Overall Width: 23 mm. Bore Type: Straight.

Compatibility and replacement:

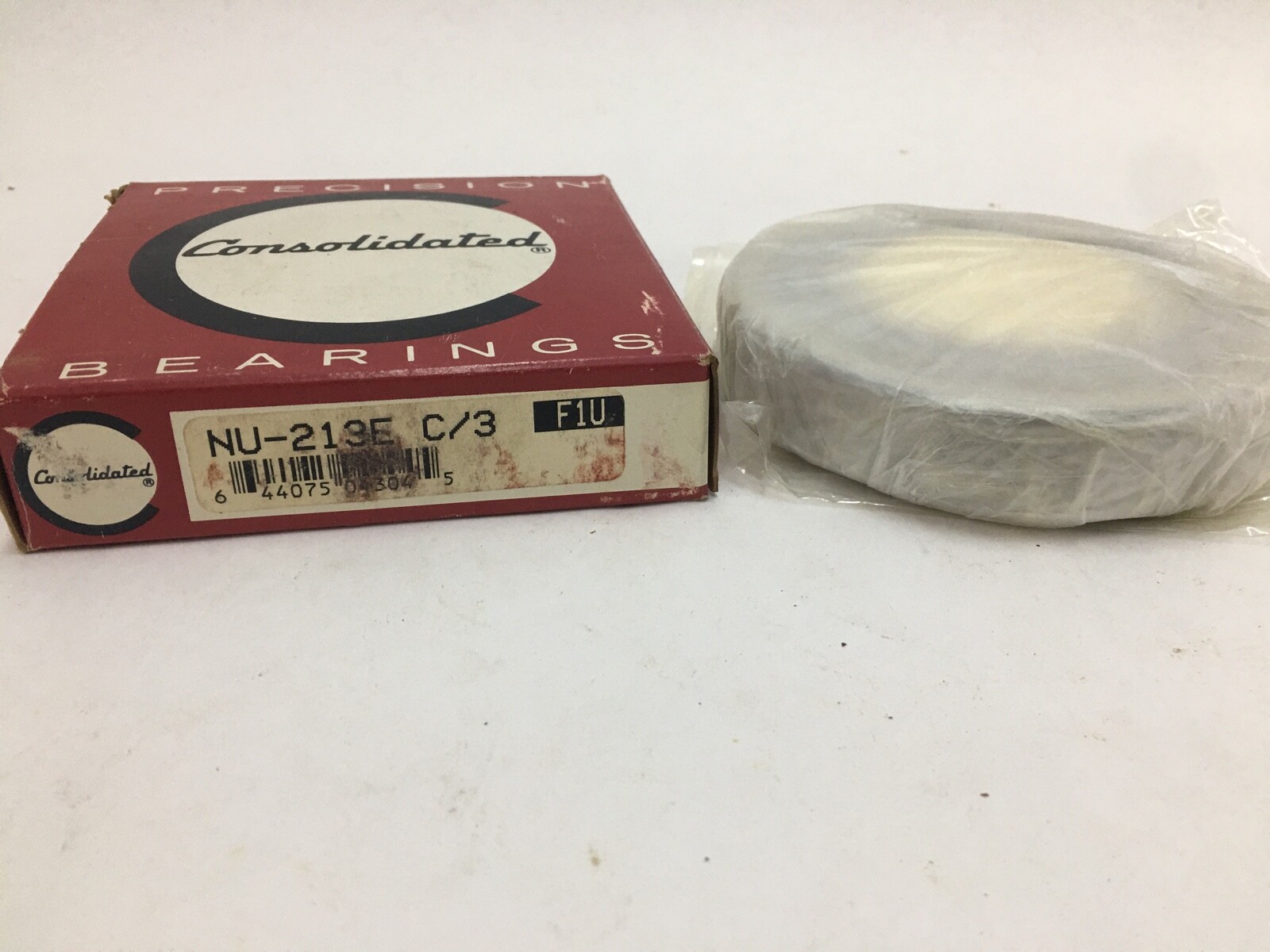

Cross-references with a 65 x 120 x 23 mm size and C3 clearance: SKF NU 213 ECP/C3 (polyamide cage), Timken NU213EMC3 (E design, brass cage). Designation variants: NU213-E-TVP2-C3, NU213ETVP2C3, NU213E, NU-213-E-C3, NU-213-E-TVP2-C3.

Frequently asked questions:

What are the dimensions of the FAG NU213-E-TVP2-C3?

Bore Diameter: 65 mm. Outside Diameter: 120 mm. Overall Width: 23 mm.

What internal clearance does it have?

Internal Clearance: C3, radial clearance greater than normal.

What cage does it have?

Cage Material: Polyamide. TVP2 is a glass-fibre reinforced polyamide cage.
