FAG NN3011-AS-M-SP double-row cylindrical roller inner ring and roller set, 55 mm bore, 26 mm wide, machined brass cage, SP precision. No outer ring.
List Price
$76.39
1 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | FAG |
|---|---|
| MPN | NN3011-AS-M-SP |
| Model | NN3011 AS M SP |
| Bearing Type | Cylindrical Roller Bearing, Open |
| ID | 55 mm |
| Width | 26 mm |
| Material | Chrome Steel |
|---|---|
| Series | NN3000 |
| Base Number | NN3011 |
| Industry Terms | Double row cylindrical roller bearing; precision spindle bearing; NN series; machine tool bearing; inner ring and roller assembly; SP class bearing |
| Common Misspellings | NN3011ASMPS; NN 3011 AS M SP; NN3011-ASM-SP; FAG NN301AS.M.SP |
| Application Types | Machine tool spindles; precision gearboxes; grinding spindles; rotary tables; high-stiffness radial spindle positions |
| Bore Shaft Size | 55 mm (2.1654 in), straight cylindrical bore |
| Mpn Variants | NN3011-AS-M-SP; NN3011ASMSP; NN3011AS.M.SP; NN-3011-AS-M-SP; NN3011ASM.SP; NN3011 |
| Manufacturer Status | Active FAG/Schaeffler precision catalogue designation |
| Compatible With Replaces | Plain outer ring of NN3011 (90 mm OD) |
| Precision Class | ABEC 5 / P5 |
| Closure Type | Open |
| Cage Type | Machined |
| Rolling Elements | Cylindrical Roller |
| Cage Material | Brass |
| Number Of Rows | 2 |
| Bore Type | Straight Bore |
| Snap Ring Included | Without Snap Ring |
| Harmonization Code | 8482.50.00.00 |
| Part Number | NN3011-AS-M-SP |
| Cross Reference 1 | SKF NN 3011 TN/SP |
|---|---|
| Cross Reference 2 | NSK NN3011MB |
The inner ring, roller complement and cage of a FAG NN3011-AS-M-SP double-row cylindrical roller bearing. Bore Diameter: 55 mm. Width: 26 mm. Number Of Rows: 2. Rolling Elements: Cylindrical Roller. Bore Type: straight cylindrical. Closure Type: Open. Cage Material: Brass, machined. Precision: SP, ISO class 5 (P5, ABEC 5). Unit Quantity: 1 Pc. Inner ring with roller and cage assembly only. No outer ring.
NN — double-row cylindrical roller design with the three guide ribs on the inner ring and a plain separable outer ring. The reverse arrangement, ribs on the outer ring, is NNU.
30 — dimension series.
11 — bore code, 55 mm at five millimetres per unit. A complete NN3011 measures 55 x 90 x 26 mm.
AS — FAG lubrication groove with radial feed holes, machined into the outer ring.
M — machined brass cage.
SP — FAG special precision: dimensional tolerance to ISO class 5, equivalent to P5 and ABEC 5, with running accuracy held tighter than class 5.
No K suffix — straight cylindrical bore.
Bore Diameter: 55 mm. Width: 26 mm. Series: NN3000. Number Of Rows: 2. Rolling Elements: Cylindrical Roller. Cage Material: Brass. Cage Type: Machined. Precision Rating: ABEC 5 / P5. Material: Chrome Steel. Harmonization Code: 8482.50.00.00.
Two rows of cylindrical rollers in a narrow section give very high radial rating and radial stiffness for the width. The bearing locates the shaft radially; axial location comes from a separate thrust or angular contact bearing. The machined brass cage suits the speed, temperature and lubricant drag of a precision spindle. The roller set travels with the inner ring and enters a plain outer ring axially.
ISO base number NN3011. Cross-references: SKF NN 3011 TN/SP and NSK NN3011MB, inner ring and roller assemblies at class 5 precision with a machined brass cage. Matching part: the plain outer ring of an NN3011, 90 mm outside diameter, with the AS lubrication groove and feed holes. NNU4911 is a related size with ribs on the outer ring. NN3011K is the 1:12 tapered-bore form.

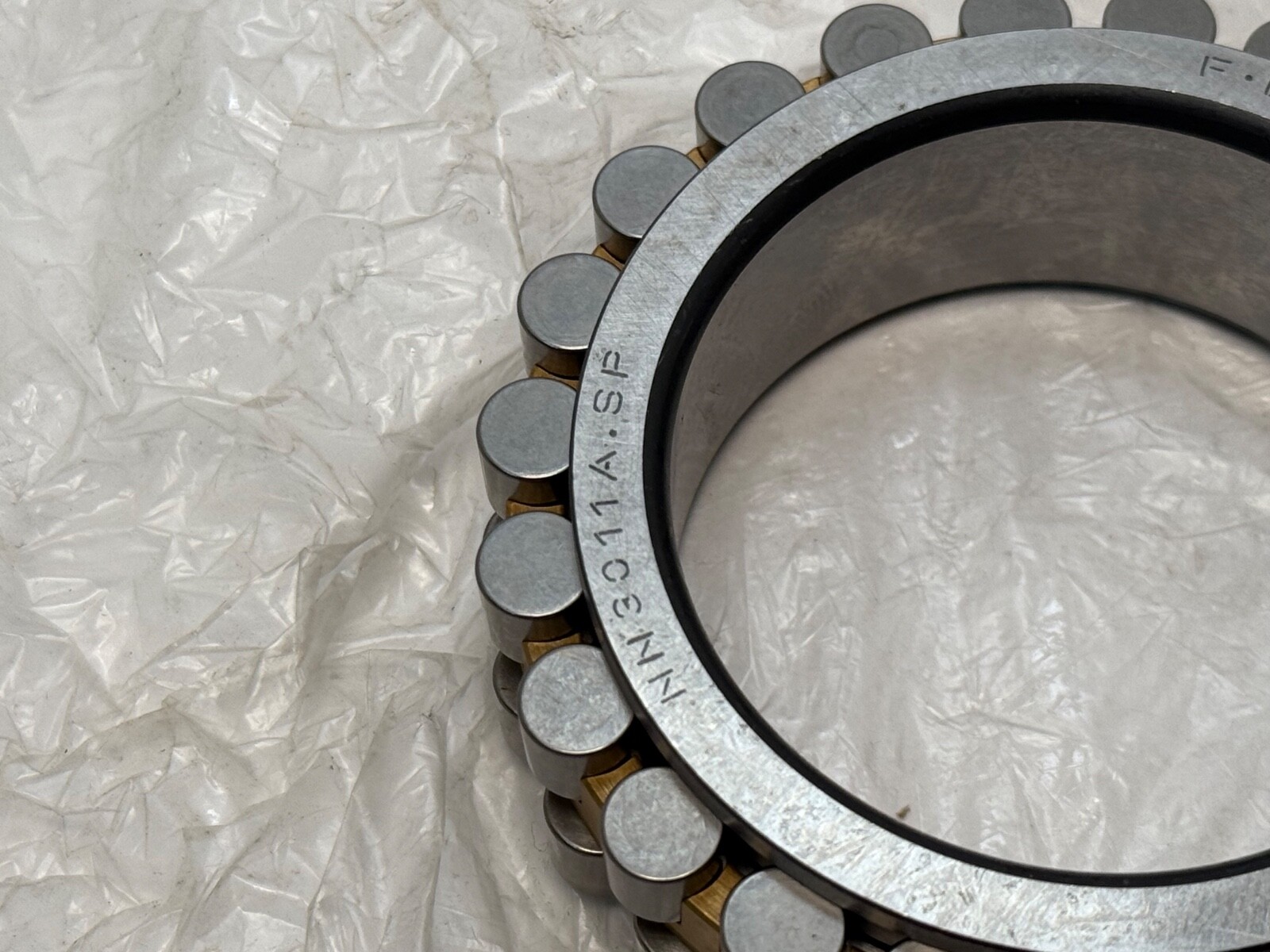

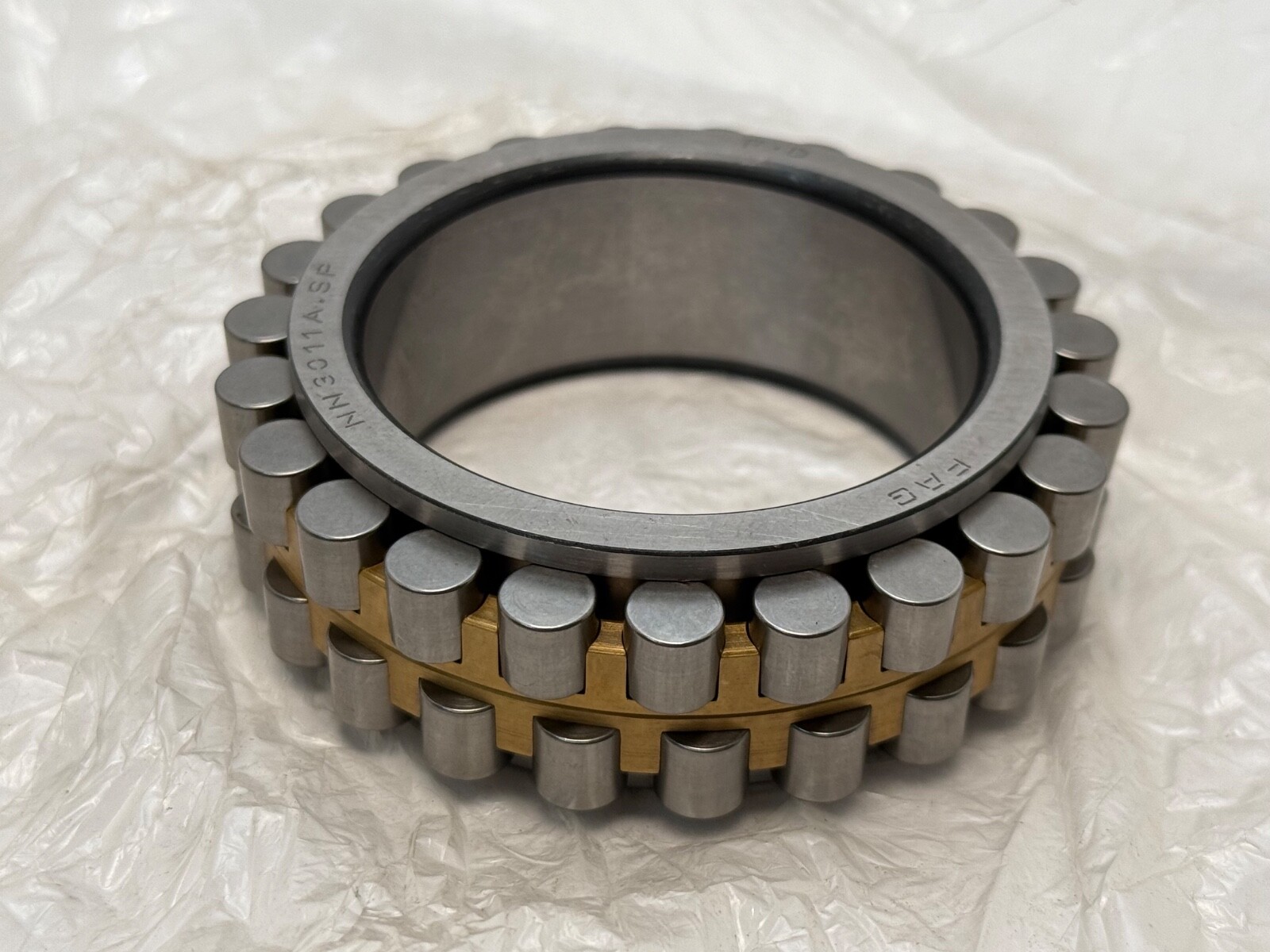

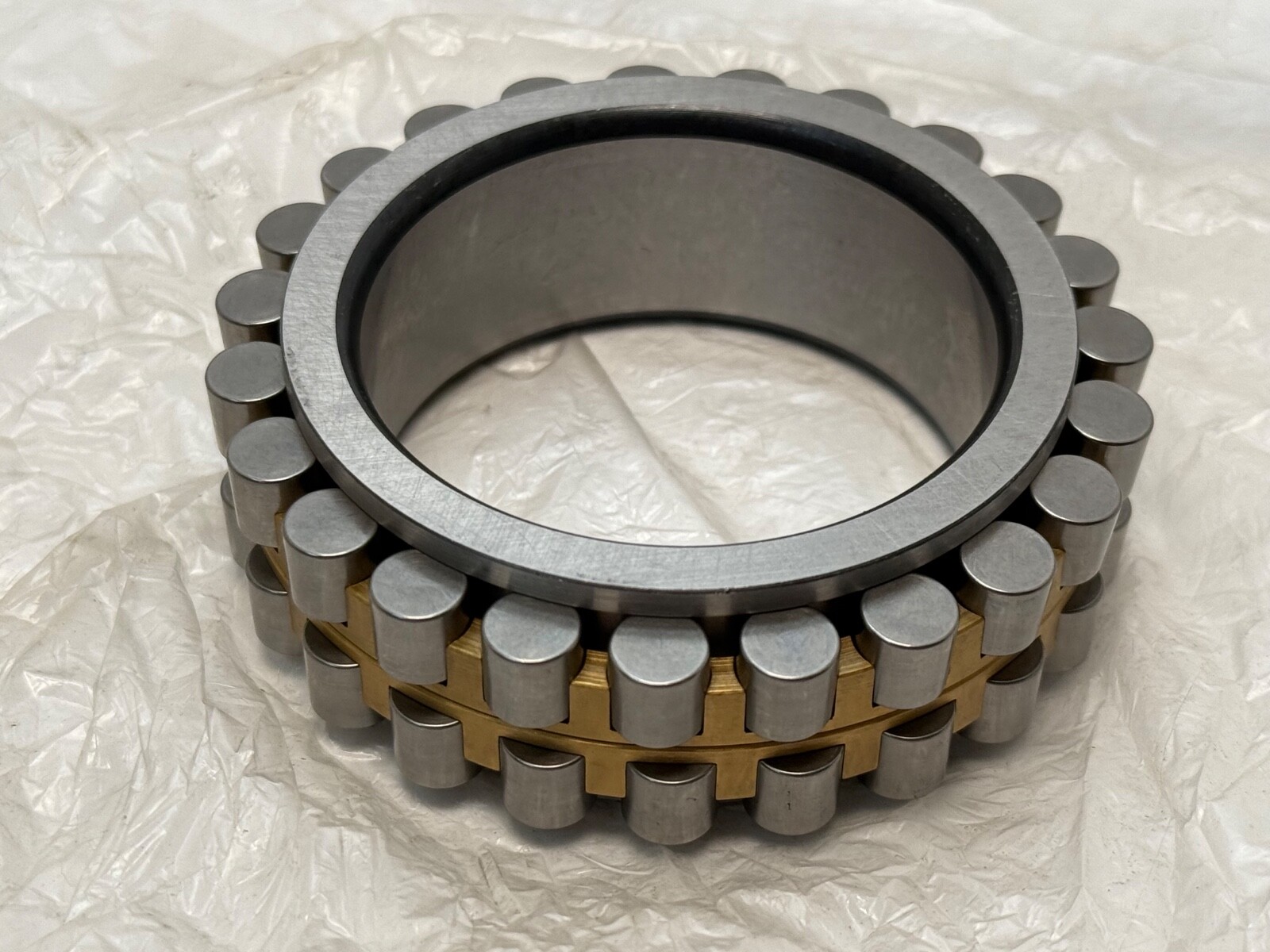

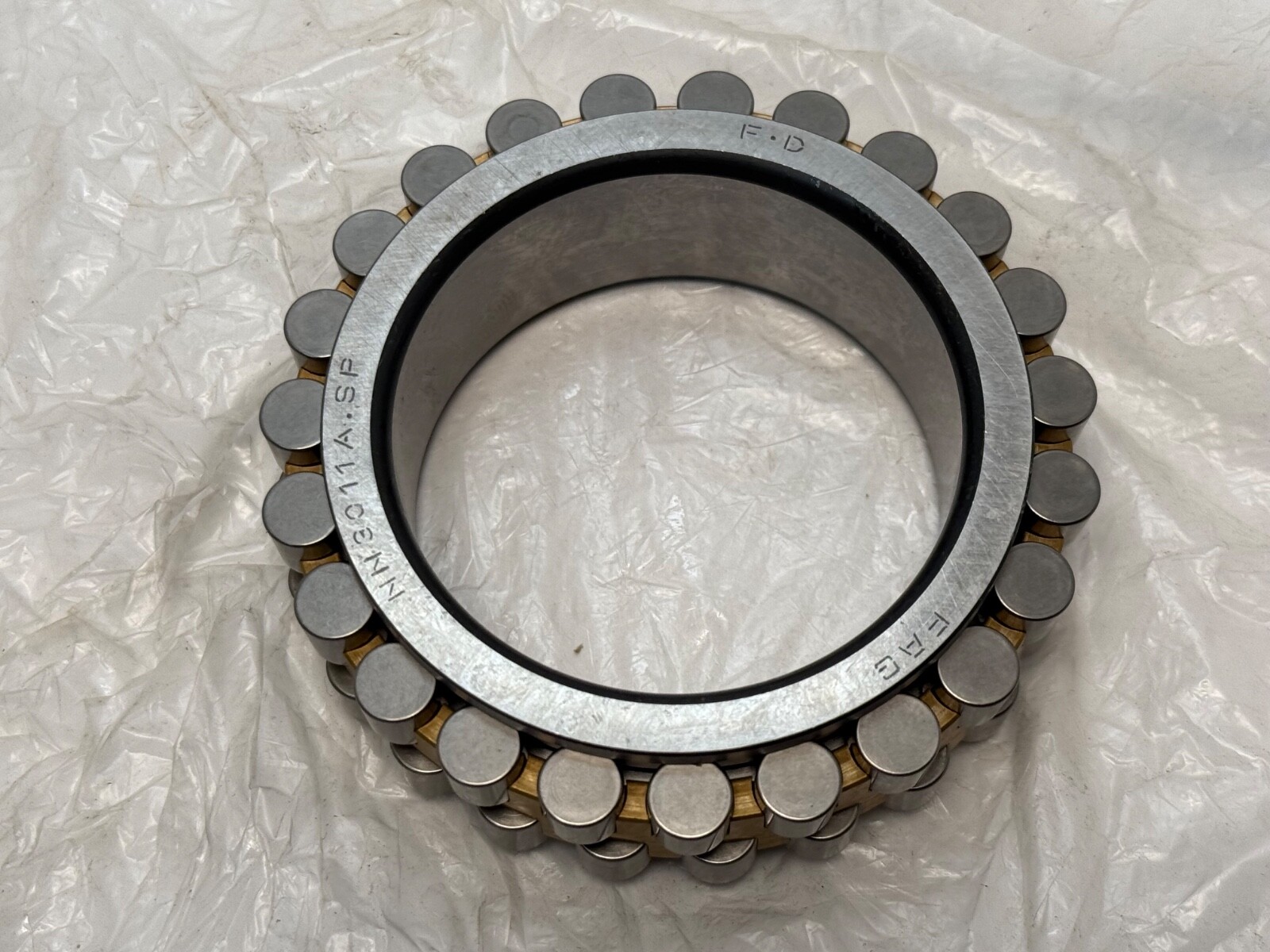

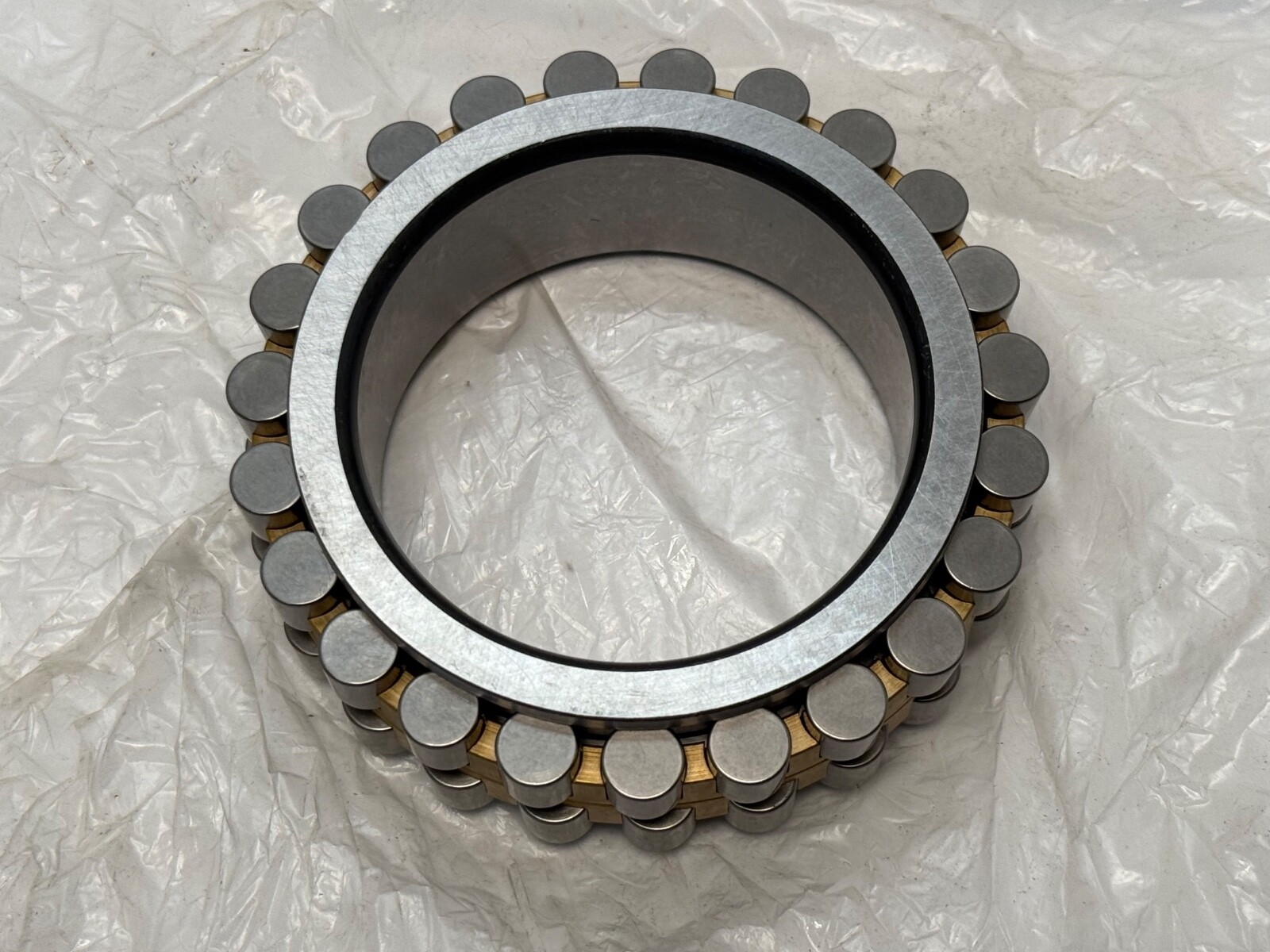

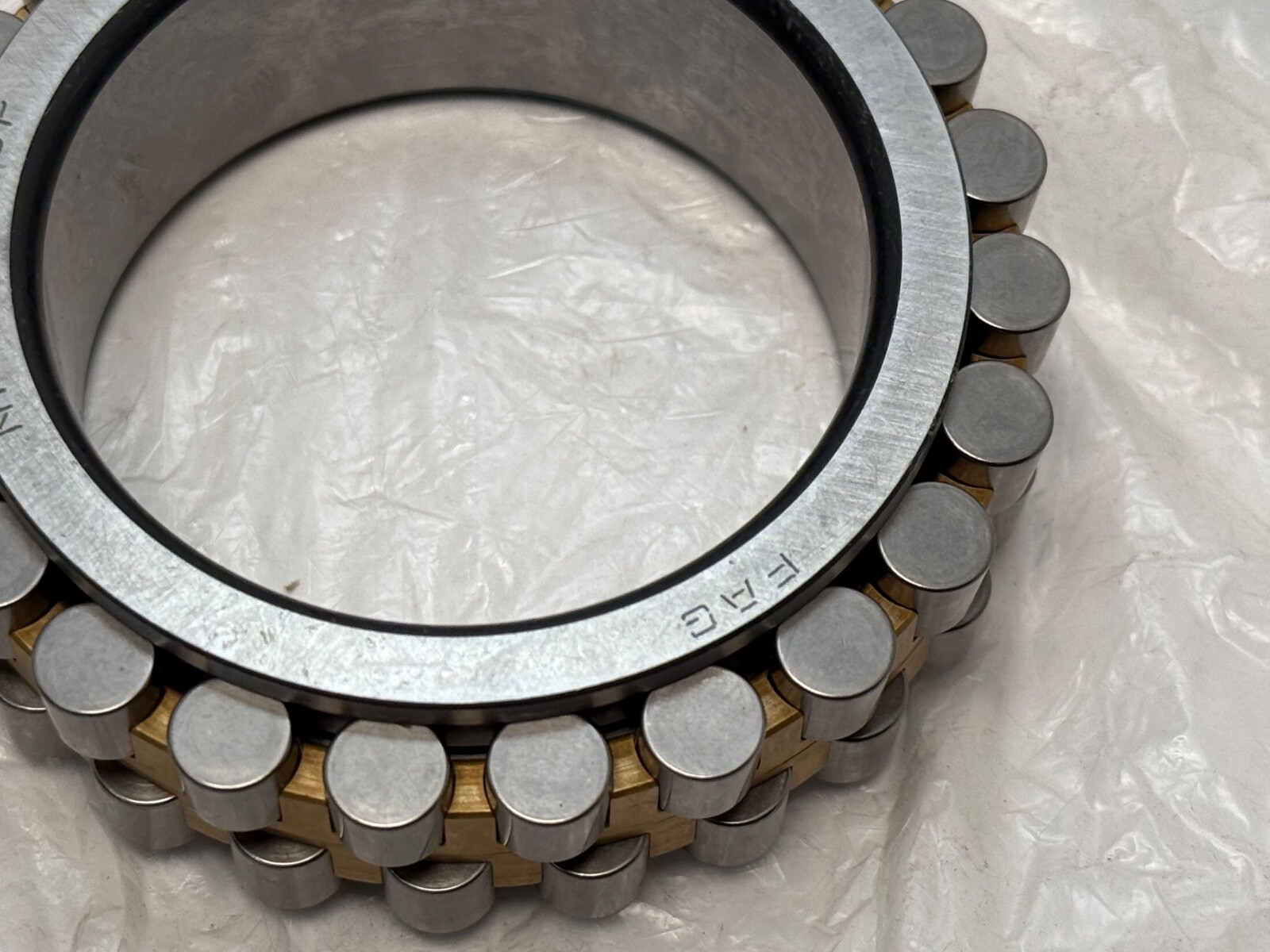

The inner ring with its two roller rows and machined brass cage. No outer ring.
55 mm bore and 26 mm width; a complete NN3011 is 55 x 90 x 26 mm.
SP, ISO class 5, equivalent to P5 and ABEC 5.
