Ball bearing - Straight Bore, 40 mm ID, 80 mm OD, 18 mm Width, Open, With Snap Ring.$21.89| MFR / Brand | SNR |
|---|---|
| MPN | 6308EE |
| Model | 63082RS C3 |
| Bearing Type | Ball Bearing, Double Rubber Seal |
| ID | 40 mm |
| OD | 90 mm |
| Width | 23 mm |
| Series | 6300 |
|---|---|
| Condition | New |
| Lubricant | Grease |
| Min Temp | -30°C |
| Cage Type | Pressed Steel |
| Dynamic Load Rating | 40.5 kN / 9105 lbf |
| Static Load Rating | 24.0 kN / 5395 lbf |
| Precision Rating | ABEC 1 / P0 |
| Rolling Elements | Balls |
| Max Temp | 110°C |
| Item Weight | 1.40 lbs |
| Limiting Speed | 5600 rpm |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Snap Ring Included | No |
| Internal Clearance | CN |
| Cross Reference 1 | SKF 6308-2RS1 |
|---|---|
| Cross Reference 2 | FAG 6308-2RSR |
| Cross Reference 3 | NTN 6308LLU |
| Cross Reference 4 | KOYO 63082RS |
| Cross Reference 5 | NSK 6308DDU |

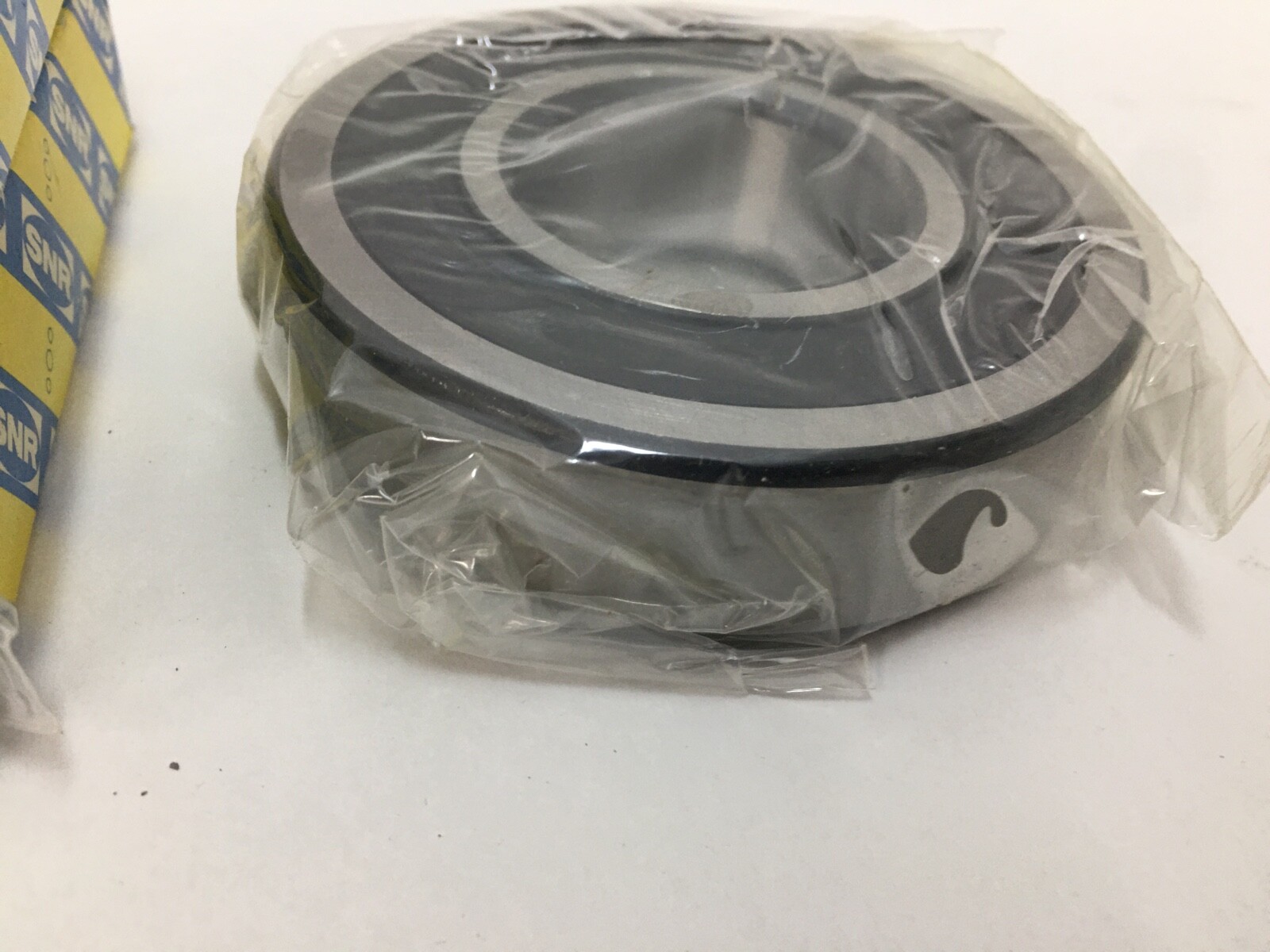

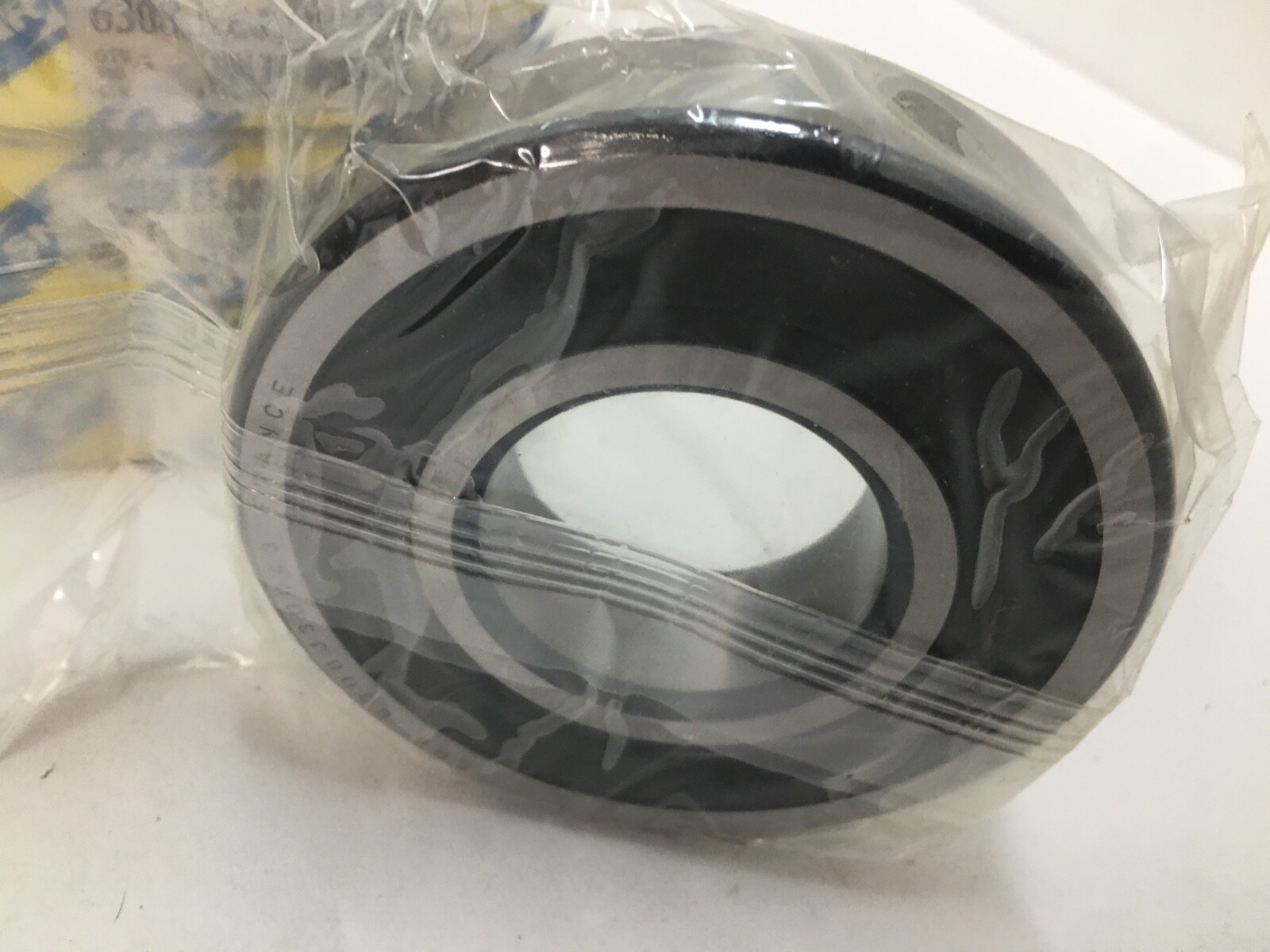

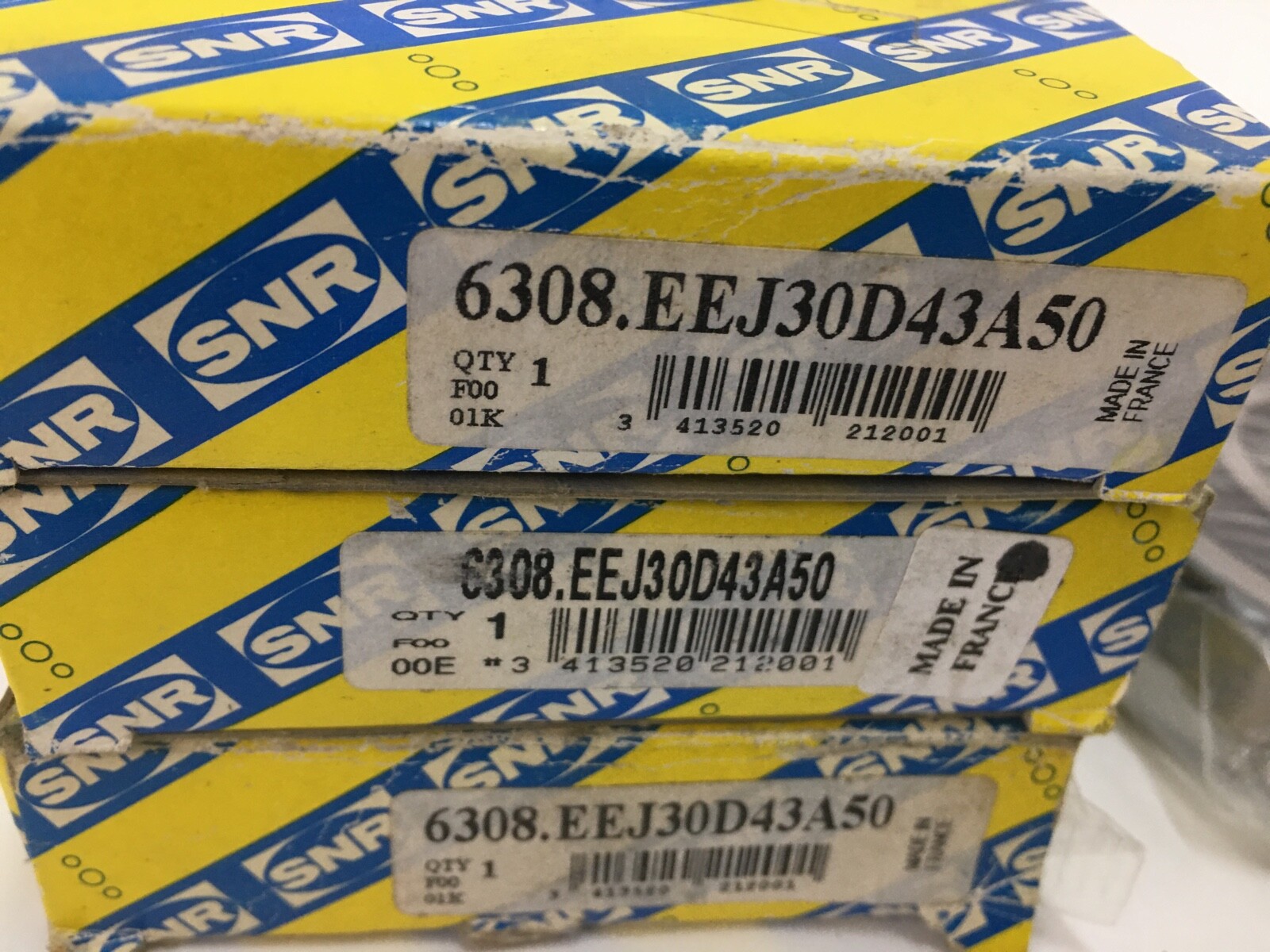

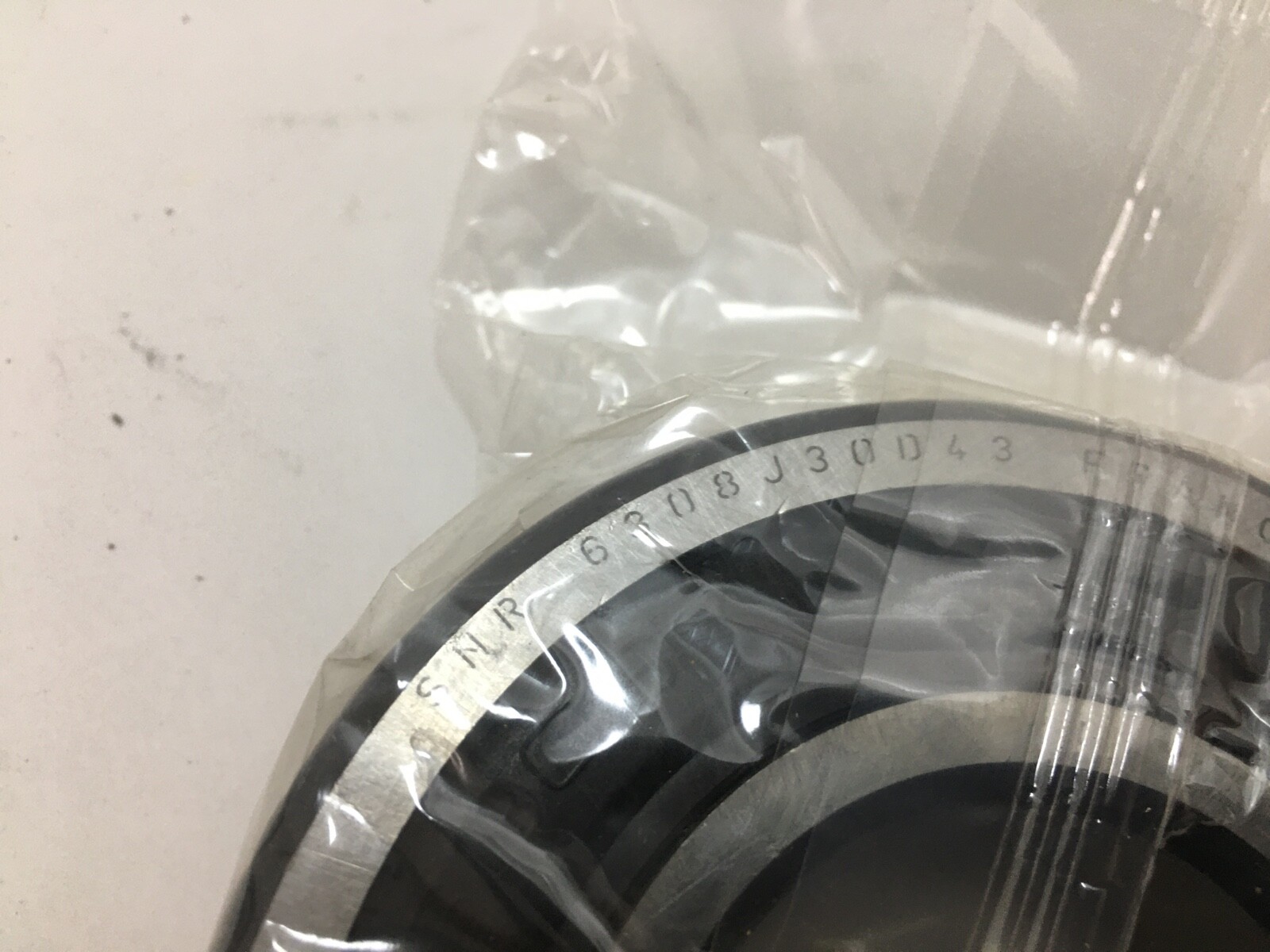

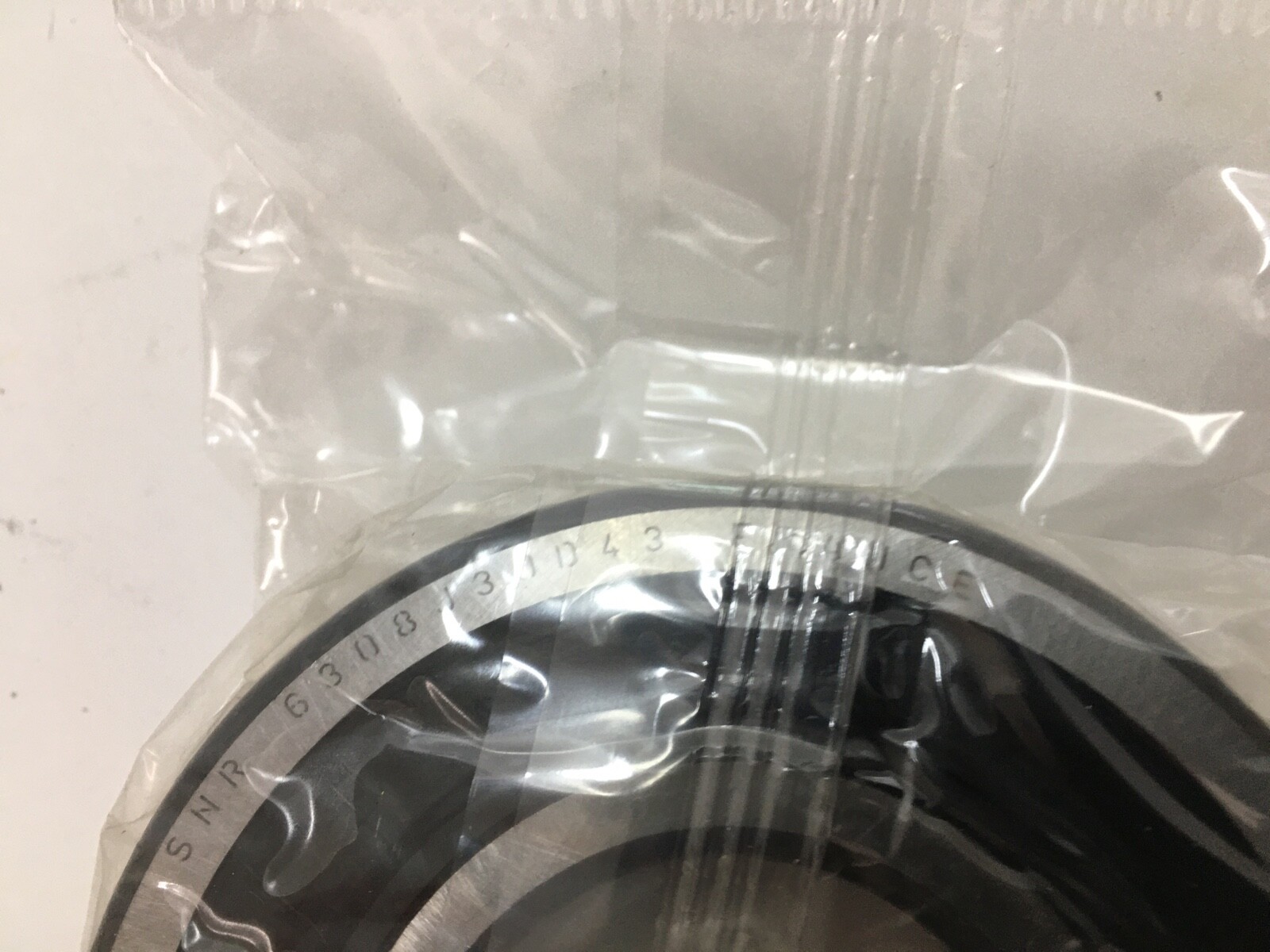

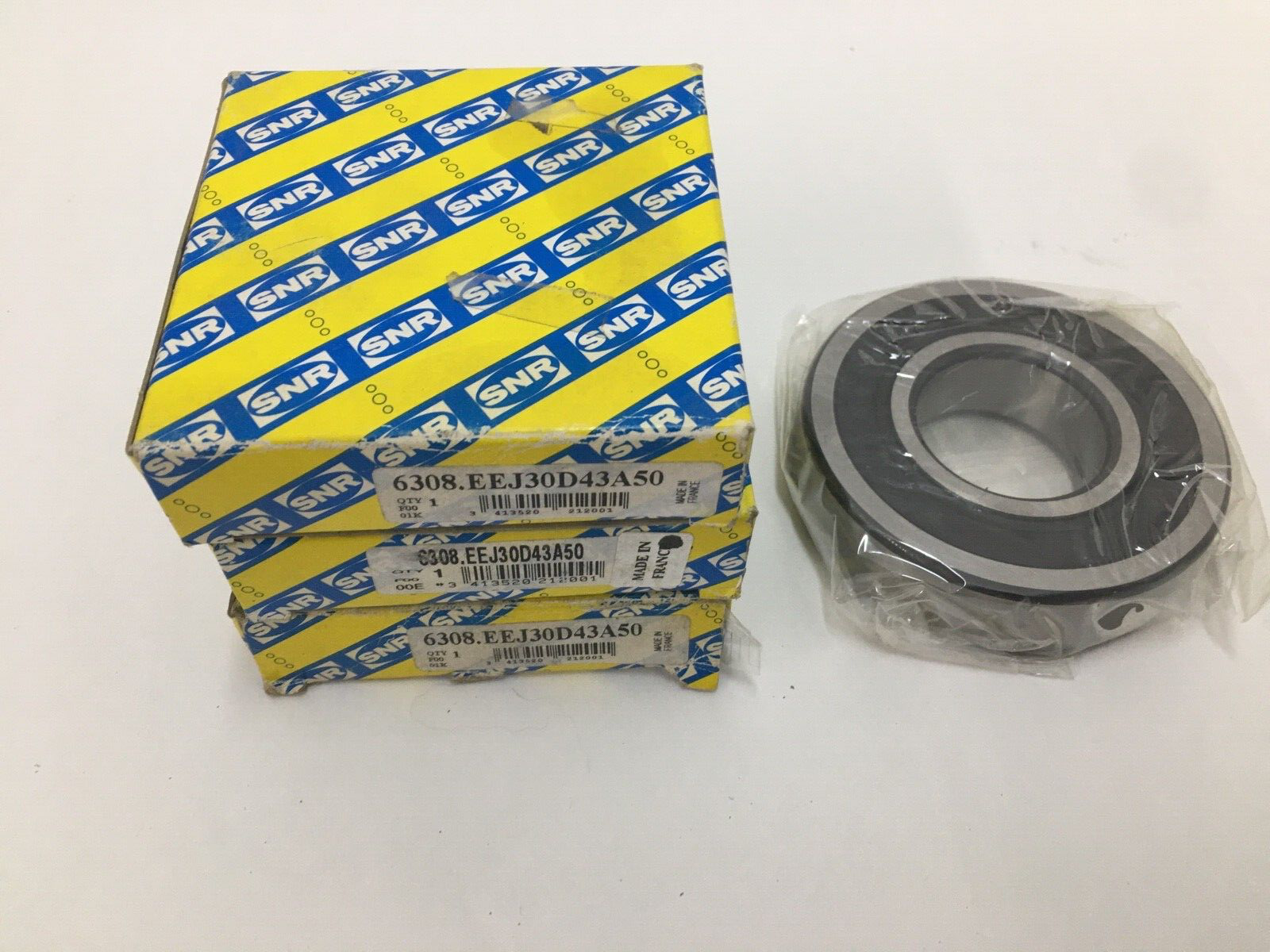

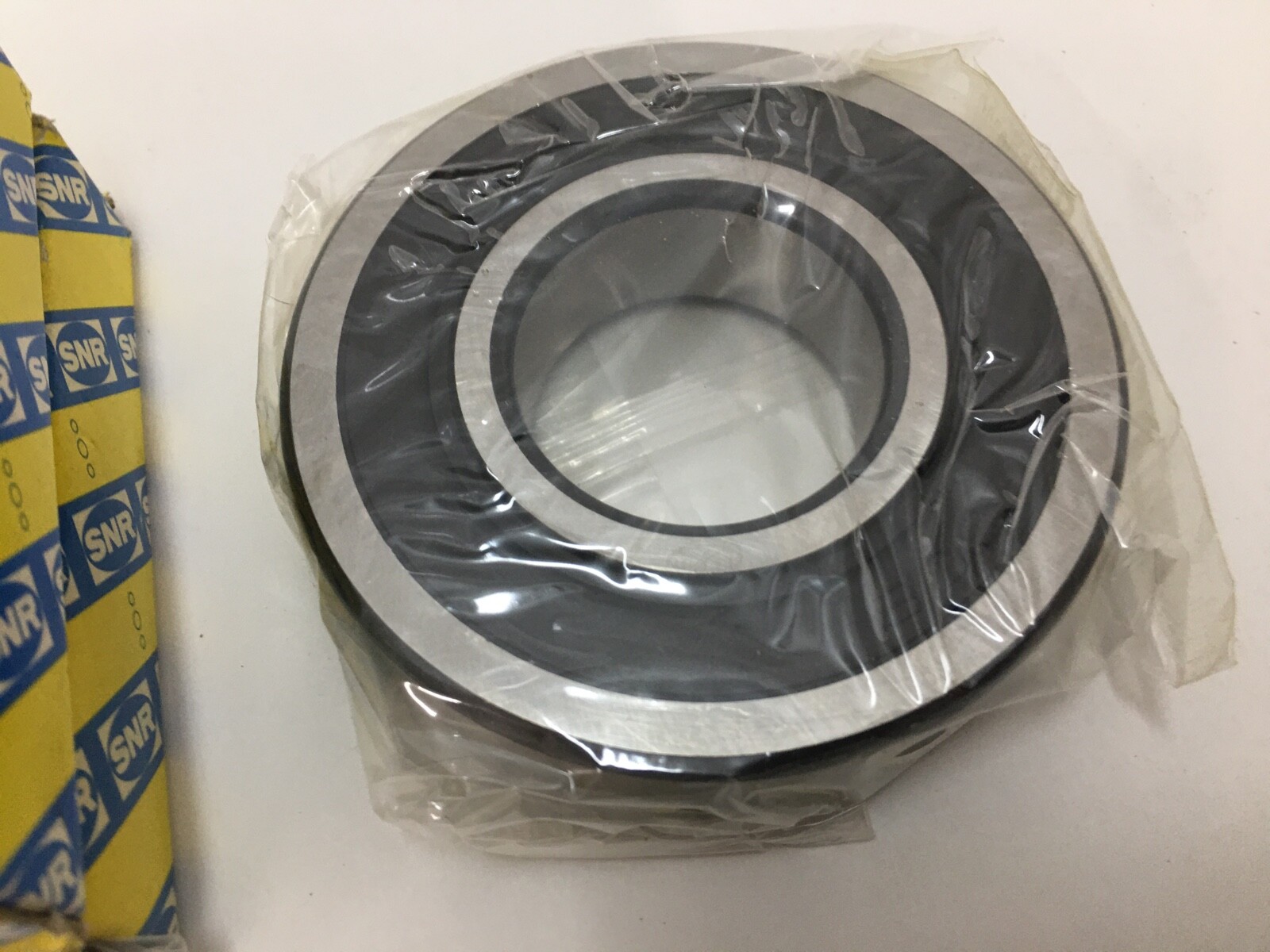

Deep Groove Ball Bearing – Straight Bore, 40 mm ID, 90 mm OD, 23 mm Width, Double Rubber Seal, Without Snap Ring
