Availability:
7 in stock

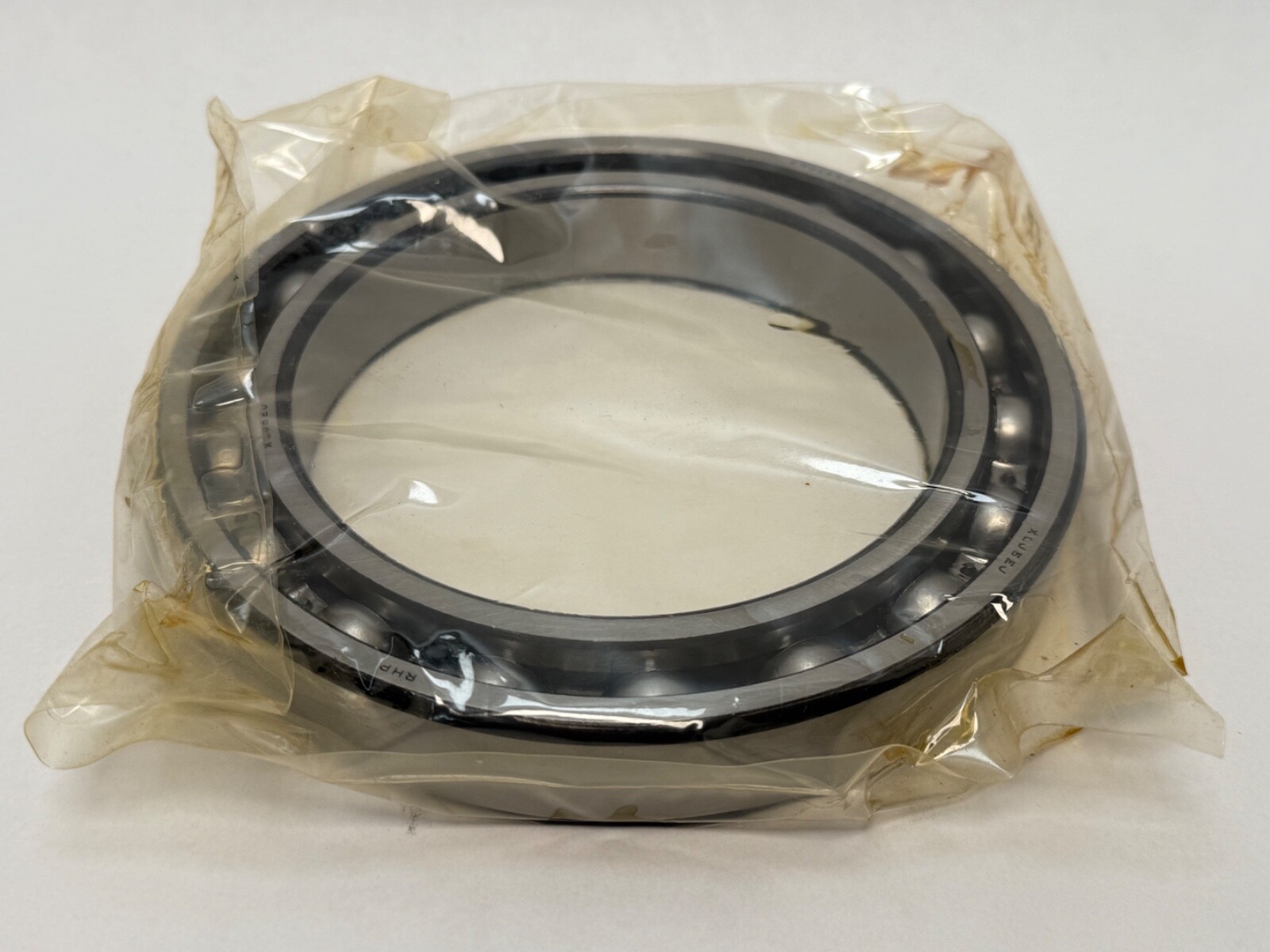

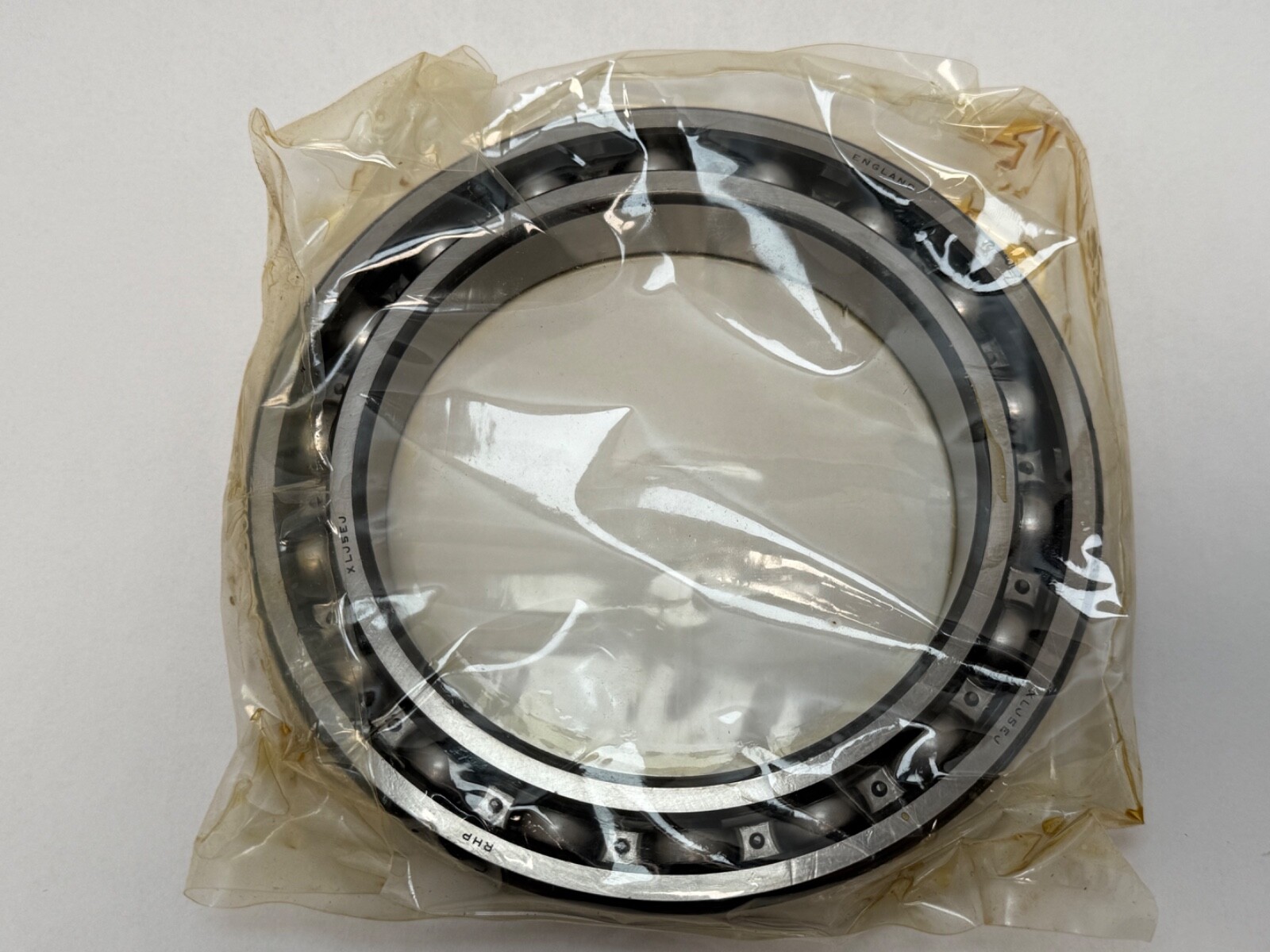

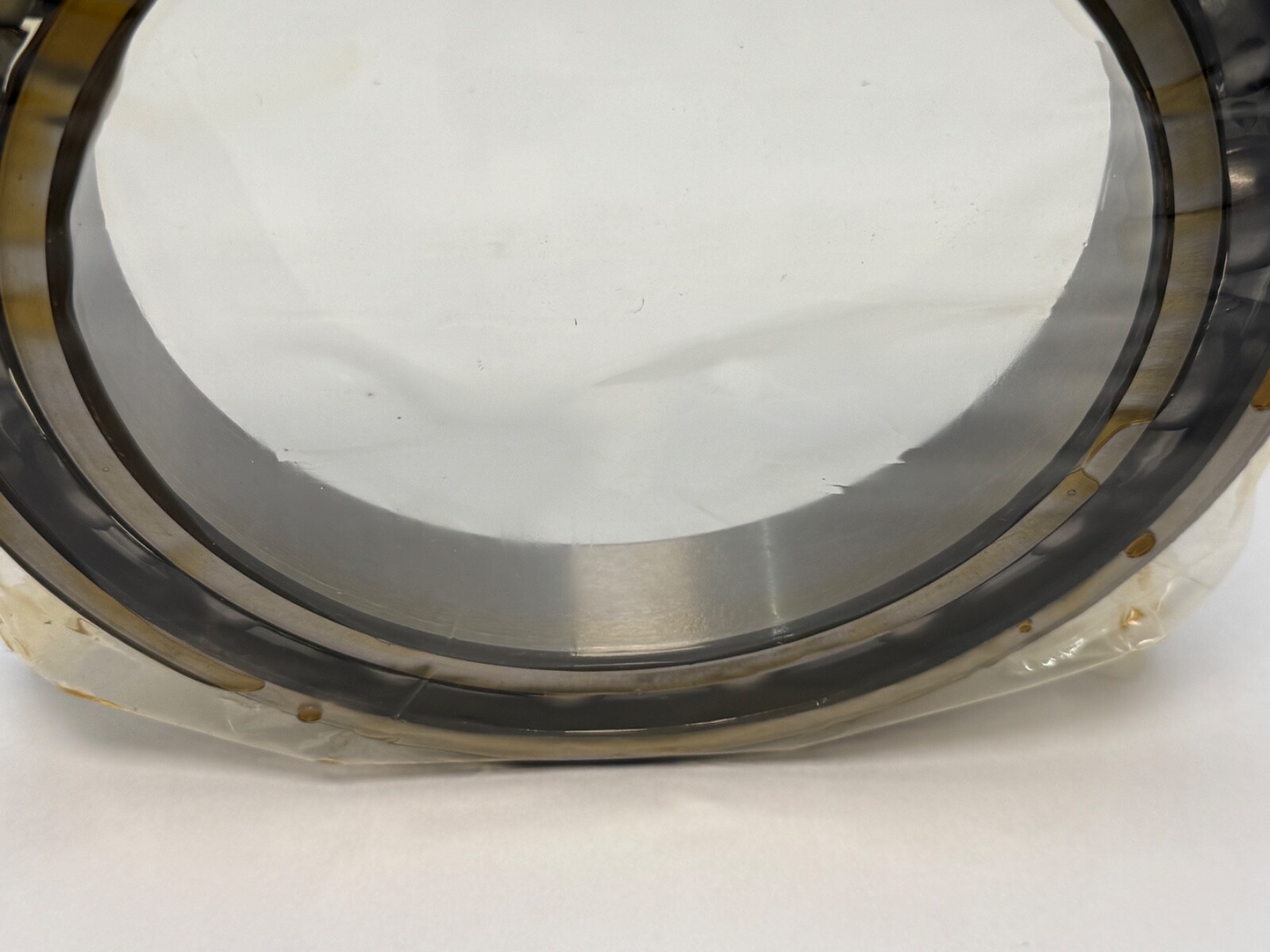

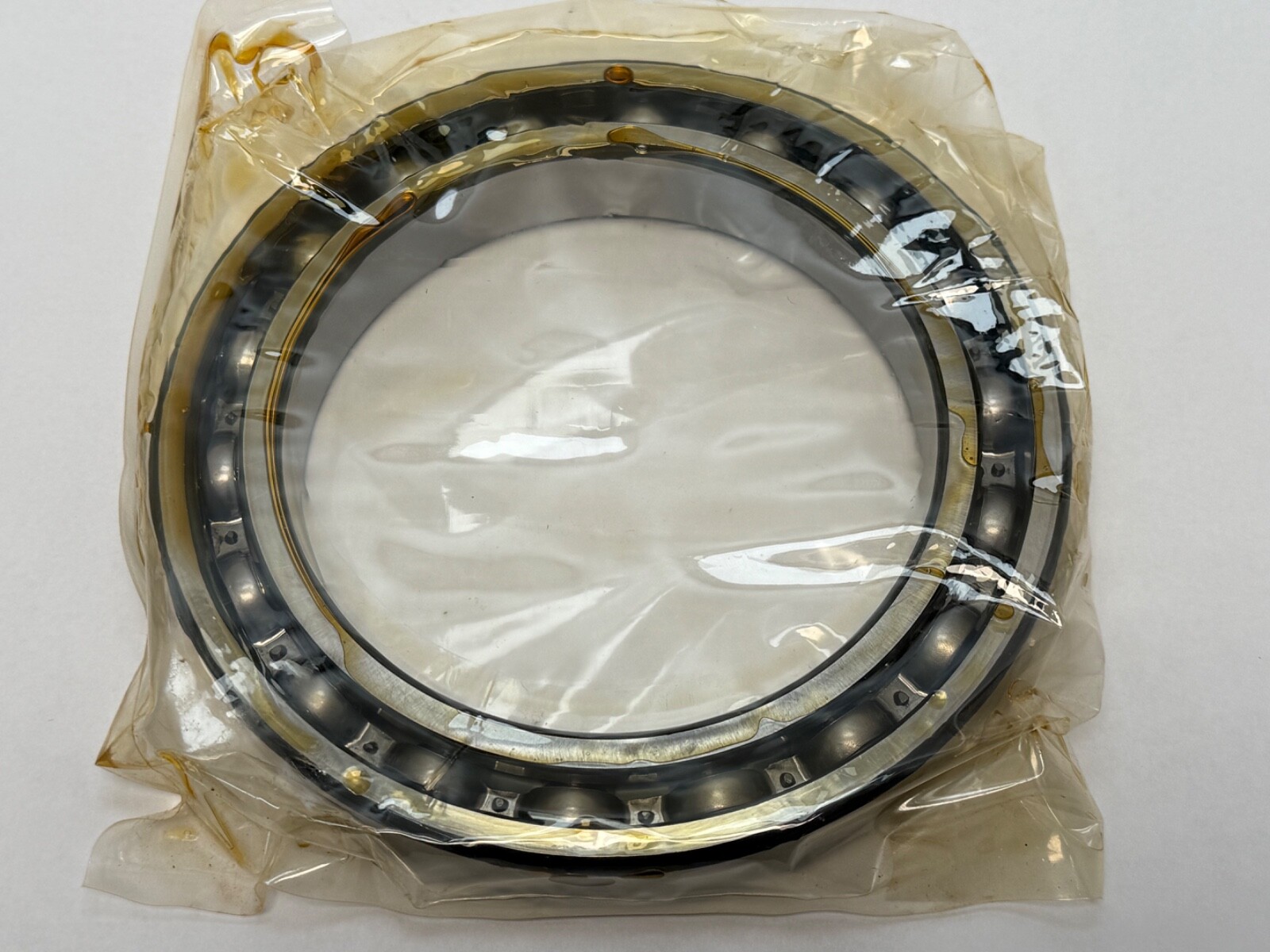

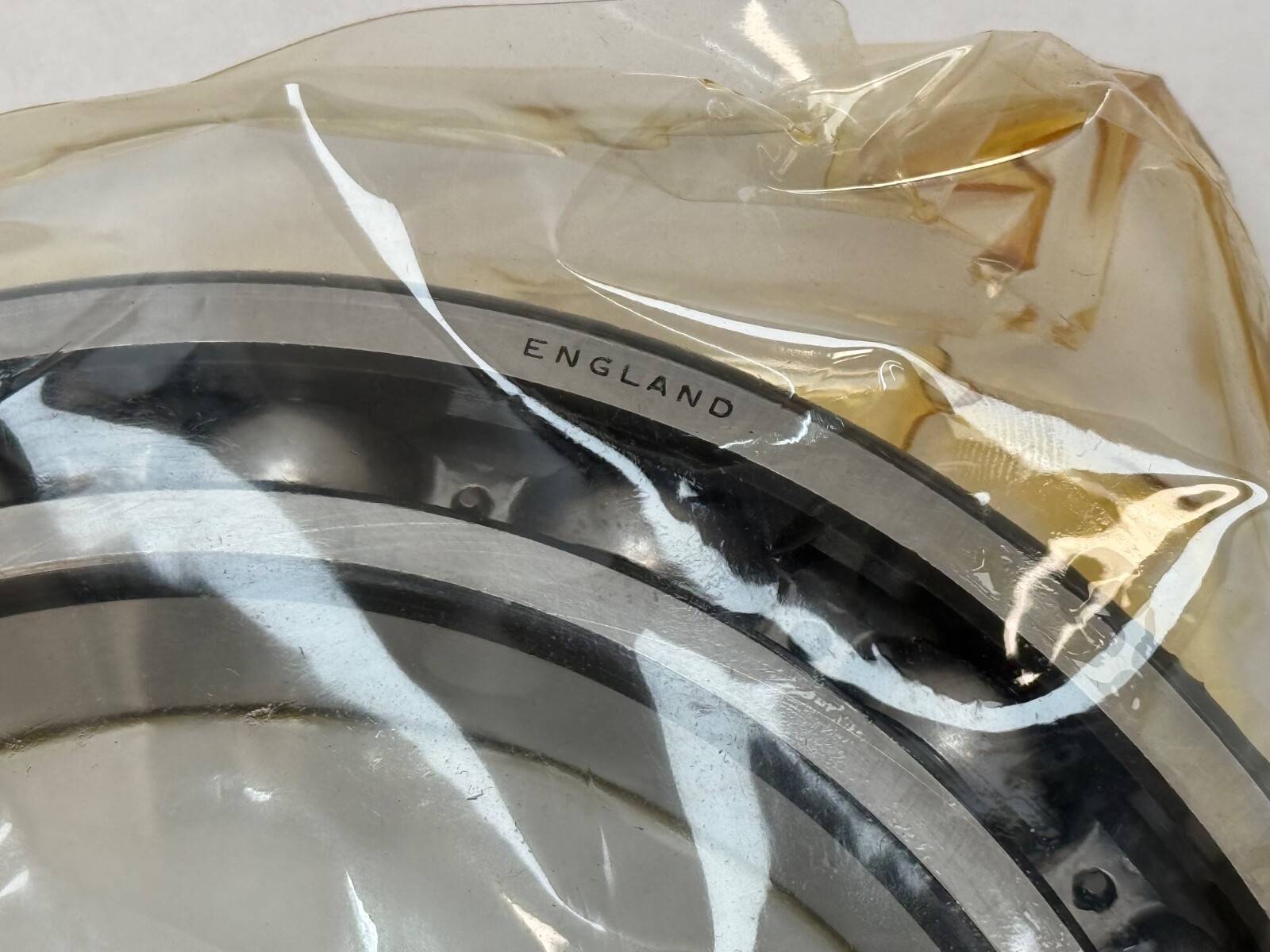

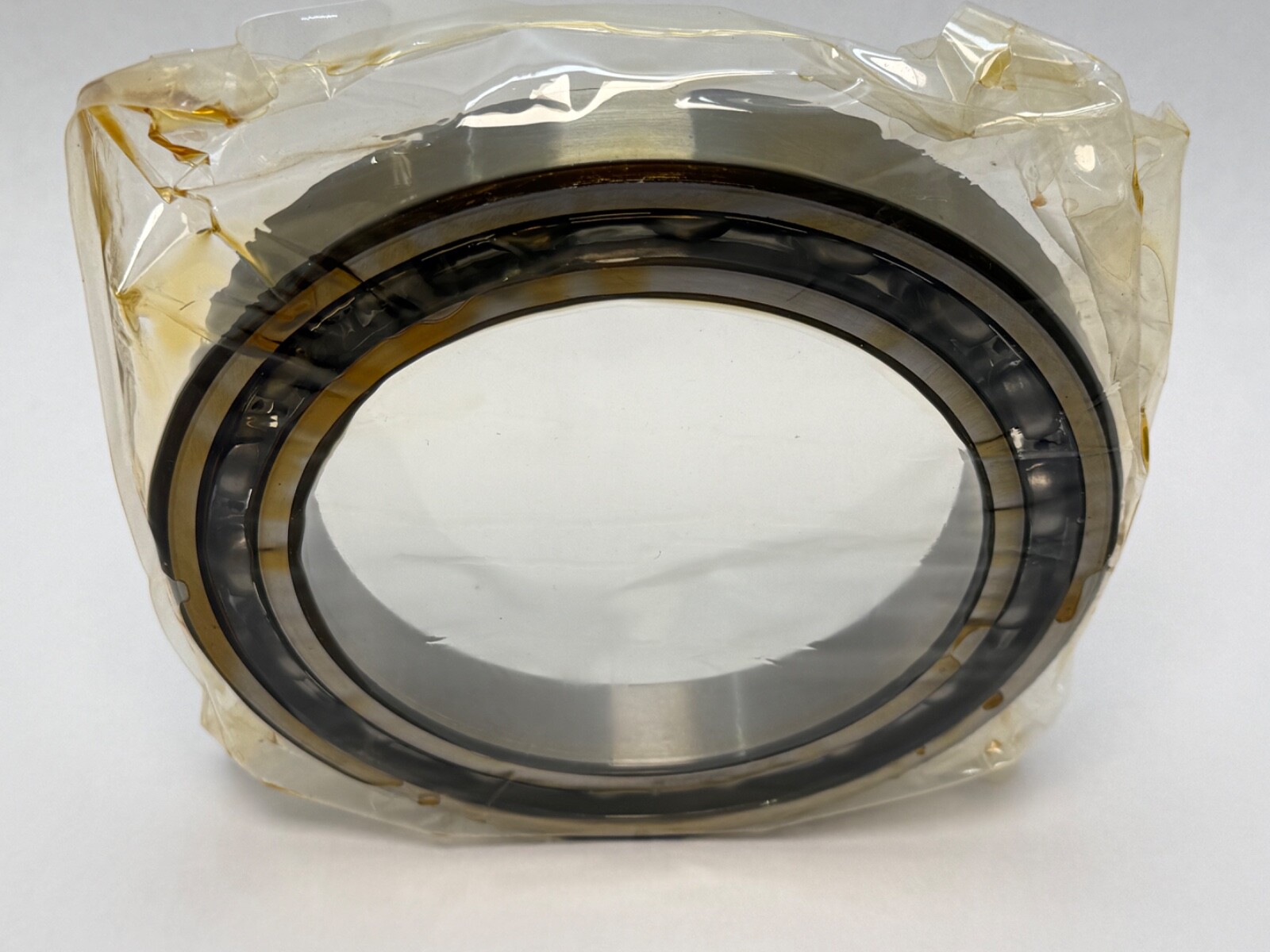

Imperial single-row deep groove ball bearing with 5 in bore, 7 in outside diameter and 1 in width, open on both faces for direct lubricant access.
List Price
$125.79
7 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | RHP |
|---|---|
| MPN | XLJ5EJ |
| Model | XLJ-5-E-J 50BIC225 XLS5 |
| Bearing Type | Ball Bearing, Open |
| ID | 5.0000 in |
| OD | 7.0000 in |
| Width | 1.0000 in |
| Material | Chrome Steel |
|---|---|
| Series | XLJ |
| Lubricant | Oil/Grease |
| Base Number | XLJ5 |
| Industry Terms | imperial ball bearing, inch bore ball bearing, deep groove ball bearing, journal ball bearing, open ball bearing, RHP imperial bearing, radial ball bearing |
| Common Misspellings | RHP XLJ 5 EJ, XLJ5-EJ, RHPXLJ5EJ, XL J5EJ, RPH XLJ5EJ, XLJ5E-J |
| Application Types | Legacy British machinery, textile and printing machinery, imperial-shafted gearboxes and line shafting, plant maintenance replacements |
| Total Width | 1 in (25.4 mm) |
| Bore Shaft Size | 5 in (127.0 mm) |
| Mpn Variants | XLJ5EJ; XLJ-5-E-J; XLJ 5 E J; XLJ5E; XLJ5; 50BIC225; XLS5 |
| Additional Attributes | Square cross-section: (OD − bore) / 2 = 1 in, equal to the width |
| Rolling Elements | Ball |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Snap Ring Included | No |
| Harmonization Code | 8482.10.50 |
| Design Units | English |
| Bearing Material | Chrome steel |
| Part Number | XLJ5EJ |
| Cross Reference 1 | 50BIC225 |
|---|---|
| Cross Reference 2 | XLS5 |

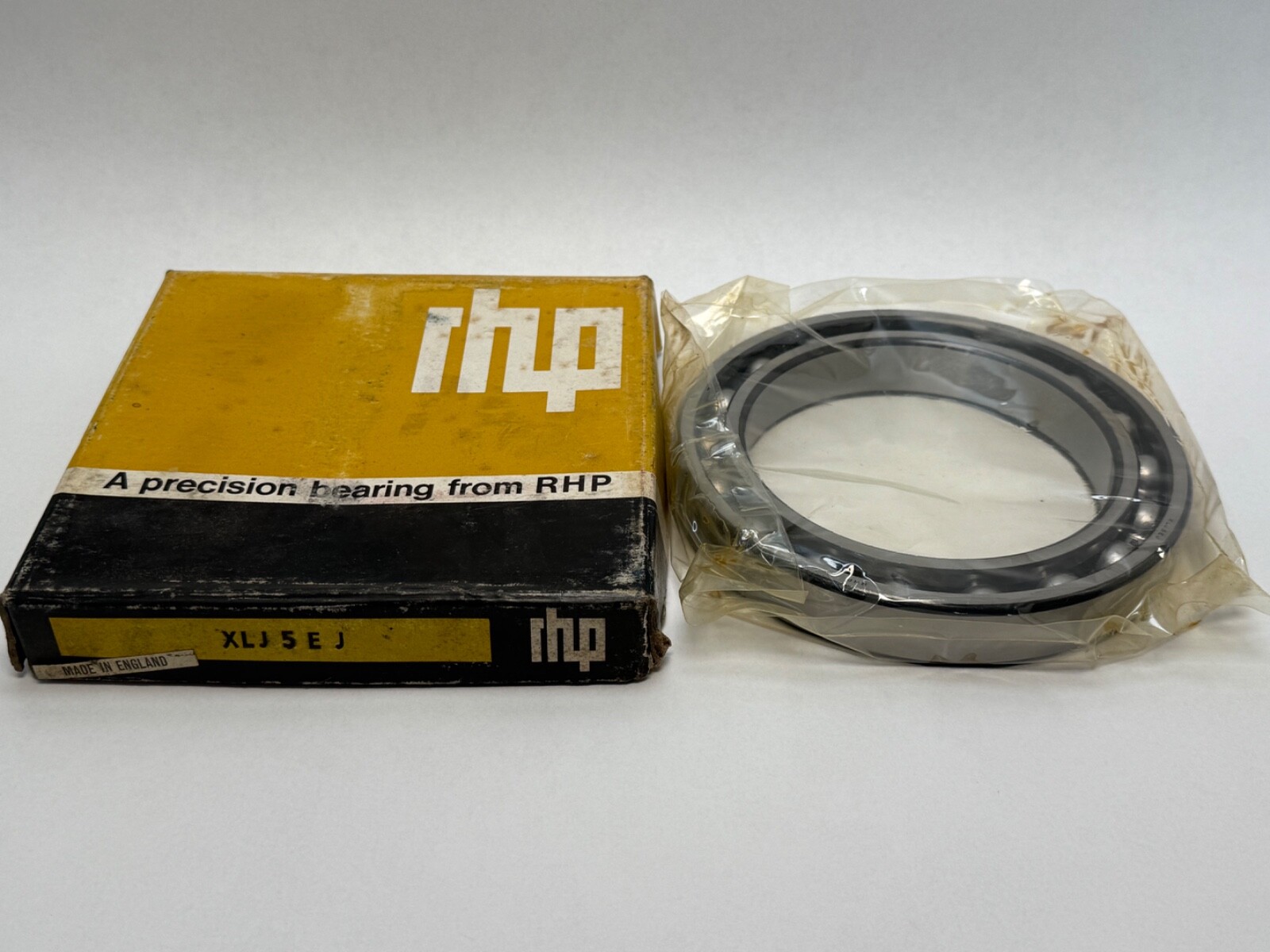

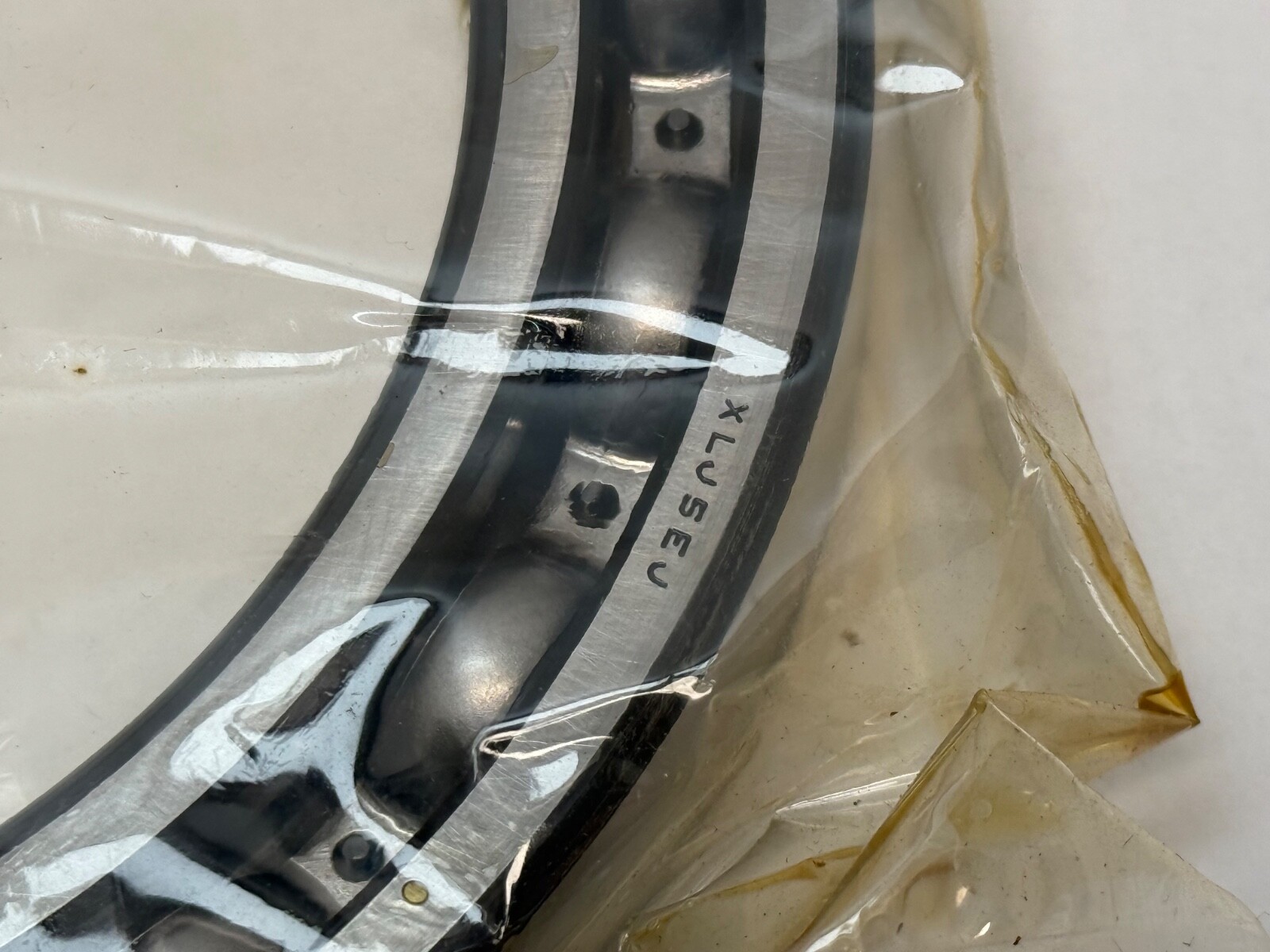

RHP XLJ5EJ imperial single-row deep groove ball bearing. Bore: 5 in (127.0 mm). Outside Diameter: 7 in (177.8 mm). Overall Width: 1 in (25.4 mm). Closure Type: Open, both faces. Bore Type: Straight. Rolling Elements: Ball. Number Of Rows: 1. Series: XLJ, the RHP imperial journal range. Bearing Material: Chrome steel. The carton also carries the numbers 50BIC225 and XLS5.

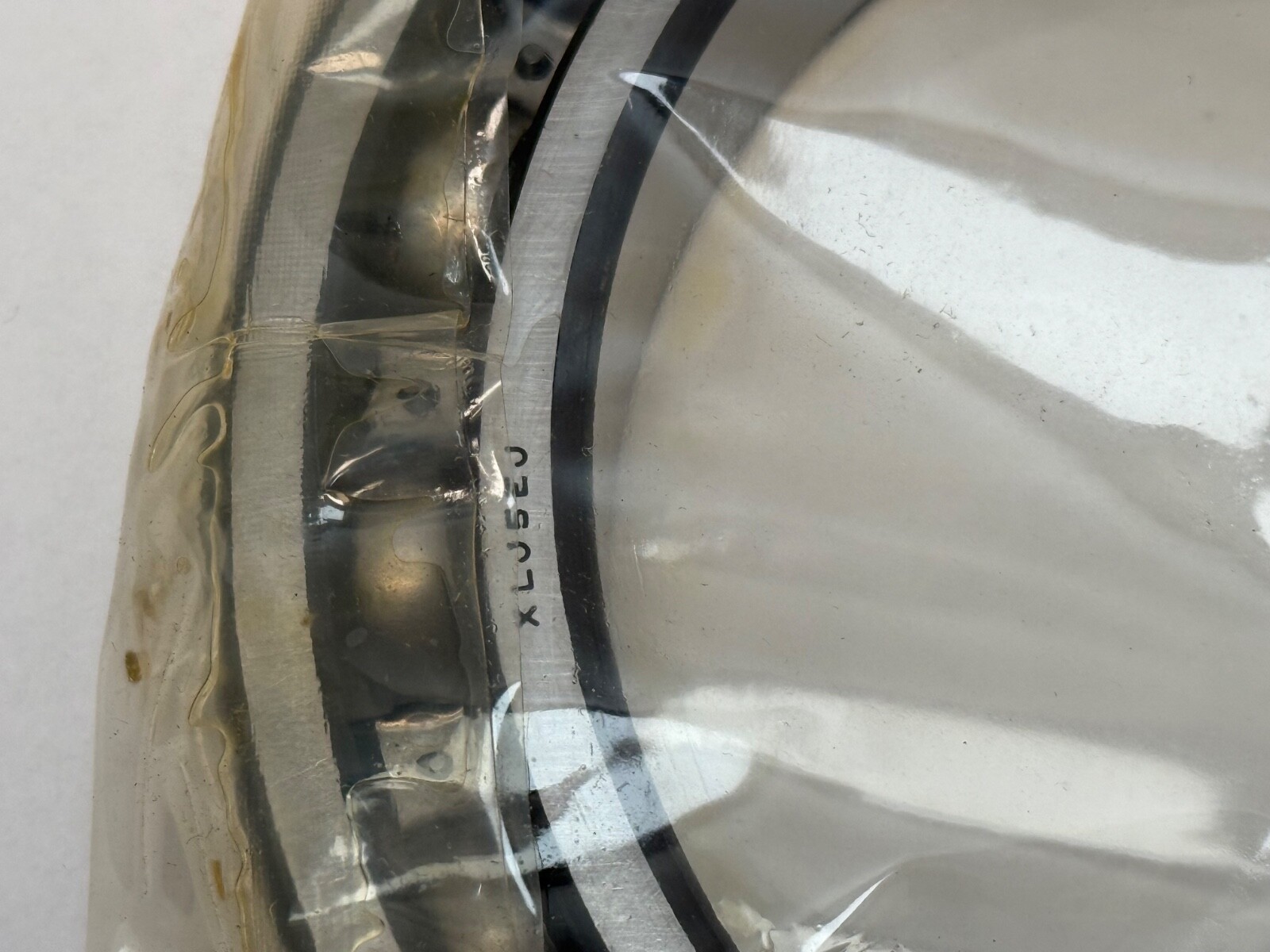

XLJ — RHP’s imperial journal ball bearing range, dimensioned in inches.
5 — the bore in inches.
The cross-section is square: half the difference between the 7 in outside diameter and the 5 in bore is 1 in, which equals the width. That proportion is characteristic of the imperial journal series.
A deep groove ball bearing carries radial load as its primary duty and takes a moderate amount of thrust in either direction, because the balls sit in a deep circumferential groove in both rings rather than on an offset contact line. That makes it the general-purpose choice where a shaft needs simple radial support with some axial location, and it takes load from either side. Open faces let lubricant reach the ball track directly and let heat escape, which suits a housing that supplies grease or oil.
Unit Quantity: 1 Pc. One complete bearing comprising inner ring, outer ring, ball set and cage, supplied as a bare bearing.
50BIC225 and XLS5 are alternative designations for this same imperial envelope and are the numbers to search when the RHP form does not appear. The 5 in bore and 7 in outside diameter place this outside the ISO metric size plan, so an interchange must be another imperial journal bearing of the same envelope.
