Availability:
1 in stock

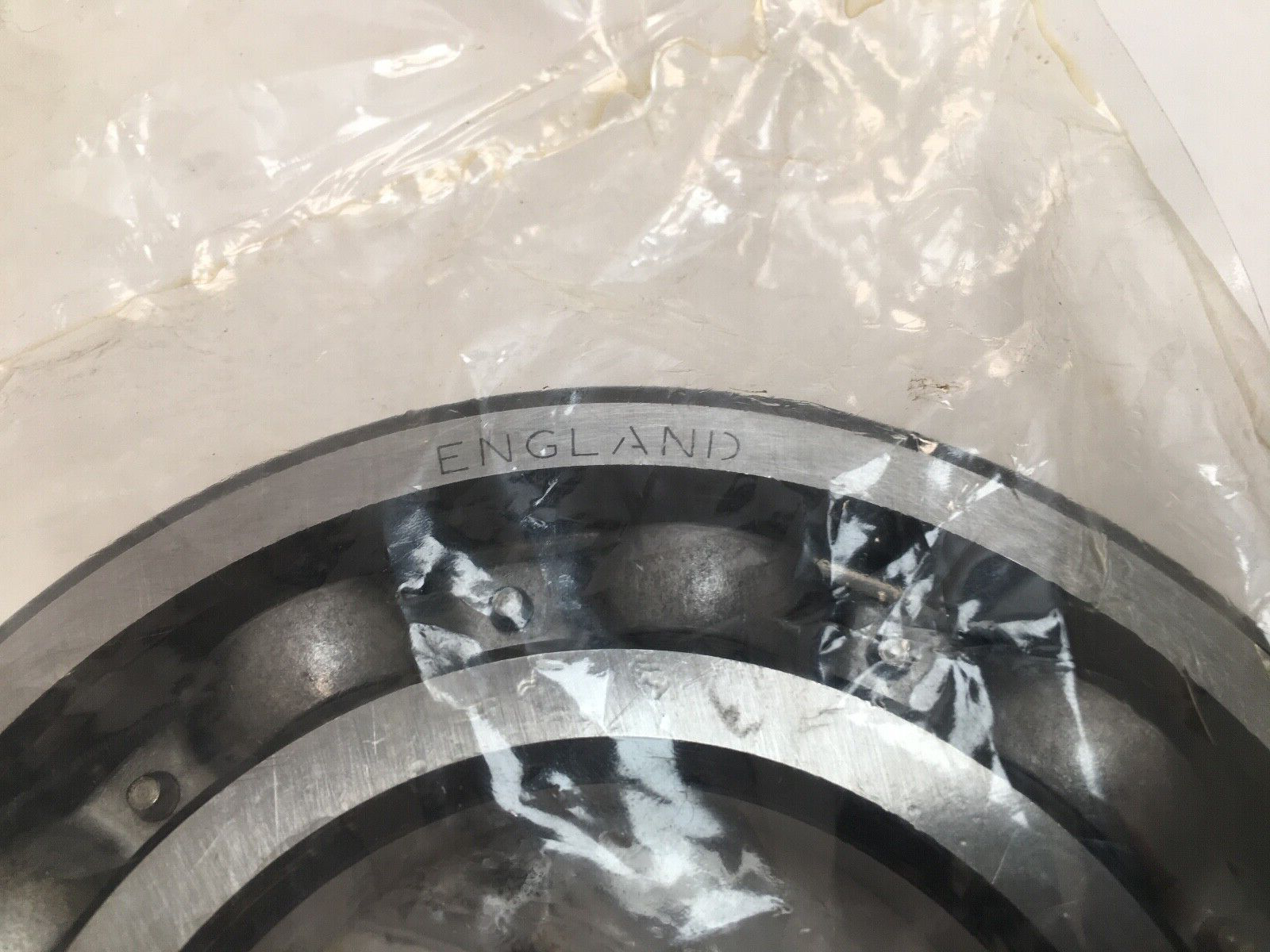

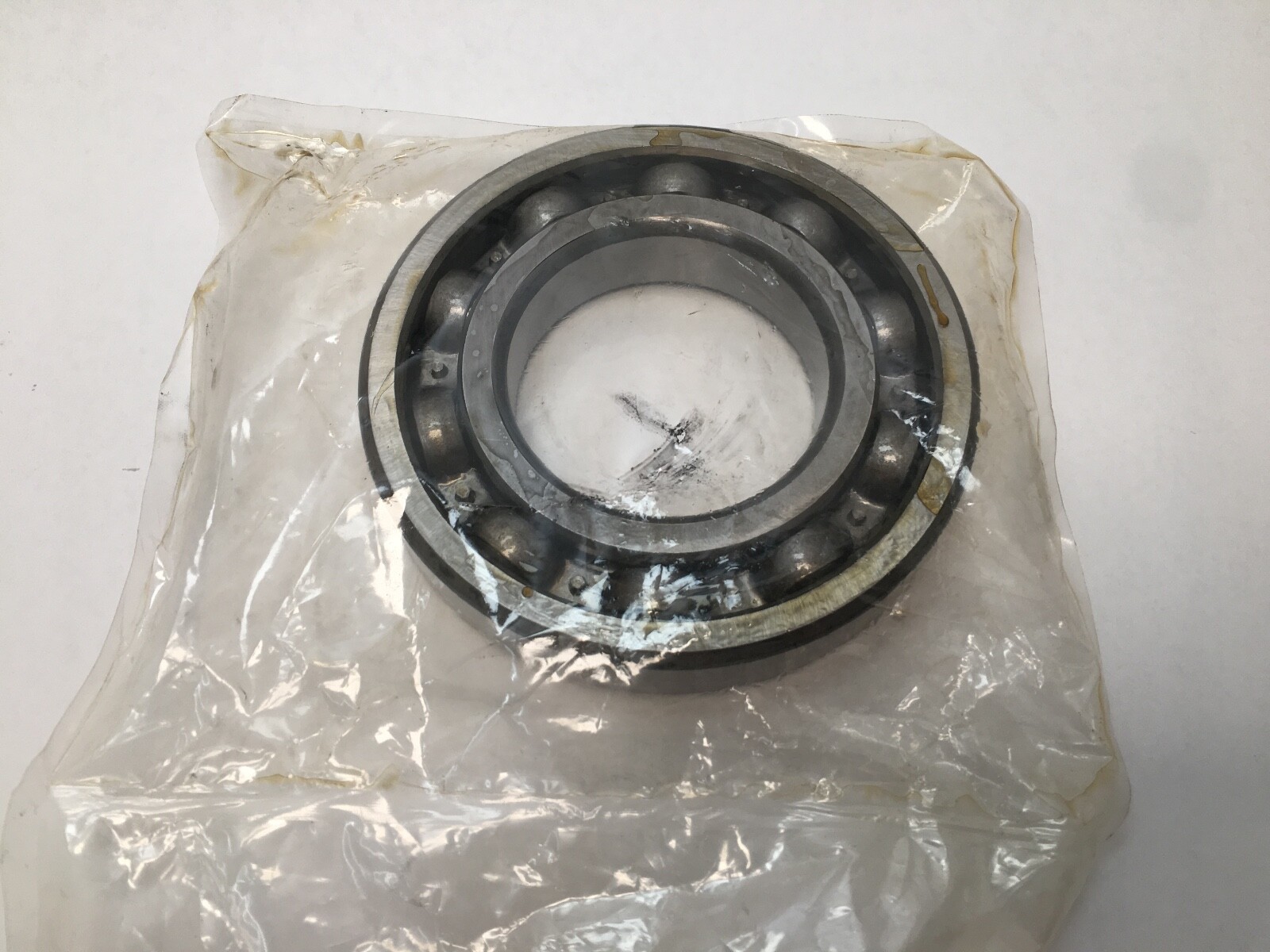

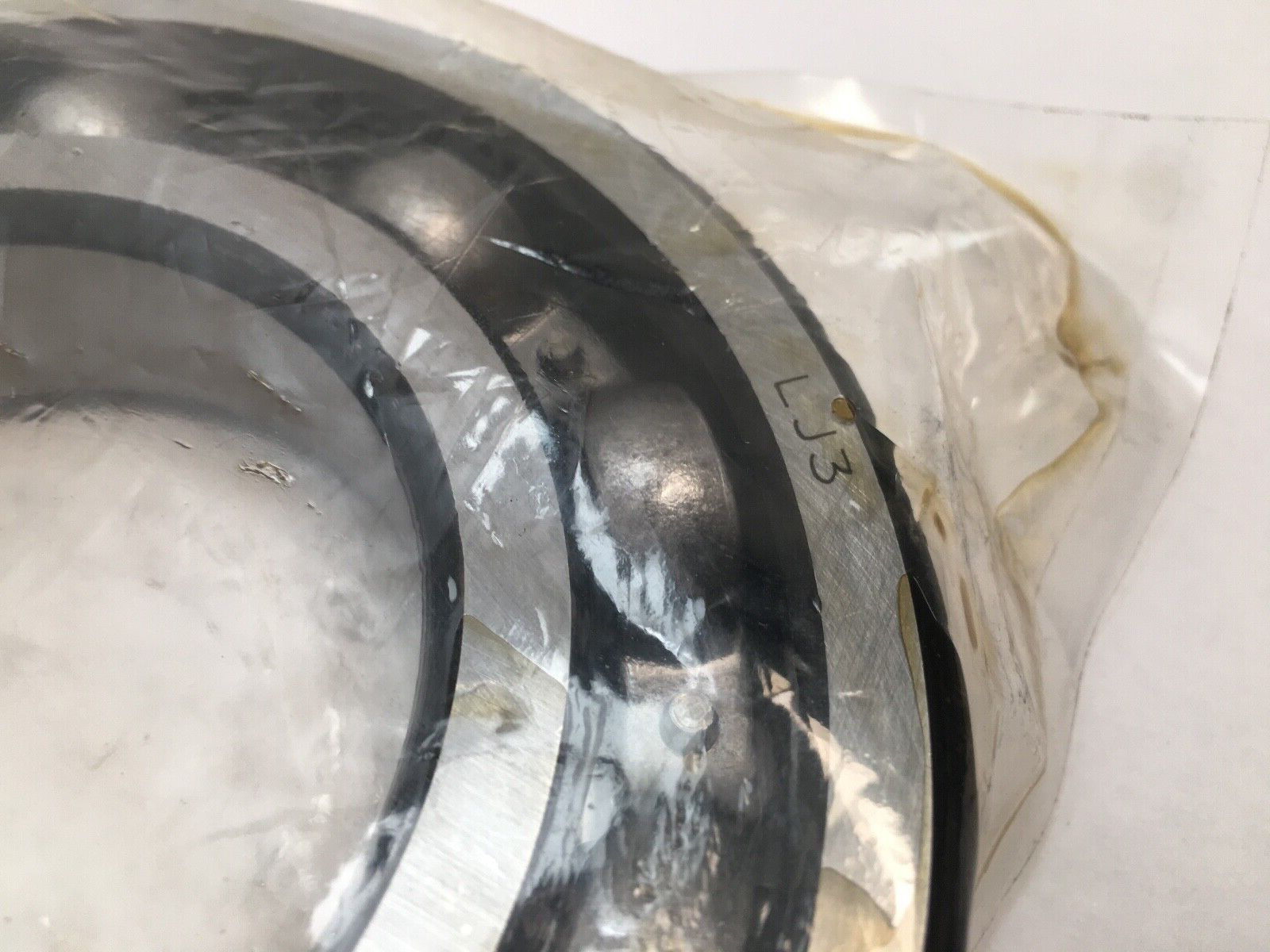

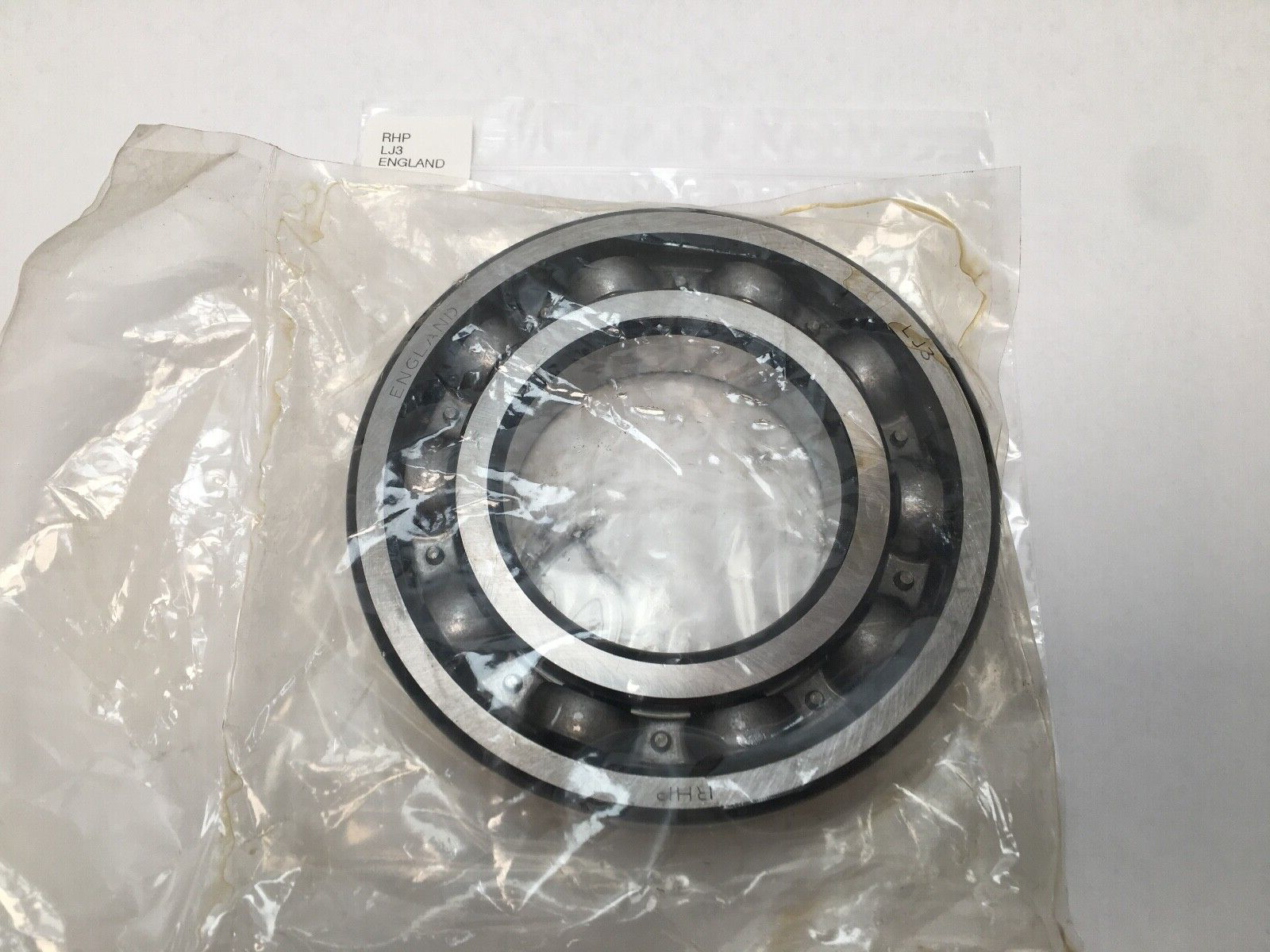

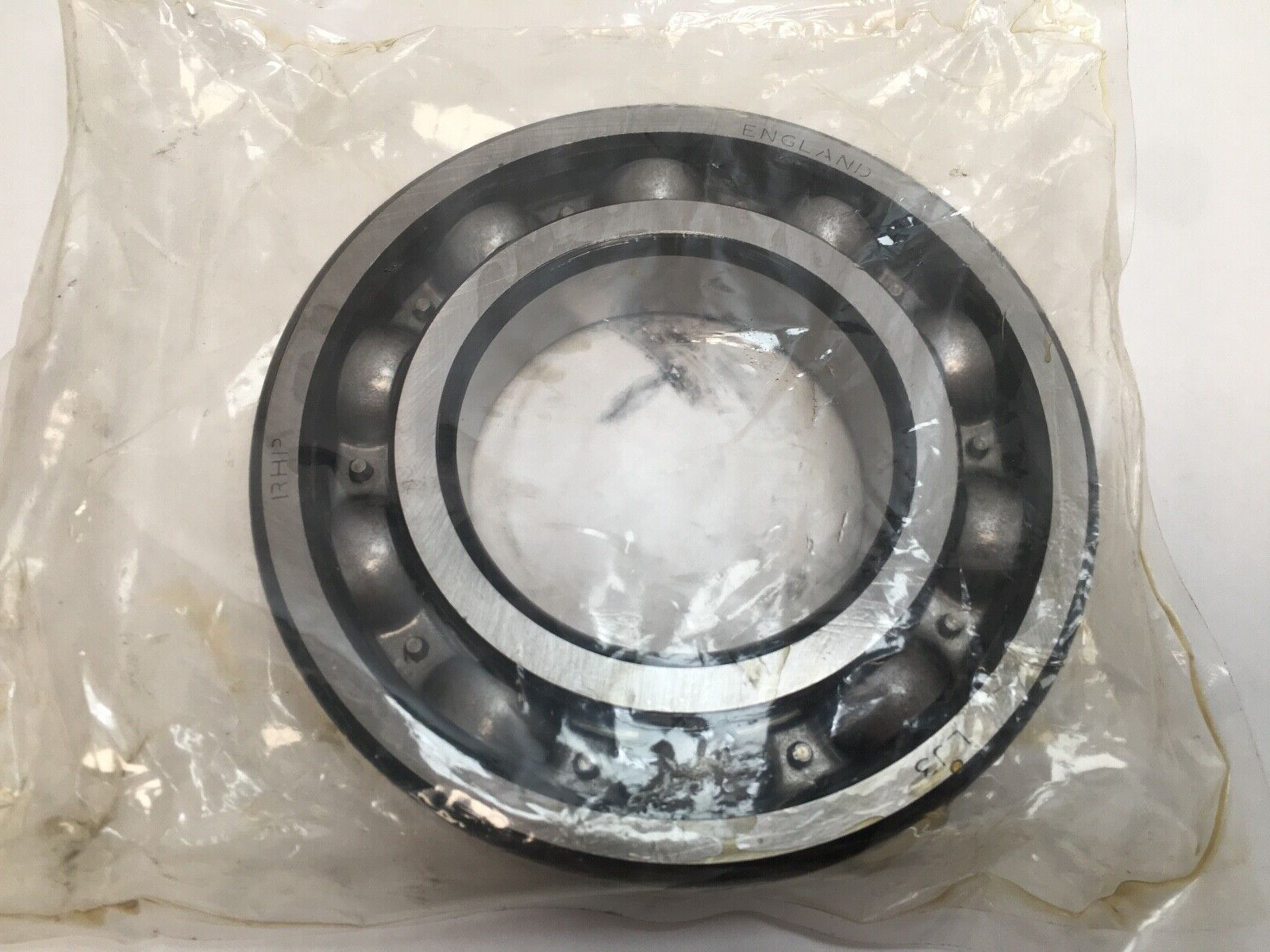

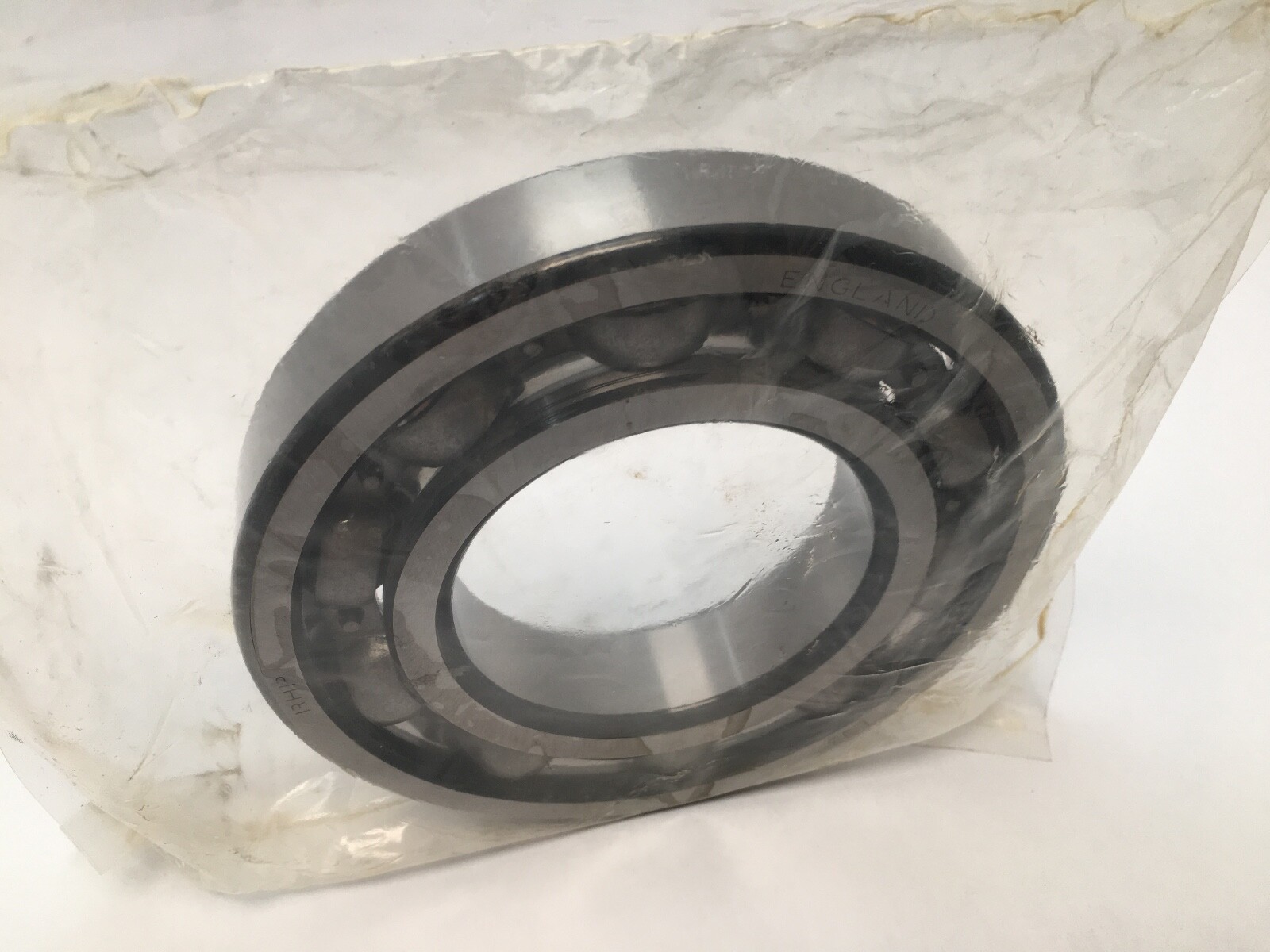

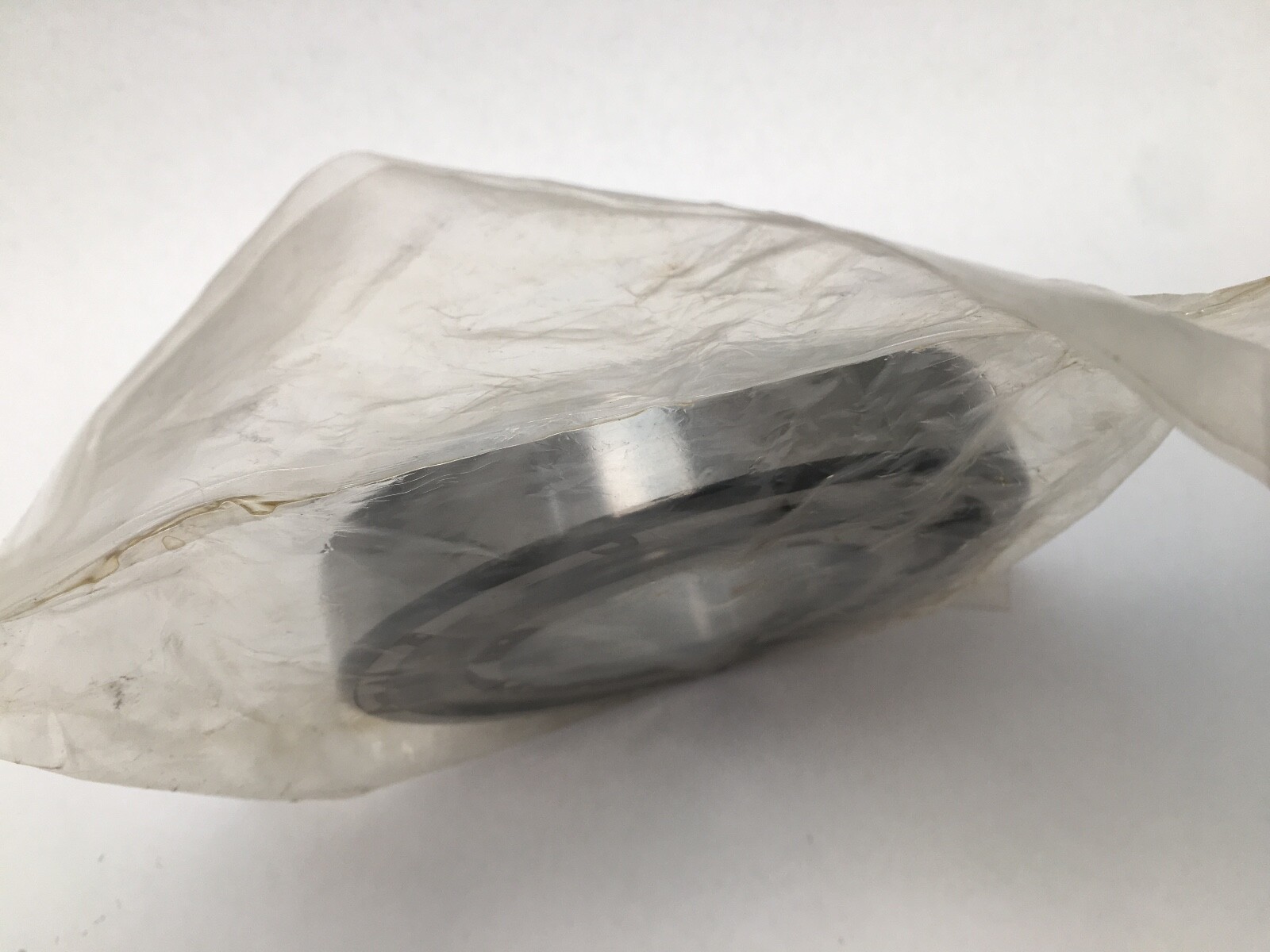

Imperial single-row deep groove ball bearing, 3 in bore, 5-3/4 in OD, 1-1/16 in wide, open, from the RHP imperial LJ series. Cross-references SKF RLS24.
List Price
$118.14
1 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | RHP |
|---|---|
| MPN | LJ3 |
| Model | LJ 3 |
| Bearing Type | Ball Bearing, Open |
| ID | 3.0000 in (76.200 mm) |
| OD | 5.7500 in (146.050 mm) |
| Width | 1.0625 in |
| Material | Bearing Steel |
|---|---|
| Series | LJ |
| Industry Terms | Deep groove ball bearing; imperial ball bearing; inch bearing; British imperial deep groove; RLS series bearing |
| Common Misspellings | LJ-3; L J 3; LJ3 3in; LJ.3 |
| Overall Width | 1.0625 in (26.988 mm) |
| Mpn Variants | LJ3; LJ 3; L-J-3; LJ3J; LJ3JC3; RLS24 |
| Rolling Elements | Ball |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Snap Ring Included | No |
| Harmonization Code | 8482.10.50.68 |
| Design Units | Inch |
| Cross Reference 1 | SKF RLS24 |
|---|---|
| Cross Reference 2 | Hoffmann MS19 |
RHP LJ3 single-row deep groove ball bearing on an imperial envelope. Bore Diameter: 3.0000 in (76.200 mm). Outside Diameter: 5.7500 in (146.050 mm). Overall Width: 1.0625 in (26.988 mm). Rolling Elements: Ball. Number Of Rows: 1. Bore Type: Straight. Closure Type: Open.
LJ — RHP’s imperial deep groove ball bearing series. The number that follows is the bore in inches, so LJ3 is a 3 in bore, LJ3/4 a 3/4 in bore and LJ3.3/4 a 3-3/4 in bore.
3 — bore 3.0000 in. Series: LJ.
A deep groove bearing takes radial load and axial load in both directions on a single row of balls running in deep, closely conforming raceway grooves. The envelope is a British imperial size, not a rounded conversion of a metric bearing: 3 x 5-3/4 x 1-1/16 in works out at 76.200 x 146.050 x 26.988 mm, which lands on no ISO metric size.
The imperial envelope narrows the field to the British inch series. SKF RLS24 and Hoffmann MS19 are the same 3 x 5-3/4 x 1-1/16 in open deep groove bearing and drop straight in. The same part is catalogued by RHP as LJ3J where a pressed steel cage is specified, and by Ransome & Marles, RHP’s predecessor marque, under the same LJ3 number.
