MRC 217SF Conrad deep groove ball bearing, 85 x 150 x 28 mm, single shield, 83,200 N dynamic rating. Crosses: SKF 6217-Z, NSK 6217Z, FAG 6217-Z.
List Price
$44.91
1 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | MRC |
|---|---|
| MPN | 217SF |
| Model | 217-SF |
| Bearing Type | Ball Bearing, One shield |
| ID | 85 mm |
| OD | 150 mm |
| Width | 28 mm |
| Mpn Variants | 217SF, 217-SF, 217 SF, 6217-Z, 6217Z |
|---|---|
| Compatible With Replaces | SKF 6217-Z, NSK 6217Z, NTN 6217Z, FAG 6217-Z, Koyo 6217Z |
| Additional Attributes | Max Fillet Radius: 2.0 mm; Construction: Conrad type |
| Dynamic Load Rating | 83,200 N |
| Static Load Rating | 64,000 N |
| Series | MRC 200-S Light Series |
| Rolling Elements | Ball |
| Snap Ring Included | No |
| Limiting Speed | 4,300 rpm grease; 5,000 rpm oil |
| Industry Terms | deep groove ball bearing; single shield ball bearing; Conrad bearing; 6217Z bearing; 85x150x28 bearing |
| Common Misspellings | MRC 217 SF; MRC 217S; 217SF bering; 6217Z; 6217-2; MCR 217SF |
| Application Types | Electric motors; pumps; gearboxes; general industrial machinery |
| Cross Reference 1 | SKF 6217-Z |
|---|---|
| Cross Reference 2 | NSK 6217Z |
| Cross Reference 3 | NTN 6217Z |
| Cross Reference 4 | FAG 6217-Z |
| Cross Reference 5 | Koyo 6217Z |

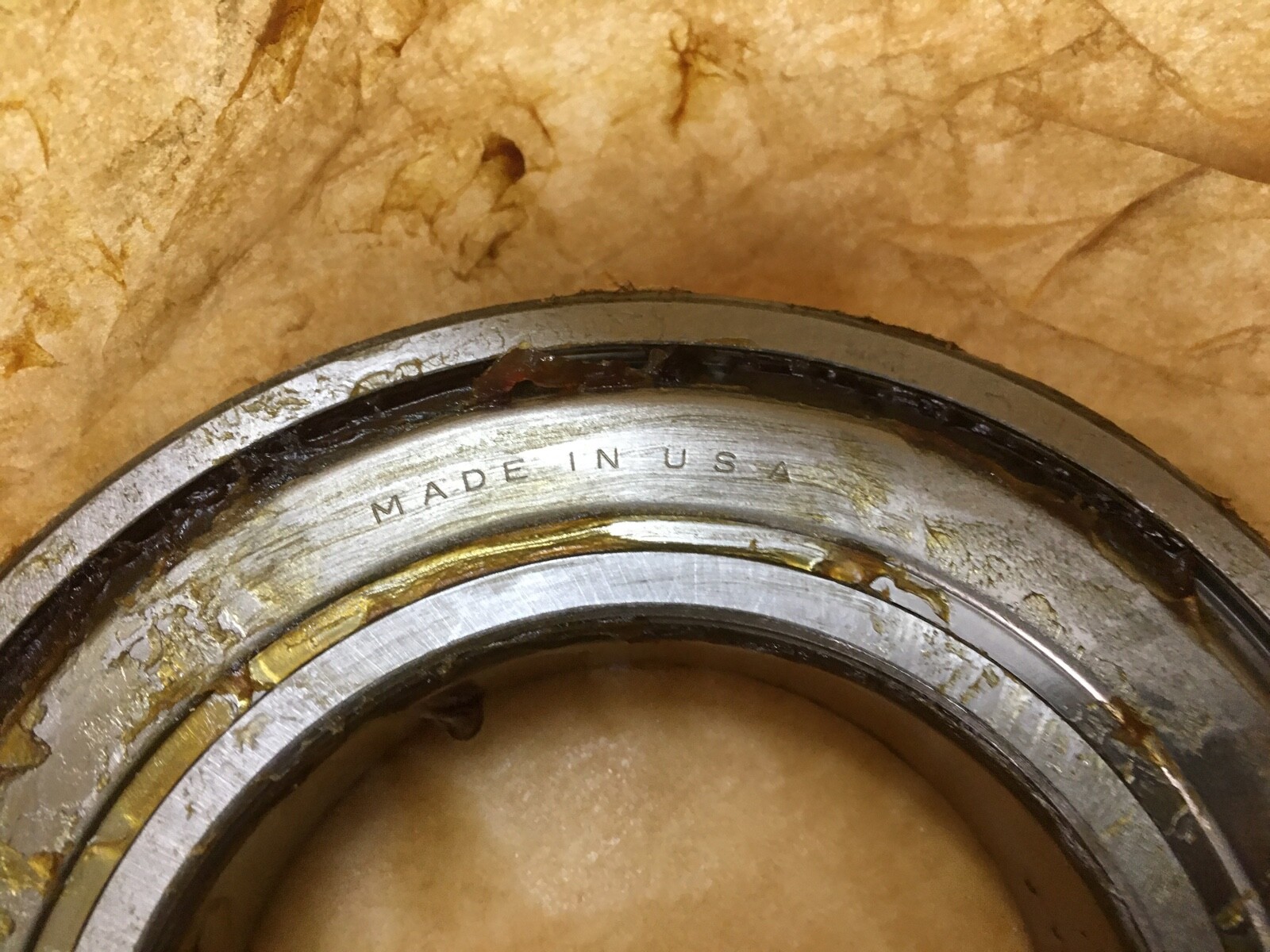

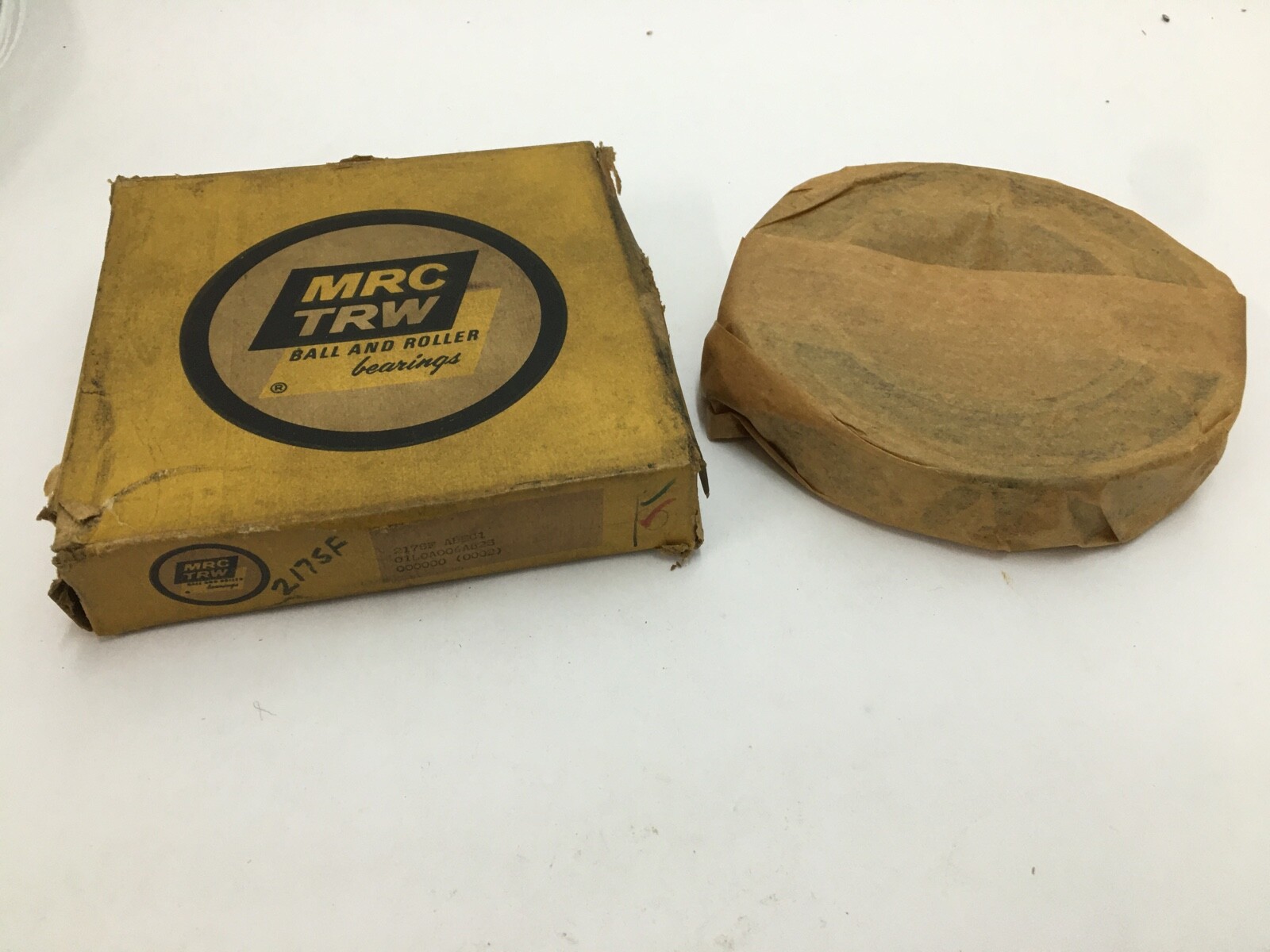

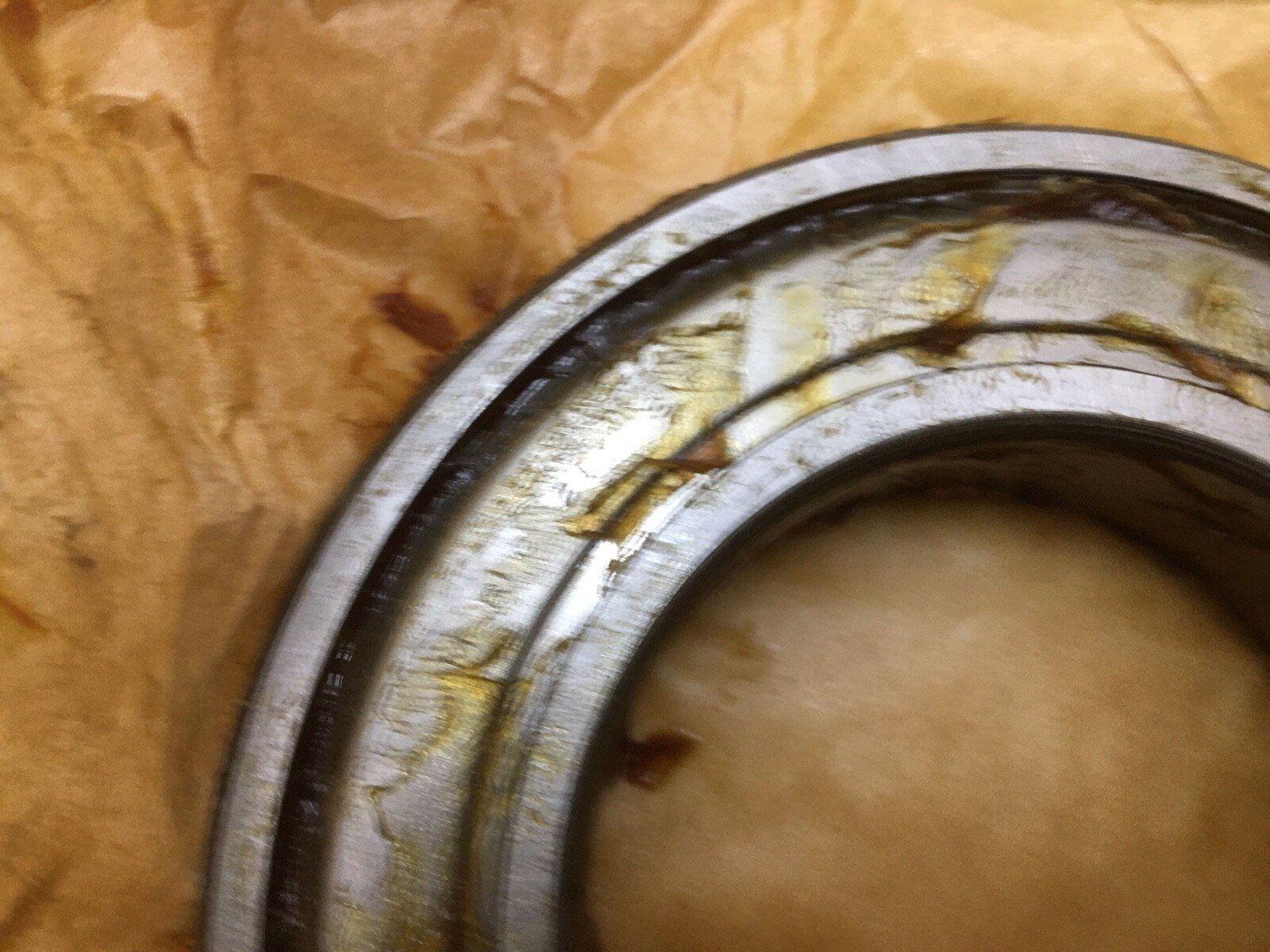

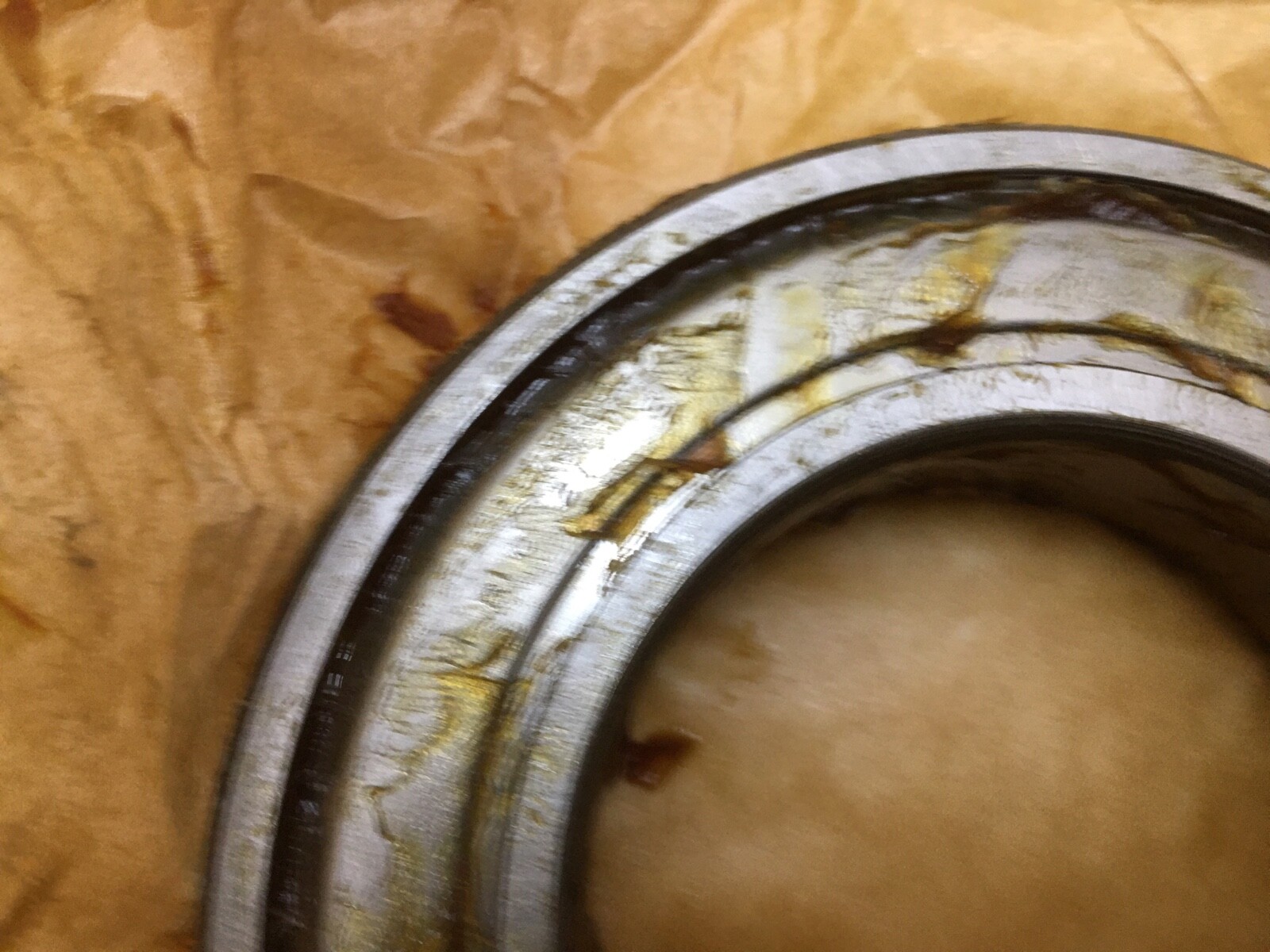

MRC 217SF is a single-row Conrad-type deep groove ball bearing from the MRC 200-S Light Series with a shield on one side. It carries radial loads and thrust loads in either direction. Unit Quantity: 1 Pc.
217 — 200 light series, 85 mm bore.
S — Conrad-type single-row deep groove construction.
F — one shield; the opposite face is open.
Bore Diameter: 85 mm. Outside Diameter: 150 mm. Overall Width: 28 mm. Dynamic Load Rating: 83,200 N. Static Load Rating: 64,000 N. Limiting Speed: 4,300 rpm grease; 5,000 rpm oil. Closure Type: Shield one side. Rolling Elements: Ball. Number Of Rows: 1. Bore Type: Straight.
Max Fillet Radius: 2.0 mm (maximum shaft or housing fillet the bearing corner clears).
Cross-references with one shield on the same 85 x 150 x 28 mm envelope: SKF 6217-Z, NSK 6217Z, NTN 6217Z, FAG 6217-Z, Koyo 6217Z.
Bore 85 mm, outside diameter 150 mm, width 28 mm.
One shield on one side; the opposite face is open.
Dynamic 83,200 N and static 64,000 N, from the MRC 200-S Light Series catalogue table.
