Spindle deep groove ball bearing, 17 x 35 x 10 mm, ABEC 3 precision, steel balls, straight bore, rated 6,660 N dynamic and 39,600 rpm on grease.
List Price
$152.92
Out of stock
Out of stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
This item is currently out of stock
Here are some other options that might fit your project — cross-referenced equivalents and similar parts we have in stock and ready to ship. Need help choosing? Call 585-295-7880.
Deep Groove Ball Bearing - 17 mm ID, 35 mm OD, 10 mm Width, Open, ABEC 5 / P5 Precision$24.40
Deep Groove Ball Bearing – 17 mm Bore, 35 mm OD, 10 mm Width, Contact Seals Both Sides, CN Clearance$77.38
Miniature Deep Groove Ball Bearing – 6 mm Bore, 19 mm OD, 6 mm Width, Open, Straight Bore$25.41
Deep Groove Ball Bearing 17x40x12 mm, Two Contact Rubber Seals, 6203-2RS Envelope, 9,560 N Dynamic Rating$30.35| MFR / Brand | Fafnir |
|---|---|
| MPN | PM9103K |
| Model | P M 9103 K / 6003 P6 / ABEC3 |
| Bearing Type | Ball Bearing |
| ID | 17 mm |
| OD | 35 mm |
| Base Number | 9103K |
|---|---|
| Overall Width | 10 mm |
| Mpn Variants | PM9103K; PM-9103-K; P M 9103 K; PM 9103 K |
| Precision Class | ABEC 3 / P6 |
| Dynamic Load Rating | 6,660 N |
| Static Load Rating | 3,300 N |
| Series | 9100K |
| Rolling Elements | Ball |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Limiting Speed | 39,600 rpm grease; 79,200 rpm oil |
| Internal Clearance | CN |
| Bearing Material | Steel |
| Cross Reference 1 | 6003-P6 |
|---|---|
| Cross Reference 2 | SKF 6003/P6 |
| Cross Reference 3 | FAG 6003-P6 |
| Cross Reference 4 | NSK 6003 P6 |
| Cross Reference 5 | NTN 6003 P6 |
| Cross Reference 6 | Fafnir MM9103K (related, ABEC 7/9 execution on the same envelope) |

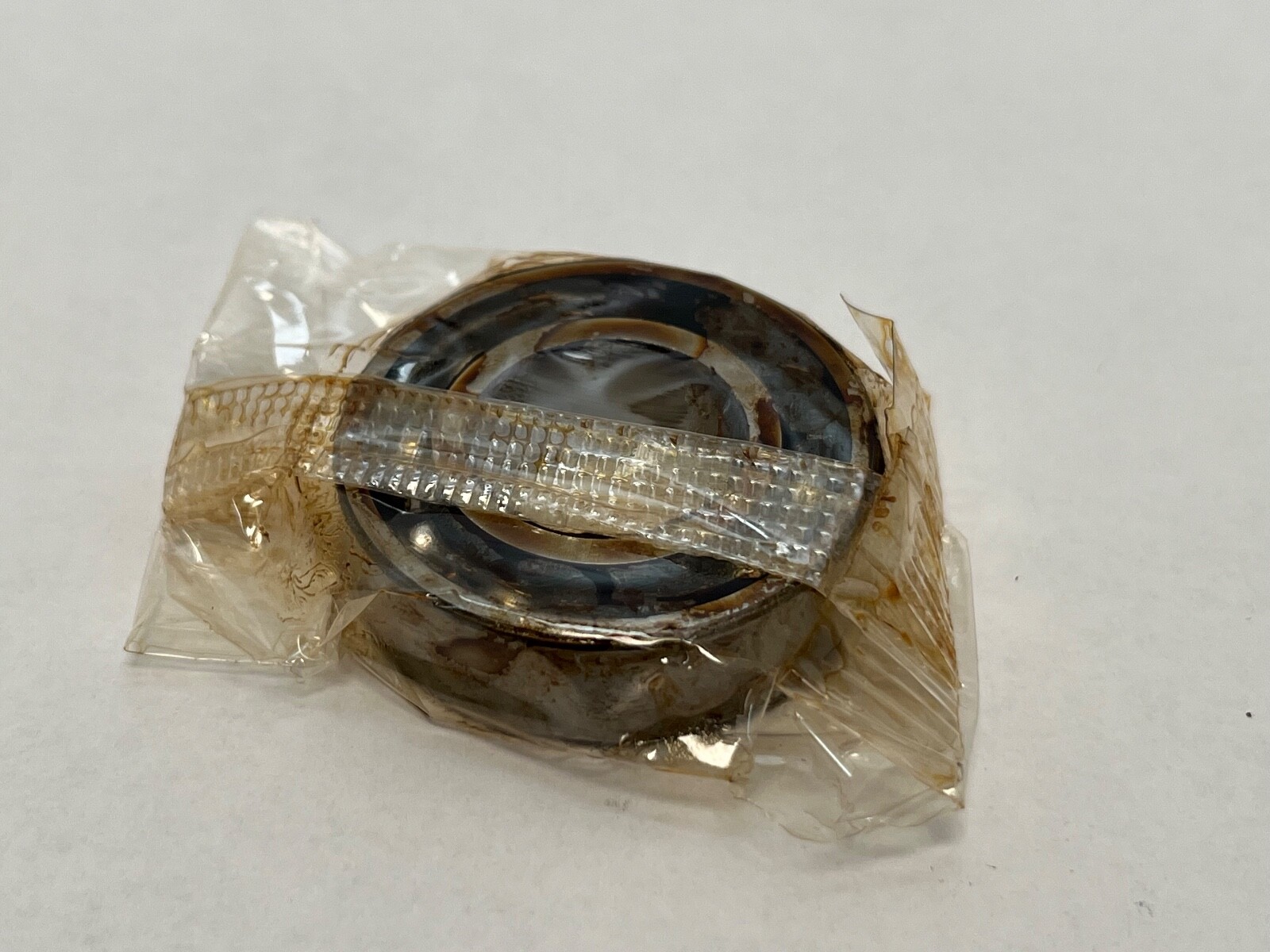

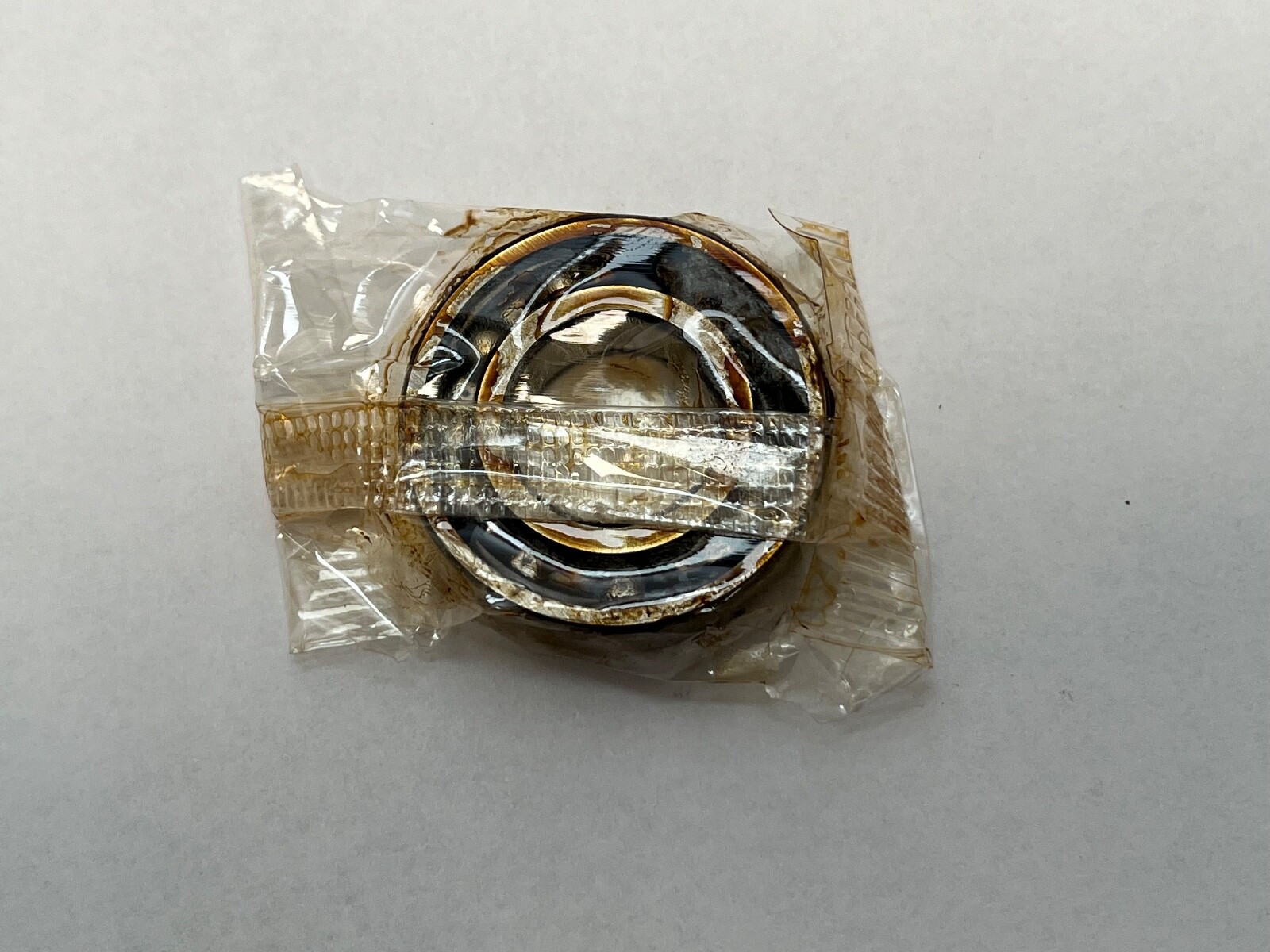

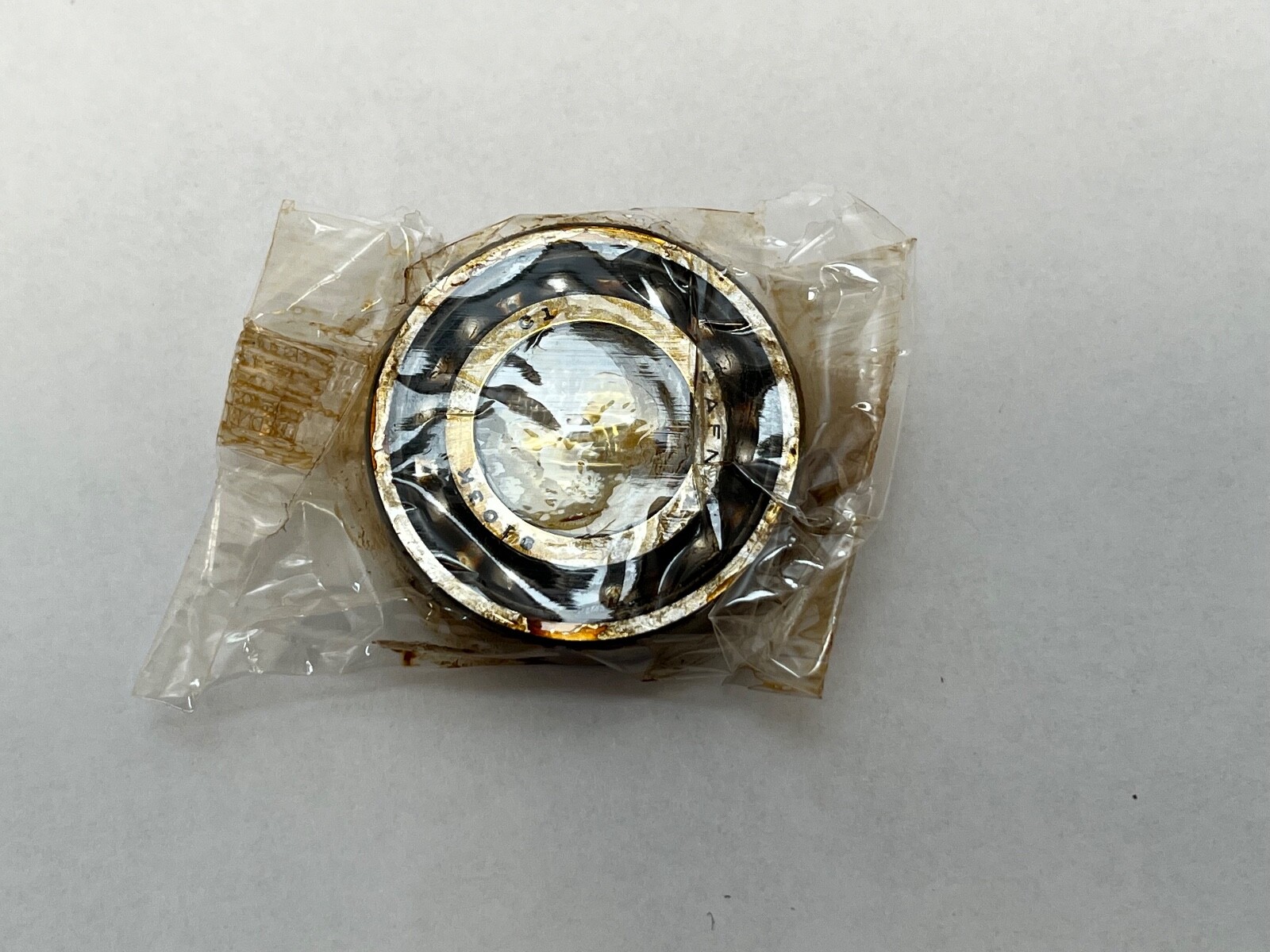

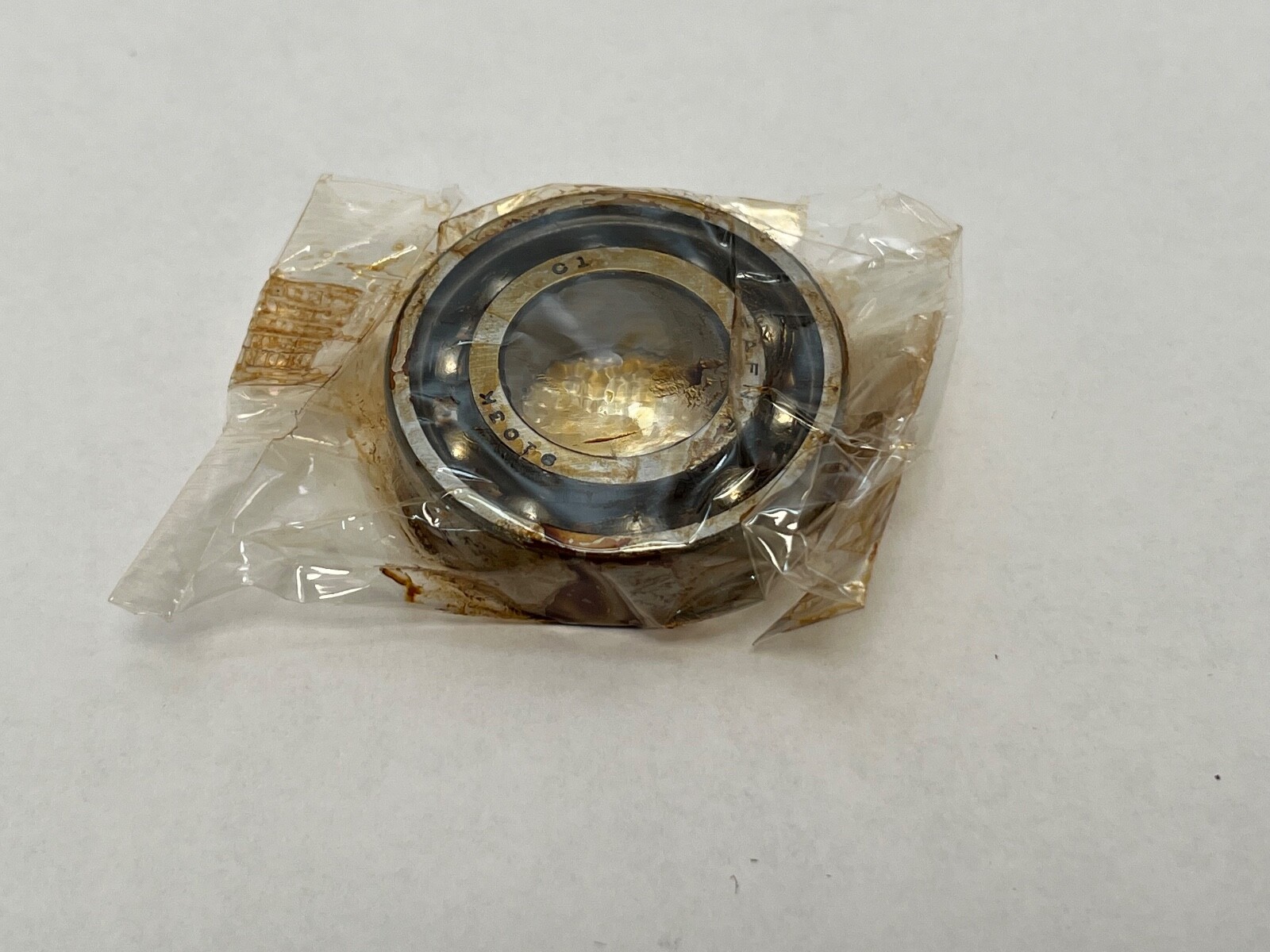

Fafnir PM9103K spindle deep groove ball bearing. Bore Diameter: 17 mm. Outside Diameter: 35 mm. Overall Width: 10 mm. Series: 9100K. Base Number: 9103K. Number Of Rows: 1. Rolling Elements: Ball. Bore Type: Straight.
9100K — Fafnir spindle deep groove series, the precision-ground counterpart to the ISO 6000 light series.
9103 — the 17 mm bore size within that series, matching the ISO 6003 envelope of 17 x 35 x 10 mm.

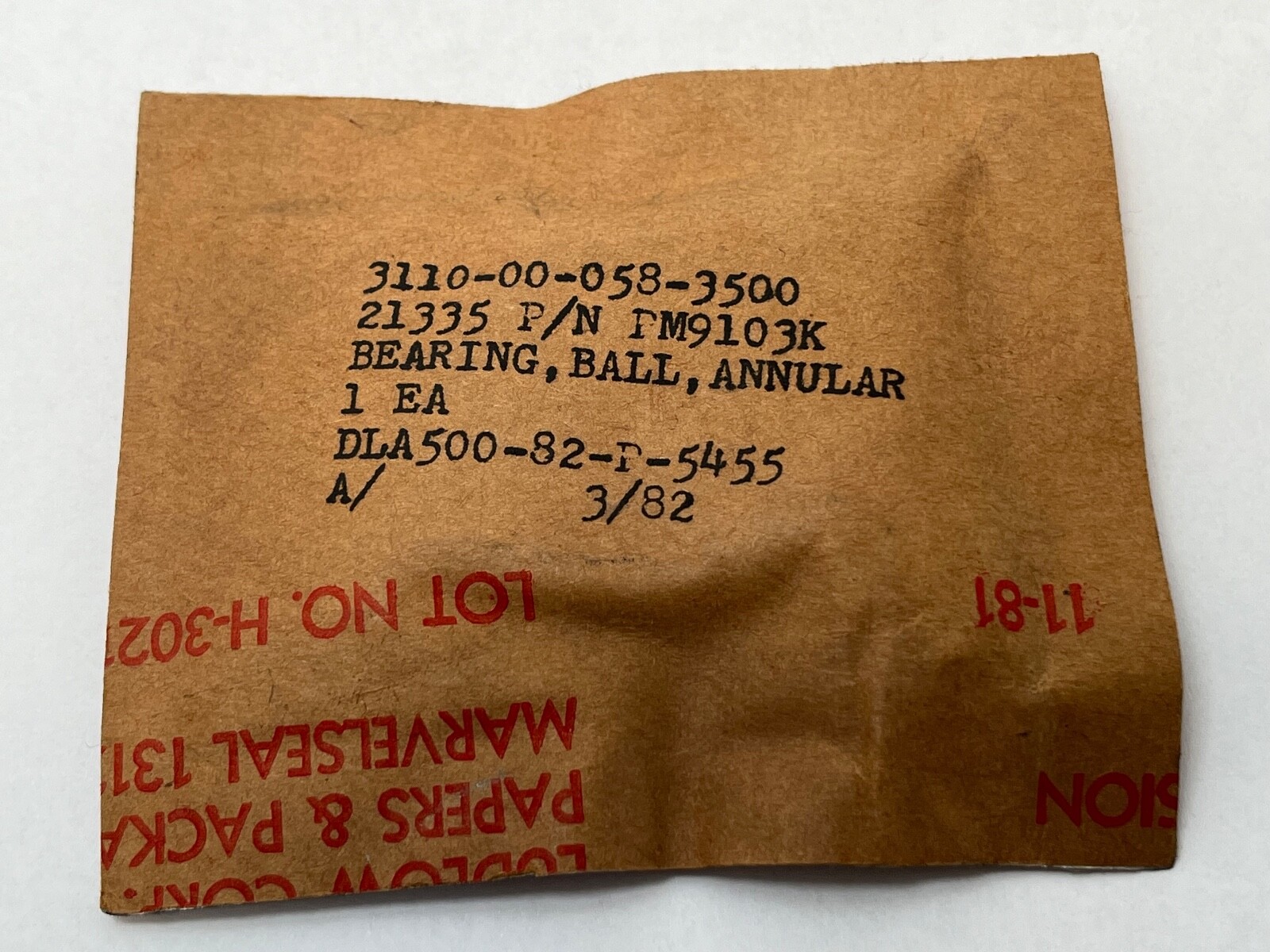

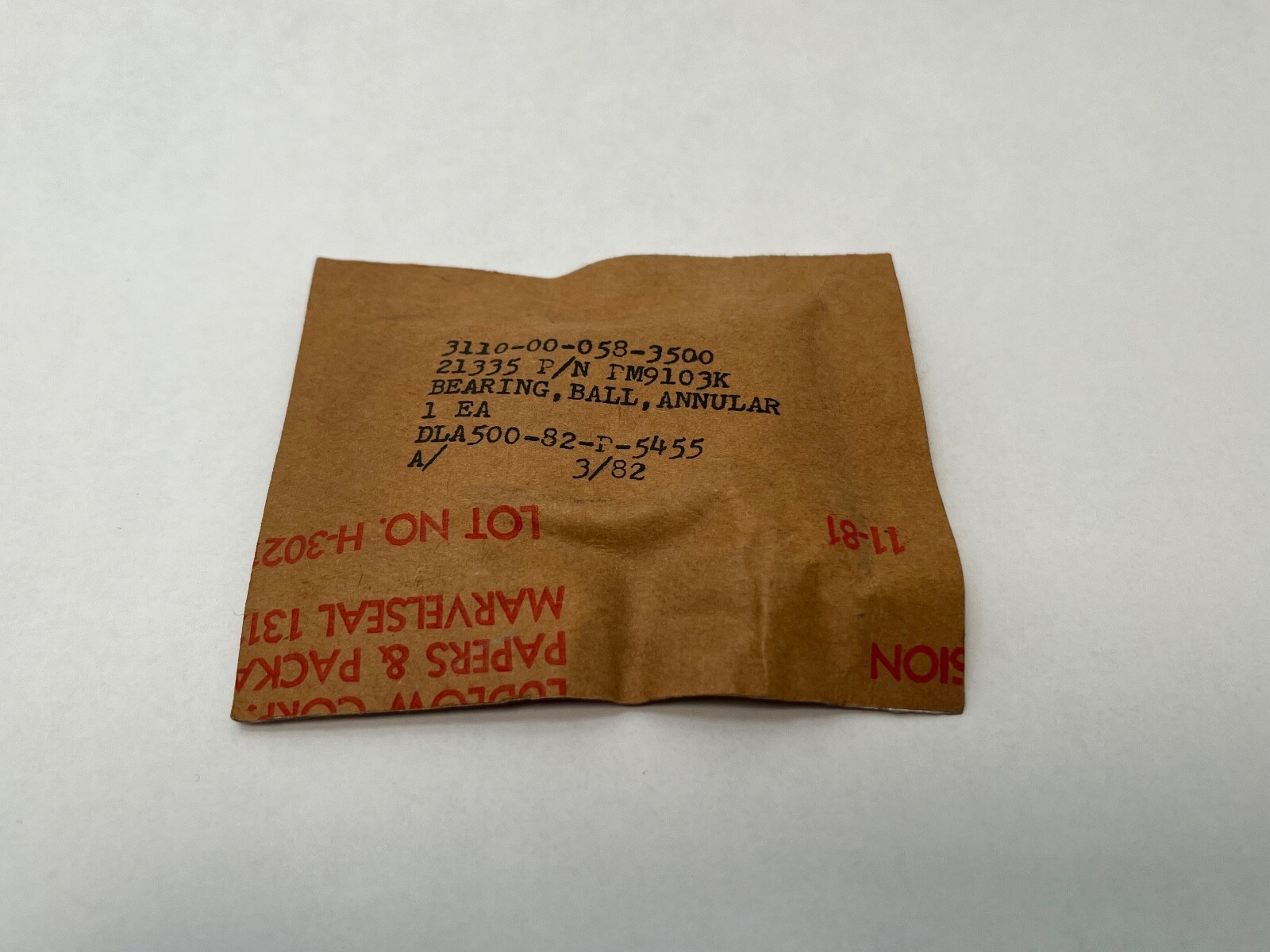

P6 — Precision Class: ABEC 3 / P6, the tolerance grade carried on the carton alongside the 6003 cross-reference.
Dynamic Load Rating: 6,660 N. Static Load Rating: 3,300 N. The deep groove raceway carries radial load and axial load from either direction, which is what separates this construction from an angular contact execution.
Limiting Speed: 39,600 rpm grease; 79,200 rpm oil. Bearing Material: Steel. Internal Clearance: CN. ABEC 3 tolerances hold the bore, outside diameter and running accuracy tighter than a standard-class bearing, giving closer shaft location and lower running vibration in a spindle.
Shaft backing shoulder diameter 21.5 mm. Housing backing shoulder diameter 31.1 mm. Maximum housing fillet radius 0.3 mm. The straight bore mounts directly on a ground shaft journal.

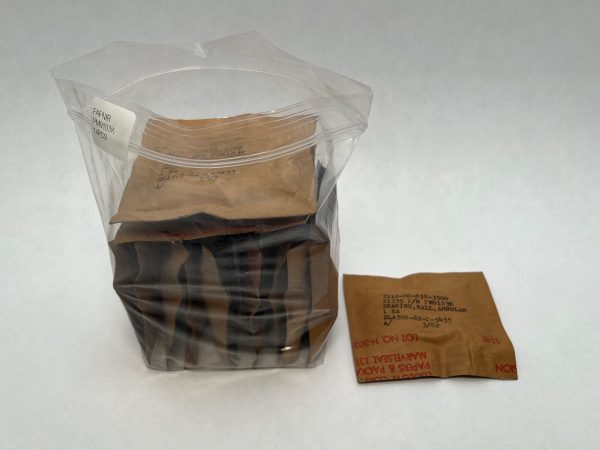

Unit Quantity: 14 Pcs. Fourteen single-row bearings ship as one lot.
The 17 x 35 x 10 mm envelope at P6 tolerance is the ISO 6003-P6 size, so a P6-class 6003 from any major maker drops into the same seat. The Fafnir MM9103K is the same envelope built to ABEC 7/9 and is listed here as a related higher-precision execution rather than a like-for-like swap.
