FafnirP200KSpindle Deep Groove Ball Bearing – 10 mm Bore, 30 mm OD, 9 mm Width, Open, C3 Clearance

Product Description

What this part is:

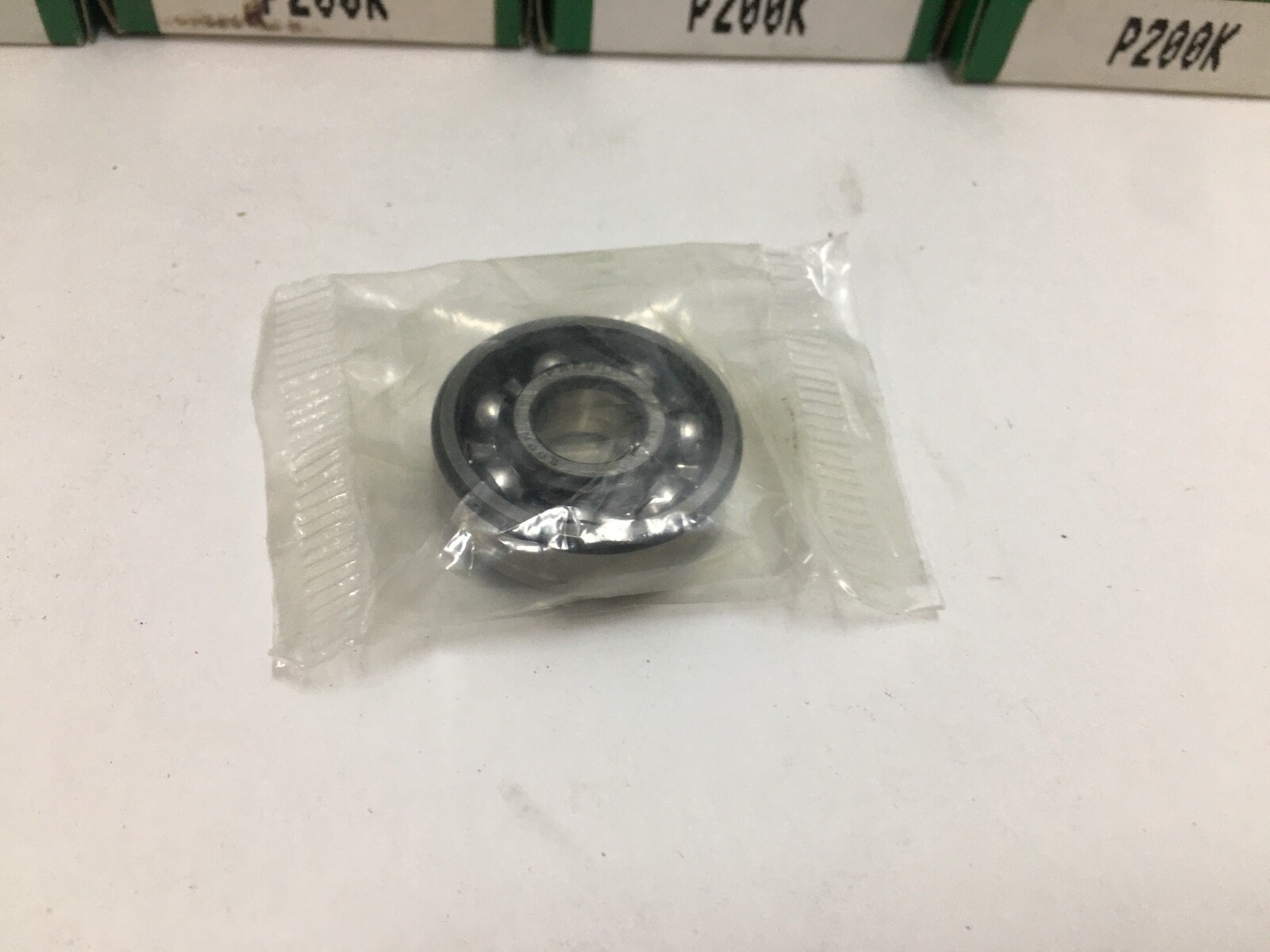

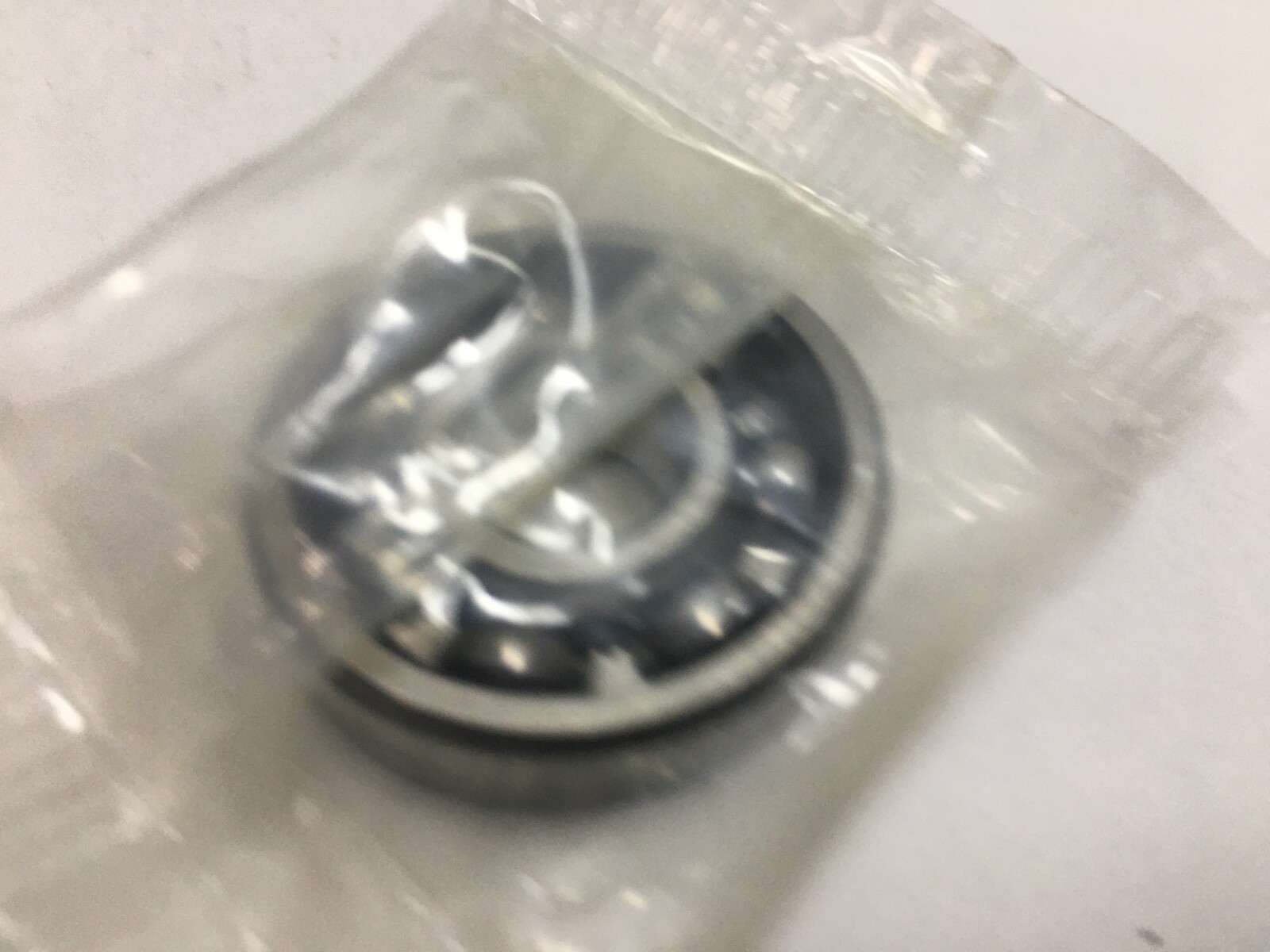

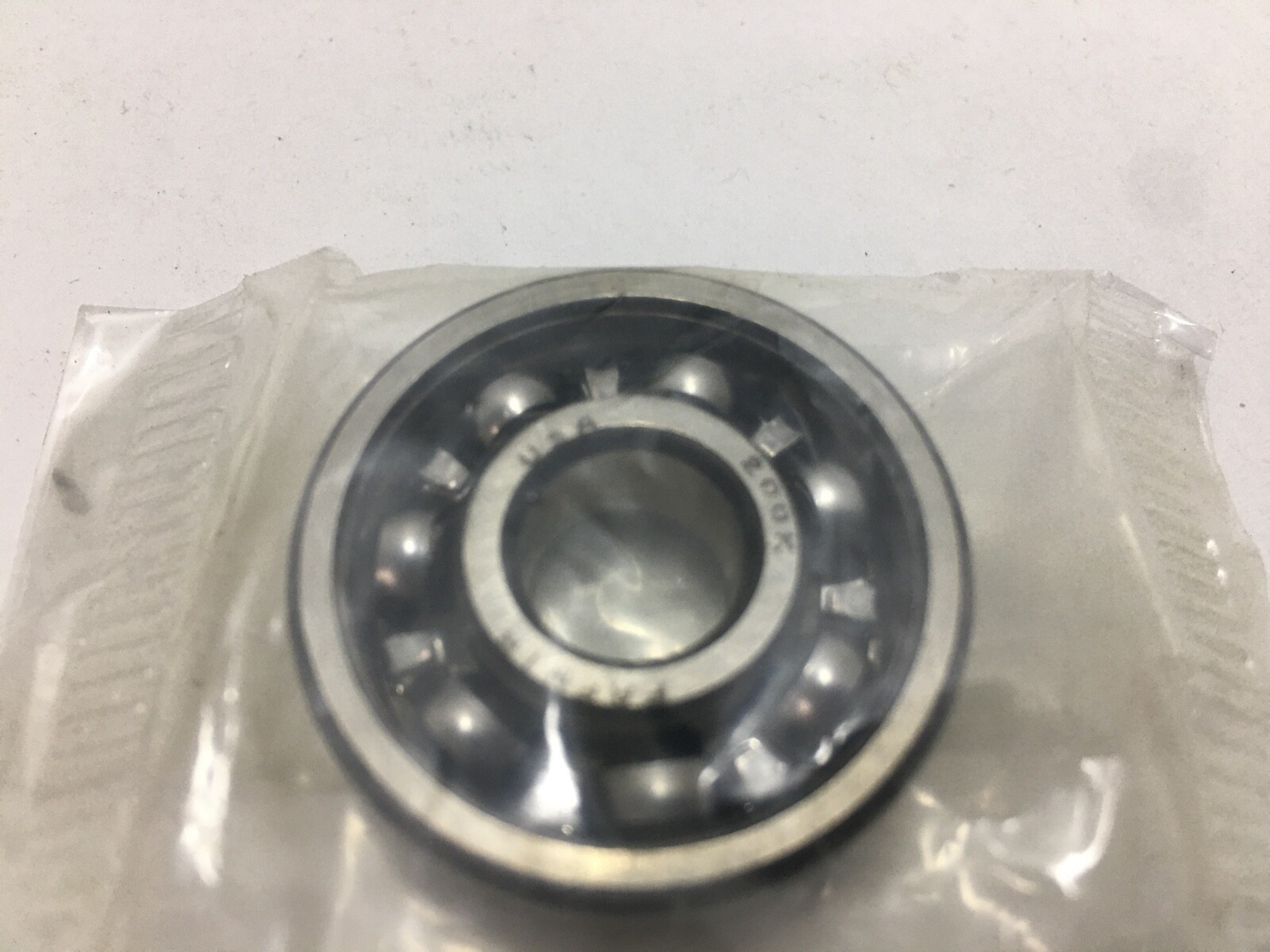

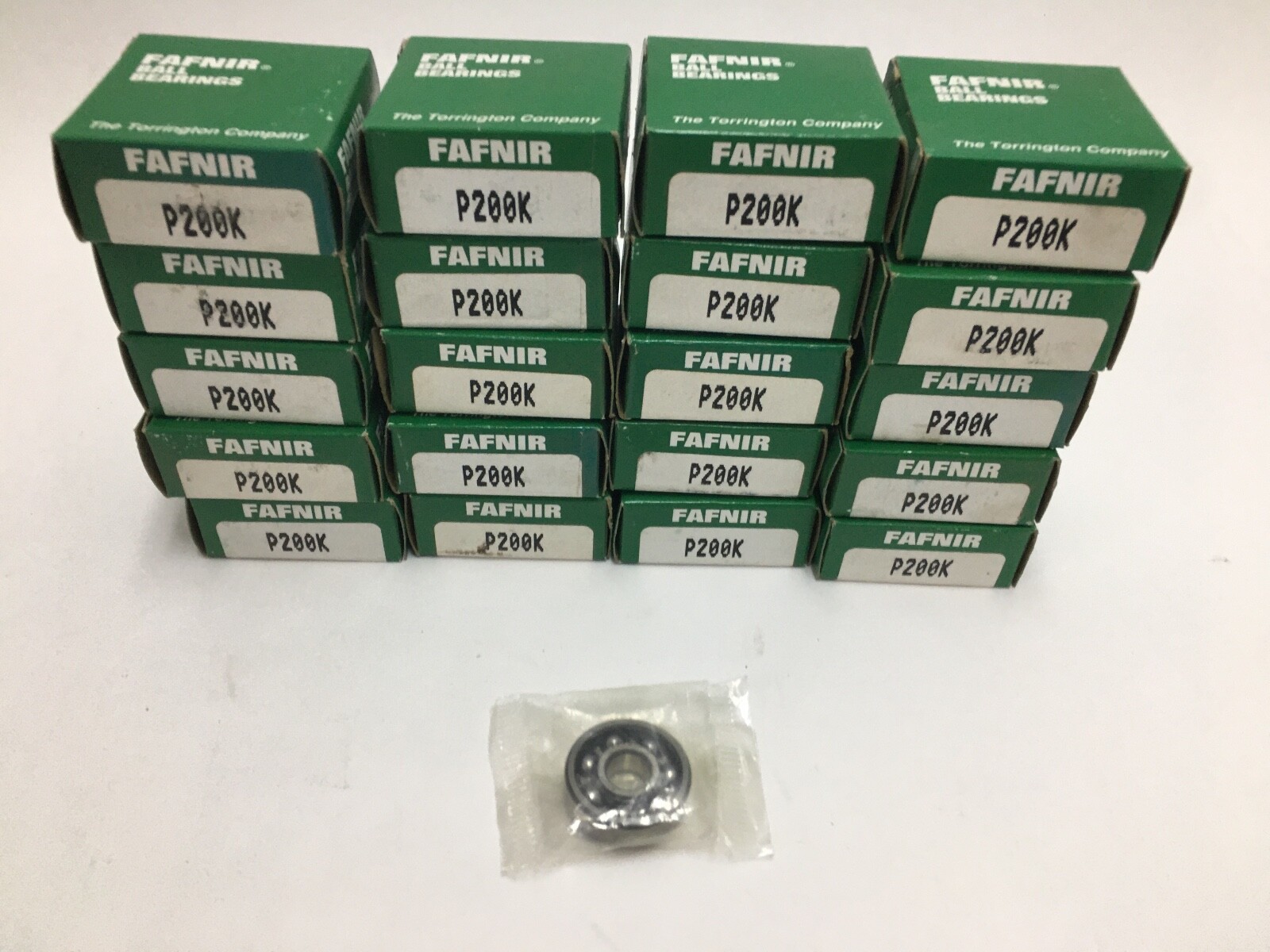

Fafnir P200K, a spindle deep groove ball bearing, single row, open, with a straight bore and C3 internal clearance. Unit Quantity: 20 Pcs, twenty single-row bearings in the listing.

Decoding the designation:

200 — the 200 light dimension series, bore code 00, which maps to the ISO 6200 envelope: 10 mm bore, 30 mm outside diameter, 9 mm width.

K — spindle deep groove construction. Conrad-type raceways carry radial load and axial load from either direction, so the bearing has no contact angle.

C3 — internal clearance one grade greater than normal.

Specifications:

Bore Diameter: 10 mm. Outside Diameter: 30 mm. Overall Width: 9 mm. Rolling Elements: Ball. Number Of Rows: 1. Bore Type: Straight. Closure Type: Open. Internal Clearance: C3. Bearing Material: Chrome steel. Series: 200K. Base Number: 200K. Unit Quantity: 20 Pcs.

Dimensions and mounting:

The 10 x 30 x 9 mm envelope is the ISO 6200 envelope. The bearing is open on both faces.

Compatibility and replacement:

Cross-Reference 1: SKF 6200 C3. Cross-Reference 2: FAG 6200-C3. Cross-Reference 3: NSK 6200C3. Cross-Reference 4: NTN 6200C3. Cross-Reference 5: Koyo 6200C3. Cross-Reference 6: MRC 200S. MPN Variants: P200K, P-200-K, P 200 K, 200K, 6200, 6200C3.

Frequently asked questions:

What size is the Fafnir P200K?

10 mm bore, 30 mm outside diameter and 9 mm width, the ISO 6200 envelope.

What internal clearance does the P200K have?

C3, one grade greater than normal.

How many bearings are in the listing?

Unit Quantity: 20 Pcs.
