Dodge F2B-SC-010L 2-bolt flange ball bearing unit, 5/8 in bore, set screw locking, 3.53 in bolt centers, 204 series, powder coated, catalog 124167.
List Price
$30.30
1 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | Dodge |
|---|---|
| MPN | F2B-SC-010L |
| GTIN | 782475114474 |
| Model | F2B-SC-010L |
| Bearing Type | Ball Bearing, Single-lip nitrile rubber contact seal |
| ID | 5/8 in |
| Series | SC |
|---|---|
| Lubricant | Grease |
| Bolt Center To Center | 3.53 in |
| Number Of Bolt Holes | 2 |
| Bolt Center To Center Length | 3.53 in |
| Number Of Bolt Holes For Fasteners | 2 |
| Dynamic Load Rating | 2,899 lbf (12,895 N) |
| Static Load Rating | 1,482 lbf (6,592 N) |
| Rolling Elements | Ball |
| Number Of Rows | 1 |
| Locking Device | Set screw |
| Harmonization Code | 8482.1 |
| Expansion Type | Non-expansion |
| Industry Terms | 2-bolt flange bearing, two bolt flange unit, set screw flange bearing |
| Bore Shaft Size | 5/8 in (0.625 in, 15.88 mm) |
| Housing Style | 2-bolt flange |
| Locking Method | Set screw |
| Mpn Variants | 124167, F2BSC010L, F2BSC010 L, F2B-SC-010L/124167 |
| Additional Attributes | Bearing Series: 204; Overall Length: 4.41 in; Overall Height: 2.38 in; Overall Depth: 1.34 in; Finish: Powder coated |
| Common Misspellings | Dodge F2BSC010L; Dodge F2B SC 010L; Dodge F2B-SC-010-L; Dodge F2B-SC-01OL; Doge F2B-SC-010L |
| Application Types | Conveyors; agricultural machinery; light industrial machinery; material handling; fans and blowers |

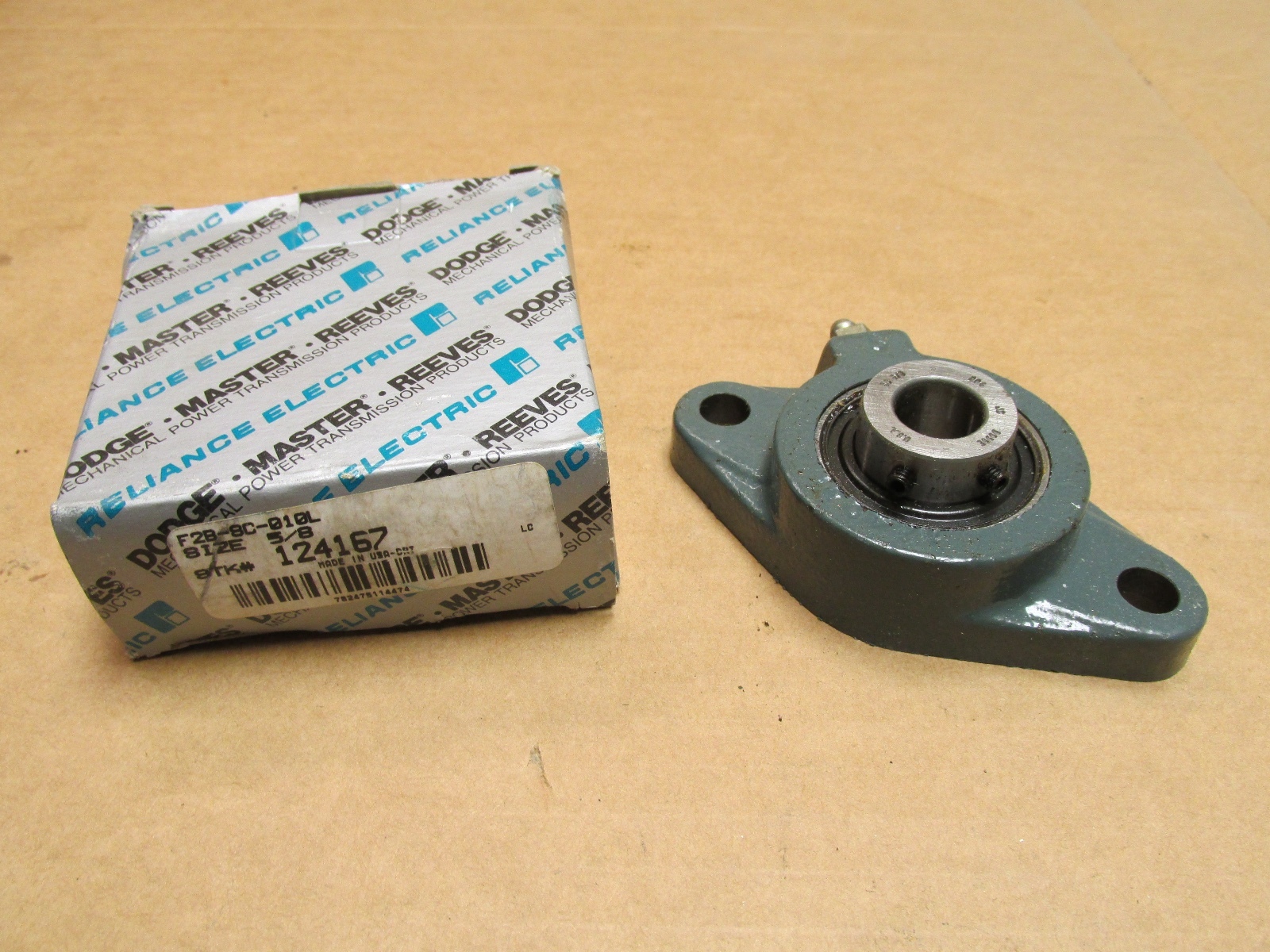

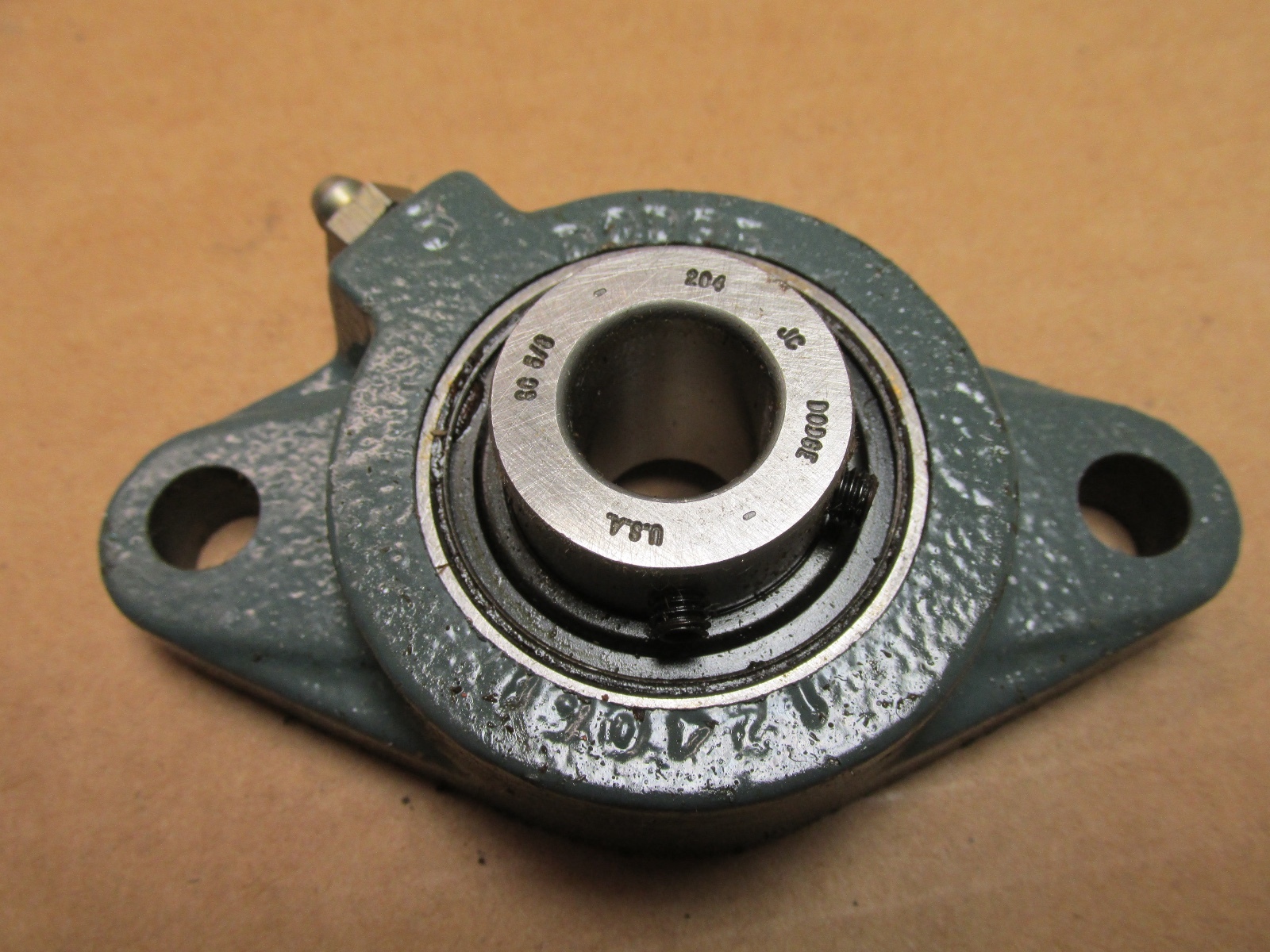

Dodge F2B-SC-010L, catalog number 124167, two-bolt flange mounted ball bearing unit for a 5/8 in shaft with a set screw locking insert. Complete mounted unit: two-bolt flange housing with a 204-series set screw ball bearing insert installed. GTIN: 782475114474. Unit Quantity: 1 Pc.
F2B — Dodge two-bolt flange ball bearing housing.
SC — Dodge set screw ball bearing line.
010 — 5/8 in shaft size.
Bore / Shaft Size: 5/8 in (0.625 in, 15.88 mm). Locking Method: Set screw. Housing Style: 2-bolt flange. Bearing Series: 204. Dynamic Load Rating: 2,899 lbf (12,895 N). Static Load Rating: 1,482 lbf (6,592 N). Seal Type: Single-lip nitrile rubber contact seal. Expansion Type: Non-expansion. Finish: Powder coated.
Number Of Bolt Holes: 2. Bolt Center To Center Length: 3.53 in. Overall Length: 4.41 in. Overall Height: 2.38 in. Overall Depth: 1.34 in.
Dodge catalog number 124167 and engineering number F2B-SC-010L identify the same part. Also written F2BSC010L and F2BSC010 L.
A 5/8 in shaft (0.625 in, 15.88 mm), locked with a set screw.
Two bolts at 3.53 in center to center, with a 4.41 in overall length.
Catalog number 124167.
