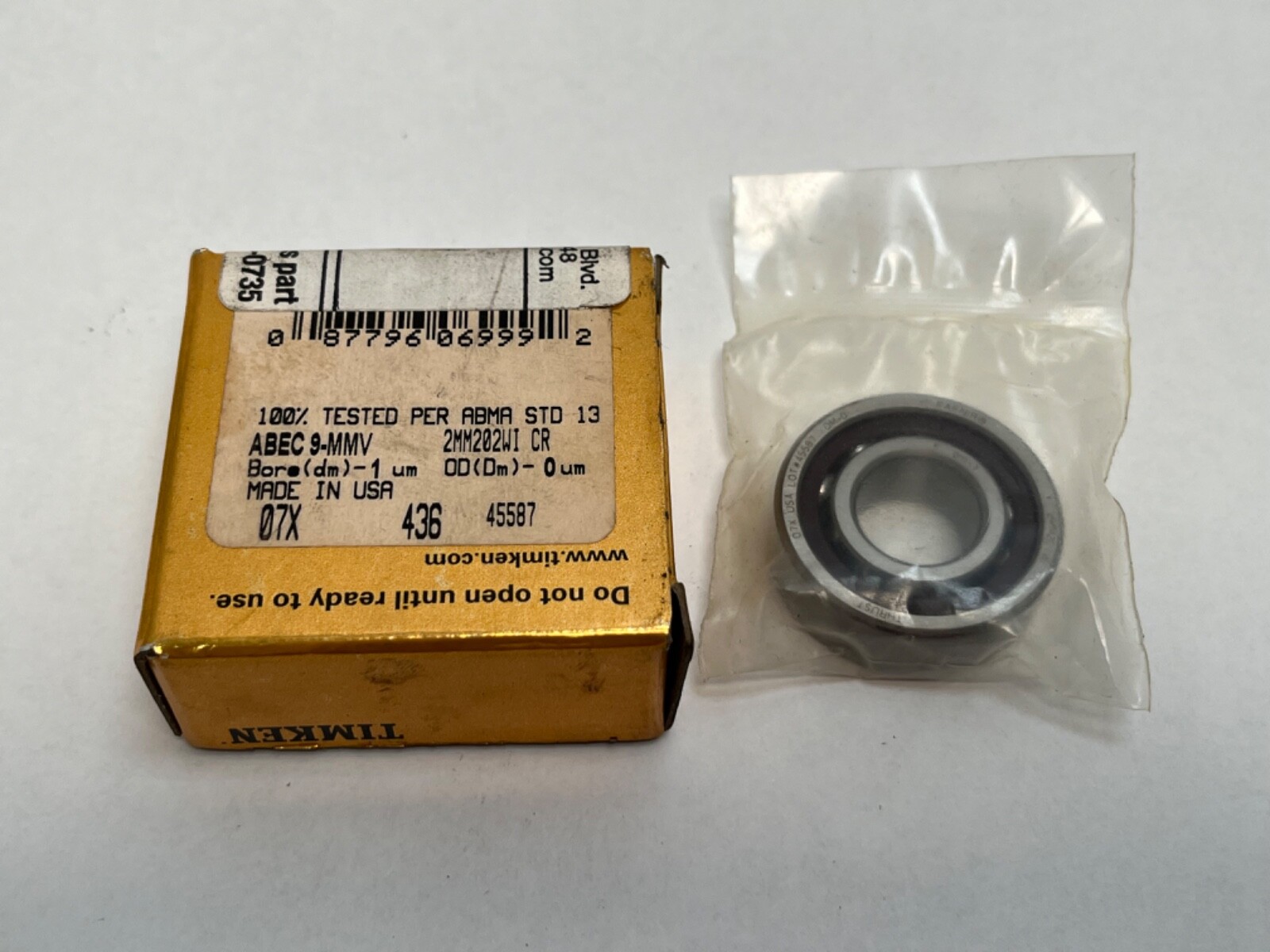

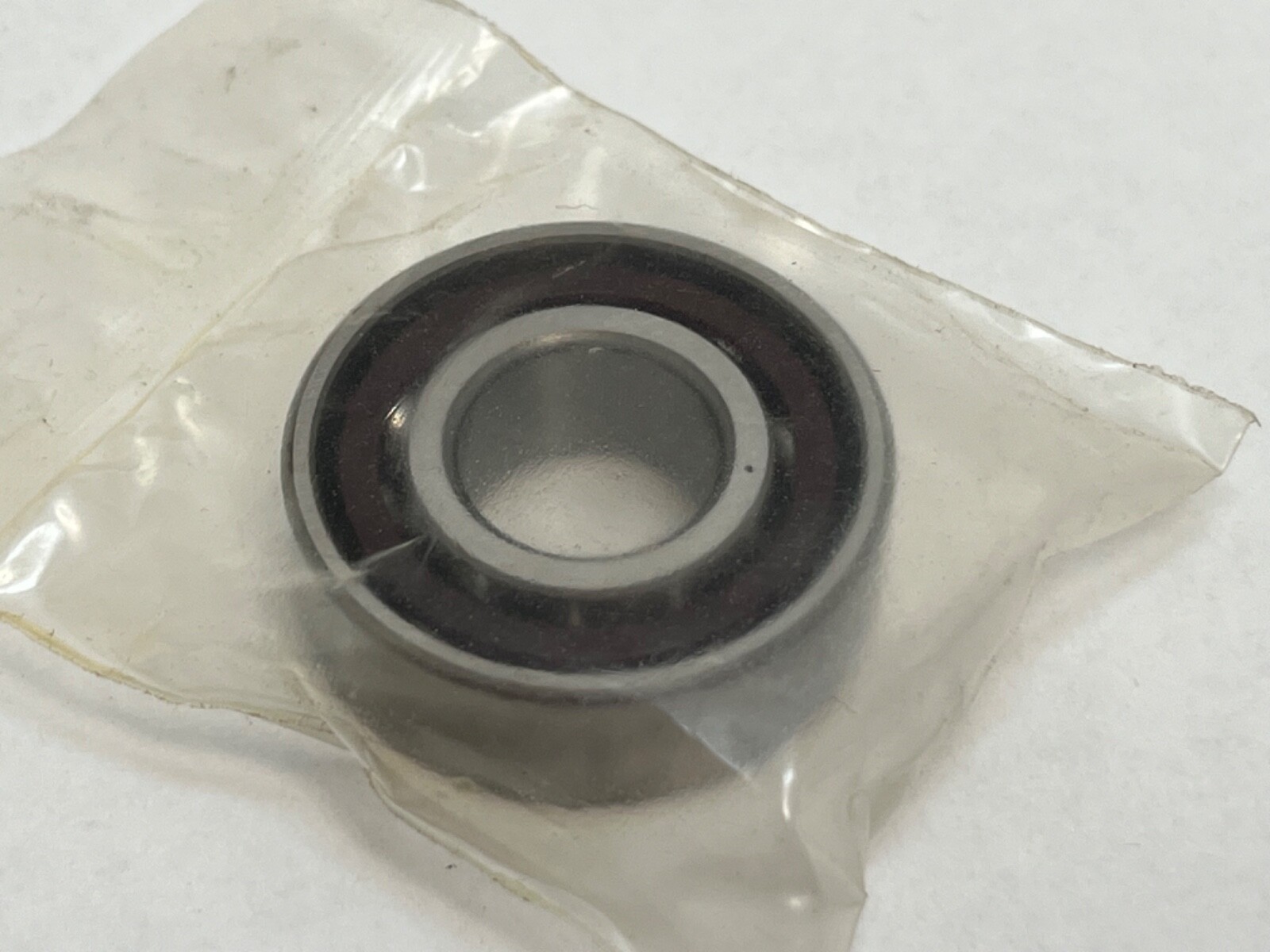

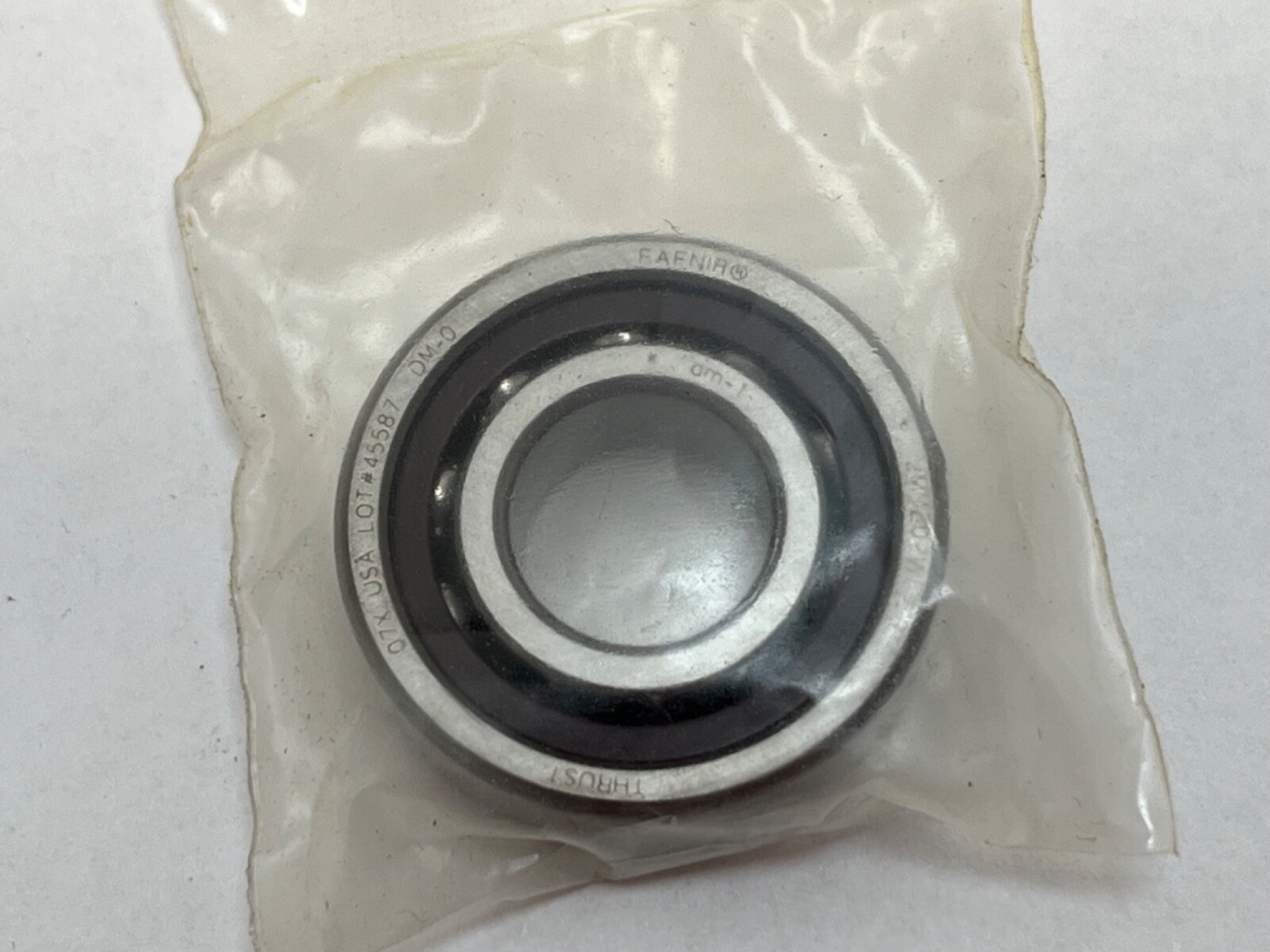

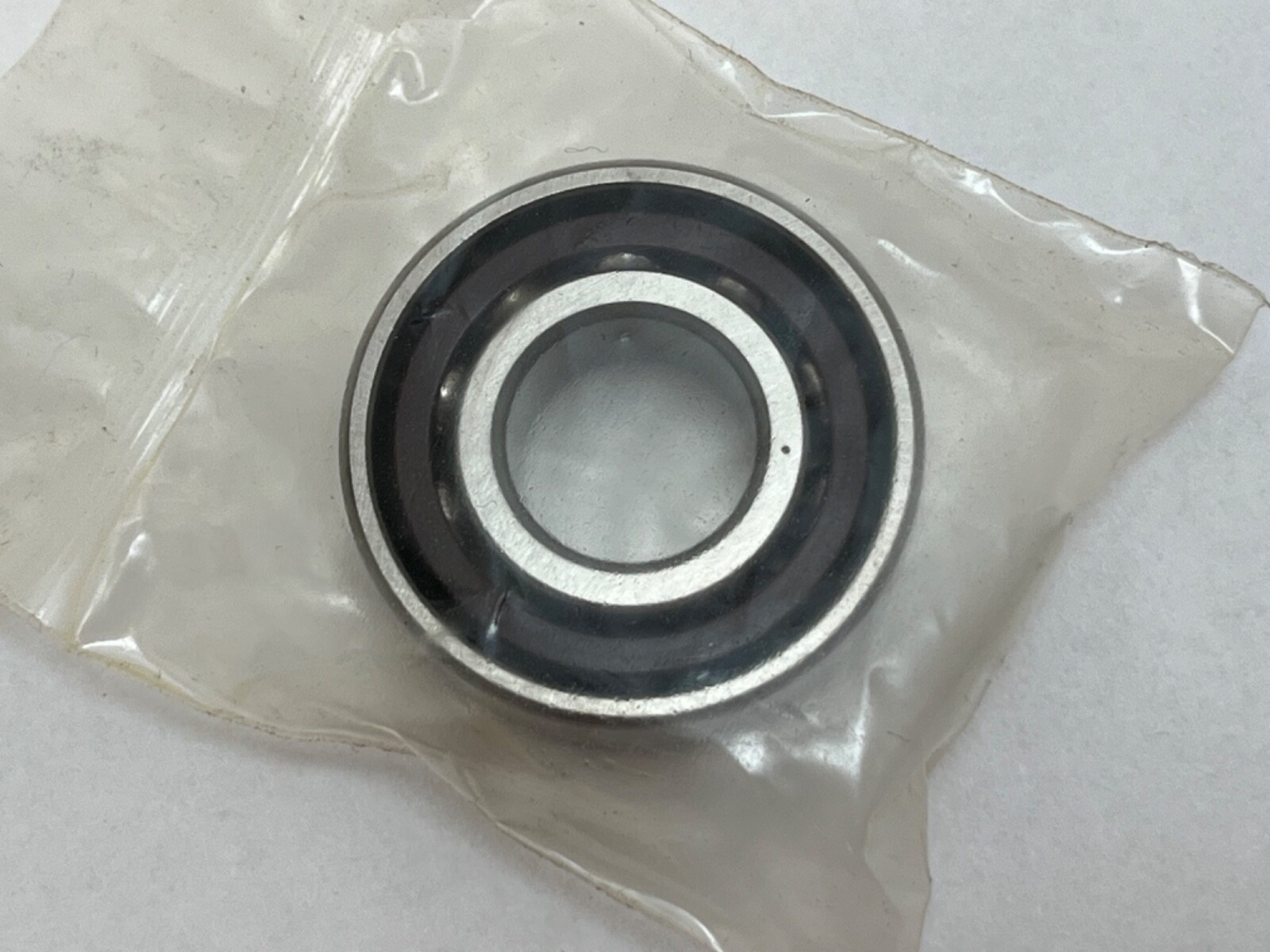

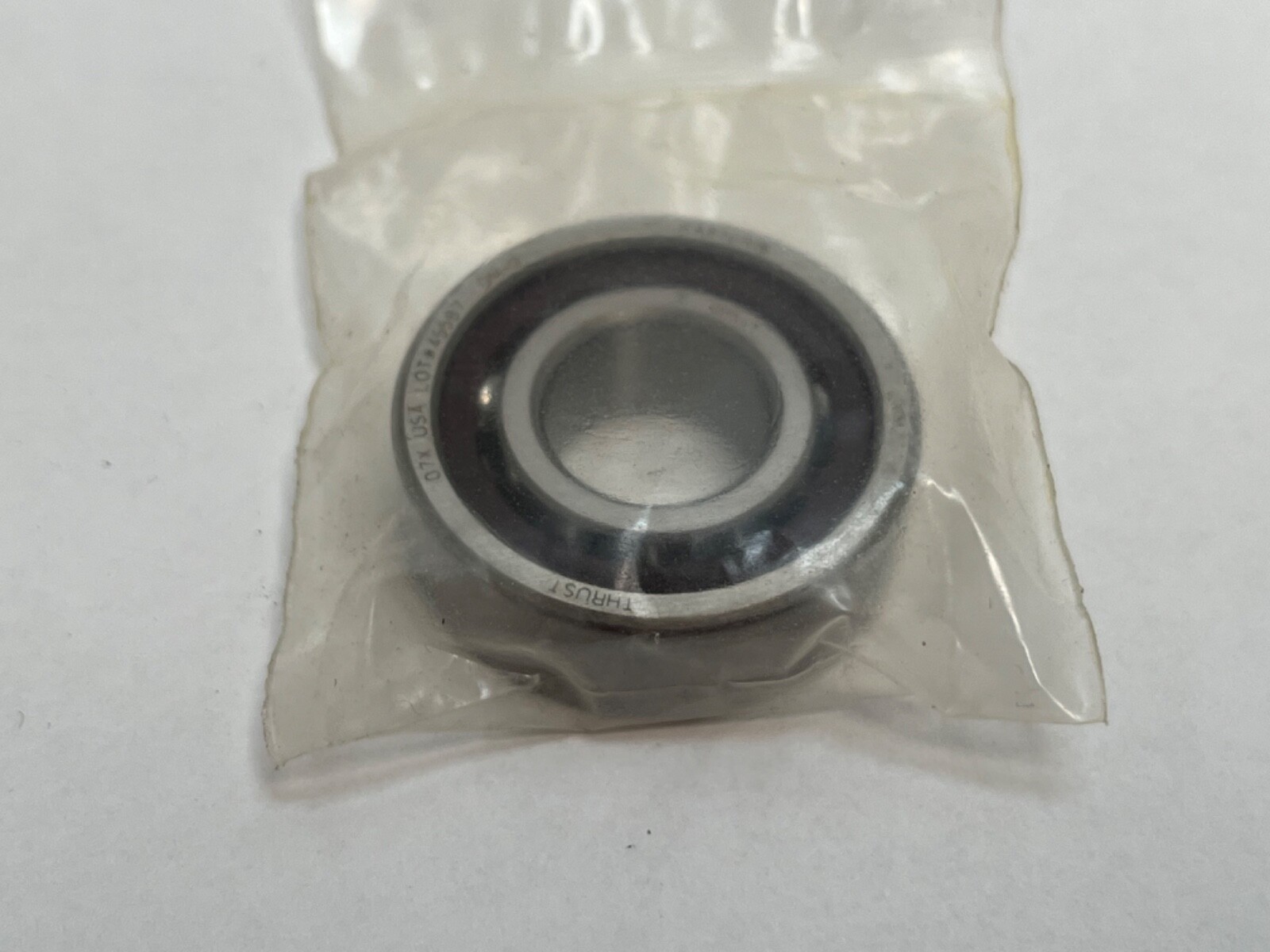

Timken Fafnir 2MM202WI angular contact ball bearing, 15 x 35 x 11 mm, 15-degree contact angle, ABEC 7 / P4. Open, straight bore, single row spindle bearing.
List Price
$43.46
1 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | Timken |
|---|---|
| MPN | 2MM202WI |
| GTIN | 087796069992 |
| Model | 2MM 202 WI / B 7202 C T P4 |
| Bearing Type | Angular Contact Ball Bearing, Open |
| ID | 15 mm |
| OD | 35 mm |
| Width | 11mm |
| Material | Steel |
|---|---|
| Series | 2MM200WI |
| Precision Rating | ABEC 7 / P4 |
| Rolling Elements | Ball |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Snap Ring Included | No |
| Harmonization Code | 8482.10 |
| Contact Angle | 15° |
| Base Number | 2MM202WI |
| Overall Width | 11 mm |
| Mpn Variants | 2MM202WI; 2MM-202-WI; 2MM 202 WI; 2MM202-WI; 2MM202WICR; 2MM202WIDUL |
| Compatible With Replaces | ISO 7202 angular contact ball bearing, 15 x 35 x 11 mm, 15° contact angle |
| Precision Class | ABEC 7 / P4 |
| Additional Attributes | Single row; low shoulder both rings (WI); open; straight bore; Timken Fafnir 200WI series |
| Design Units | Metric |
| Industry Terms | super precision angular contact bearing; spindle bearing; machine tool spindle bearing; 15 degree angular contact bearing; ISO 7202-C; Fafnir 200WI series |
| Common Misspellings | Timkin 2MM202WI; Fafnr 2MM202WI; 2MM 202WI; 2 MM 202 W I; Timken 2MM-202WI |
| Application Types | Machine tool spindles; grinding spindles; milling and boring spindles; high-speed precision rotating equipment |
| Cross Reference 1 | SKF 7202 CD/P4A |
|---|---|
| Cross Reference 2 | FAG B7202-C-T-P4S |
| Cross Reference 3 | NSK 7202CTYNSULP4 |
| Cross Reference 4 | NTN 7202CP4 |
Timken Fafnir 2MM202WI super-precision angular contact ball bearing. Single row, open, straight bore, 15 x 35 x 11 mm. Unit Quantity: 1 Pc.
2MM — Fafnir super-precision ball bearing prefix: 15° contact angle, P4 precision (ABEC 7).
202 — ISO 7202 bore and envelope size, 15 x 35 x 11 mm.
WI — low shoulder on both rings, the form used for universally ground duplex mounting.
Bore Diameter: 15 mm. Outside Diameter: 35 mm. Overall Width: 11 mm. Contact Angle: 15°. Precision Class: ABEC 7 / P4. Closure Type: Open. Bore Type: Straight. Number Of Rows: 1. Rolling Elements: Ball.
Envelope 15 x 35 x 11 mm to ISO 7202. Open on both faces for oil, oil-air or grease feed. Fafnir grinds the 2MM…WI range for matched duplex, triplex and quad arrangements, written as DU, TU and QU variants of the same number.
Cross-references: SKF 7202 CD/P4A, FAG B7202-C-T-P4S, NSK 7202CTYNSULP4, NTN 7202CP4. The 15° ISO designation is 7202-C. Also written 2MM202WI, 2MM-202-WI and 2MM 202 WI. CAD model and data sheet: available from Timken (cad.timken.com).
15 degrees. The 2MM prefix designates the 15° Fafnir super-precision series.
Bore Diameter: 15 mm. Outside Diameter: 35 mm. Overall Width: 11 mm.
ISO 7202-C, the 15° angular contact size 15 x 35 x 11 mm.
