Super-precision angular contact ball bearing, 25 x 52 x 15 mm, 25° contact angle, ABEC 7 / P4, phenolic cage, open. One piece of a universal pair.
List Price
$42.70
Out of stock
Out of stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
This item is currently out of stock
Here are some other options that might fit your project — cross-referenced equivalents and similar parts we have in stock and ready to ship. Need help choosing? Call 585-295-7880.
Super Precision Angular Contact Ball Bearing 25x52x15 mm, 15 Degree Contact Angle, Stratified Phenolic Cage, Universal Duplex Pair Medium Preload, ISO Class 4$100.31
Angular Contact Ball Bearing – 25 mm ID, 52 mm OD, 15 mm Width, Open, 40° Contact Angle, Polyamide Cage, Universally Matchable$33.14
Angular Contact Ball Bearing – 25 mm ID x 52 mm OD x 15 mm, 40° Contact Angle, Maximum Capacity, Pressed Brass Cage$42.31
Angular Contact Ball Bearing — 25 mm ID, 52 mm OD, 15 mm Width, 40° Contact Angle, Universal Flush Ground, C3$52.99| MFR / Brand | SNR |
|---|---|
| MPN | 7205HDUJX4 |
| Model | 7205A5/ACD 7205E T DU P4 / 3MM205WI CR DU / 7205 H DU JX4 |
| Bearing Type | Angular Contact Ball Bearing, Open |
| ID | 25 mm |
| OD | 52 mm |
| Width | 15 mm |
| Series | 7200 |
|---|---|
| Material | Chrome Steel |
| Lubricant | Grease or oil |
| Base Number | 7205 |
| Bore Shaft Size | 25 mm |
| Mpn Variants | 7205-E-T-DU-P4, 7205-H-DU-JX4, 3MM205WI CR DU, 7205A5, 7205ACD |
| Rolling Elements | Ball |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Snap Ring Included | No |
| Part Number | 7205HDUJX4 |

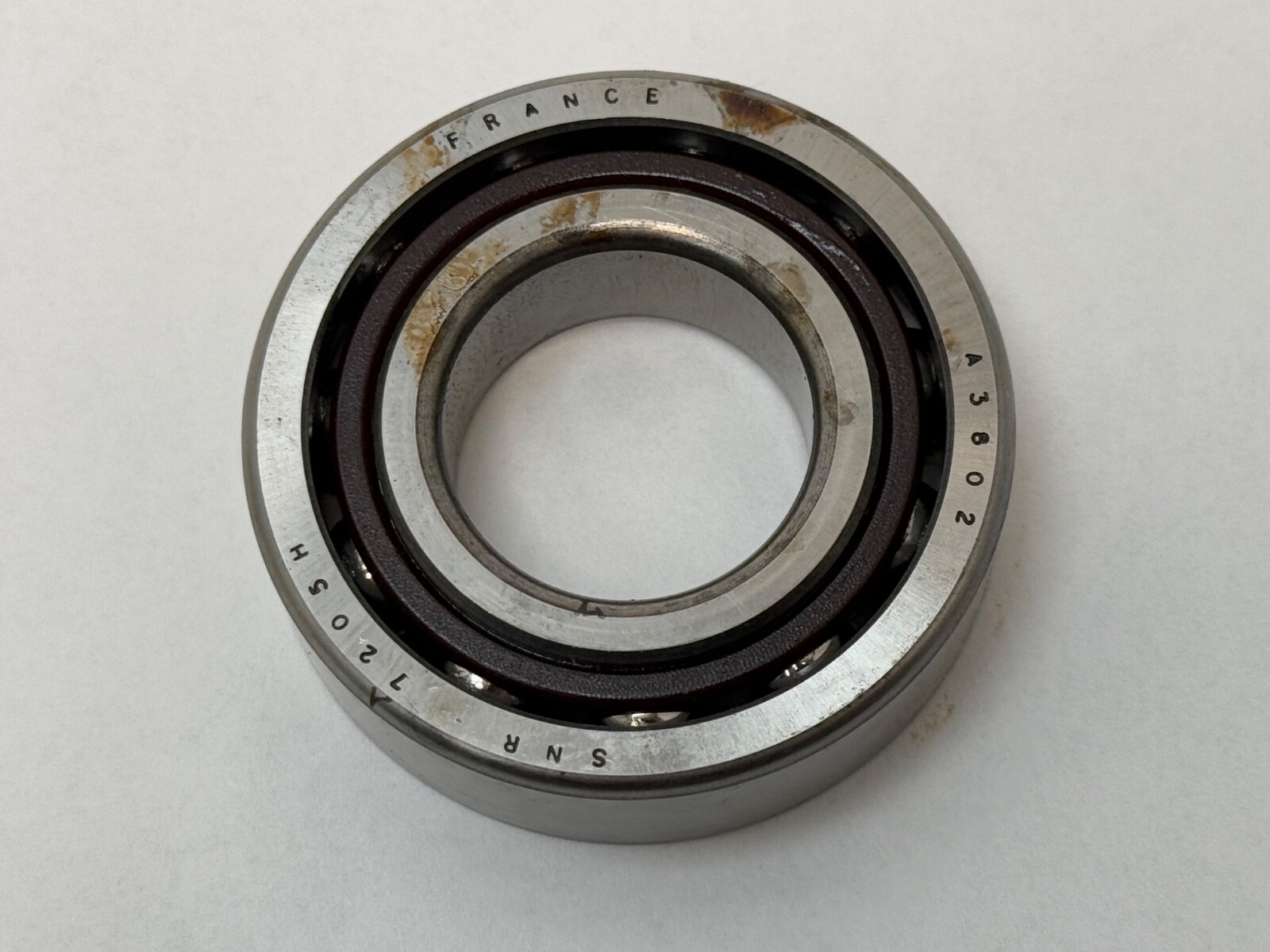

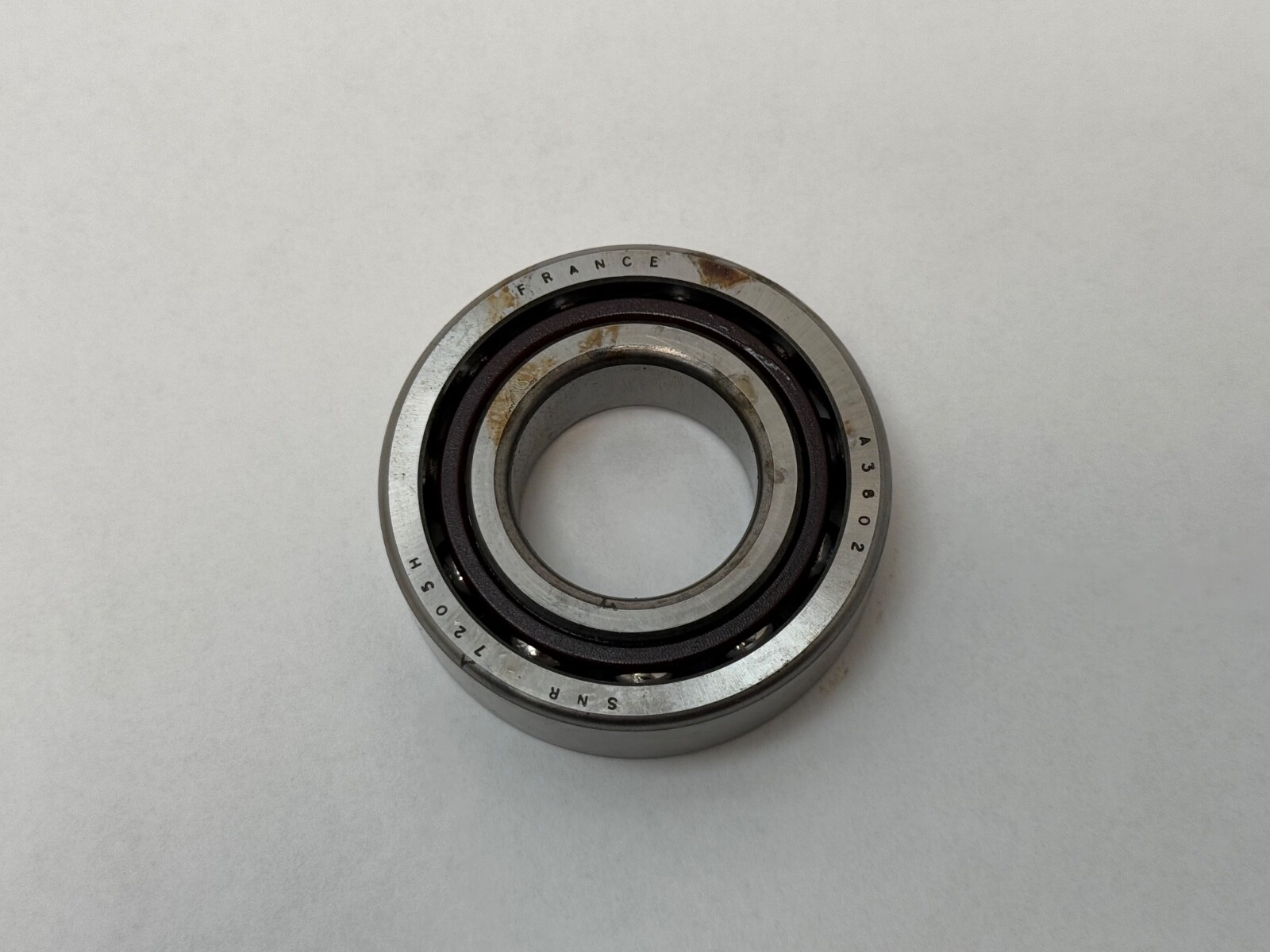

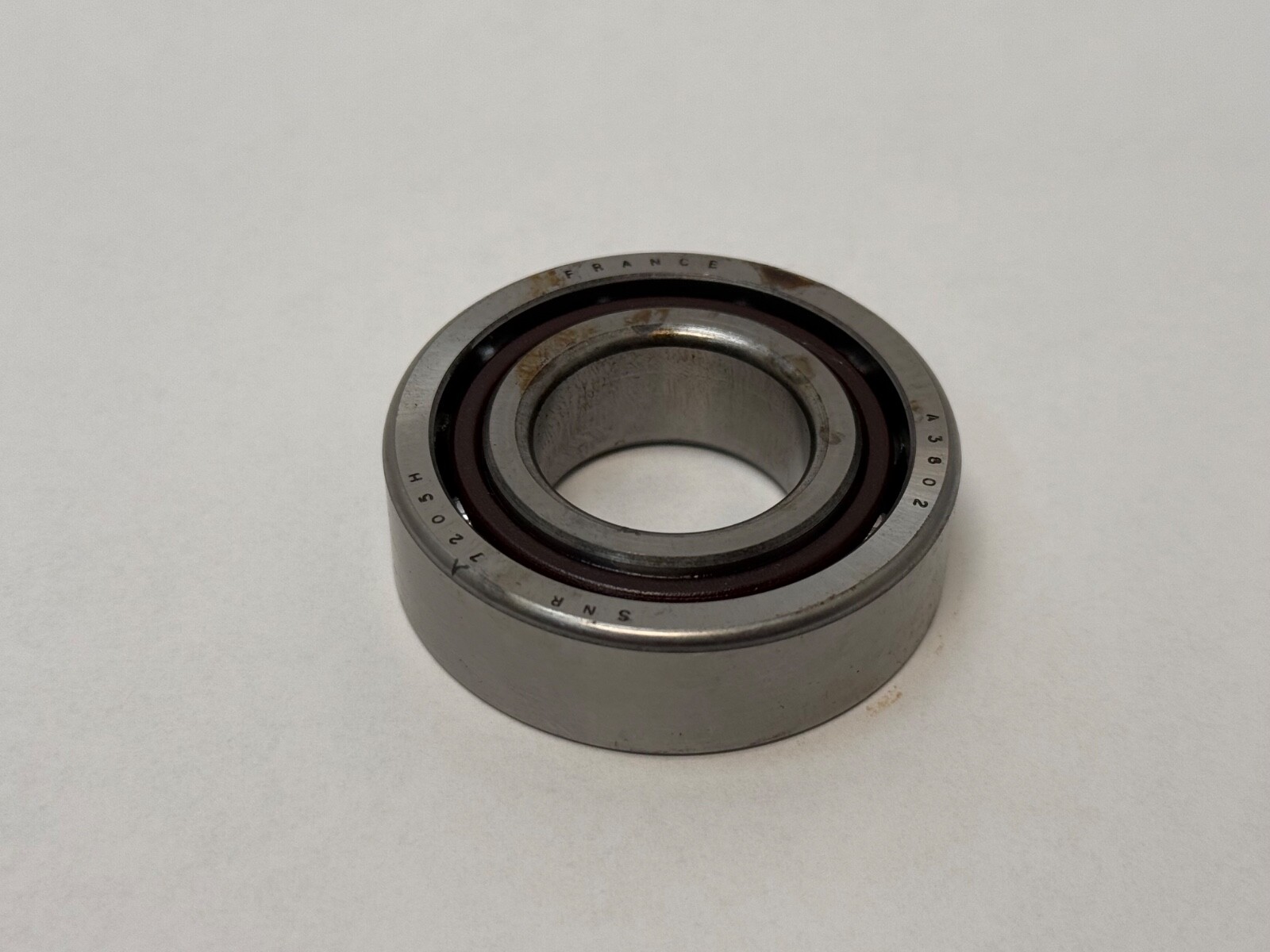

SNR 7205HDUJX4 super-precision angular contact ball bearing. Bore: 25 mm. Outside Diameter: 52 mm. Overall Width: 15 mm. Series: 7200. Number Of Rows: 1. Rolling Elements: Ball. Bearing Material: Chrome steel. Closure Type: Open. Bore Type: Straight.
Contact Angle: 25°. Precision Class: ABEC 7 / P4. Cage Material: Phenolic. Cage Type: Machined, outer-ring land-riding. Mounting Arrangement: Universal. Base Number: 7205. Part Number: 7205HDUJX4.
A 25° contact angle carries more thrust and less speed than a 15° execution on the same envelope, which suits a shaft taking a substantial axial load. ABEC 7 / P4 gives tight running accuracy and close shaft location. Item Weight: 0.29 lbs. Max Temp: 120°C.

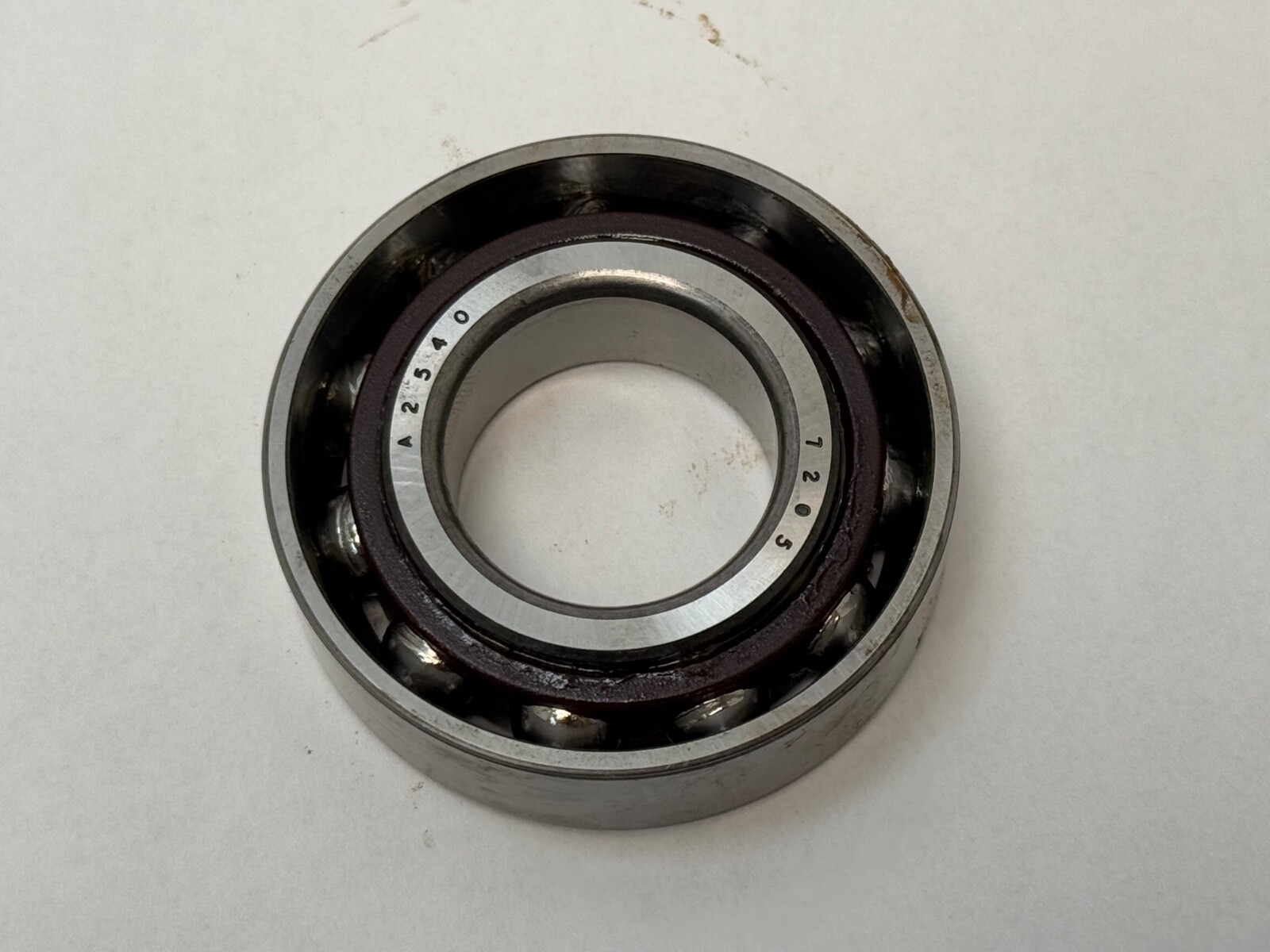

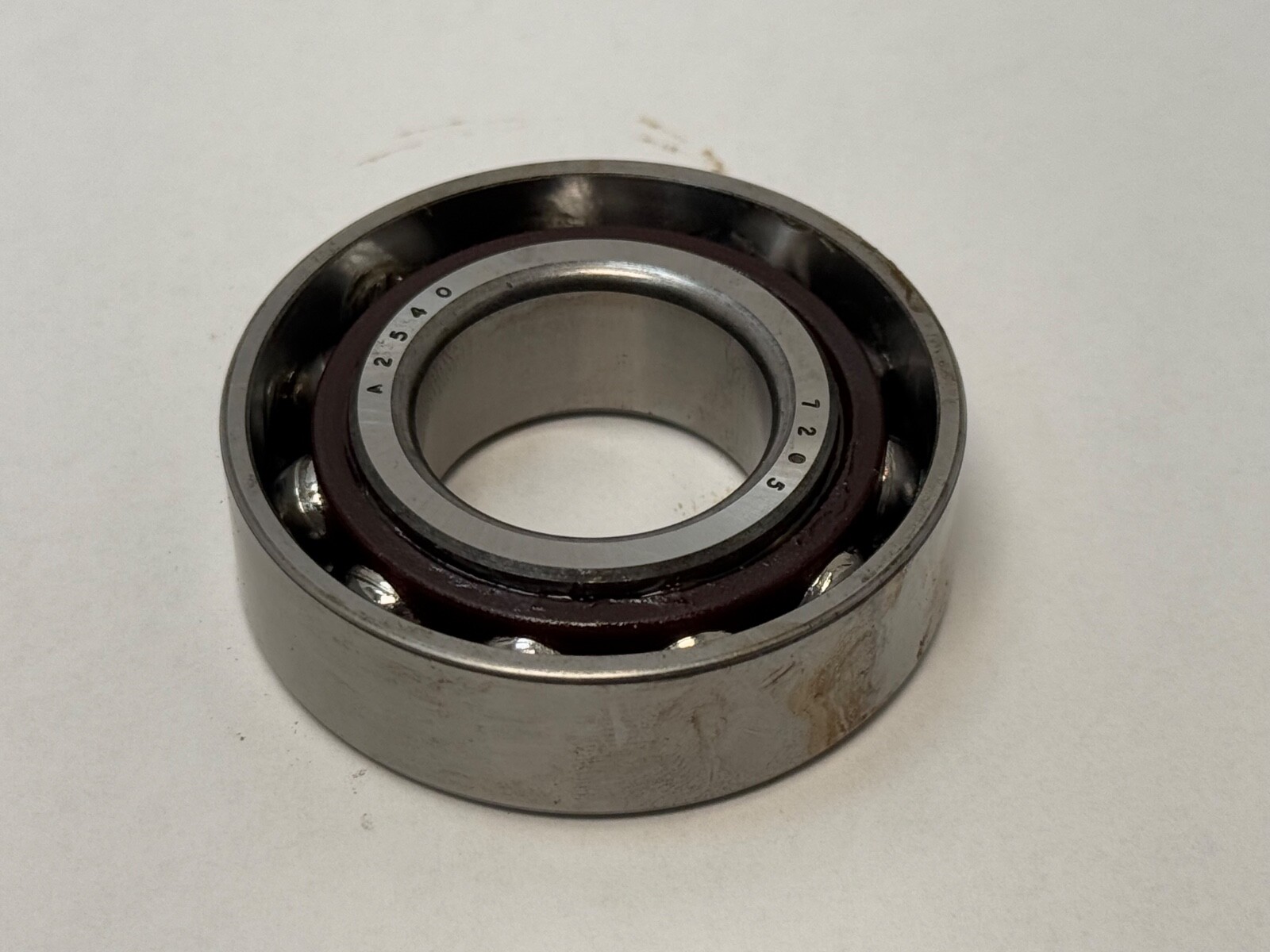

The machined phenolic cage is guided on the outer-ring land, which keeps it stable at high speed and gives it low mass. Lubricant: grease or oil.

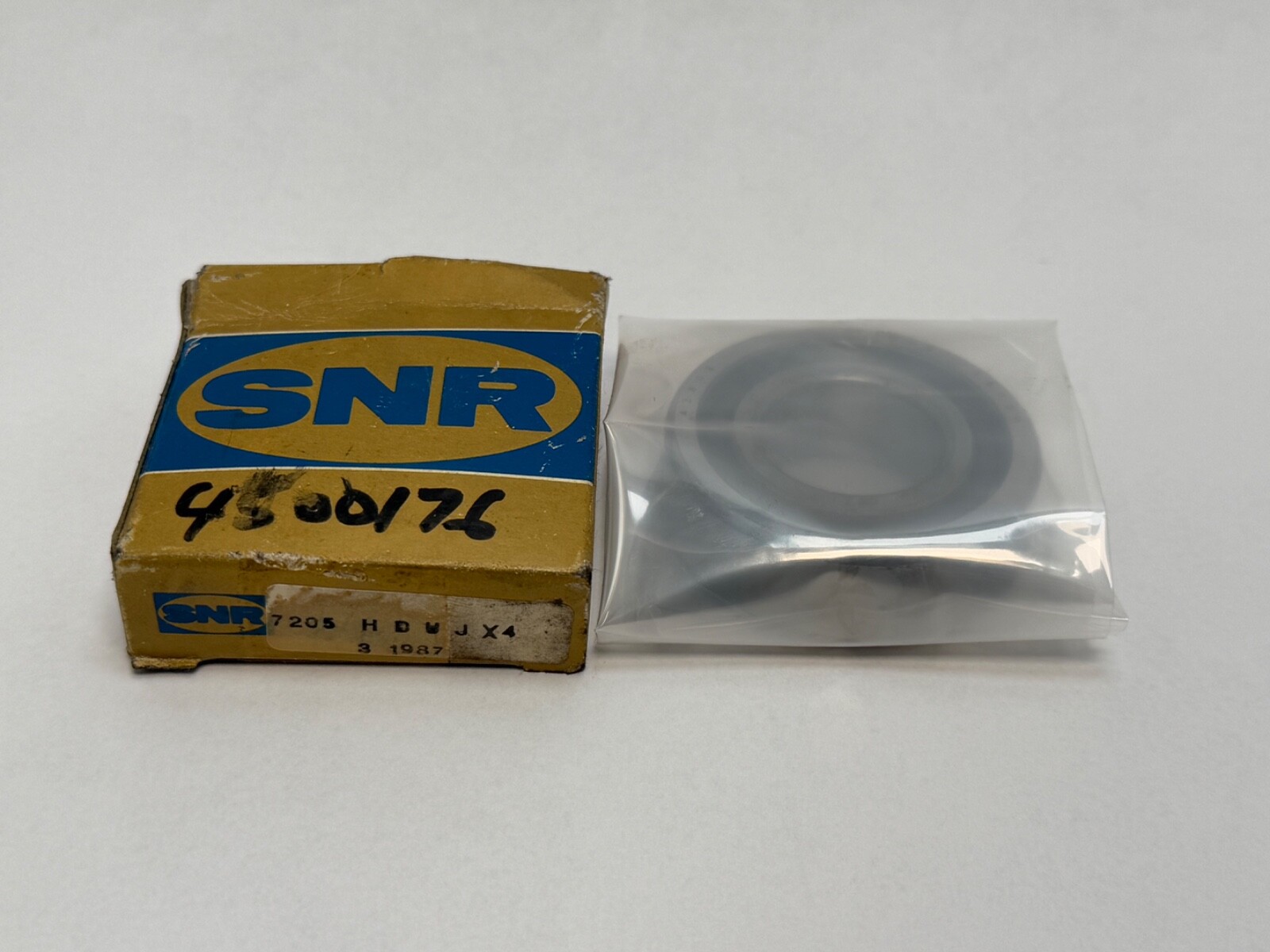

Unit Quantity: 1 Pc. One bearing from a factory-matched universal pair. Universally ground faces let it run alone or be set against another universally ground 7205H in back-to-back, face-to-face or tandem.
MPN Variants: 7205-E-T-DU-P4, 7205-H-DU-JX4, 3MM205WI CR DU, 7205A5, 7205ACD.
