Availability:
2 in stock
Super precision angular contact ball bearing pair, 100 x 150 x 24 mm each, 15 degree contact angle, light preload, ABEC 7, phenolic cage.
List Price
$667.64
2 in stock
2 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
Also Available From:
| MFR / Brand | SNR |
|---|---|
| MPN | 7020CVDUJ74 |
| Model | 7020 C V DU J74 / 7020 C T DUL P4 / 2MM9120WI CR DUL |
| Bearing Type | Angular Contact Ball Bearing, Open |
| ID | 100 mm |
| OD | 150 mm |
| Width | 24 mm |
| Material | Bearing Steel |
|---|---|
| Series | 7000 |
| Condition | New |
| Lubricant | Oil |
| Base Number | 7020 |
| Industry Terms | spindle bearing pair, super precision bearing set, machine tool bearing, 15 degree angular contact duplex |
| Total Width | 48 mm for the pair |
| Bore Shaft Size | 100 mm |
| Mpn Variants | 7020CVDUJ74, 7020.C.V.DU.J74, 7020-C-V-DU-J74, 7020 C V DU J74 |
| Additional Attributes | Load centre a: 28.5 mm; shaft shoulder da min 108.5 mm; housing shoulder Da max 141.5 mm; three-bearing width 72 mm; four-bearing width 96 mm |
| Min Temp | -40 °C |
| Cage Type | Machined phenolic |
| Dynamic Load Rating | 75.5 kN per bearing |
| Static Load Rating | 77.0 kN per bearing |
| Precision Rating | ABEC 7 / P4 (ISO Class 4) |
| Rolling Elements | Steel balls |
| Max Temp | 120 °C |
| Item Weight | 2.50 lbs |
| Cage Material | Phenolic |
| Number Of Rows | 1 per bearing |
| Bore Type | Straight |
| Snap Ring Included | Without Snap Ring |
| Internal Clearance | N/A - preloaded |
| Harmonization Code | 8482.10.50.28 |
| Contact Angle | 15° |
| Preload | Light (J74) |
| Mounting Arrangement | Universally matchable (DB, DF or DT) |
| Bearing Material | High carbon chrome steel |
| Part Number | 7020CVDUJ74 |
| Cross Reference 1 | SKF 7020 CD/P4DGA |
|---|---|
| Cross Reference 2 | NSK 7020CTYNDULP4 (related size, polyamide cage) |
| Cross Reference 3 | Fafnir 2MM9120WI CR DUL |
| Cross Reference 4 | 7020C-T-DUL-P4 |

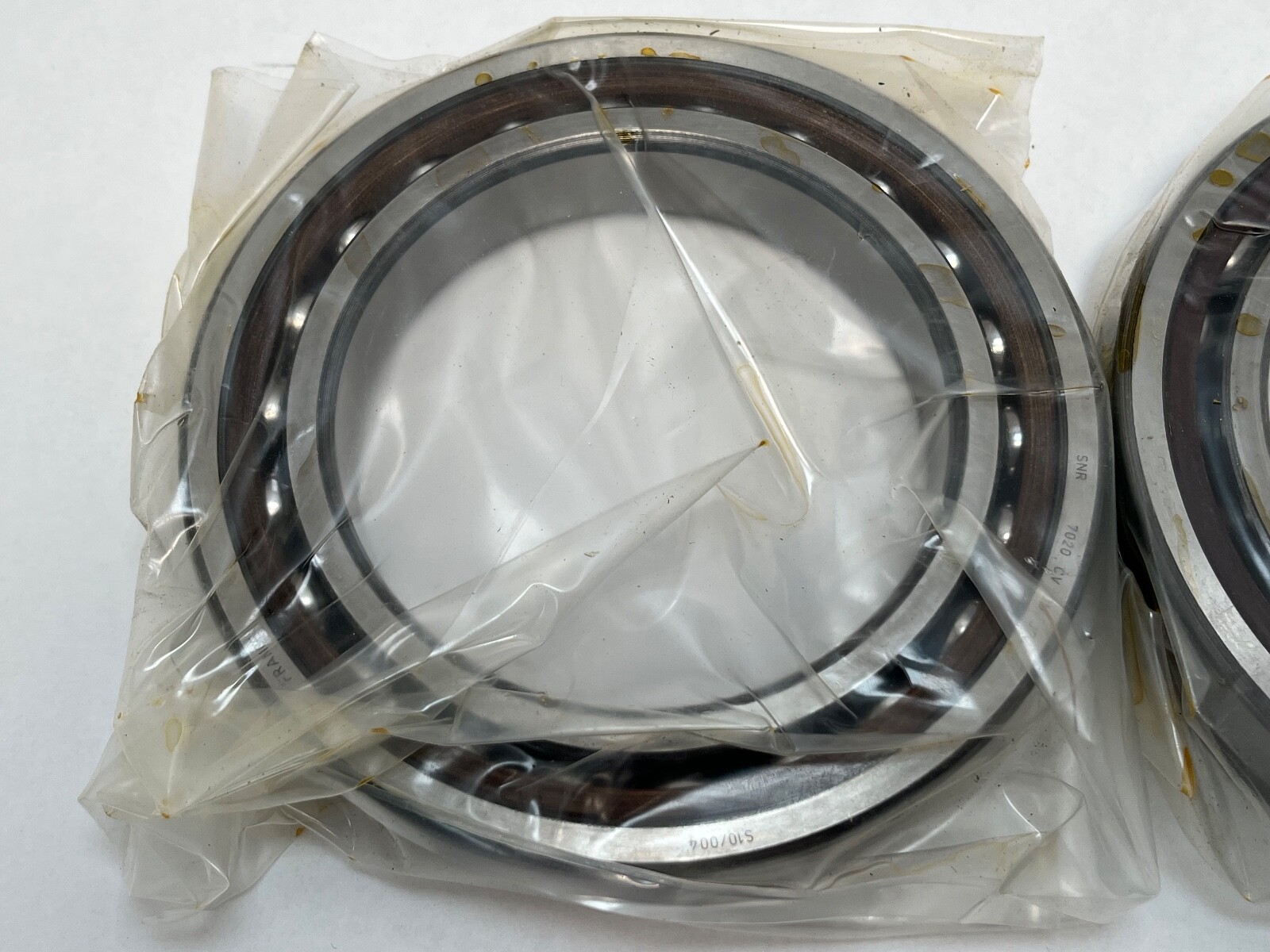

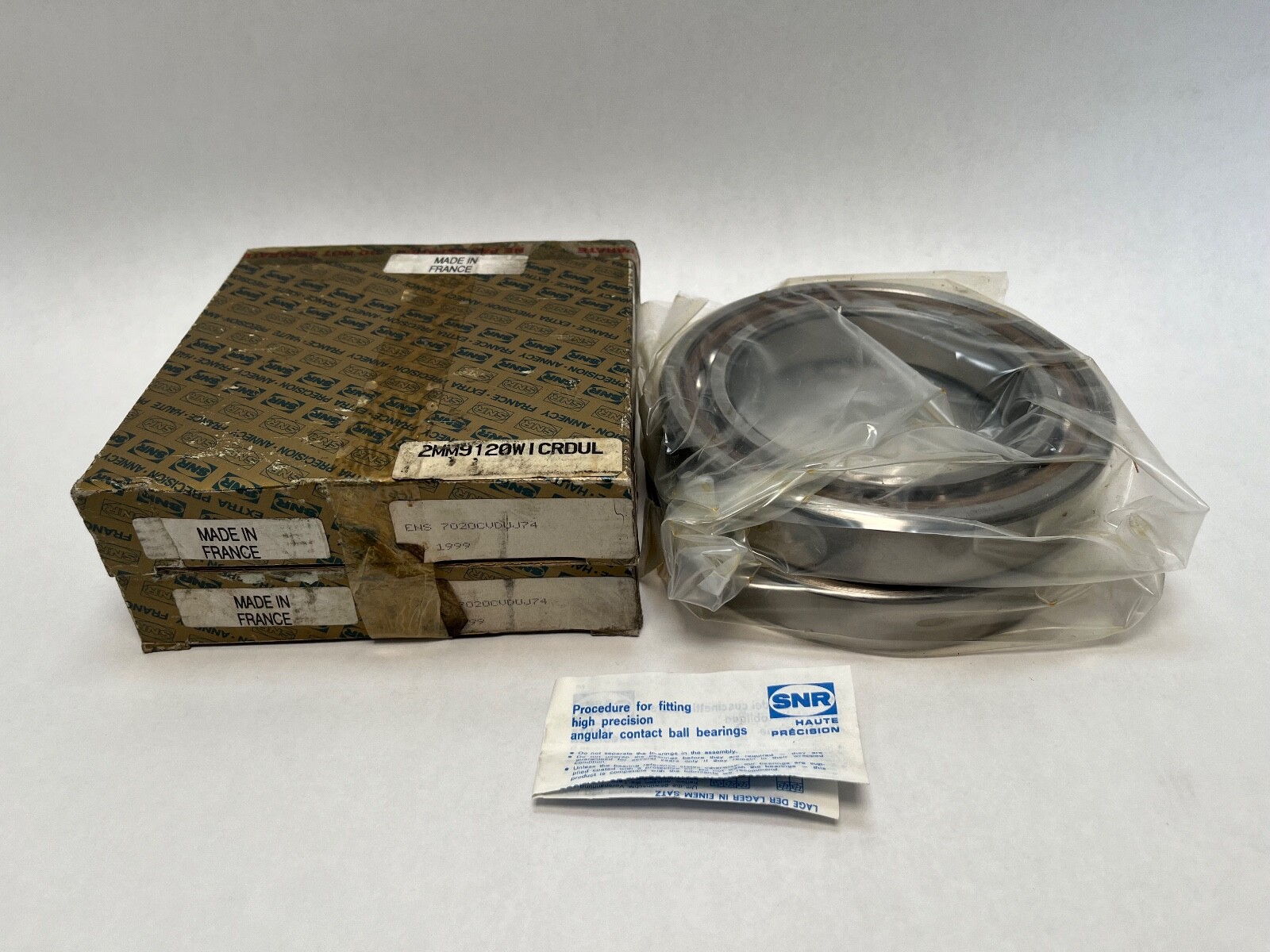

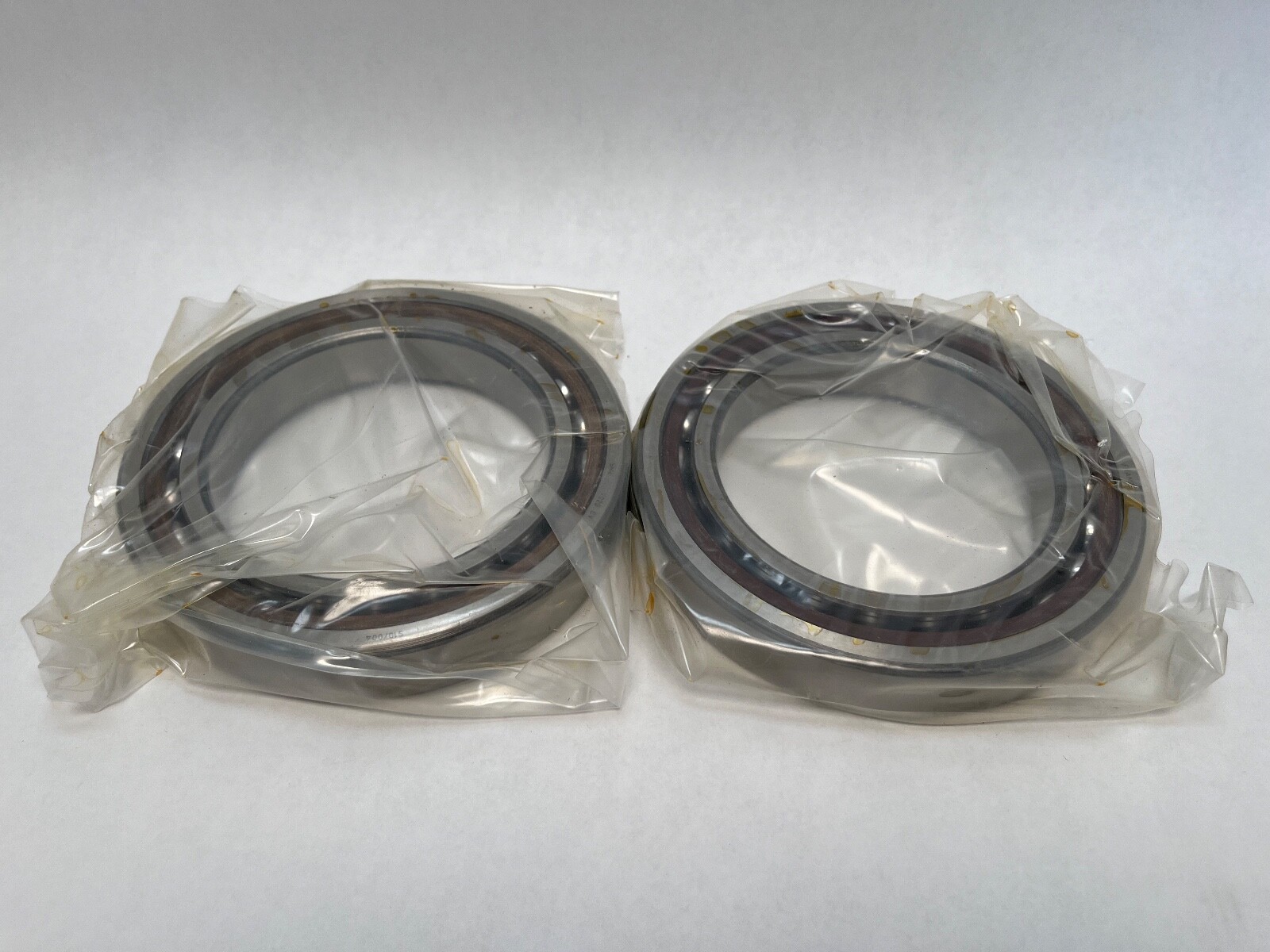

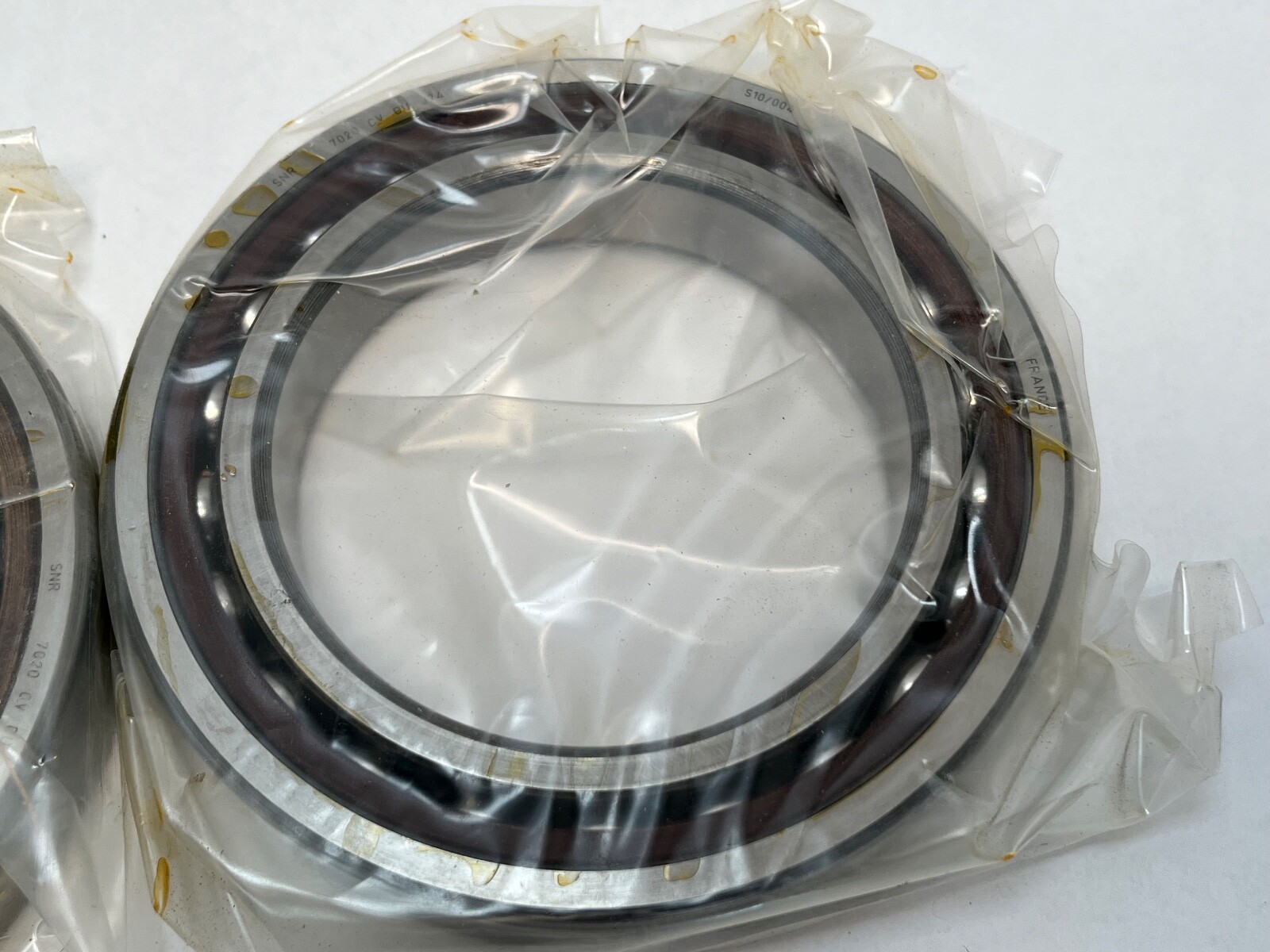

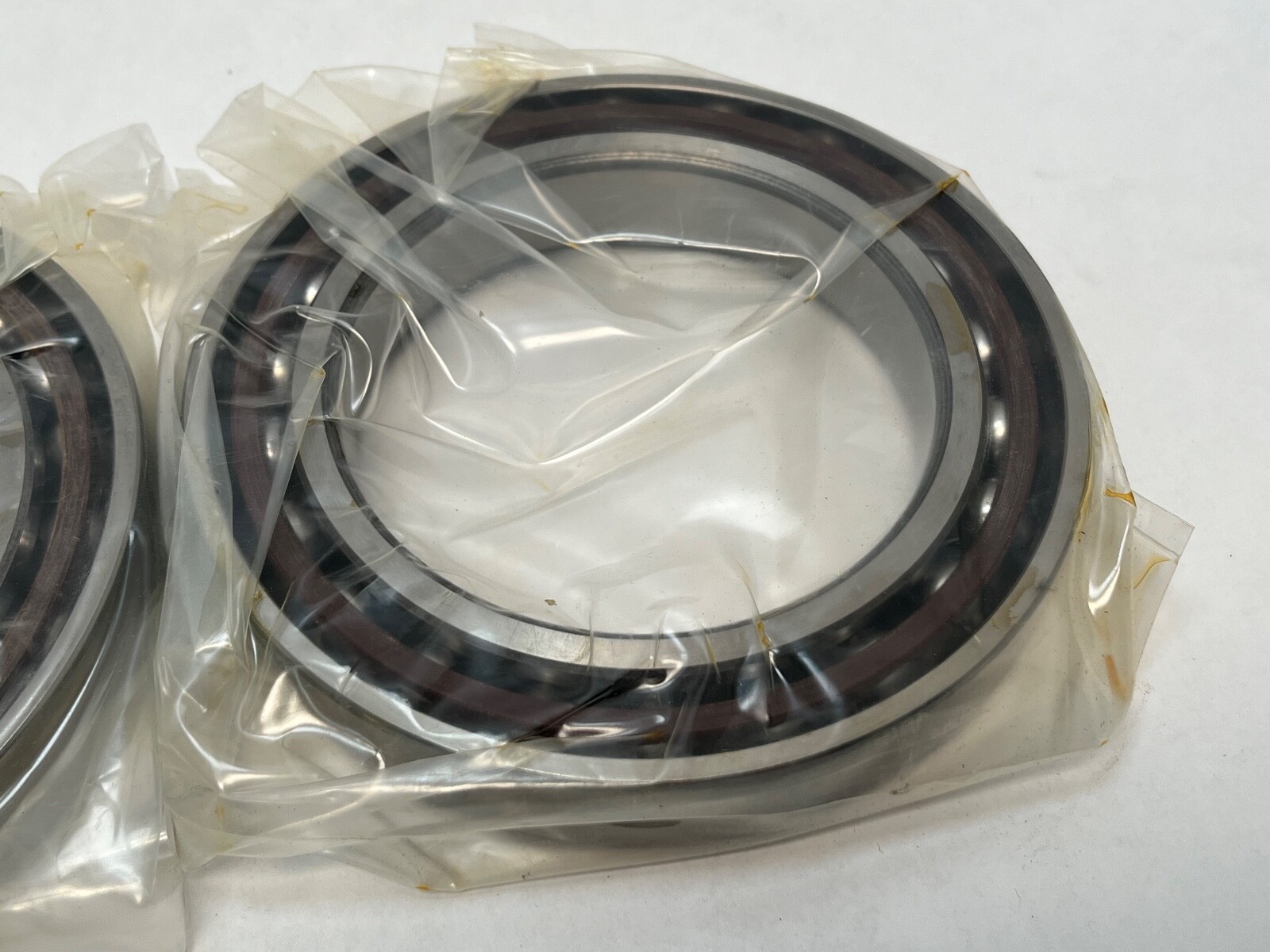

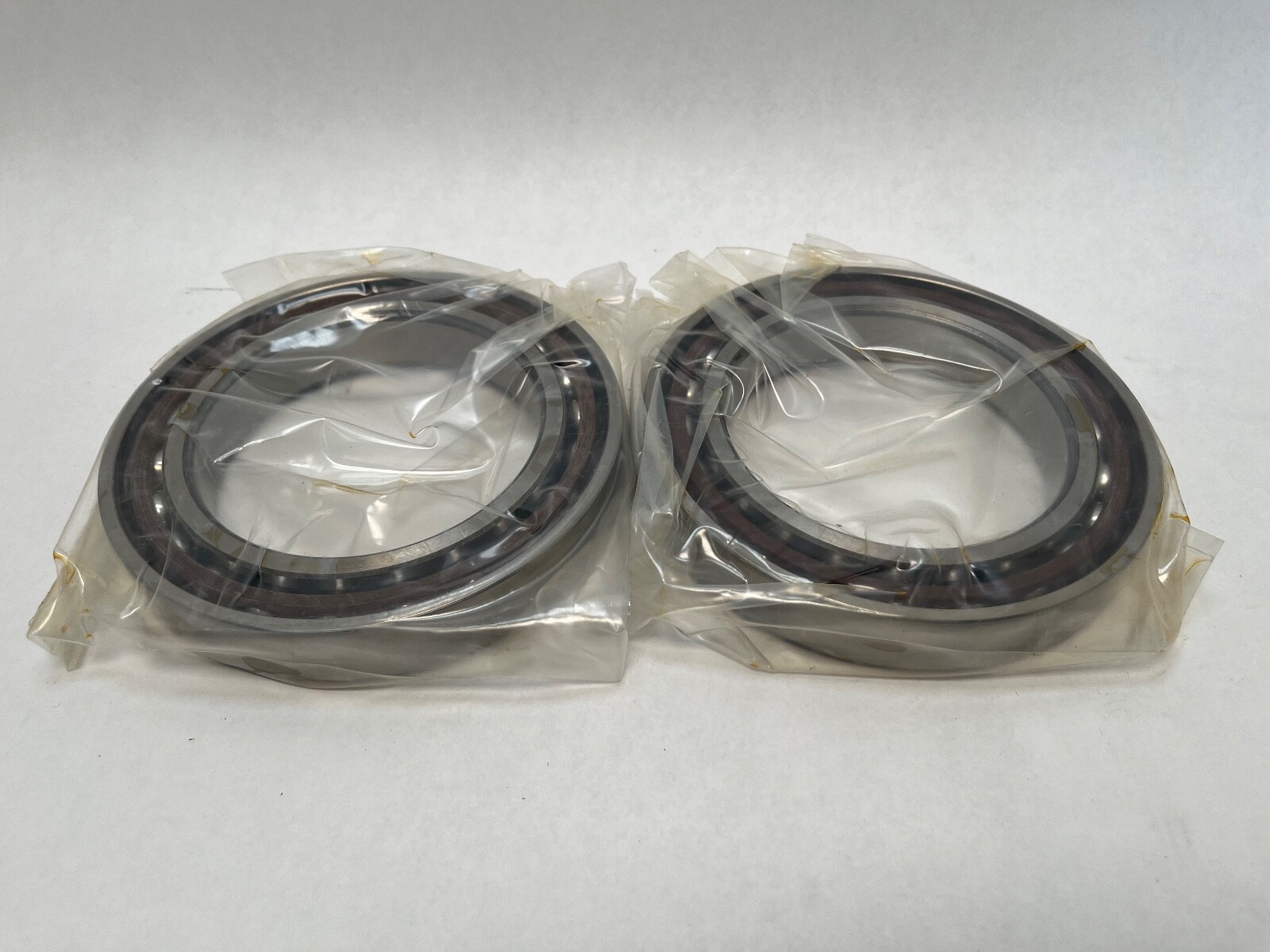

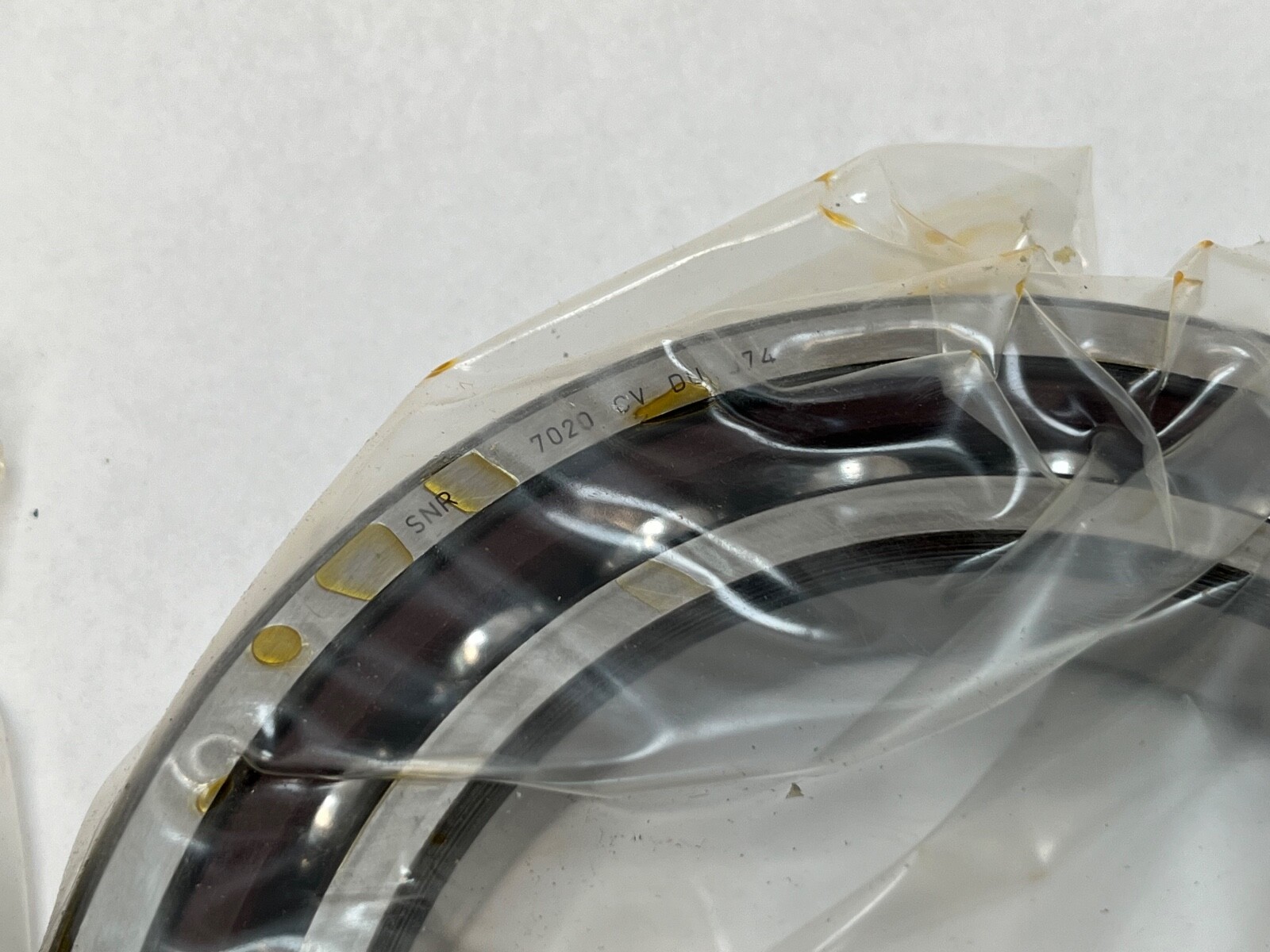

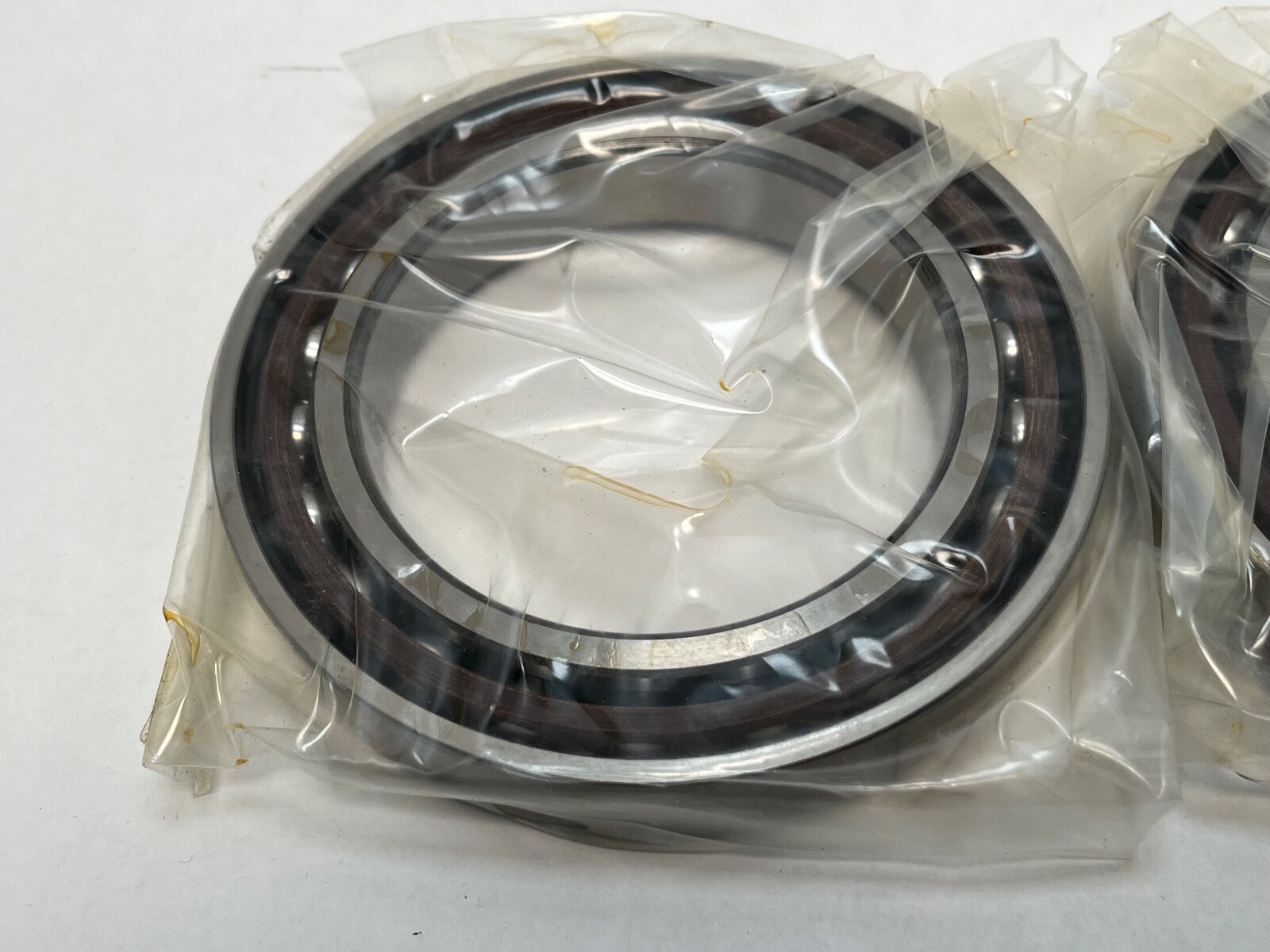

SNR 7020CVDUJ74 is a matched set of two super precision single-row angular contact ball bearings. Series: 7000. Bore: 100 mm. Outside Diameter: 150 mm. Width: 24 mm per bearing. Contact Angle: 15°. Precision: ISO Class 4, ABEC 7. Cage: machined phenolic. Closure: open. Searchable forms of the designation are 7020CVDUJ74, 7020.C.V.DU.J74, 7020-C-V-DU-J74 and 7020 C V DU J74.
Contact Angle: 15°. Cage: machined phenolic. Matching: universally matchable, so the bearings pair back-to-back, face-to-face or in tandem. Preload: light. Precision Class: ISO 4, ABEC 7.
A 15° contact angle favours speed and radial capacity over thrust capacity. Light preload gives defined ball contact with low heat generation for high-speed spindle service. ISO Class 4 accuracy lowers runout and vibration in a spindle. A machined phenolic cage is light, damps well and runs quietly at speed.
Dynamic Load Rating: 75.5 kN per bearing. Static Load Rating: 77.0 kN per bearing. Limiting Speed: 6,400 rpm on grease, 8,600 rpm on oil. Load centre: 28.5 mm from the bearing face. Operating temperature range: -40 °C to 120 °C.
Unit Quantity: 2 Pcs. Matched pair, universally matchable. Total width of the pair mounted together: 48 mm. Three bearings measure 72 mm; four measure 96 mm.
Shaft shoulder diameter: 108.5 mm minimum. Housing shoulder diameter: 141.5 mm maximum. Maximum fillet radius at the shaft: 1.5 mm. Bore form: straight. Preload is set at manufacture, so no clearance adjustment applies at assembly.

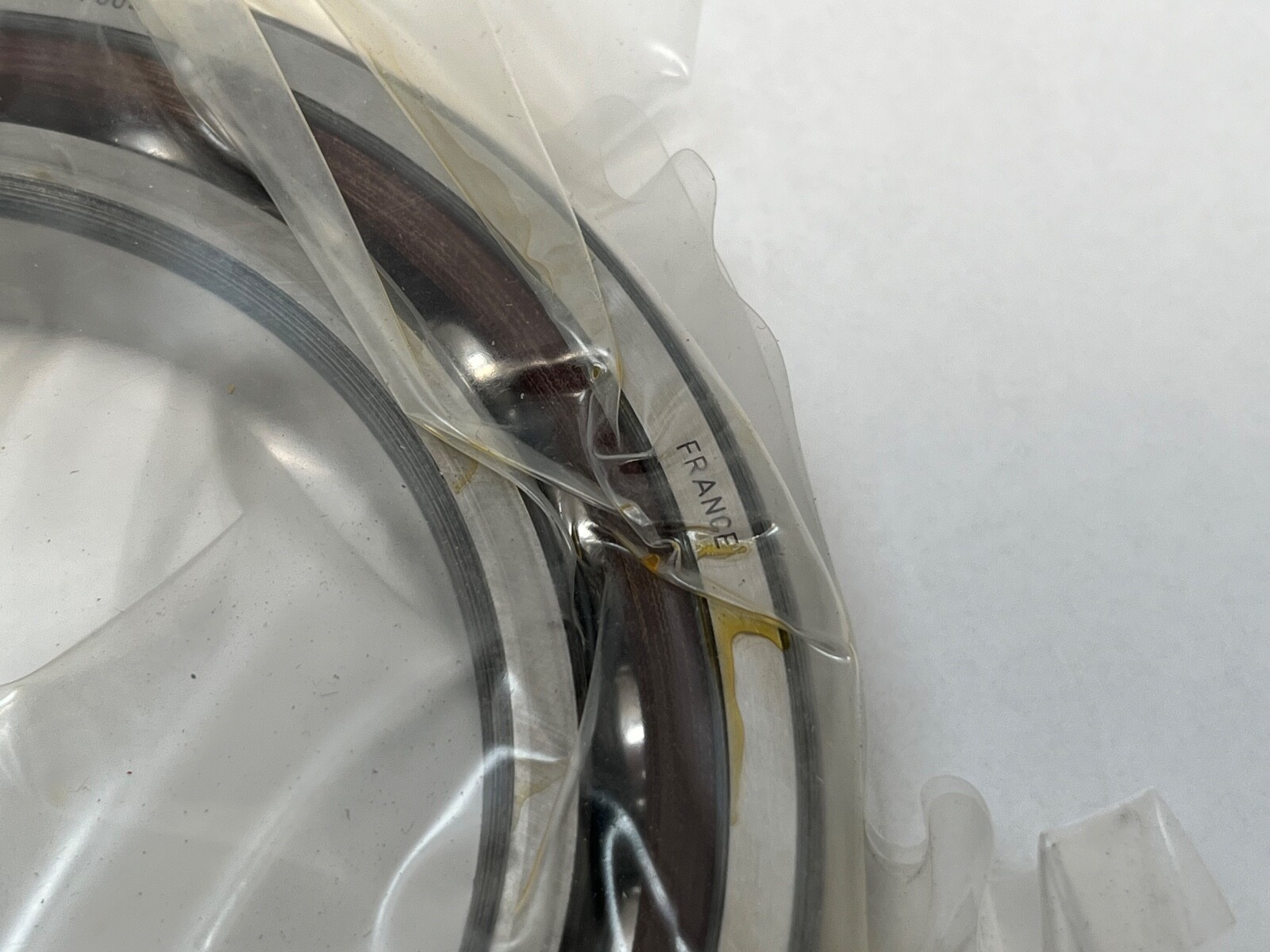

SKF 7020 CD/P4DGA is the equivalent 15° light-preload universally matchable bearing. NSK 7020CTYNDULP4 is a related size on the same envelope with a polyamide cage. Fafnir 2MM9120WI CR DUL is the equivalent inch-market designation. Country of Origin: France.
