Single-row angular contact ball bearing, 60 mm bore, 95 mm OD, 18 mm wide, 15° contact angle, light preload, P4 class, phenolic cage. Sold as 1 Pc.
List Price
$126.55
2 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | SNR |
|---|---|
| MPN | 7012CVDUJ74 |
| GTIN | 3413520197339 |
| Model | 7012C T DUL P4 / 2MM9112WI CR DUL / 7012 C V DU J74 |
| Bearing Type | Angular Contact Ball Bearing, Open |
| ID | 60 mm |
| OD | 95 mm |
| Width | 18 mm |
| Material | Bearing Steel |
|---|---|
| Series | 7000 |
| Preload | Light |
| Bore Shaft Size | 60 mm |
| Mpn Variants | 7012CVDUJ74 / 7012 C V DU J74 / 7012-C-V-DU-J74 / 7012-C-T-DUL-P4 / 2MM9112WI-CR-DUL |
| Precision Class | ABEC 7 / P4 |
| Cage Type | Outer-ring land-riding |
| Precision Rating | ABEC 7 / P4 |
| Rolling Elements | Ball |
| Cage Material | Phenolic |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Snap Ring Included | No |
| Harmonization Code | 8482.10.5028 |
| Contact Angle | 15° |
| Cross Reference 1 | FAG B7012-C-T-P4S-UL |
|---|---|
| Cross Reference 2 | Fafnir 2MM9112WI-CR-DUL |
| Cross Reference 3 | SKF 7012 CD/P4ADGA - preload class A |

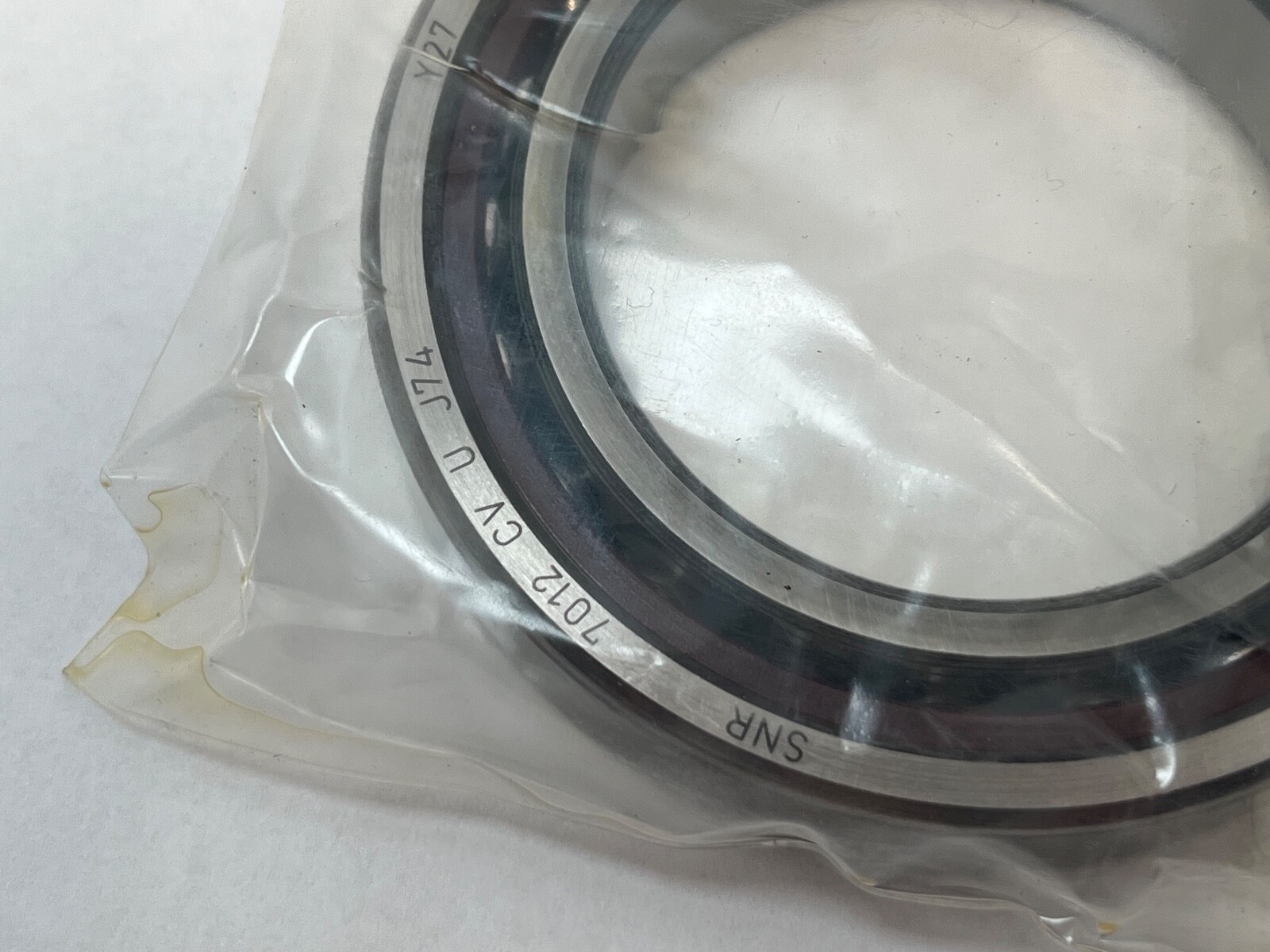

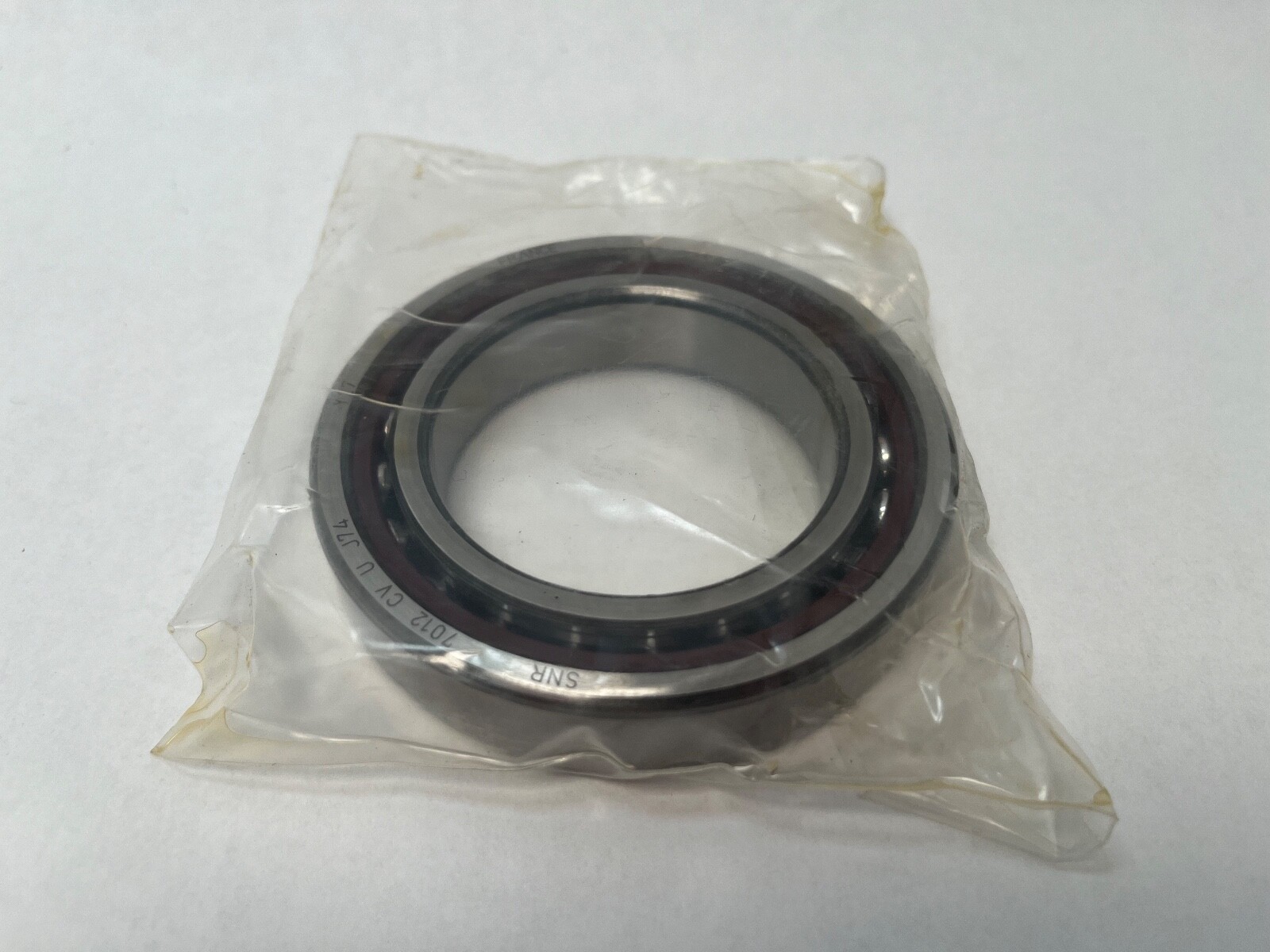

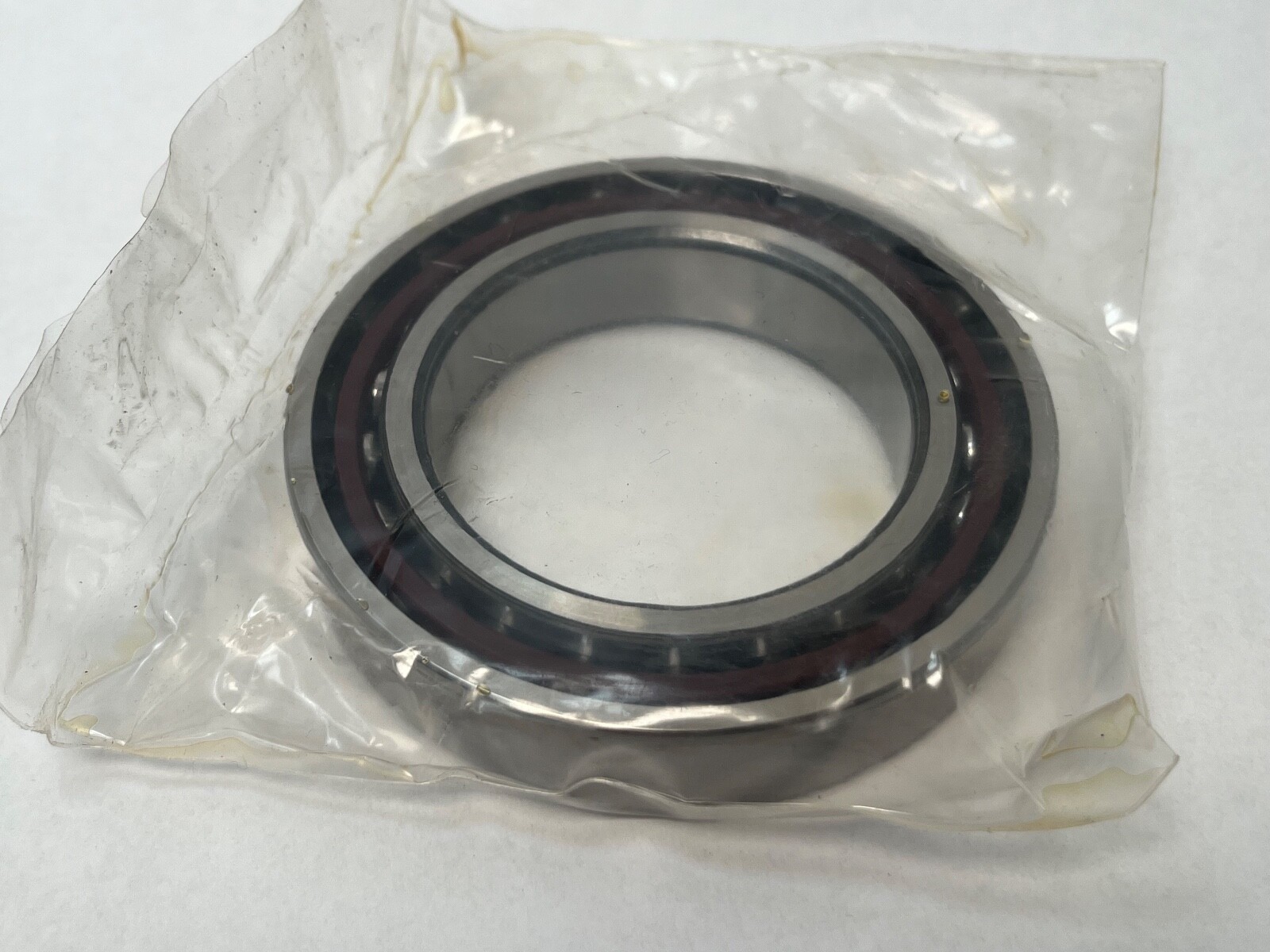

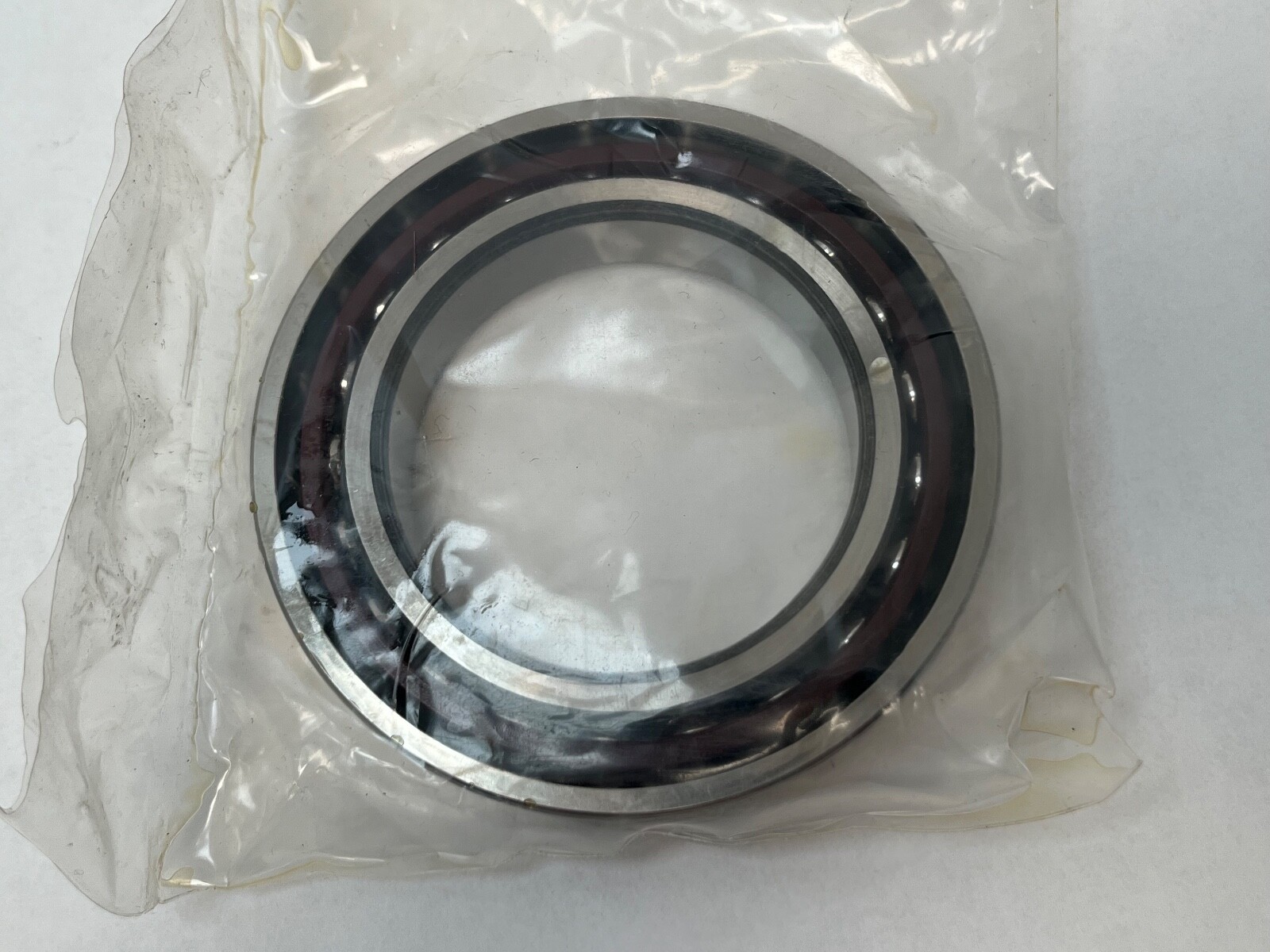

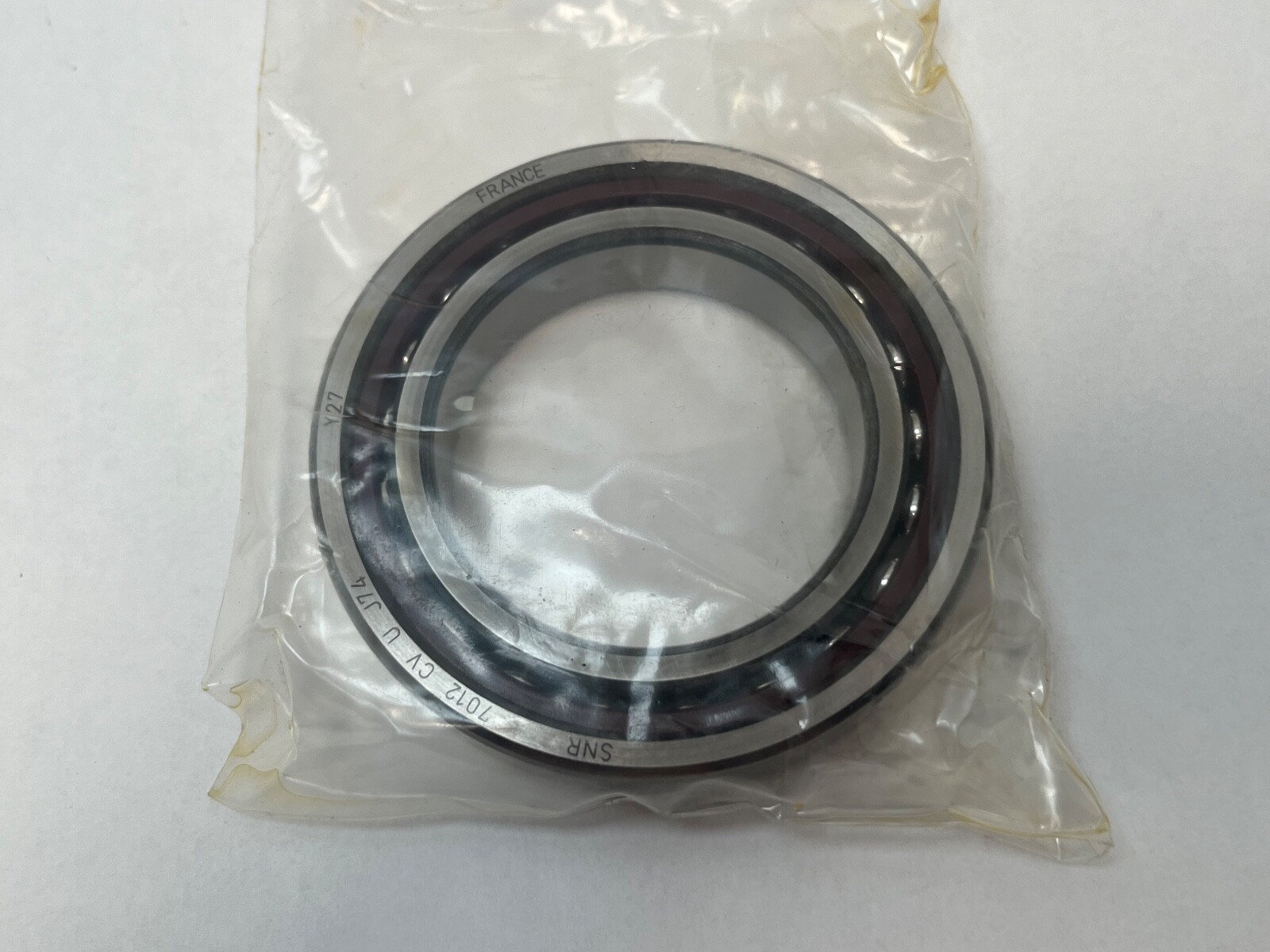

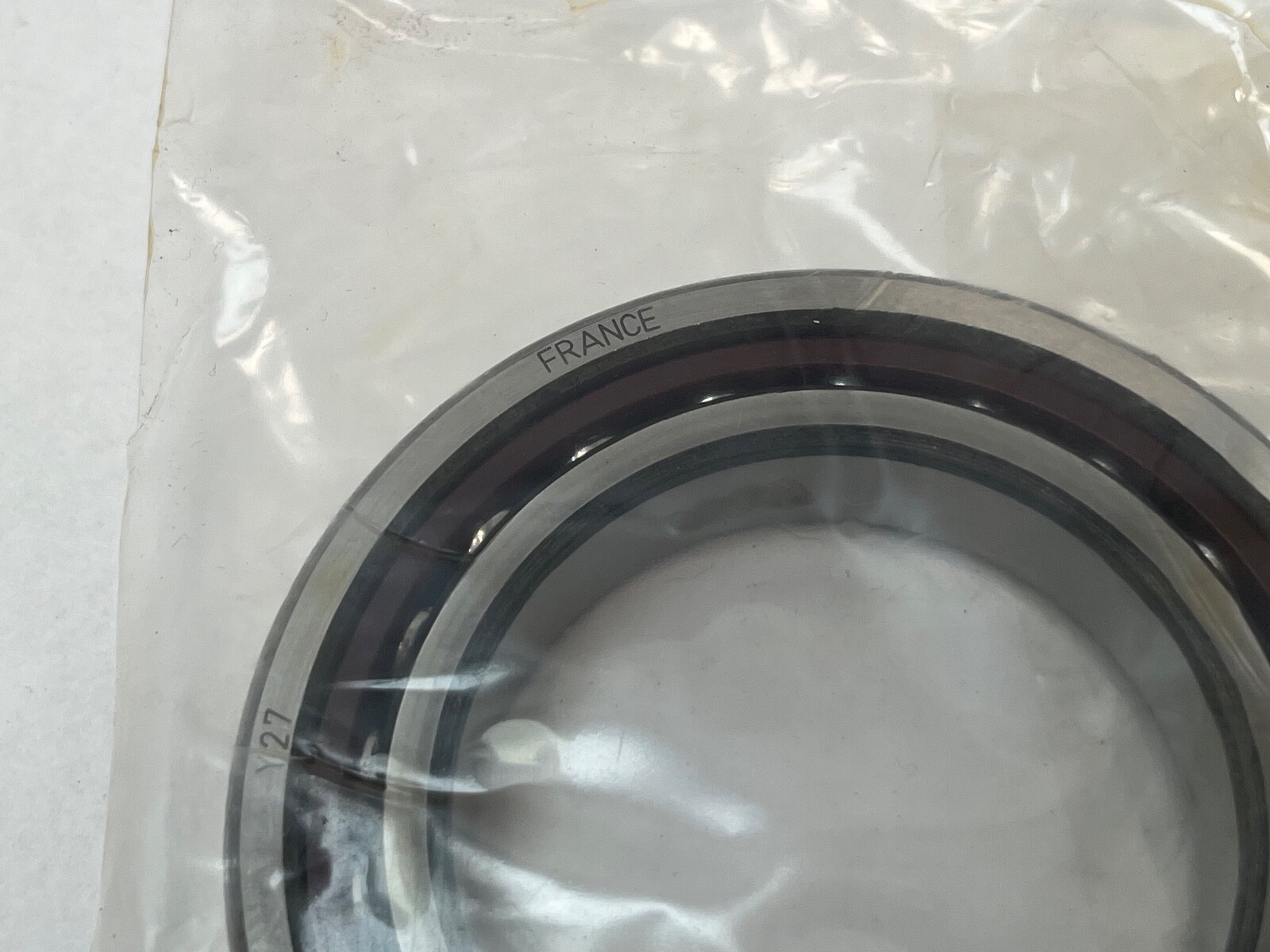

SNR 7012CVDUJ74 single-row angular contact ball bearing with a 60 mm bore, 95 mm outside diameter and 18 mm width. Open on both faces, straight bore, light preload. The -1/2PR marking denotes one bearing from a pair; the listing is 1 Pc.
7012 — ISO 70 series angular contact ball bearing, 60 mm bore.
C — 15° contact angle.
V — internal design modification.
J74 — light preload (J7x) with ISO precision class 4 (second digit).

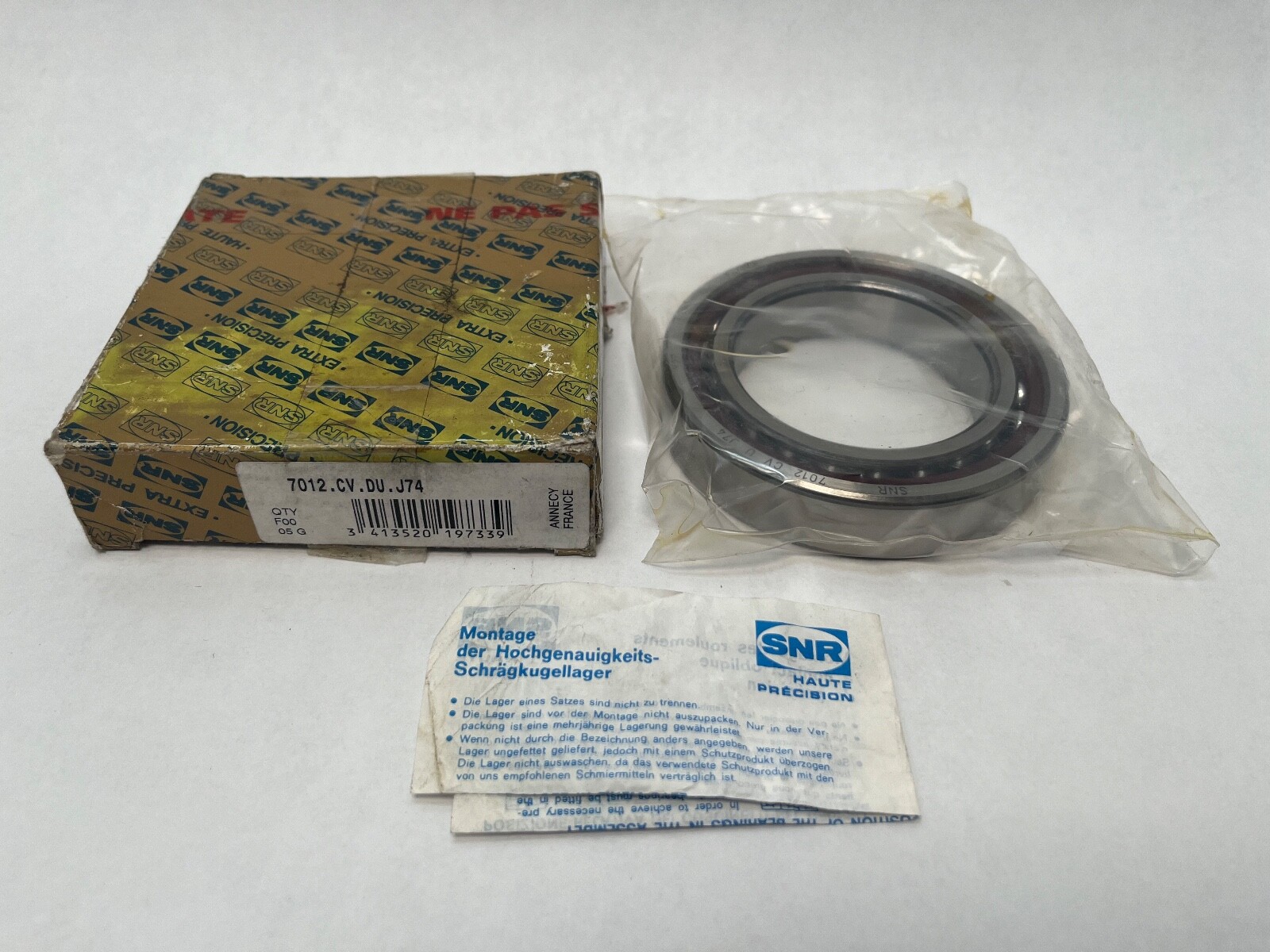

The carton also carries FAG 7012-C-T-DUL-P4 and Fafnir 2MM9112WI CR DUL for the same bearing.
Bore Diameter: 60 mm. Outside Diameter: 95 mm. Width: 18 mm. Contact Angle: 15°. Preload: Light. Precision Class: ABEC 7 / P4. Cage Material: Phenolic. Cage Type: Outer-ring land-riding. Closure Type: Open. Number Of Rows: 1. Rolling Elements: Ball. Bore Type: Straight. Series: 7000. Unit Quantity: 1 Pc.
Bearing steel rings. Straight bore, open on both faces, no snap ring.
Cross-references: FAG B7012-C-T-P4S-UL, Fafnir 2MM9112WI-CR-DUL, SKF 7012 CD/P4ADGA (preload class A).
The bore is 60 mm, the outside diameter is 95 mm and the width is 18 mm.
The contact angle is 15° (C) and the preload is light (J74).
A phenolic outer-ring land-riding cage.
