Central Surplus Bearing Finder
A faster way to search our bearing inventory Today we’re launching the Central Surplus Bearing
Availability:
1 in stock

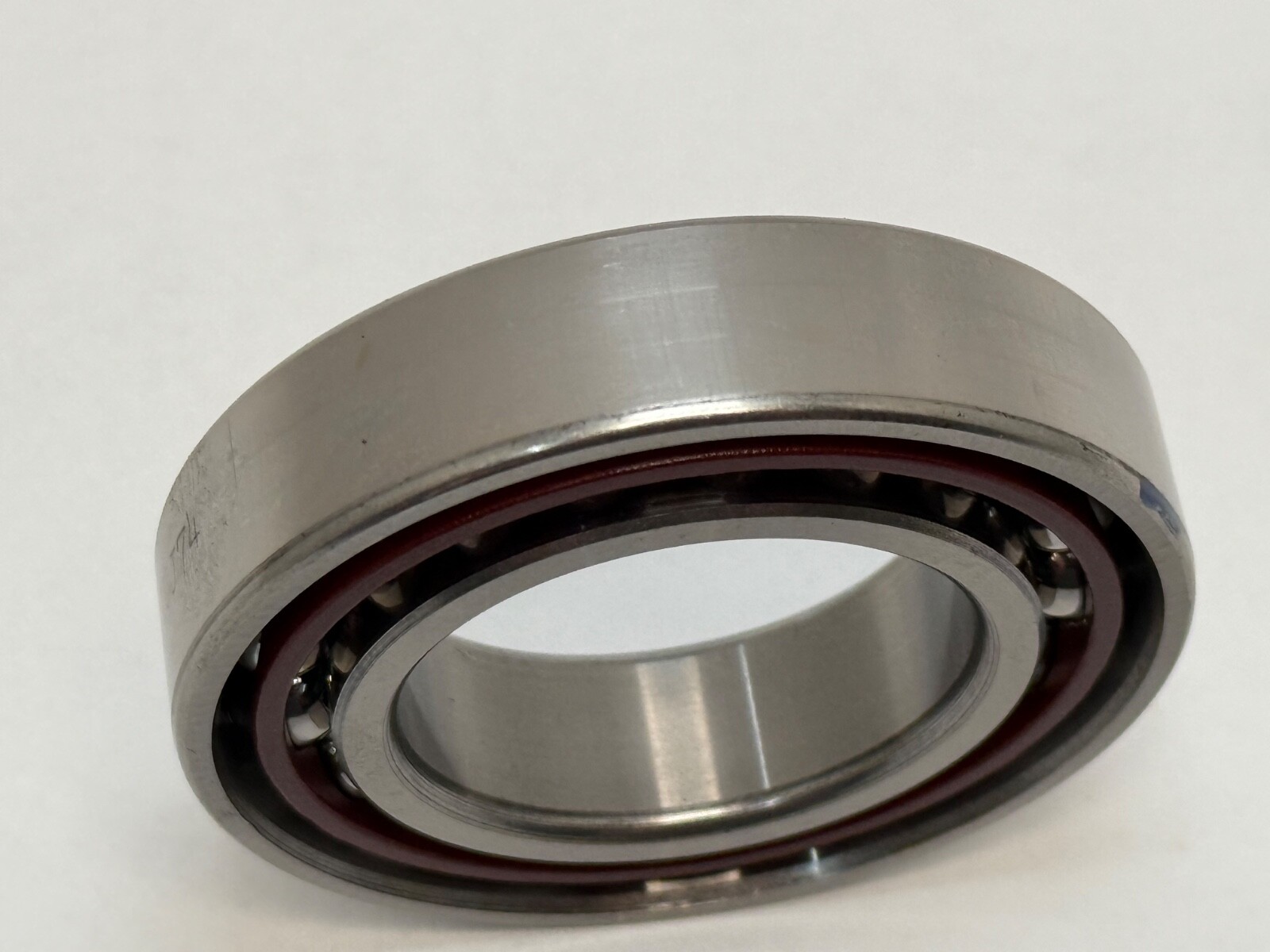

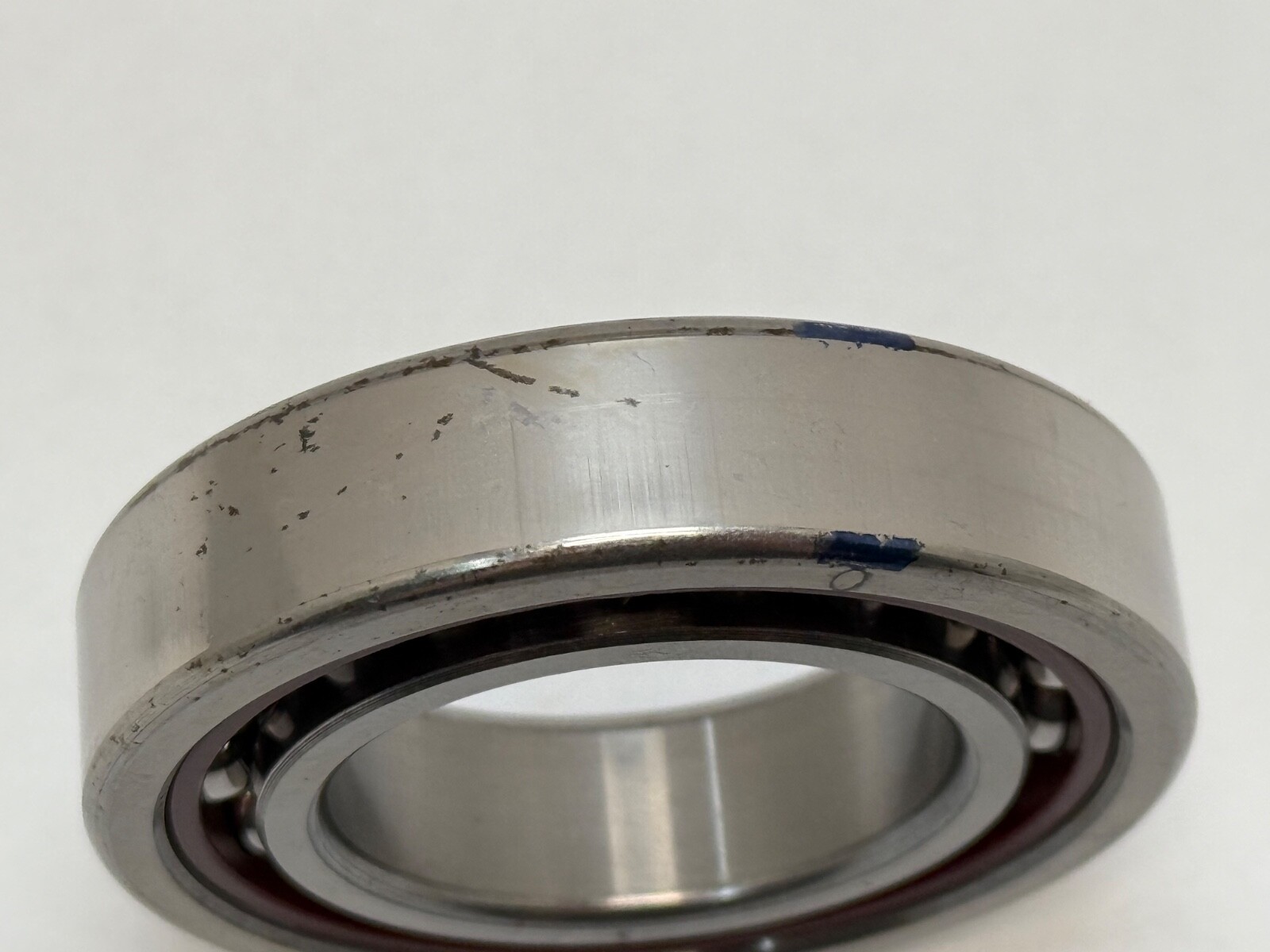

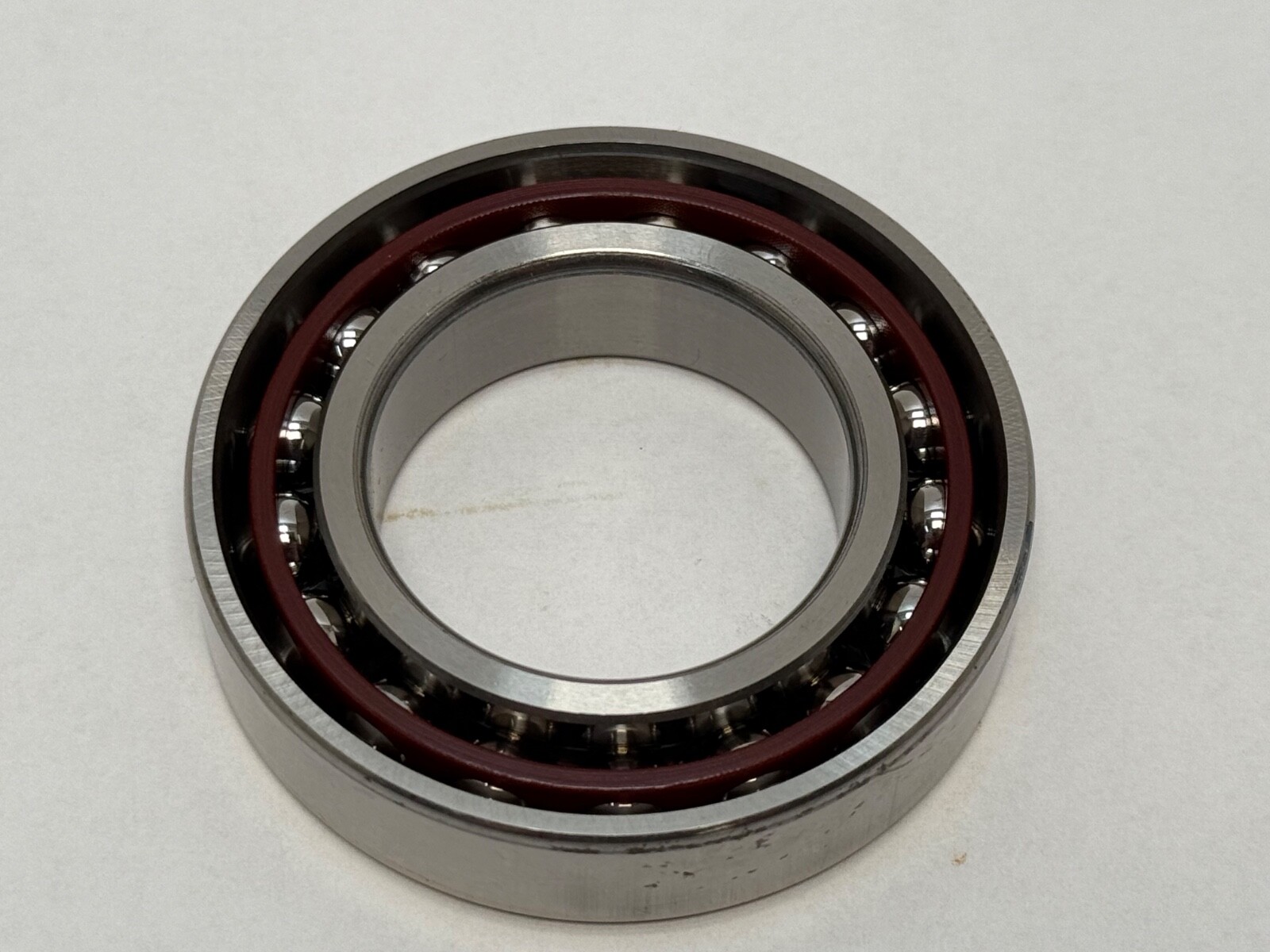

Single-row angular contact ball bearing, 35 x 62 x 14 mm, 25° contact angle, phenolic outer-ring centred cage, light preload, ABEC 7, open both faces.
List Price
$152.99
1 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | SNR |
|---|---|
| MPN | 7007HG1UJ74 |
| Model | 7007A5/ACD 7007E T SUL P4 / 3MM9107WI CR SUL / 7007 H U J74 |
| Bearing Type | Angular Contact Ball Bearing, Open |
| ID | 35 mm |
| OD | 62 mm |
| Width | 14 mm |
| Material | Bearing Steel |
|---|---|
| Series | 7000 |
| Preload | Light |
| Bore Shaft Size | 35 mm |
| Mpn Variants | 7007HG1UJ74 / 7007 H G1 U J74 / 7007 H U J74 / 7007-H-G1-U-J74 / 7007-E-T-SUL-P4 / 3MM9107WI-CR-SUL / 7007A5 |
| Rolling Elements | Ball |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Snap Ring Included | No |
| Harmonization Code | 8482.10.50 |

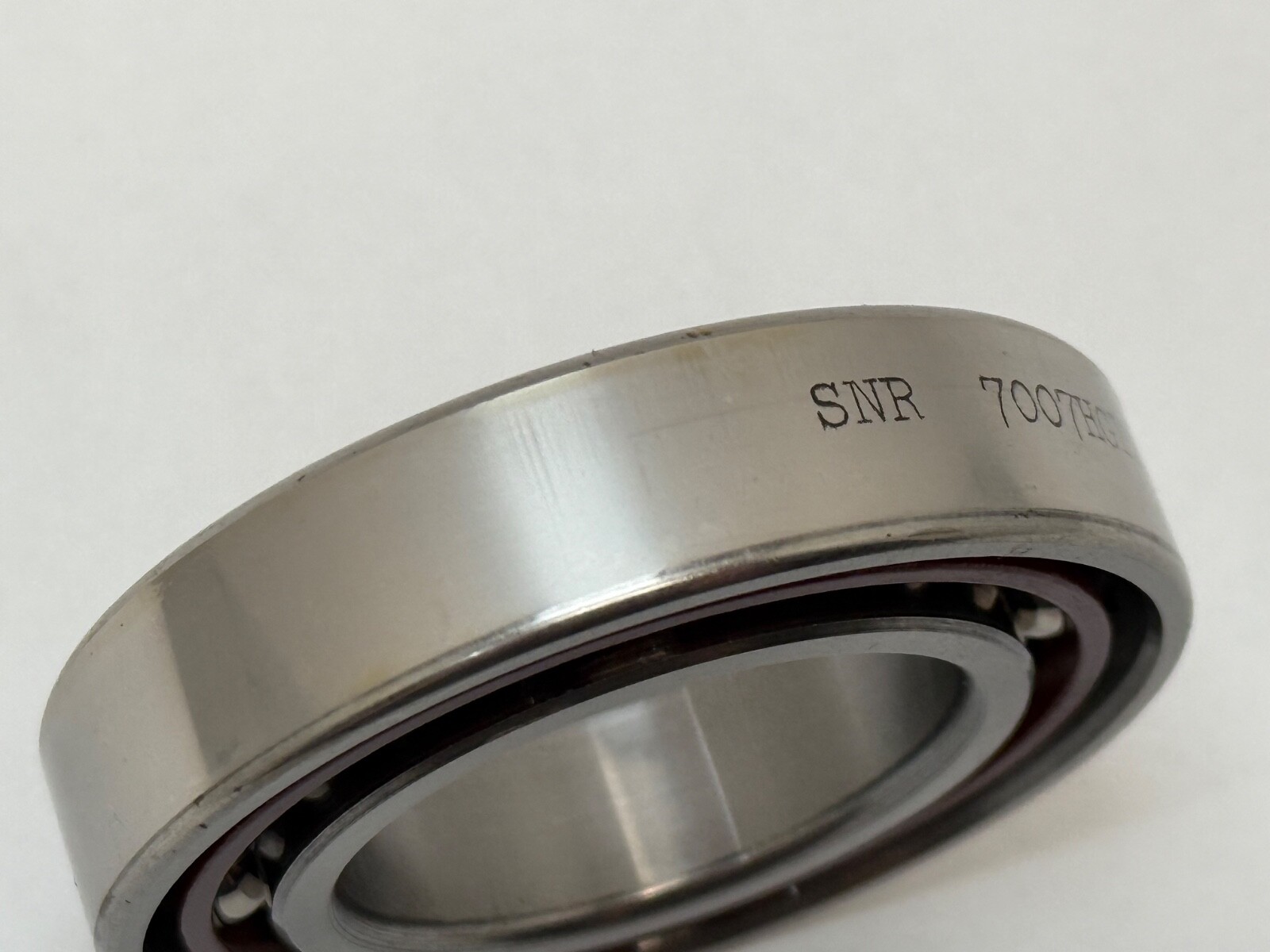

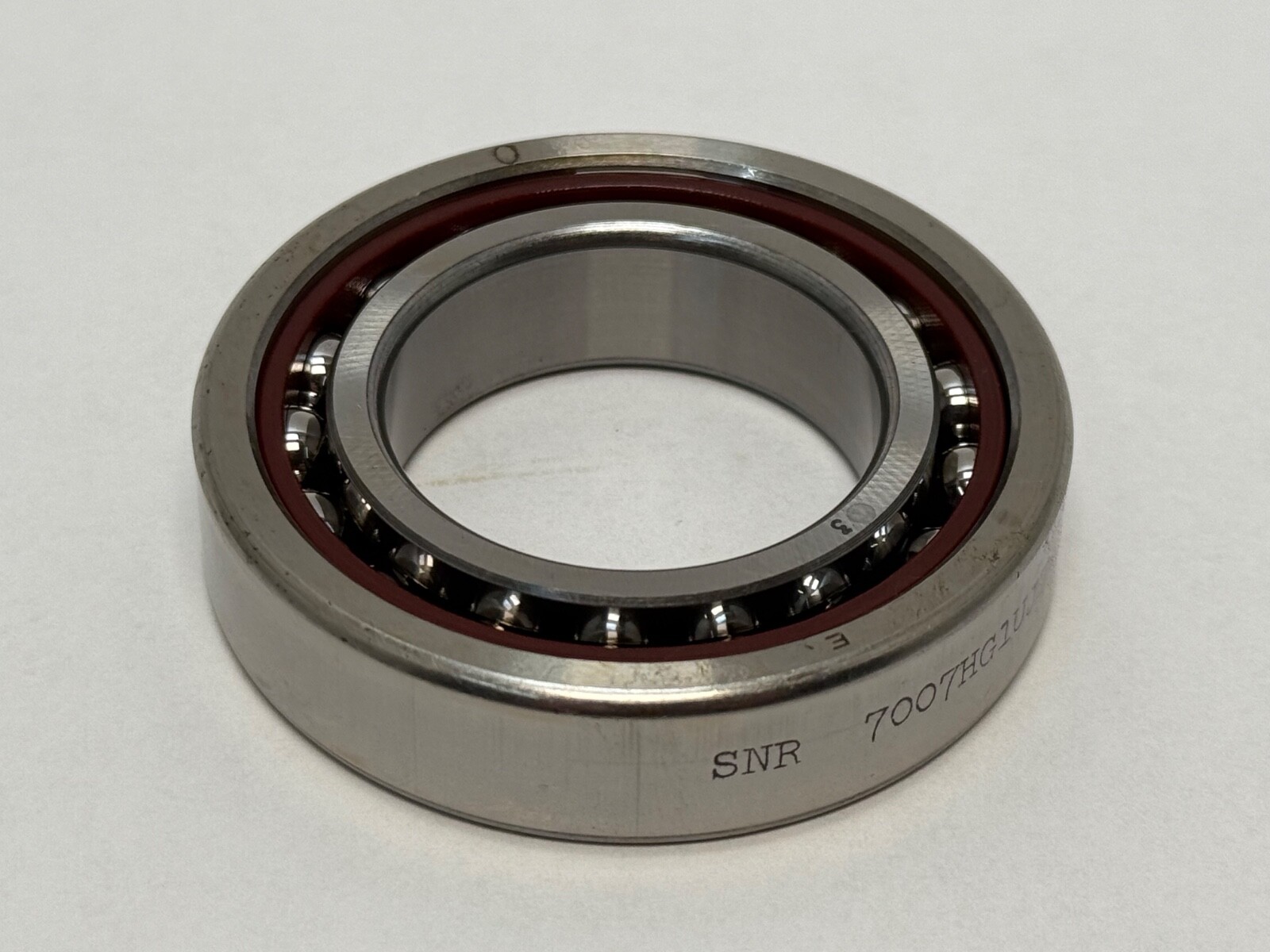

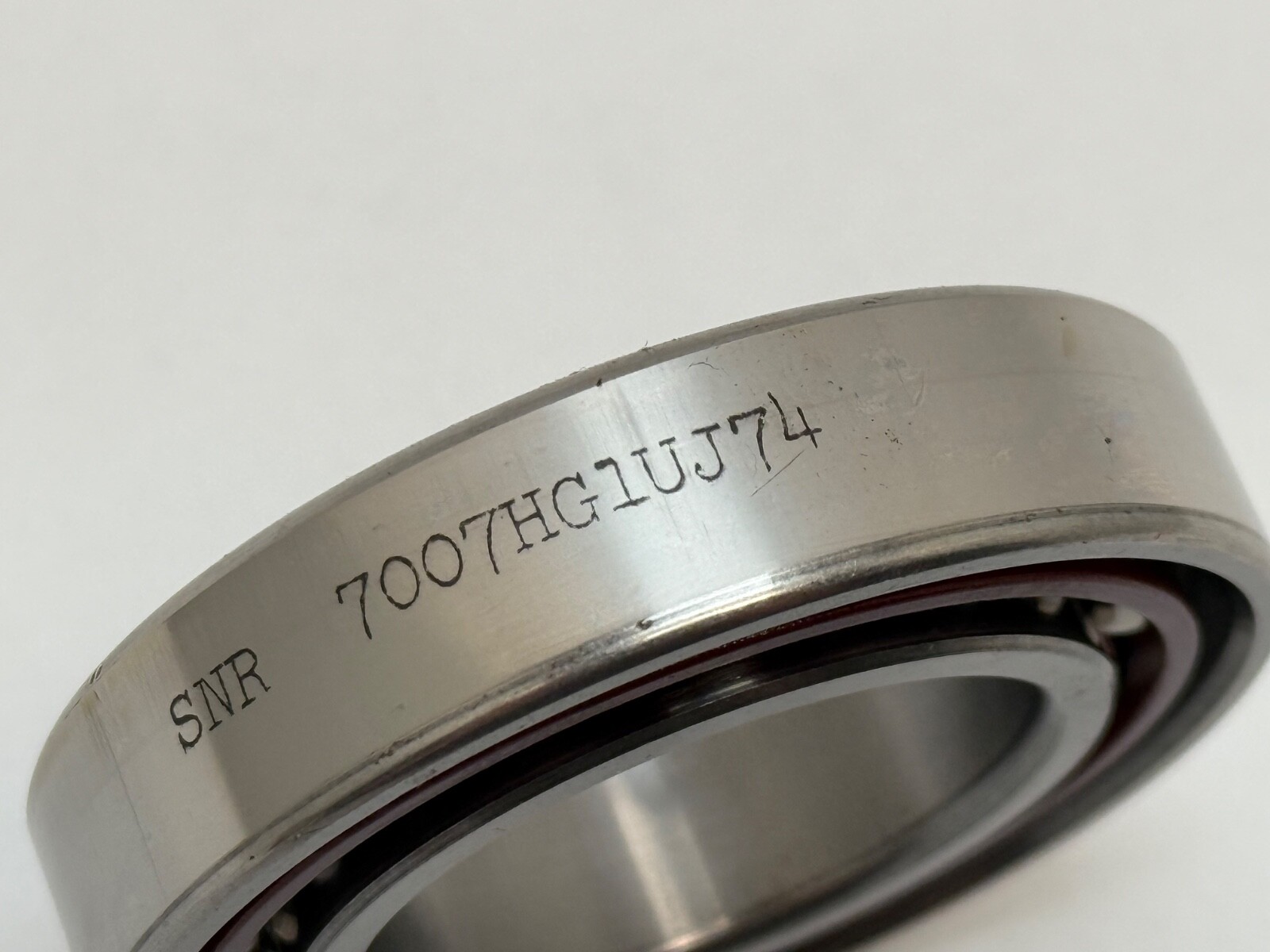

SNR 7007HG1UJ74 single-row angular contact ball bearing. Brand: SNR. Manufacturer Part Number: 7007HG1UJ74. Bore: 35 mm. Outside Diameter: 62 mm. Width: 14 mm. Series: 7000. Number of Rows: 1. Rolling Elements: Ball. Bearing Material: bearing steel. Closure Type: open on both faces. Bore Type: straight. Item Weight: 0.16 kg.
Contact Angle: 25°. Preload: light. Precision Class: ABEC 7, equivalent to P4. Cage Material: phenolic laminate. Cage Type: outer-ring centred. Mounting Arrangement: single, universally ground. Minimum Temperature: -40°C. Maximum Temperature: 120°C.
The carton carries this bearing in four schemes: SNR 7007 H G1 U J74, SKF 7007 A5 / ACD, FAG 7007-E-T-SUL-P4 and Fafnir 3MM9107WI CR SUL. Searchable variants of the number include 7007HG1UJ74, 7007 H G1 U J74, 7007 H U J74 and 7007-H-G1-U-J74.
A 25° contact angle steepens the load path through the ball, raising thrust capacity and axial stiffness against a 15° execution on the same envelope. It suits a spindle position carrying genuine axial load alongside its radial load.

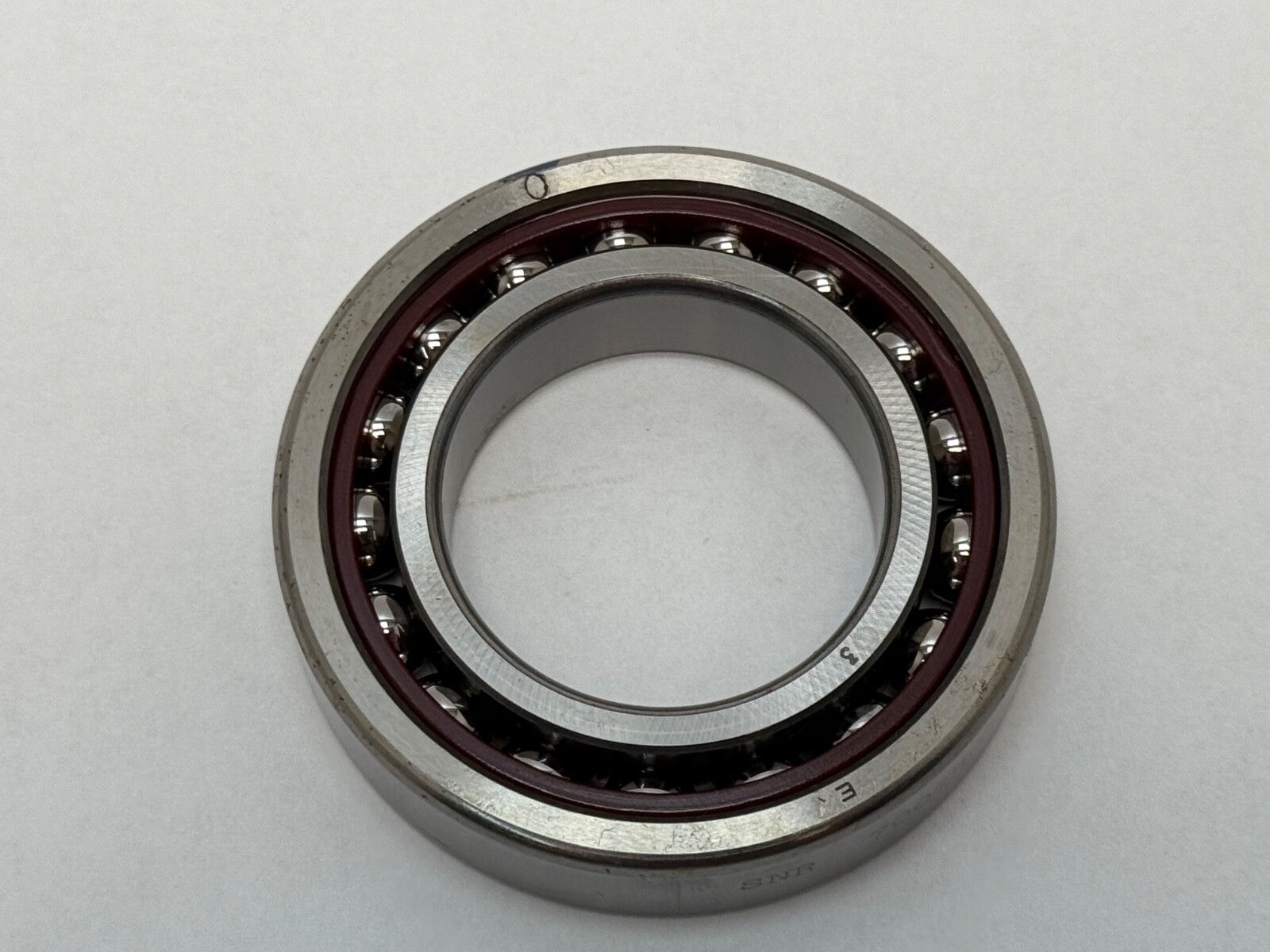

The laminated phenolic cage is light and absorbs oil, so it runs cooler and quieter than brass or steel at high shaft speed, and the 120°C ceiling reflects the phenolic. Centring the cage on the outer ring lets the stationary ring govern cage position, which steadies cage motion through acceleration and deceleration. ABEC 7 precision holds low radial and axial runout and gives close, repeatable shaft location.
Universal grinding is what makes these bearings stackable. Any two of them can be clamped together in any face orientation and will arrive at the designed light preload, so the same part number serves back-to-back, face-to-face and tandem builds.

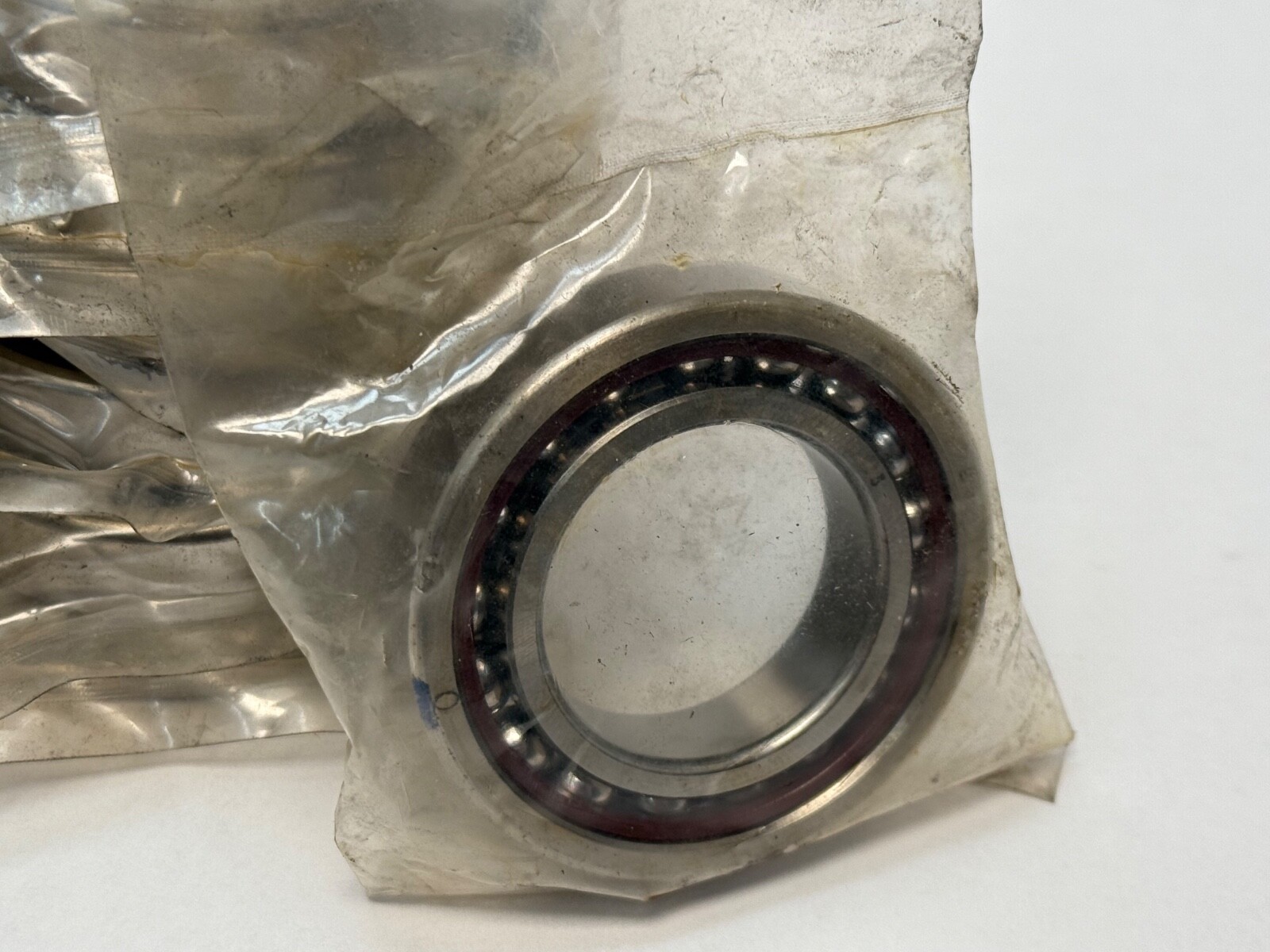

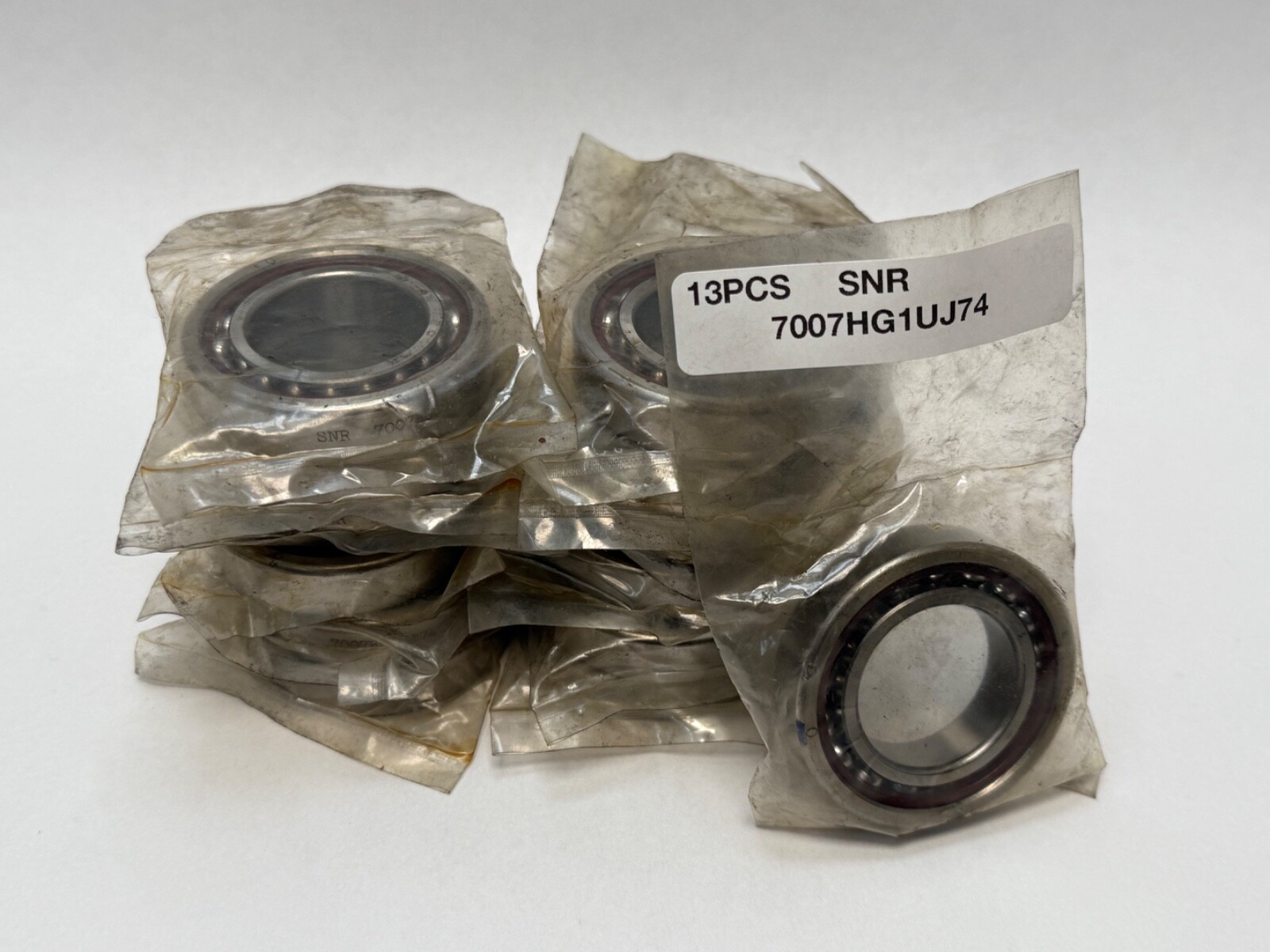

Unit Quantity: 13 Pcs. This listing supplies thirteen single universally ground bearings.
Cross-Reference: SKF 7007 ACD/P4ADGA. Cross-Reference: NSK 7007A5TYNSULP4. Cross-Reference: FAG B7007-E-T-P4S. Cross-Reference: Fafnir 3MM9107WI CR SUL. Harmonization Code: 8482.10.50. A same-envelope 7007 built at 15° is a related size rather than a substitution, because the shallower angle changes both the thrust capacity and the speed behaviour.
