Availability:
2 in stock

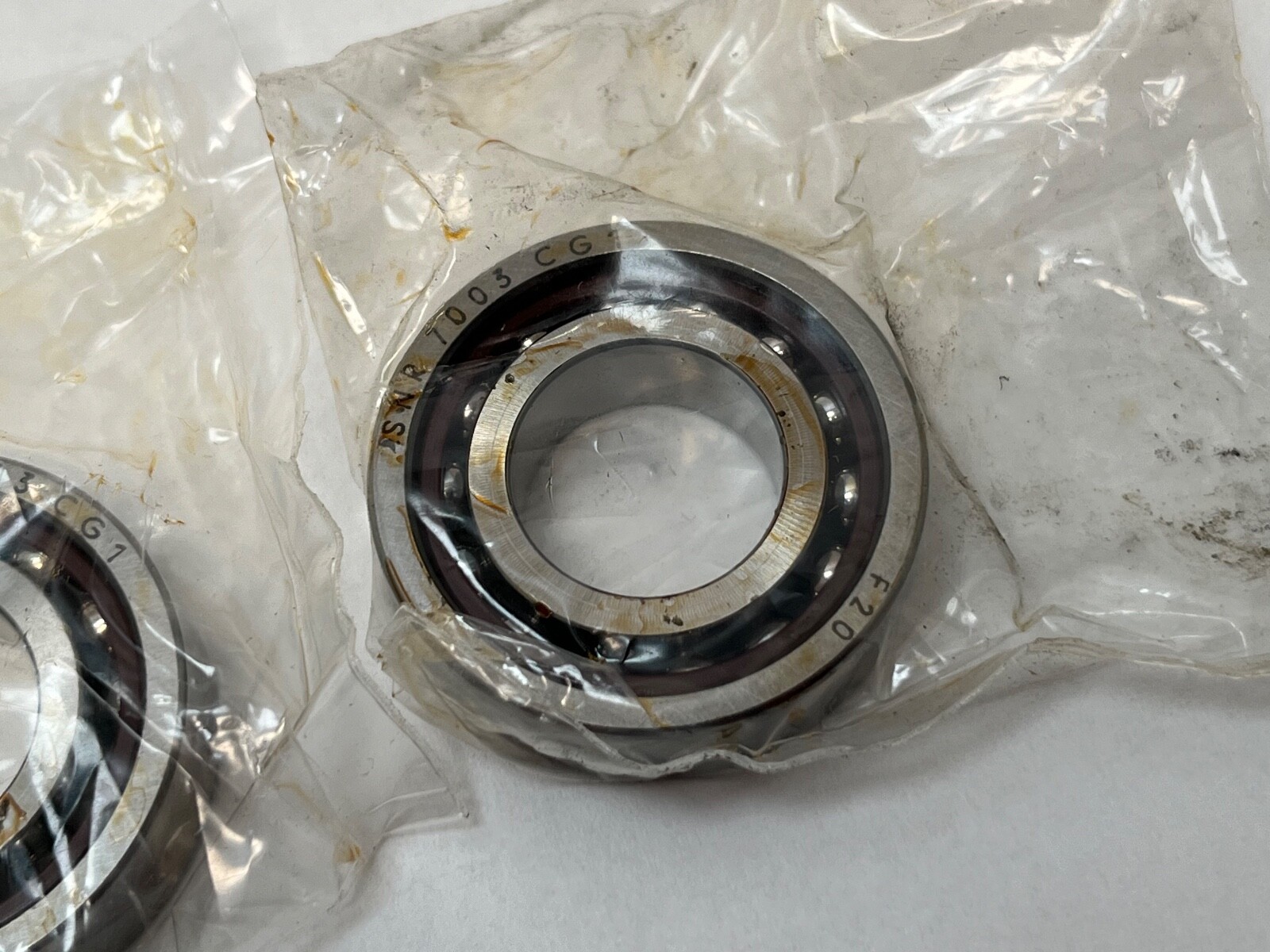

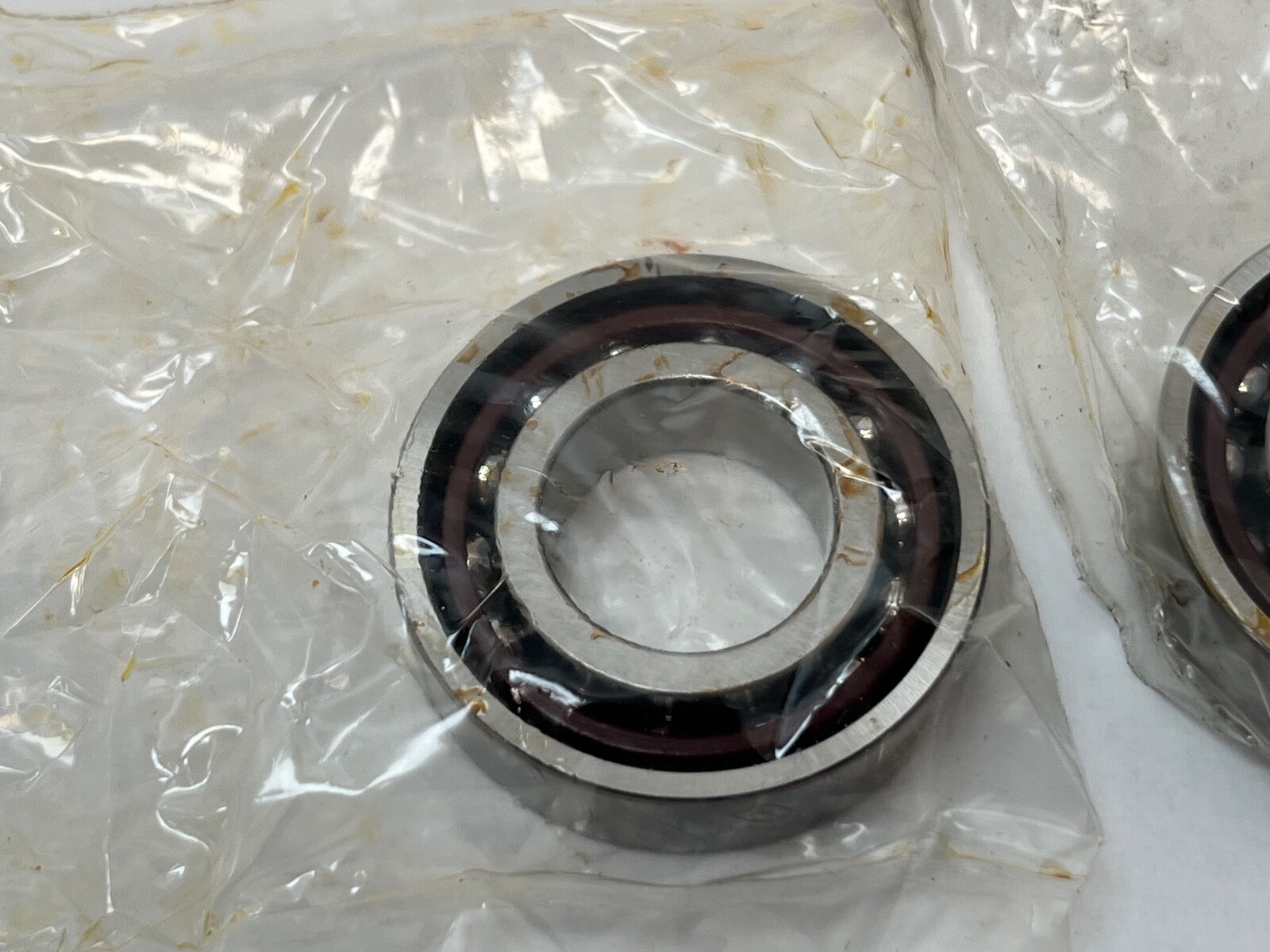

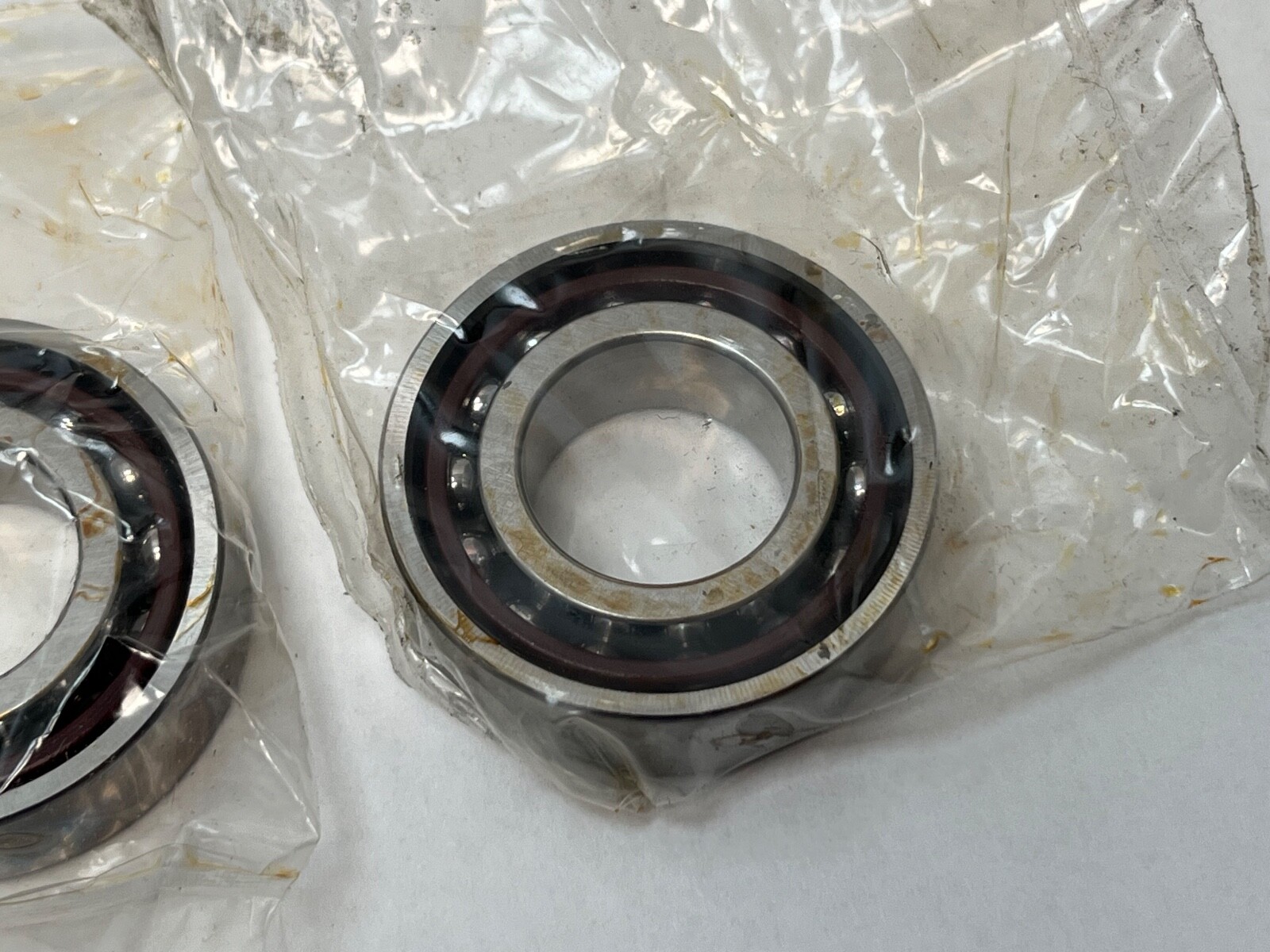

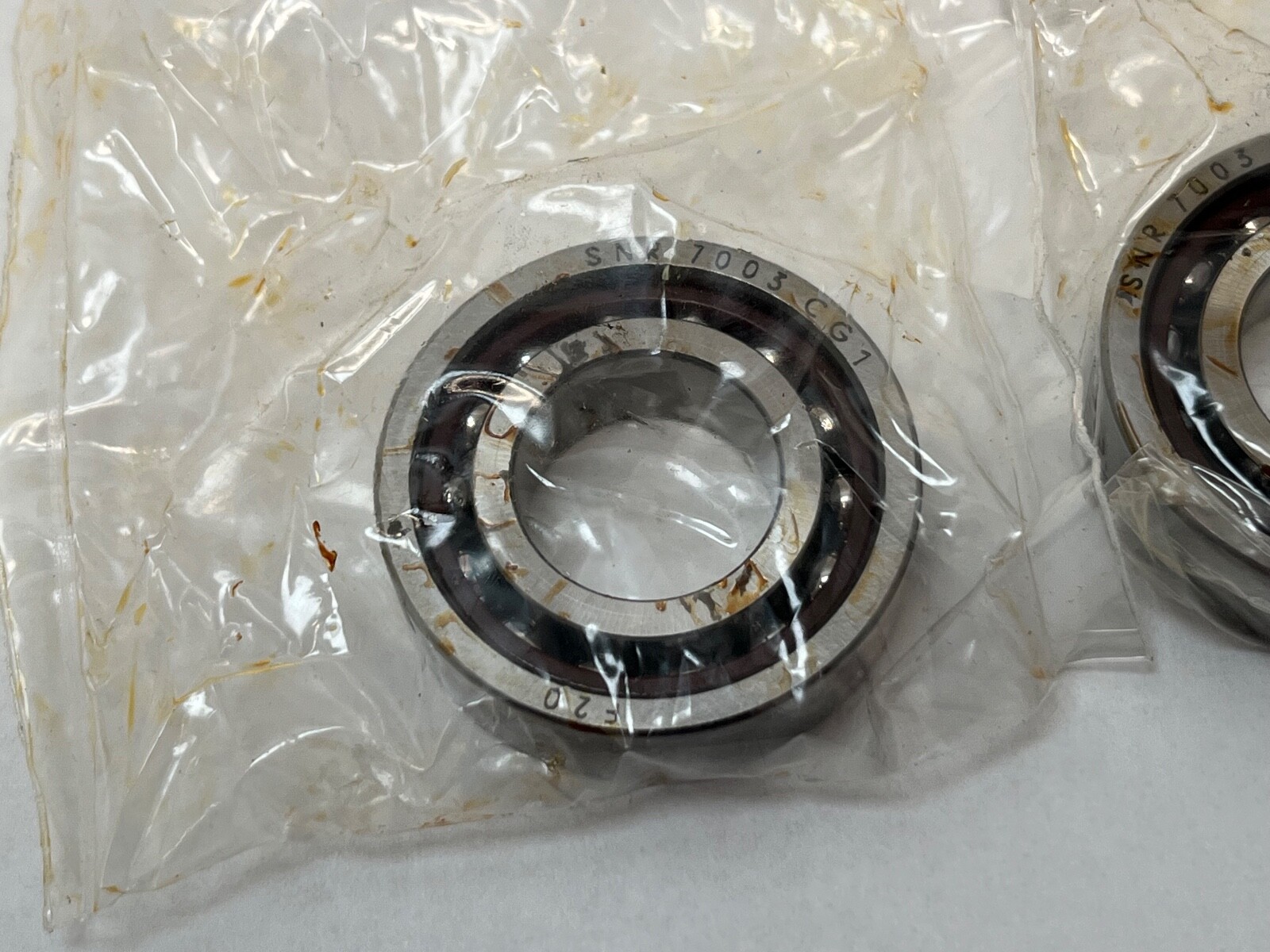

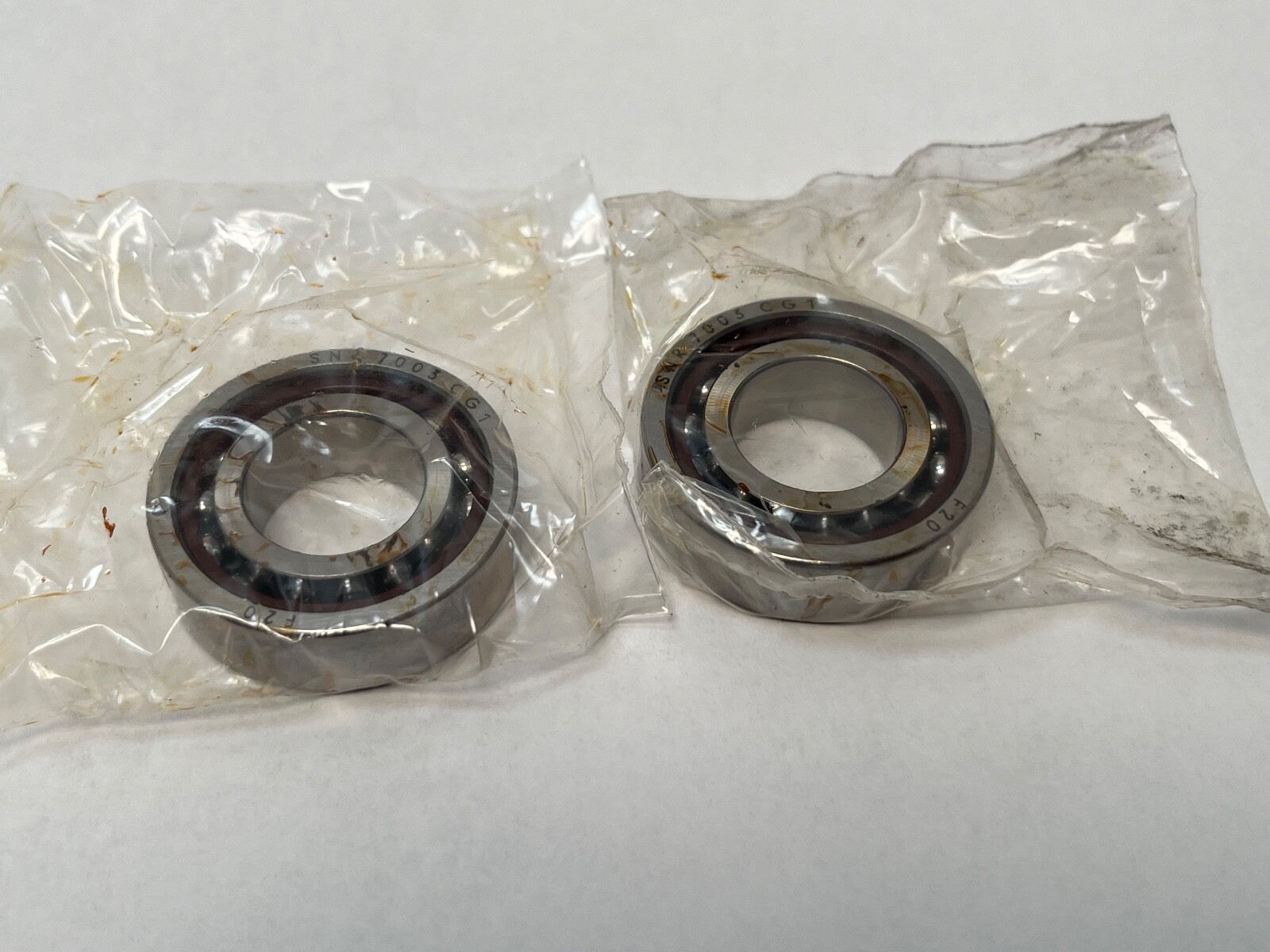

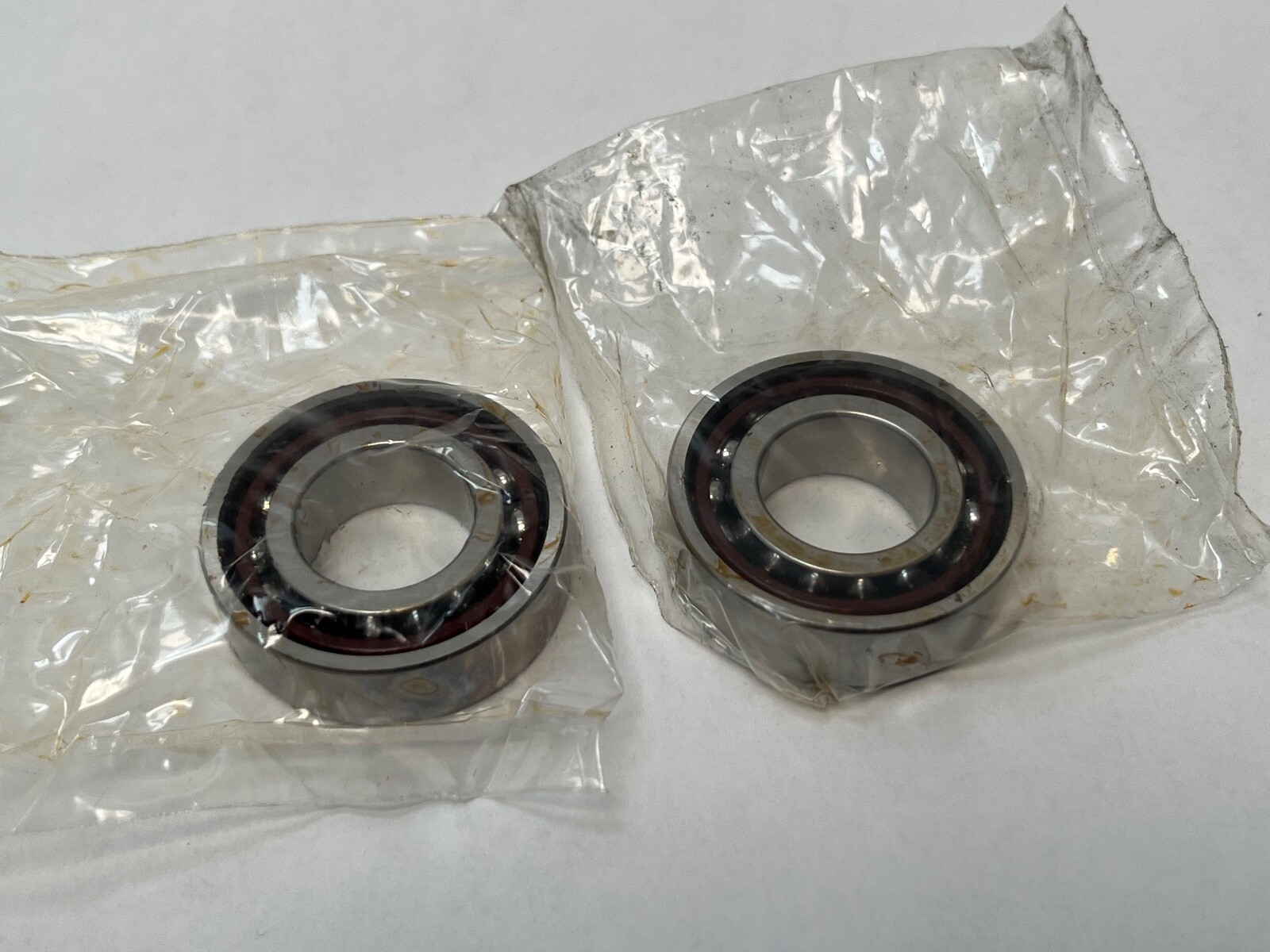

SNR Machline super-precision angular contact bearing, 17 x 35 x 10 mm, 15° contact angle, phenolic cage, duplex light-preload pair, 41,000 rpm grease.
List Price
$113.31
2 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | SNR |
|---|---|
| Model | 7003C T DUL P4 / 2MM9103WI CR DUL / 7003 C DU J74 |
| Bearing Type | Angular Contact Ball Bearing, Open |
| ID | 17 mm |
| OD | 35 mm |
| Width | 10 mm |
| Material | Bearing Steel |
|---|---|
| Series | 7000 |
| Base Number | 7003C |
| Industry Terms | Machline bearing; spindle bearing; super precision angular contact; phenolic cage bearing; universal duplex pair; high frequency spindle bearing; 15 degree angular contact |
| Common Misspellings | 7003 CDUJ74; 7003C DU J 74; 7003CDUJ 74; SNR 7003 C DU; 7003CDUJ7 4 |
| Application Types | High-frequency and high-speed spindles; small grinding spindles; precision instrument drives; dental and router spindles |
| Bore Shaft Size | 17 mm |
| Mpn Variants | 7003CDUJ74; 7003.C.DU.J74; 7003-C-DU-J74; 7003 C DU J74; 7003CDU J74; 7003CVDUJ74; 7003CVUJ74 (single); 7003C |
| Manufacturer Status | SNR is part of the NTN-SNR group; Machline range current |
| Rolling Elements | Ball |
| Number Of Rows | Single row per bearing |
| Bore Type | Straight |
| Snap Ring Included | No |
| Harmonization Code | 8482.10.5028 |
| Part Number | 7003CDUJ74 |
SNR Machline super-precision angular contact ball bearing. 17 mm bore, 35 mm outside diameter, 10 mm width. Contact Angle: 15 degrees. Cage Material: Stratified, cotton-fabric-reinforced phenolic, machined and outer-ring-land guided. Supplied as a universal duplex pair at light preload, ISO class 4. Mounted as a pair the set occupies 20 mm of shaft length. A small, very high-speed spindle bearing: published limiting speed is 41,000 rpm on grease and 65,000 rpm on oil.
7003 is the ISO 70-dimension series angular contact envelope, 17 x 35 x 10 mm. C is SNR’s code for 15 degrees; H is 25 degrees. DU is duplex universal, flush ground, mountable back-to-back, face-to-face or in tandem. J74 combines preload and precision: the middle digit gives preload class, 7 for light, and the final digit gives precision, 4 for ISO class 4, so J74 is light preload, ISO class 4.
15 degrees is the shallow, high-speed spindle angle; light preload is the lowest-friction and lowest-heat preload class; the phenolic cage tolerates the resulting conditions. Together they give a 41,000 rpm grease rating on a 17 mm bore, suited to high-frequency spindles, small grinding spindles and precision instrument drives. Dynamic Load Rating: 7.40 kN (1,664 lbf), single bearing. Static Load Rating: 4.45 kN (1,000 lbf), single bearing. Operating Temperature Range: -40 to 120°C.
DU designates a matched pair ground as a set. Bearings from a common original set reproduce the specified light preload when clamped together.

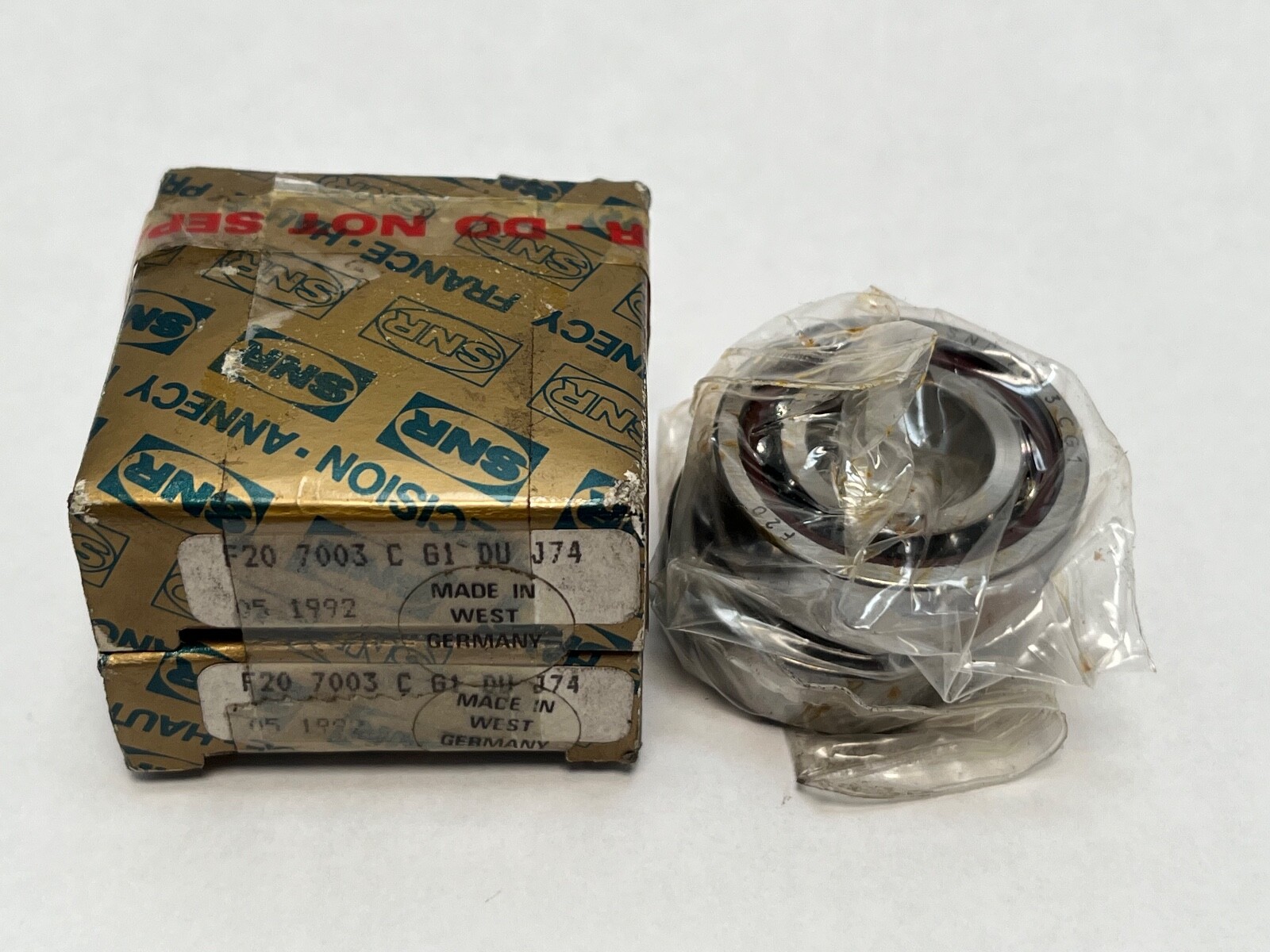

The carton marking 7003-C-T-DUL-P4 describes the same part in Schaeffler-style notation: C denotes 15 degrees in both schemes, T is the machined phenolic cage, DUL matches SNR’s J74 light preload, and P4 is ISO class 4. Comparable parts from other makers: Schaeffler B7003-C-T-P4S-DUL, SKF 7003CD, and the Fafnir/Timken 2MM9103WI family. A 7003A5 at 25 degrees or 7003A at 30 degrees has this size but is not a substitute.
