SNFAVX10-9CE0TSuper Precision Angular Contact Ball Bearing 10x26x8 mm ABEC 9 Phenolic Cage Matched Pair

Product Description

What this part is

An SNFA VX10-9CE0T super-precision single-row angular contact ball bearing, 10 mm bore, 26 mm outside diameter, 8 mm width. The raceways are offset so the ball load line runs at an angle to the radial plane, carrying radial load together with thrust in one direction. Boundary dimensions match the ISO 7000 spindle-bearing envelope, and the ring faces are ground for matched-pair mounting.

Decoding the designation

SNFA numbers this family VX followed by the bore in millimetres, so VX10 is a 10 mm bore. The 9 is the running-accuracy class, ABEC 9, which is the same tolerance grade as P2 — the tightest of the standard super-precision classes and the reason the cross-designation 7000-P2 travels with this part. T is the phenolic resin cage. The CE0 block is SNFA’s own internal-geometry coding; the trailing digit is a contact angle code that SNFA did not publish in the general literature, so it is carried here as a designation rather than as a specification.

What ABEC 9 buys

ABEC 9 sets radial and axial runout, bore and outside-diameter tolerance and width variation an order tighter than the ABEC 7 of a P4 bearing. On a grinding or high-speed milling spindle that shows up as lower non-repeatable runout at the tool, less thermal growth scatter across a preloaded stack, and a higher usable speed for the same preload. It is a manufacturing-cost class rather than a load-capacity class: the load ratings of an ABEC 9 and an ABEC 7 bearing of the same size and angle are the same.

Cage material

The T phenolic cage is machined from cotton-reinforced phenolic resin and rides light. It carries lubricant in its own porosity, generates little heat at high speed, and is standard on super-precision spindle bearings for that reason. Its ceiling is temperature and solvent exposure rather than load.

Quantity and configuration

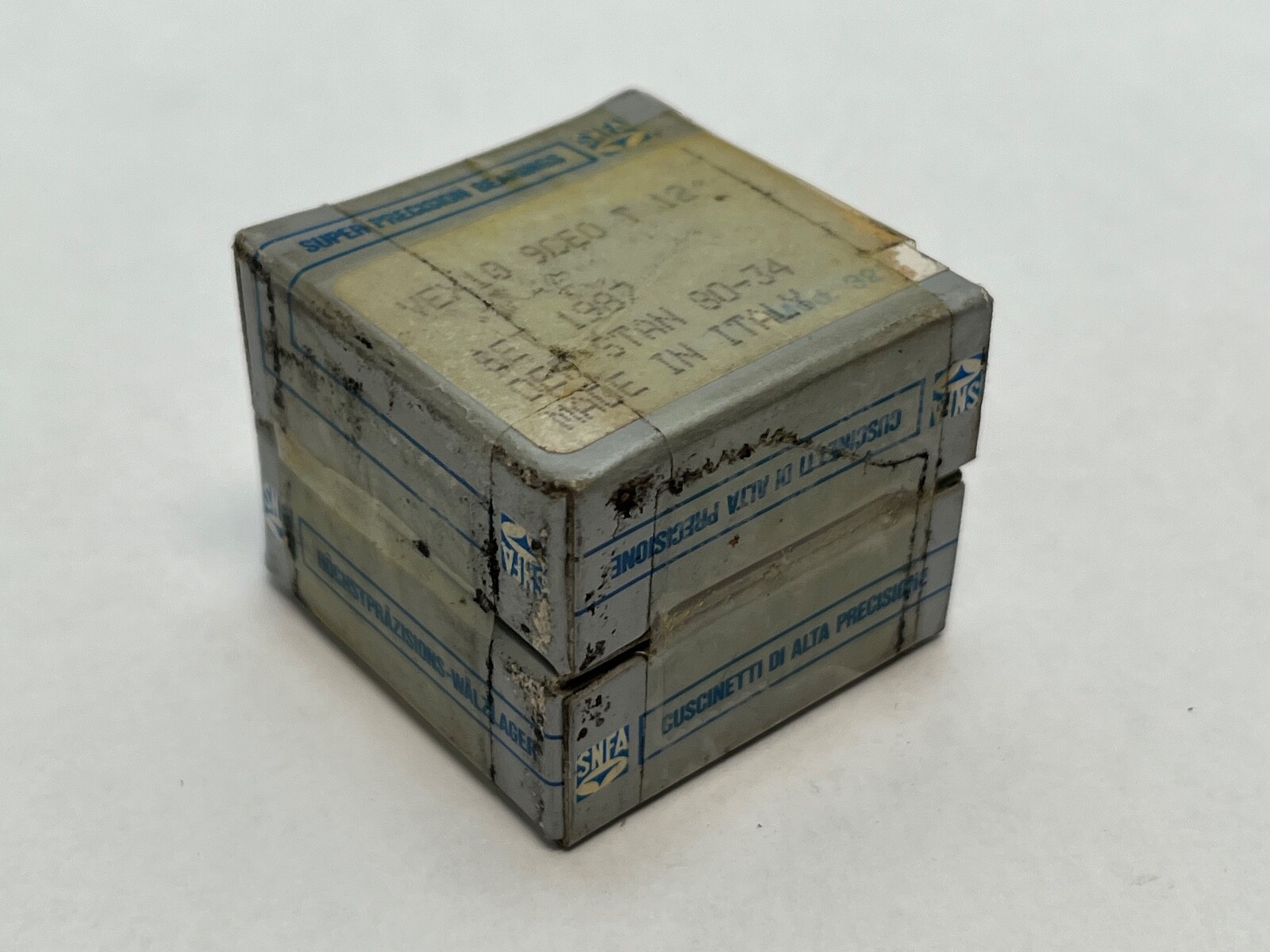

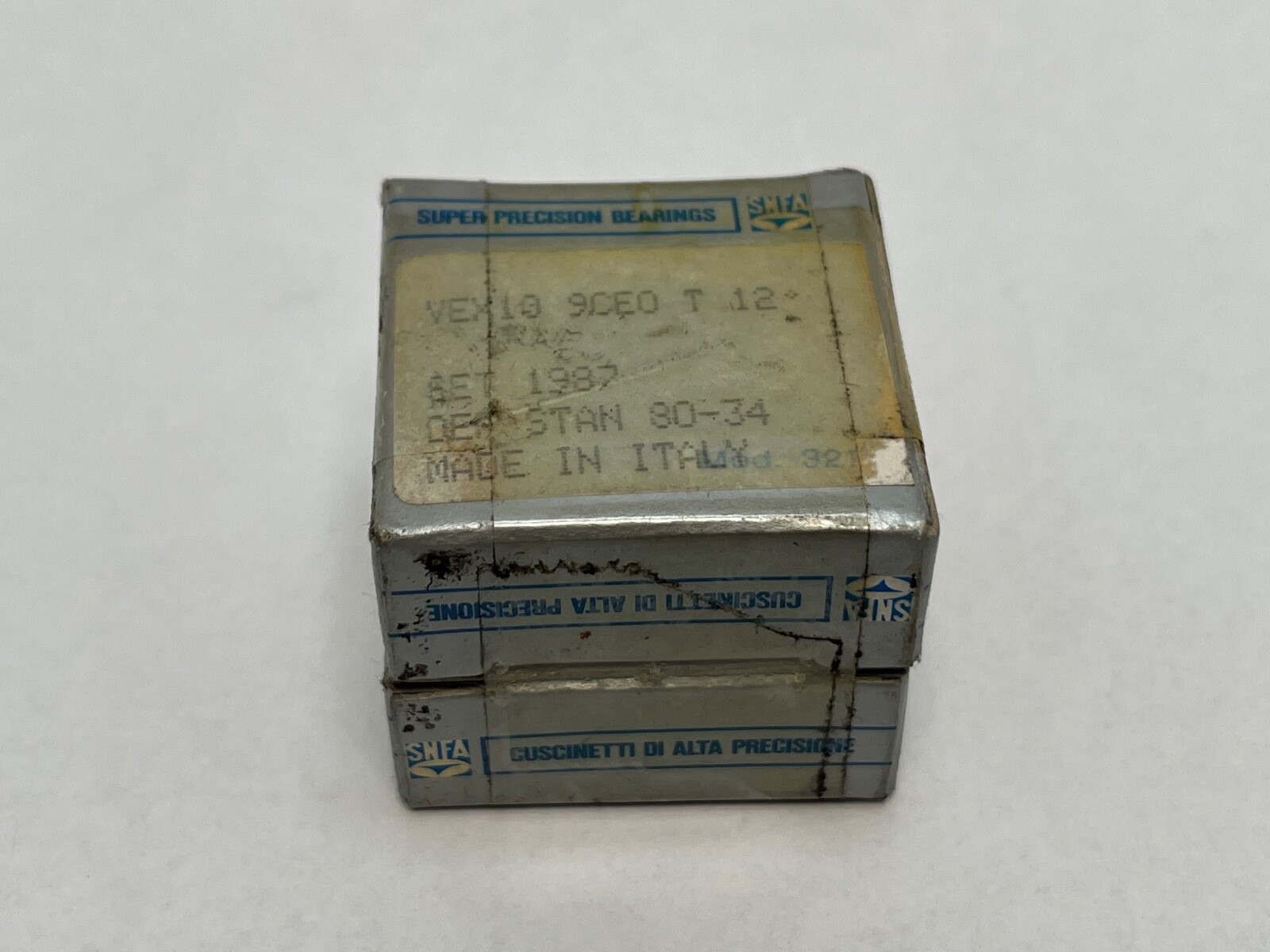

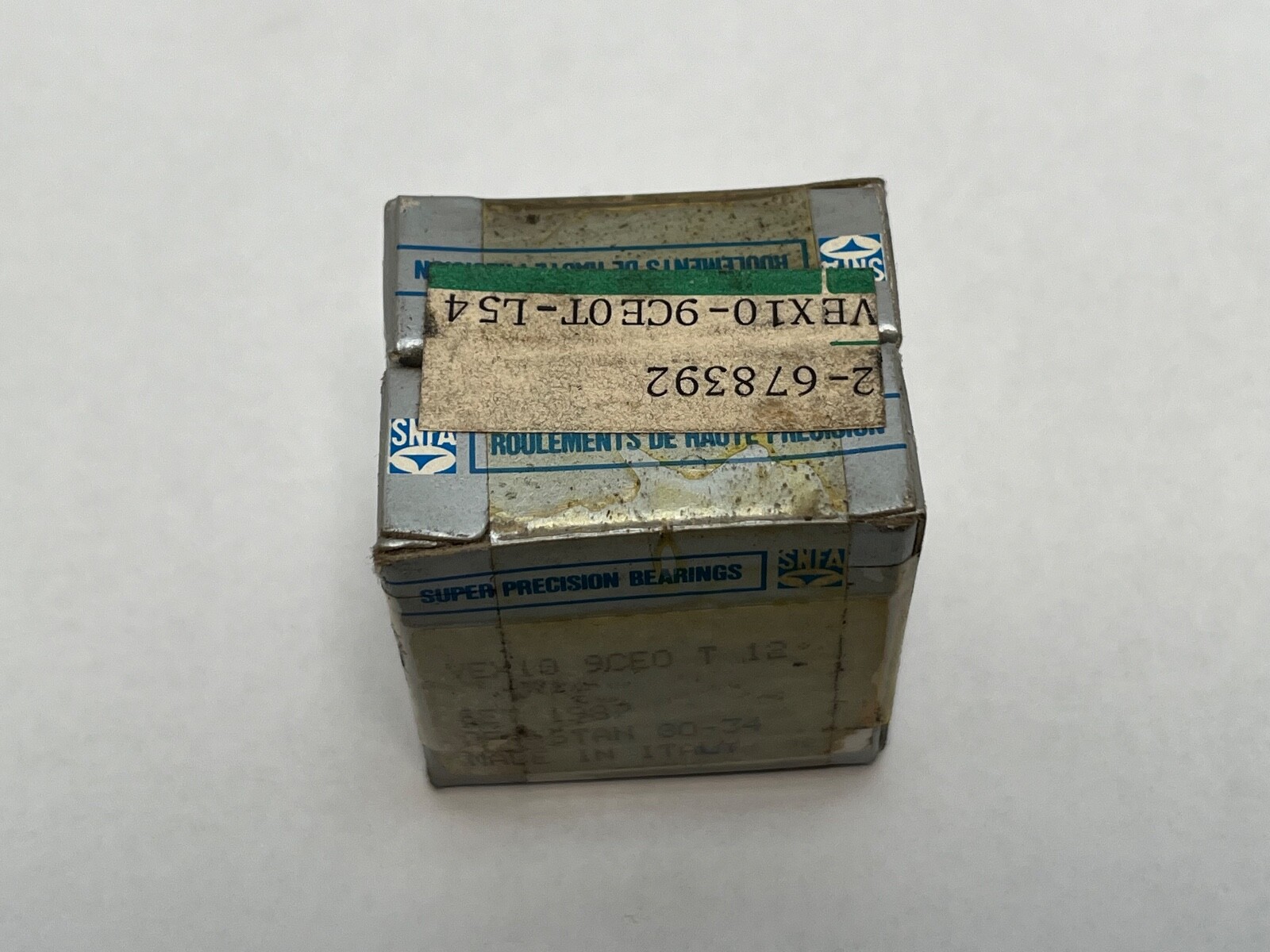

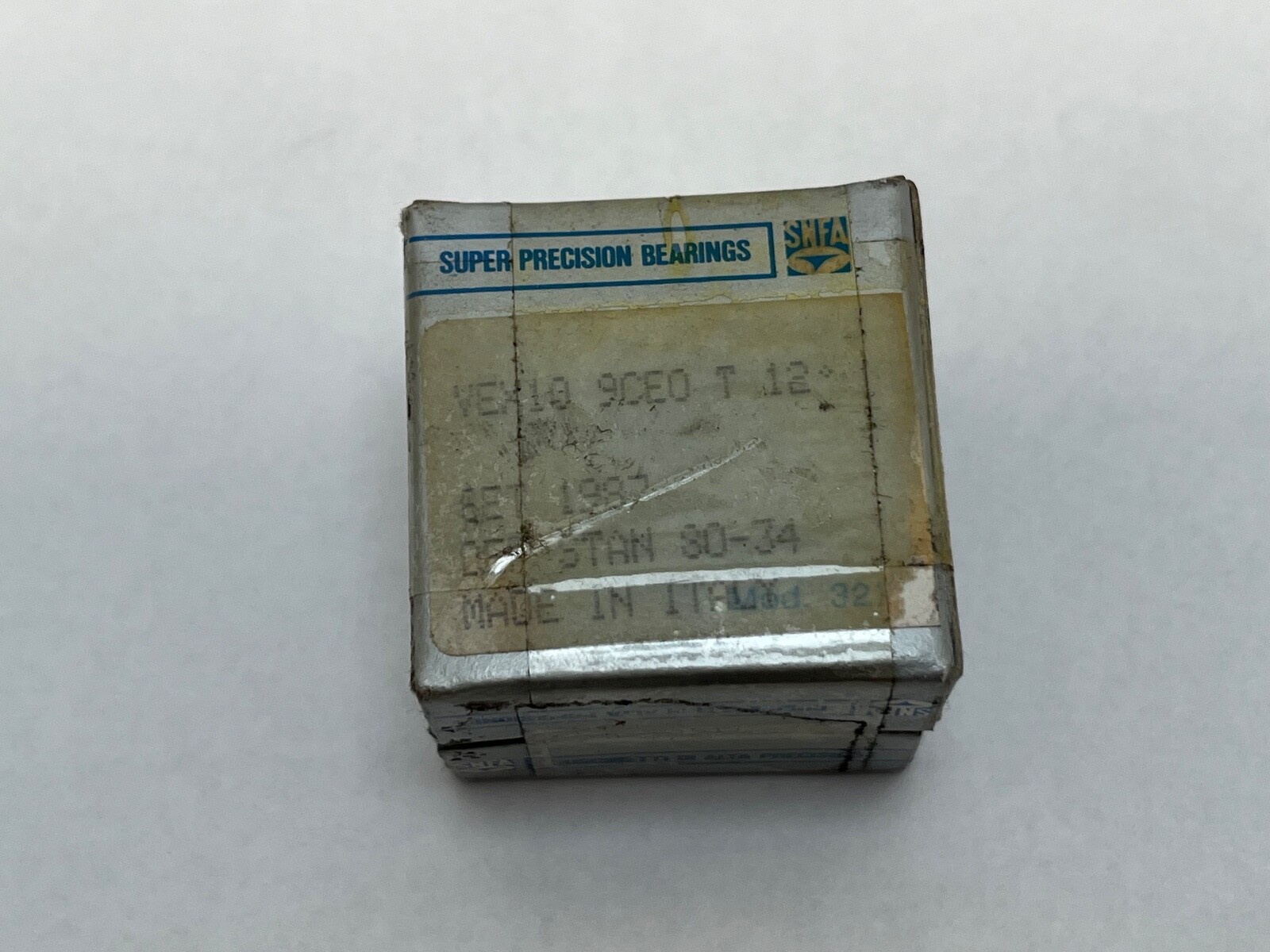

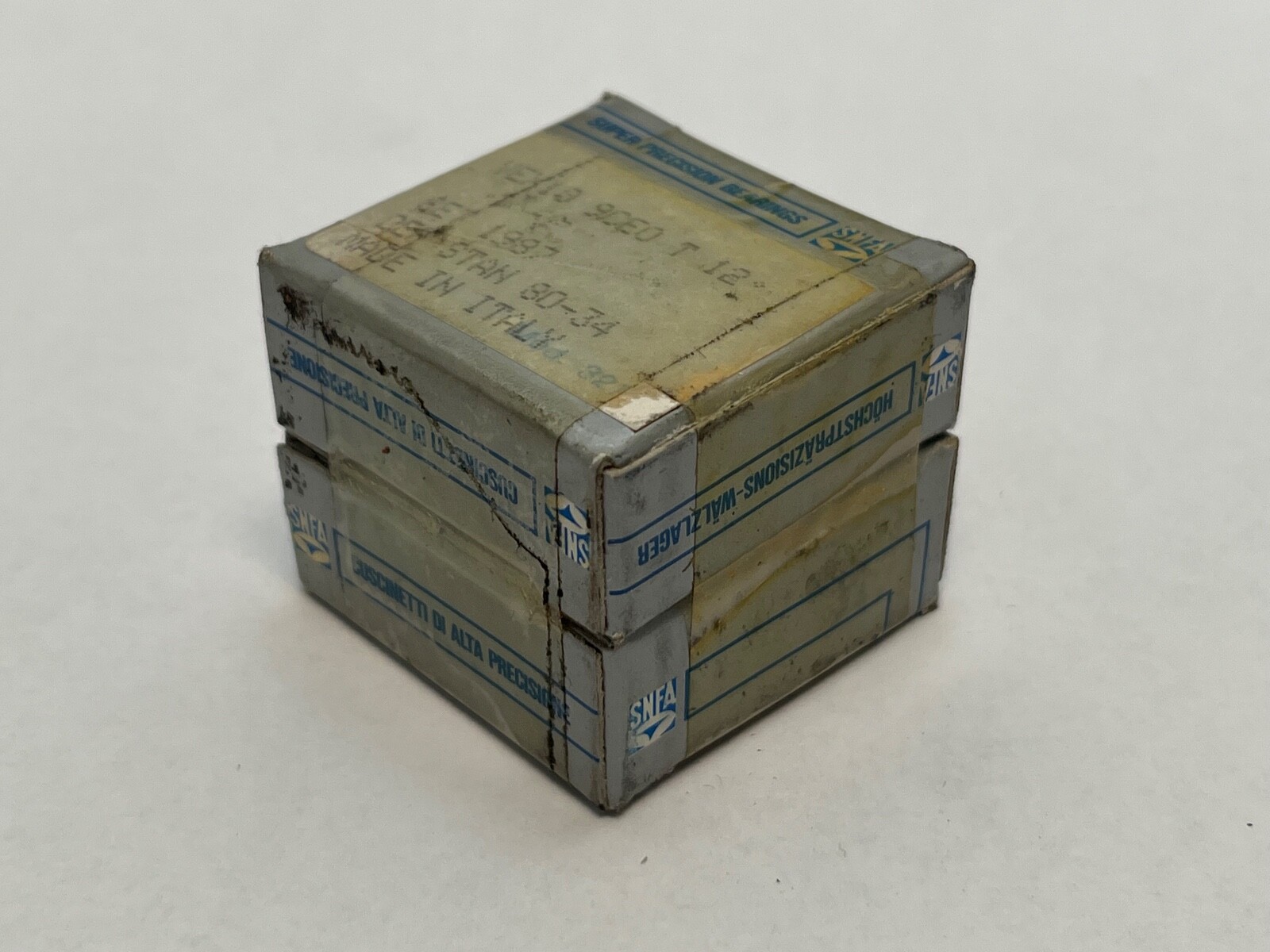

2 Pcs. Bearings only, open, no shields and no seals. No spacers, no preload shims, no locknuts.

Fitting notes

Super-precision spindle bearings are handled with the faces protected and mounted with force applied only to the ring being fitted. An angular contact bearing takes thrust in one direction, so the wide outer-ring face is the thrust-taking face and its orientation fixes the direction of axial support. In a paired mounting the ground faces butt without shims, and the arrangement chosen — back to back for rigidity, face to face for misalignment tolerance, tandem for doubled one-way thrust — sets the preload developed.

Interchange guidance

VX10-9CE0T, VX10-9-CE-0-T and VX10 9 CE 0 T are the same designation written three ways. The 7000-series ISO number gives the 10 x 26 x 8 mm envelope, and same-envelope super-precision bearings from other makers are Fafnir 2MMV9100WICR, NSK 7000A5, FAG B7000-C-T-P4S and GMN S6000. Those are related sizes rather than interchanges unless the contact angle and precision class are matched: contact angle changes the axial rating and the preload developed in a pair, and precision class changes the runout the spindle will hold.
