Super precision angular contact ball bearings, 15 x 28 x 7 mm, 15° contact angle, phenolic outer-ring guided cage, ABEC 9 tolerance class.
List Price
$75.95
Out of stock
Out of stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
This item is currently out of stock
Here are some other options that might fit your project — cross-referenced equivalents and similar parts we have in stock and ready to ship. Need help choosing? Call 585-295-7880.
Angular Contact Ball Bearing - 15 mm ID, 28 mm OD, 7 mm Width, 15° Contact Angle, ABEC 5, Universal Ground$64.94
Super-Precision Angular Contact Ball Bearing Matched Pair 15 x 32 x 9 mm, 15° Contact Angle, Light Preload, Open, ISO P4S$113.72
Double Row Angular Contact Ball Bearing - 15 mm ID, 42 mm OD, 19 mm Width, Open, 30° contact angle.$18.16
Single Row Angular Contact Ball Bearing - 15 mm ID, 35 mm OD, 11 mm Width, Open, 40° Contact Angle, Reinforced Design, Moulded Polyamide Cage$25.42| MFR / Brand | SNFA |
|---|---|
| MPN | VB15-9CE1T |
| Model | VB15-9 CE 1 T / 71902 7902 C T P2 / 2MMV9302 WI CR |
| Bearing Type | Angular Contact Ball Bearing, Open |
| ID | 15 mm |
| OD | 28 mm |
| Width | 7 mm |
| Base Number | VB15 |
|---|---|
| Bore Shaft Size | 15 mm |
| Mpn Variants | VB15-9 CE 1 T, VB15 9CE1T, VX15-9-CE-1-DTL, 2MMV9302WICR, 7902CTP2 |
| Precision Class | ABEC 9 / P2 |
| Cage Type | Outer-ring land-riding |
| Precision Rating | ABEC 9 / P2 |
| Series | 719 |
| Rolling Elements | Balls |
| Cage Material | Phenolic |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Contact Angle | 15° |
| Design Units | Metric |
| Part Number | VB15-9CE1T |
| Cross Reference 1 | SKF 71902 CD/P4A |
|---|---|
| Cross Reference 2 | Fafnir 2MMV9302WICR |
| Cross Reference 3 | ISO 7902 C T P2 |
SNFA VB15-9CE1T super precision angular contact ball bearing. Bore: 15 mm. Outside Diameter: 28 mm. Overall Width: 7 mm. Contact Angle: 15°. Precision Class: ABEC 9 / P2. Number Of Rows: 1 per bearing. Rolling Elements: Steel balls. Bore Type: Straight. Closure Type: Open. Cage Material: Phenolic. Cage Type: Outer-ring land-riding. Series: 719 light section, ISO equivalent 71902. Design Units: Metric. Unit Quantity: 2 Pc.

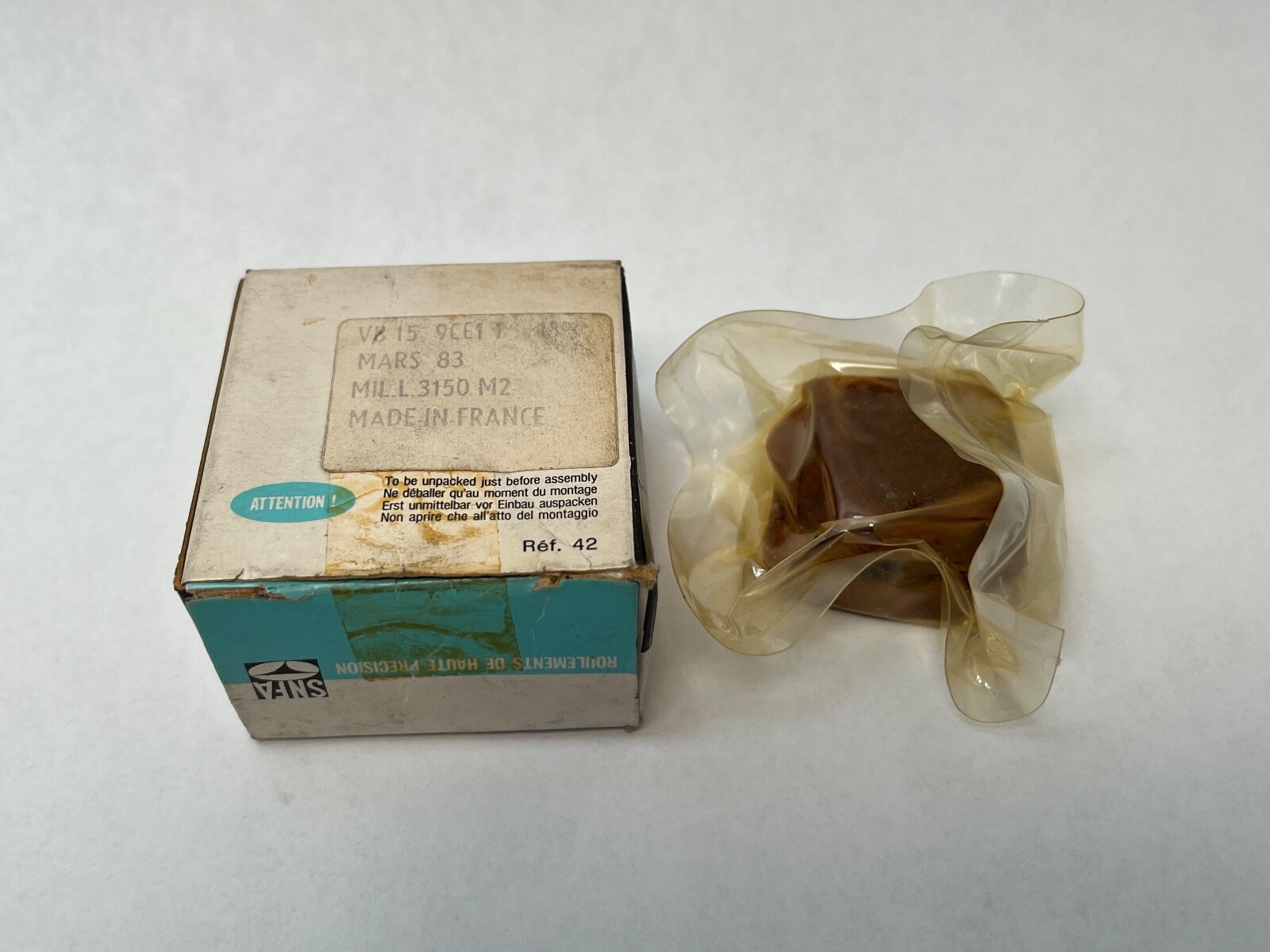

VB15: 15 mm bore, high-speed spindle series. 9: ABEC 9 tolerance class, SNFA’s tightest. CE1: 15° contact angle. T: phenolic cage. The carton also carries the ISO designation 71902 7902 C T P2 and the Fafnir cross 2MMV9302WICR, and all three agree on a 15° angle and a phenolic outer-land-riding cage. Searchable variants: VB15-9CE1T, VB15-9 CE 1 T, VB15 9CE1 T, VX15-9-CE-1-DTL.
A 15° contact angle favours speed and radial stiffness over thrust capacity, which is what a high-speed grinding or milling spindle needs. ABEC 9 is the tightest tolerance class in general production, holding bore, outside diameter and runout to single-micron bands so the spindle repeats its position. The phenolic cage rides on the outer ring land: it is light, so cage-induced ball load stays low at speed, and it holds a small reservoir of oil in the resin.
Unit Quantity: 2 Pc. Two bearings on the same designation, supplied together.
Section height is 6.5 mm and width 7 mm, an extra-light 719 section, so the housing and shaft shoulders locate on a narrow land. Phenolic cages suit oil, oil-air and grease lubrication up to 120 °C.
Same envelope, angle and cage: SKF 71902 CD/P4A in the 15° execution, Fafnir 2MMV9302WICR, and the ISO designation 7902 C T P2. A 25° execution such as an SNFA CE3 on the same envelope is a related size rather than a substitute.
