Availability:
1 in stock

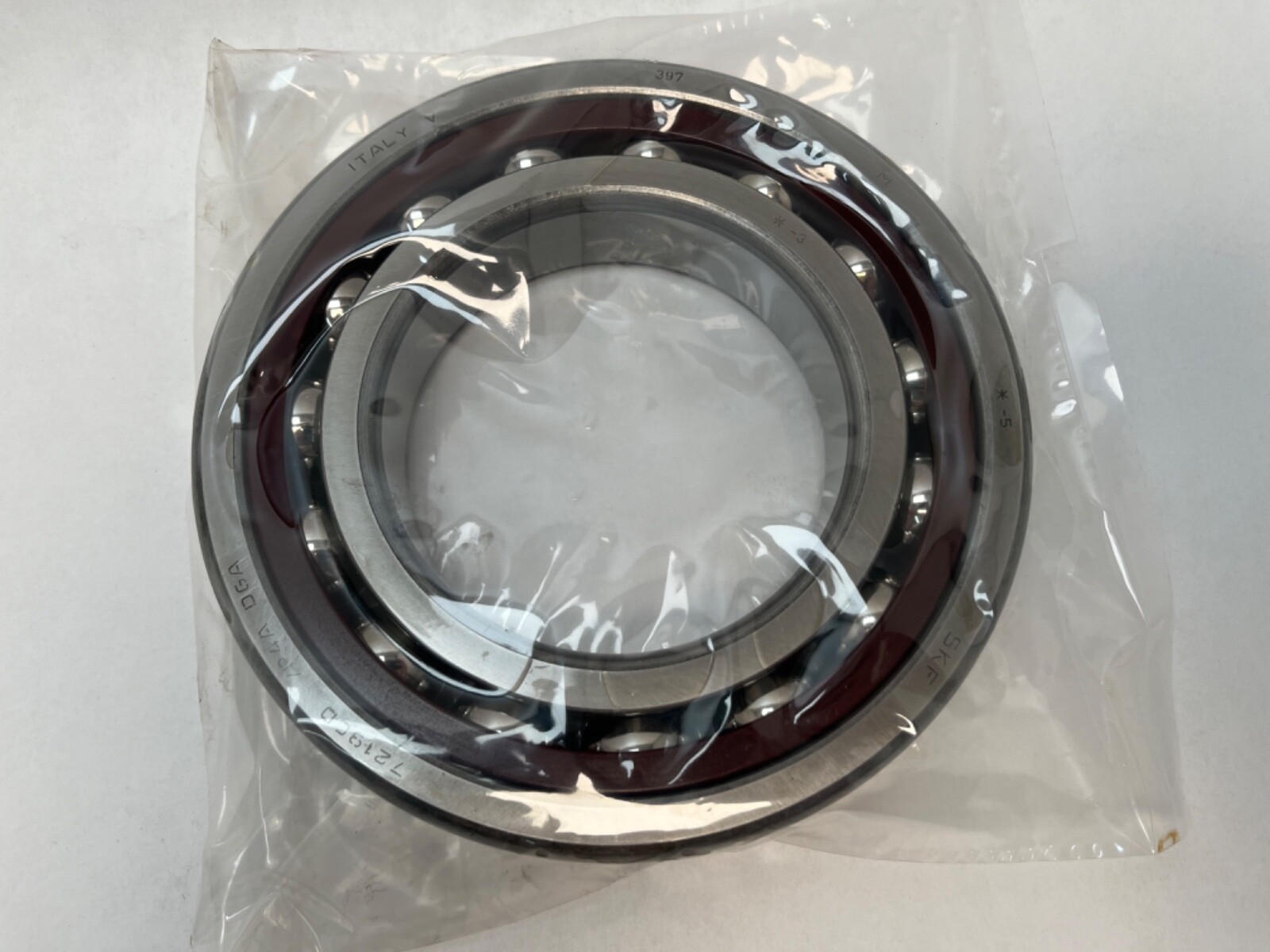

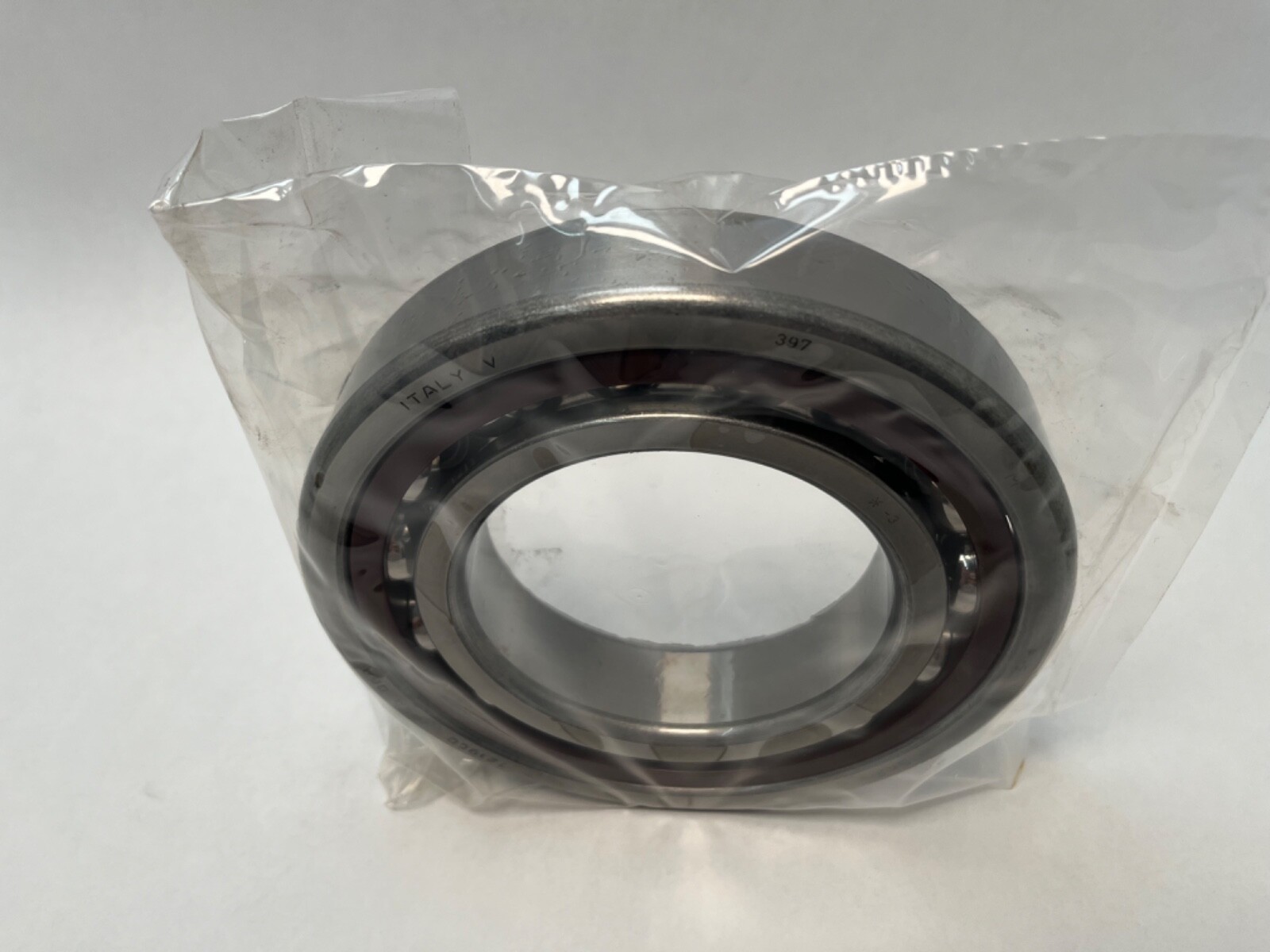

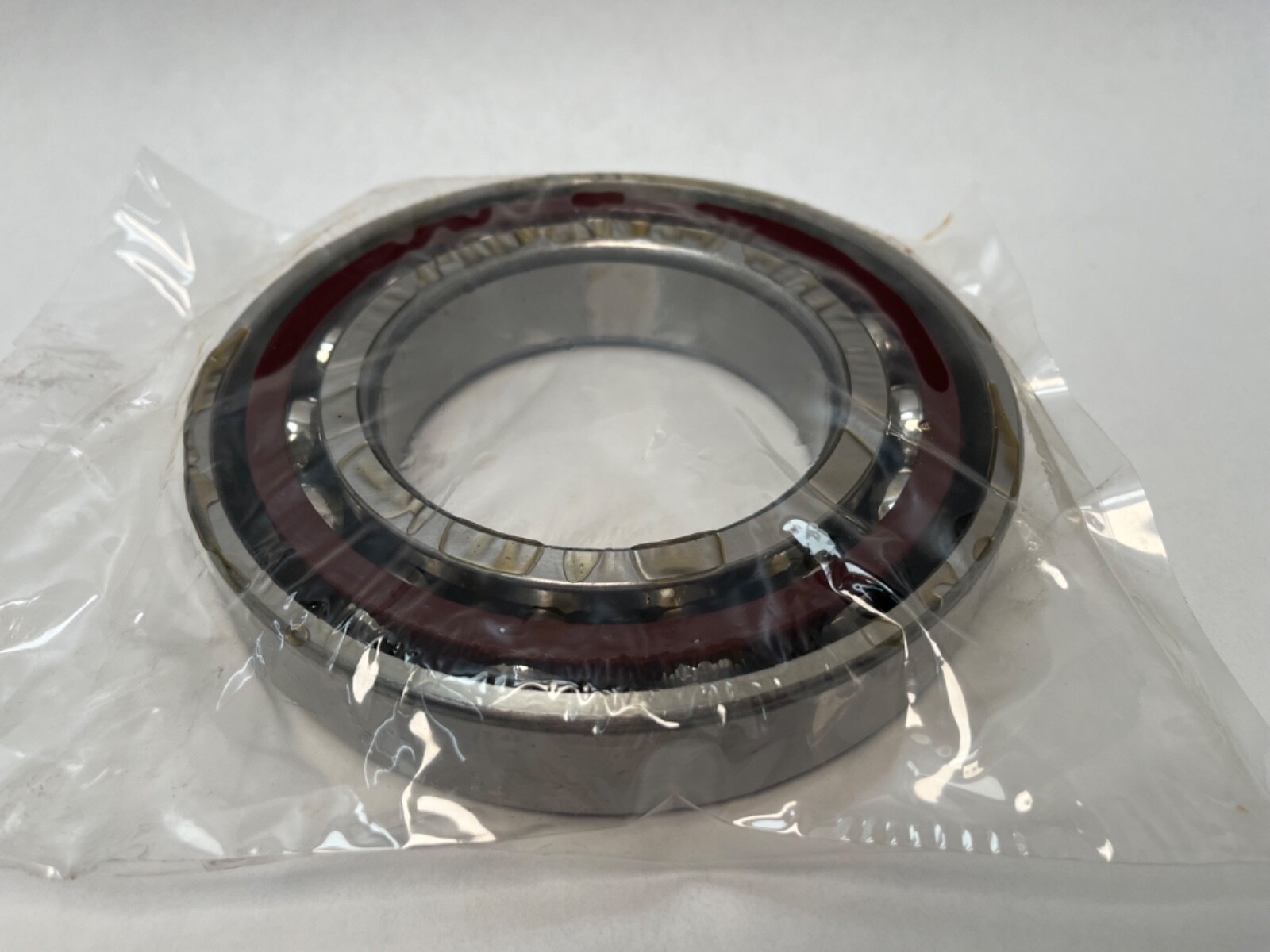

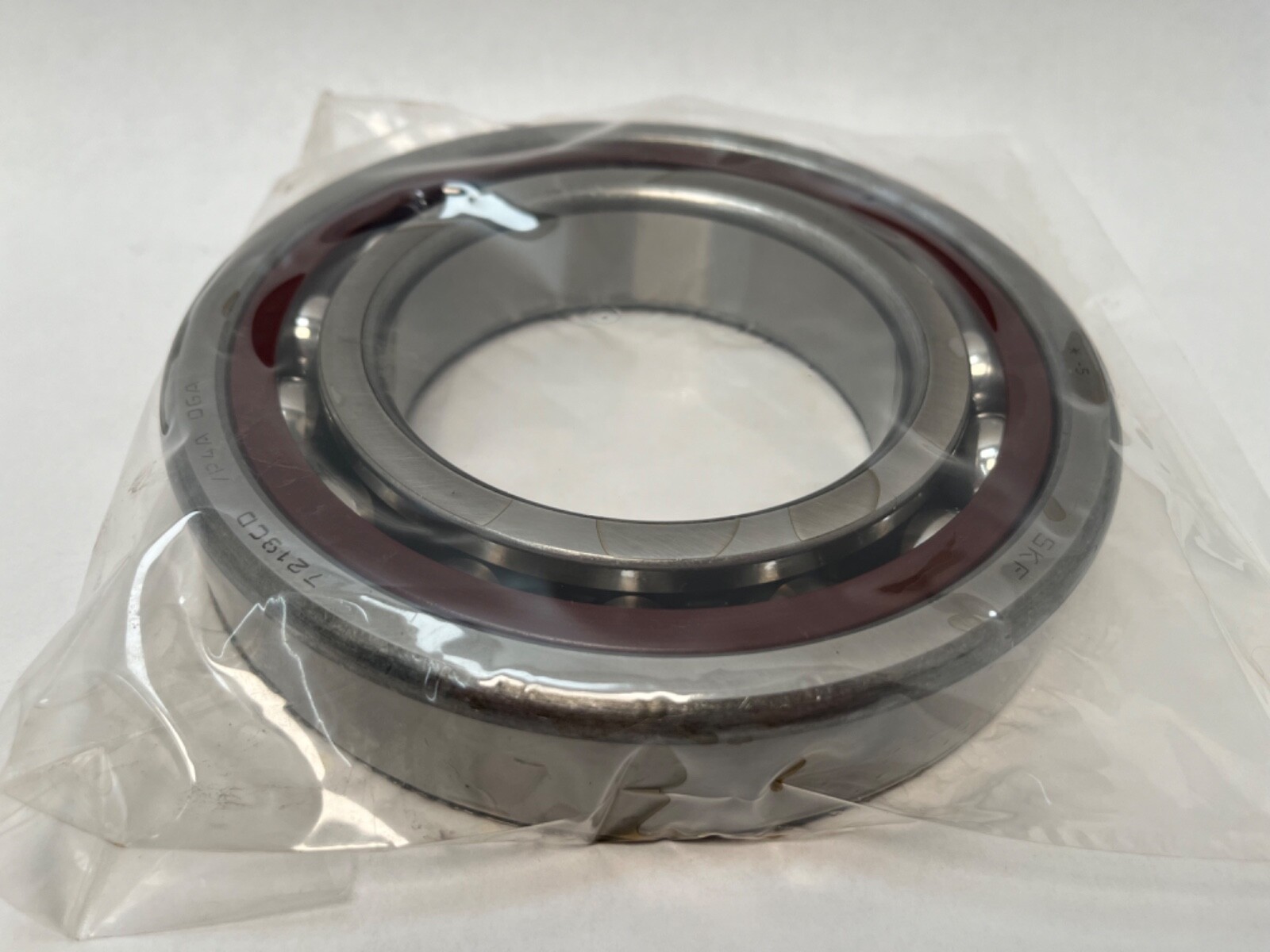

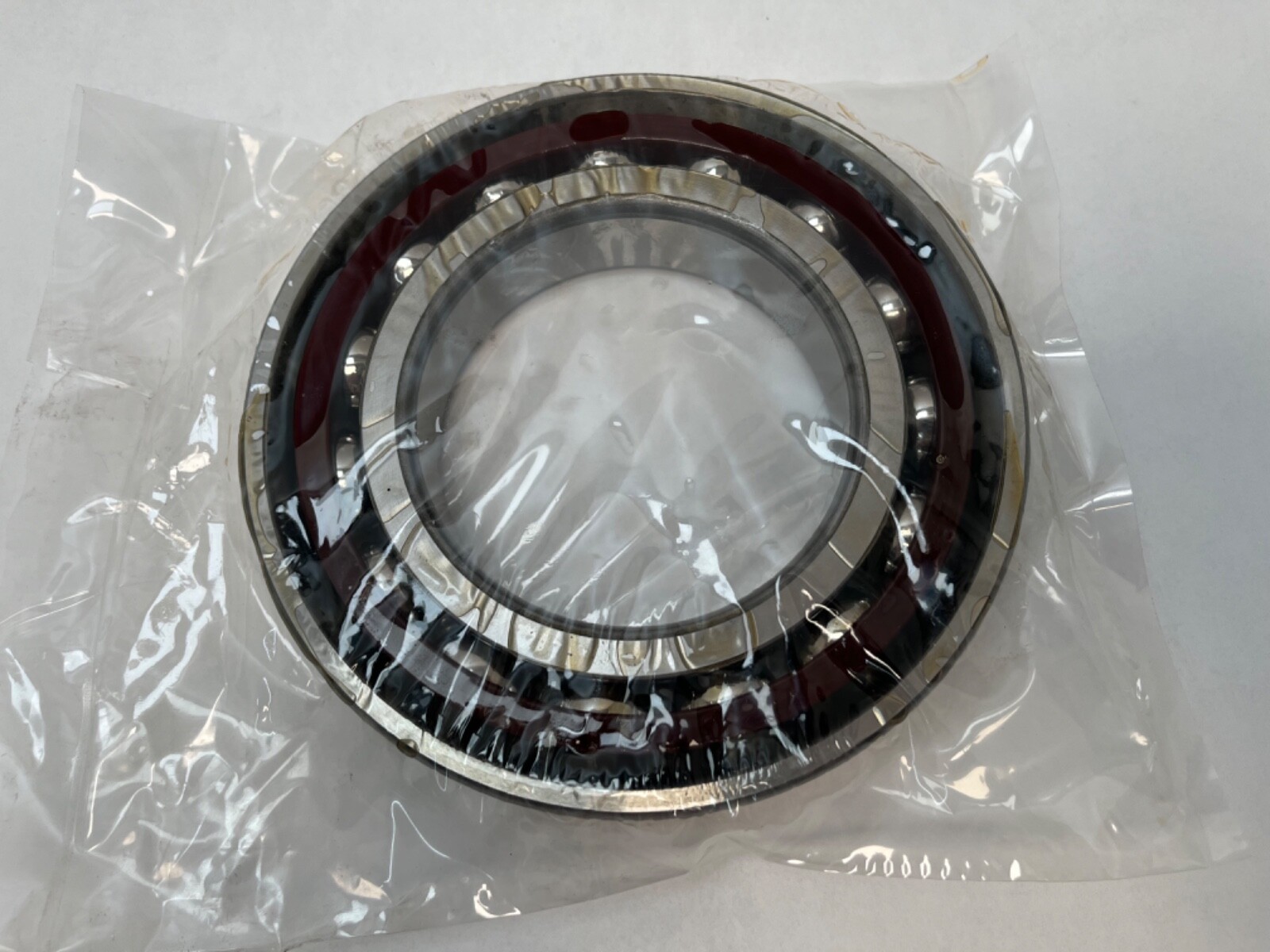

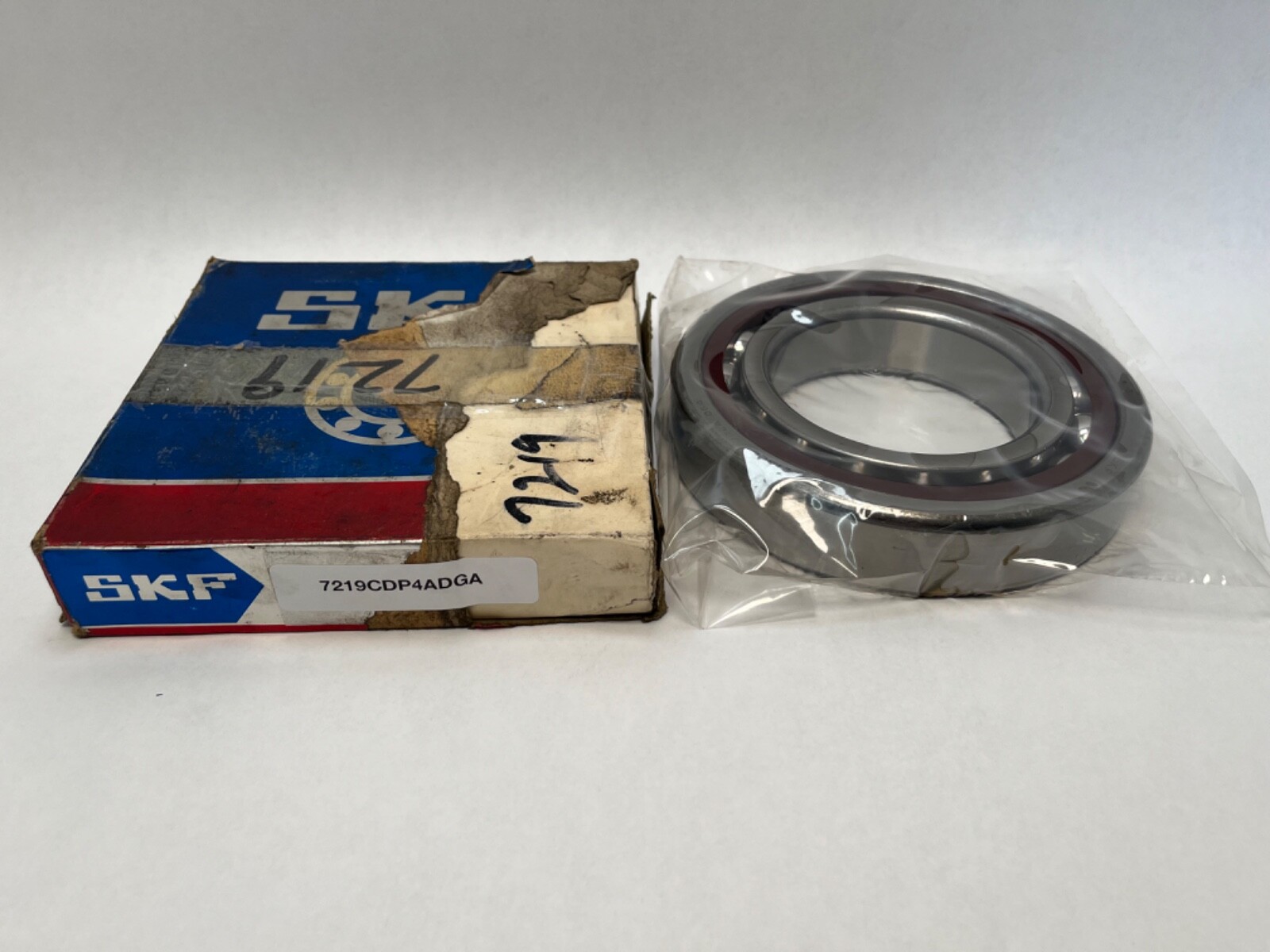

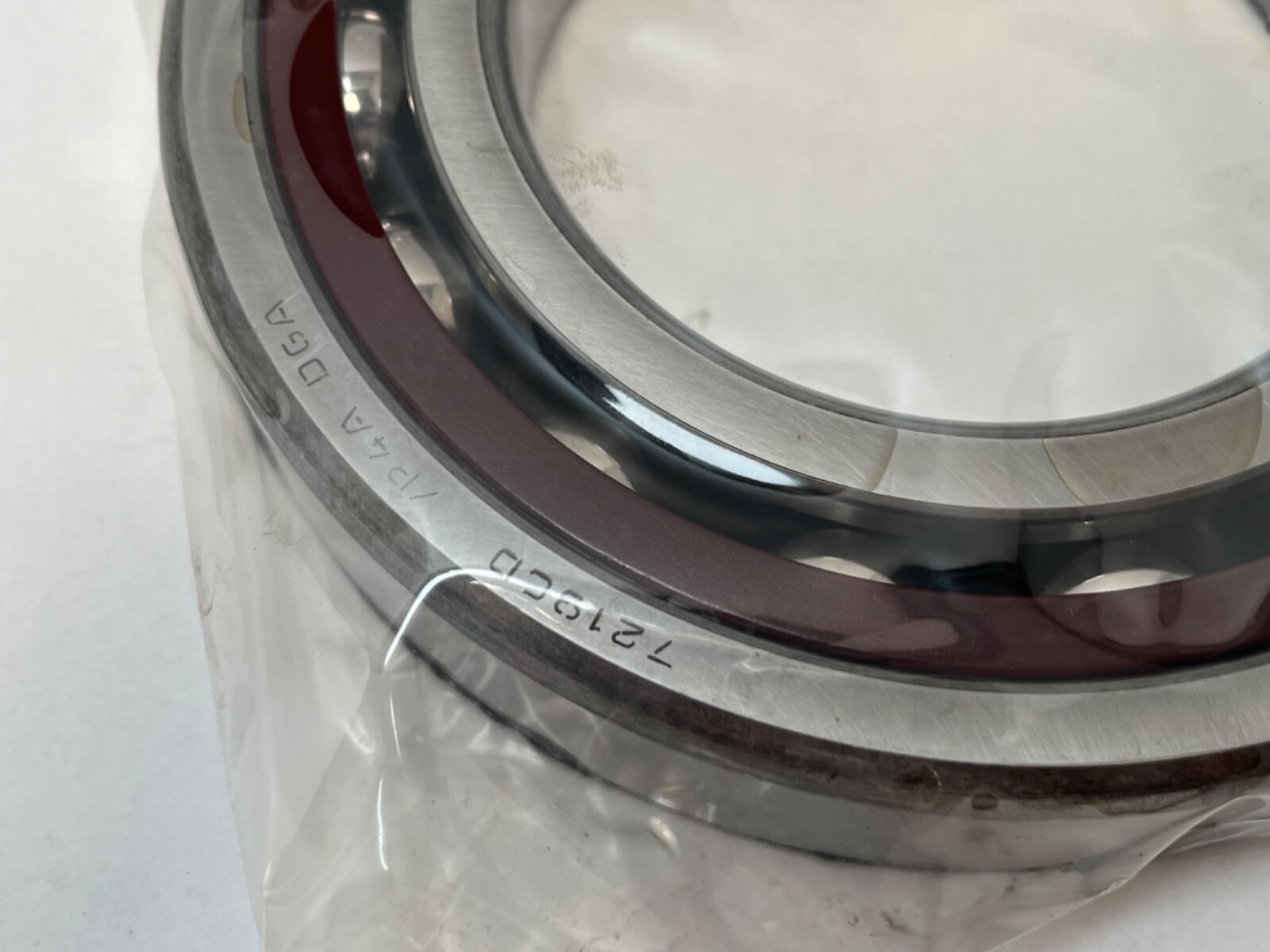

Super-precision angular contact ball bearing, 95 x 170 x 32 mm, 15° contact angle, extra light preload, P4A. SKF D design, universally matchable single bearing.
List Price
$351.87
1 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | SKF |
|---|---|
| Model | 7219 CD P4A DGA / 2M219WI CR DUL |
| Bearing Type | Angular Contact Ball Bearing, Open |
| ID | 95 mm |
| OD | 170 mm |
| Width | 32 mm |
| Material | Bearing Steel |
|---|---|
| Series | 7200 |
| Lubricant | Oil/Grease |
| Preload | Extra light (paired back-to-back or face-to-face) |
| Mpn Variants | 7219 CDGA/P4A, 7219-CDGA/P4A, 7219CDGAP4A, 7219CDP4ADGA, 7219-CD-P4A-DGA |
| Precision Class | ABEC 7 / P4A |
| Dynamic Load Rating | 138,000 N |
| Static Load Rating | 120,000 N |
| Rolling Elements | Ball |
| Item Weight | 2.64 kg (5.82 lb) |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Snap Ring Included | No |
| Limiting Speed | 8,000 rpm grease; 13,000 rpm oil-air |
| Harmonization Code | 8482.10.50 |
| Contact Angle | 15° |
| Mounting Arrangement | Universally matchable (back-to-back, face-to-face or tandem) |
| Cross Reference 1 | FAG B7219-C-T-P4S-UL – light preload |
|---|---|
| Cross Reference 2 | Fafnir 2MM219WI CR SUL – light preload |
| Cross Reference 3 | NSK 7219CTYNSULP4 – light preload, polyamide cage |
SKF 7219 CDGA/P4A super-precision, high-capacity D design single row angular contact ball bearing, universally matchable for back-to-back, face-to-face or tandem sets. Bore Diameter: 95 mm. Outside Diameter: 170 mm. Width: 32 mm. Contact Angle: 15°. Item Weight: 2.64 kg (5.82 lb).
7219 — ISO 72 series, 95 mm bore.
CD — 15° contact angle, SKF high-capacity D internal design.
GA — universally matchable single bearing, extra light preload.
P4A — SKF tolerance class: ISO P4 dimensional accuracy with P2 running accuracy.
Dynamic Load Rating: 138,000 N. Static Load Rating: 120,000 N. Attainable Speed: 8,000 rpm grease; 13,000 rpm oil-air (single bearing, before the matched-set reduction factor). Preload: Extra light, when paired back-to-back or face-to-face. Axial Stiffness: 115 N/µm (pair, back-to-back). Precision Class: ABEC 7 / P4A. Ball Diameter: 23.812 mm. Number of Balls: 15.
Shaft Abutment Diameter (da min): 107 mm. Housing Abutment Diameter (Da max): 158 mm. Fillet Radius (ra max): 2 mm. Chamfer (r1,2 min): 2.1 mm. Oil Nozzle Position (dn): 124.4 mm. Reference Grease Quantity: 34.3 cm³.
Unit Quantity: 1 Pc. Mounting Arrangement: universally matchable, back-to-back, face-to-face or tandem.
Same size, 15° contact angle and P4-level precision, but at light rather than extra light preload: FAG B7219-C-T-P4S-UL, NSK 7219CTYNSULP4 and Fafnir 2MM219WI CR SUL. The NSK part also has a polyamide cage.
