Central Surplus Bearing Finder
A faster way to search our bearing inventory Today we’re launching the Central Surplus Bearing
Availability:
1 in stock

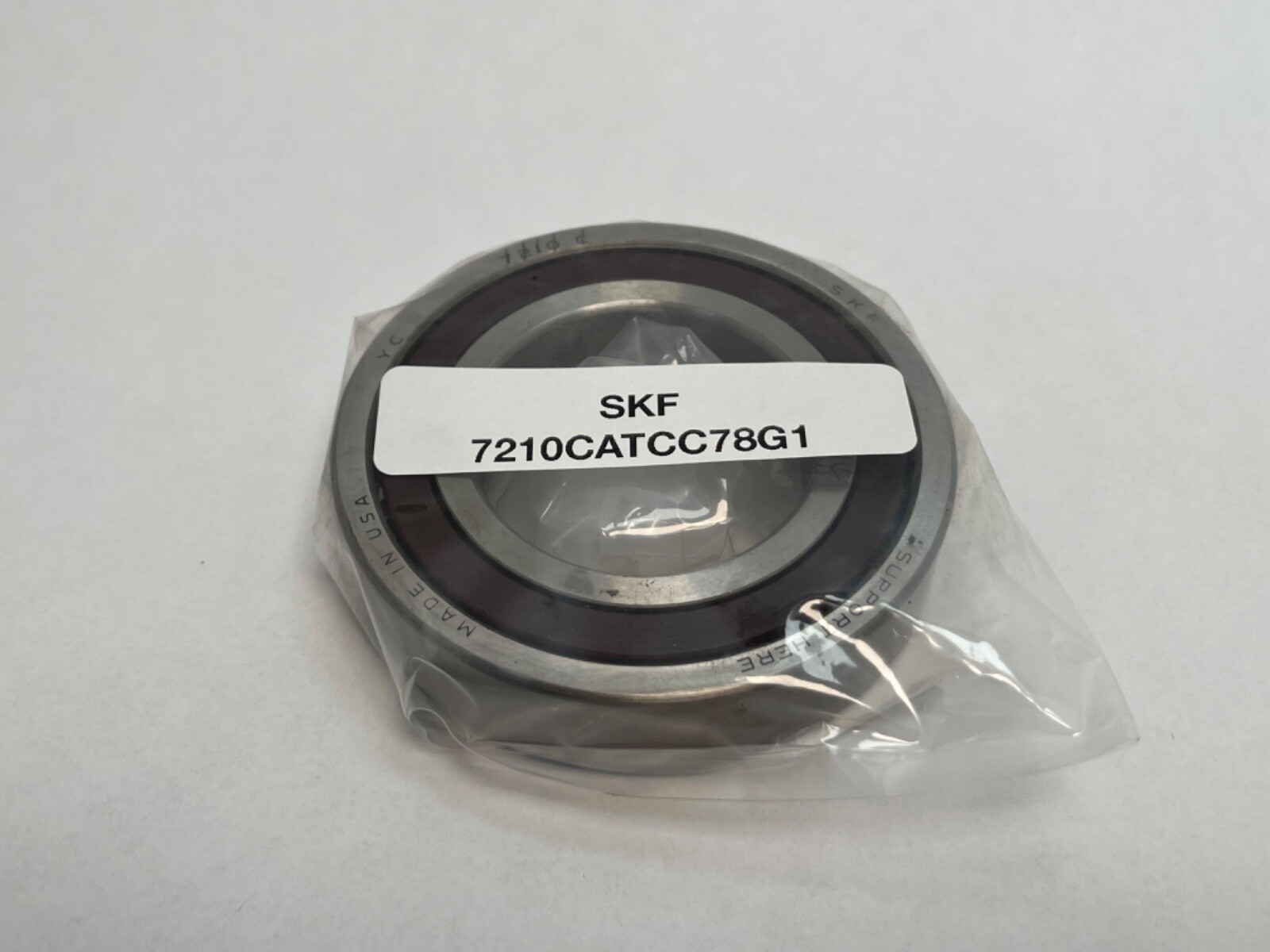

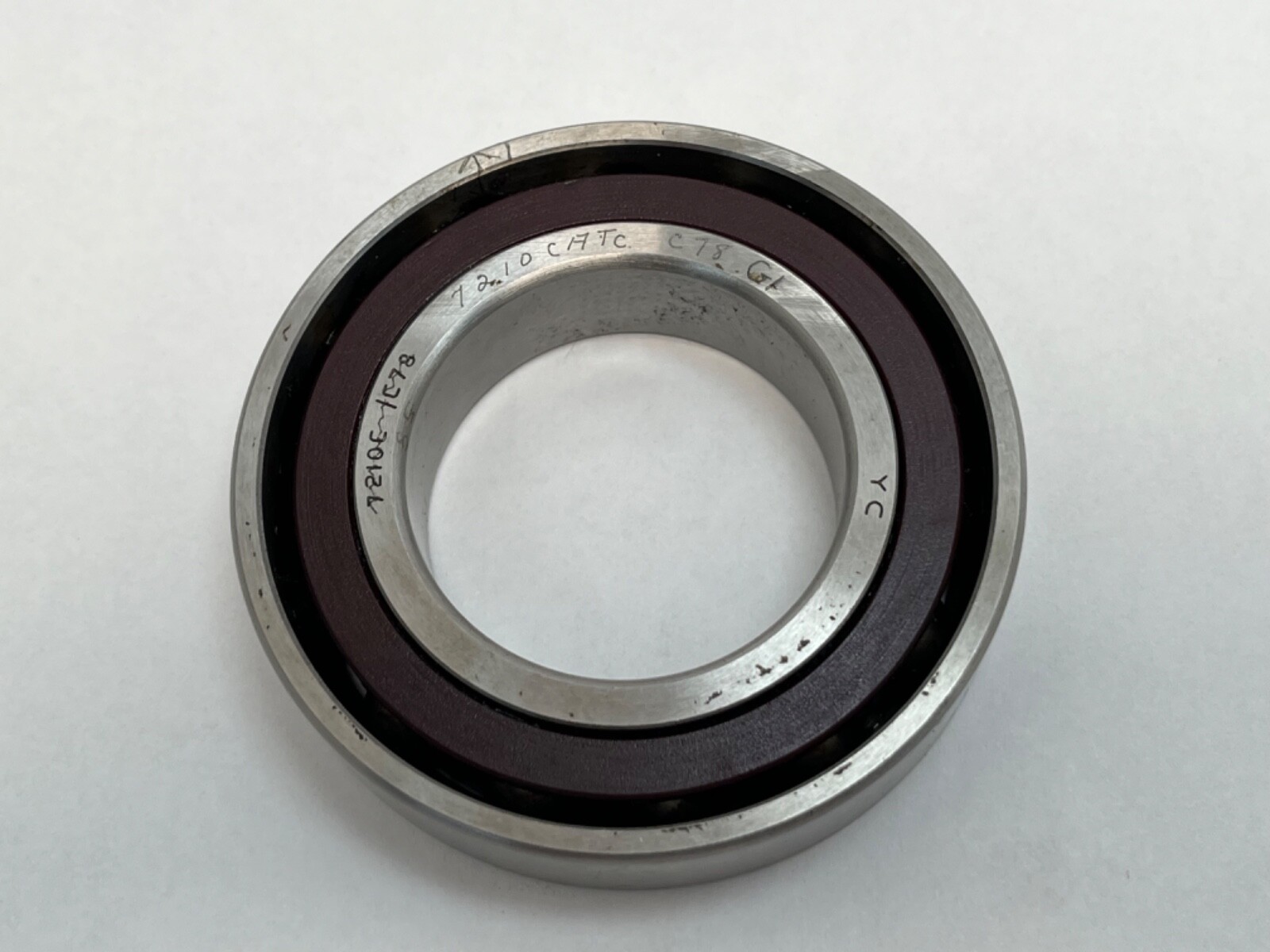

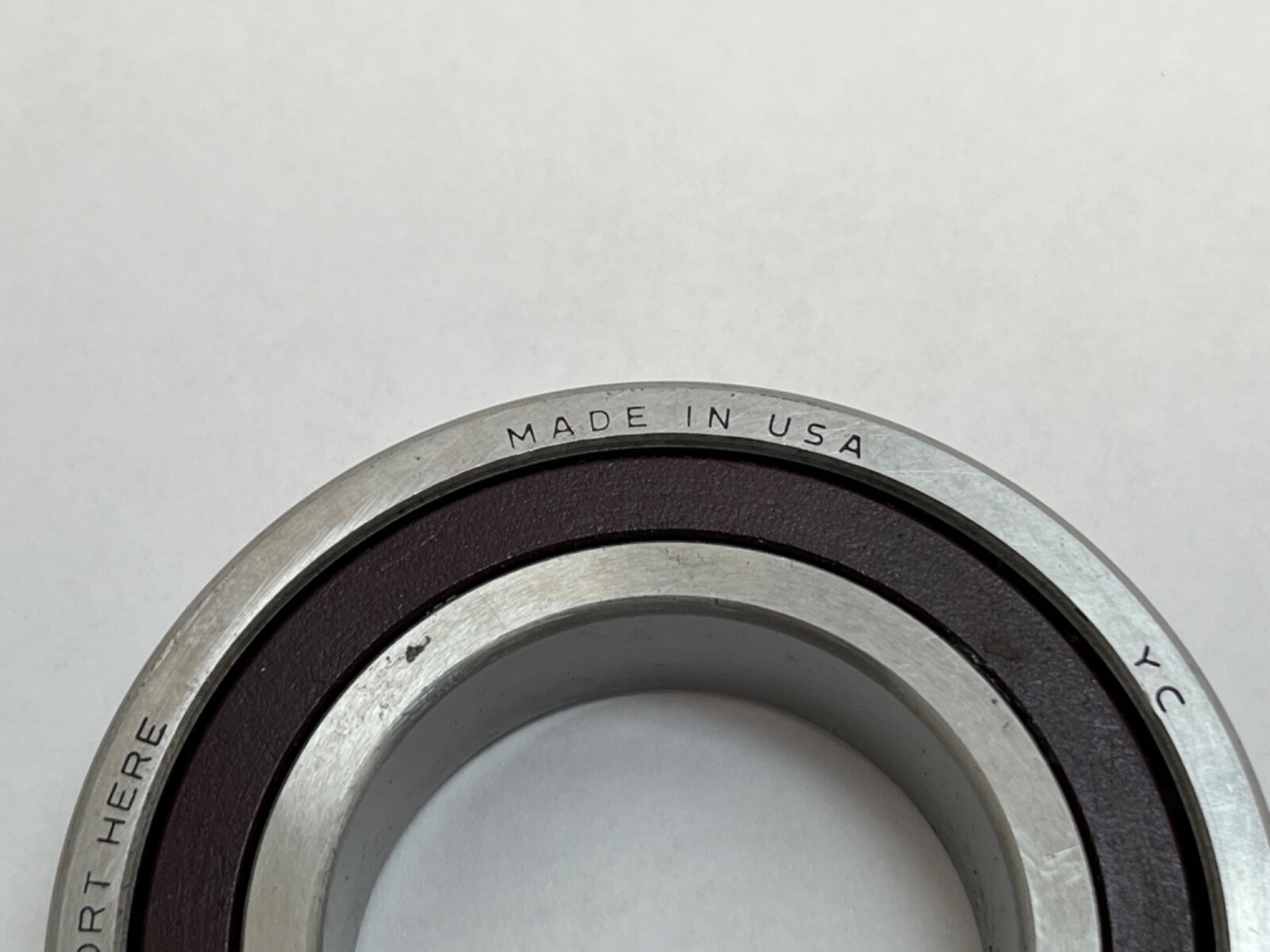

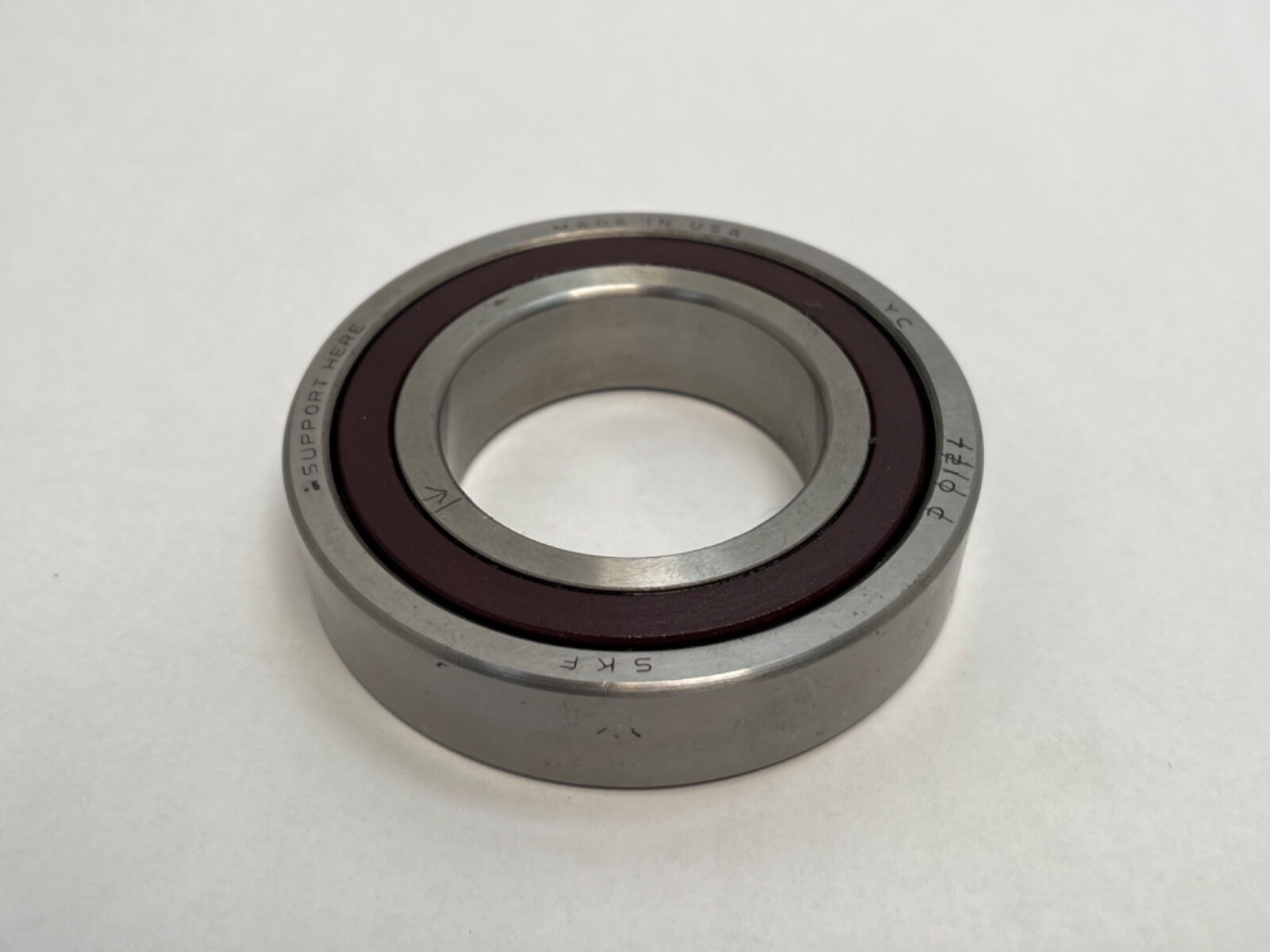

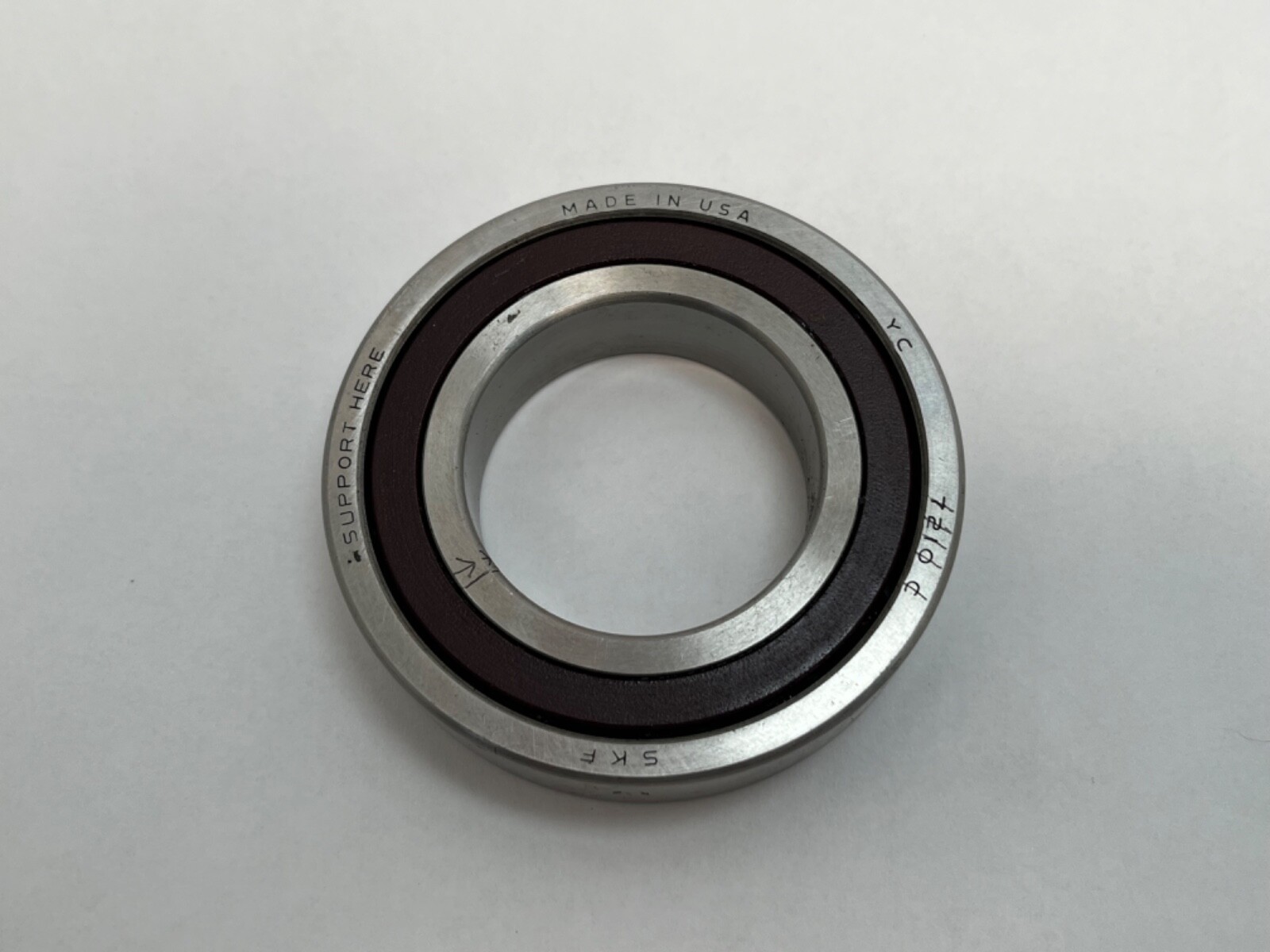

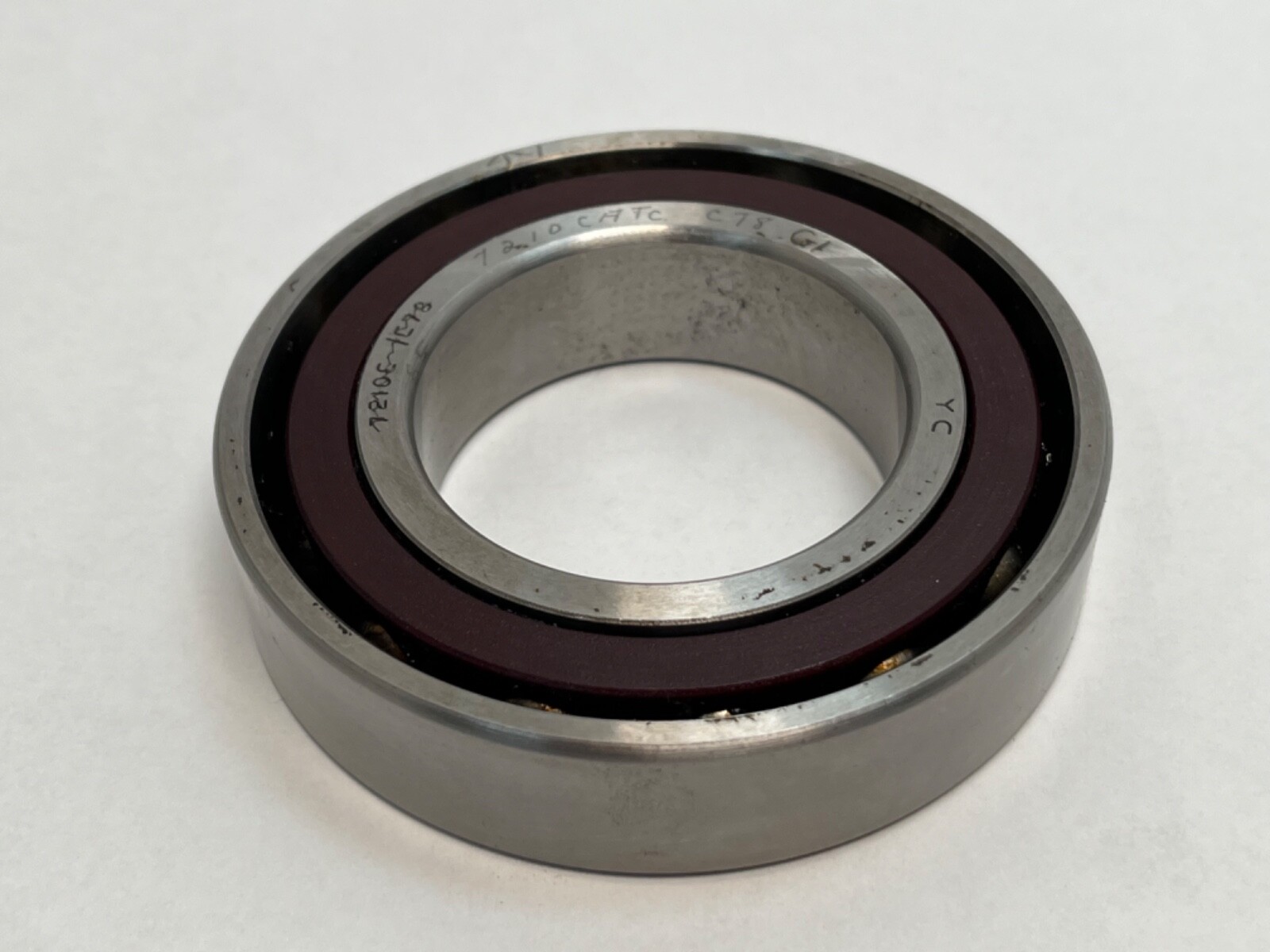

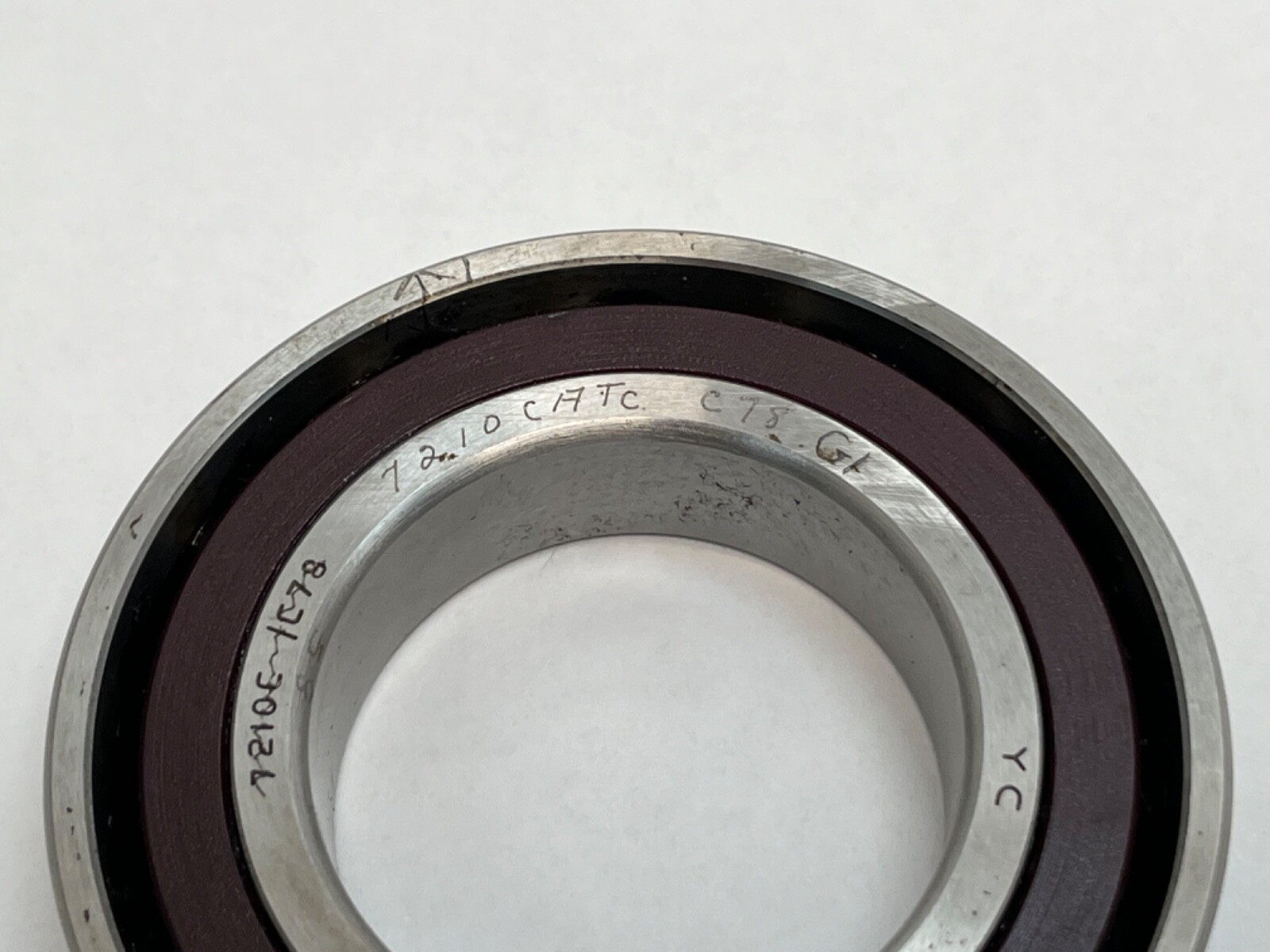

Single-row angular contact ball bearing, 50 x 90 x 20 mm, 15° contact angle, straight bore, open on both faces. SKF 7210 CTC/C78 G1, Unit Quantity 1 Pc.
List Price
$52.16
1 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | SKF |
|---|---|
| MPN | 7210 CTC/C78 G1 |
| Model | 7210 C TC C78 G1 / 2M210WI CR / 7210 C P5 |
| Bearing Type | Angular Contact Ball Bearing, Open |
| ID | 50mm |
| OD | 90mm |
| Width | 20mm |
| Series | 7200 |
|---|---|
| Material | Bearing Steel |
| Unspsc | 31171502 |
| Base Number | 7210 |
| Industry Terms | Angular contact bearing; 15 degree bearing; spindle bearing |
| Common Misspellings | 7210CTC C78G1; 7210CTCC78-G1; 7210CTCC7BG1; SFK 7210CTC |
| Application Types | Machine tool spindles; high-speed pumps; index and rotary tables |
| Bore Shaft Size | 50 mm (1.9685 in), straight bore |
| Mpn Variants | 7210CTCC78G1; 7210-CTC-C78-G1; 7210 CTC C78 G1; 7210CTC; 7210C |
| Rolling Elements | Balls |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Snap Ring Included | No |
| Harmonization Code | 8482.10.5028 |
| Contact Angle | 15° |
| Part Number | 7210 CTC/C78 G1 |
| Cross Reference 1 | Koyo 7210C (related, 15 degree) |
|---|---|
| Cross Reference 2 | Fafnir 2MM210WI (related, 15 degree) |
| Cross Reference 3 | RHP 7210CT (related, 15 degree) |
SKF 7210 CTC/C78 G1 single-row angular contact ball bearing, 50 mm bore, 90 mm outside diameter, 20 mm width, straight bore, open on both faces. Bore Diameter: 50 mm. Outside Diameter: 90 mm. Overall Width: 20 mm. Bore Type: Straight. Number Of Rows: 1. Rolling Elements: Balls. Closure Type: Open. Unit Quantity: 1 Pc.
72 — ISO medium angular contact dimension series.
10 — bore code, 50 mm.
C — 15° contact angle in the SKF scheme, which is why the part also carries the cross-designation 7210C.
Contact Angle: 15°. Series: 7200. Material: Bearing Steel. Harmonization Code: 8482.10.50. Country of Origin: United States. A 15° contact angle keeps centrifugal ball loading low at speed and suits high speed with light one-way thrust.
Bore Diameter: 50 mm (1.9685 in). Outside Diameter: 90 mm. Overall Width: 20 mm. Single angular contact bearing taking axial load in one direction.
7210CTCC78G1, 7210-CTC-C78-G1 and 7210 CTC C78 G1 are the same designation written three ways. Related 15° bearings of the same 50 x 90 x 20 mm envelope: Koyo 7210C, Fafnir 2MM210WI, RHP 7210CT. A 7210 BE at 40° or a 7210 ACD at 25° is a related size with a different axial rating.
50 mm bore, 90 mm outside diameter and 20 mm width.
15°, from the C in the designation.
Open on both faces.
