SKFAngular Contact Ball Bearings – 45 mm ID, 85 mm OD, 19 mm Width, Open, Matched Set of Four

Product Description

What this part is

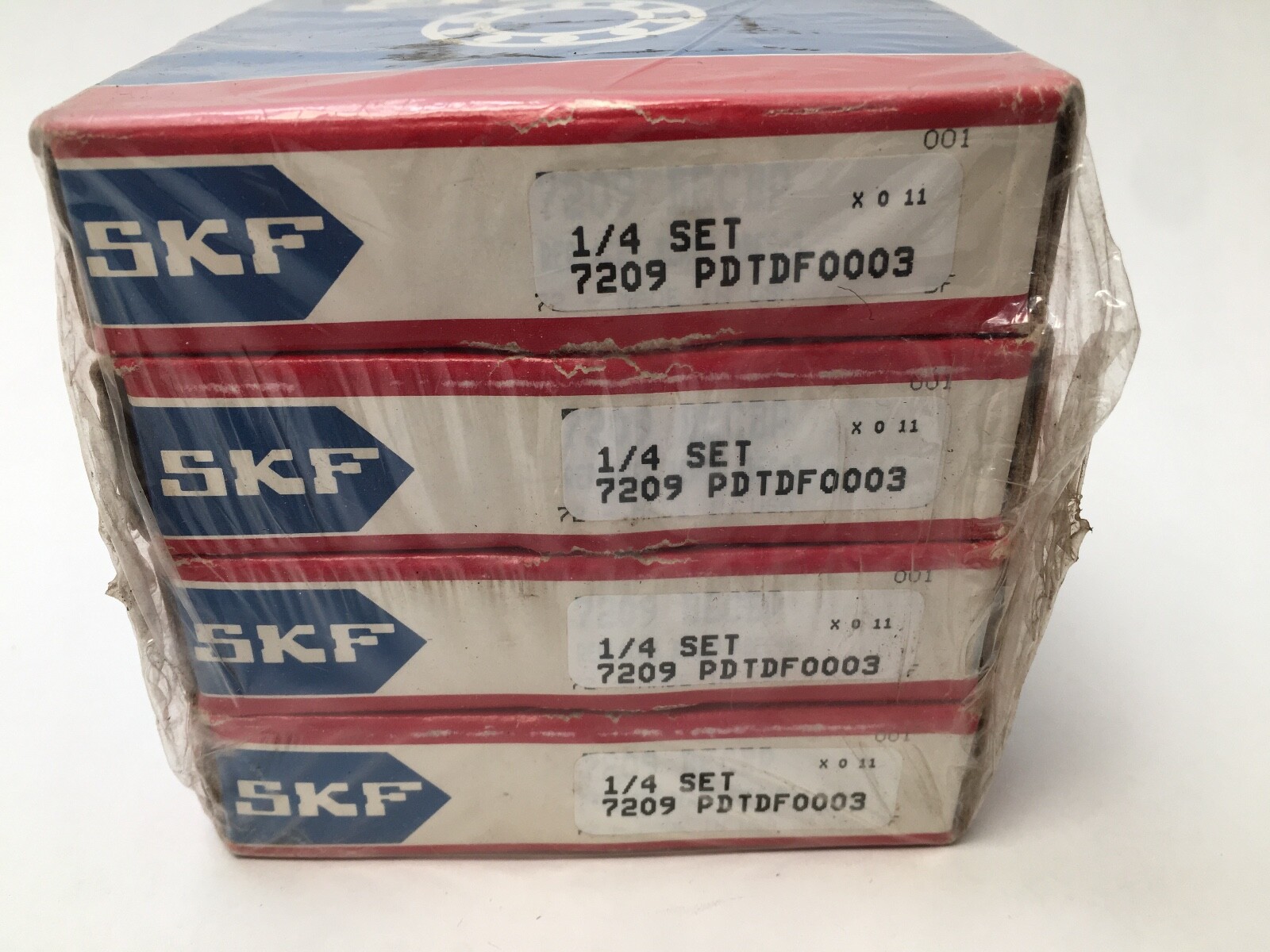

SKF 7209 PDTDF 003 angular contact ball bearings, supplied as a matched set of four. Bore: 45 mm. Outside diameter: 85 mm. Width: 19 mm each. Series: 72. Open on both faces, straight bore.

Decoding the designation

7209: series 72, bore code 09, 45 mm bore, 85 mm outside diameter, 19 mm width.

What these specs mean in practice

A 45 mm bore angular contact ball bearing in the 72 series is a spindle and gearbox size that carries combined radial and one-direction axial load. Bought as a matched set, the four rings are ground together, so the load shares evenly across the stack and the shaft holds its axial position.

Quantity and configuration

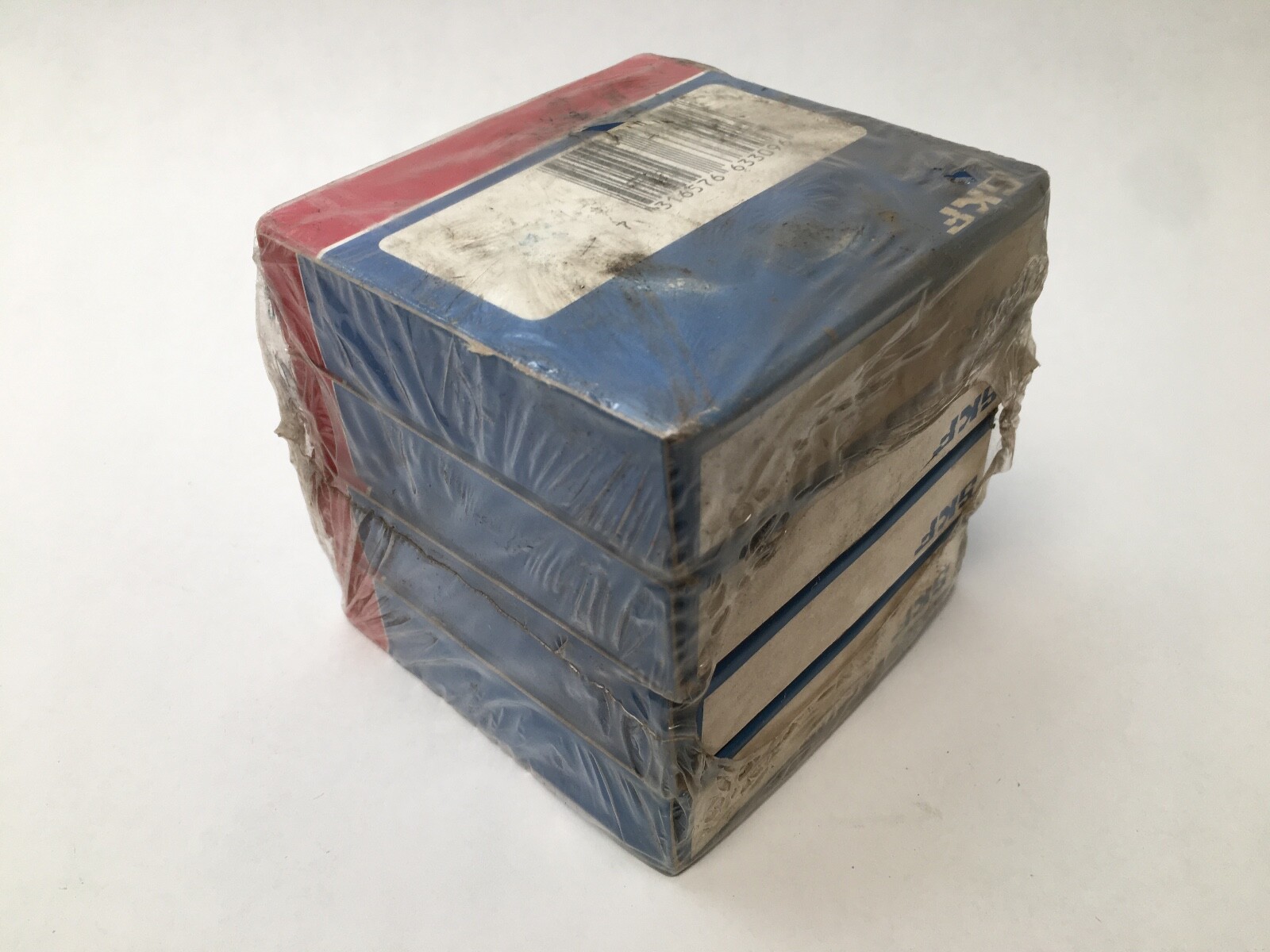

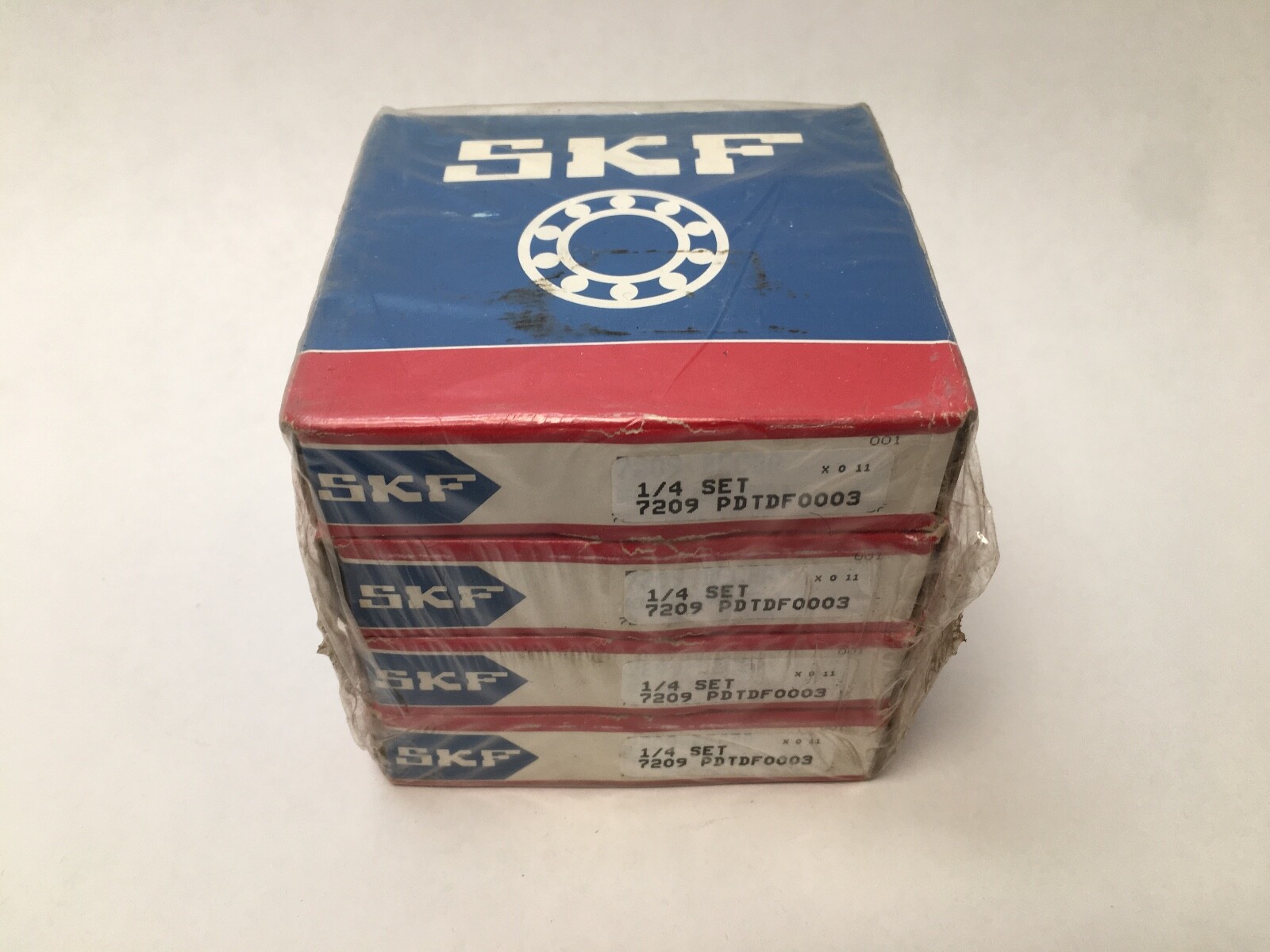

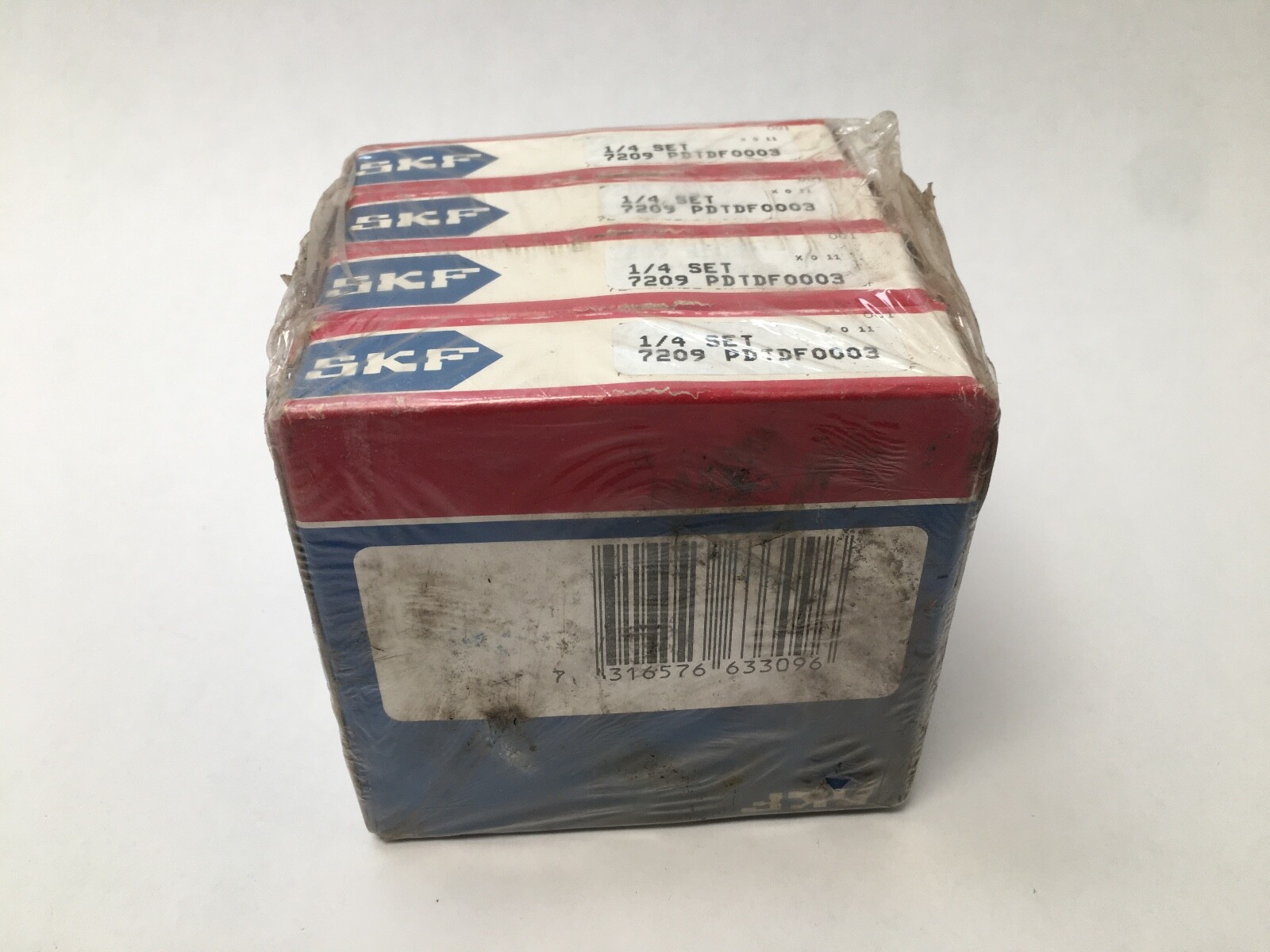

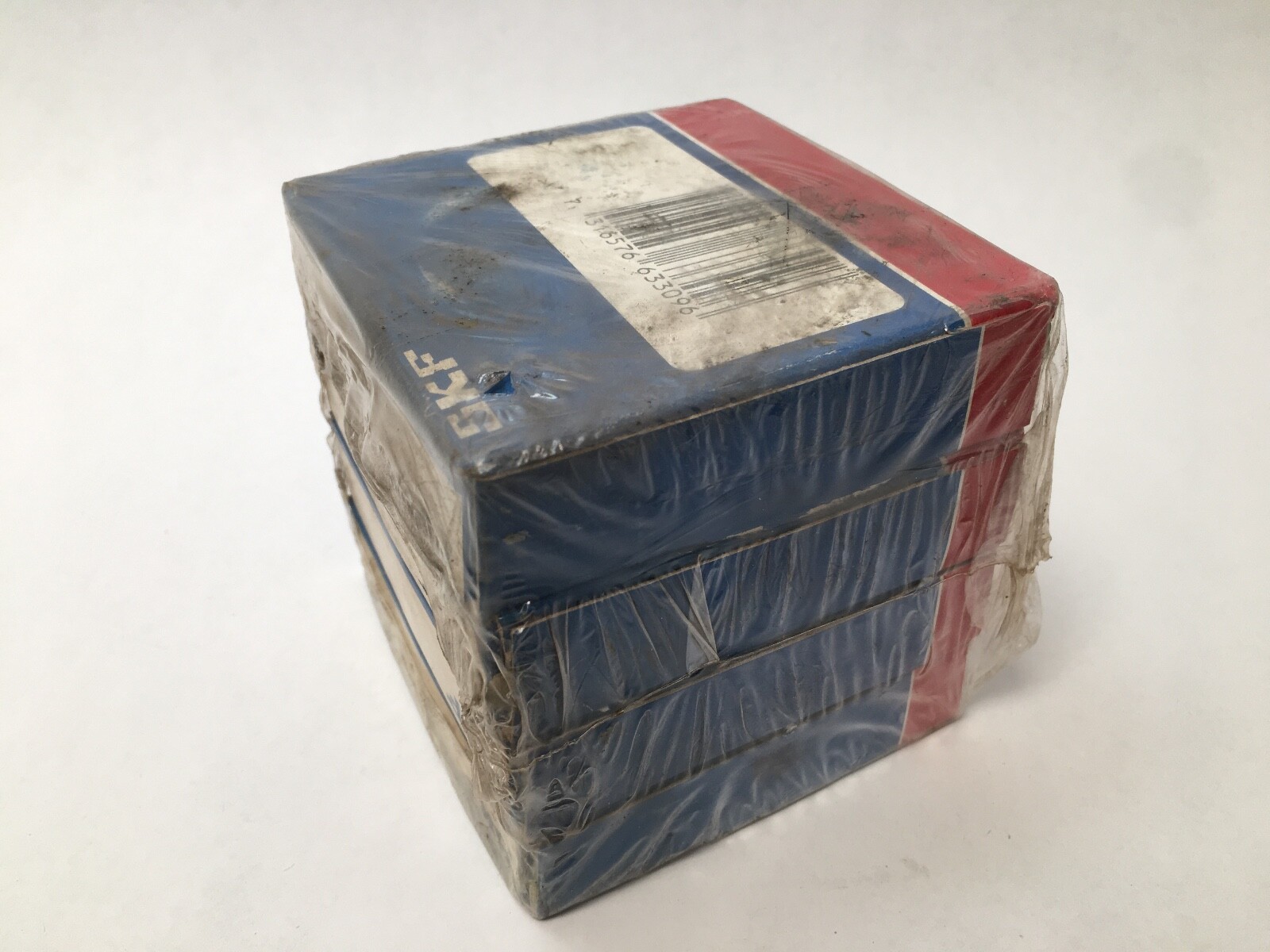

Four pieces, 4 Pcs, a factory matched set.

Fitting notes

Straight bore, open on both faces. Matched set pieces mount in the order and orientation marked on their faces, clamped between a shaft shoulder and a locknut with the outer rings seated square in the housing bore.

Interchange guidance

SKF 7209 CD/P4A and 7209 ACD/P4A are super-precision bearings on the same 45 x 85 x 19 mm envelope at 15° and 25° respectively, and are related sizes rather than direct substitutions for this order code. Searchable forms: 7209PDTDF003, 7209 PDTDF 003, 7209-PDTDF-003, 7209.
