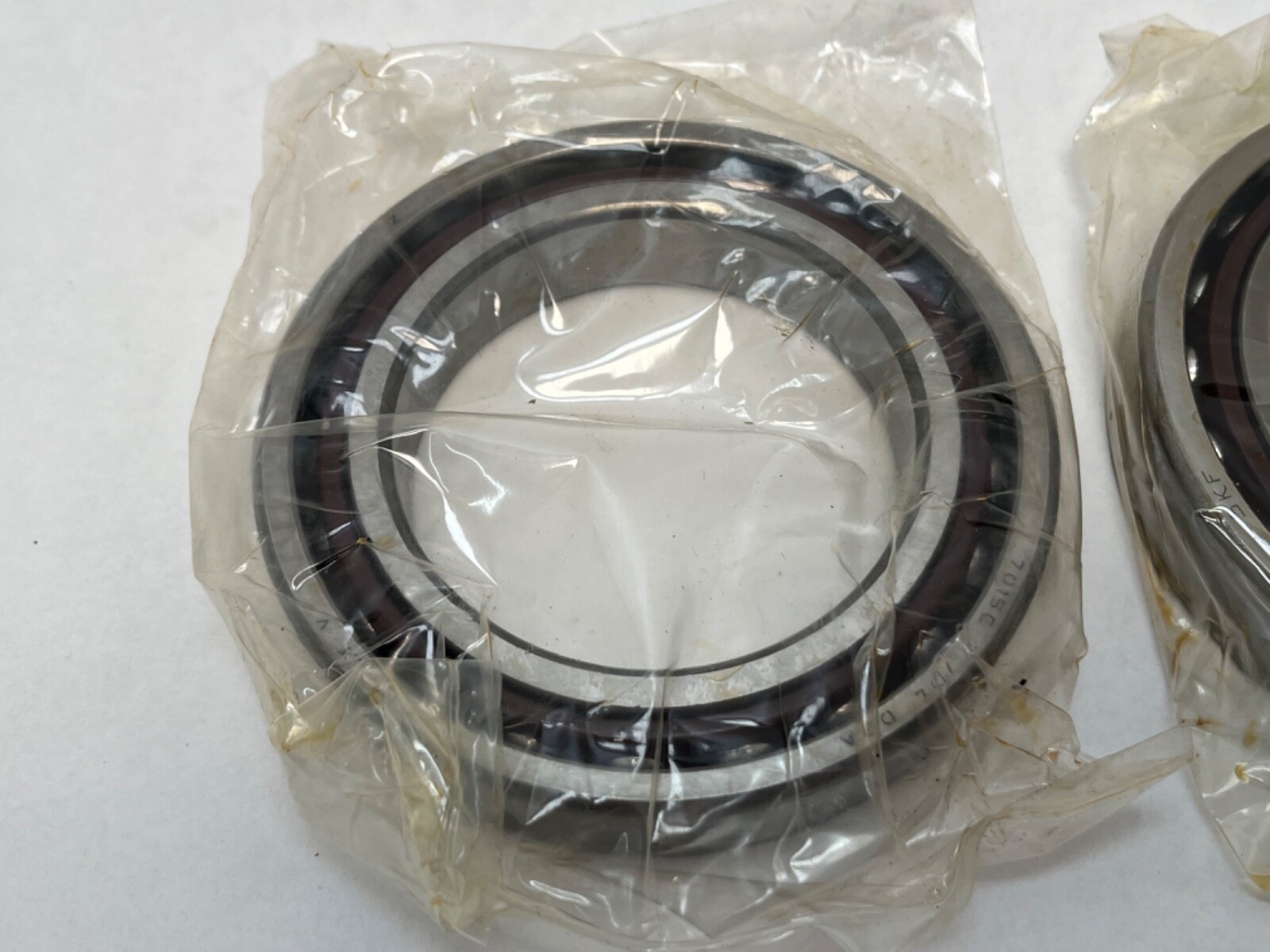

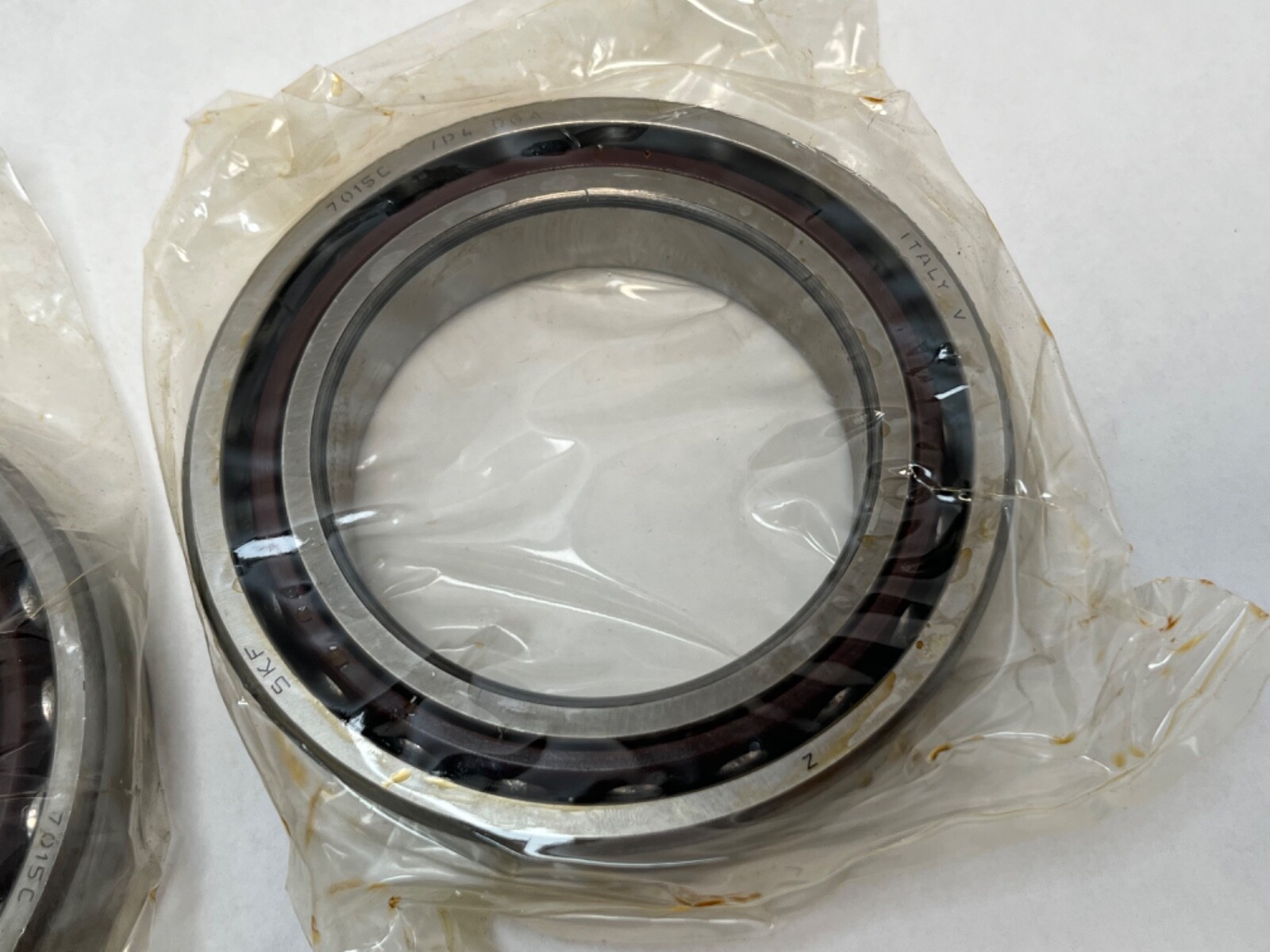

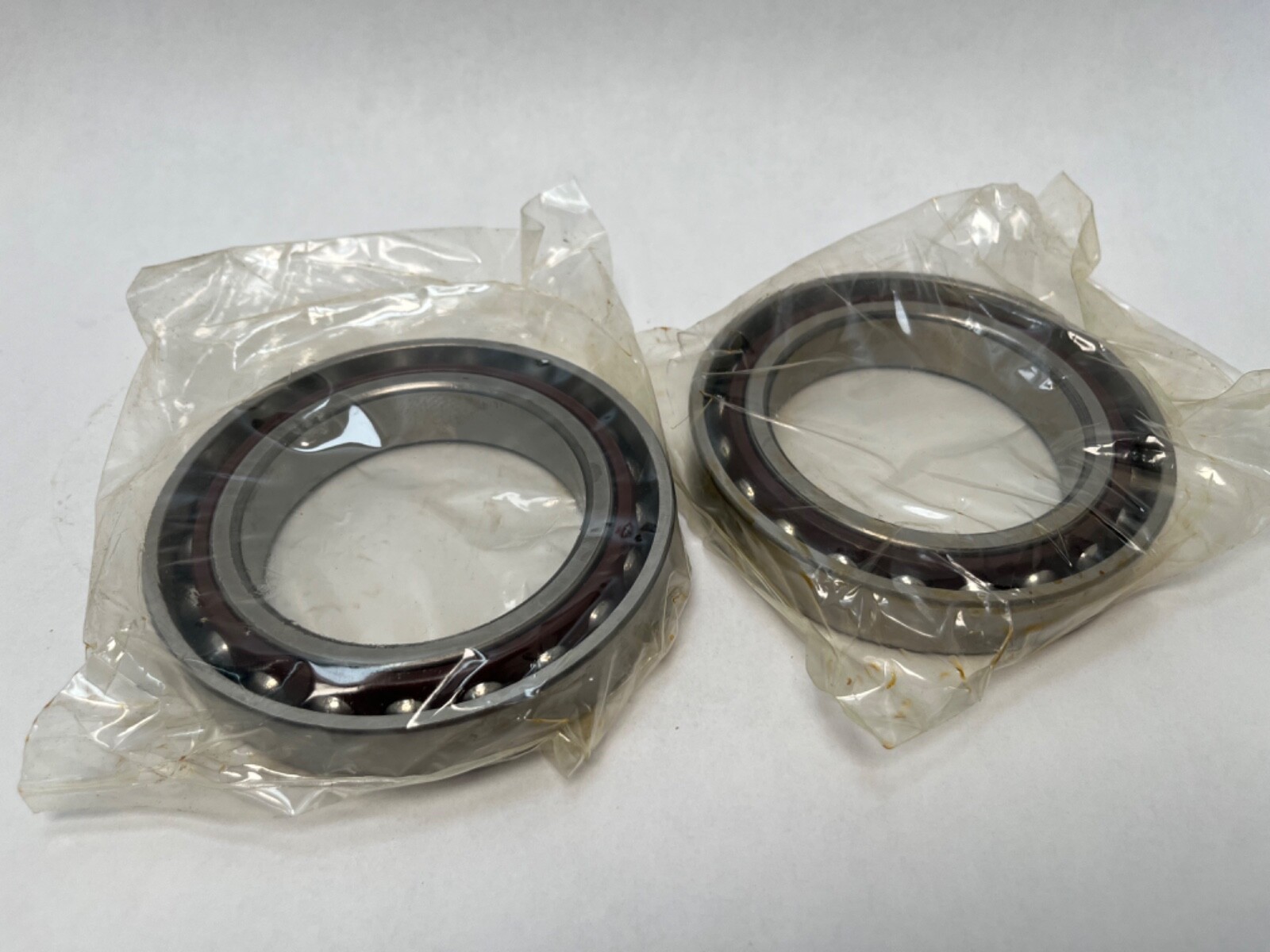

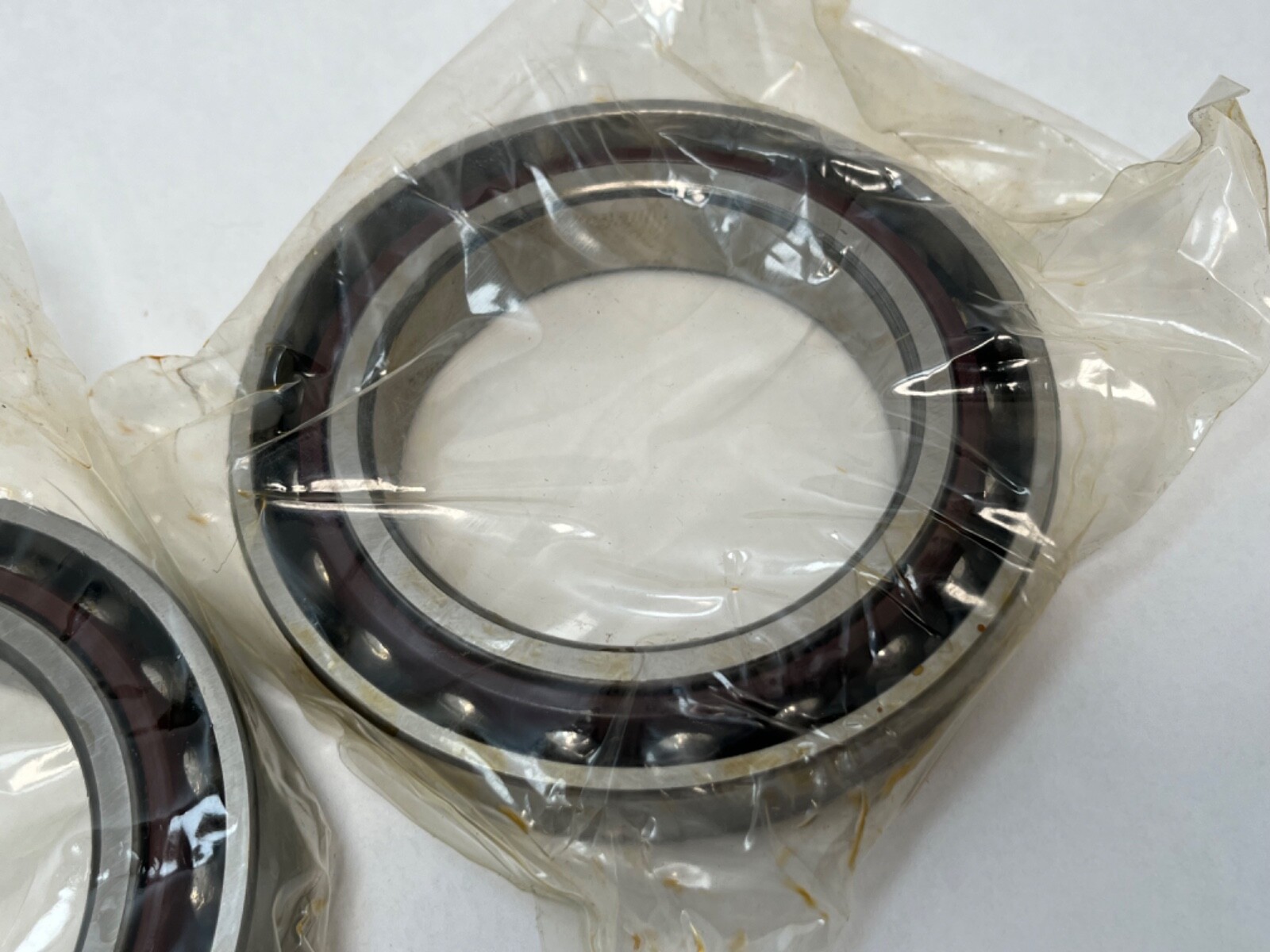

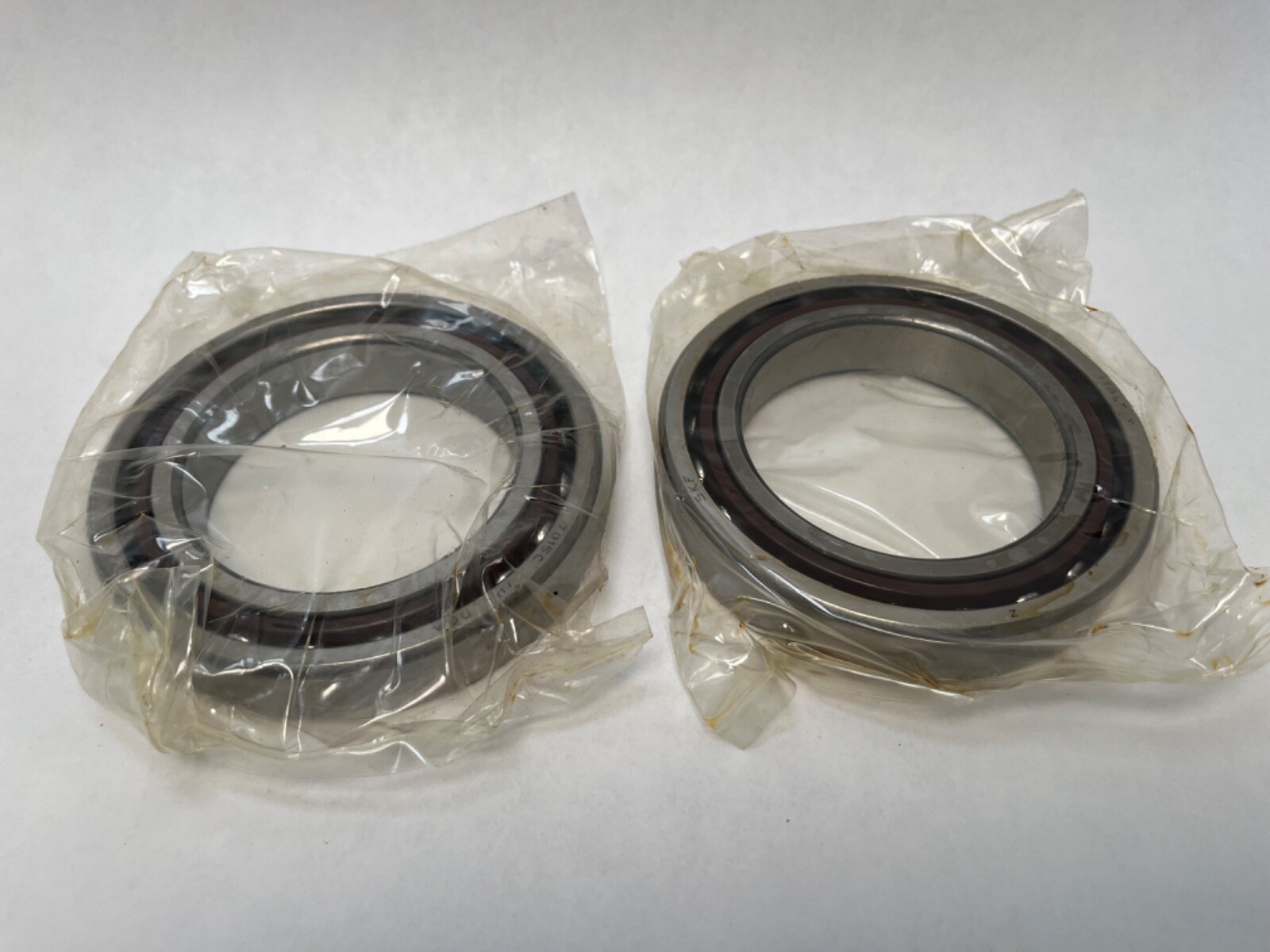

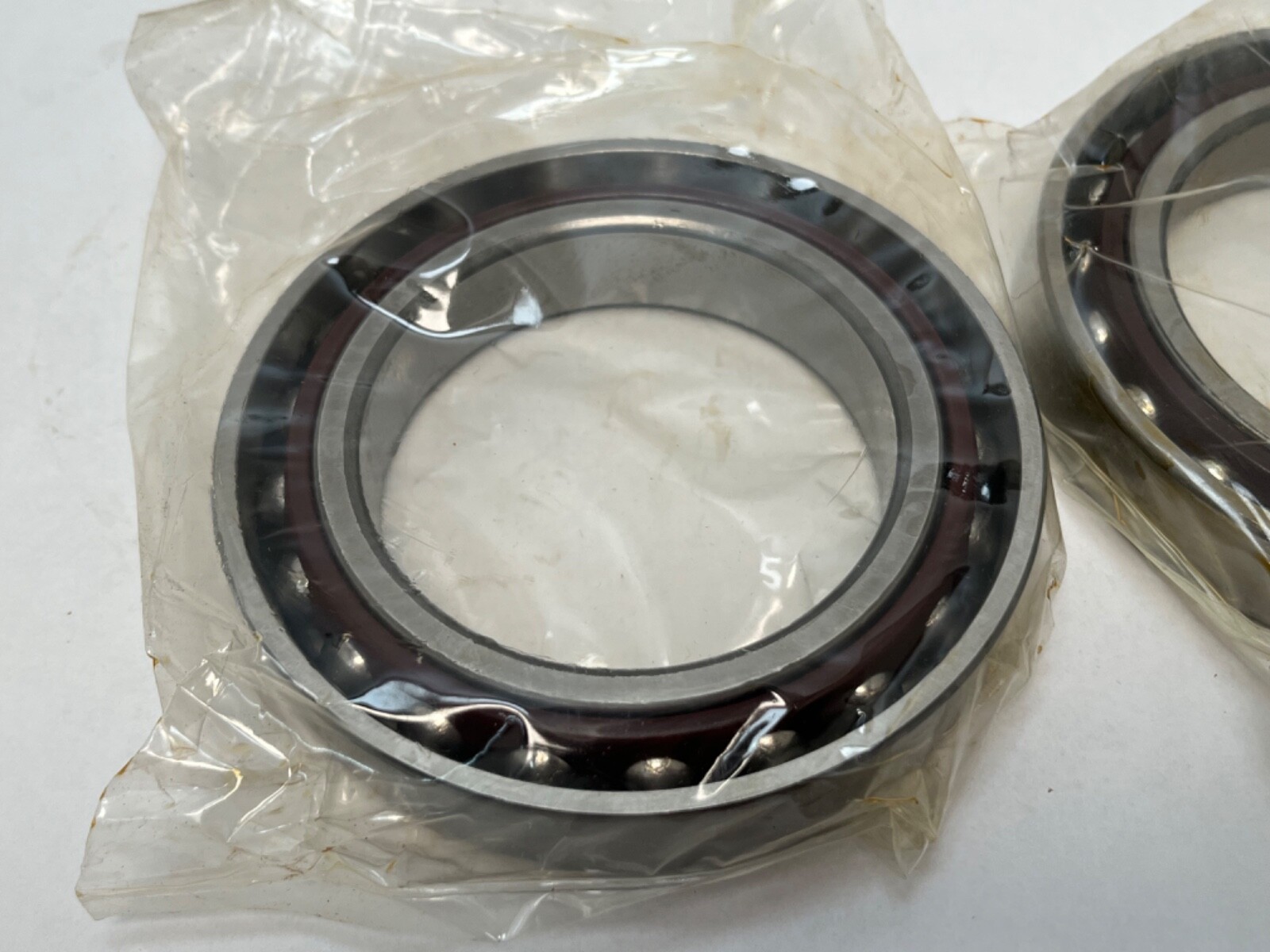

Super-precision angular contact ball bearing, 75 x 115 x 20 mm, 15 degree contact angle, ABEC 7 / P4. Universally matchable set of two, extra light preload.
List Price
$267.72
4 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | SKF |
|---|---|
| MPN | 7015CP4DGA |
| Model | 7015 C P4 DGA / 2MM9115WI CR DUL |
| Bearing Type | Angular Contact Ball Bearing, Open |
| ID | 75 mm |
| OD | 115 mm |
| Width | 20 mm |
| Material | Bearing Steel |
|---|---|
| Series | 7000 |
| Preload | Extra light preload (class A) |
| Total Width | 40 mm |
| Arrangement Configuration | Matched set of two |
| Precision Class | ABEC 7 / P4 |
| Additional Attributes | eCl@ss 23-05-08-04; UNSPSC 31171531; indicative carbon footprint 4.6 kg CO2e |
| Closure Type | Open |
| Cage Type | Outer-ring shoulder-guided |
| Dynamic Load Rating | 85,200 N (matched set of two) |
| Static Load Rating | 98,000 N (matched set of two) |
| Precision Rating | ABEC 7 / P4 |
| Rolling Elements | Ball |
| Item Weight | 1.23 kg (2.71 lb) per matched pair |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Snap Ring Included | No |
| Harmonization Code | 8482.10.50 |
| Contact Angle | 15° |
| Mounting Arrangement | Universally matchable: back-to-back (DB), face-to-face (DF) or tandem (DT) |
| Bearing Material | Bearing steel |
| Cross Reference 1 | Fafnir 2MM9115WI CR DUL |
|---|---|
| Cross Reference 2 | FAG B7015-C-T-P4S |
| Cross Reference 3 | NSK 7015CTYNSULP4 |
| Cross Reference 4 | NTN 7015UCG/GNP4 |
| Cross Reference 8 | Koyo 7015C-5GLFGP4 |
SKF 7015 CD/P4DGA is a matched set of two super-precision, high-capacity D design, single row angular contact ball bearings. Bore Diameter: 75 mm. Outside Diameter: 115 mm. Overall Width: 20 mm per bearing. Total Width: 40 mm across the matched pair. Contact Angle: 15°. Precision Class: ABEC 7 / P4. Rolling Elements: Ball. Number Of Rows: 1 per bearing. Bore Type: Straight. Closure Type: Open. Seal type: Open. Bearing Material: Bearing steel. Unit Quantity: 2 Pcs.

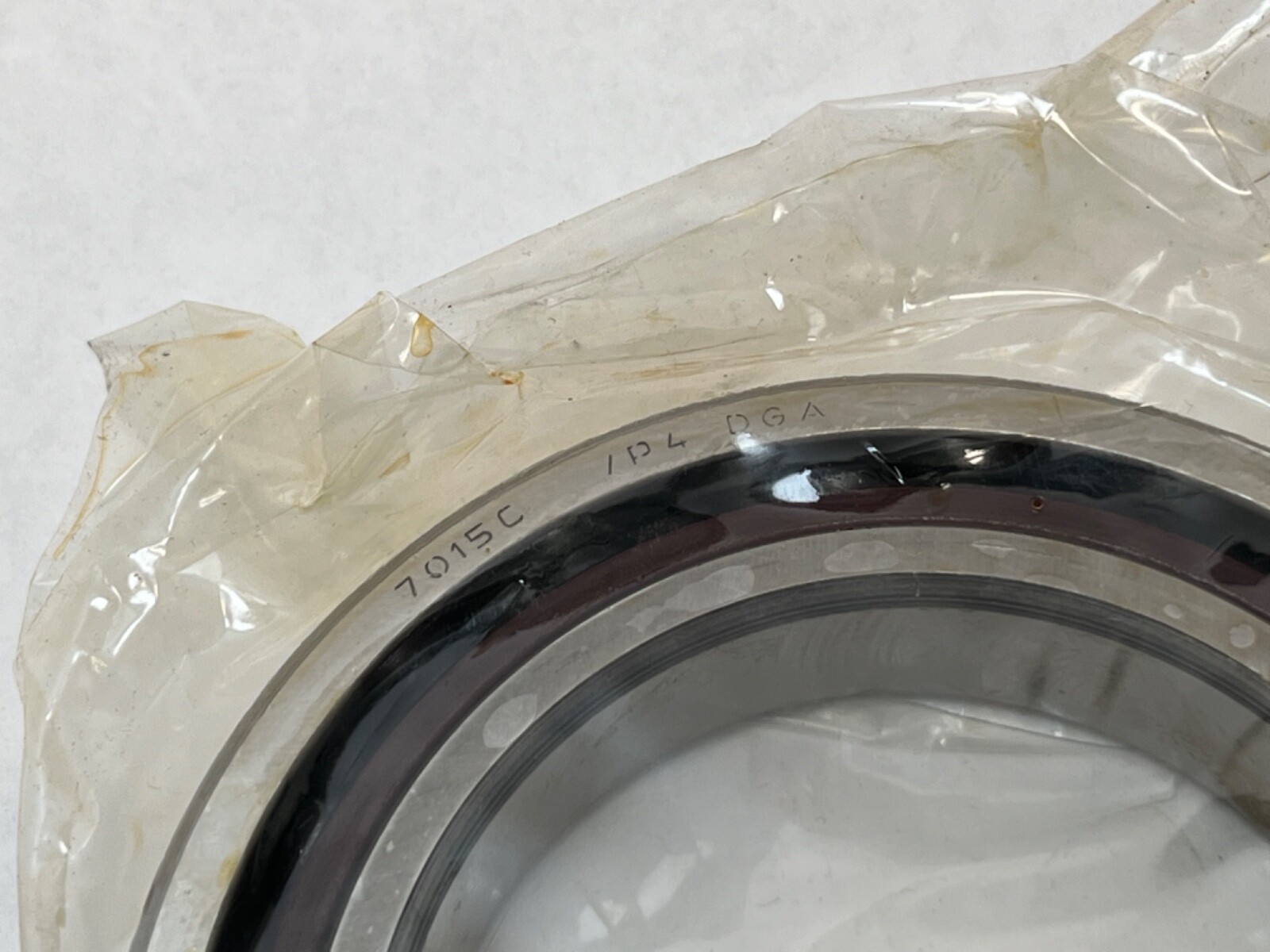

7015 — ISO 70 light dimension series, bore code 15, giving a 75 x 115 x 20 mm envelope per bearing.
CD — high-capacity D design ground to a 15° contact angle, built for heavier loads than the SKF B and E high-speed designs on the same envelope.
P4 — SKF super-precision tolerance class P4, ABEC 7 running accuracy.
DGA — universally matchable set of two bearings, extra light preload.
Dynamic Load Rating: 85,200 N. Static Load Rating: 98,000 N. Both are SKF set ratings covering the two bearings together. The static rating sitting above the dynamic rating is the figure SKF prints for this light-section 70 series and is reproduced here as published. Design: high-capacity D. Contact type: normal contact, two-point. Ring type: one-piece inner and outer rings. Matched condition: extra light preload. The set is preload-adjusted at the factory and therefore carries no internal clearance class. Coating: without. Sealing: without. Lubricant: none.
Item Weight: 1.23 kg (2.71 lb) per matched pair. Indicative carbon footprint for a new product: 4.6 kg CO2e. eCl@ss code: 23-05-08-04. UNSPSC code: 31171531. Harmonization Code: 8482.10.50.
Mounting Arrangement: universally matchable, back-to-back (DB), face-to-face (DF) or tandem (DT). Arrangement / Configuration: matched set of two. Number of bearings in the matched set: 2. Unit Quantity: 2 Pcs. Cage Type: outer-ring shoulder-guided. Snap ring included: No.

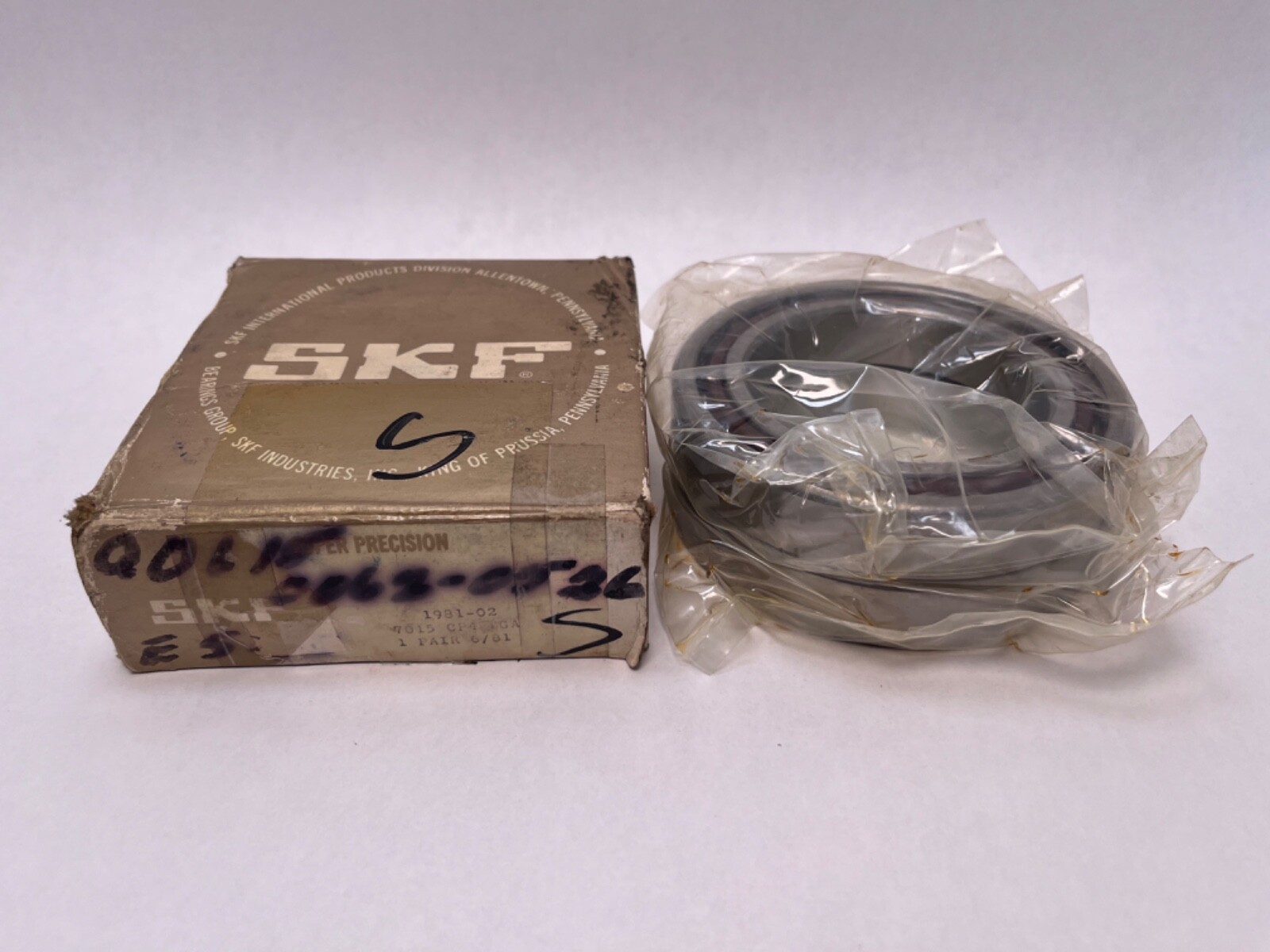

The carton for this set also carries the Fafnir designation 2MM9115WI CR DUL, the same 75 x 115 x 20 mm 15° duplex execution. Other equivalent super-precision executions: FAG B7015-C-T-P4S, NSK 7015CTYNSULP4, NTN 7015UCG/GNP4, RHP 7015CTDULP4, Koyo 7015C-5GLFGP4. Preload class and arrangement are carried by separate suffixes in each maker’s own scheme.
