Availability:
1 in stock

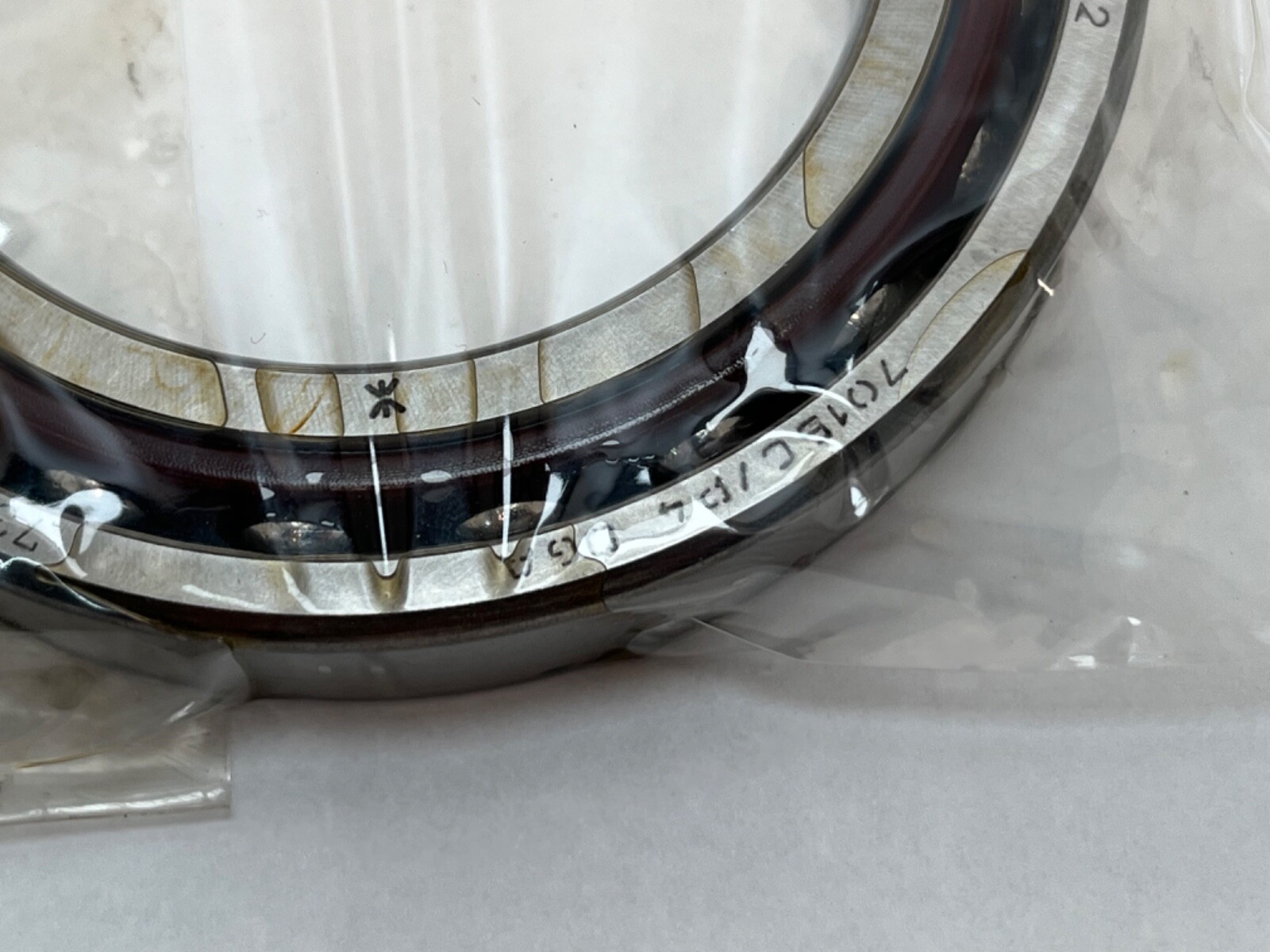

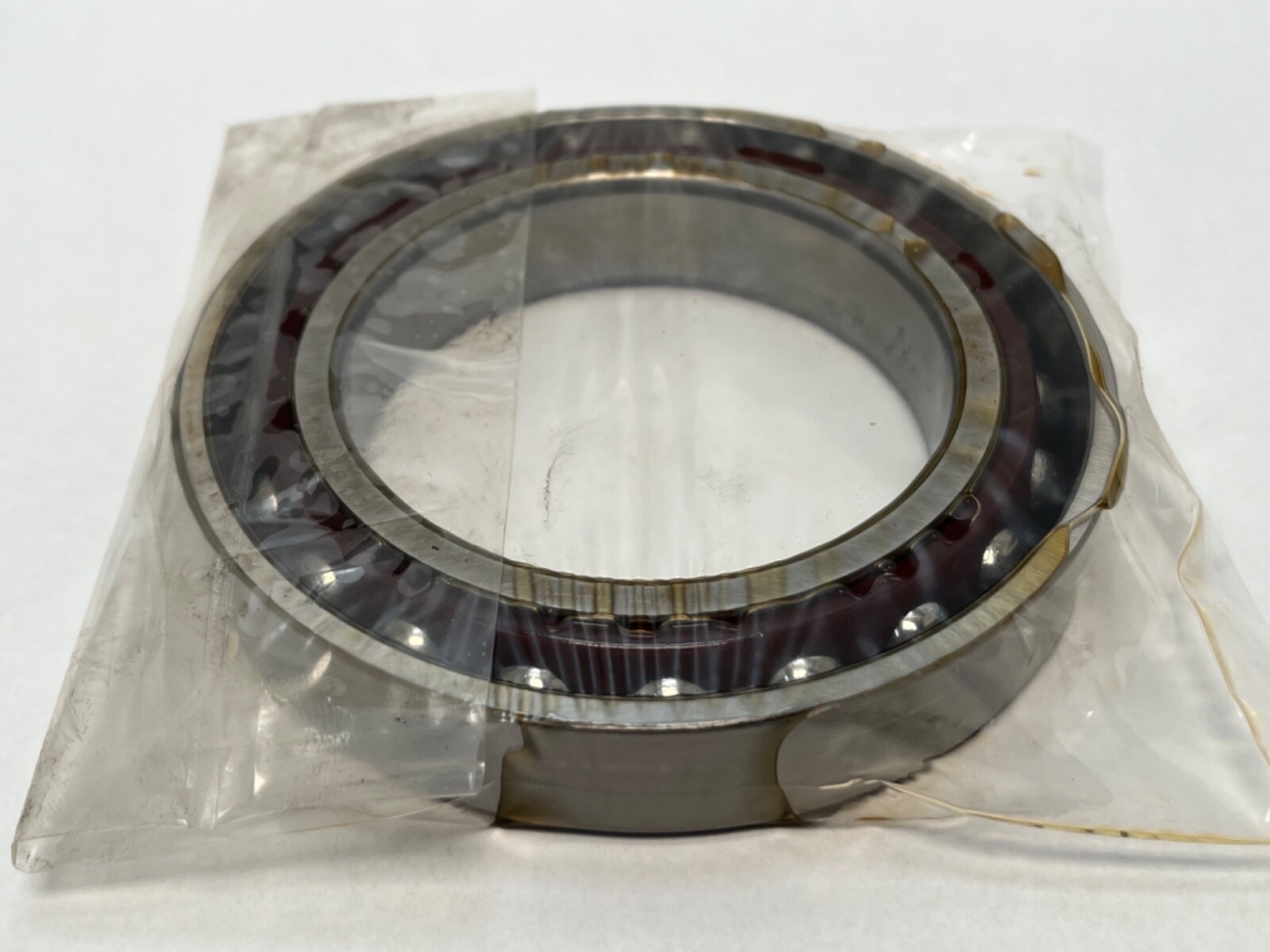

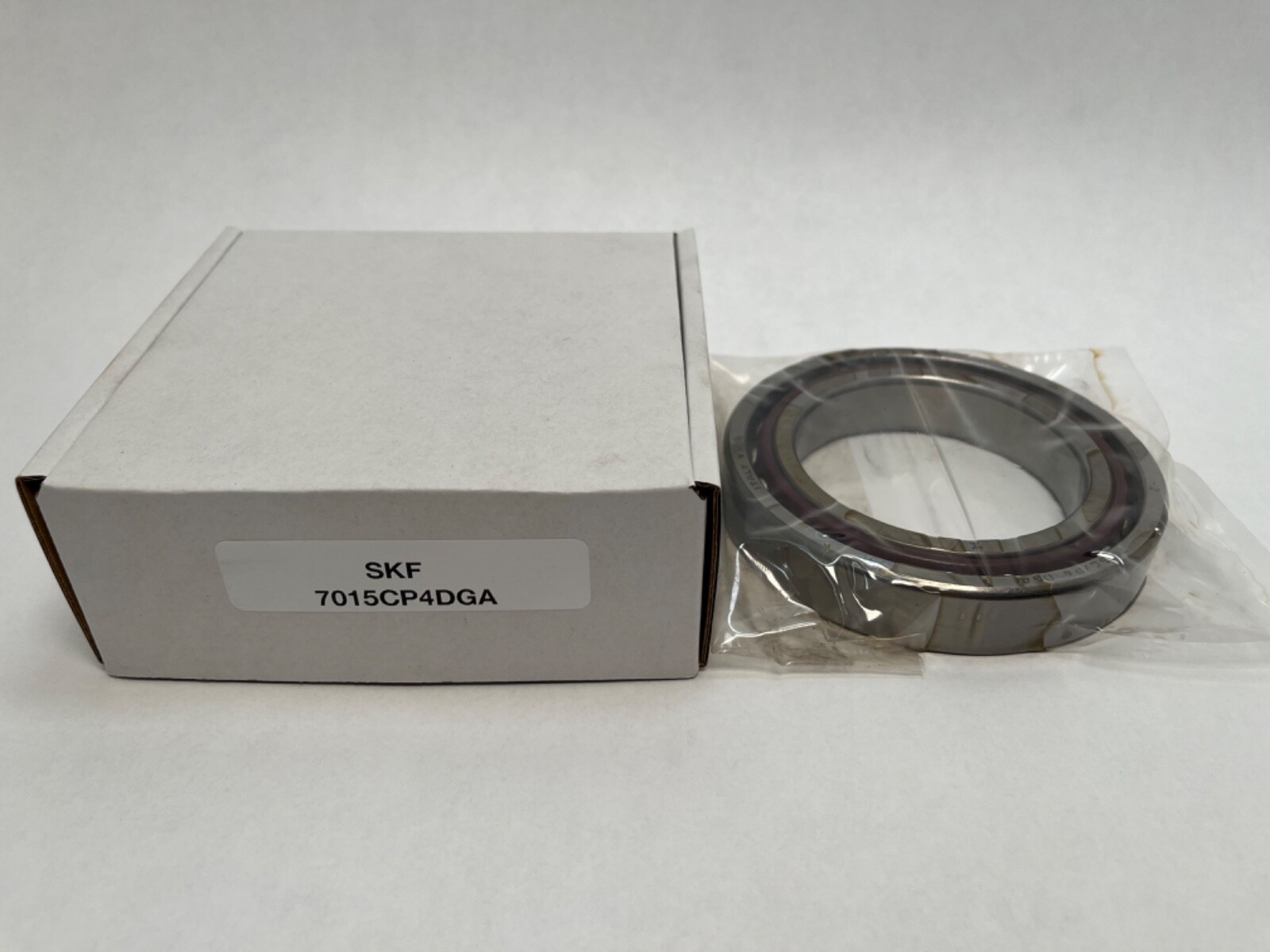

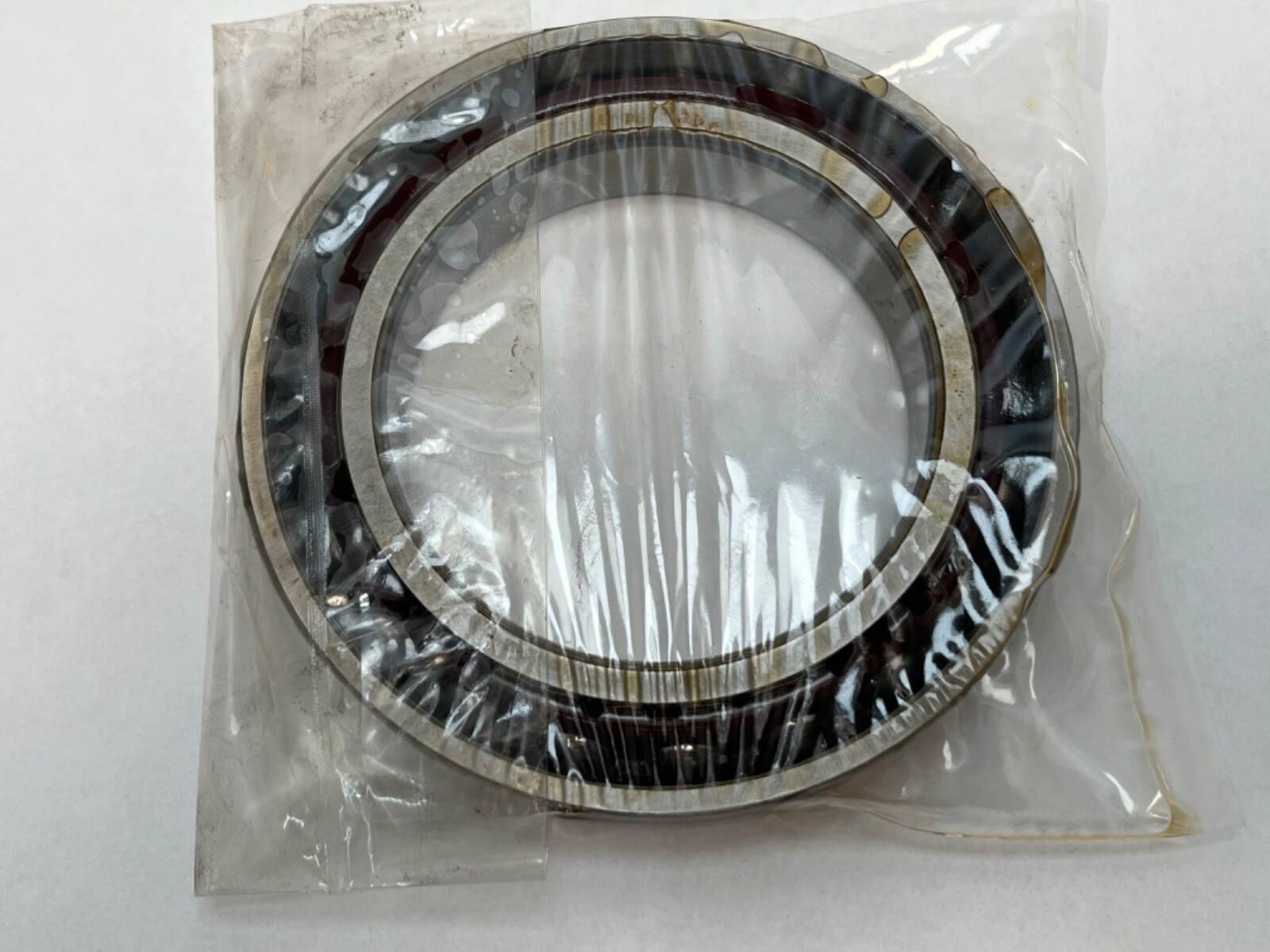

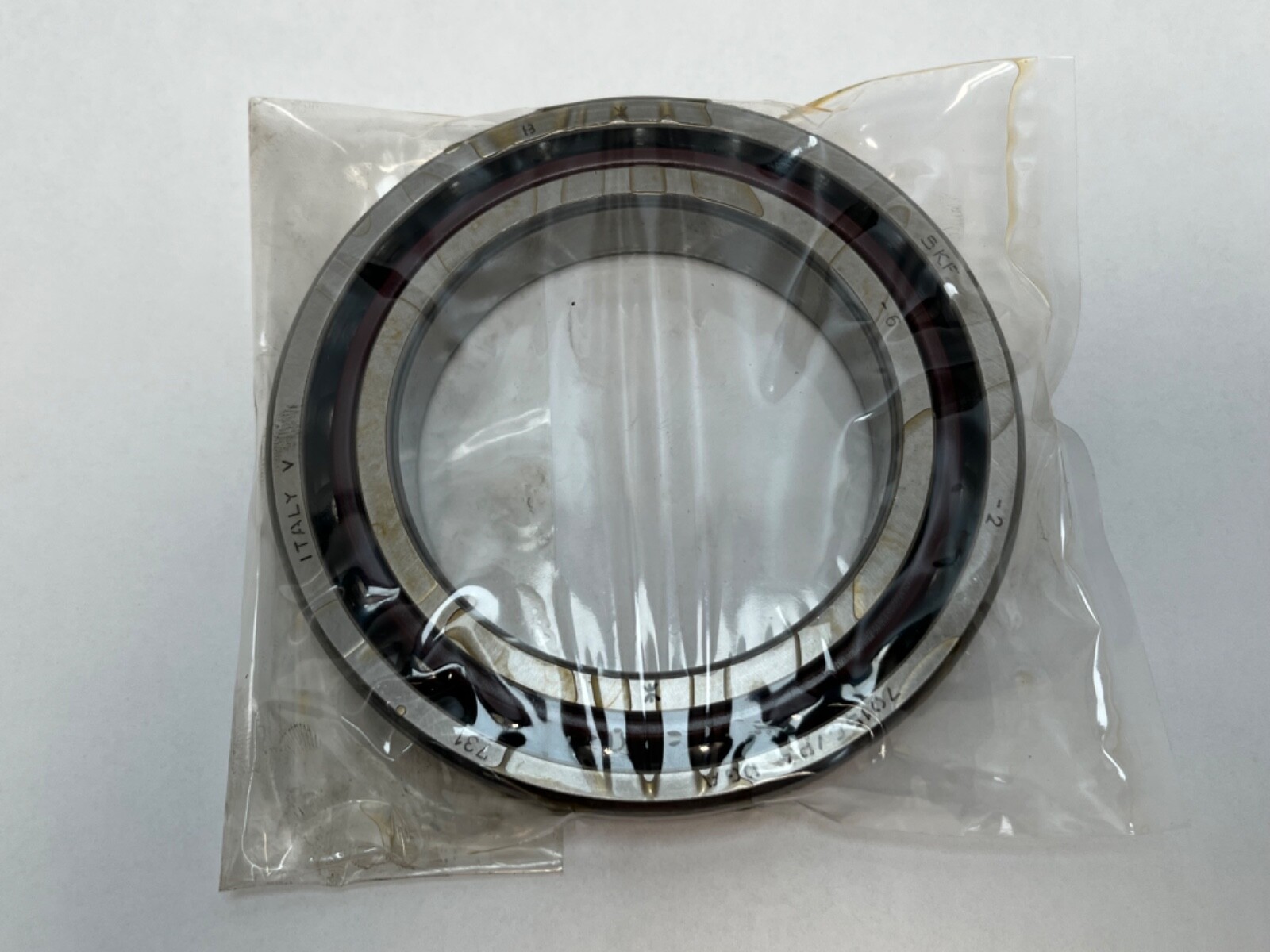

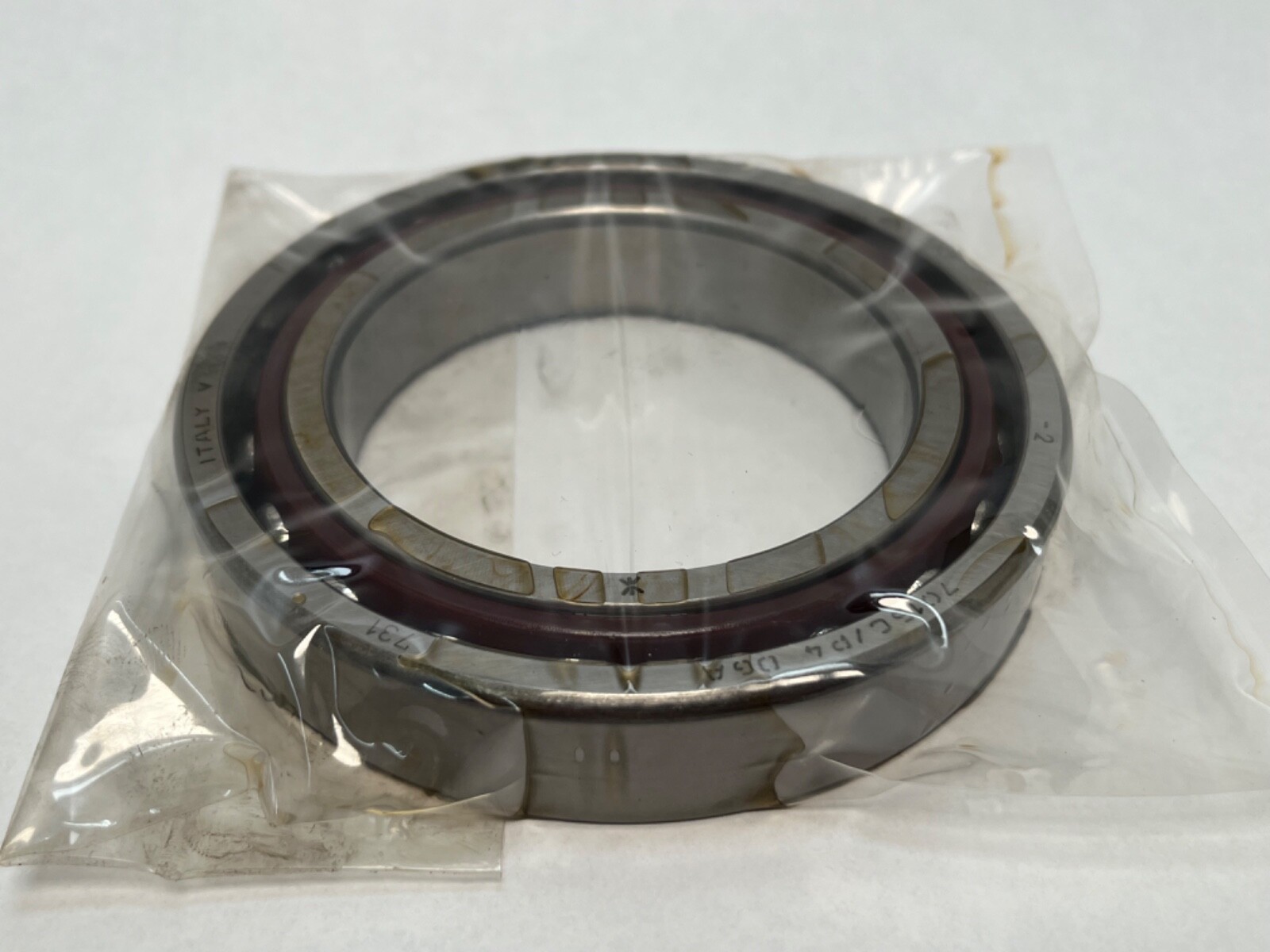

Super-precision angular contact ball bearing, 75 x 115 x 20 mm, 15° contact angle, tolerance class P4A. Universally matchable, extra light preload (GA).
List Price
$133.86
1 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | SKF |
|---|---|
| MPN | 7015CP4DGA |
| Model | 7015 C P4 DGA / 2MM9115WI CR DUL |
| Bearing Type | Angular Contact Ball Bearing, Open |
| ID | 75 mm |
| OD | 115 mm |
| Width | 20 mm |
| Material | Bearing Steel |
|---|---|
| Series | 7000 |
| Preload | Light |
| Base Number | 7015 |
| Industry Terms | Spindle bearing; super-precision bearing; precision angular contact bearing; machine tool bearing |
| Common Misspellings | 7015 CDGA P4A; 7015CGDA/P4A; 7015 CD GA P4A; 70 15 CDGA; 7015CDG4/P4A |
| Application Types | Machine tool spindles; grinding spindles; high-speed motor spindles; precision rotary tables |
| Overall Width | 20 mm |
| Mpn Variants | 7015 CDGA/P4A; 7015-CDGA/P4; 7015 CD/P4ADGA; 7015CDGAP4A; 7015-C-P4-DGA; 7015C |
| Arrangement Configuration | Universally matchable single bearing |
| Precision Class | P4A |
| Dynamic Load Rating | 52,700 N |
| Static Load Rating | 49,000 N |
| Precision Rating | P4A |
| Rolling Elements | Ball |
| Item Weight | 0.617 kg (1.36 lb) |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Snap Ring Included | No |
| Harmonization Code | 8482.10.50 |
| Contact Angle | 15° |
| Mounting Arrangement | Universally matchable — back-to-back, face-to-face or tandem |
| Bearing Material | Bearing steel |
| Cross Reference 1 | Timken/Fafnir 2MM9115WICRSUL |
|---|---|
| Cross Reference 2 | FAG B7015-C-T-P4S-UL |
| Cross Reference 3 | NSK 7015CTRSULP4 |
| Cross Reference 4 | RHP 7015X2TRSULP4 |
SKF 7015 CDGA/P4A super-precision, high-capacity, universally matchable single-row angular contact ball bearing. Bore Diameter: 75 mm. Outside Diameter: 115 mm. Overall Width: 20 mm. Contact Angle: 15°. Precision Class: P4A. Number Of Rows: 1. Rolling Elements: Ball. Bore Type: Straight. Closure Type: Open. Bearing Material: Bearing steel. Item Weight: 0.617 kg (1.36 lb).
70 — ISO light dimension series 10. A 75 mm bore carries a 115 mm outside diameter in a 20 mm section.
15 — bore code. 15 × 5 = 75 mm.
C — 15° contact angle. The shallow angle favours running speed and radial stiffness.
D — high-capacity internal design.
GA — universally matchable, extra light preload.
P4A — SKF super-precision tolerance class: P4 dimensional accuracy with running accuracy held tighter still.
Dynamic Load Rating: 52,700 N. Static Load Rating: 49,000 N. The rating pair sets bearing life at speed and the permanent-deformation limit at rest.
Contact Angle: 15°. Radial load is carried together with axial load acting in one direction. Contact type is normal, two-point. Both rings are one piece.
Closure Type: Open, supplied unlubricated and preserved for spindle-shop cleaning and grease or oil charging at build.
Mounting Arrangement: universally matchable back-to-back, face-to-face or tandem. Bore Type: Straight. Item Weight: 0.617 kg (1.36 lb). Harmonization Code: 8482.10.50.
Unit Quantity: 1 Pc. A single universally matchable bearing, usable alone or paired with any other GA bearing of the same designation.
Same envelope, same 15° angle, same super-precision class: Timken/Fafnir 2MM9115WICRSUL, FAG B7015-C-T-P4S-UL, NSK 7015CTRSULP4, RHP 7015X2TRSULP4.
Preload is part of the identity. GB is the light and GC the medium preload on the same envelope.
