SKF 7008 C single-row angular contact ball bearing, 40 x 68 x 15 mm, 15° contact angle, straight bore, open on both faces. Unit Quantity: 1 Pc.
List Price
$51.85
1 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | SKF |
|---|---|
| MPN | 7008 C/TC C78 |
| Model | 7008 C TC C78 / 2M9108WI CR |
| Bearing Type | Angular Contact Ball Bearing, Open |
| ID | 40 mm |
| OD | 68 mm |
| Width | 15 mm |
| Material | Chrome Steel |
|---|---|
| Series | 7000 |
| Base Number | 7008 |
| Industry Terms | angular contact ball bearing; spindle bearing |
| Common Misspellings | 7008 CTC C78; 7008-CTC-C78; 7008 C-TC C78 |
| Application Types | machine-tool spindles; pump and gearbox shafts |
| Bore Shaft Size | 40 mm (1.5748 in) |
| Mpn Variants | 7008 C/TC C78; 7008CTCC78; 7008-C-TC-C78; 7008C; 7008 C TC C78 |
| Rolling Elements | Ball |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Snap Ring Included | No |
| Harmonization Code | 8482.10.50.28 |
| Contact Angle | 15° |
| Part Number | 7008 C/TC C78 |
| Cross Reference 1 | Fafnir 2MM9108WI (related, 15 degree) |
|---|---|
| Cross Reference 2 | NTN 7008C (related, 15 degree) |
| Cross Reference 3 | NSK 7008CTR (related, 15 degree) |
| Cross Reference 4 | FAG B7008-C-T-P4S (related, P4S precision) |

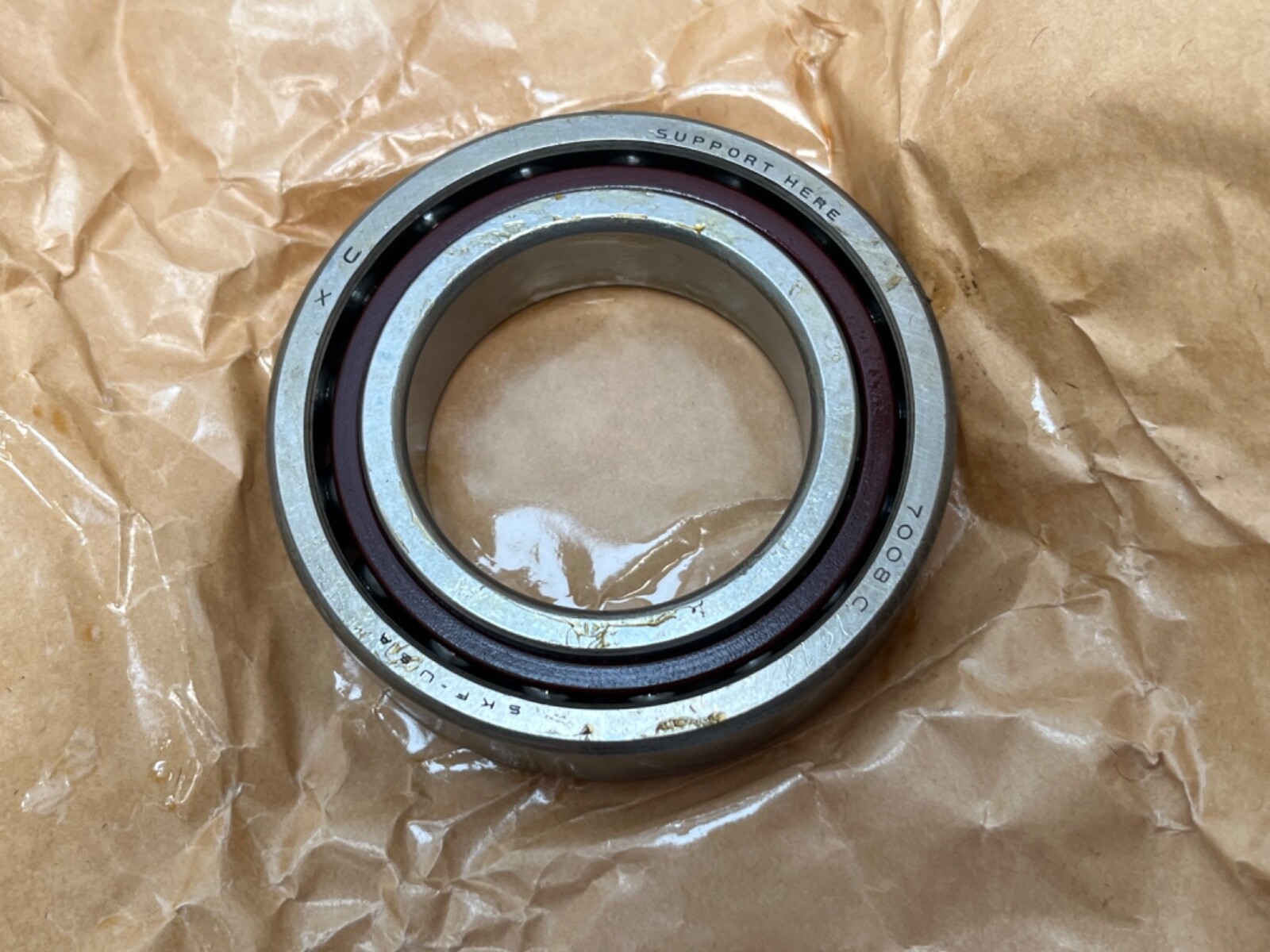

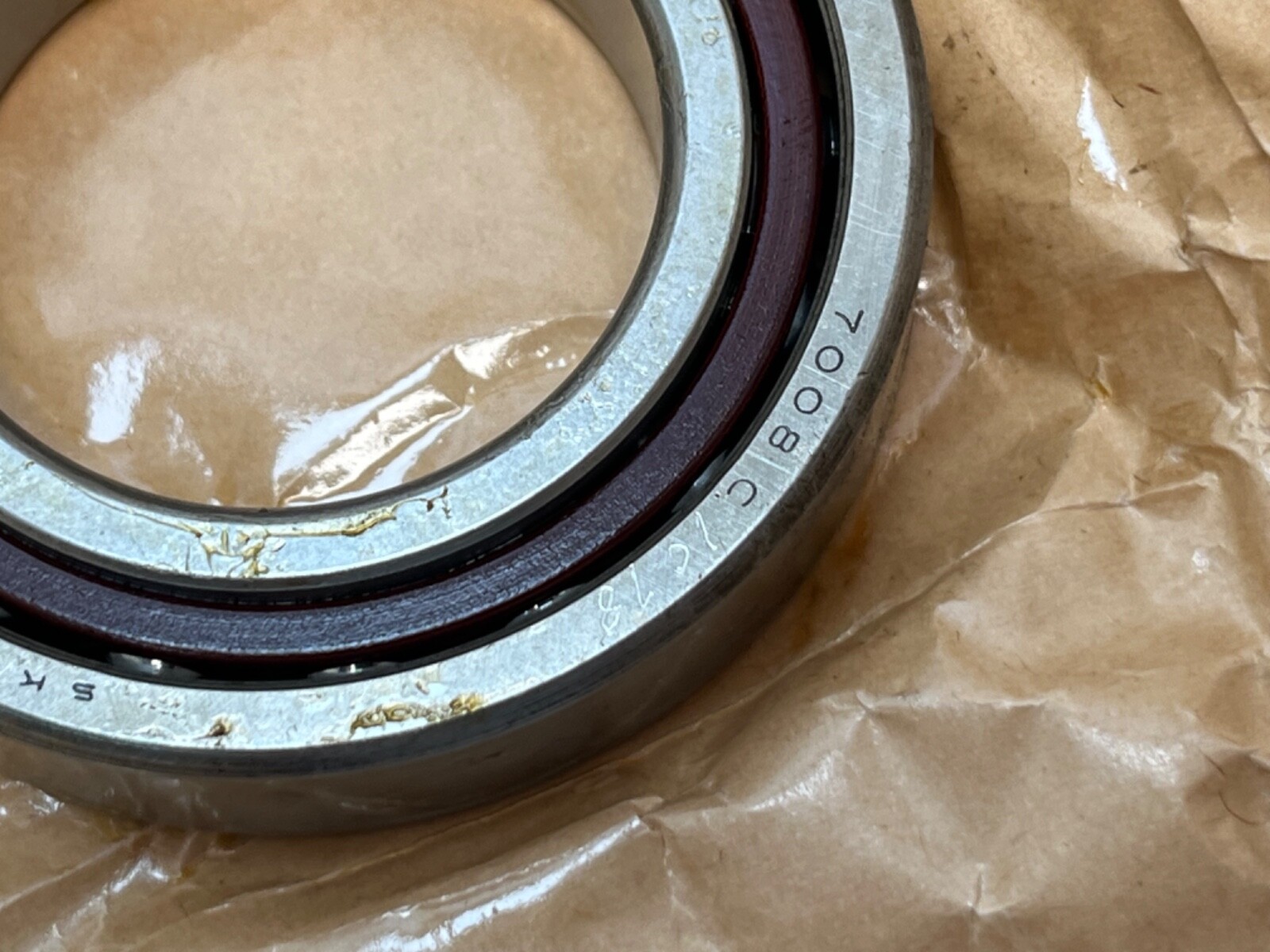

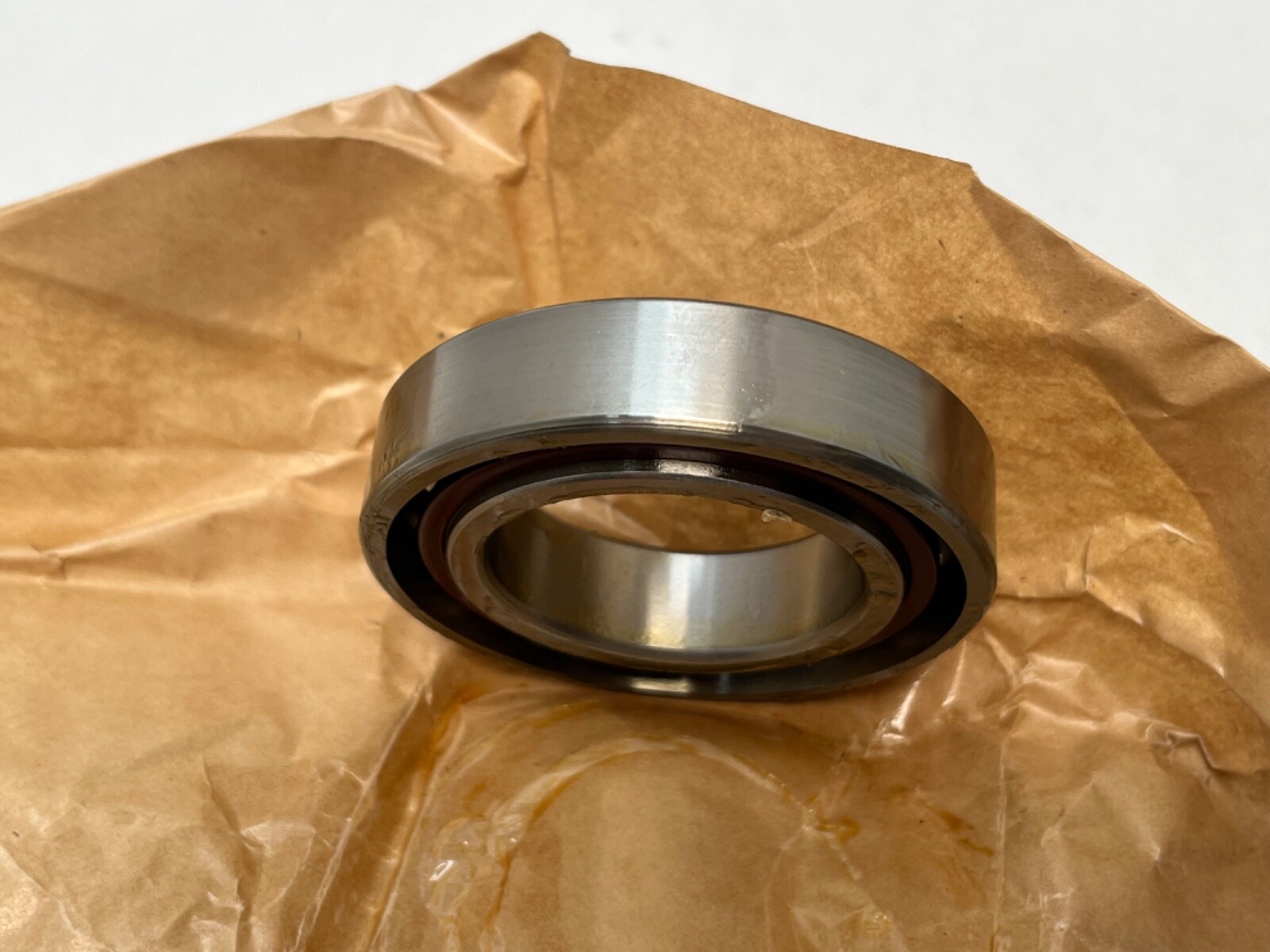

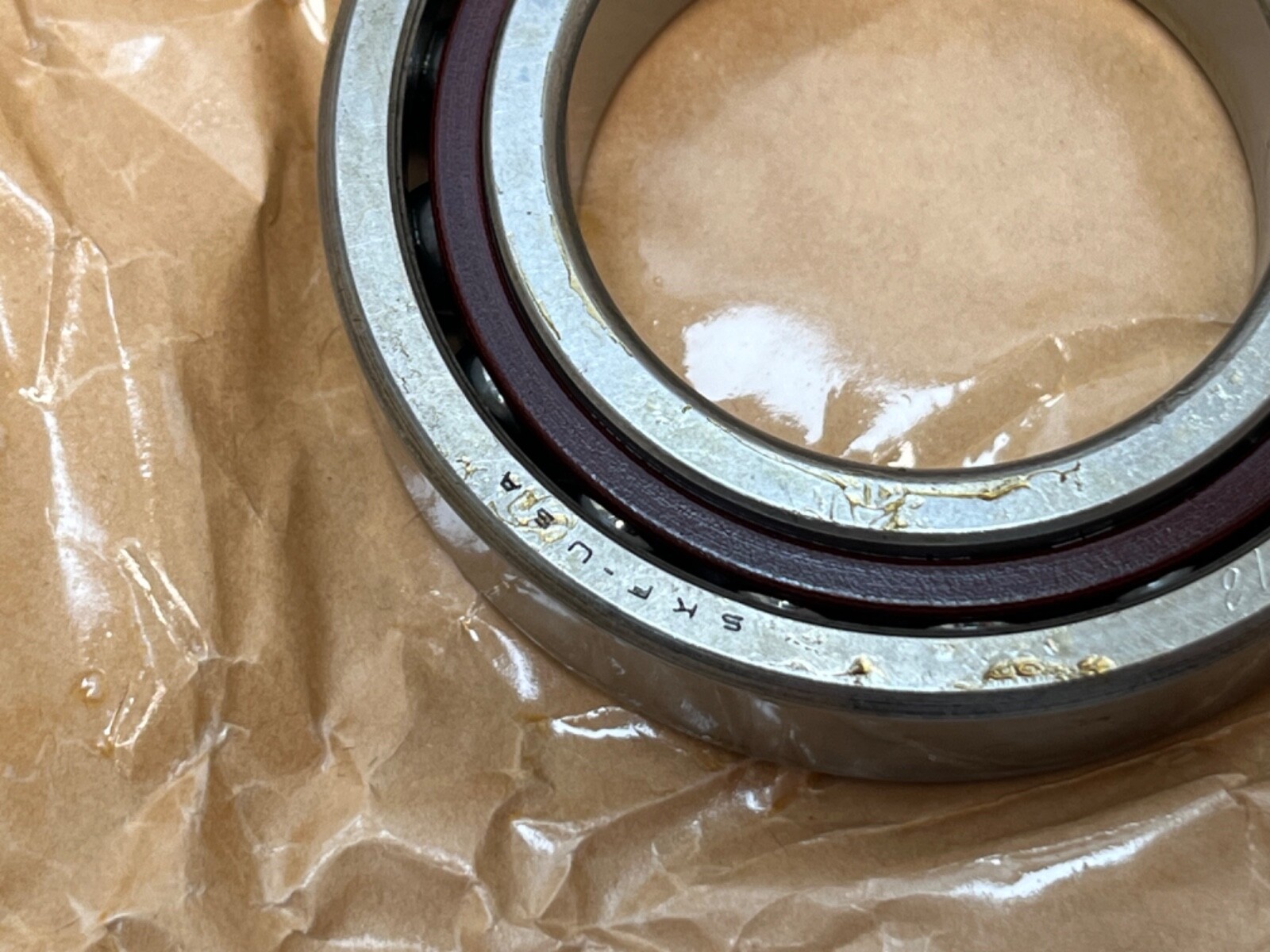

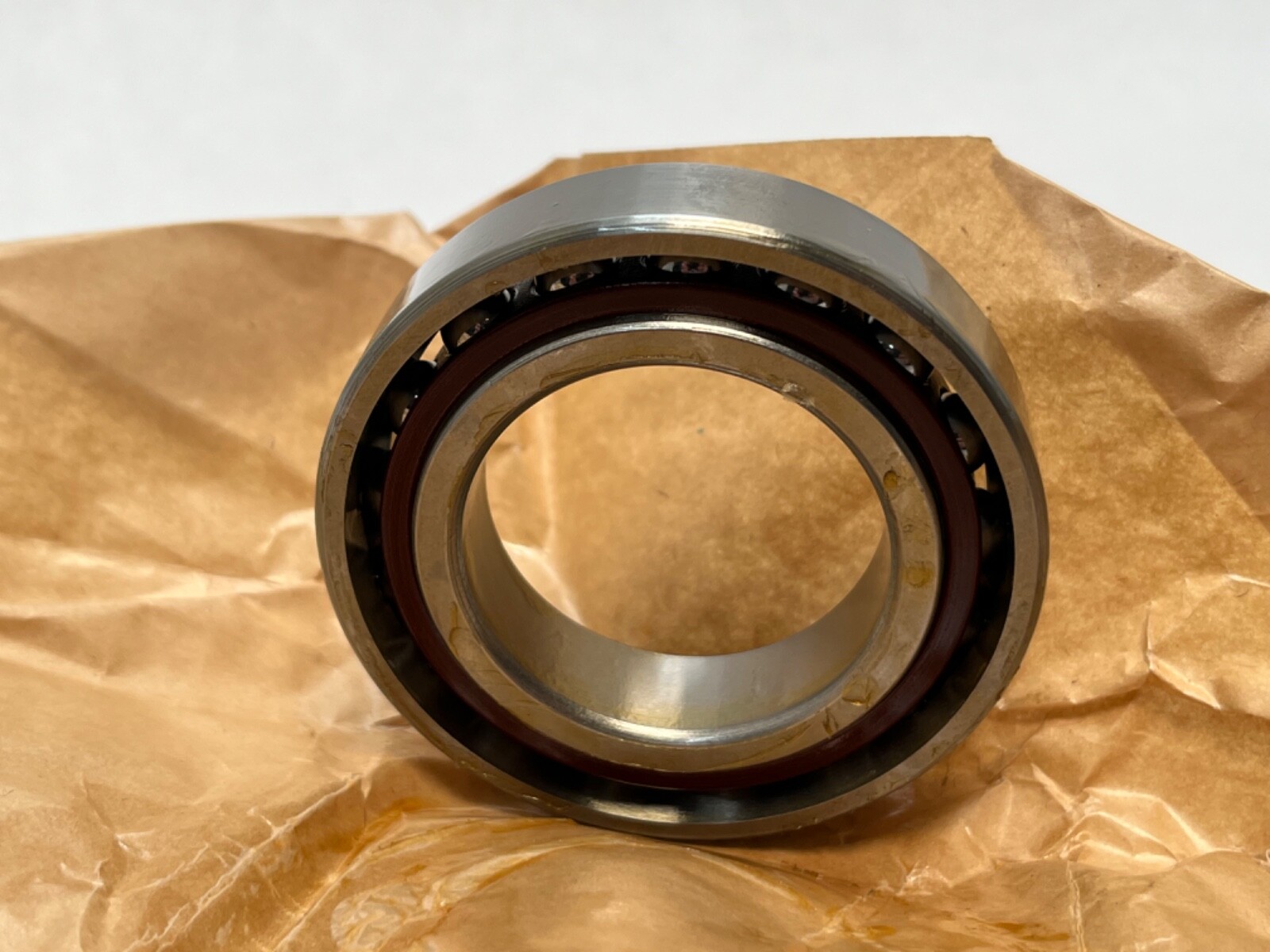

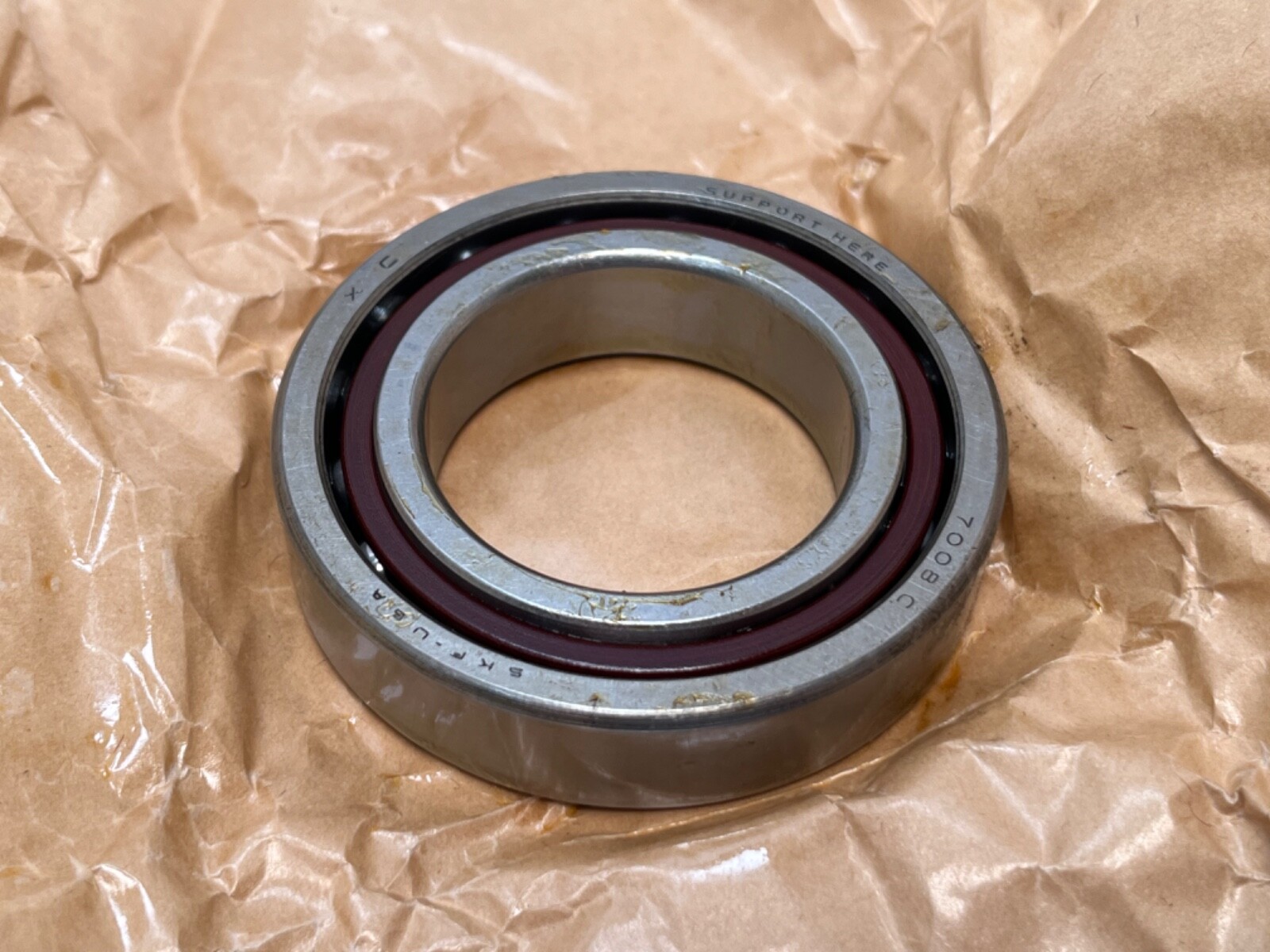

SKF 7008 C single-row angular contact ball bearing, 40 mm bore, 68 mm outside diameter, 15 mm width, open on both faces. The ball contact line runs at an angle across the raceways, so the bearing carries thrust in one direction together with radial load. Bore Diameter: 40 mm. Outside Diameter: 68 mm. Overall Width: 15 mm. Number Of Rows: 1. Rolling Elements: Balls. Bore Type: Straight. Closure Type: Open. Unit Quantity: 1 Pc.
70 — light angular contact dimension series.
08 — bore code, 40 mm.
C — SKF 15° contact angle designation, distinct from AC at 25° and B at 40°.
Contact Angle: 15°. Series: 70 (light). Material: Chrome Steel. Harmonization Code: 8482.10.50.28. Country of Origin: United States.
Bore / Shaft Size: 40 mm (1.5748 in). Outside Diameter: 68 mm. Overall Width: 15 mm. Single bearing taking thrust in one direction.

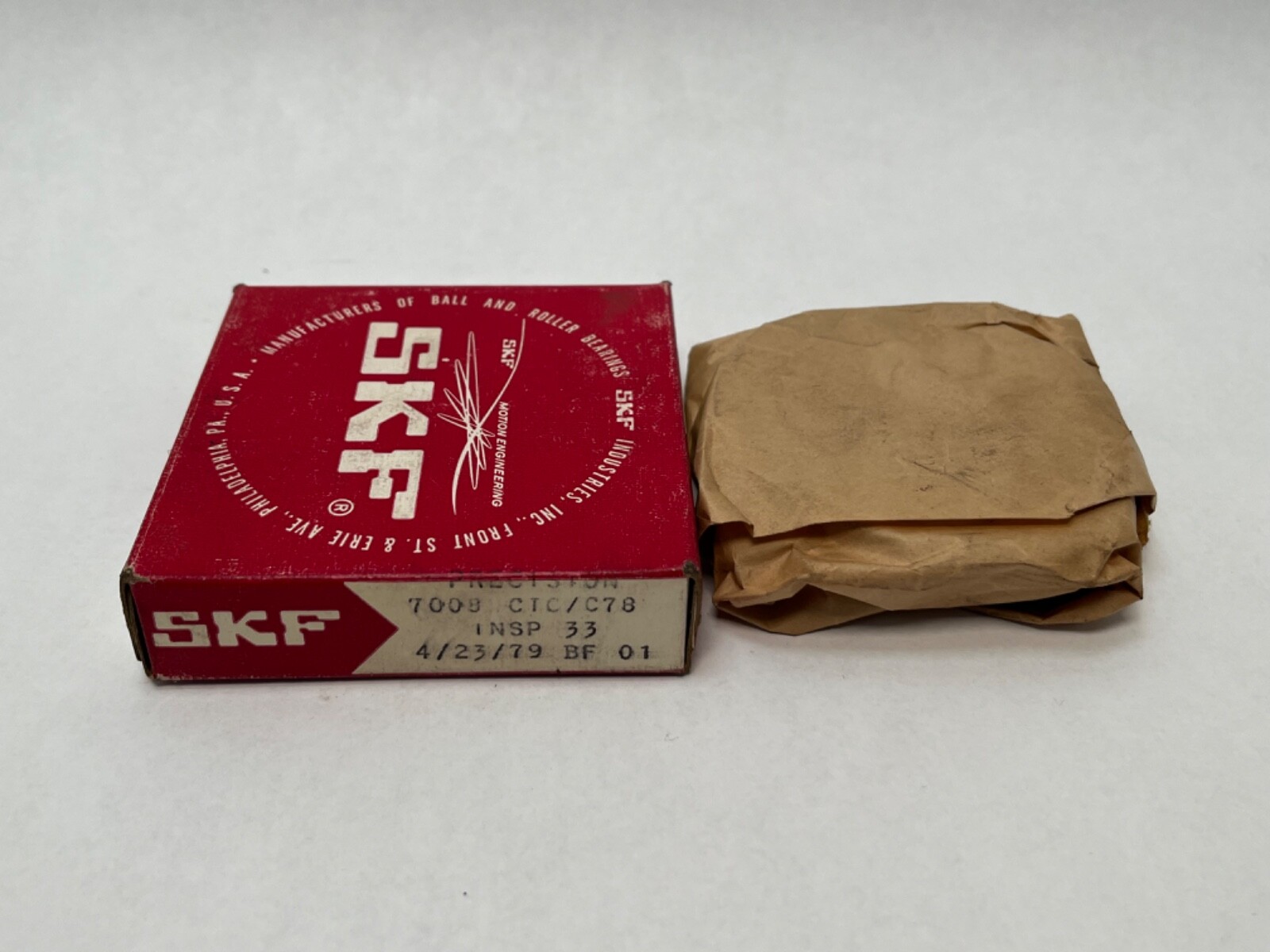

Fafnir 2MM9108WI appears on cartons of this size: 40 x 68 x 15 mm envelope, 15° contact angle. Cross-references at 15°: Fafnir 2MM9108WI, NTN 7008C, NSK 7008CTR, FAG B7008-C-T-P4S. Related sizes: 7008 AC or 7008 ACD (25°), 7008 B (40°) and the heavier 7208 series at the same bore. Searchable variants: 7008 C/TC C78, 7008-C-TC-C78, 7008C.
40 mm bore, 68 mm outside diameter and 15 mm width.
15°, from the C in the designation.
Open on both faces.
