Super-precision angular contact ball bearing, 40 x 68 x 15 mm, 15° contact angle, machined phenolic cage, light preload duplex, open, ABEC 7 precision.
List Price
$91.45
1 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | RHP |
|---|---|
| MPN | 7008CTDULP4 |
| Model | B7008X2 TA DUL EP7 / 7008 C T DUL P4 / 2MM9108WI CR DUL |
| Bearing Type | Angular Contact Ball Bearing, Open |
| ID | 40 mm |
| OD | 68 mm |
| Width | 15 mm |
| Material | Bearing Steel |
|---|---|
| Series | 7000 |
| Lubricant | Oil |
| Preload | Light (DUL) |
| Base Number | 7008 |
| Industry Terms | spindle bearing; duplex bearing; super precision bearing |
| Common Misspellings | 7008CTDULP4; 7008 CTDUL P4; RHP 7008CT DULP4; 7008CTDUL-P4 |
| Application Types | Machine tool spindles; grinding heads; milling spindles |
| Overall Width | 15 mm |
| Bore Shaft Size | 40 mm |
| Mpn Variants | 7008CTDULP4; 7008C; B7008X2TADULEP7; 2MM9108WICRDUL |
| Precision Class | ABEC 7 / ISO P4 |
| Cage Type | Machined, outer-ring guided |
| Dynamic Load Rating | 33 kN (matched pair) |
| Static Load Rating | 28 kN (matched pair) |
| Precision Rating | ABEC 7 / ISO P4 |
| Rolling Elements | Ball |
| Cage Material | Phenolic |
| Limiting Speed | 24,000 rpm |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Snap Ring Included | No |
| Harmonization Code | 8482.10.50 |
| Contact Angle | 15° |
| Mounting Arrangement | Universally matchable |
| Part Number | 7008CTDULP4 |
| Total Width | 30 mm across a full DUL pair |
| Closure Type | Open |
| Cross Reference 1 | SKF 7008 CD/P4ADGA (same envelope, angle, preload) |
|---|---|
| Cross Reference 2 | FAG B7008-C-T-P4S-UL (same envelope, angle, preload) |
| Cross Reference 3 | NSK 7008CTRDULP4 |
| Cross Reference 4 | Fafnir 2MM9108WI-CR-DUL |
| Cross Reference 5 | 7008 A5 / 7008 E forms (related size, 25° contact angle) |

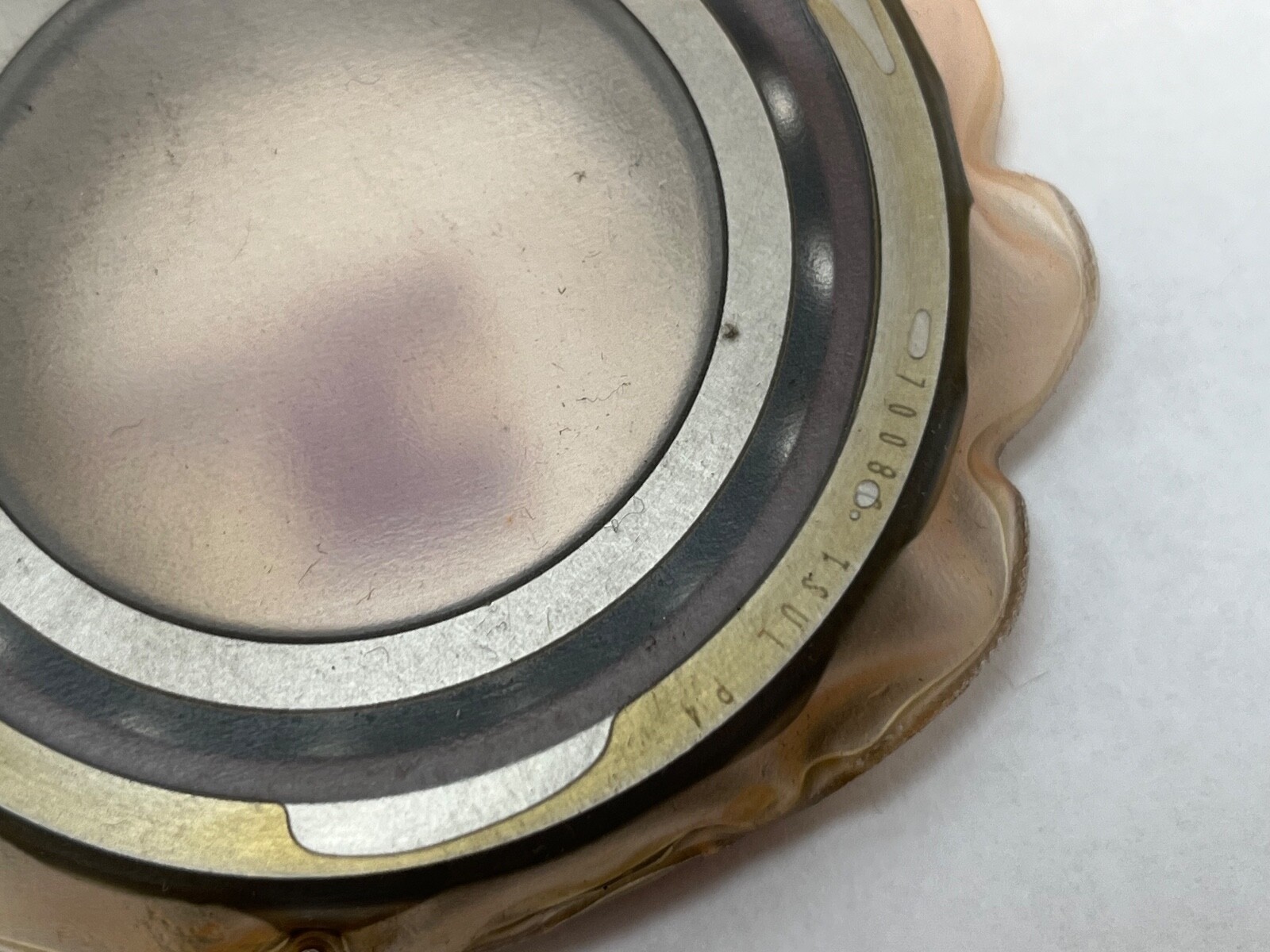

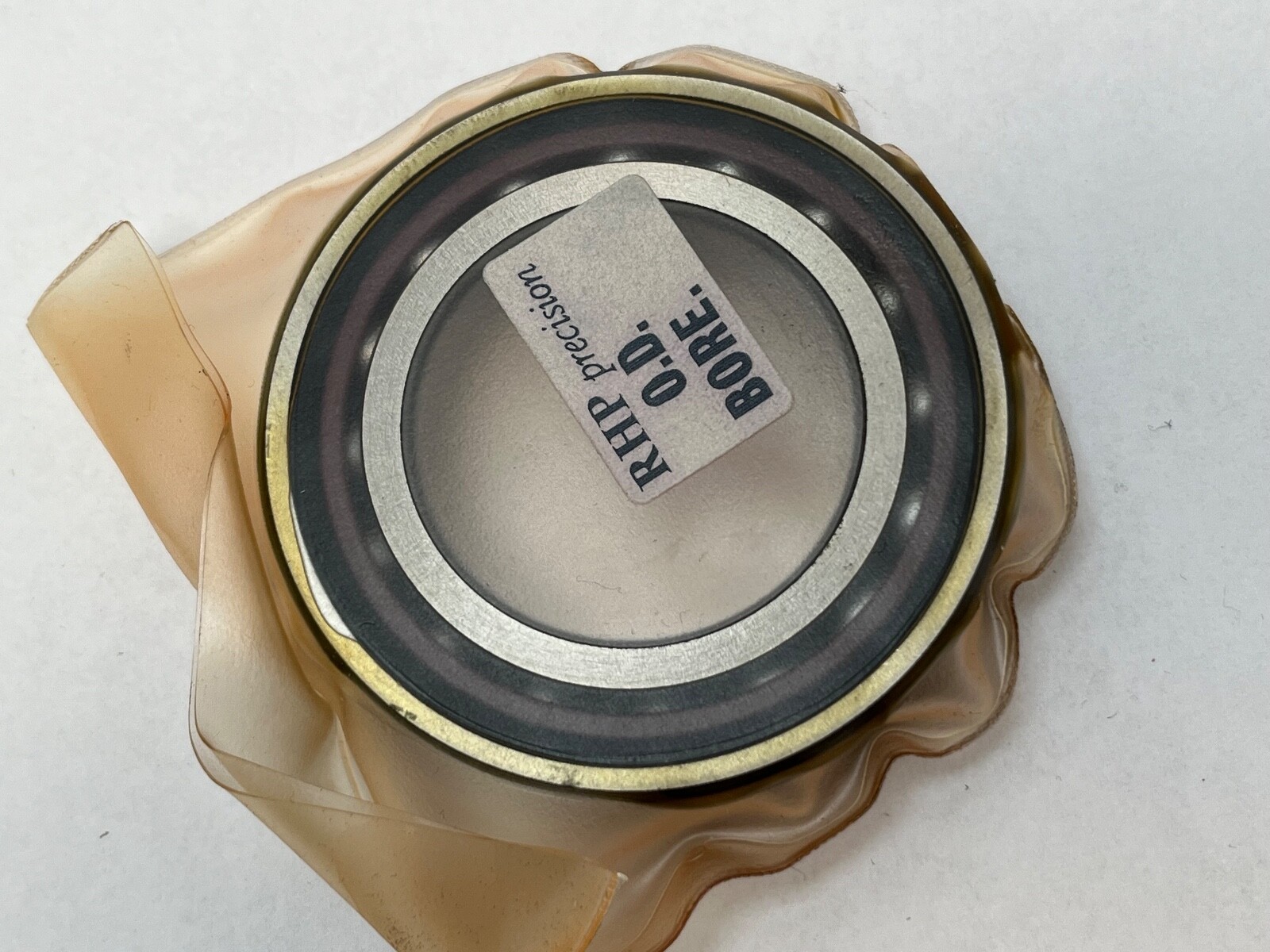

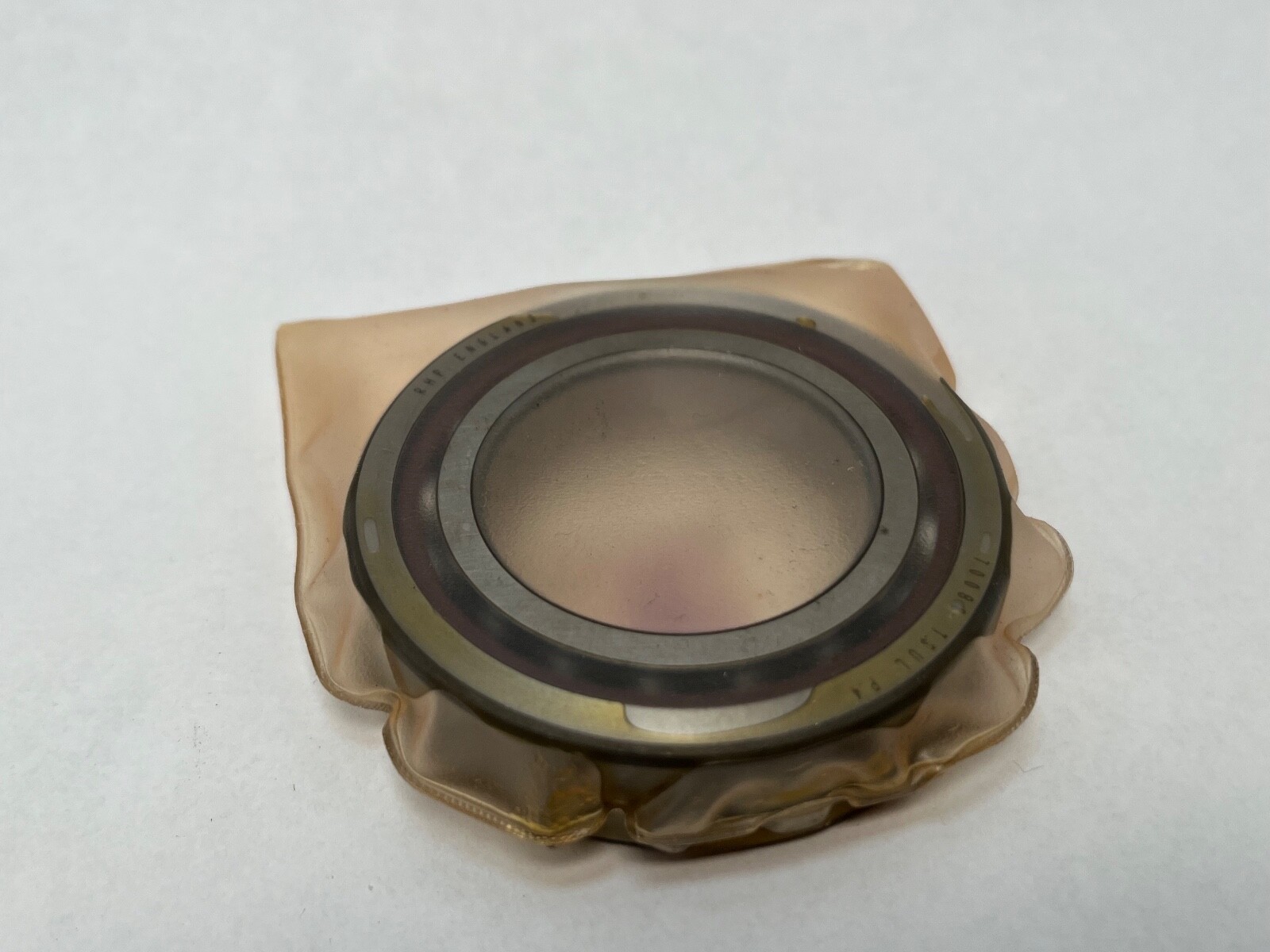

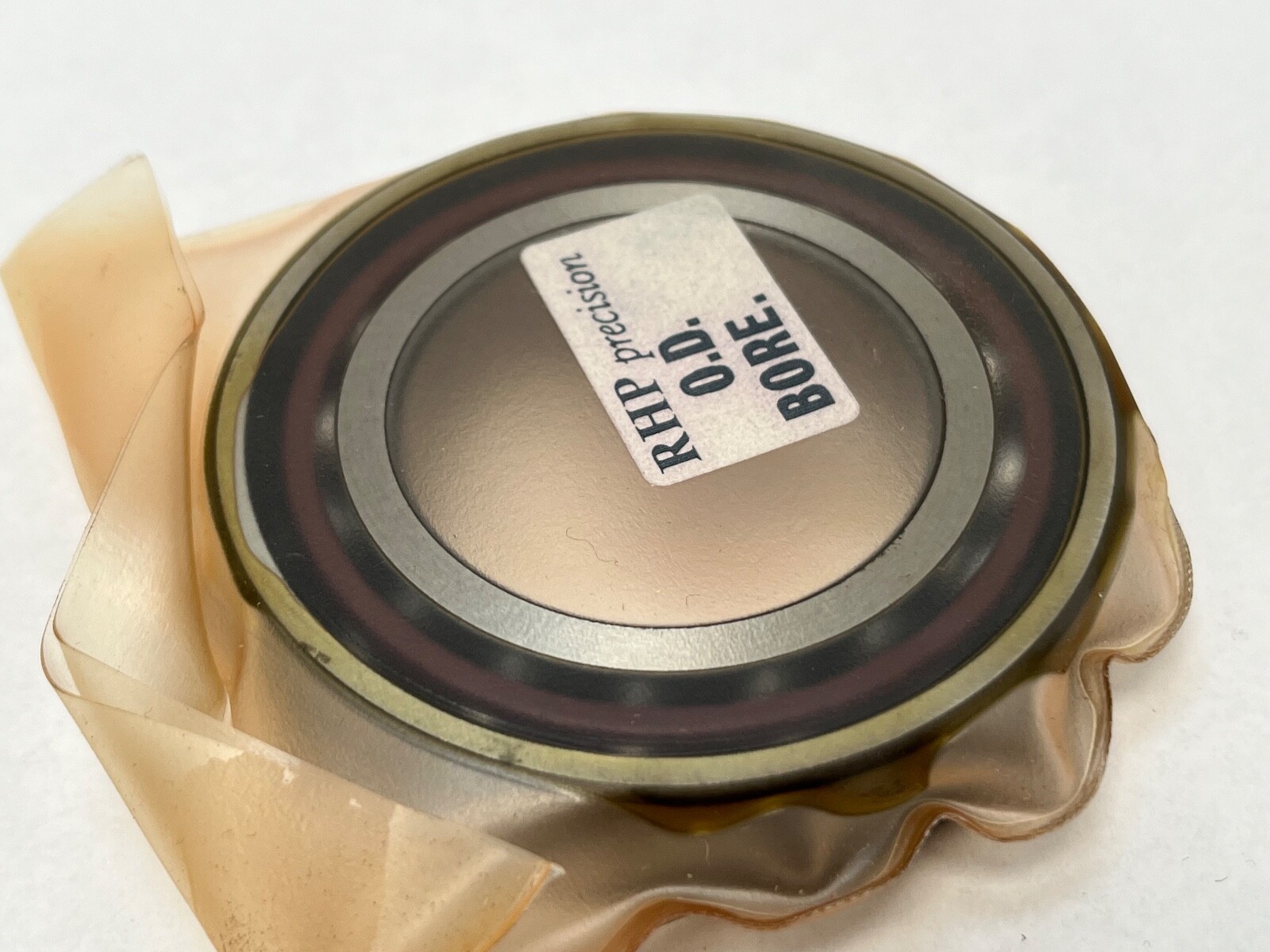

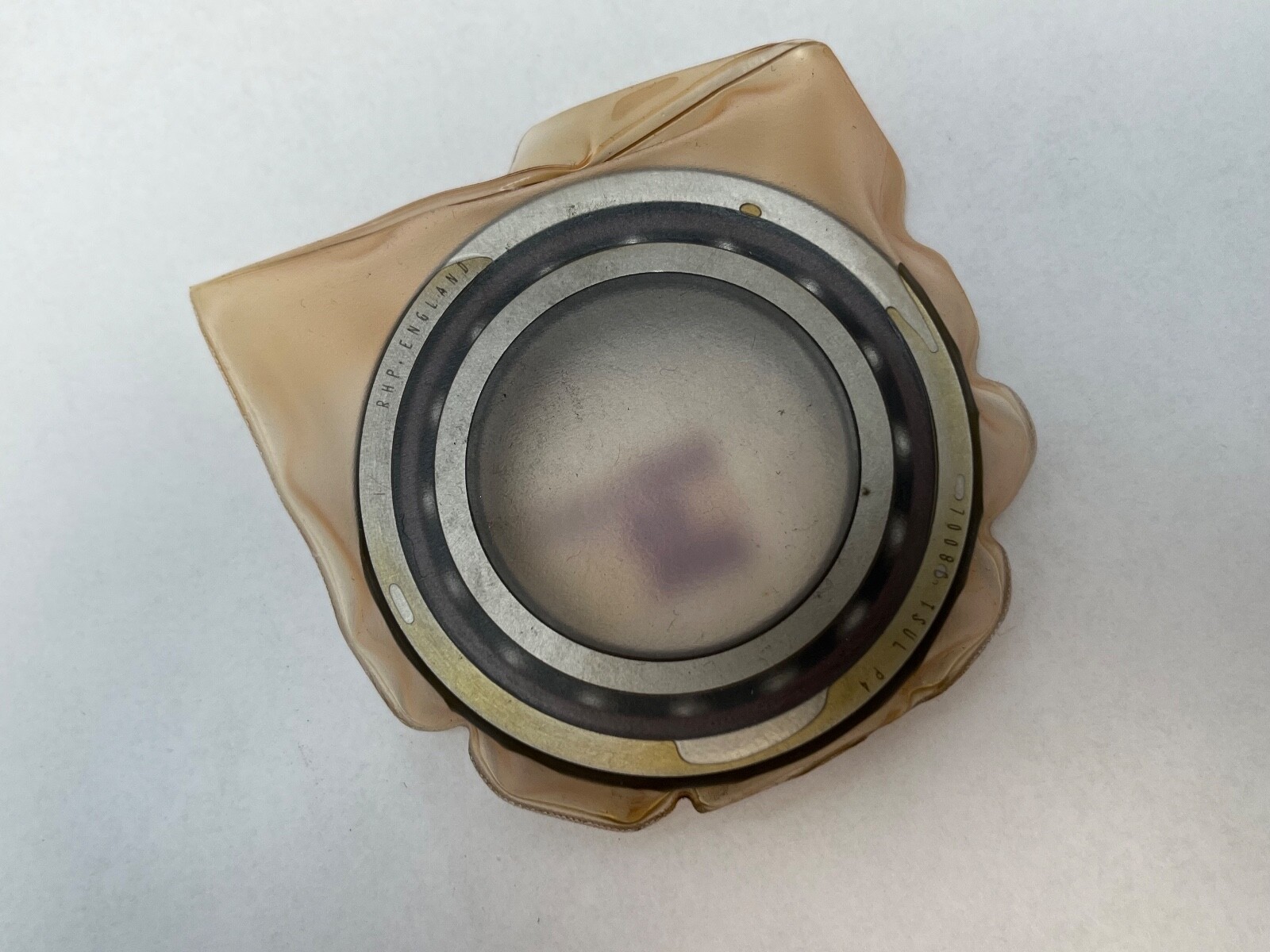

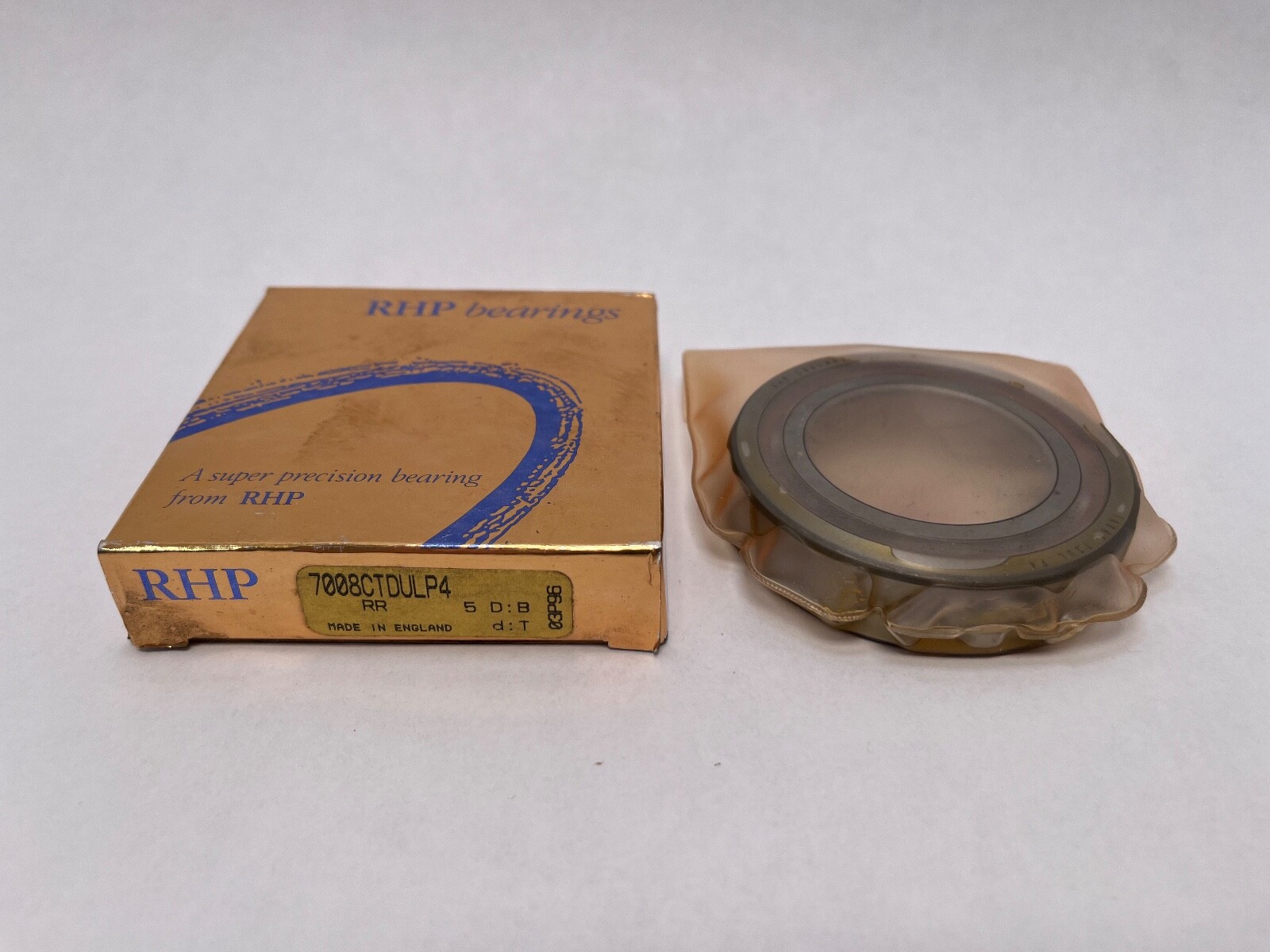

RHP 7008CTDULP4 is a super-precision single-row angular contact ball bearing, open, with bearing steel rings and balls. Bore Diameter: 40 mm. Outside Diameter: 68 mm. Width: 15 mm. Contact Angle: 15°. The carton carries three designation schemes for the same bearing: RHP 7008 C T DUL P4, RHP B-series B7008X2 TA DUL EP7, and Fafnir 2MM9108WI CR DUL.
7008 — ISO size 40 x 68 x 15 mm, 7000 series.
C — 15° contact angle; RHP B-series X2 and Fafnir 2MM carry the same angle.
T — machined laminated phenolic cage, outer-ring guided (Fafnir CR).
DUL — factory duplex pairing at light preload, universally matchable.
P4 — ISO P4 precision, equal to ABEC 7 (RHP EP7).
-1/2PR — one bearing, a single half of a factory pair.
Series: 7000. Base Number: 7008. Rolling Elements: Ball. Material: Bearing Steel. Cage Material: Phenolic. Cage Type: Machined, outer-ring guided. Preload: Light (DUL). Precision Class: ABEC 7 / ISO P4. Limiting Speed: 24,000 rpm. Dynamic Load Rating: 33 kN (7,419 lbf), matched-pair figure. Static Load Rating: 28 kN (6,295 lbf), matched-pair figure. Lubricant: Oil. Seal Type: Open. Number Of Rows: 1. Unit Quantity: 1 Pc.
Bore Diameter: 40 mm. Outside Diameter: 68 mm. Overall Width: 15 mm. Total Width across a full DUL pair: 30 mm. Bore Type: Straight. Mounting Arrangement: Universally matchable.
Equivalents at the same envelope, angle, cage and preload: SKF 7008 CD/P4ADGA, FAG B7008-C-T-P4S-UL, NSK 7008CTRDULP4, Fafnir 2MM9108WI-CR-DUL. The 7008 A5 and 7008 E forms are a related size at 25° contact angle. Part number variants: 7008CTDULP4, 7008-C-T-DUL-P4, 7008C, B7008X2TADULEP7, 2MM9108WICRDUL.
Bore Diameter is 40 mm, Outside Diameter is 68 mm and Width is 15 mm.
Contact Angle is 15°, Preload is Light (DUL) and Precision Class is ABEC 7 / ISO P4.
Limiting Speed is 24,000 rpm. Dynamic Load Rating is 33 kN and Static Load Rating is 28 kN, both matched-pair figures.
