Super precision angular contact ball bearing, 50 x 80 x 16 mm, 15° contact angle, universal single, medium preload, phenolic cage, ABEC 9 / P2.
List Price
$113.06
9 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | RHP |
|---|---|
| MPN | 7010CTSUMP2 |
| Model | 7010 C T SUM P2 B7010X2 TAUM EP9K5 2MMV9110 WI CR SUM |
| Bearing Type | Angular Contact Ball Bearing, Open |
| ID | 50 mm |
| OD | 80 mm |
| Width | 16 mm |
| Material | Bearing Steel |
|---|---|
| Series | 7000 |
| Lubricant | Grease or oil |
| Preload | Medium |
| Base Number | 7010 |
| Bore Shaft Size | 50 mm |
| Mpn Variants | 7010CTSUMP2 / 7010-C-T-SUM-P2 / 7010 C T SUM P2 / 7010-C-T-DUM-P2 / B7010X2TAUMEP9K5 / 2MMV9110WICRSUM |
| Arrangement Configuration | Universally ground single (SU) |
| Precision Class | ABEC 9 / P2 |
| Additional Attributes | Axial Preload (paired): 390 N; Axial Stiffness (paired): 96 N per micrometre; Effective Load Centre: 16.7 mm; Internal Volume: 12.0 cm3; Inner Ring Abutment Diameter: 56 mm min; Outer Ring Abutment Diameter: 74 mm max; Housing Abutment Diameter: 75 mm max; Fillet Radius r min: 1.0 mm; Fillet Radius r1 min: 0.6 mm |
| Cage Type | Outer-ring guided |
| Dynamic Load Rating | 26,000 N |
| Static Load Rating | 21,900 N |
| Precision Rating | ABEC 9 / P2 |
| Rolling Elements | Ball |
| Item Weight | 0.259 kg (0.57 lb) |
| Cage Material | Laminated phenolic resin |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Snap Ring Included | No |
| Limiting Speed | 17,300 rpm grease; 28,000 rpm oil-air |
| Harmonization Code | 8482.10.50.28 |
| Contact Angle | 15° |
| Bearing Material | Carbon chrome bearing steel (SAE 52100) |
| Part Number | 7010CTSUMP2 |
| Industry Terms | super precision angular contact bearing, spindle bearing, universal single angular contact bearing, 15 degree contact angle bearing, ABEC 9 spindle bearing, 7010 series bearing |
| Common Misspellings | 7010 CTSU MP2, 7010CT SUMP2, RHP 7010-CTSUMP2, 7010CTSUM P2 |
| Closure Type | Open |
| Cross Reference 1 | RHP B7010X2TAUMEP9K5 (RHP B-series form) |
|---|---|
| Cross Reference 2 | FAG B7010-C-T-P2S-UM |
| Cross Reference 3 | Fafnir 2MMV9110WICRSUM - P4S vs P2 |

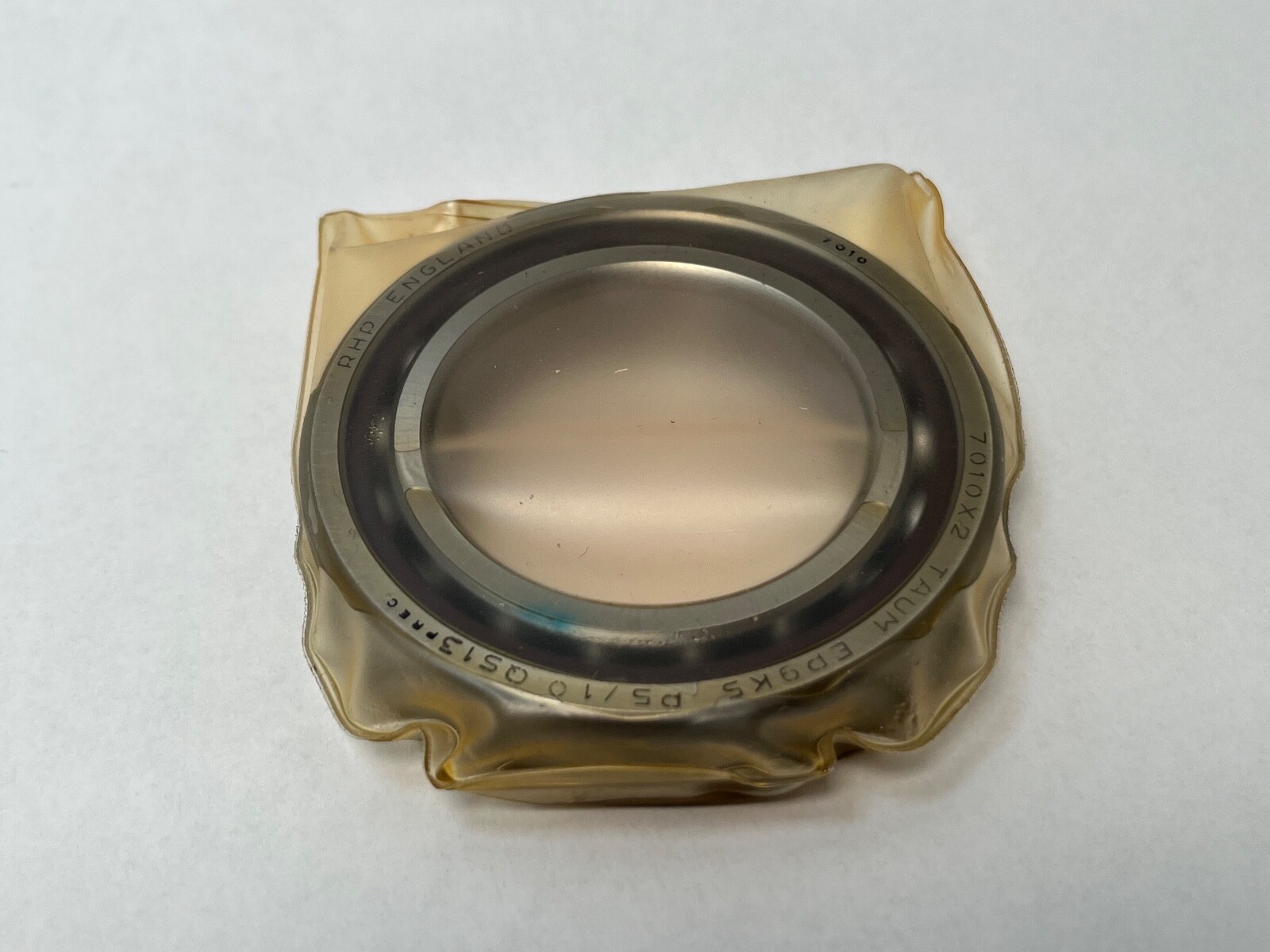

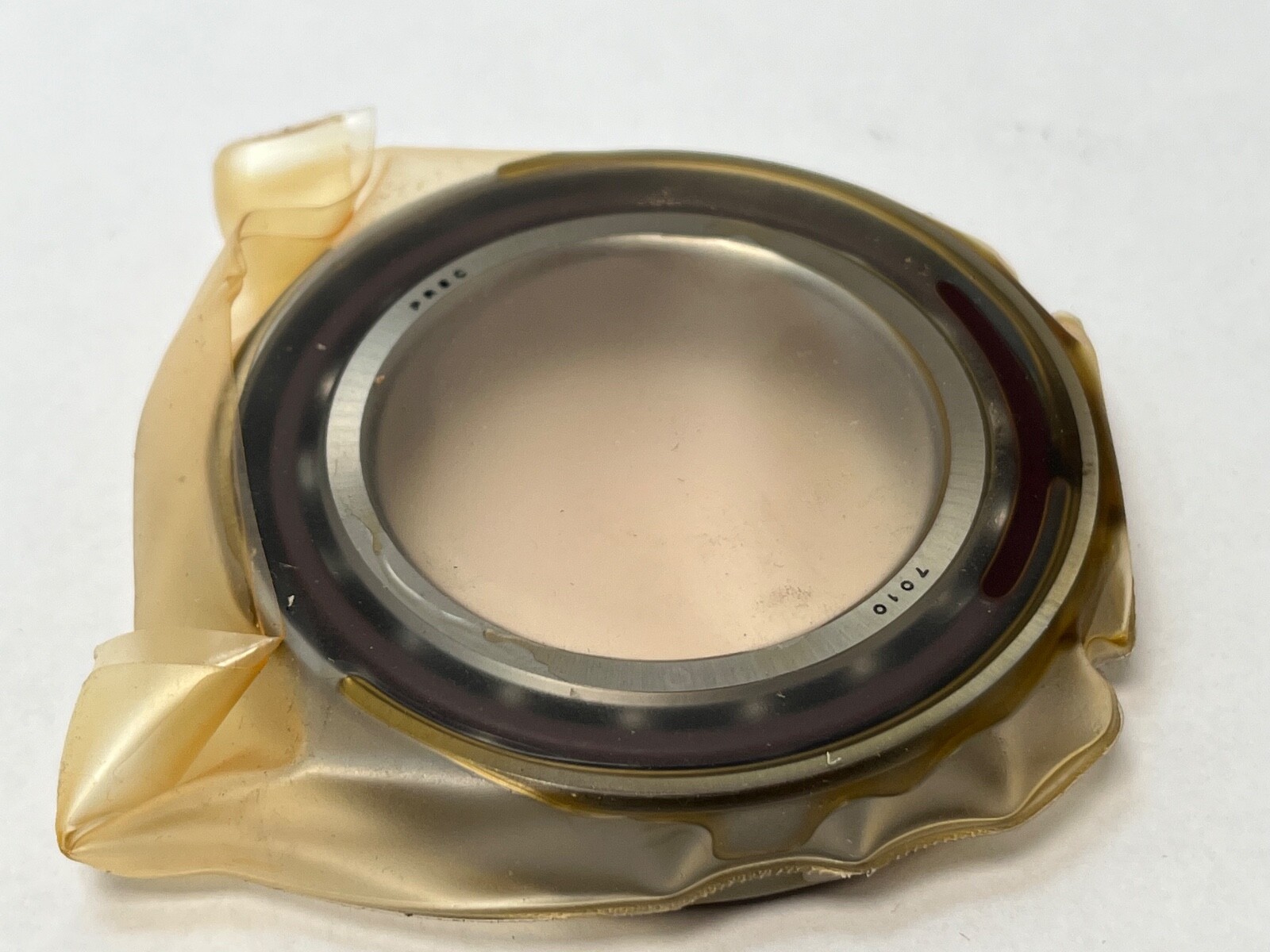

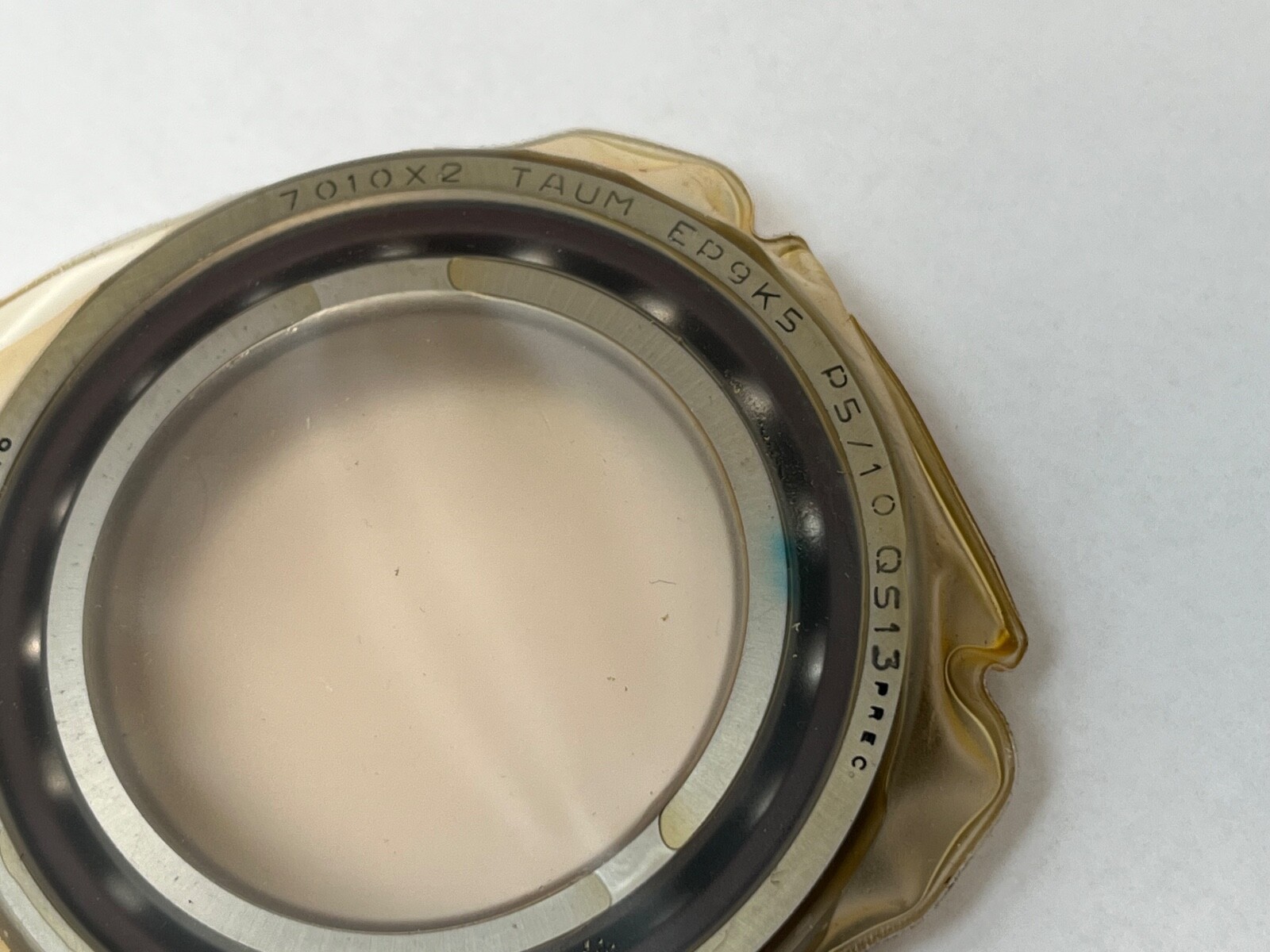

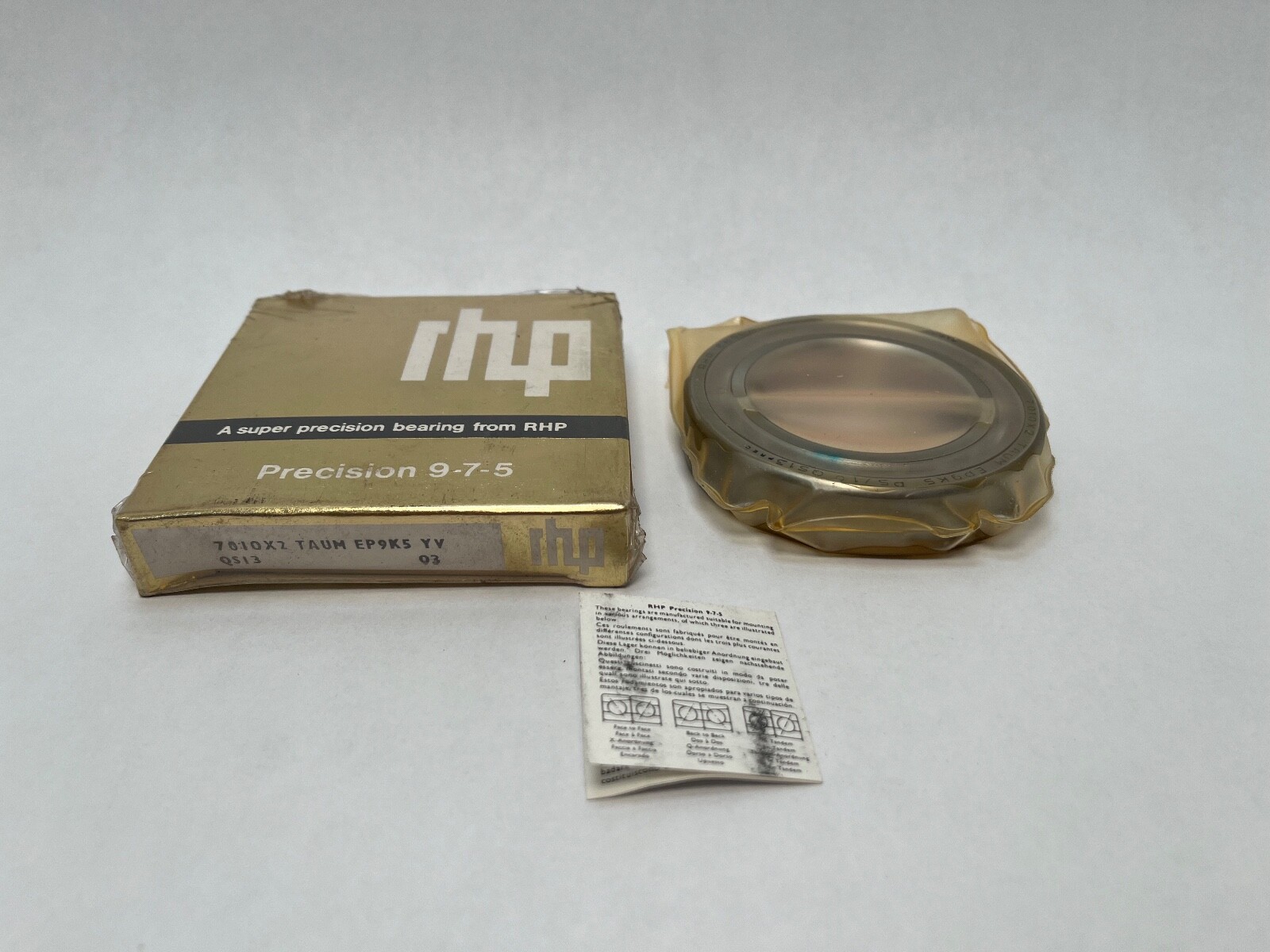

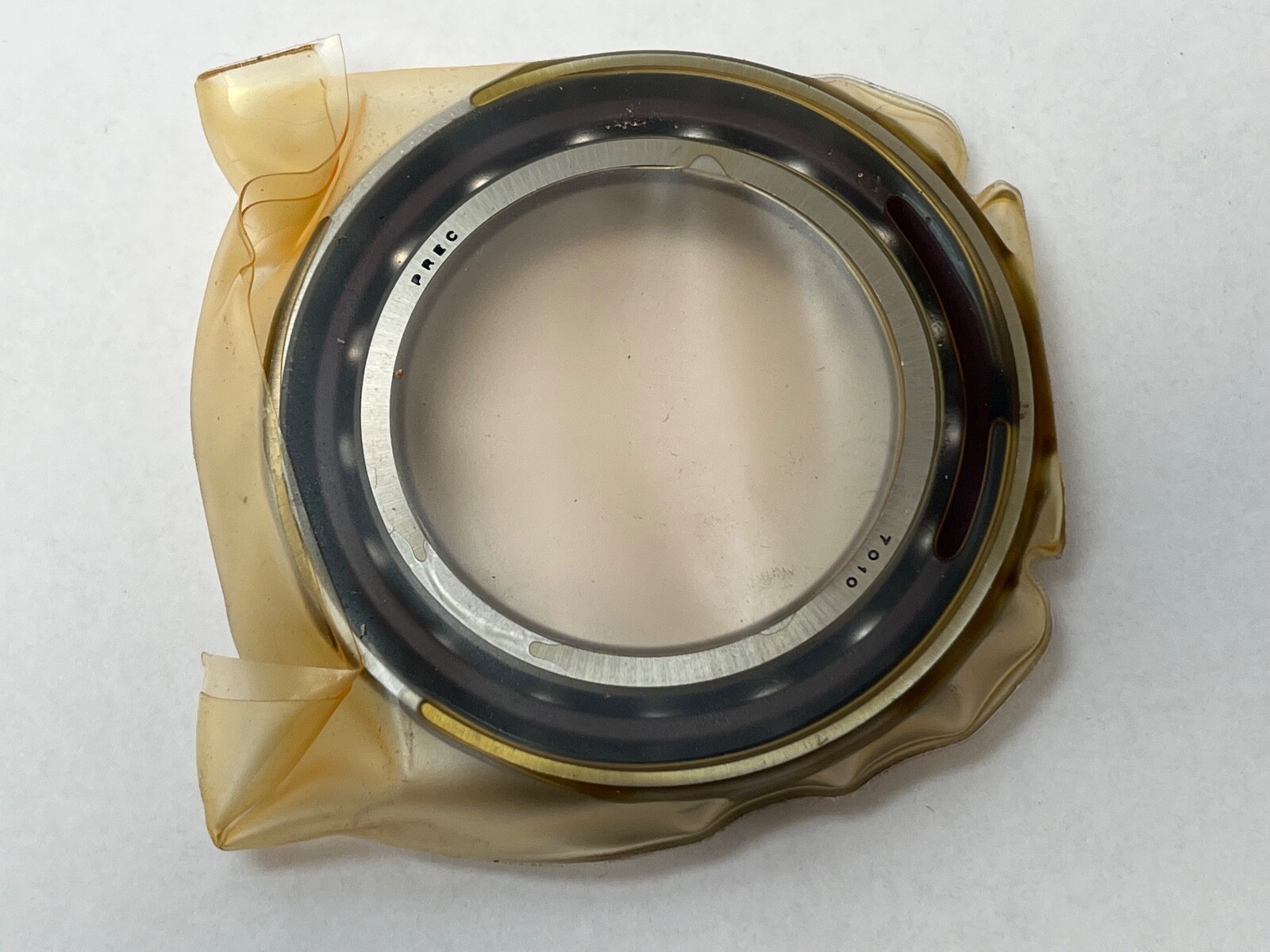

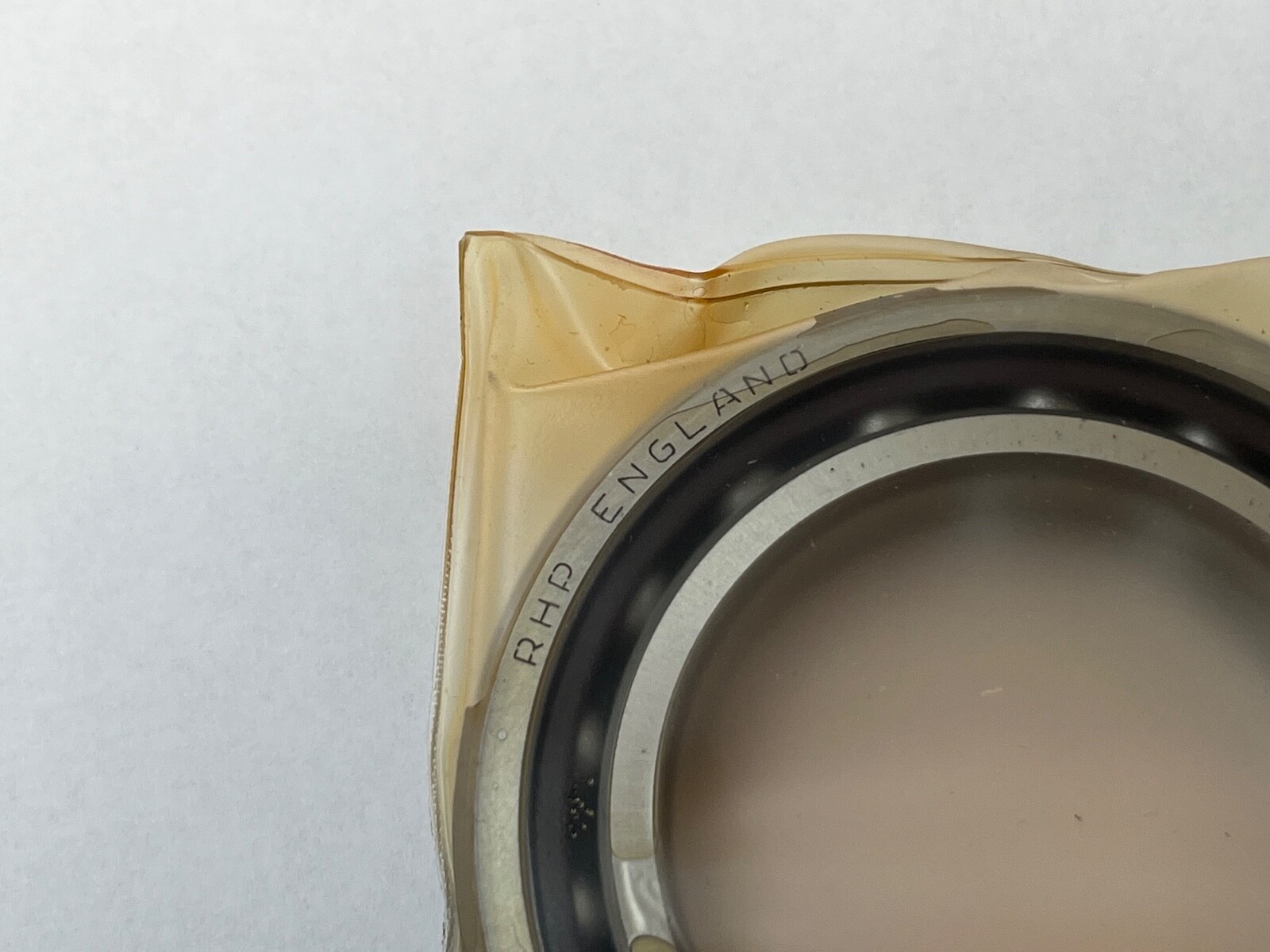

RHP 7010CTSUMP2 is a super precision angular contact ball bearing, ISO dimension series 10 (70xx), open design, a single universally ground bearing at medium preload. Bore: 50 mm. Outside Diameter: 80 mm. Width: 16 mm. Contact Angle: 15°. One bearing. Country of origin: United Kingdom.
7010 — ISO dimension series 10, bore code 10 x 5 = 50 mm.
C — 15° contact angle.
T — phenolic cage, outer-ring guided.
SU — universal face control, single bearing.
M — medium preload.
P2 — precision class P2, equivalent to ABEC 9 and ISO class 2.
Bore Diameter: 50 mm. Outside Diameter: 80 mm. Overall Width: 16 mm. Contact Angle: 15°. Number of Rows: 1. Rolling Elements: Ball (steel). Bearing Material: Carbon chrome bearing steel (SAE 52100). Cage Material: Laminated phenolic resin. Cage Type: Outer-ring guided. Preload: Medium. Precision Class: ABEC 9 / P2. Dynamic Load Rating: 26,000 N. Static Load Rating: 21,900 N. Limiting Speed: 17,300 rpm grease; 28,000 rpm oil-air. Lubricant: Grease or oil. Closure Type: Open. Item Weight: 0.259 kg (0.57 lb). Unit Quantity: 1 Pc.
Inner Ring Abutment Diameter: 56 mm minimum. Outer Ring Abutment Diameter: 74 mm maximum. Housing Abutment Diameter: 75 mm maximum. Fillet Radius r min: 1.0 mm. Fillet Radius r1 min: 0.6 mm. Internal Volume: 12.0 cm3. Axial Preload (paired): 390 N. Axial Stiffness (paired): 96 N per micrometre. Effective Load Centre: 16.7 mm.
Cross-references: RHP B-series form B7010X2TAUMEP9K5; FAG B7010-C-T-P2S-UM; Fafnir 2MMV9110WICRSUM (P4S class, versus P2 on this bearing). Other written forms: 7010-C-T-SUM-P2, 7010 C T SUM P2, 7010-C-T-DUM-P2.
Bore 50 mm, outside diameter 80 mm, width 16 mm, 15° contact angle, open design.
SU is universal face control on a single bearing, M is medium preload and P2 is precision class P2, equivalent to ABEC 9.
Dynamic load rating 26,000 N and static load rating 21,900 N. Limiting speed is 17,300 rpm with grease and 28,000 rpm with oil-air lubrication.
