RHP7008TSULP6Angular Contact Ball Bearing – 40 mm ID, 68 mm OD, 15 mm Width, Open, Light Preload, ABEC 3

Product Description

What this part is

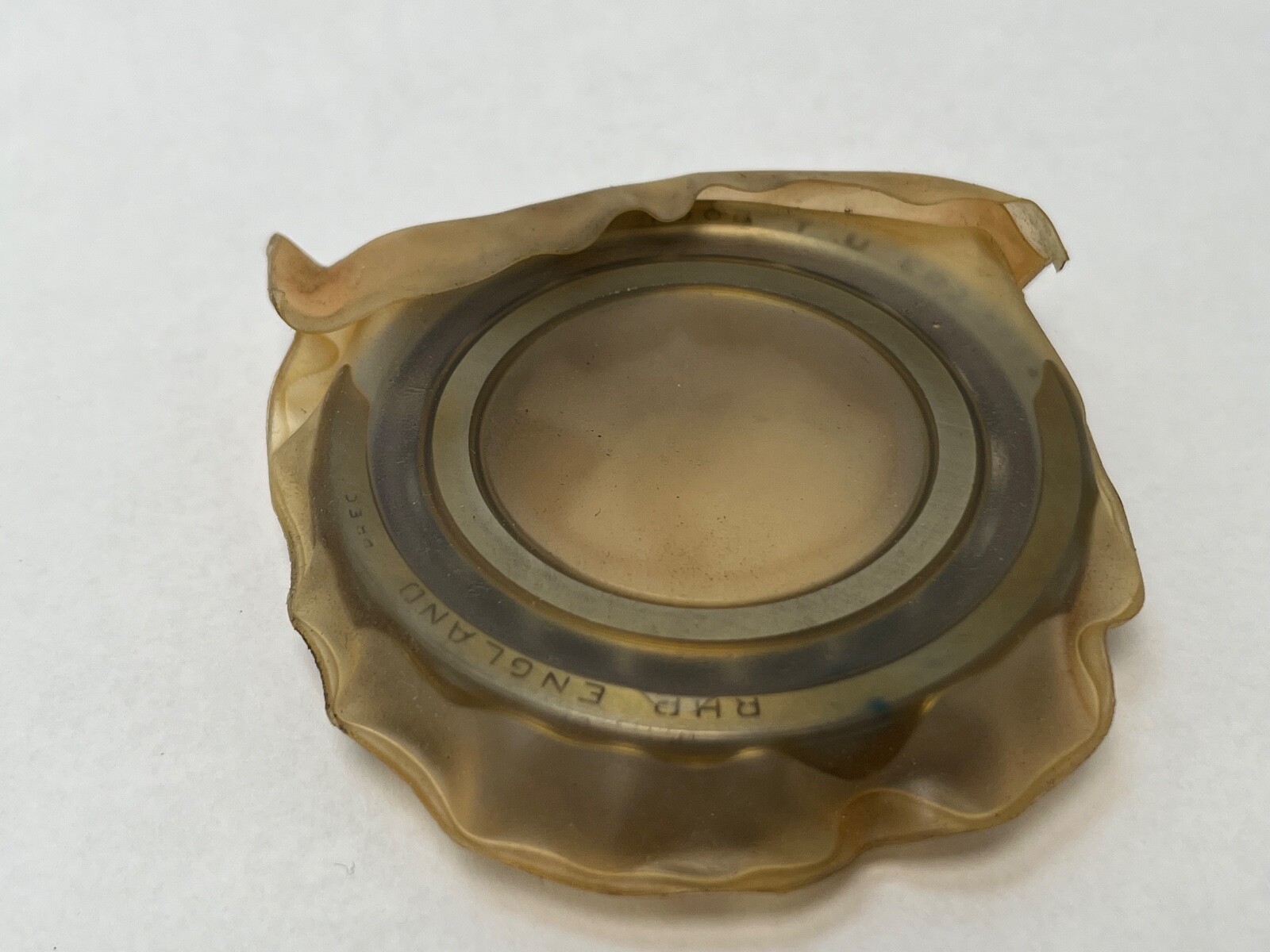

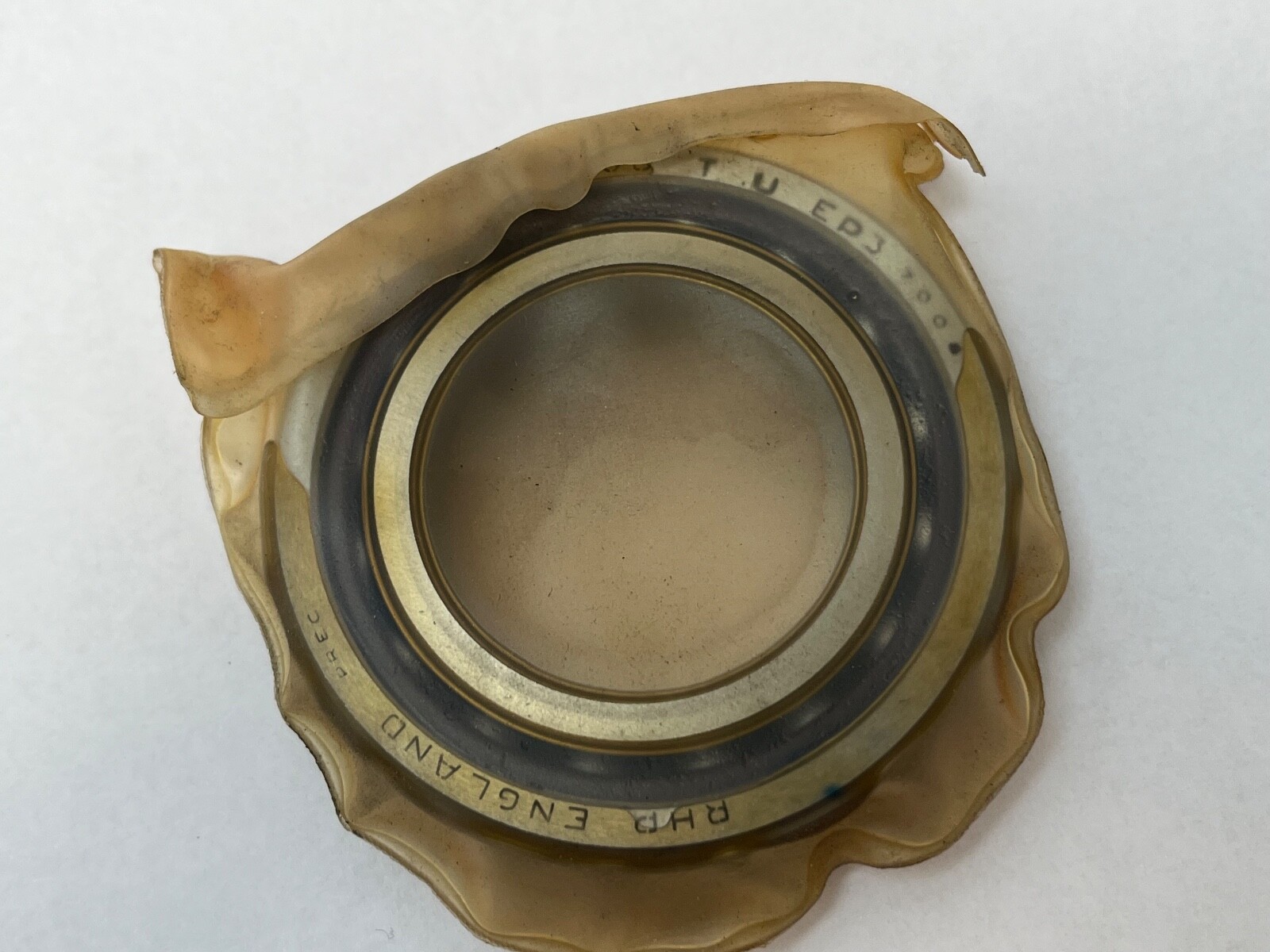

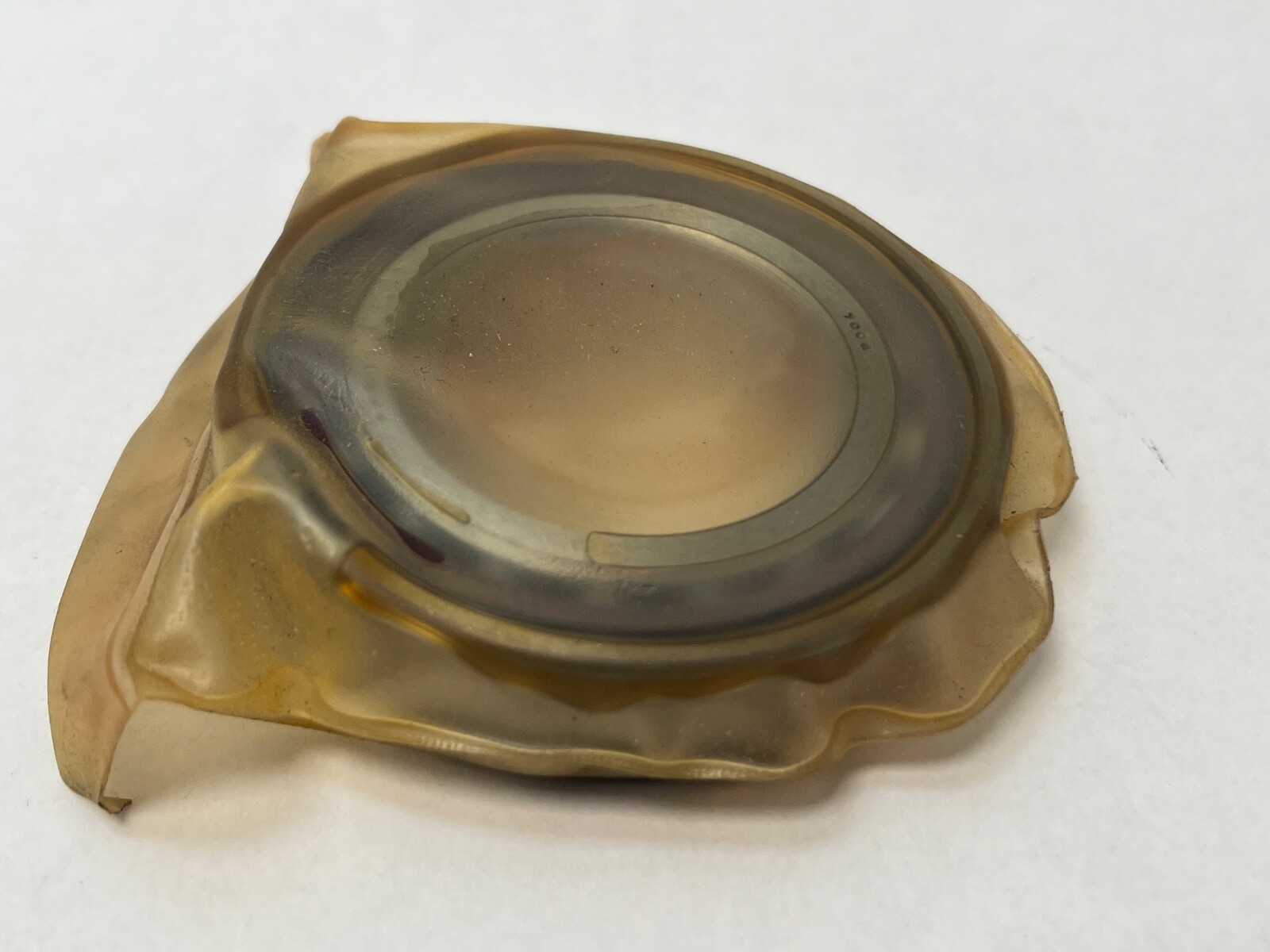

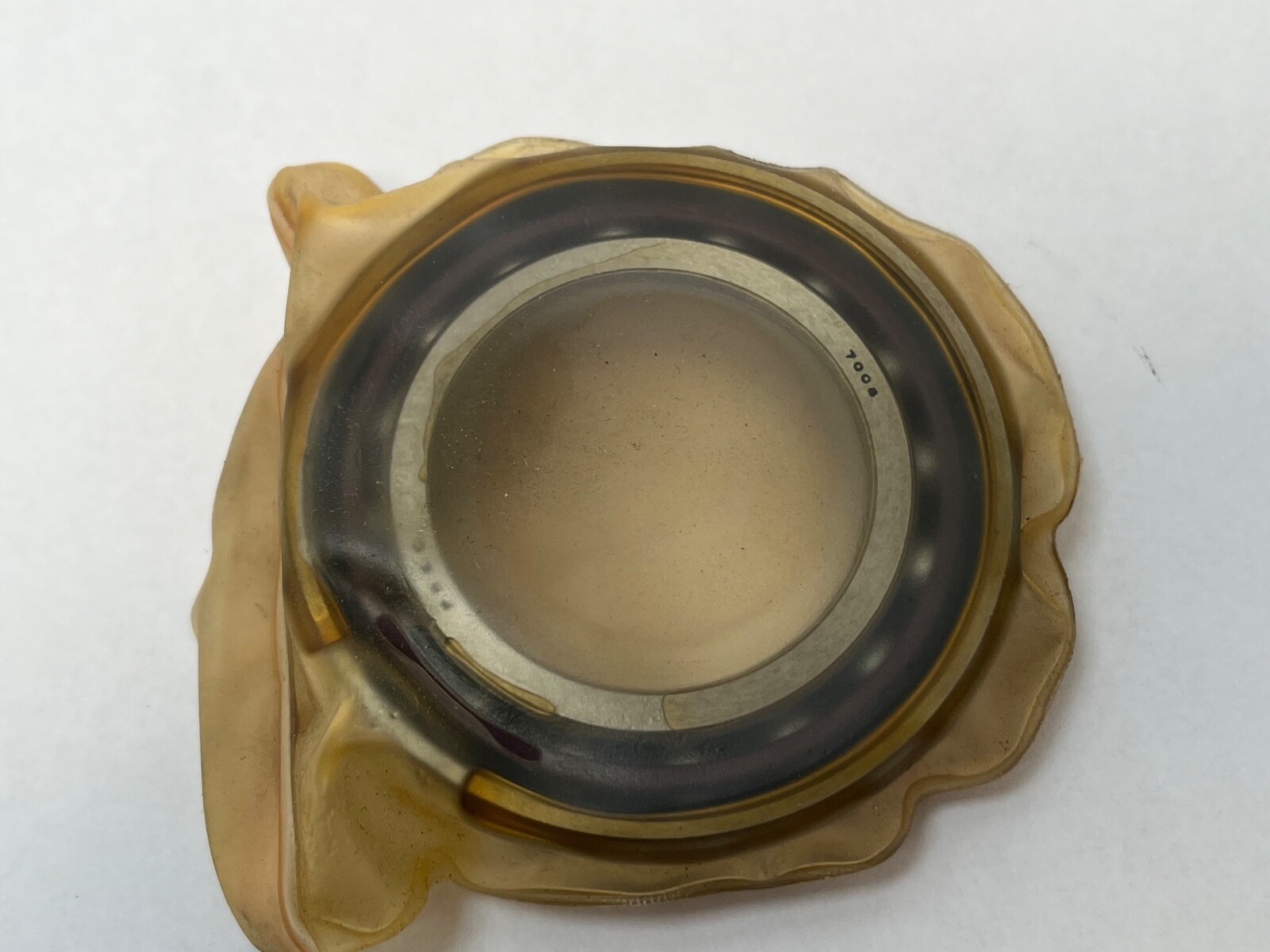

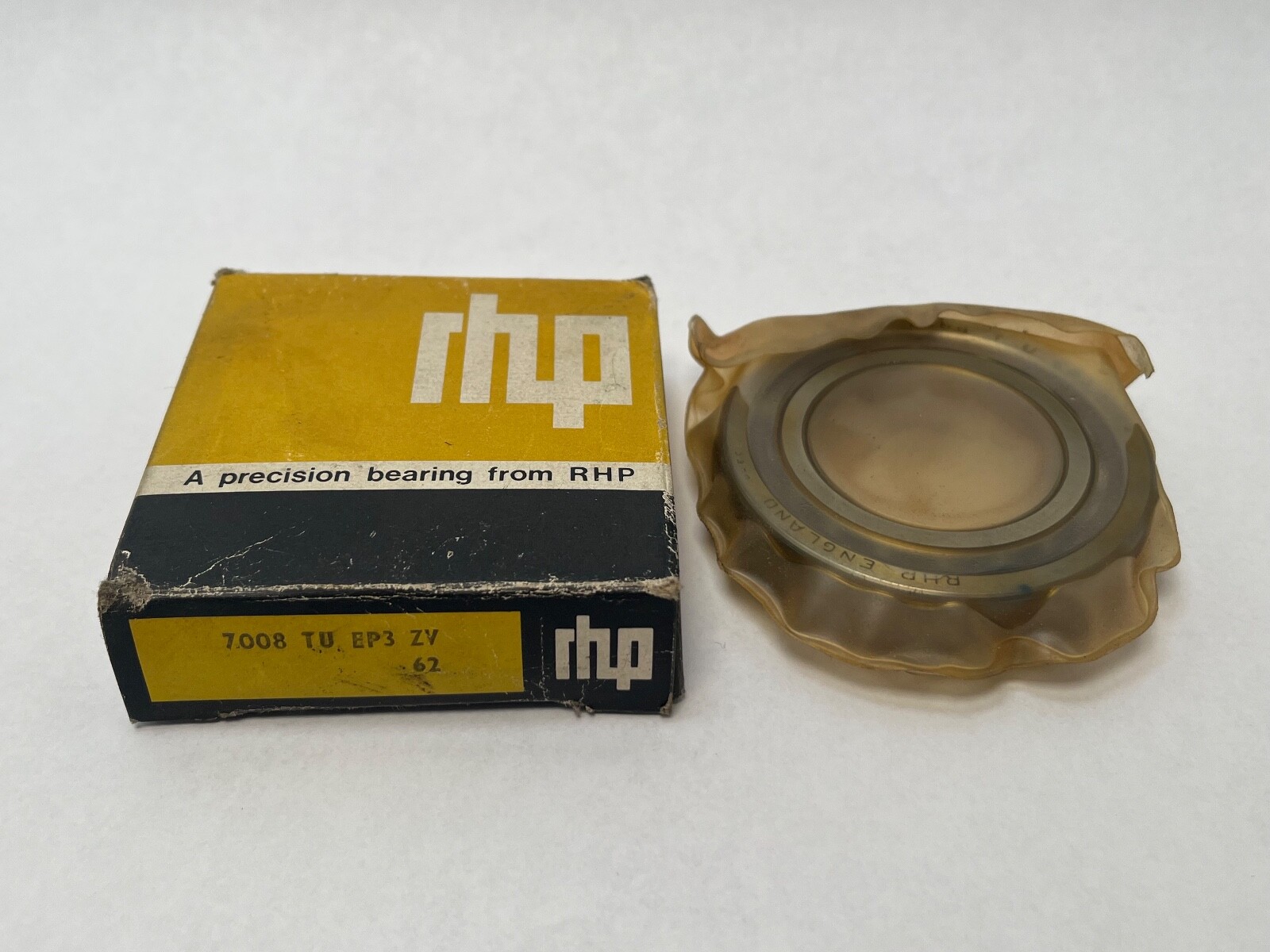

RHP 7008TSULP6 single-row angular contact ball bearing. Bore: 40 mm. Outside Diameter: 68 mm. Overall Width: 15 mm. Series: 7000, ISO dimension series 10. Number Of Rows: 1. Rolling Elements: Balls. Bore Type: Straight. Closure Type: Open. Country of Origin: United Kingdom.

Decoding the designation

Cage Material: Laminated phenolic resin. Cage Type: Machined, outer-ring guided. Preload: Light. Mounting Arrangement: Single universal. Precision Class: RHP P6, ISO Class 6, ABEC 3, BS292 EP3. Searchable forms: 7008TSULP6, 7008 T SUL P6, 7008-T-SUL-P6, B7008TUEP3, 2M9108WI CR.

What these specs mean in practice

Precision Class: ABEC 3 — tighter bore, outside diameter and runout tolerances than a standard-class bearing, which gives closer shaft location and lower running vibration. Bearing Material: Carbon chrome bearing steel, SAE 52100, through hardened and heat treated for stability and life. Cage Material: Laminated phenolic resin, outer-ring guided, which suits high speed and quiet running. Maximum Operating Temperature: 120 °C. Minimum Operating Temperature: -30 °C. Internal Clearance: N/A — the light preload is set at manufacture, so the bearing is preloaded rather than clearance-graded. Lubricant: grease or oil. Item Weight: 0.42 lbs.

Quantity and configuration

Unit Quantity: 1 Pc. Universal face control means the inner and outer rings are ground to the same width and the face relationships are adjusted at manufacture, so two of these mount back-to-back or face-to-face at the same light preload, and tandem-mounted bearings share load equally.

Fitting notes

Abutment Diameter, shaft, d1 min: 46 mm. Abutment Diameter, housing, D1 max: 62 mm. Housing Abutment D2 max: 63 mm. Chamfer r min: 1.0 mm. Chamfer r1 min: 0.6 mm. The high point of radial runout is marked by a burnished spot on the inner ring face and by a V line on the outer ring diameter, which also gives the direction of the contact angle.

Interchange guidance

Cross-Reference: Fafnir 2M9108WI CR. Cross-Reference: RHP B7008TUEP3. Harmonization Code: 8482.10.50.
