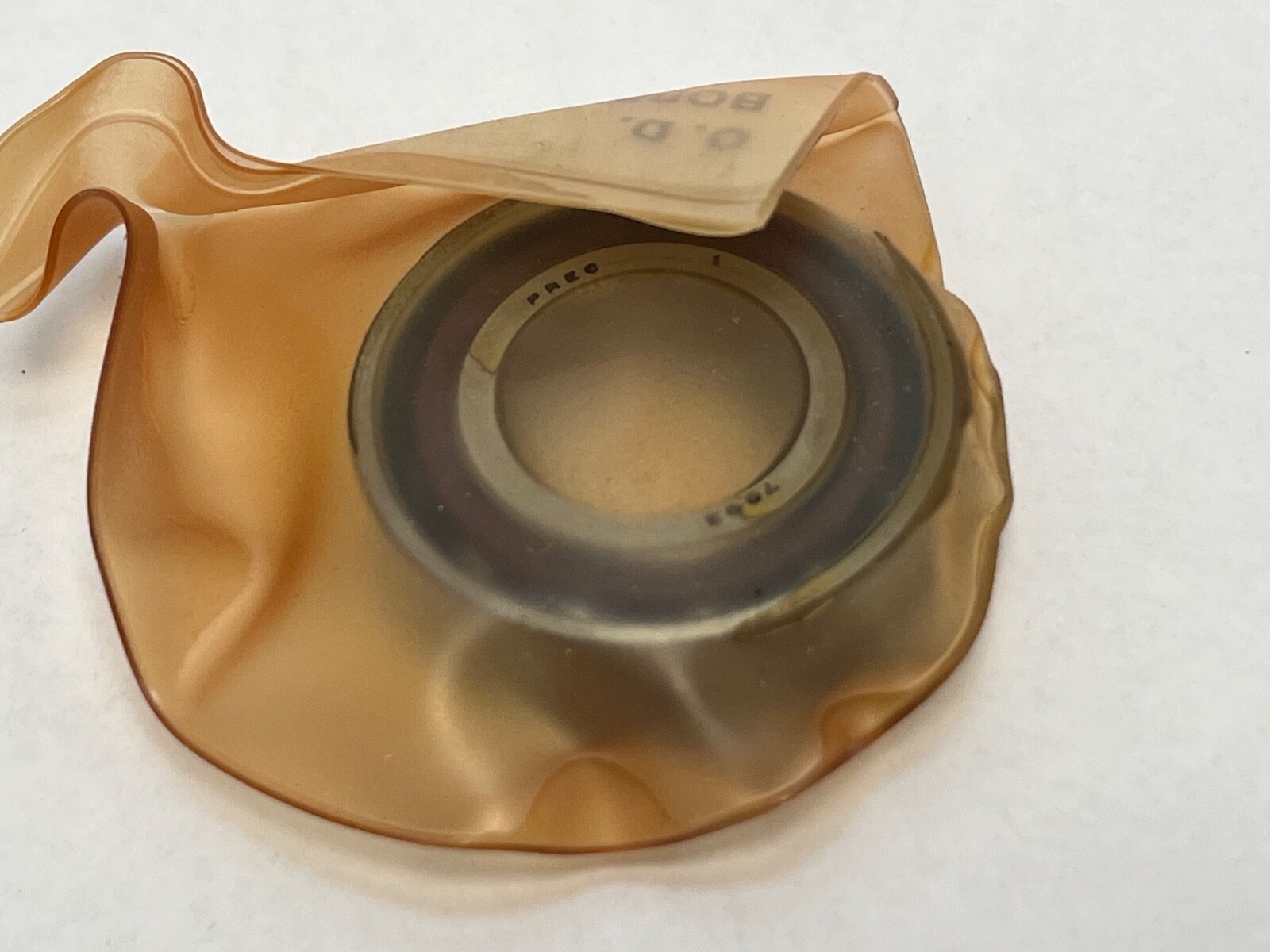

RHP7003CTSULP4Angular Contact Ball Bearing – 17 mm ID, 35 mm OD, 10 mm Width, 15° Contact Angle, Light Preload, ABEC 7 / P4, Phenolic Cage, Open.

Product Description

What this part is:

RHP 7003CTSULP4 is a super-precision single-row angular contact ball bearing, ISO dimension series 10, supplied as a single universal (SU) bearing. Unit Quantity: 1 Pc.

Decoding the designation:

7 — single-row angular contact ball bearing.

0 — RHP dimension series 0, ISO series 10.

03 — bore code 03, 17 mm bore.

C — 15° contact angle.

T — laminated phenolic resin cage, outer-ring guided.

SU — single universal. Inner and outer rings are the same width and the faces are ground at manufacture, so two bearings mount back-to-back, face-to-face or in tandem at the designed preload with plain parallel spacers.

L — light preload. Mounted as a back-to-back pair this gives an axial preload of 29 N and an axial stiffness of 21 N/µm.

P4 — ISO Class 4, ABEC 7, British Standard EP7.

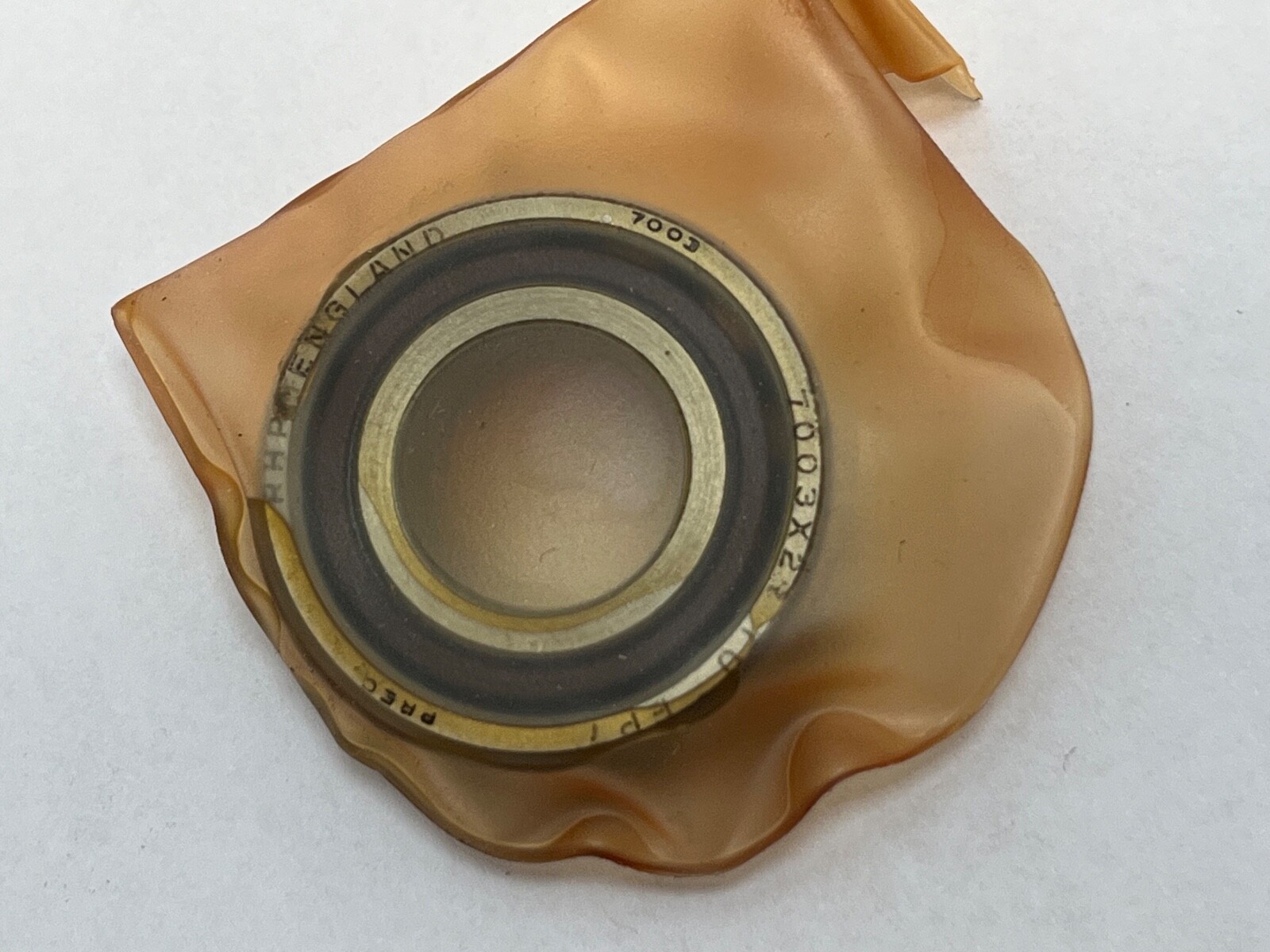

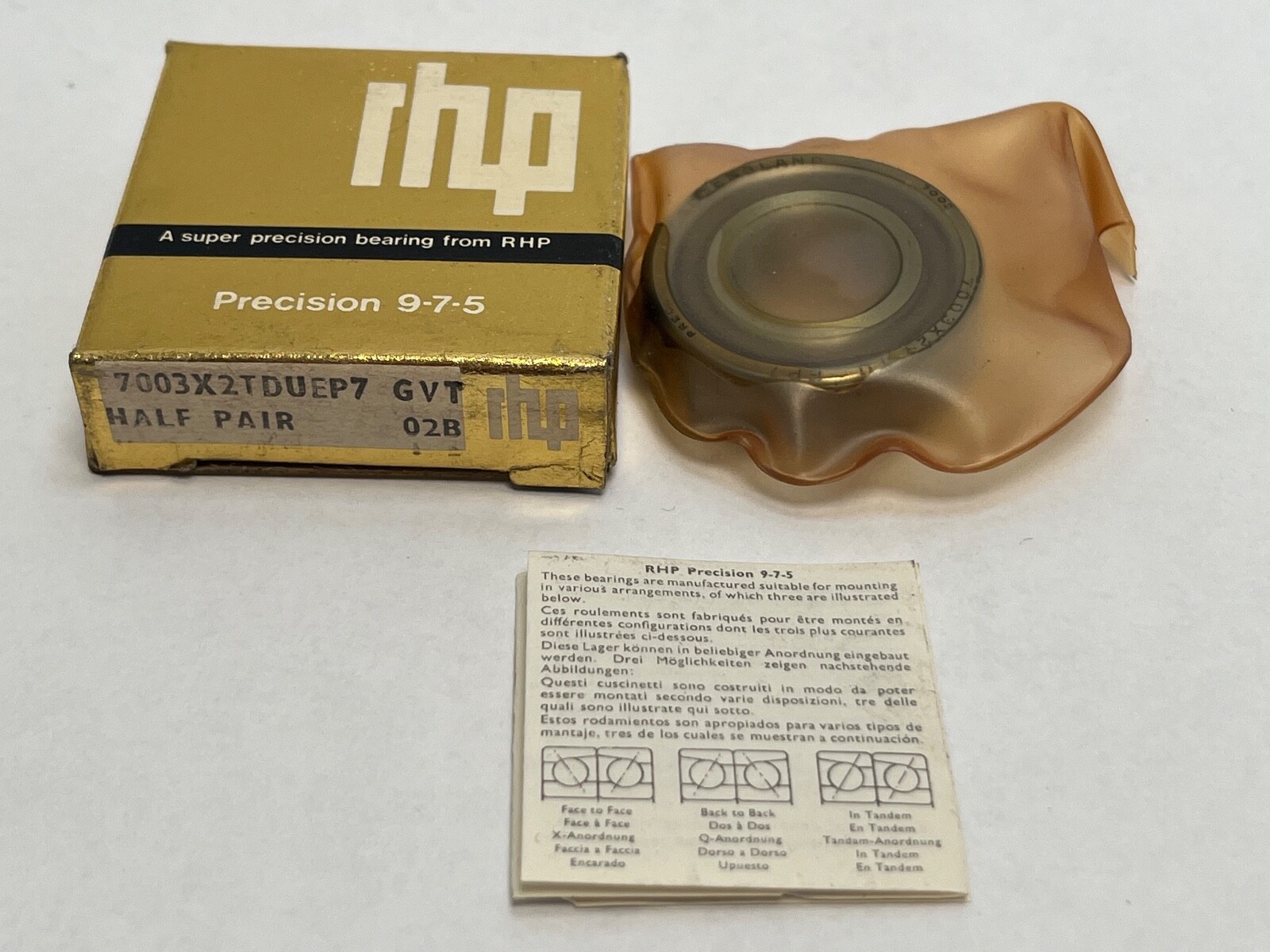

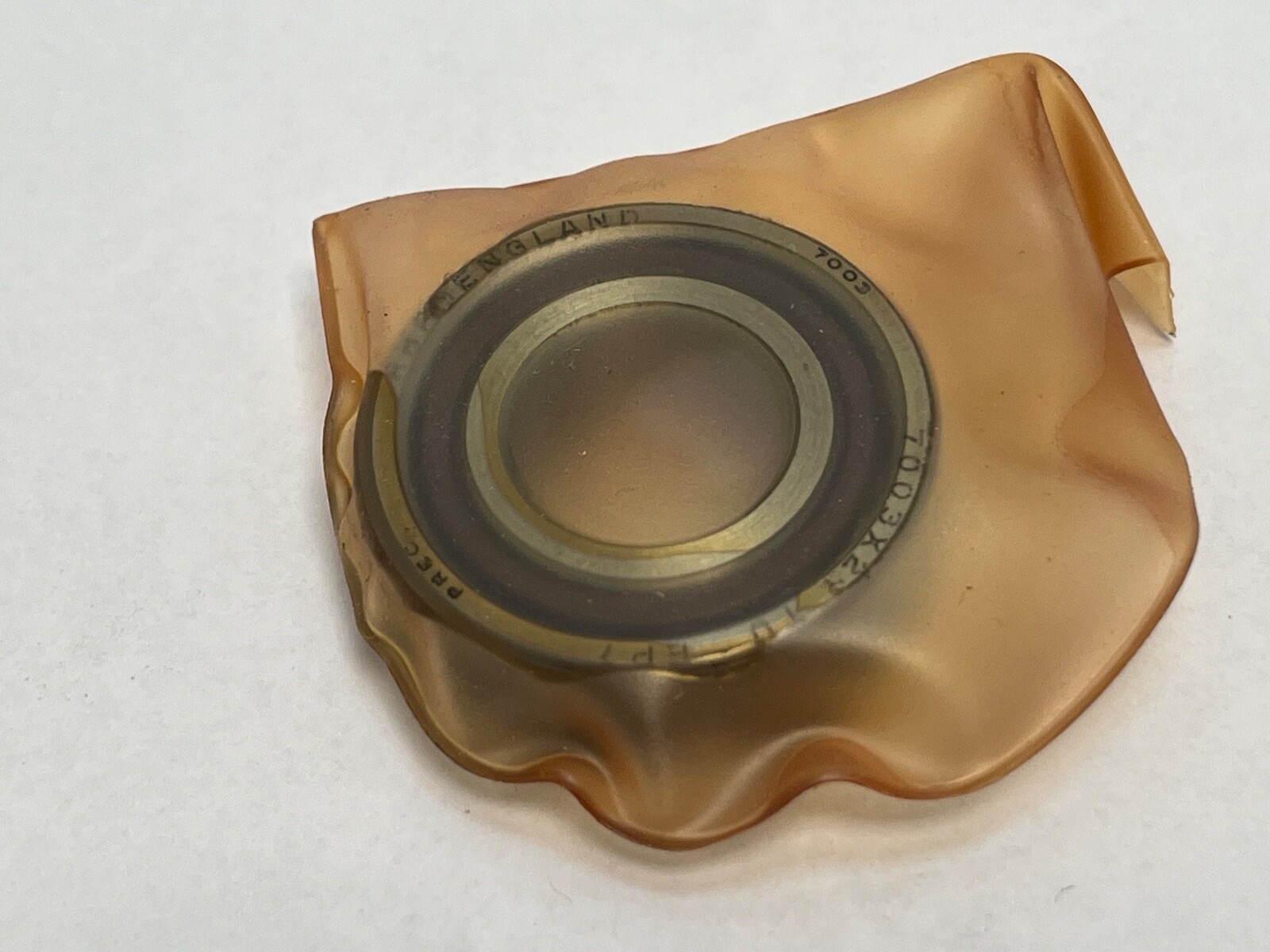

7003X2TUEP7 — the same bearing in the RHP B-series scheme. X2 is the 15° contact angle and EP7 is the British Standard grade equal to P4.

Specifications:

Bore Diameter: 17 mm. Outside Diameter: 35 mm. Overall Width: 10 mm. Contact Angle: 15°. Precision Class: ABEC 7 / P4. Preload: Light. Cage Material: Phenolic. Cage Type: Machined, outer-ring guided. Closure Type: Open. Rolling Elements: Ball. Number Of Rows: 1. Bore Type: Straight. Bearing Material: Carbon chrome bearing steel, through hardened. Mounting Arrangement: Universal single. Series: 7000.

Dynamic Load Rating: 6,600 N. Static Load Rating: 3,800 N. Limiting Speed: 39,600 rpm grease; 64,100 rpm oil. Lubricant: grease or oil. Maximum operating temperature for the laminated phenolic cage: 120 °C. Item Weight: 0.040 kg (0.09 lb) per bearing.

Dimensions and mounting:

Inner ring abutment diameter d1 min: 19.5 mm. Outer ring abutment diameter D1 max: 32.5 mm. Outer ring seating diameter D2 max: 33.8 mm. Chamfer dimension r min: 0.3 mm. Chamfer dimension r1 min: 0.15 mm. Effective load centre a: 8.5 mm. Internal free volume: 1.9 cm³. PCD of lubrication jets: 23.5 mm.

Compatibility and replacement:

Cross-references at the 17 x 35 x 10 mm envelope, 15° contact angle and super-precision class: SKF 7003 CD/P4ADGA, FAG B7003-C-T-P4S, NSK 7003CTRSULP4, NTN 7003CG/GNP4, Timken Fafnir 2MM9103WI CR, Koyo 7003C, IBC 7003-C-T-P4S-UL.

Frequently asked questions:

What are the dimensions of the RHP 7003CTSULP4?

17 mm bore, 35 mm outside diameter, 10 mm width.

What is the contact angle of the RHP 7003CTSULP4?

15°.

What precision class is the RHP 7003CTSULP4?

ABEC 7 / P4.
