Super Precision Spindle Bearing – 12 mm Bore, 28 mm OD, 8 mm Width, 15° Contact Angle, P4 Class, Light Preload, Duplex Universal$67.92
Angular Contact Ball Bearing – 12 mm ID, 28 mm OD, 8 mm Width, Straight Bore, Open, 15° Contact Angle, Phenolic Cage, P6 Precision$30.13
Angular Contact Ball Bearing - Straight Bore, 12 mm ID, 28 mm OD, 8 mm Width, Open, 25° Contact Angle, Extra Light Preload.$136.01
Angular Contact Ball Bearing — 12 mm ID, 28 mm OD, 8 mm Width, 25° Contact Angle, P4, Phenolic Cage$25.49| MFR / Brand | RHP |
|---|---|
| MPN | 7001CTDULP4 |
| Model | 7001 C T DUL P4 / 2MM9101WI DUL / B 7001 X2 TADU EP7 |
| Bearing Type | Angular Contact Ball Bearing, Open |
| ID | 12 mm |
| OD | 28 mm |
| Width | 16 mm |
| Material | Chrome Steel |
|---|---|
| Series | 7000 |
| Preload | Light preload |
| Min Temp | -30 °C |
| Cage Type | Machined |
| Dynamic Load Rating | 8.8 kN / 1978 lbf |
| Static Load Rating | 4.8 kN / 1079 lbf |
| Precision Rating | ABEC 7 / P4 |
| Rolling Elements | Ball |
| Max Temp | 120 °C |
| Item Weight | 0.1 lbs |
| Cage Material | Phenolic |
| Limiting Speed | 45000 rpm |
| Number Of Rows | 2 |
| Bore Type | Straight |
| Snap Ring Included | Without Snap Ring |
| Harmonization Code | 8482.10.50.28 |
| Contact Angle | 15° |
| Mounting Arrangement | Universal |
| Cross Reference 1 | SKF 7001 CD/P4ADGA |
|---|---|
| Cross Reference 2 | FAG B7001-C-T-P4S-DUL |

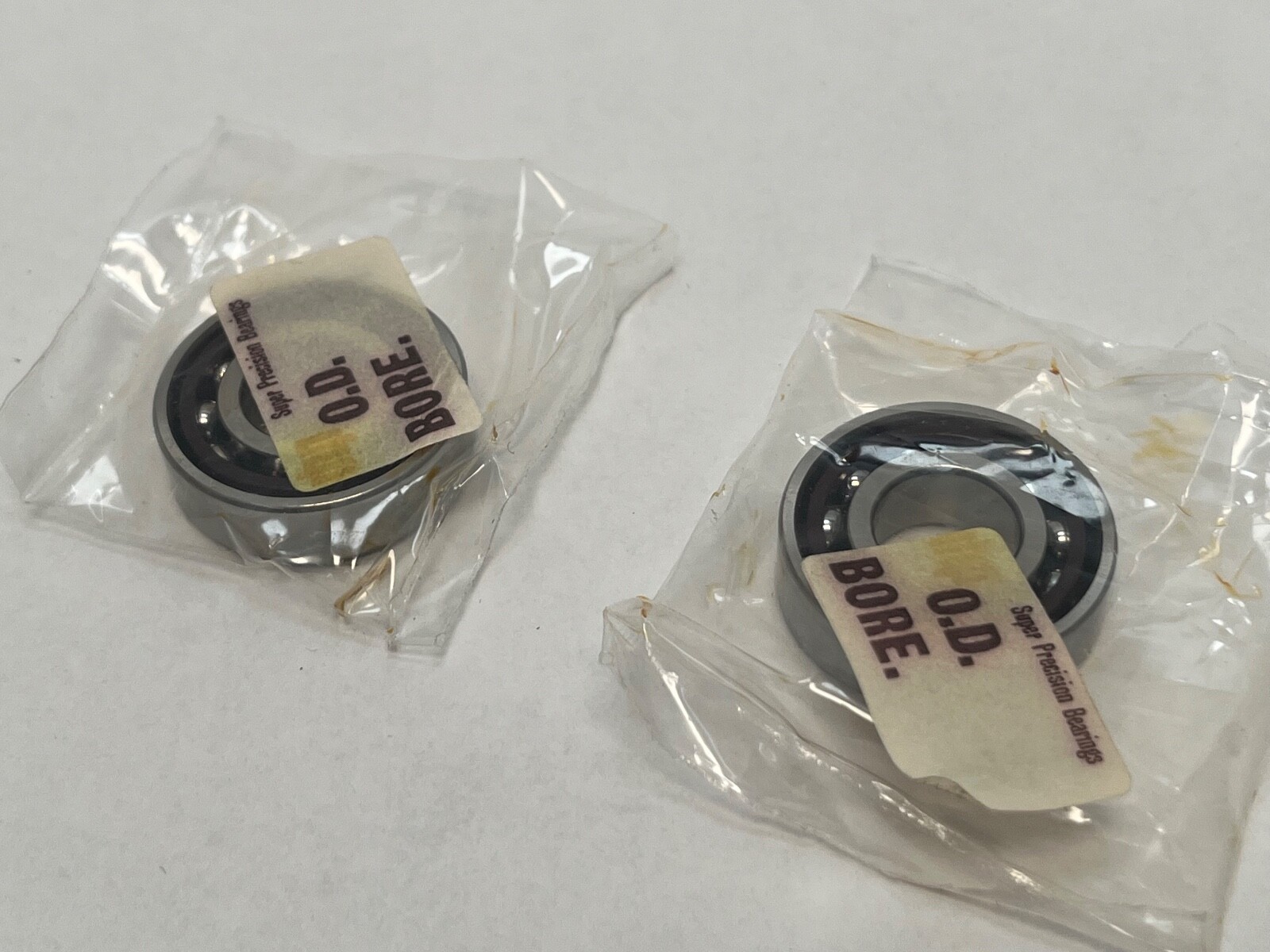

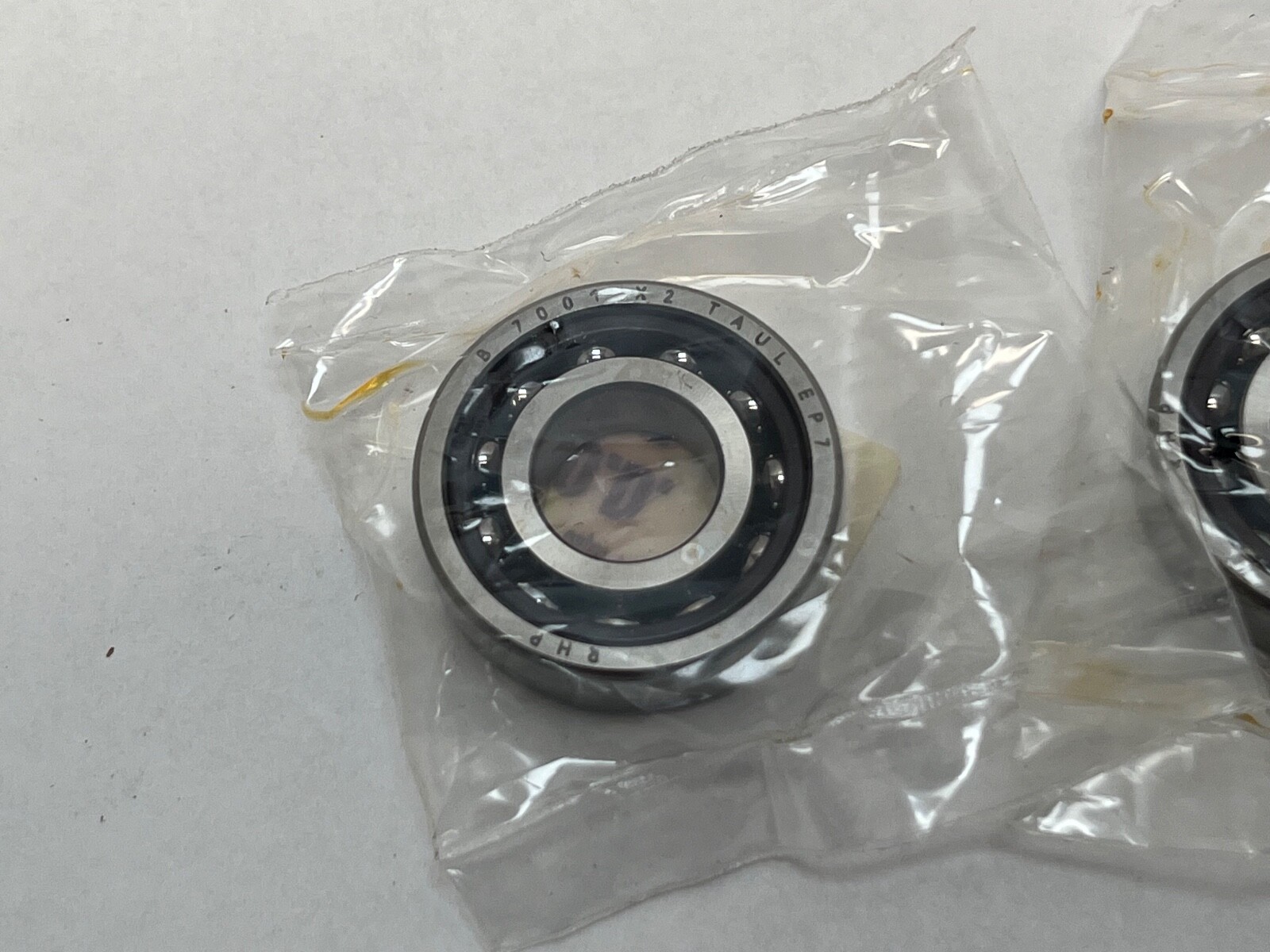

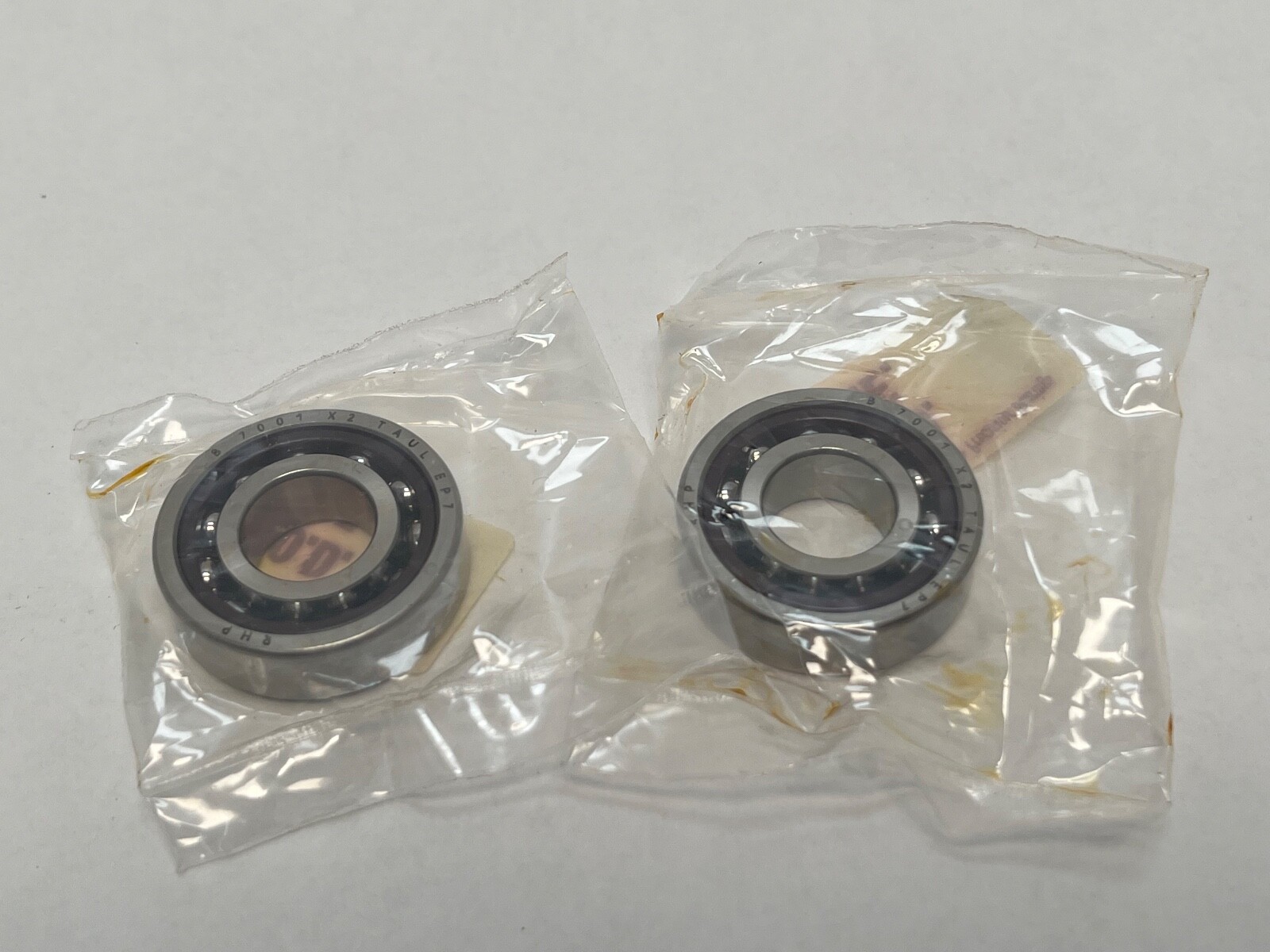

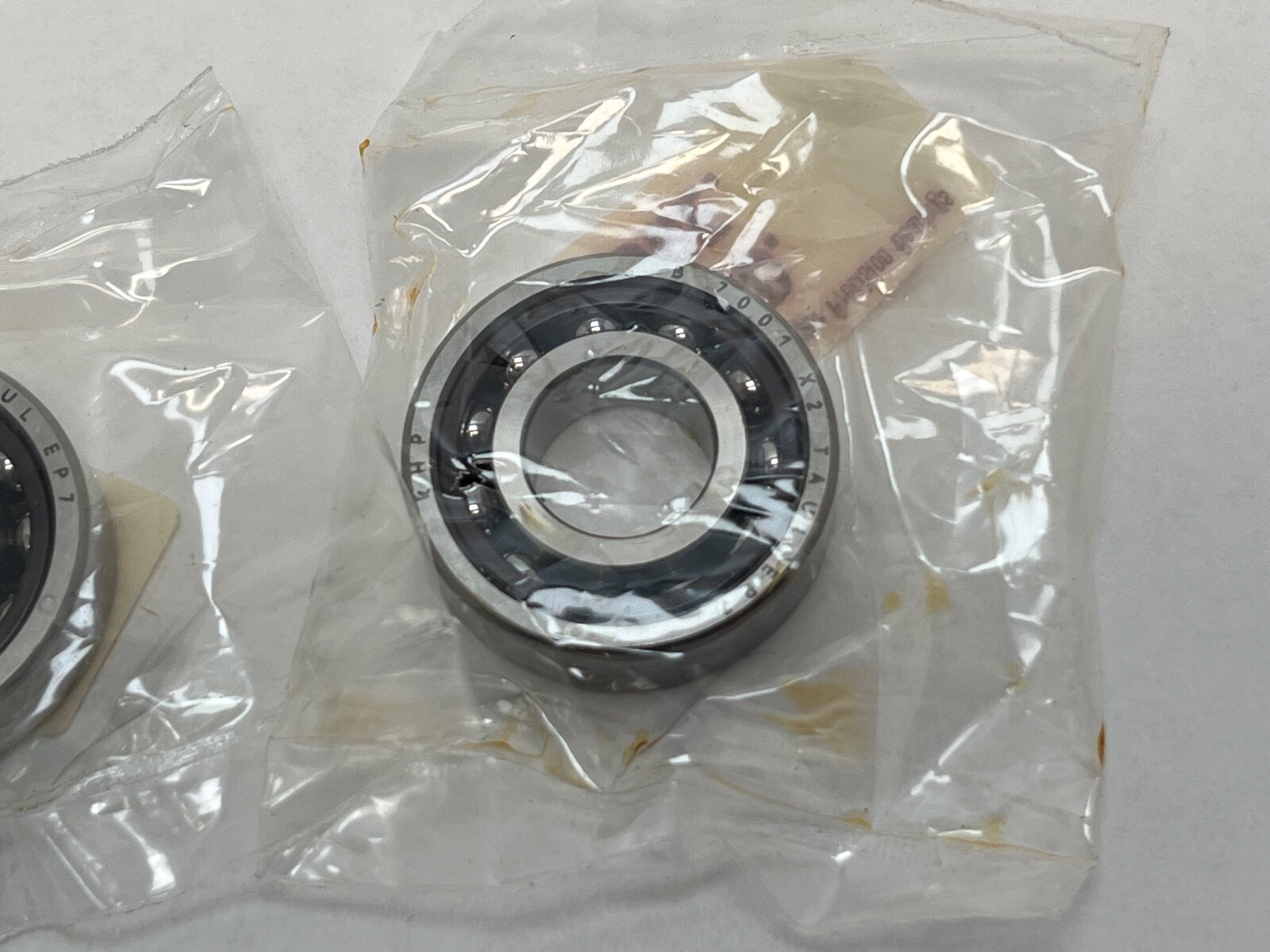

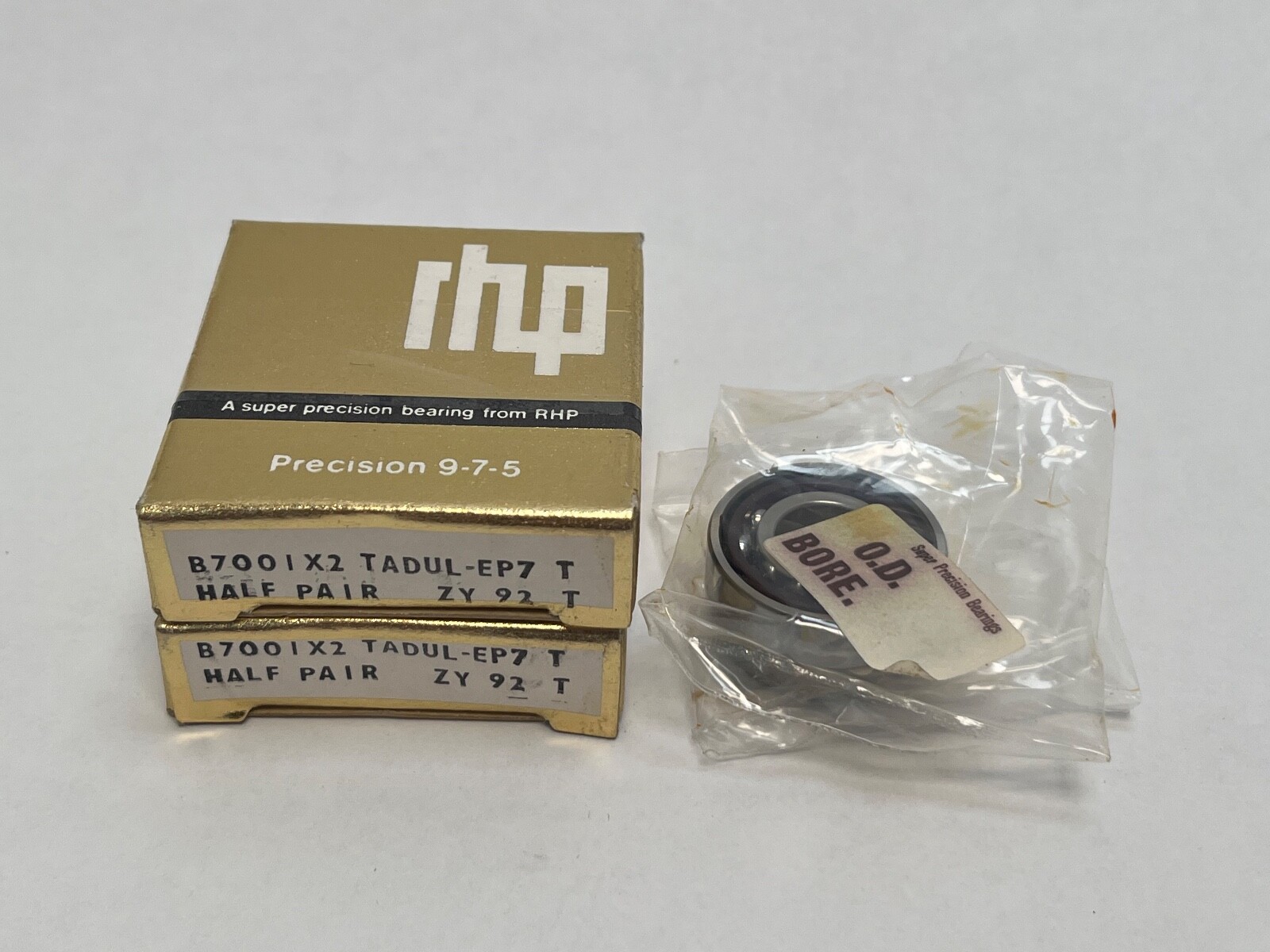

RHP 7001CTDULP4 Bearing – Precision Performance Like No Other Elevate the efficiency of your machinery with the RHP 7001CTDULP4 Angular Contact Ball Bearings, expertly crafted with dimensions of 12x28x8 mm. Made in the United Kingdom, this premium pair of bearings is specifically designed for high-speed and high-precision applications, essential for various industrial sectors. Key Specifications: Inner Diameter: 12 mm Outer Diameter: 28 mm Width: 8 mm Type: Angular Contact Ball Bearing Model Numbers: 7001-C-T-DUL-P4, 2MM9101WI DUL, B7001X2TADUEP7 Condition: New Country of Manufacture: United Kingdom Engineered to reduce friction, the RHP 7001CTDULP4 bearings boast enhanced durability and robust performance, ensuring your equipment operates at peak efficiency in critical applications. These top-notch bearings guarantee reliable functionality, empowering you to operate your machinery with absolute confidence. Take advantage of our competitive pricing, convenient international shipping, and same-day dispatch. Order your 2-piece set of RHP 7001CTDULP4 Bearings today and experience seamless operation in your machinery!
