Availability:
1 in stock

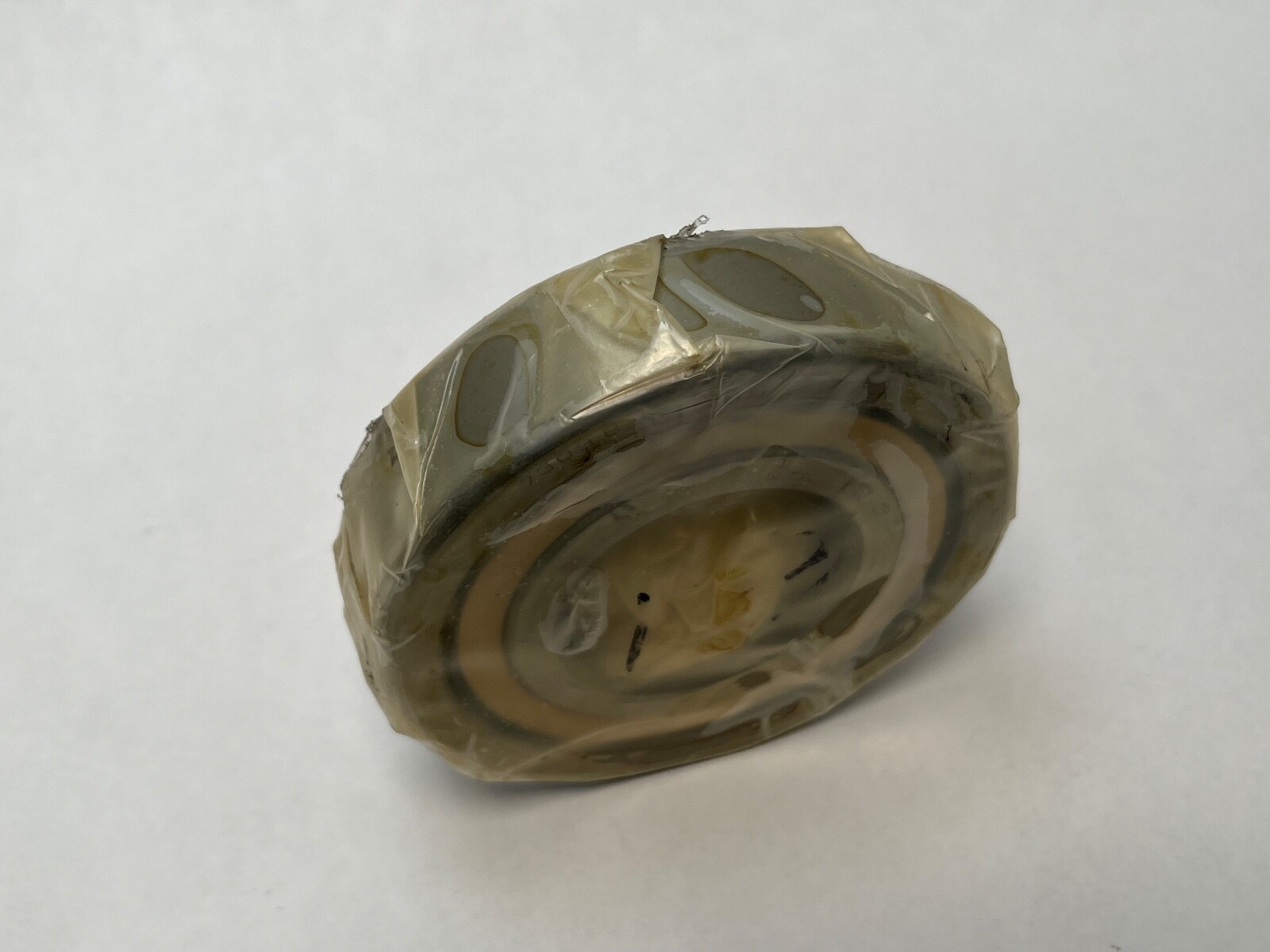

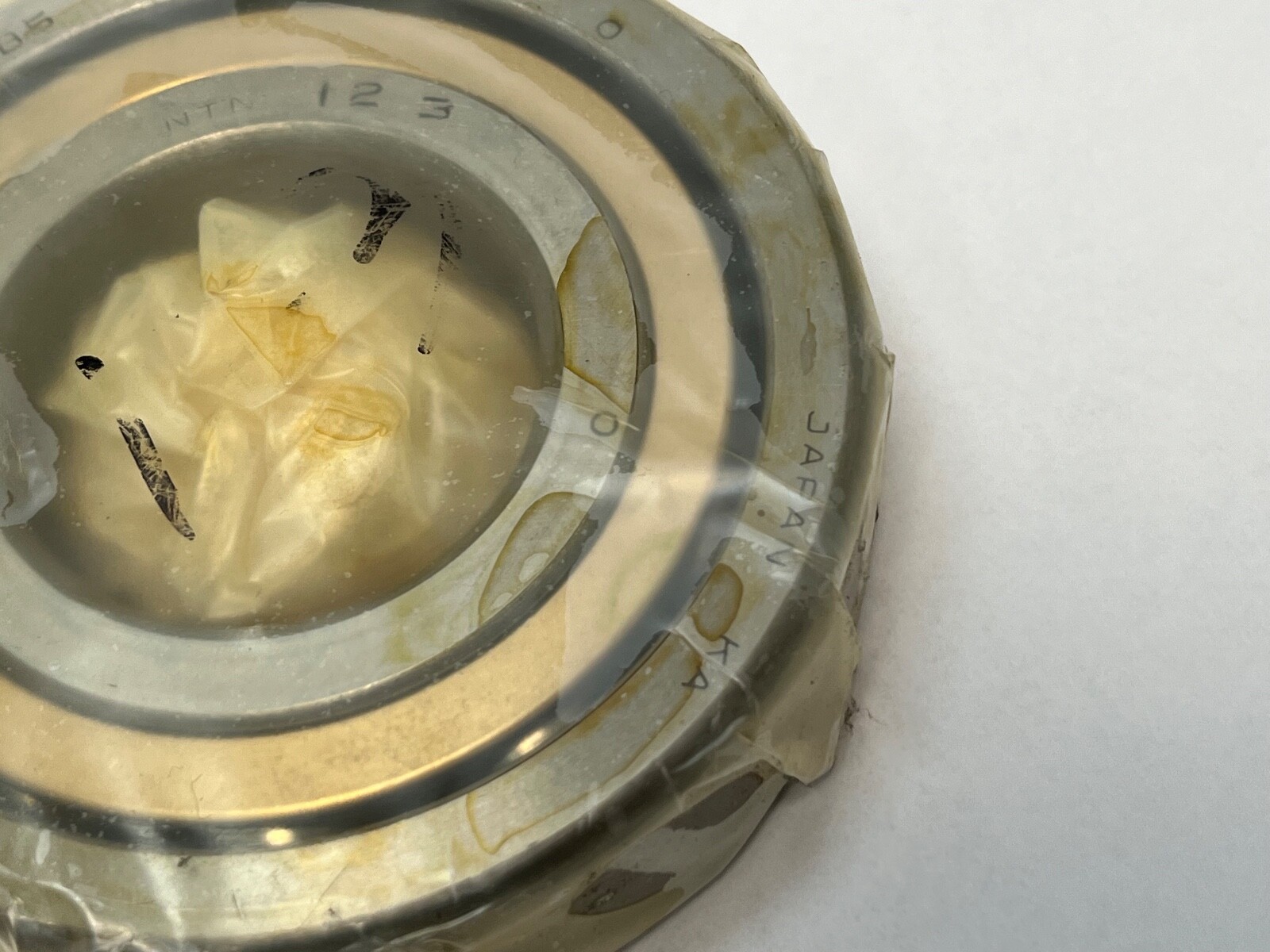

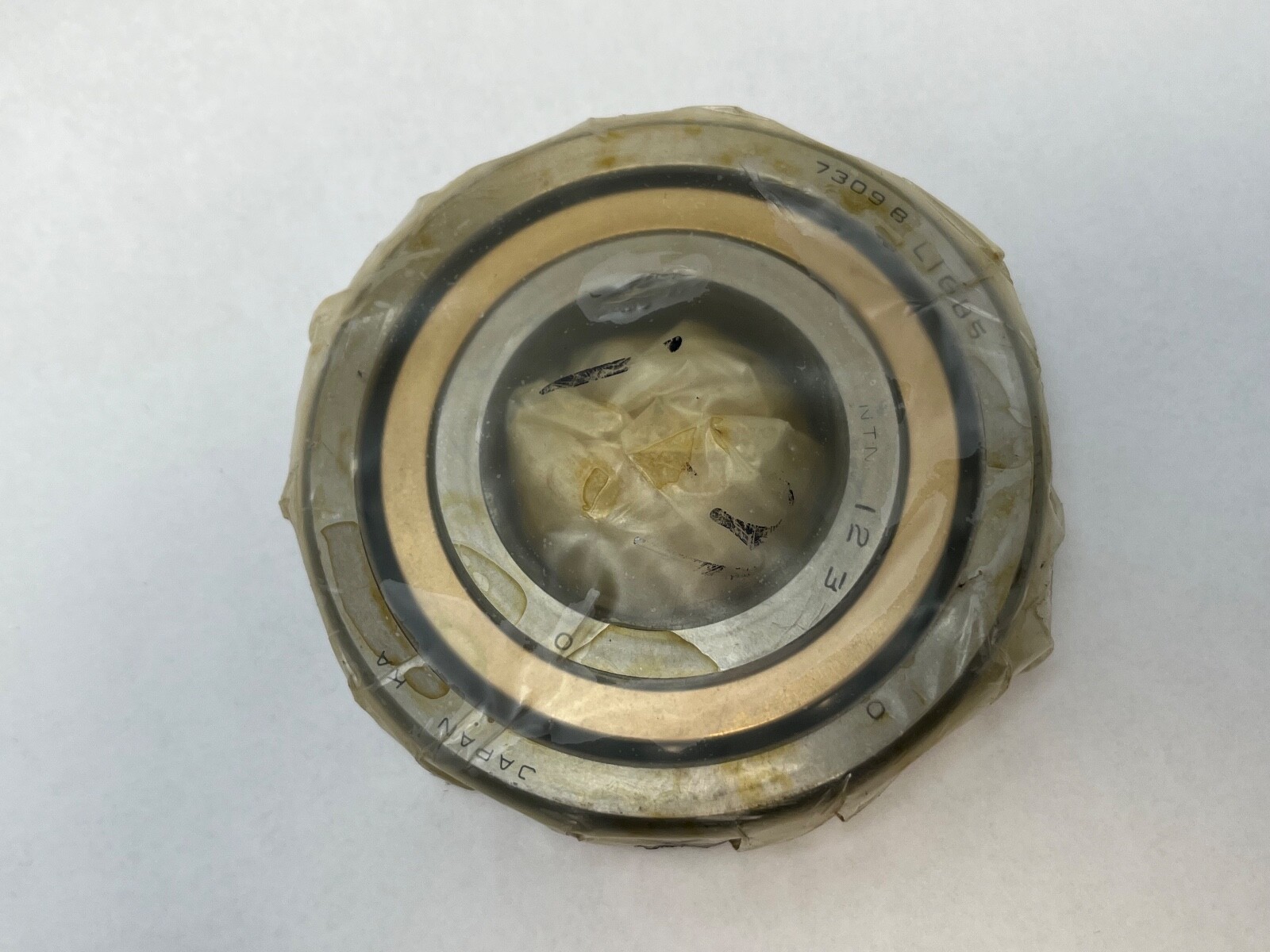

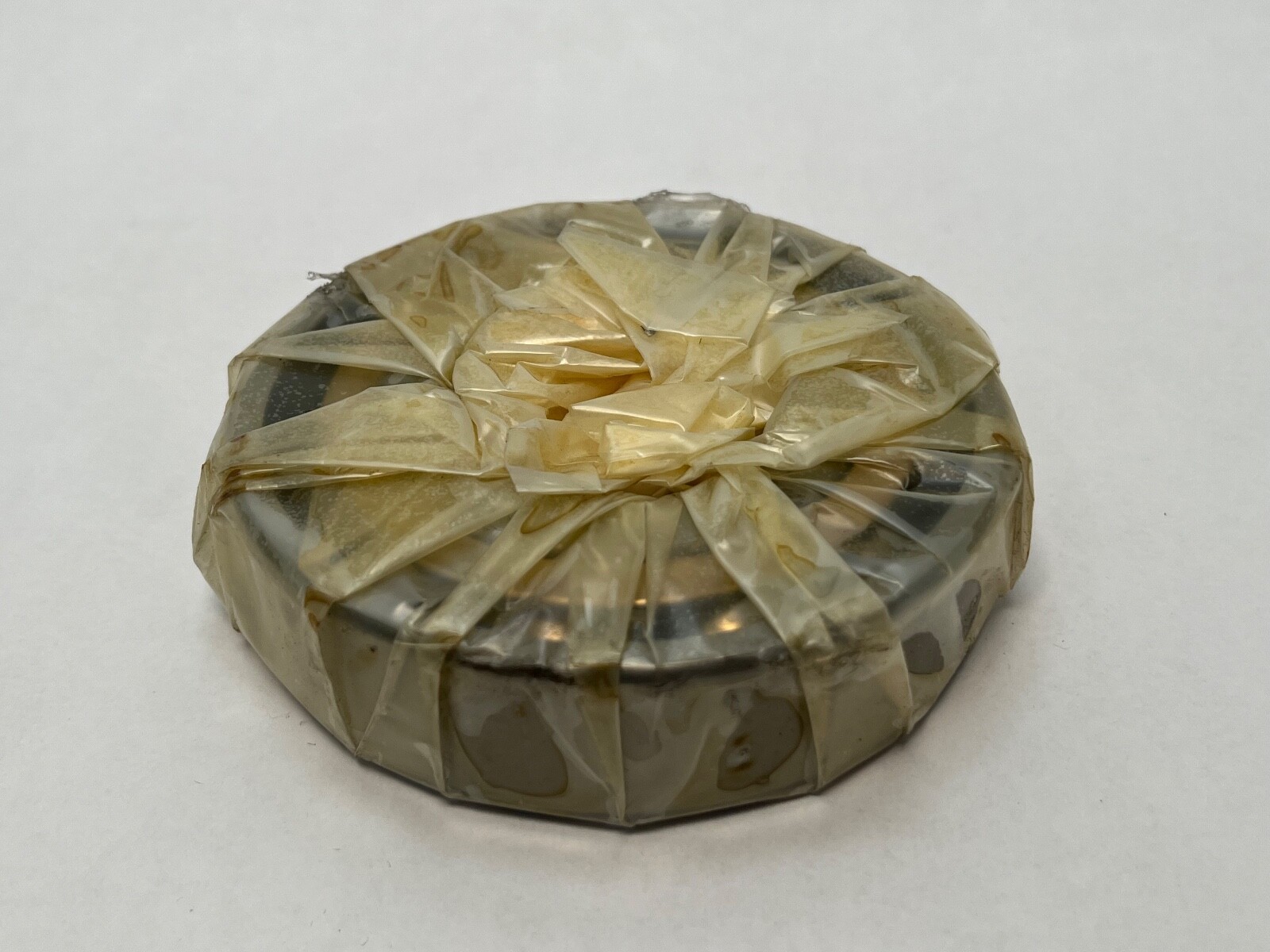

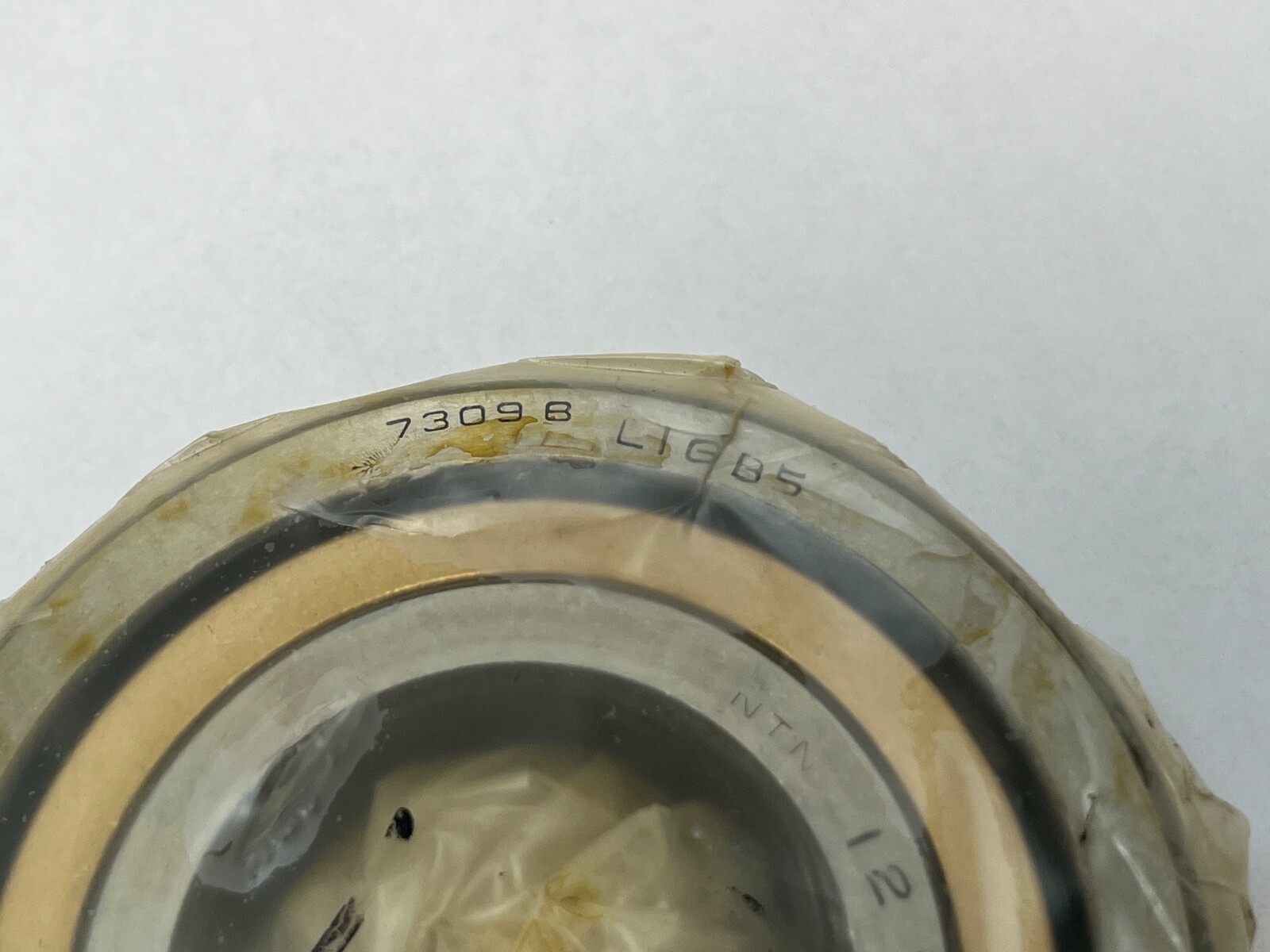

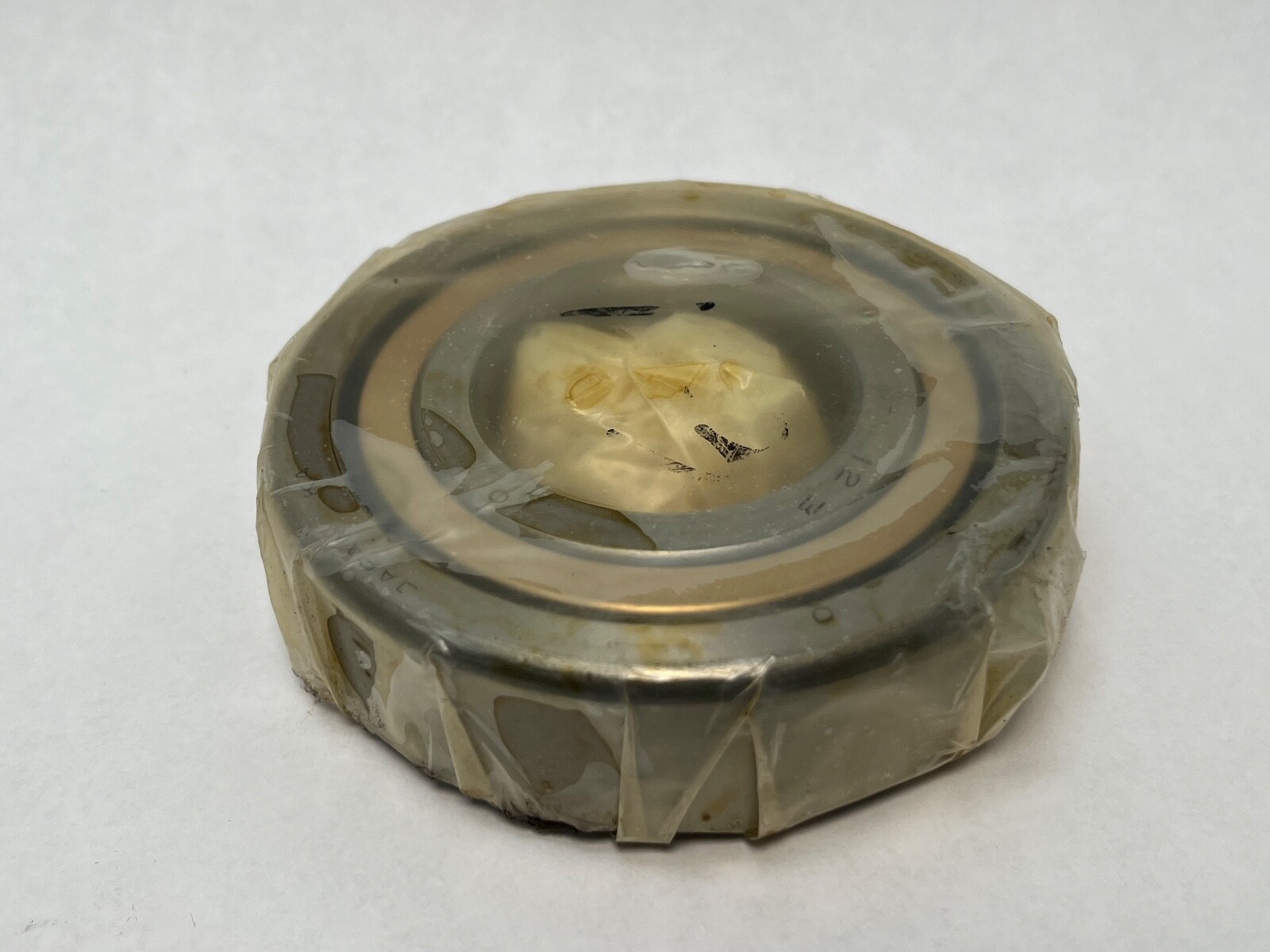

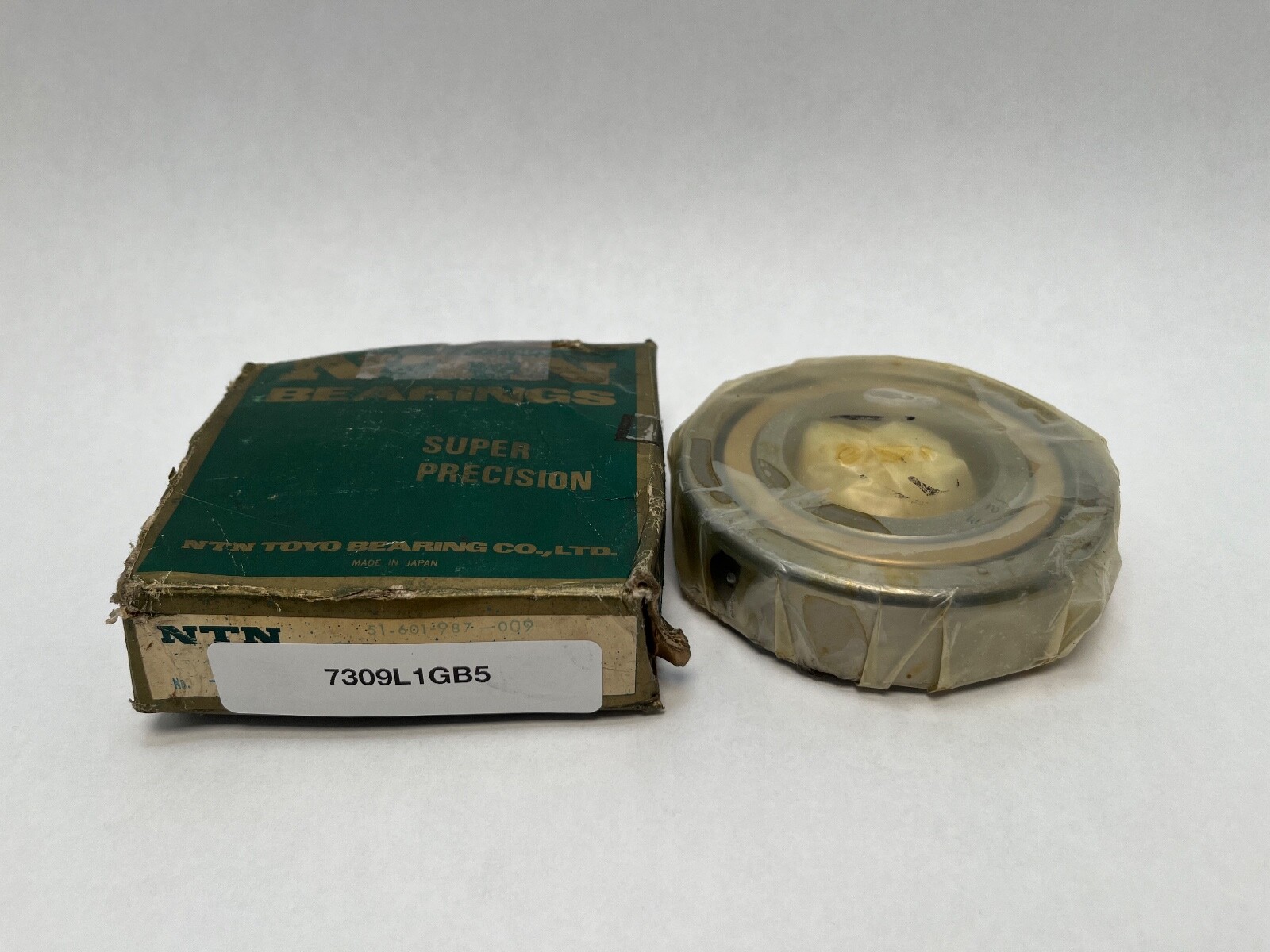

Angular contact ball bearing, 45 x 100 x 25 mm, 30° contact angle, machined brass cage. NTN 7309L1GB5, single flush-ground for universal matching, open.
List Price
$43.95
1 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | NTN |
|---|---|
| MPN | 7309L1GB5 |
| Model | 7309 L1 G B5 7309 M MB SUL |
| Bearing Type | Angular Contact Ball Bearing, Open |
| ID | 45 mm |
| OD | 100 mm |
| Width | 25 mm |
| Series | 7300 |
|---|---|
| Material | Chrome Steel |
| Mpn Variants | 7309L1GB5, 7309-L1-G-B5, 7309 L1 G B5, 7309L1G |
| Rolling Elements | Ball |
| Cage Material | Machined brass |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Snap Ring Included | No |
| Harmonization Code | 84821000 |
| Contact Angle | 30° |
| Mounting Arrangement | Universal (flush ground) |
| Cross Reference 1 | NSK 7309A |
|---|---|
| Cross Reference 2 | Koyo 7309 |
| Cross Reference 3 | Nachi 7309 |
NTN 7309L1GB5 single-row angular contact ball bearing with a machined brass cage, flush ground for universal matching. Bore Diameter: 45 mm. Outside Diameter: 100 mm. Width: 25 mm. Contact Angle: 30°. Closure Type: Open.
73 — single-row angular contact ball bearing, medium 03 dimension series.
09 — bore code, 09 x 5 = 45 mm bore.
No angle letter — 30° contact angle, NTN standard.
L1 — machined brass cage.
G — single bearing with flush-ground faces for universal matching in DB, DF or DT arrangements.
Contact Angle: 30°. Cage Material: Machined brass. Rolling Elements: Ball. Number Of Rows: 1. The brass cage suits high vibration and shock loads; flush-ground faces allow the bearing to be paired with another G-type bearing of the same size.
Unit Quantity: 1 Pc.
Same 45 x 100 x 25 mm envelope and 30° angle: NSK 7309A, Koyo 7309, Nachi 7309.
