This item is currently out of stock
Here are some other options that might fit your project — cross-referenced equivalents and similar parts we have in stock and ready to ship. Need help choosing? Call 585-295-7880.
Angular Contact Ball Bearing — 45 mm ID, 75 mm OD, 16 mm Width, 15° Contact Angle, ABEC 7 / P4, Open$93.42
Angular Contact Ball Bearing — 45 mm ID, 75 mm OD, 16 mm Width, 15° Contact Angle, ABEC 7, Medium Preload$94.73
Super Precision Angular Contact Ball Bearing — 45 mm ID, 75 mm OD, 16 mm Width, 15° Contact Angle, Back-to-Back Matched Pair, C7 Preload, P5 Accuracy, Ball-Guided Cage$200.52
Super Precision Angular Contact Ball Bearing - 45 mm ID, 75 mm OD, 16 mm Width, 15° Contact Angle, Universally Ground Duplex Pair, Light Preload, Ball-Guided Cage$217.44| MFR / Brand | NSK |
|---|---|
| MPN | 7009CTYDBC8P4 |
| Model | 7009 C TY DB C8 P4 / 2MM9109 WI CR / B7009E |
| Bearing Type | Angular Contact Ball Bearing, Open |
| ID | 45 mm |
| OD | 75 mm |
| Width | 16 mm |
| Material | Bearing Steel |
|---|---|
| Series | 7000 |
| Preload | Medium |
| Min Temp | -30°C |
| Cage Type | Phenolic |
| Dynamic Load Rating | 24.5 kN |
| Static Load Rating | 19.3 kN |
| Precision Rating | ABEC 7 / P4 |
| Rolling Elements | Ball |
| Max Temp | 120°C |
| Item Weight | 0.55 lbs |
| Cage Material | Polyamide |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Snap Ring Included | Without Snap Ring |
| Harmonization Code | 8482.10.50.68 |
| Contact Angle | 15° |
| Limiting Speed | 18000 rpm |
| Cross Reference 1 | SKF 7009 CDGB/P4A |
|---|---|
| Cross Reference 2 | FAG B7009-C-T-P4S-UM |

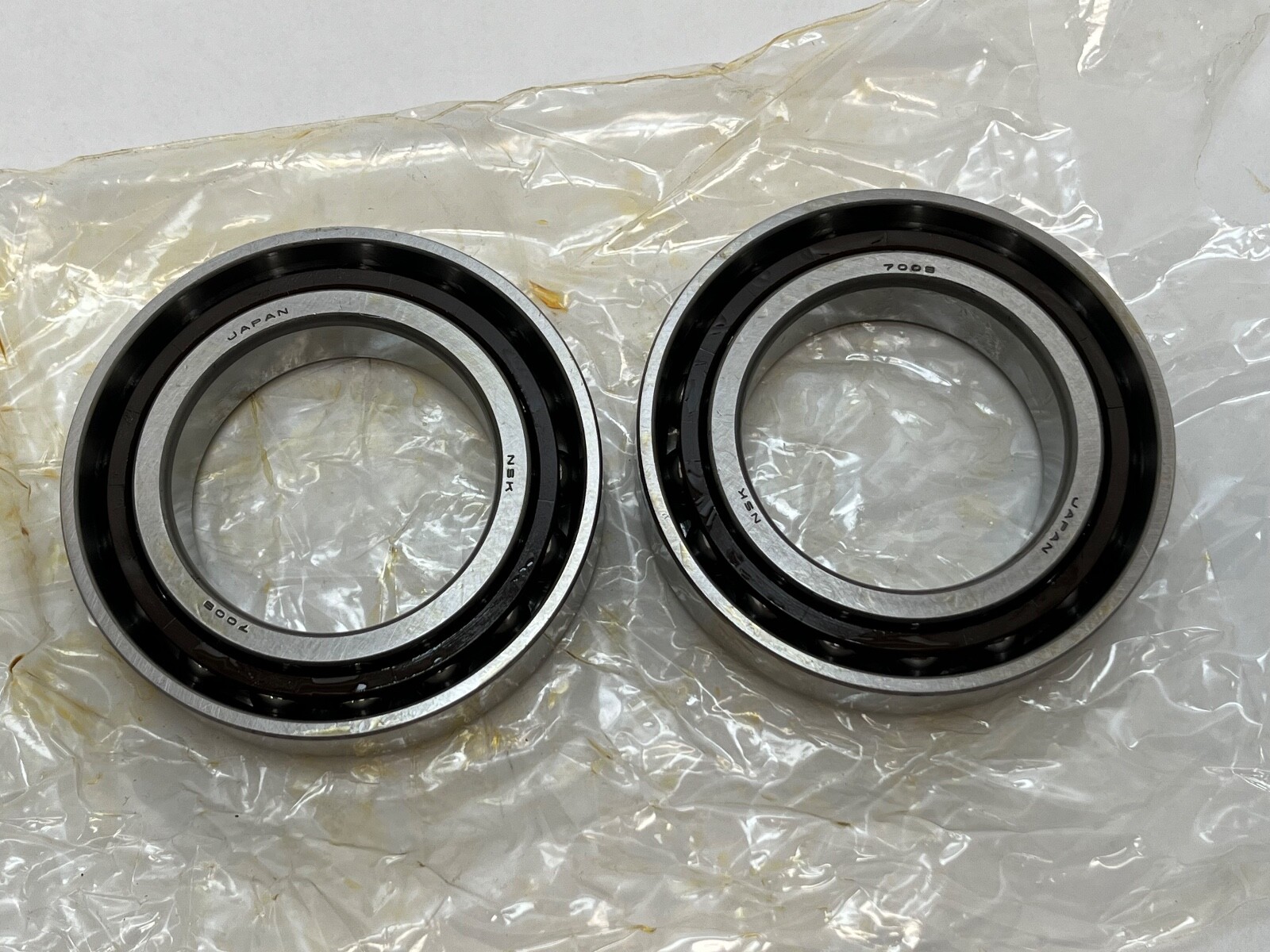

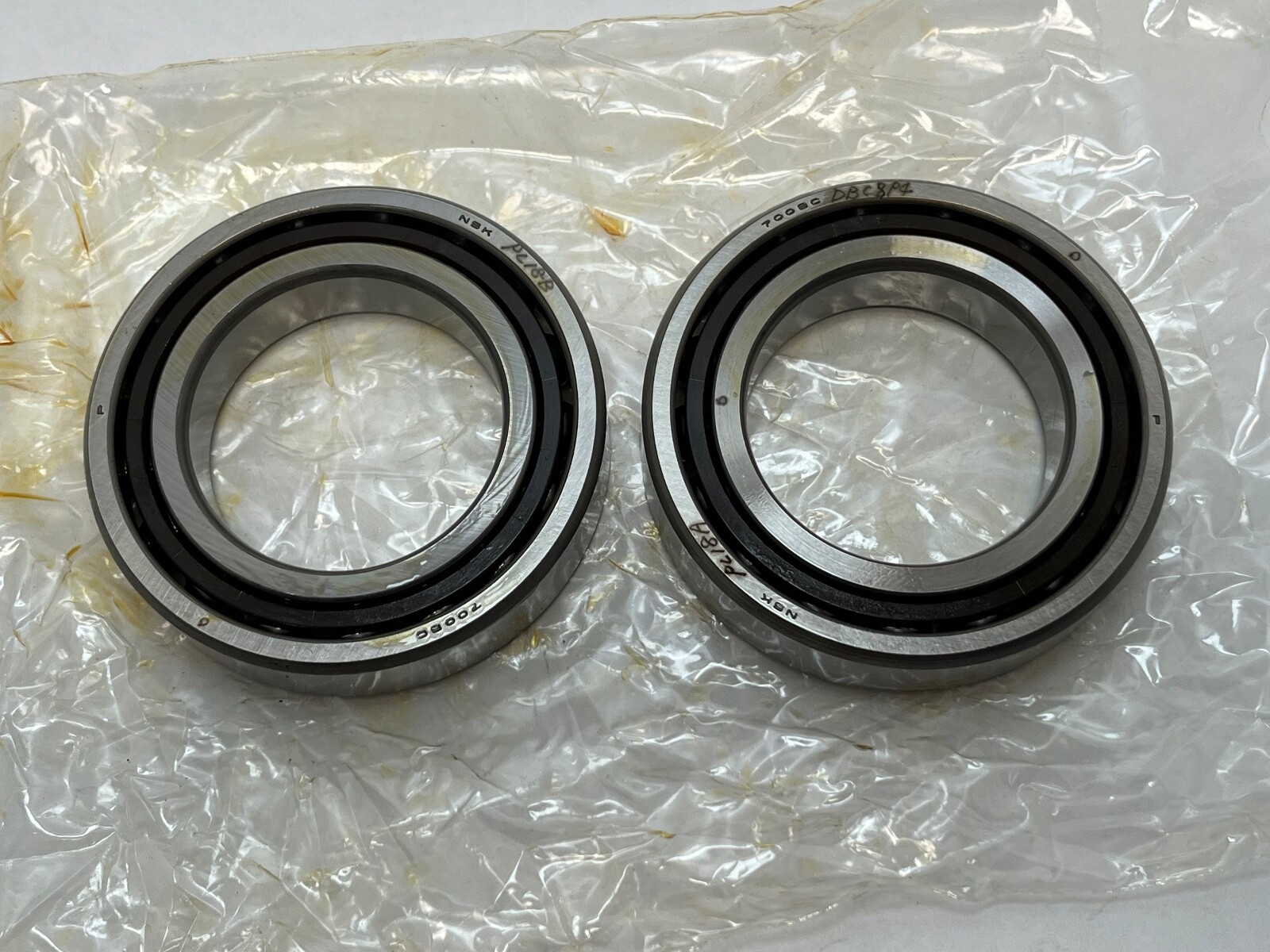

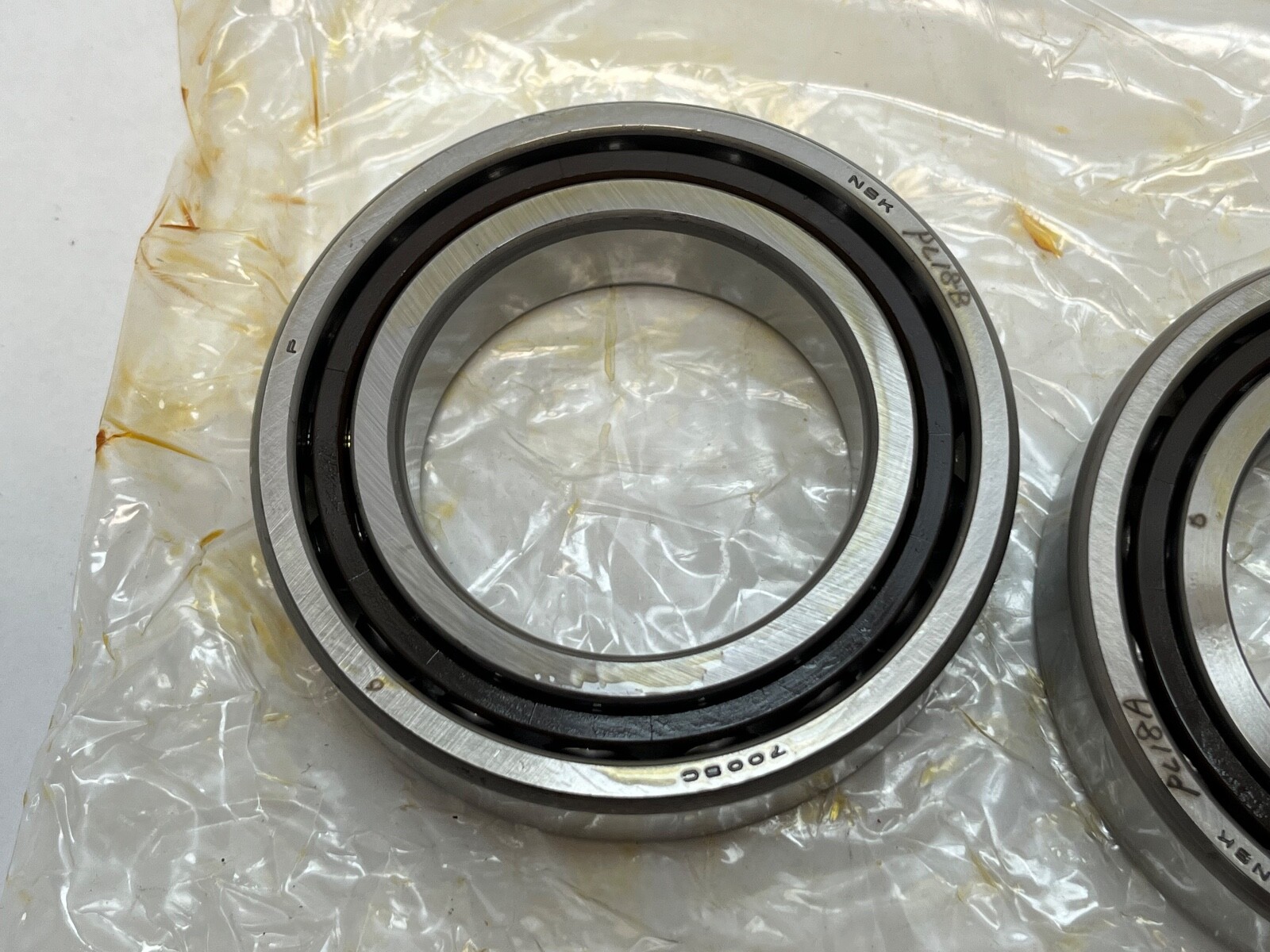

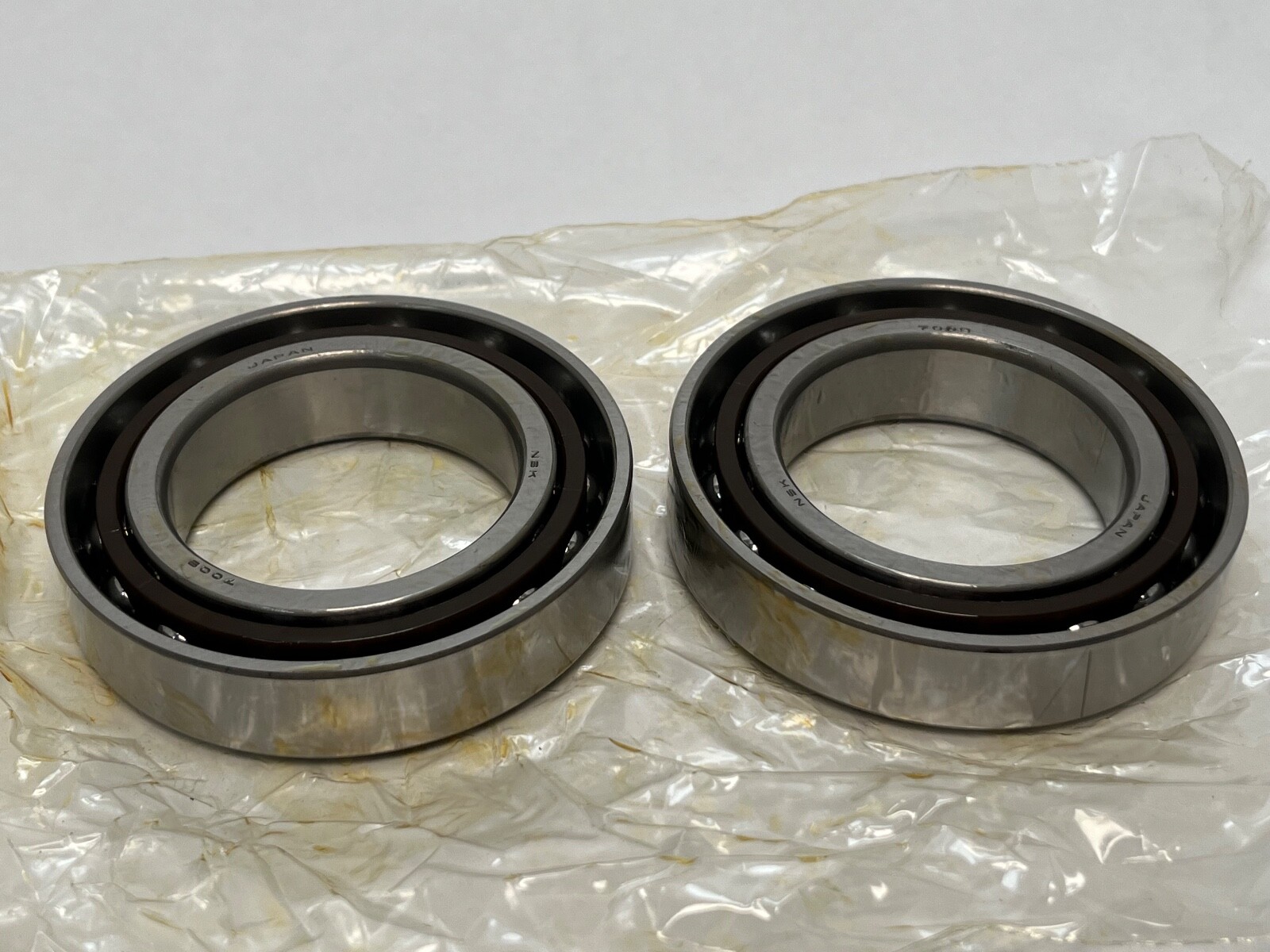

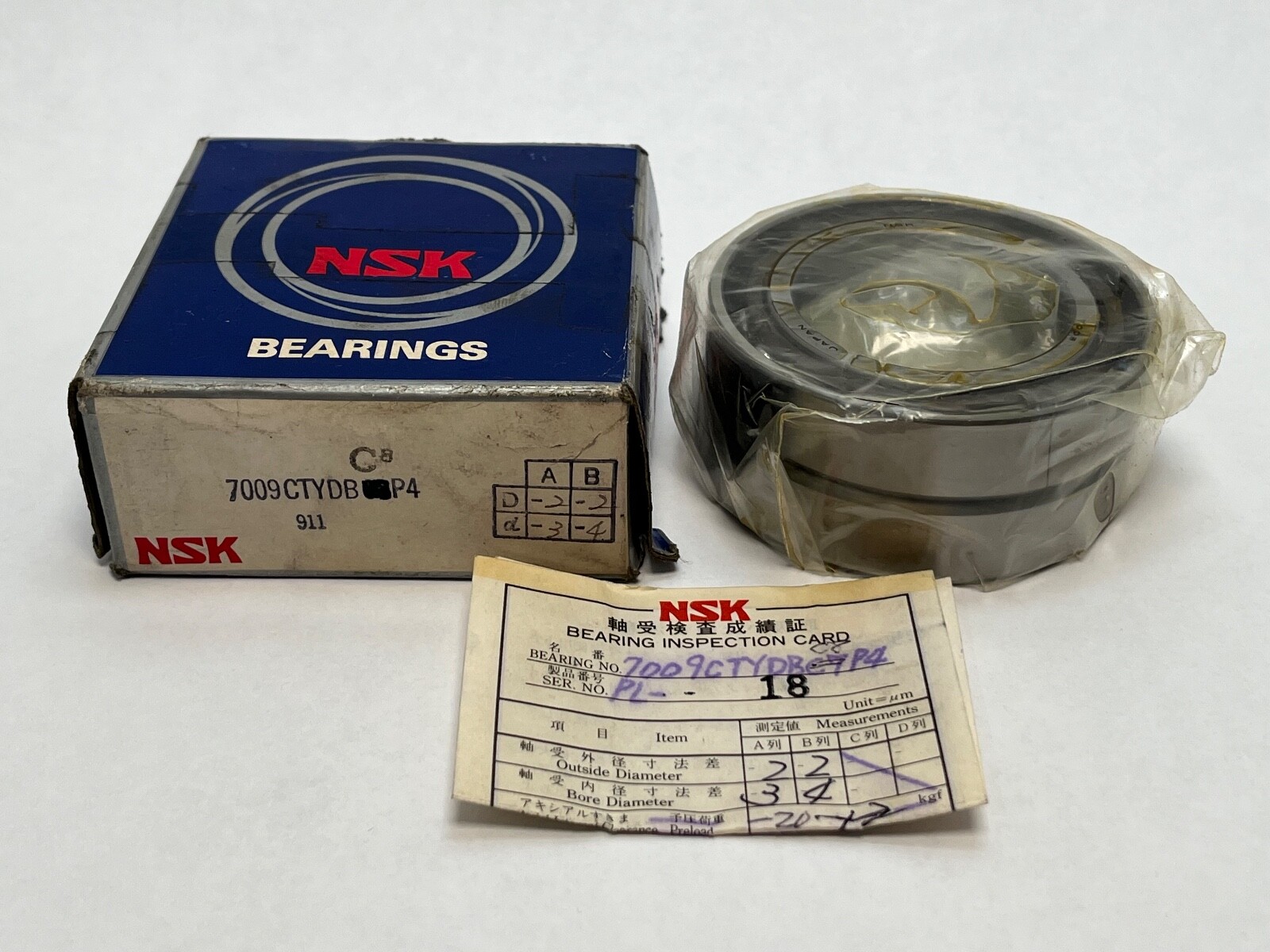

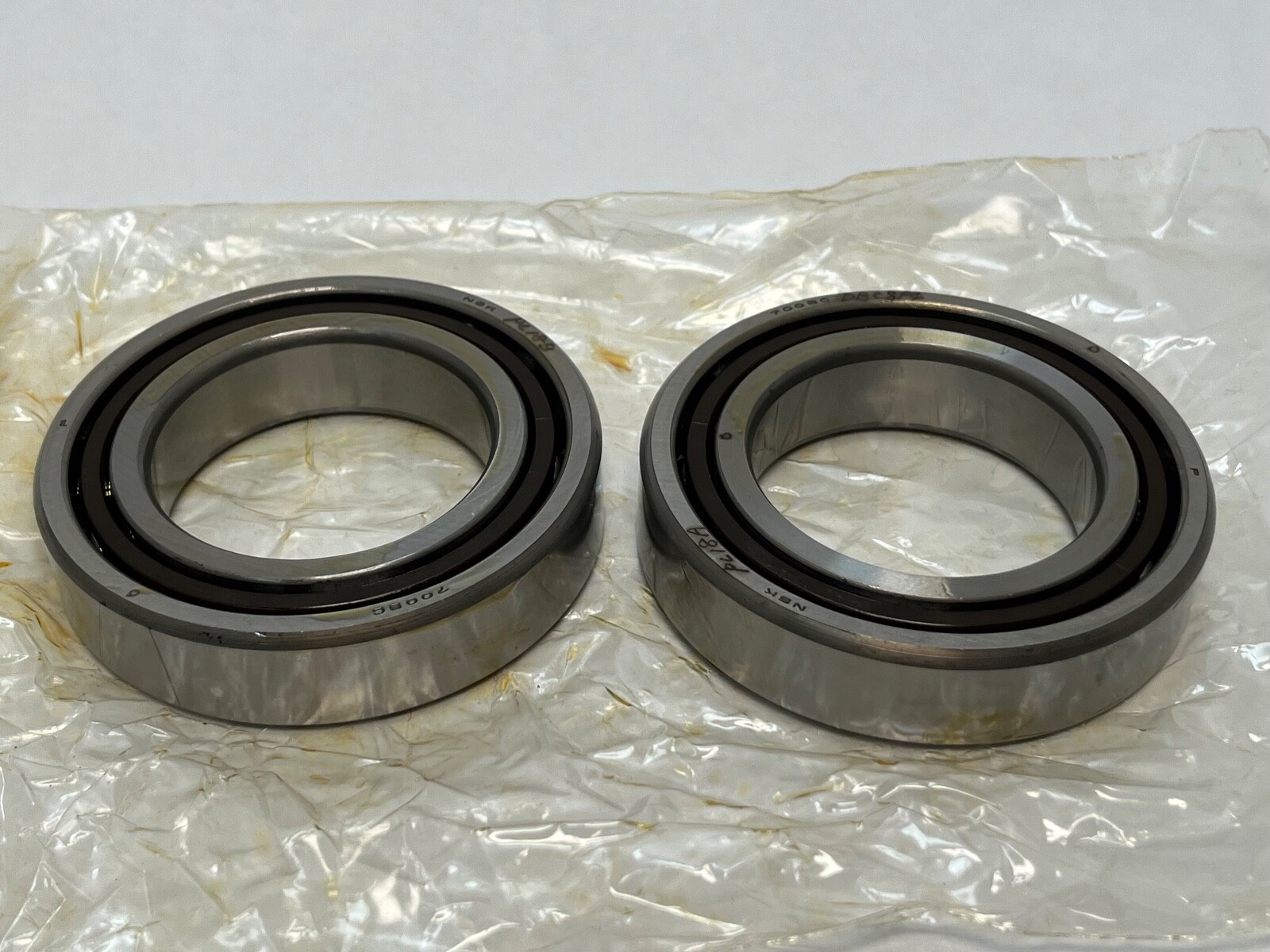

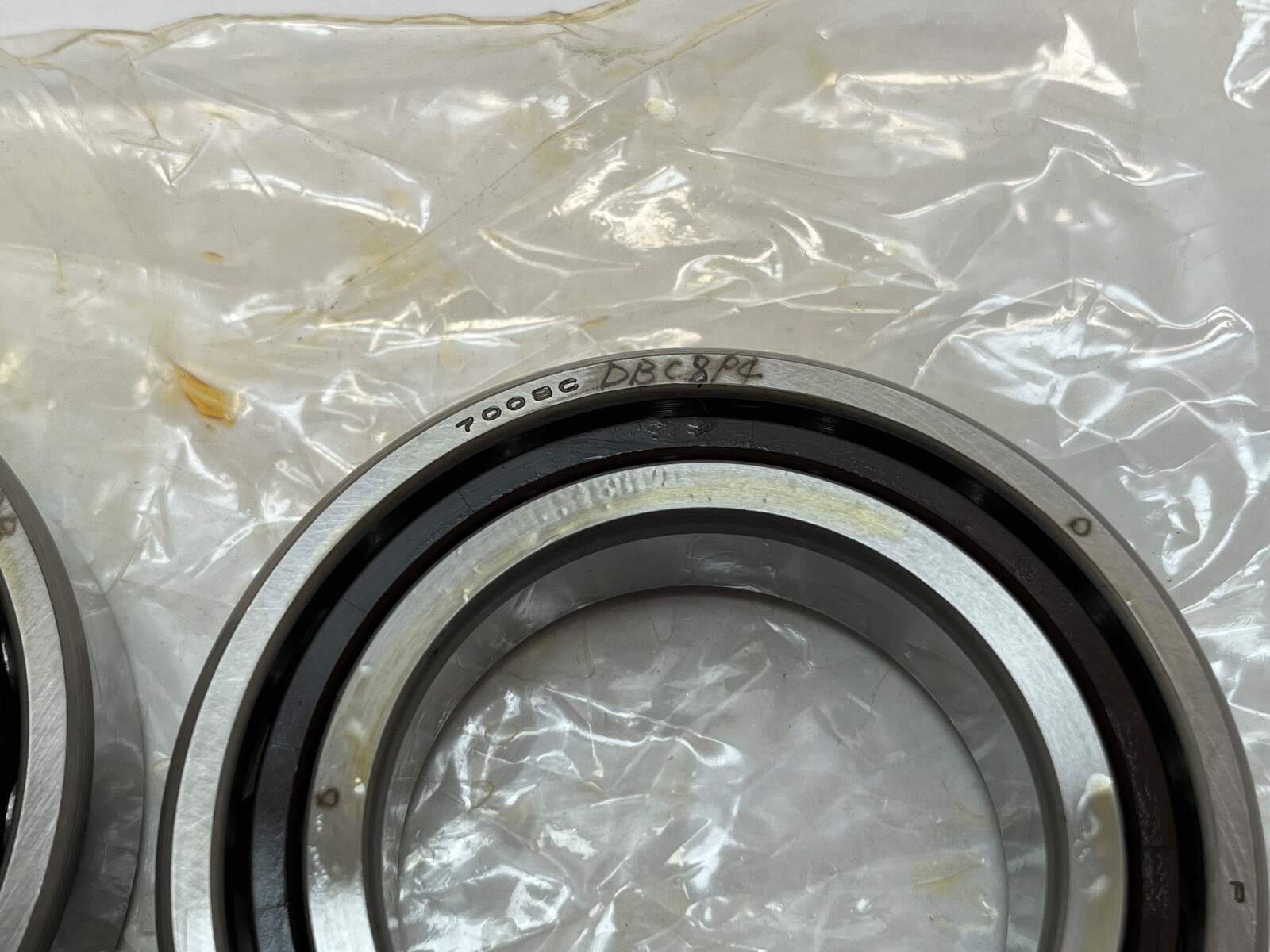

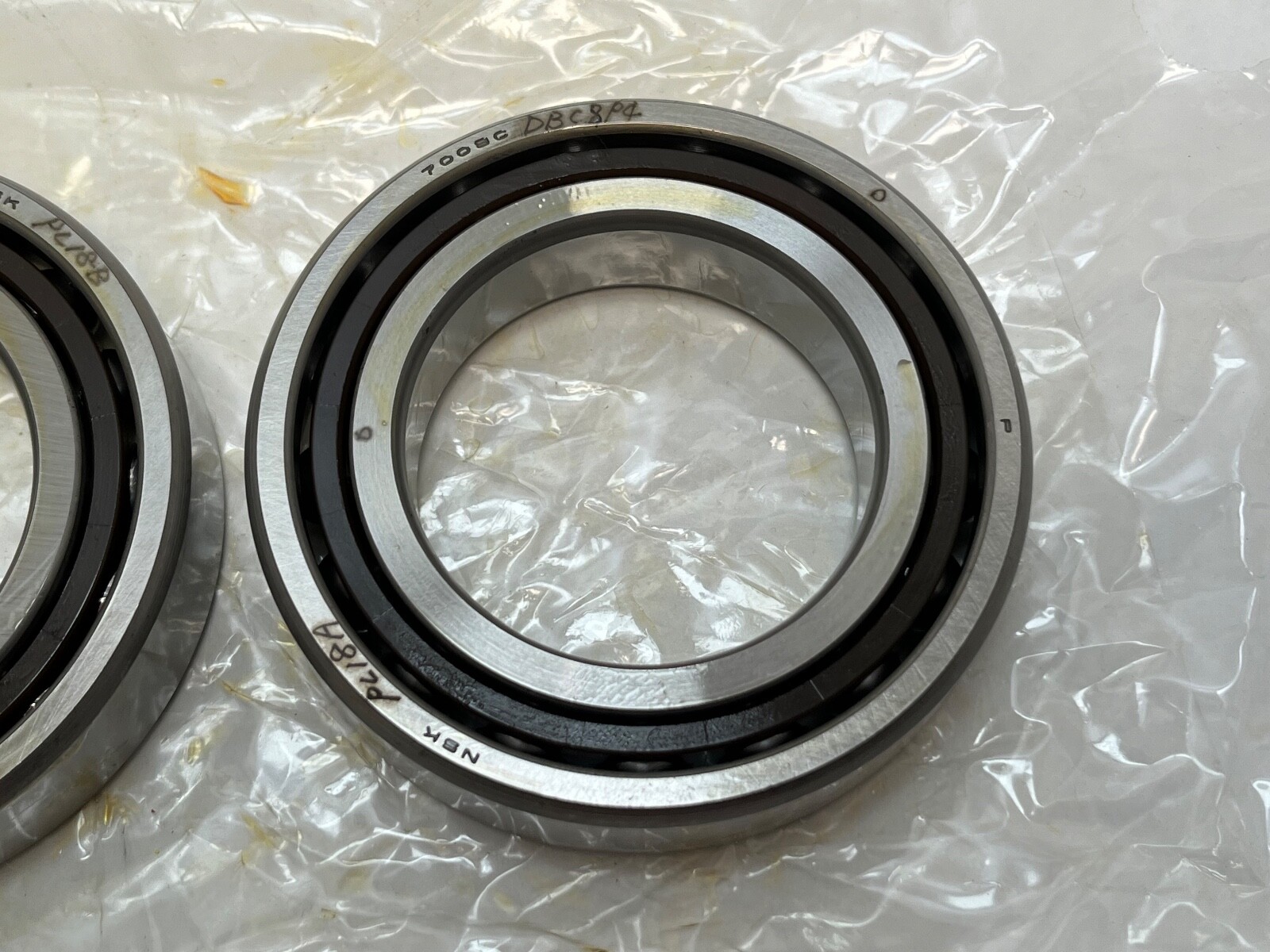

NSK 7009CTYDBC8P4 Bearing – Precision Performance You Can Trust
Introducing the NSK 7009CTYDBC8P4 Bearing, a premium quality Angular Contact Ball Bearing, designed to deliver exceptional performance for your machinery needs. With precise dimensions of 45x75x16 mm, this component is engineered for durability, ensuring long-lasting operation even under demanding conditions.
Brand: NSK – A trustworthy name in the bearings industry.
Type: Angular Contact Ball Bearing for enhanced load capacity and stability.
Model: 7009 C TY DB C8 P4 / 2MM9109 WI CR / B7009E – tailored for optimal performance.
Country of Manufacture: Japan – known for superior engineering and manufacturing quality.
Condition: New – ready to meet your precise application demands.
This bearing is not only reliable but also competitively priced. Whether you are looking for a single piece or bulk orders, we offer combined shipping options and international delivery on all our products. With same-day shipping available, and next-day options at checkout, you will get your parts when you need them the most.
Do not compromise on quality. Invest in the NSK 7009CTYDBC8P4 Bearing for unmatched efficiency and reliability in your machinery.
