Angular Contact Ball Bearing – 12 mm ID, 28 mm OD, 8 mm Width, Straight Bore, Open, 15° Contact Angle, Phenolic Cage, P6 Precision$30.13| MFR / Brand | NDH |
|---|---|
| MPN | Q0L01BDTS7A |
| Model | Q 0L01 B DT S7A / 7001 C T DUL P4 / 2MM9101WN DUL |
| Bearing Type | Angular Contact Ball Bearing, Open |
| ID | 12 mm |
| OD | 28 mm |
| Width | 8 mm |
| Material | High Carbon Chrome Steel |
|---|---|
| Series | 7000 |
| Condition | New |
| Lubricant | Oil |
| Preload | Light |
| Min Temp | -30 °C |
| Dynamic Load Rating | 5.5 kN / 1236 lbf |
| Static Load Rating | 2.5 kN / 562 lbf |
| Precision Rating | ABEC 7 / P4 |
| Rolling Elements | Ball |
| Max Temp | 120 °C |
| Item Weight | 0.12 lbs |
| Cage Material | Phenolic |
| Limiting Speed | 40000 rpm |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Snap Ring Included | No |
| Relubrication Feature | No |
| Harmonization Code | 8482.10.50.28 |
| Contact Angle | 15° |
| Mounting Arrangement | Universal |
| Cross Reference 1 | SKF 7001 CD/P4ADLA |
|---|---|
| Cross Reference 2 | FAG B7001-C-T-P4S-DUL |
| Cross Reference 3 | NSK 7001CTYNDULP4 |

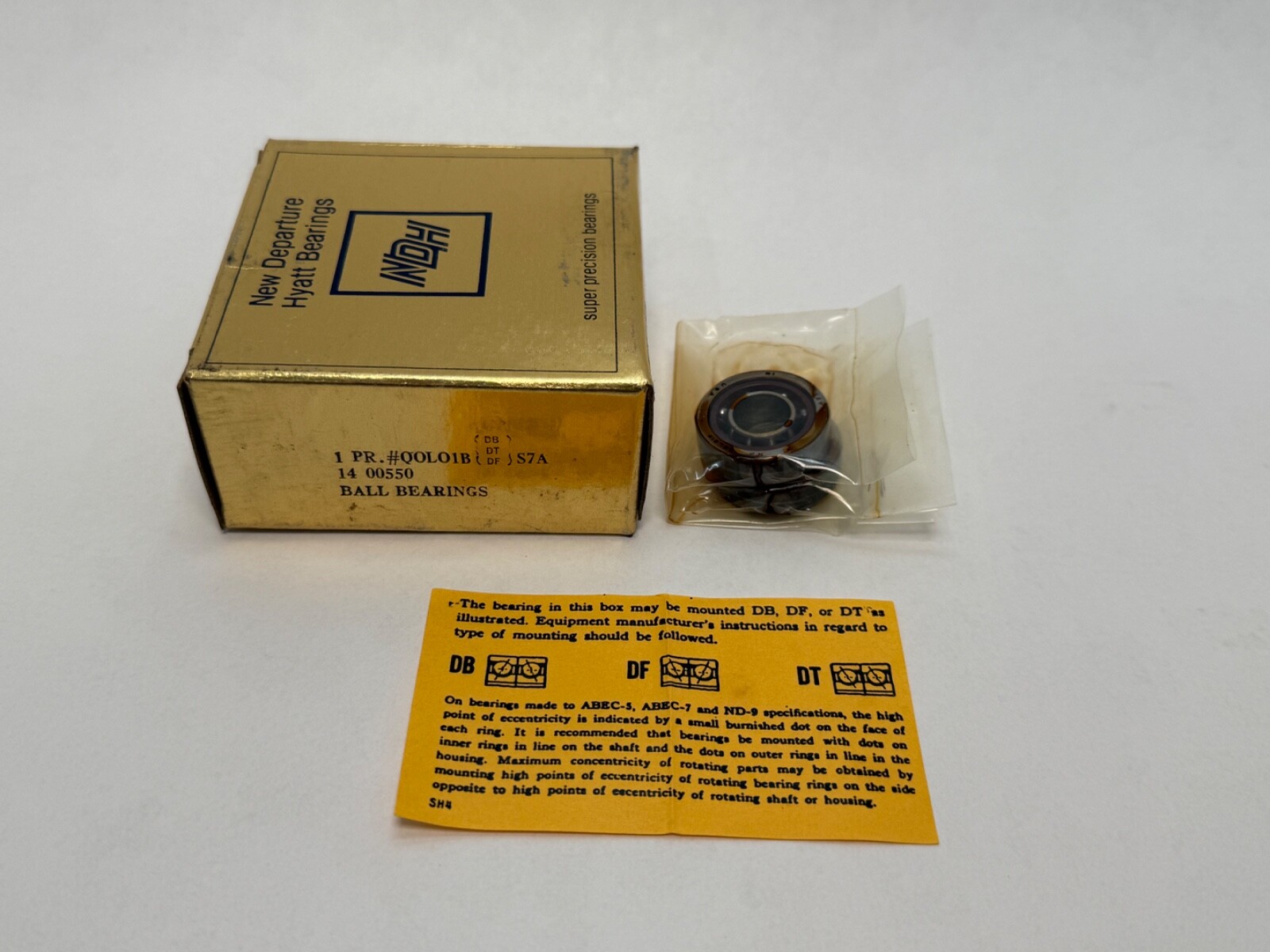

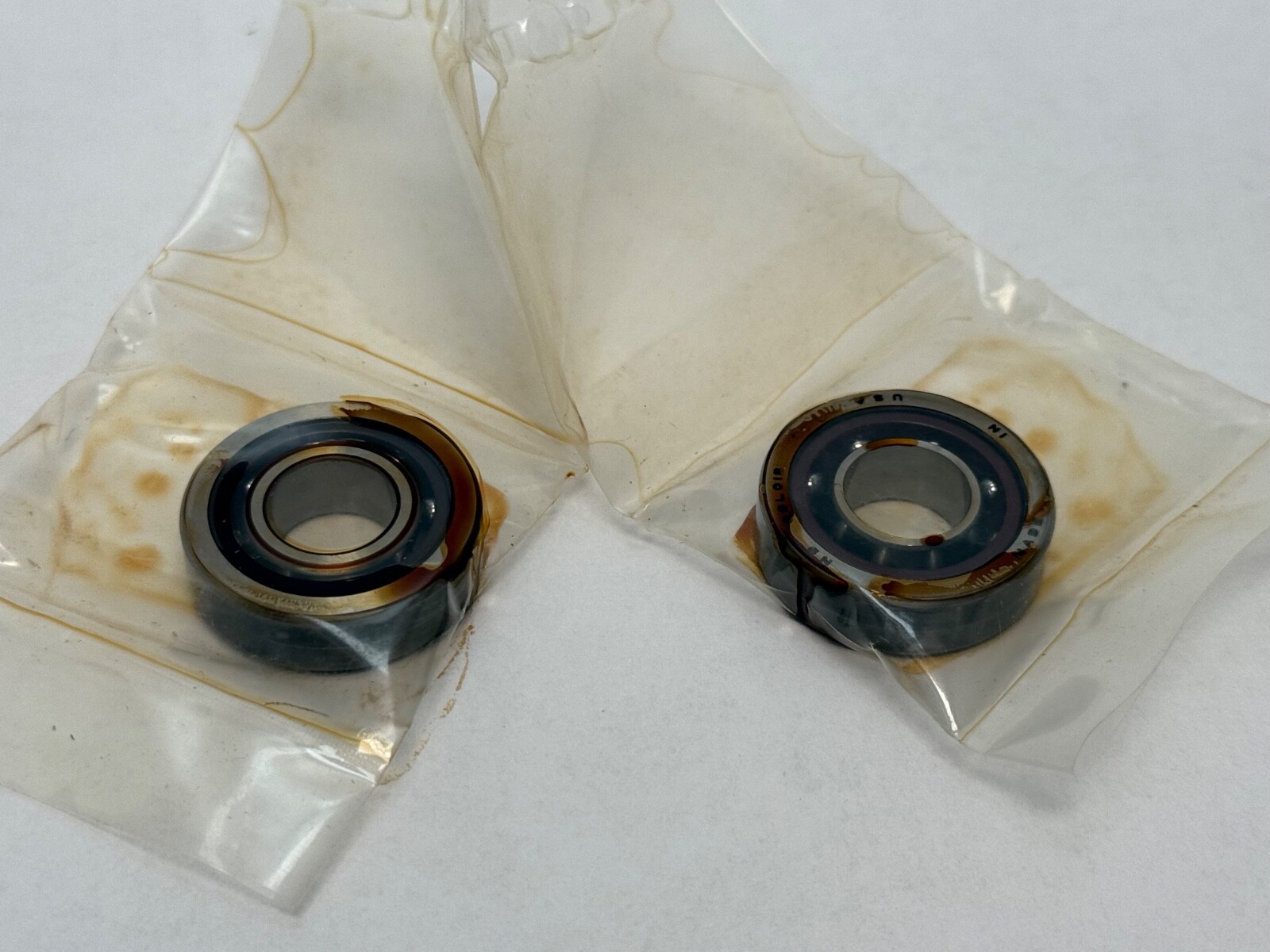

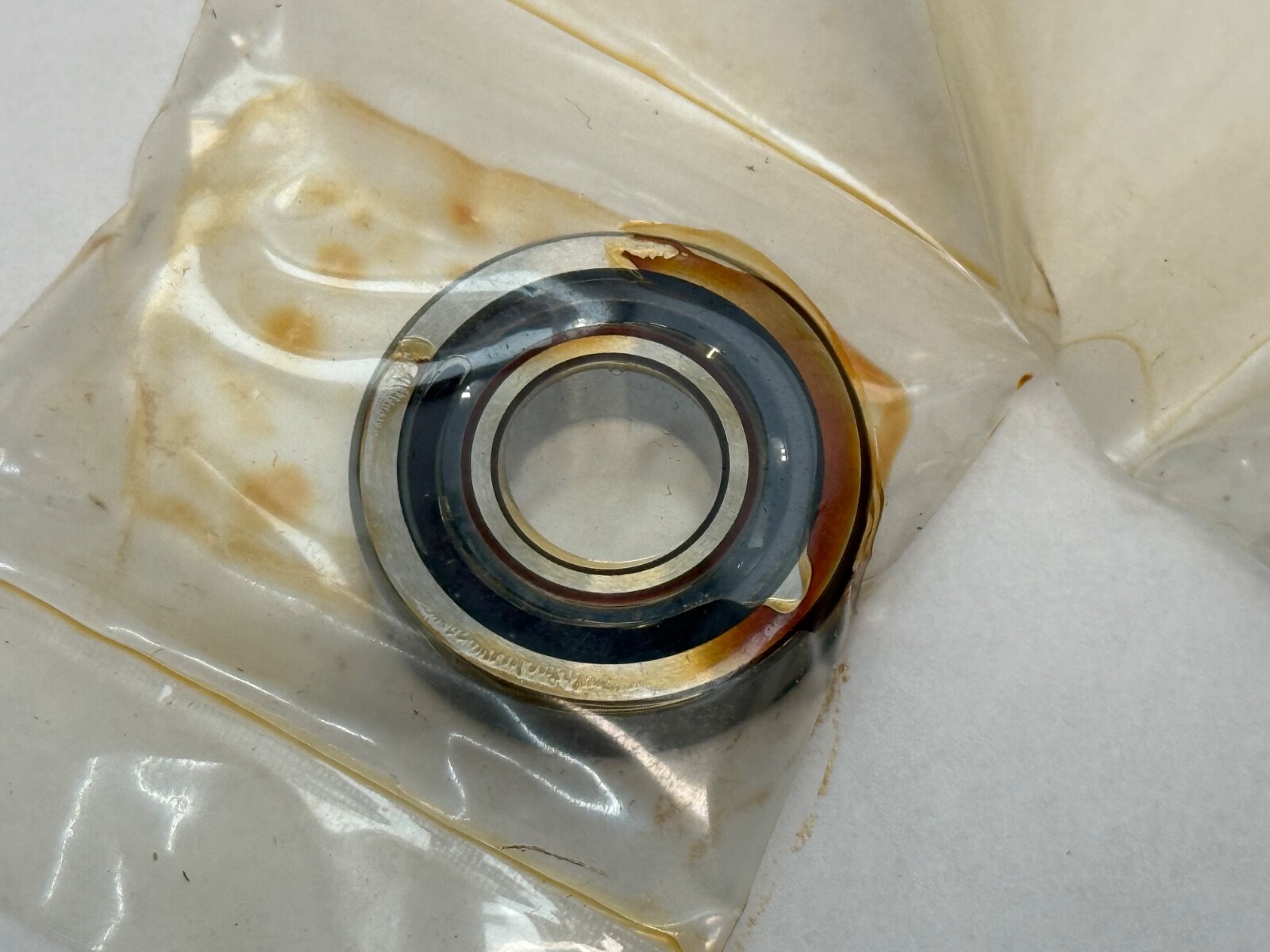

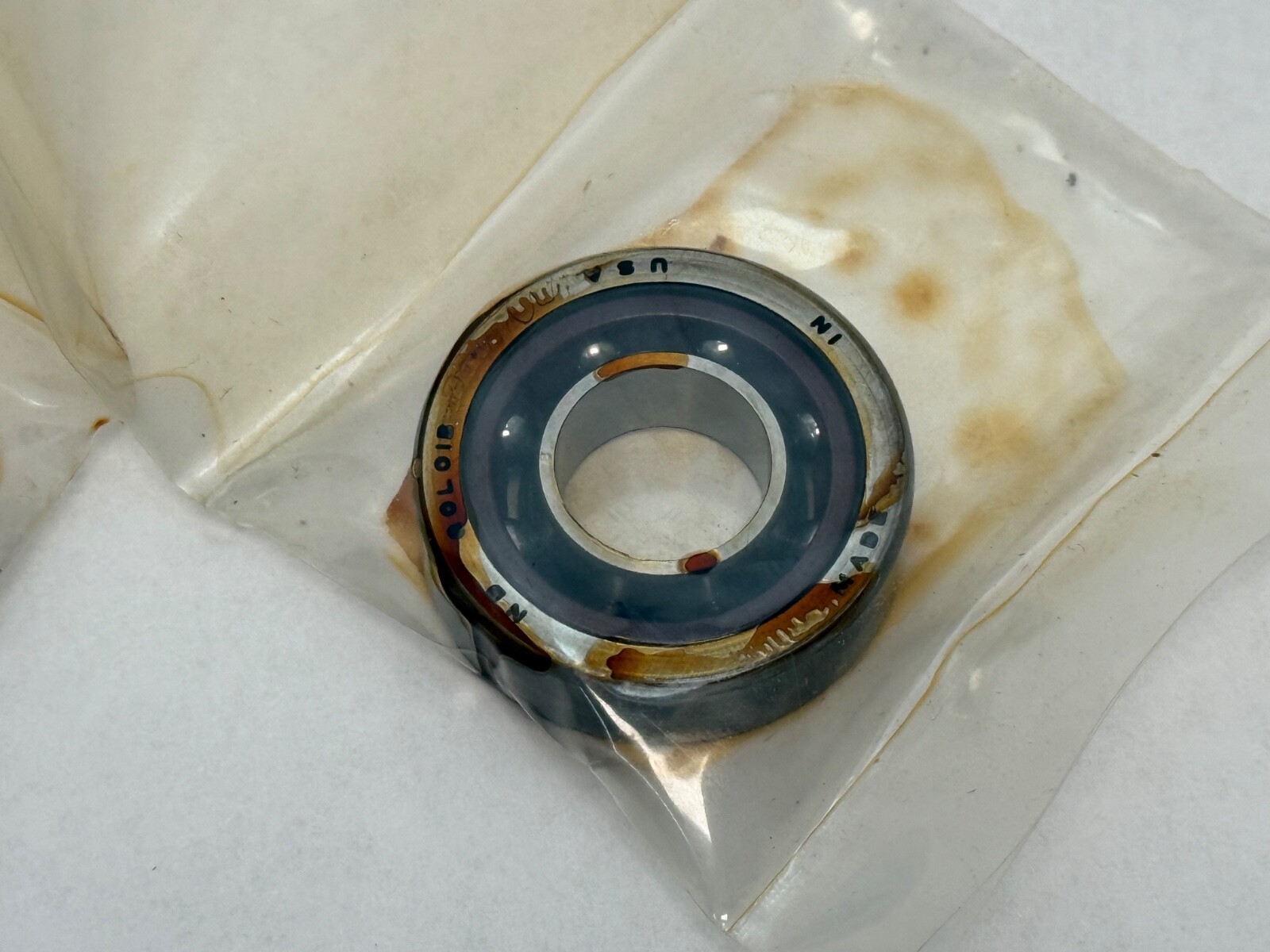

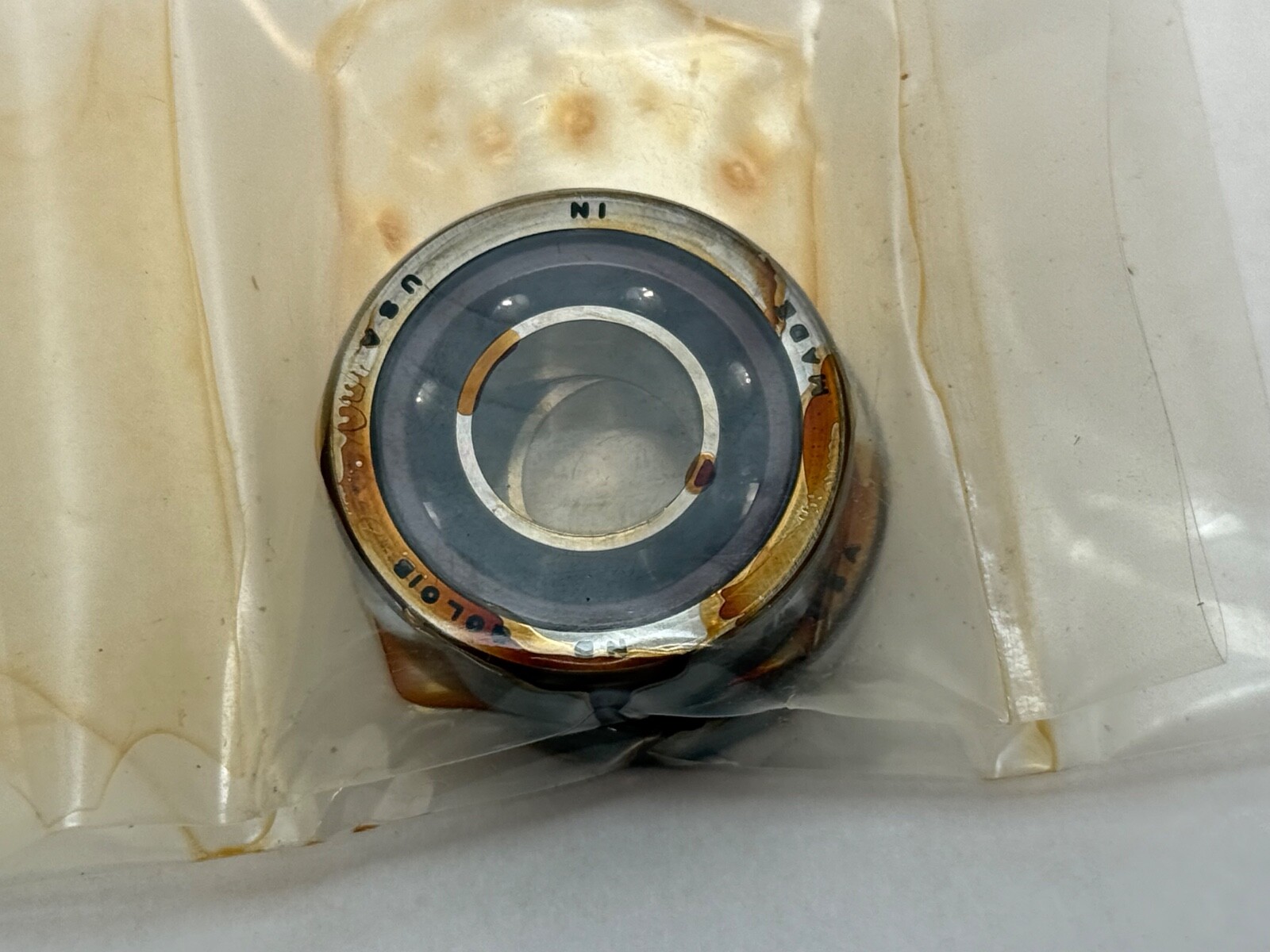

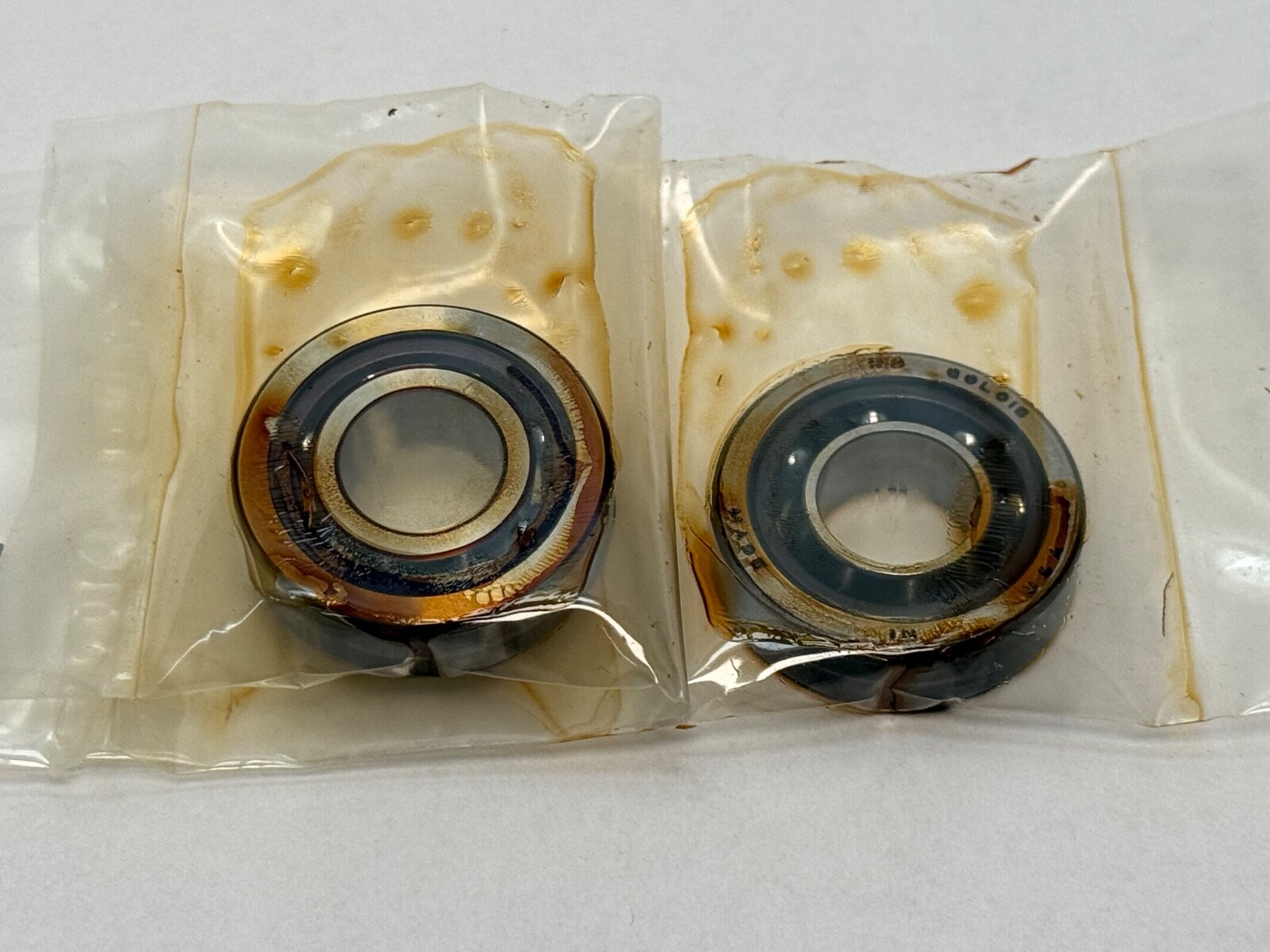

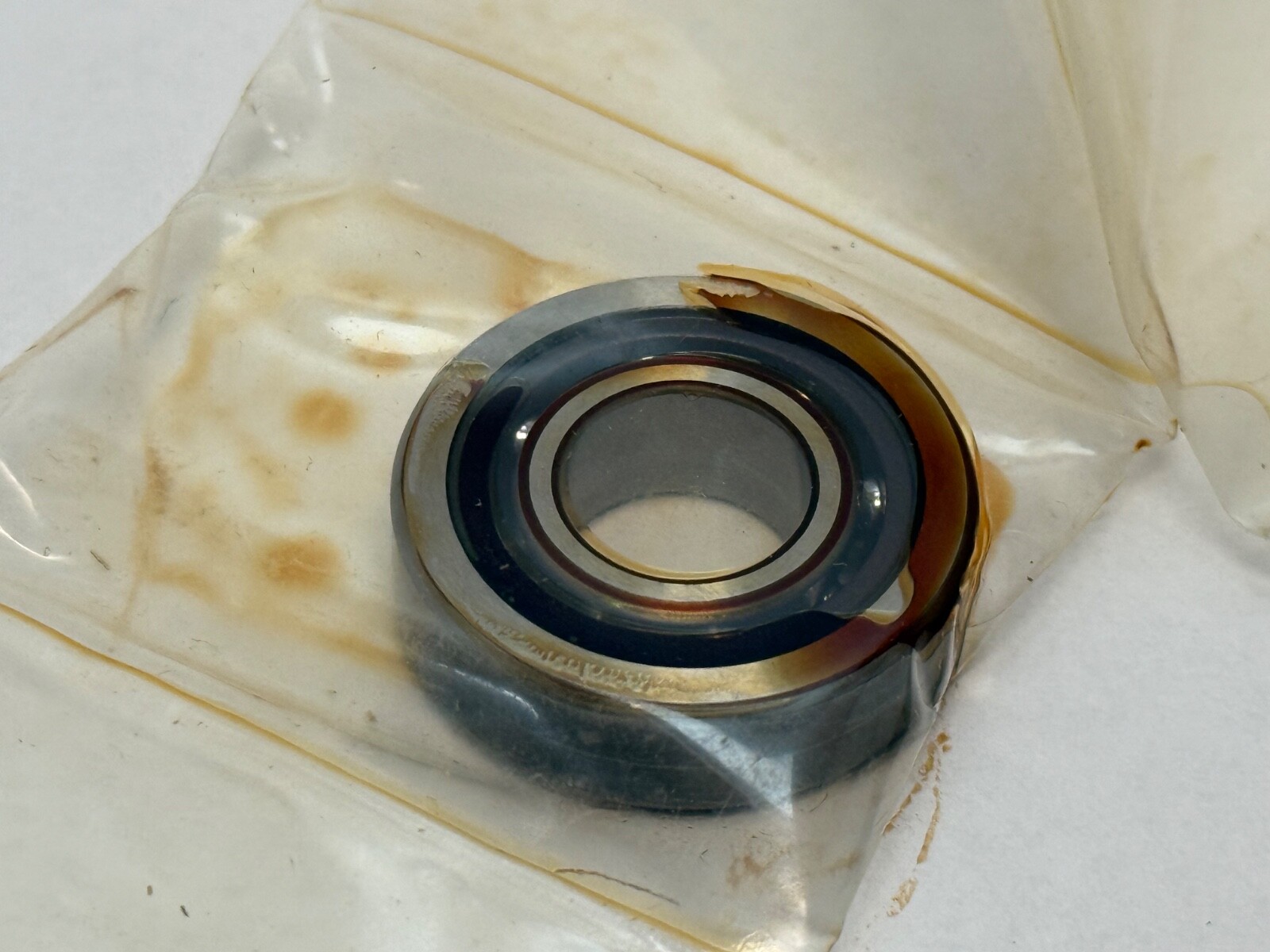

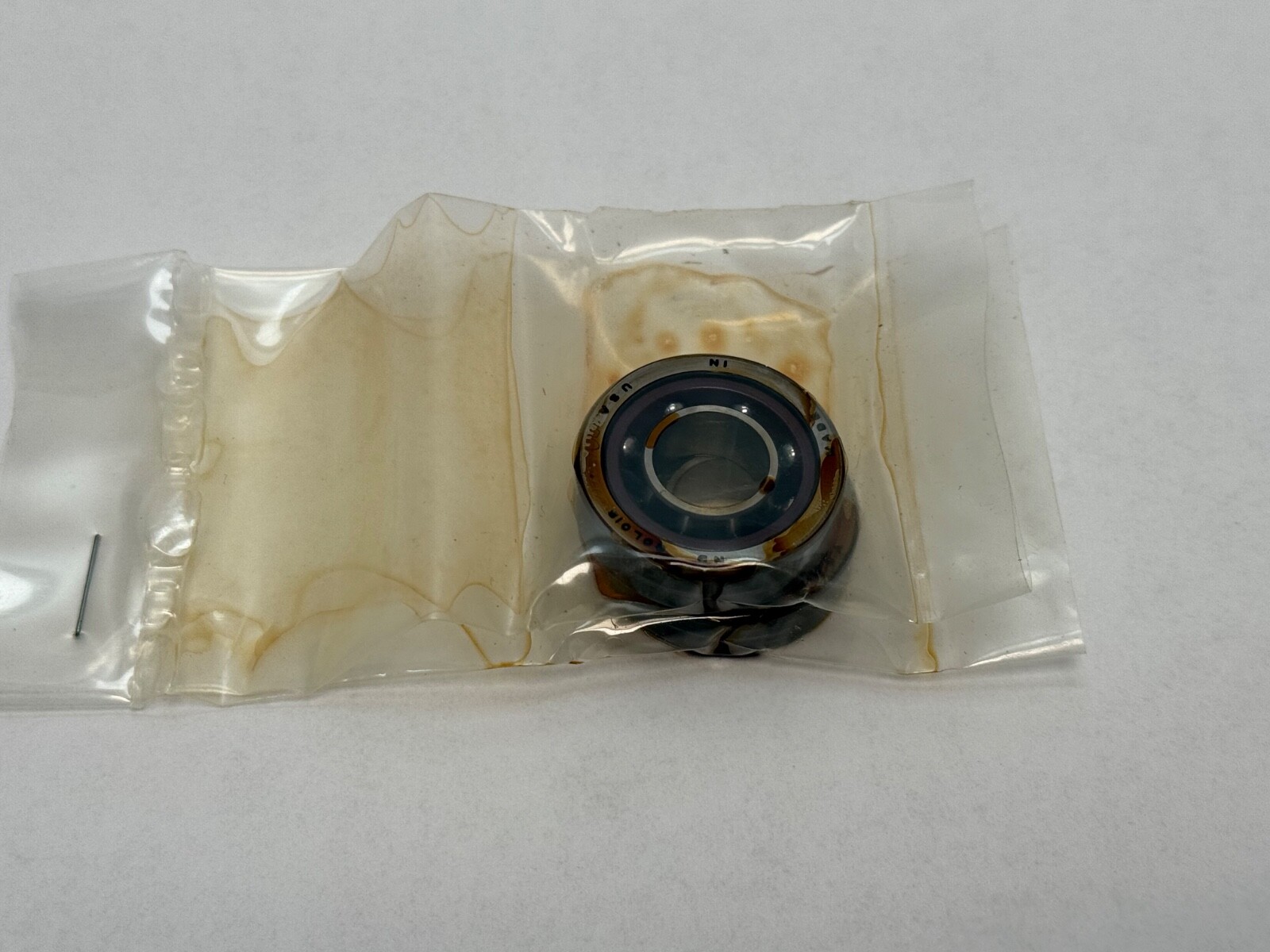

NDH Q0L01BDTS7A Angular Bearing – 7001-C Q-0L01-B-DT-S7A (12x28x8 mm) – Pack of 2
Upgrade your machinery with the NDH Q0L01BDTS7A angular bearing, expertly designed for superior performance and durability. This new angular contact ball bearing measures 12x28x8 mm, making it perfect for various applications where precision and reliability are paramount.
Brand: NDH
Type: Angular Contact Ball Bearing
Model: Q 0L01 B DT S7A / 7001 C T DUL P4 / 2MM9101WN DUL
MPN: Q0L01BDTS7A
Manufacturing Country: United States
This bearing is suitable for high-speed applications, ensuring minimal friction and extended service life. Whether you are building a custom project or need a replacement part, these angular bearings meet the rigorous demands of any professional setting.
We offer competitive pricing and international shipping on every order. Enjoy combined shipping rates and the convenience of same-day dispatch with next-day shipping options available at checkout. If you require assistance or cannot find a specific part, please do not hesitate to contact us. We are here to fulfill all of your bearing needs efficiently.
