Availability:
1 in stock

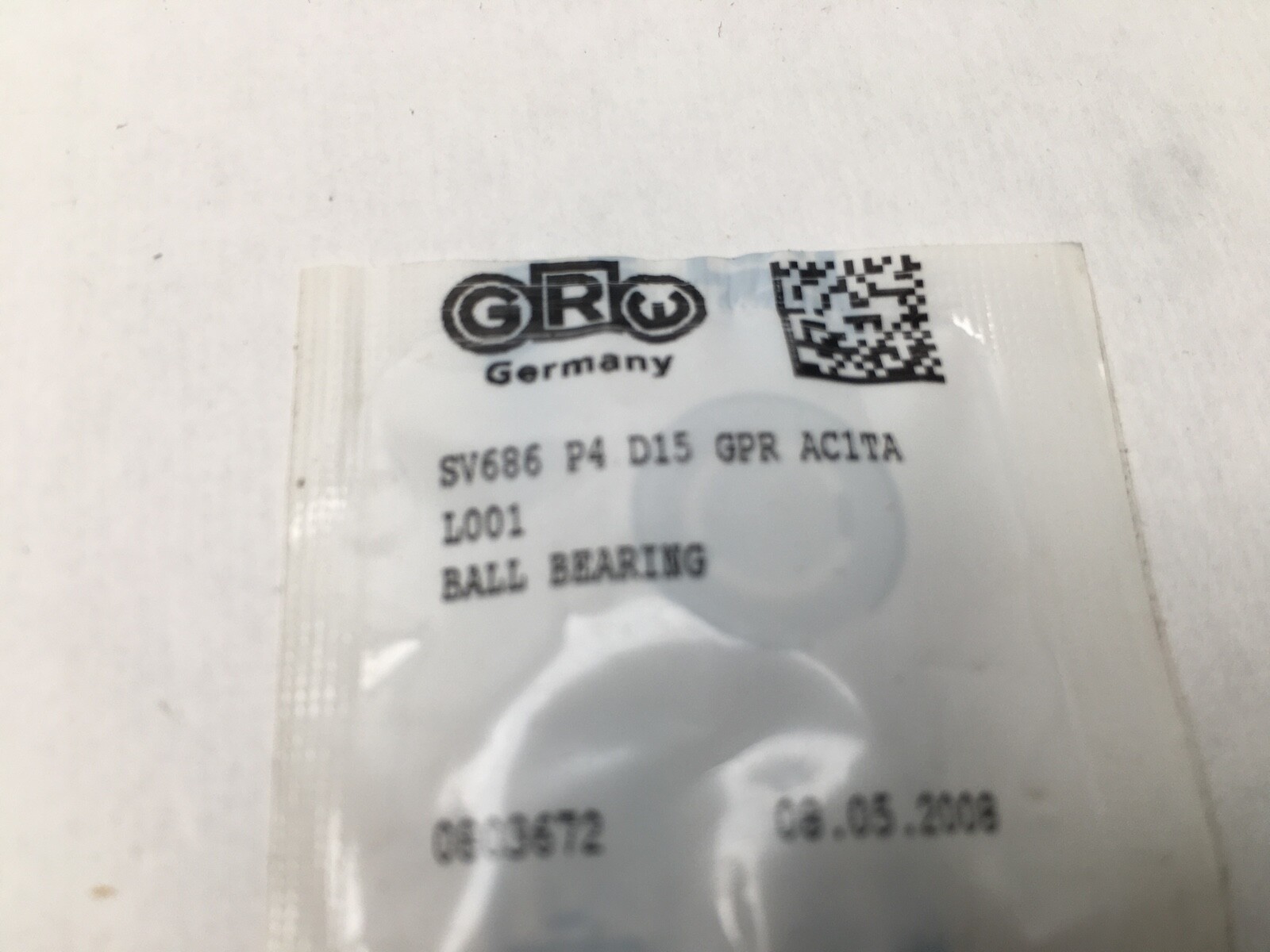

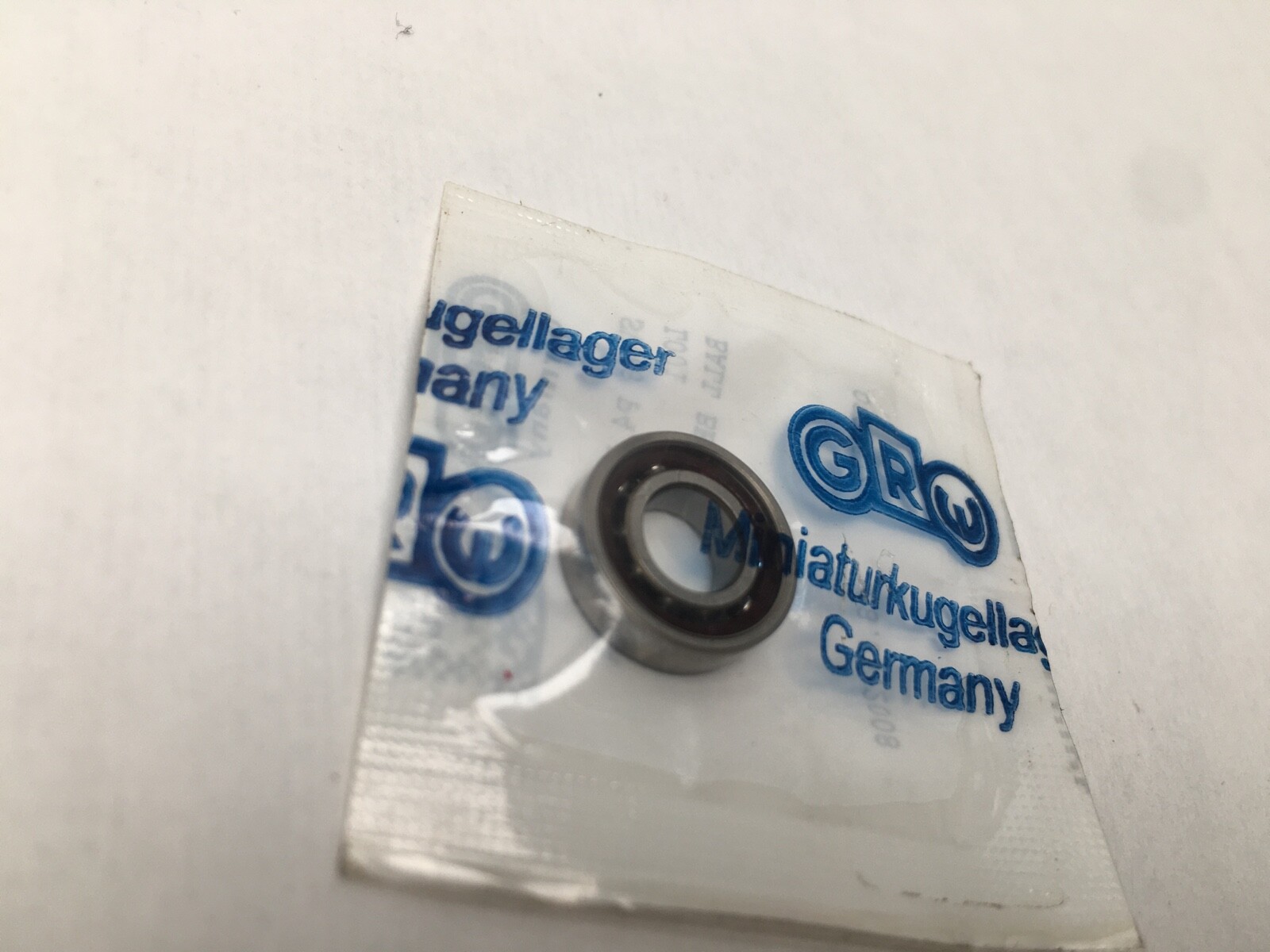

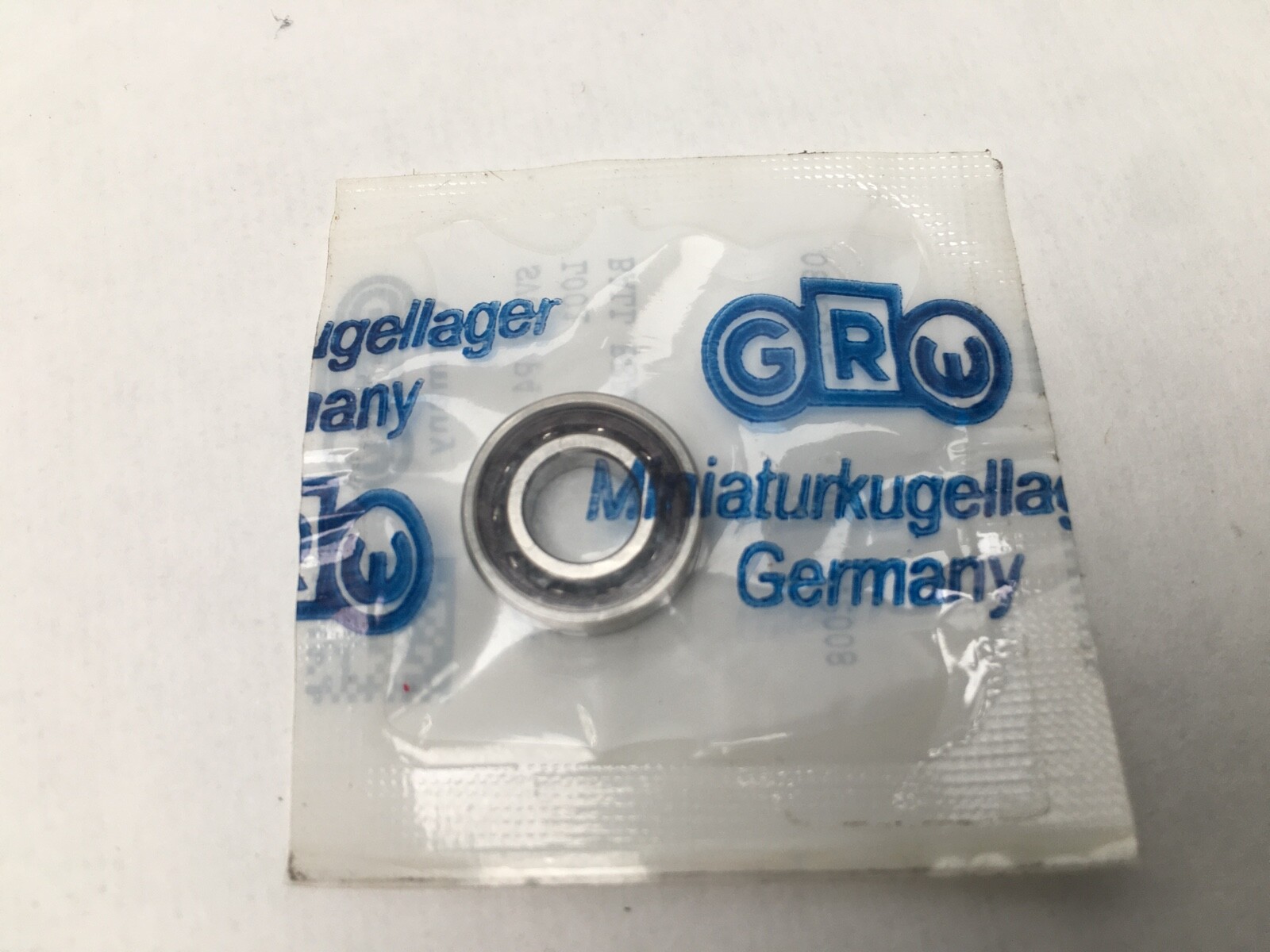

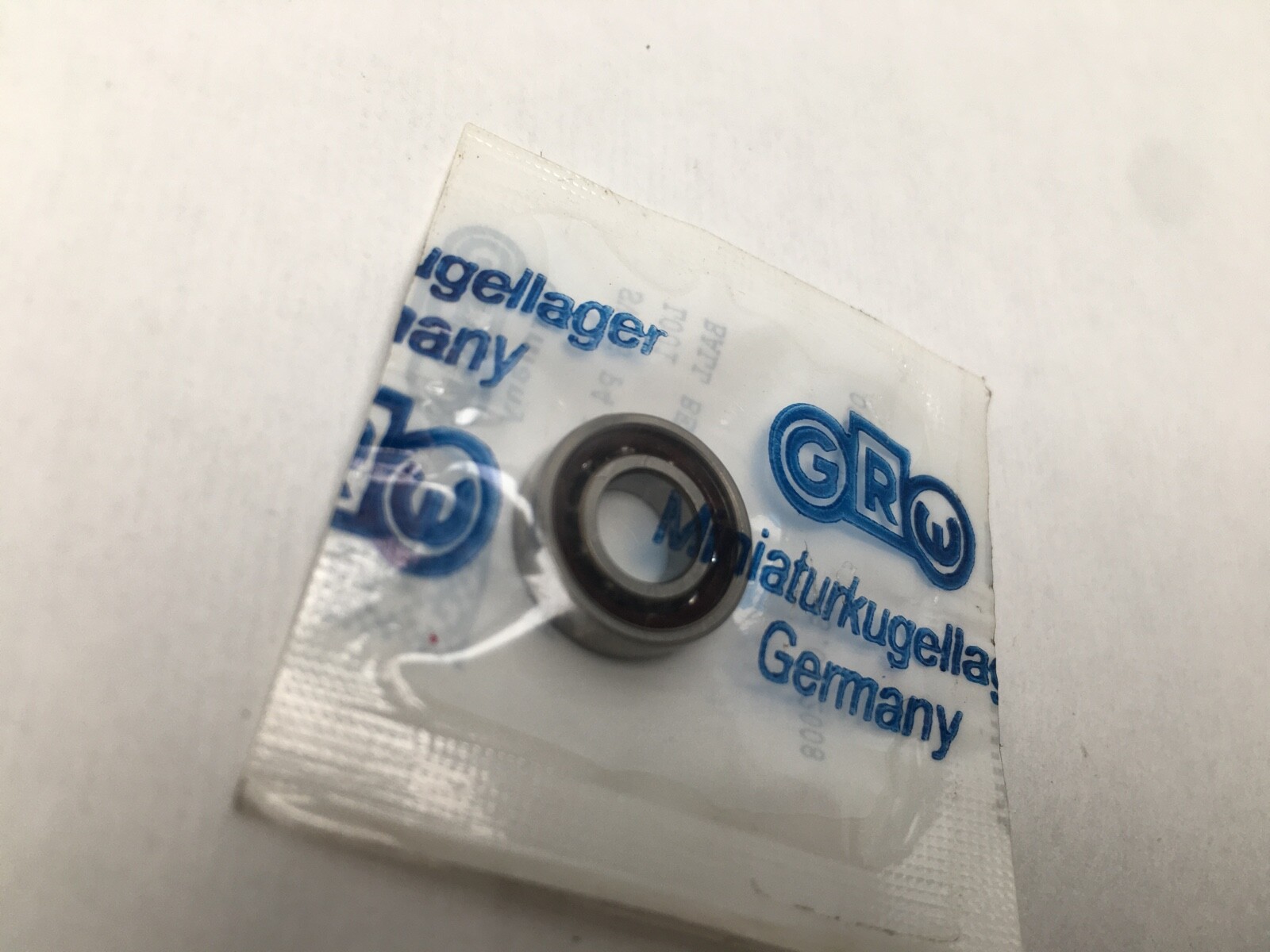

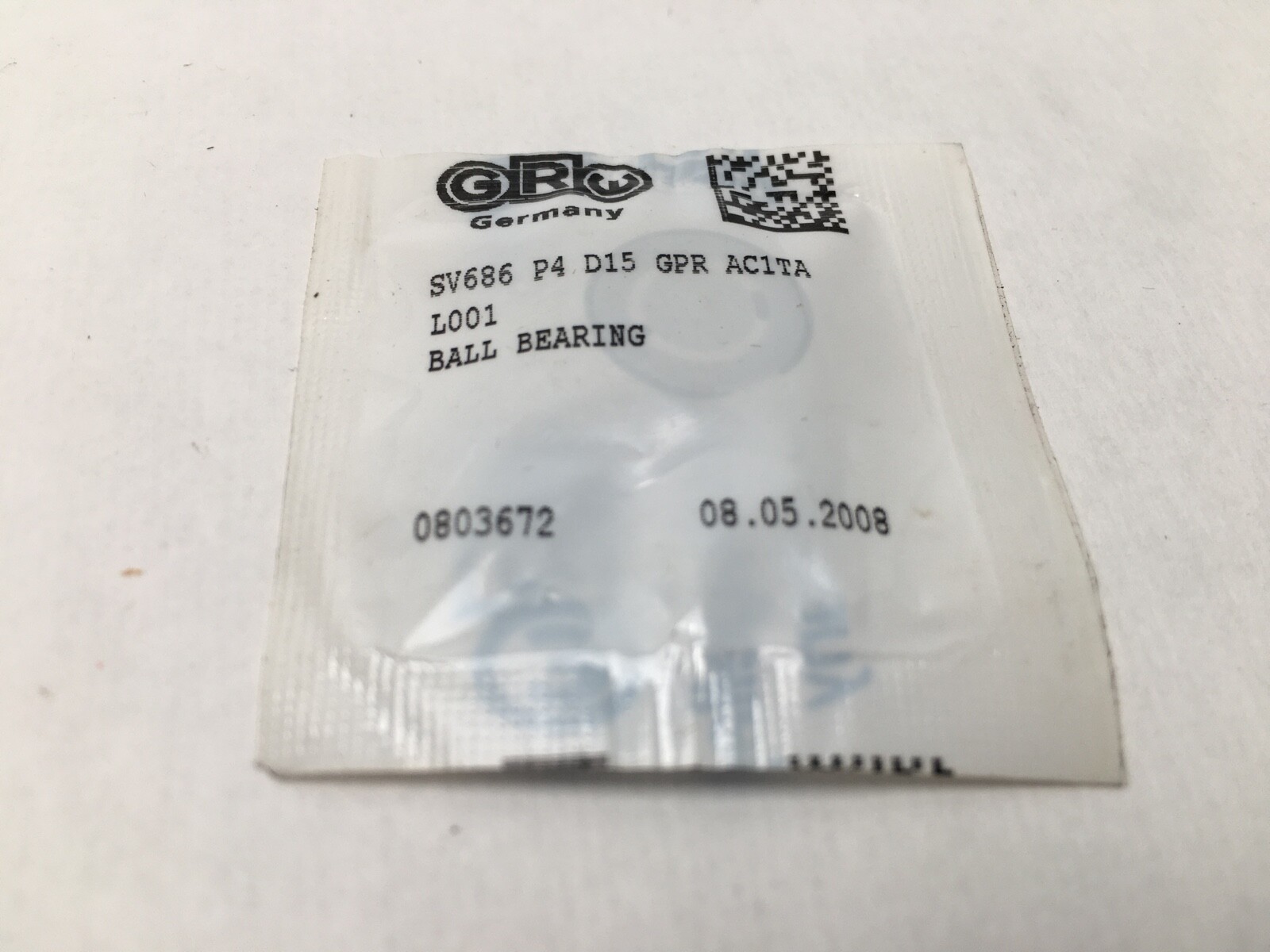

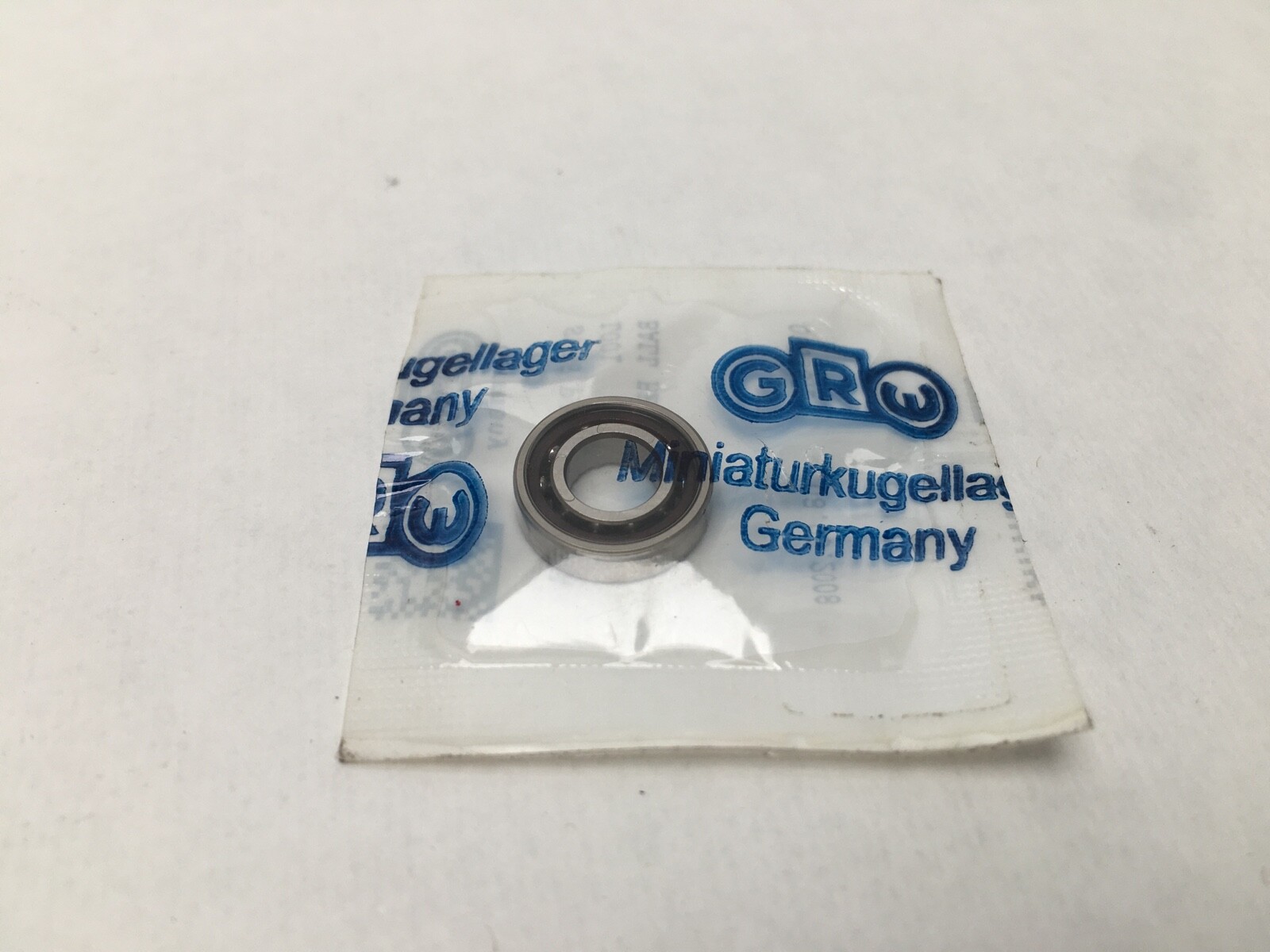

GRW SV686 angular contact spindle ball bearing, 6 mm bore, 13 mm OD, 3.5 mm width, 15 deg contact angle, P4 precision, corrosion-resistant SV steel rings.
List Price
$52.48
1 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | GRW |
|---|---|
| MPN | SV686 P4 D15 GPR AC1TA |
| Model | SV 686 P4 D15 |
| Bearing Type | Angular Contact Ball Bearing |
| ID | 6 mm |
| OD | 13 mm |
| Base Number | 686 |
|---|---|
| Industry Terms | spindle bearing, miniature angular contact bearing |
| Overall Width | 3.5 mm |
| Mpn Variants | SV686 P4 D15 GPR AC1TA, SV686, SV 686, SV686P4D15GPRAC1TA |
| Precision Class | ABEC 7 / P4 |
| Rolling Elements | Ball |
| Number Of Rows | 1 |
| Contact Angle | 15° |
| Bearing Material | X30CrMoN15-1 (SV) corrosion-resistant steel |
| Common Misspellings | GRW SV 686 P4; GWR SV686; GRW SV-686 P4 D15; GRW SV686P4D15 |
| Application Types | Miniature machine tool spindles; dental and laboratory handpieces; precision instrument spindles |
The GRW SV686 P4 D15 GPR AC1TA is a miniature angular contact spindle ball bearing from GRW. Envelope: 6 mm bore, 13 mm outside diameter, 3.5 mm width. The SV prefix marks rings of corrosion-resistant X30CrMoN15-1 steel, and the P4 class covers high-speed, low-runout spindle service.
SV — ring material X30CrMoN15-1, GRW corrosion-resistant high-nitrogen steel.
686 — basic size, 6 x 13 x 3.5 mm.
P4 — tolerance class P4 to DIN 620-2, equivalent to ABEC 7.
D15 — special contact angle, 15°.
Bearing Type: Angular Contact Ball Bearing. Rolling Elements: Ball. Number Of Rows: 1. Bore Diameter: 6 mm. Outside Diameter: 13 mm. Overall Width: 3.5 mm. Contact Angle: 15°. Precision Class: ABEC 7 / P4. Bearing Material: X30CrMoN15-1 (SV) corrosion-resistant steel. Closure Type: Open. Unit Quantity: 1 Pc.
Envelope: 6 x 13 x 3.5 mm. Single-row angular contact bearing carrying axial load in one direction.
Miniature spindle size 6 x 13 x 3.5 mm. Also written SV686, SV 686, SV686P4D15GPRAC1TA and SV 686 P 4 D15 GPR AC 1 TA.
6 mm bore, 13 mm outside diameter, 3.5 mm width.
SV marks rings made of X30CrMoN15-1, a corrosion-resistant high-nitrogen steel.
15°, given by the D15 code.
