GMNGMN S-6209-C-TXM-ABEC7-DULAngular Contact Ball Bearing – Straight Bore, 45 mm ID, 85 mm OD, 19 mm Width, Open, 15° Contact Angle, Light Preload.

Name: Angular Contact Ball Bearing - Straight Bore, 45 mm ID, 85 mm OD, 19 mm Width, Open, 15° Contact Angle, Light Preload.
Brand: GMN
SKU: AA3B1#VTCEFV
Price: 96.31 USD
Availability: InStock

Condition: New – Open box

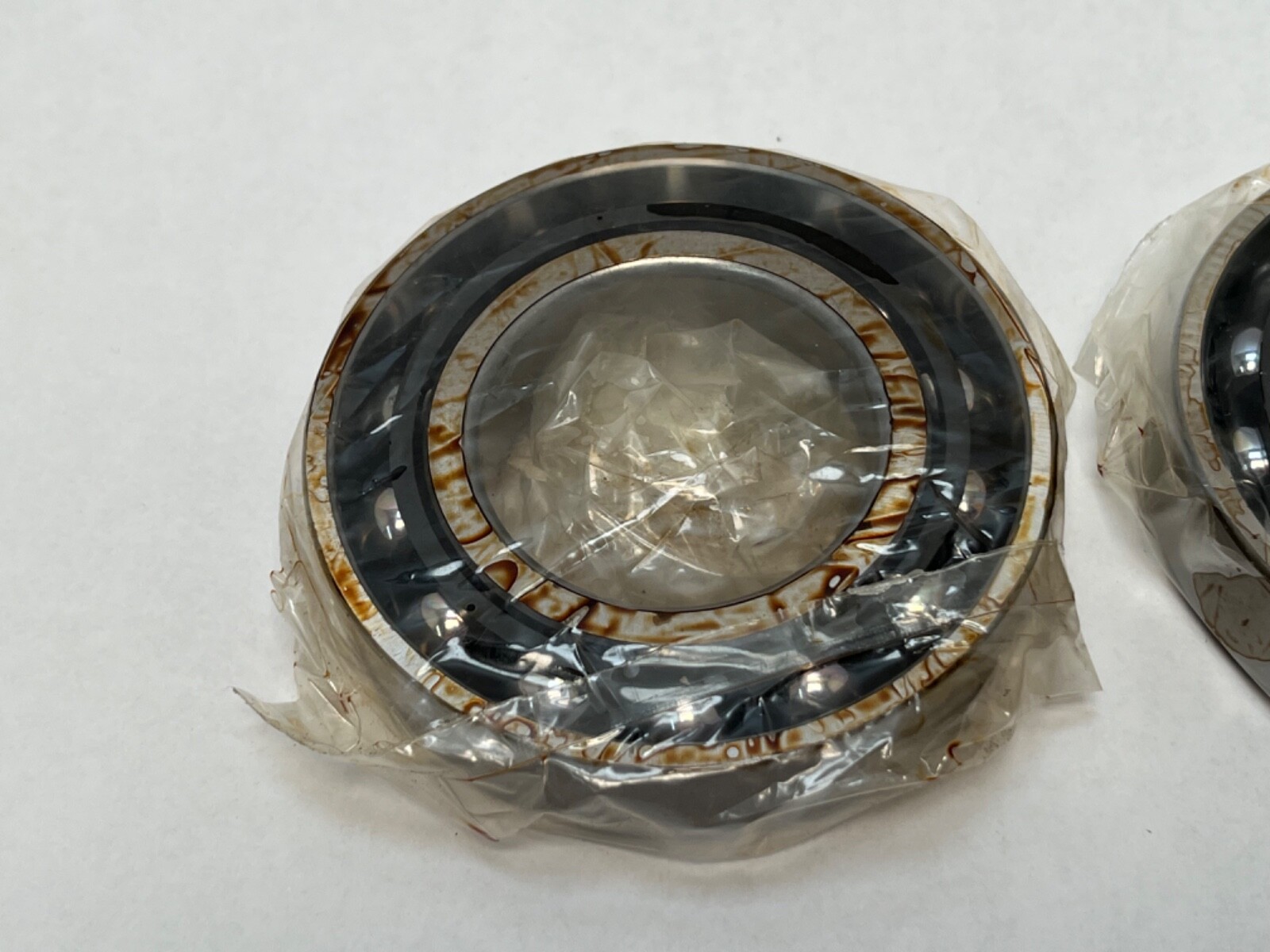

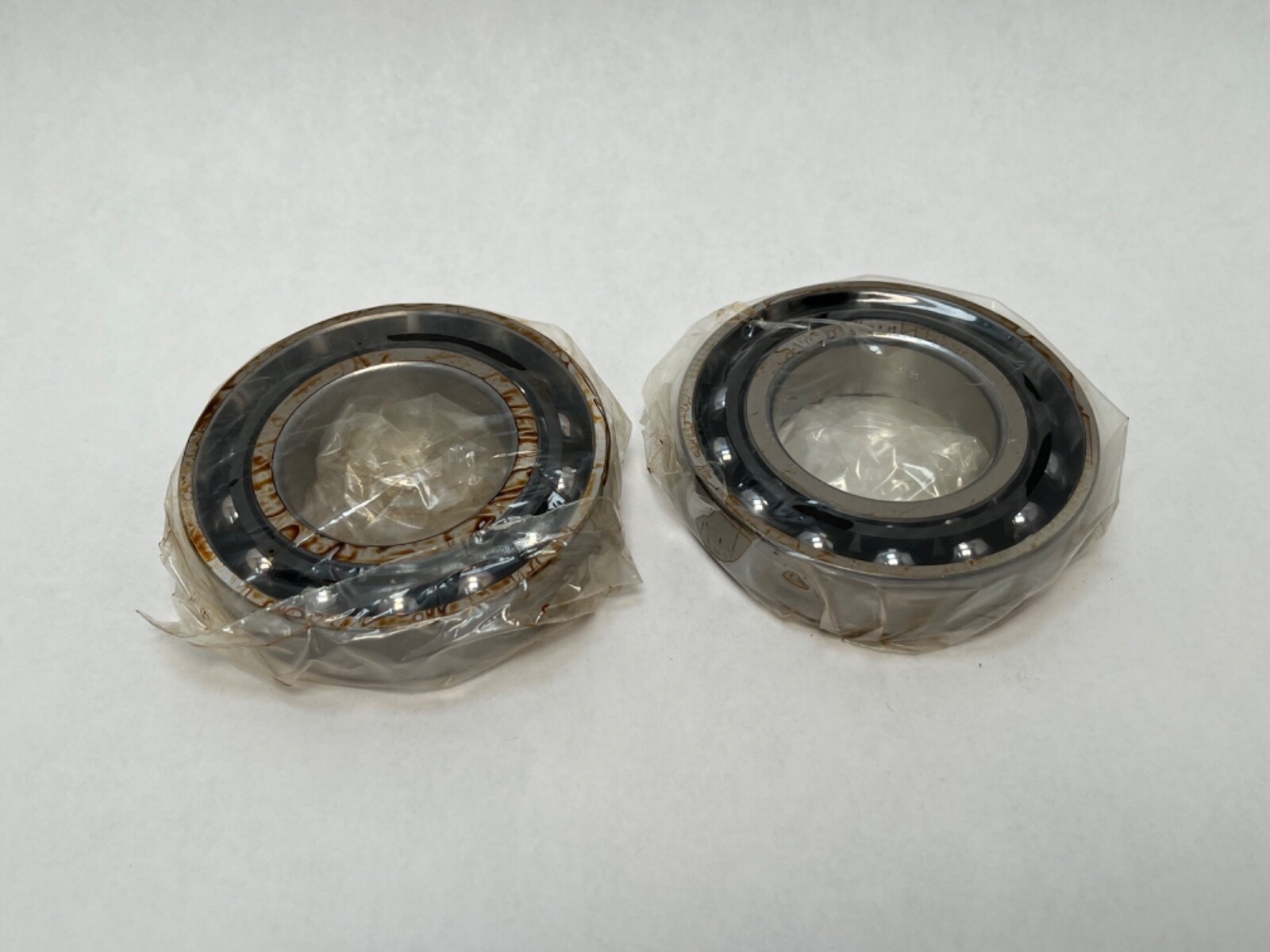

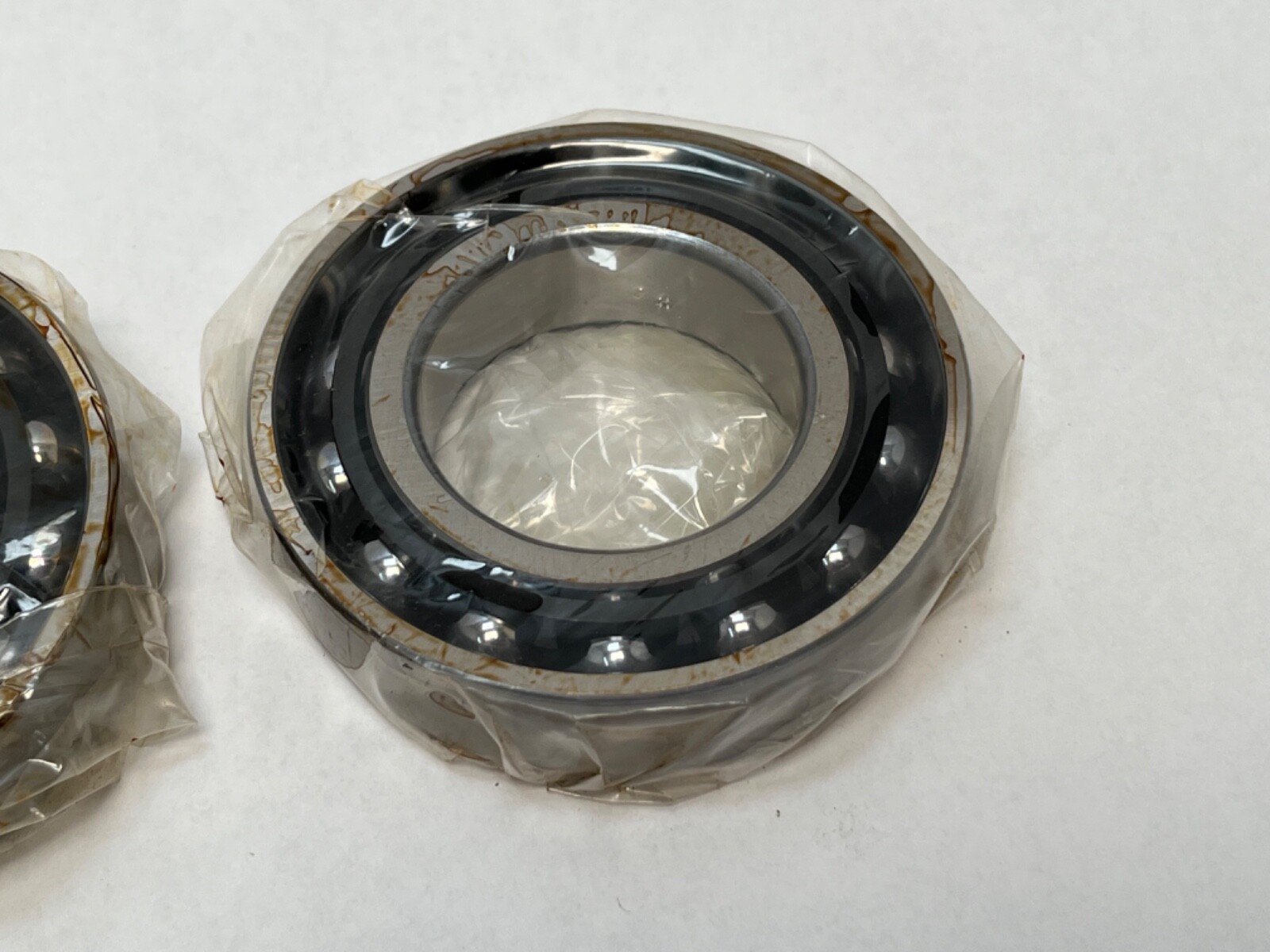

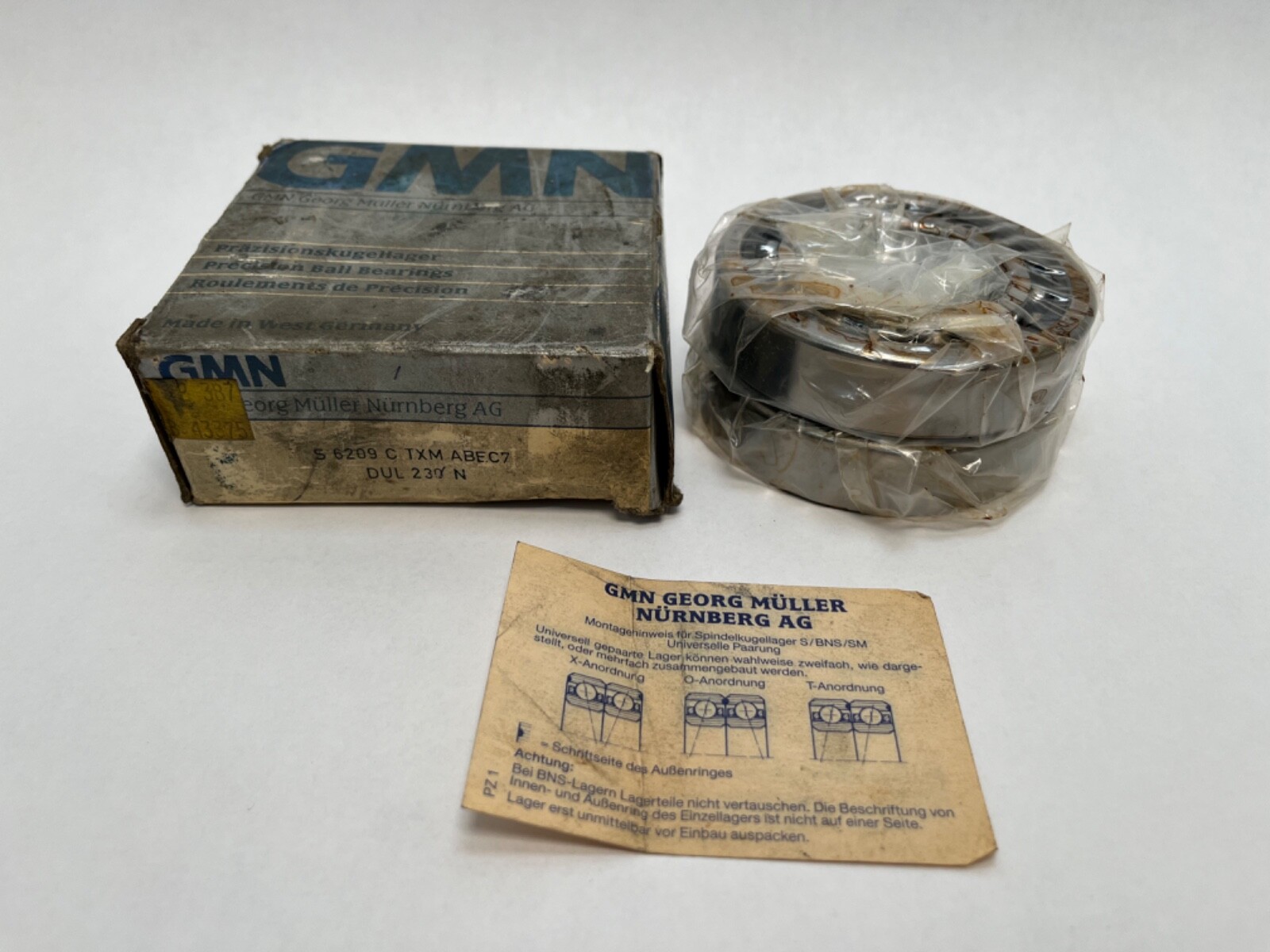

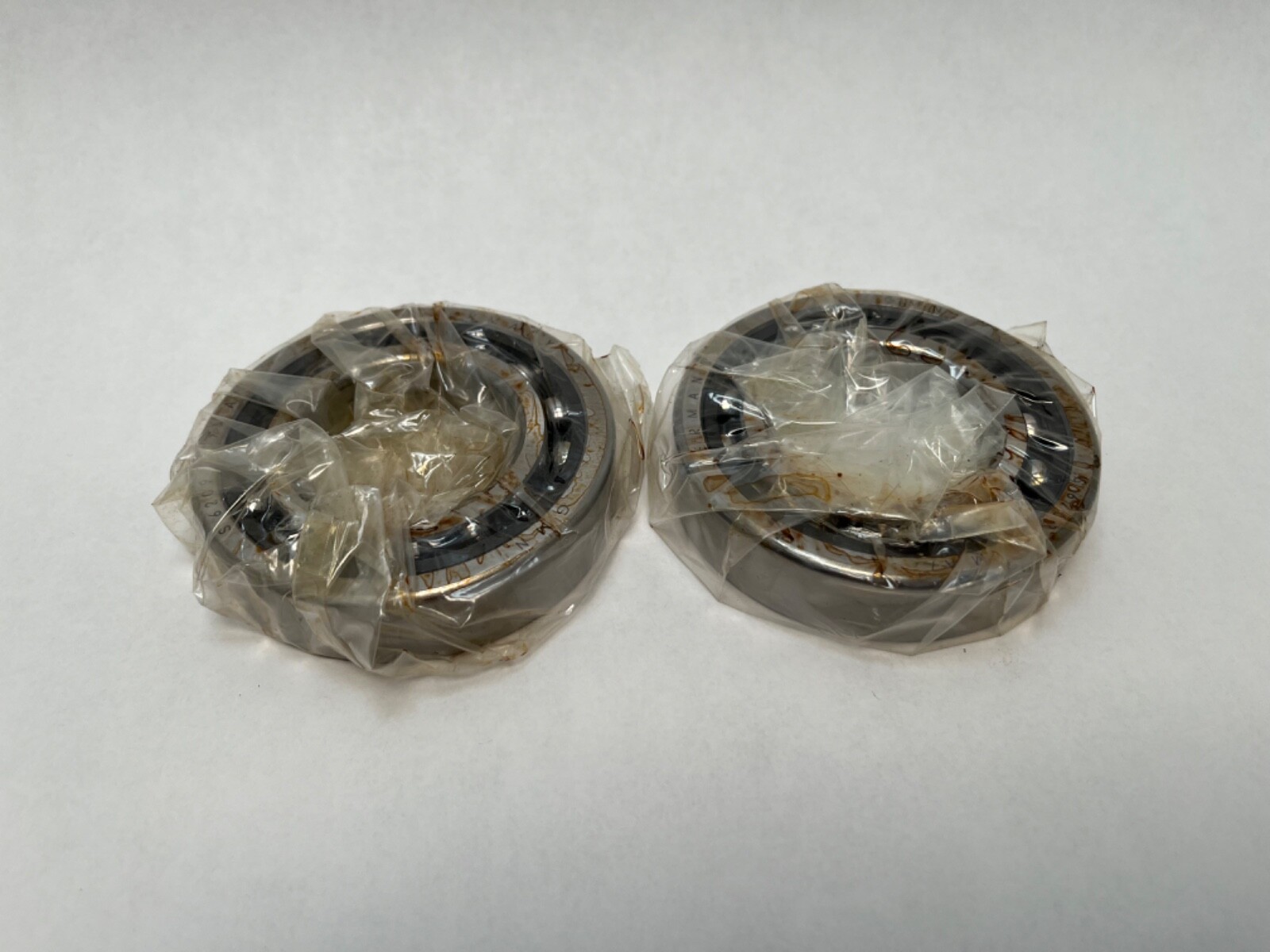

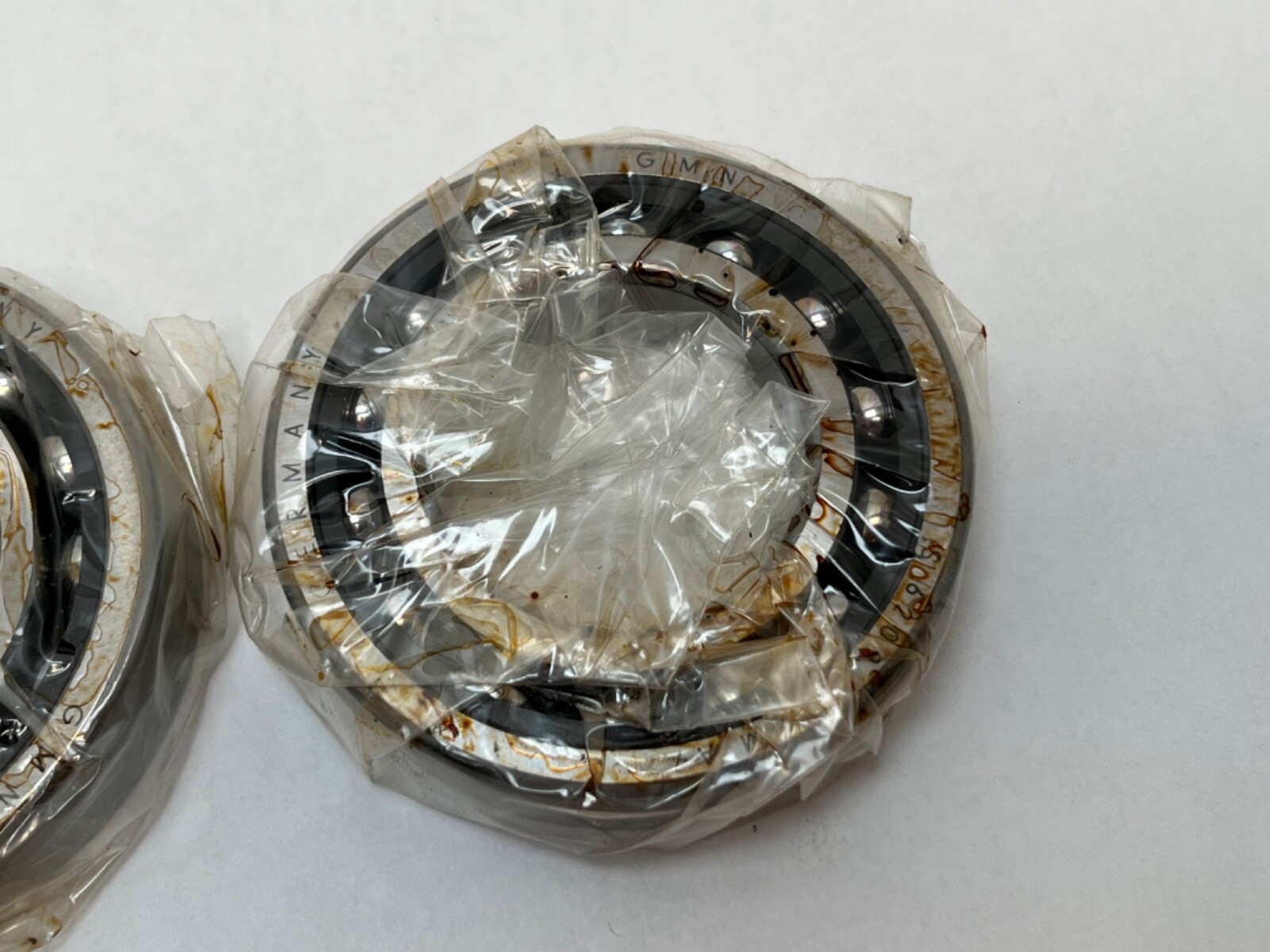

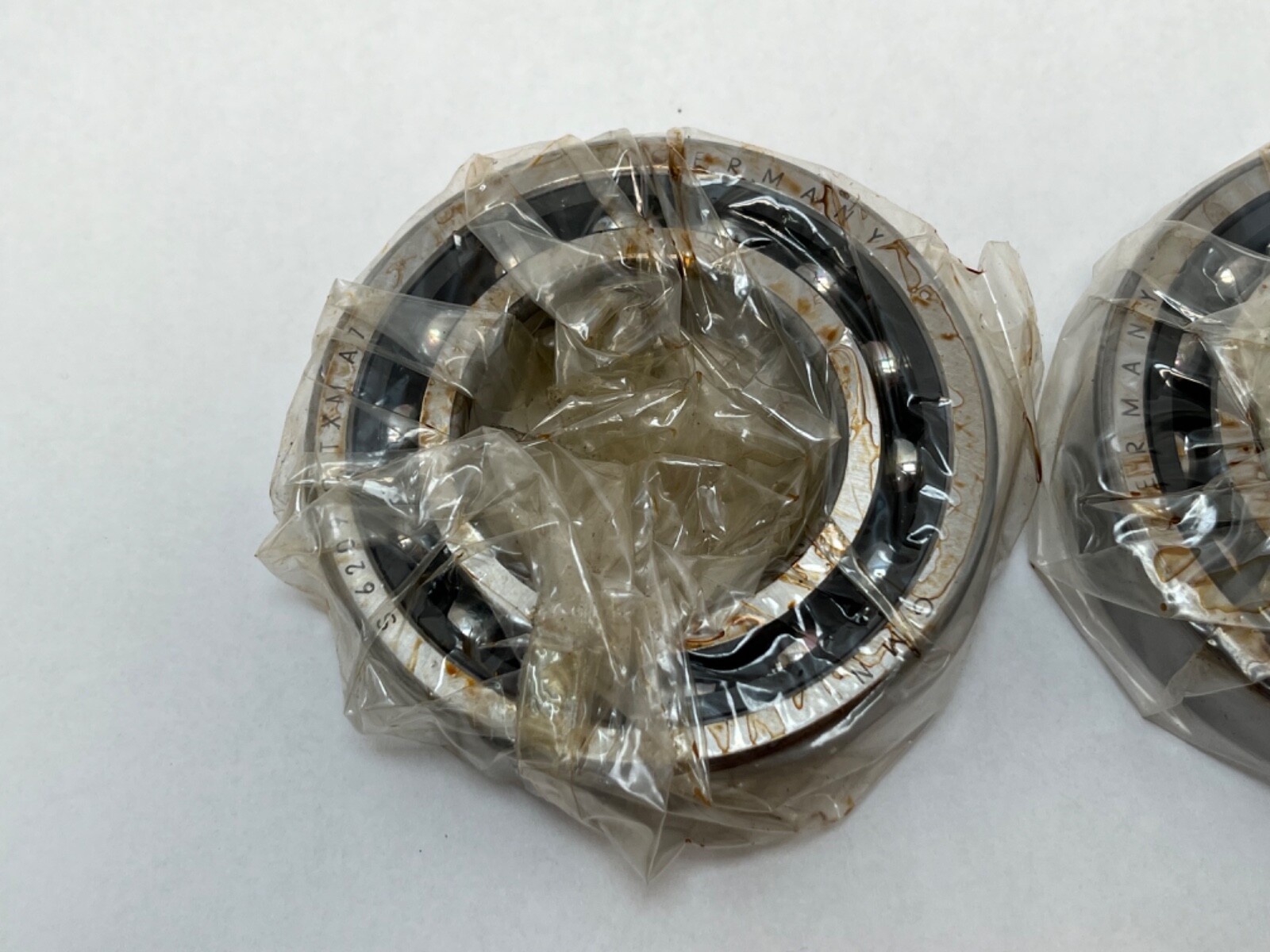

Condition Note: Made In Germany, New Old Stock, Dried Grease (Bearing May Need New Grease To Spin Freely)

Availability:

1 in stock

Categories: Bearings, Angular Contact Ball Bearing

List Price

$96.31

1 in stock

Also Available From:

Need Help?
Click Here To Contact Support

Specifications

Key Specifications

MFR / Brand	GMN
MPN	GMN S-6209-C-TXM-ABEC7-DUL
Model	S 6209 C TXM A7 DUL
Bearing Type	Angular Contact Ball Bearing, Open
ID	45 mm
OD	85 mm
Width	19 mm

Technical Specifications

Material	Bearing Steel
Series	S6200
Condition	New – Open box
Preload	Light
Condition Note	Made In Germany, New Old Stock, Dried Grease (Bearing May Need New Grease To Spin Freely)
Min Temp	-30°C
Cage Type	Phenolic
Dynamic Load Rating	35.1 kN
Static Load Rating	26 kN
Precision Rating	ABEC 7 / P4
Rolling Elements	Ball
Max Temp	120°C
Item Weight	0.90 lbs
Cage Material	Phenolic
Number Of Rows	1
Bore Type	Straight
Snap Ring Included	Without Snap Ring
Harmonization Code	8482.10.50.68
Contact Angle	15°
Mounting Arrangement	Universal

Cross-References

Cross Reference 1	SKF 7209 CD/P4ADGA
Cross Reference 2	FAG B7209-C-T-P4S-DUL
Cross Reference 3	NSK 7209CTYNDULP4
Cross Reference 4	7209CTPAP4UL

Seller Part Number: AA3B1#VTCEFV

Product Description

Introducing the GMN S-6209-C-TXM-ABEC7-DUL Bearing, a top-tier Angular Contact Ball Bearing meticulously engineered for exceptional performance in demanding applications. With optimized dimensions of 45x85x19 mm, this bearing is designed to support your engineering projects effectively and efficiently.

Key Features

Type: Angular Contact Ball Bearing
Material: Durable Steel construction ensures longevity and reliability
Bore Diameter: 45 mm
Outside Diameter: 85 mm
Width: 19 mm
Origin: Manufactured in Germany for top-notch quality

This versatile bearing is compatible with multiple cross-references including: 7209CTPAP4UL, 2MM209WI CR DUL, B 7209 C TPA P4 DUL, and 7209 C T DUL P4, making it an ideal choice for a variety of applications.

We understand the urgency of your projects; that is why we offer international shipping on all items, with same-day shipping available. For your convenience, we also provide combined shipping for multiple orders.

Should you need assistance in locating parts or require special pricing, do not hesitate to contact us. Our dedicated team is here to support you with all your bearing needs!
