FAGB7216-C-T-P4S-ULAngular Contact Ball Bearing — 80 mm ID, 140 mm OD, 26 mm Width, 15° Contact Angle, ABEC 7, Light Preload

Product Description

What this part is:

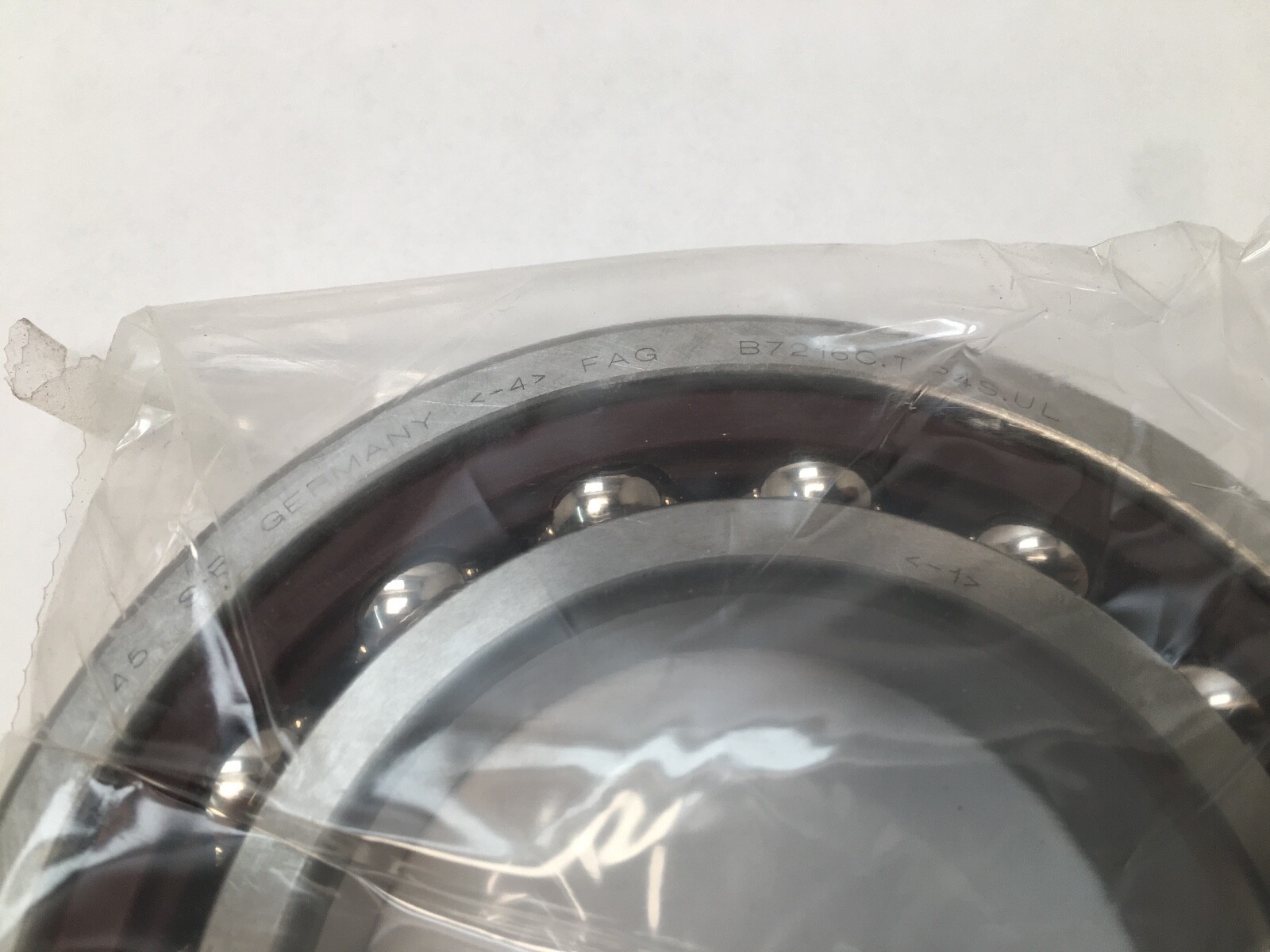

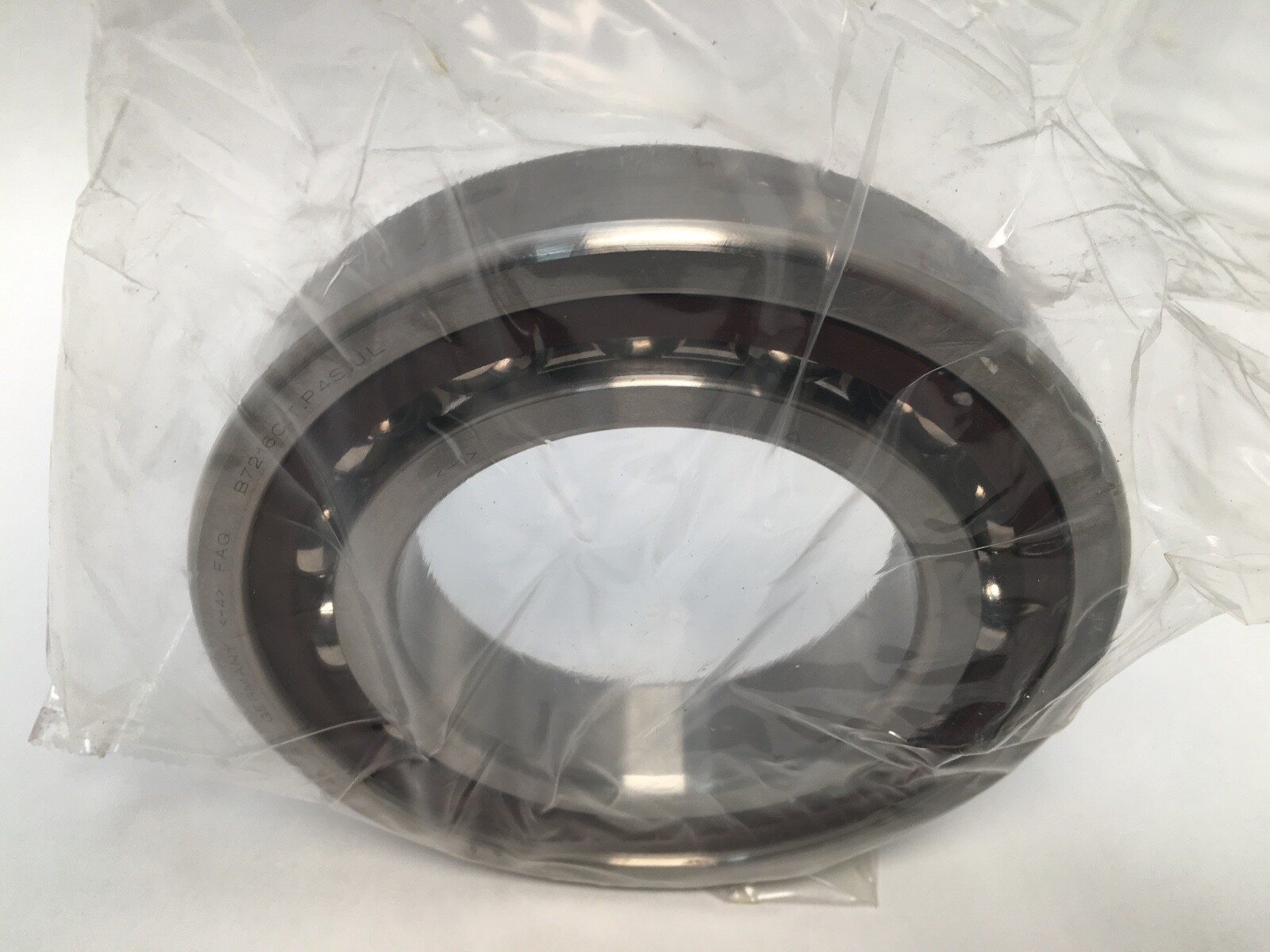

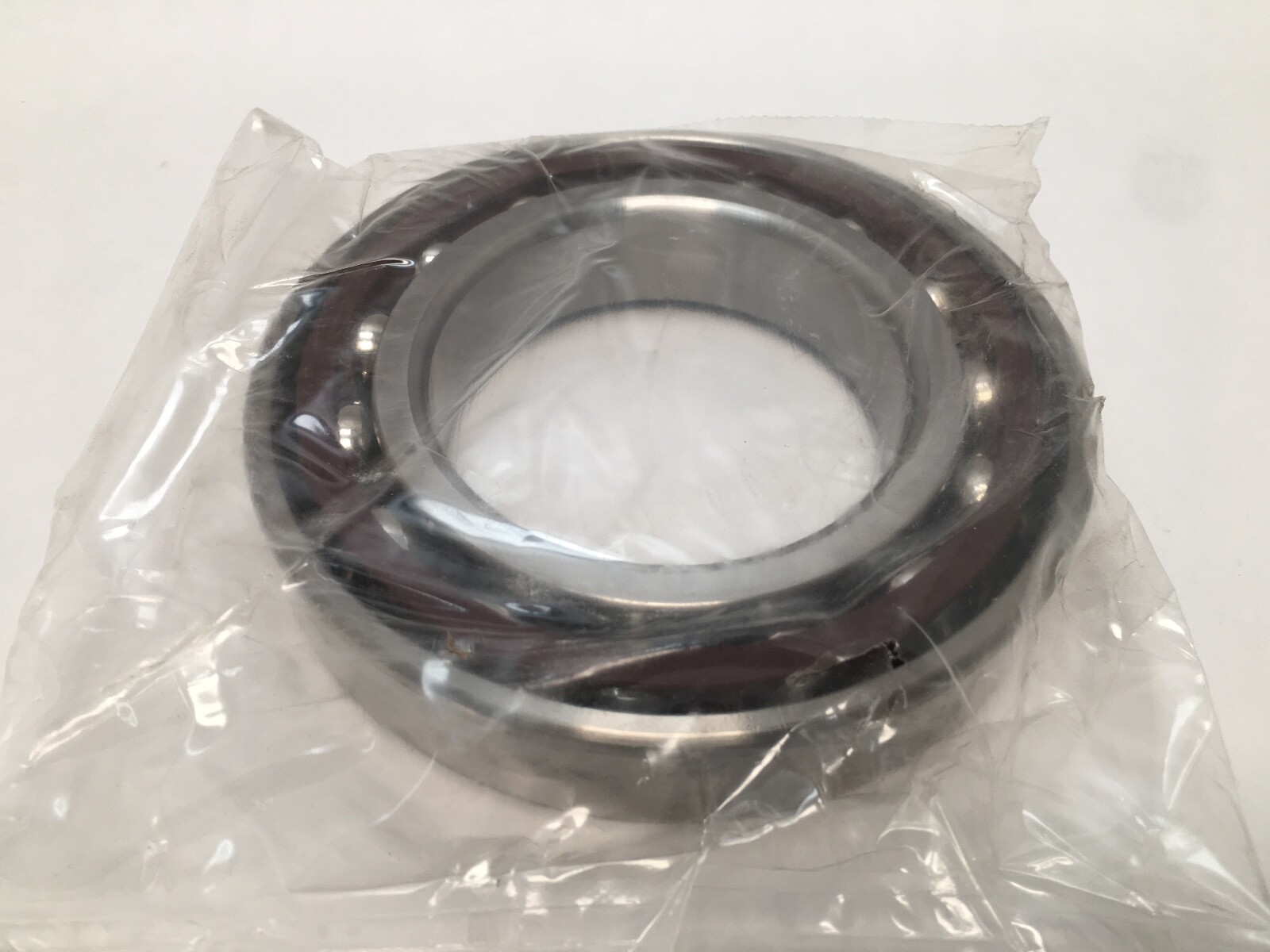

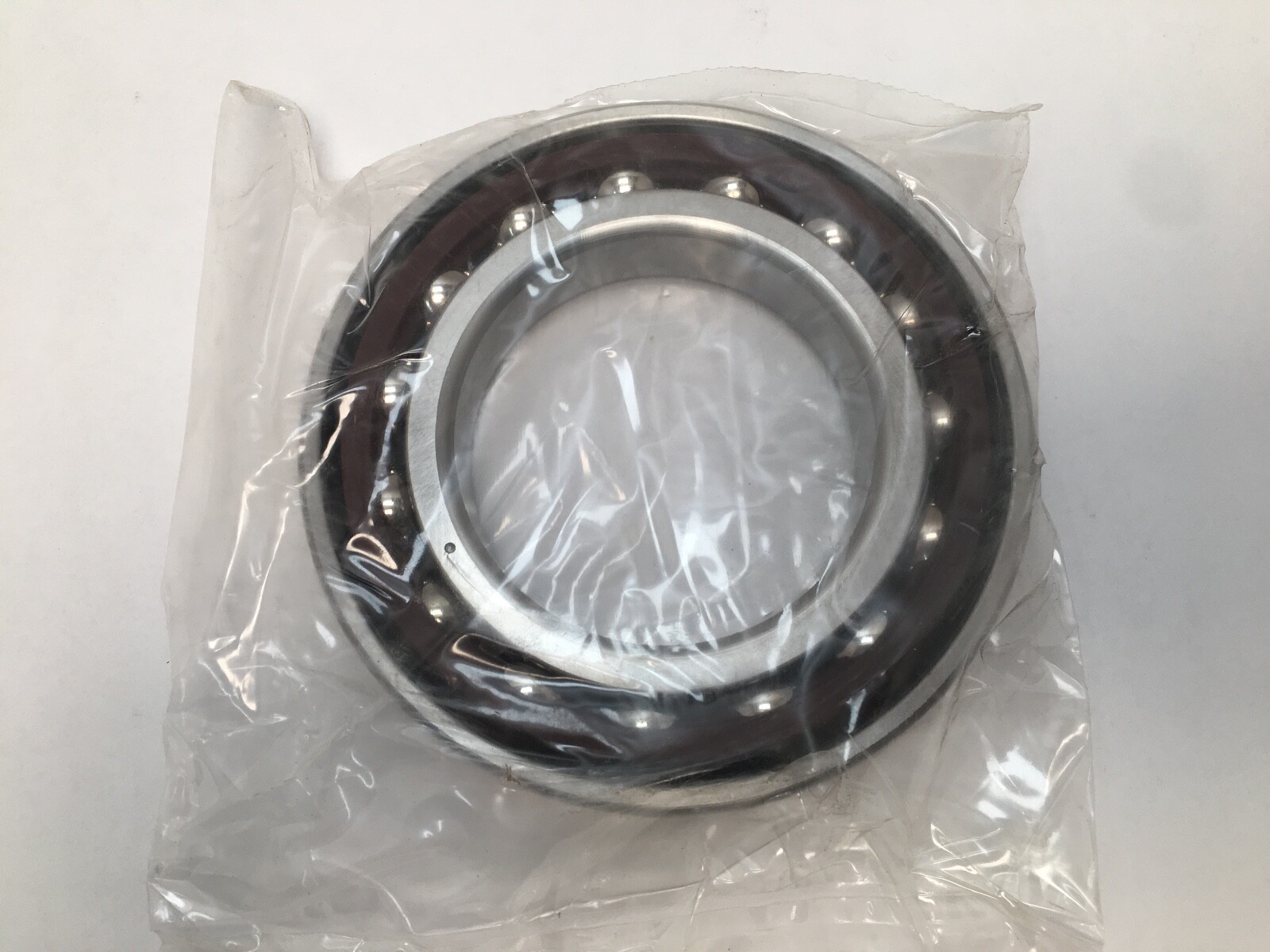

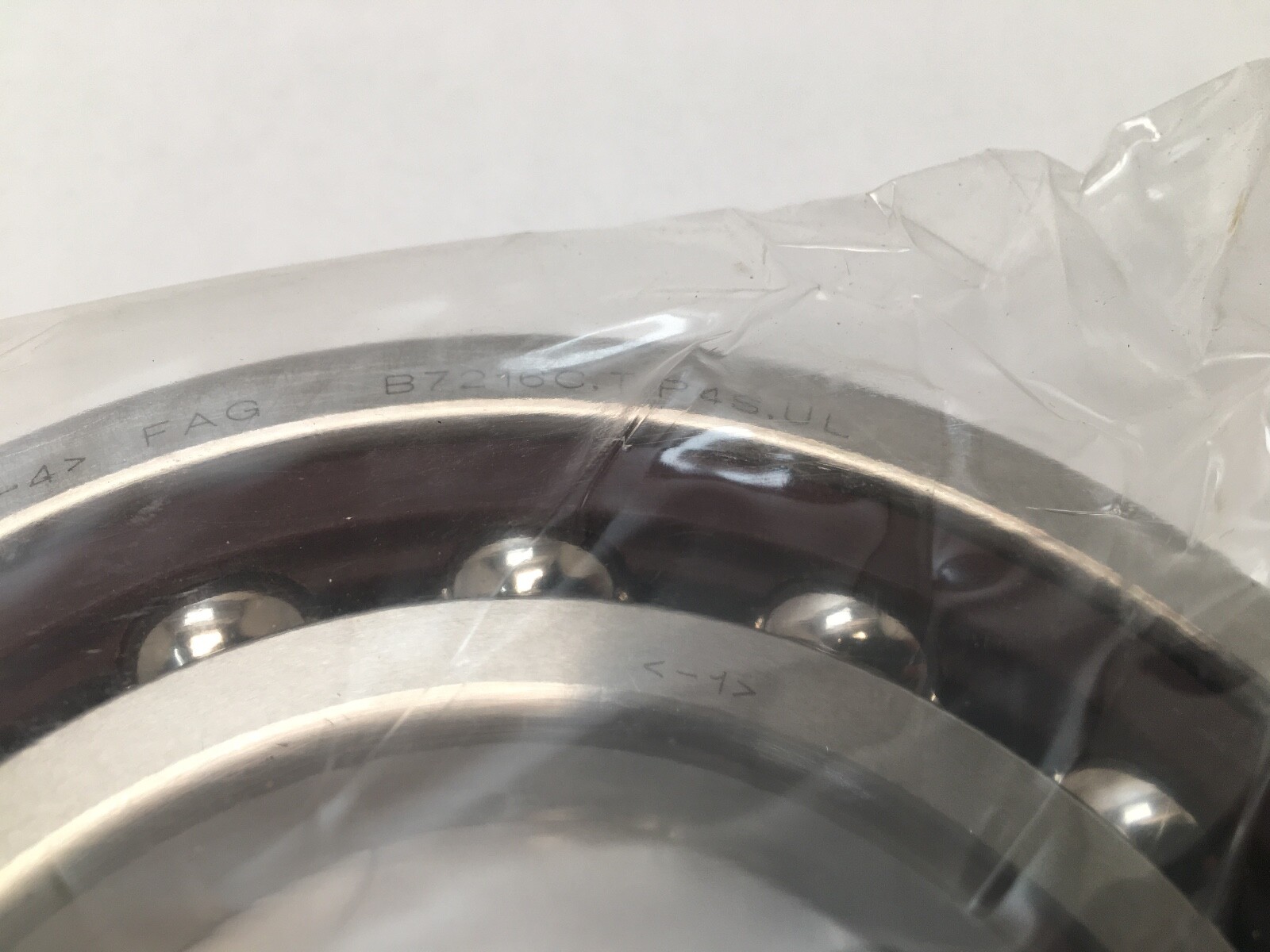

FAG B7216-C-T-P4S-UL (listed as 7216TGP4) single-row super-precision angular contact ball bearing, universal design, open, straight bore. 15° contact angle, ABEC 7 / P4, light preload, machined phenolic cage. Series B72. Unit Quantity: 1 Pc.

Decoding the designation:

7216 — ISO dimension series 02 angular contact (B72 range), bore code 16, 80 x 140 x 26 mm.

C — 15° contact angle.

TG — machined phenolic cage, outer-ring guided.

P4 — ISO tolerance class P4, equivalent to ABEC 7.

UL — universal design, light preload when mounted in any paired arrangement. Preload force: 549 N.

Specifications:

Bore Diameter: 80 mm. Outside Diameter: 140 mm. Overall Width: 26 mm. Contact Angle: 15°. Precision Class: ABEC 7 / P4. Preload: Light, 549 N. Cage Material: Phenolic. Cage Type: Machined. Rolling Elements: Ball. Number Of Rows: 1. Bore Type: Straight. Closure Type: Open. Series: B72. Country of Origin: Germany.

Dimensions and mounting:

Minimum Chamfer Dimension (r min): 2 mm. Maximum Fillet Radius (ra max): 2 mm. Shaft Shoulder Diameter (da): 91 mm. Housing Shoulder Diameter (Da): 129 mm. Pressure Centre Distance (a): 27.7 mm. Universal flush-ground faces allow the bearing to be paired back-to-back, face-to-face or in tandem with a defined light preload.

Compatibility and replacement:

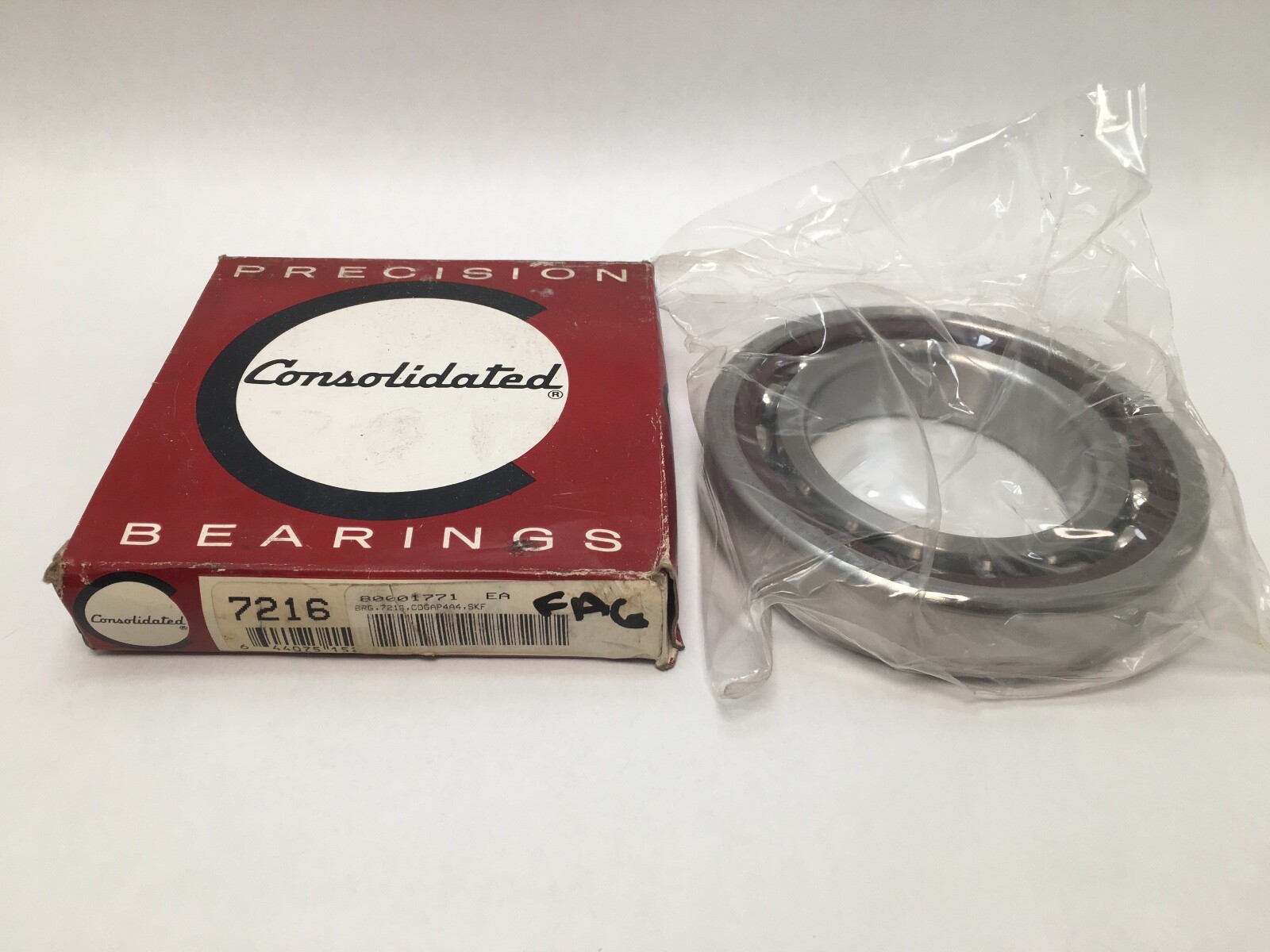

Same-envelope 15° ABEC 7 light-preload cross-references: SKF 7216 CD/P4ADGA, NSK 7216CTRSULP4, NTN 7216UCG/GLP4, Fafnir 2MM216WI SUL, Koyo 7216C P4. Also written 7216TGP4, 7216-TG-P4, B7216-C-T-P4S-UL, B7216C, 7216C and Consolidated 7216TGP4.

Frequently asked questions:

What size is the FAG 7216TGP4?

Bore 80 mm, outside diameter 140 mm, width 26 mm.

What contact angle and preload does it have?

15° contact angle with a light preload force of 549 N.

What does the UL suffix mean?

Universal design with light preload when mounted in any paired arrangement.
